6-47 — MUD GUARD AND INSULATOR (#124228) — 139 parça

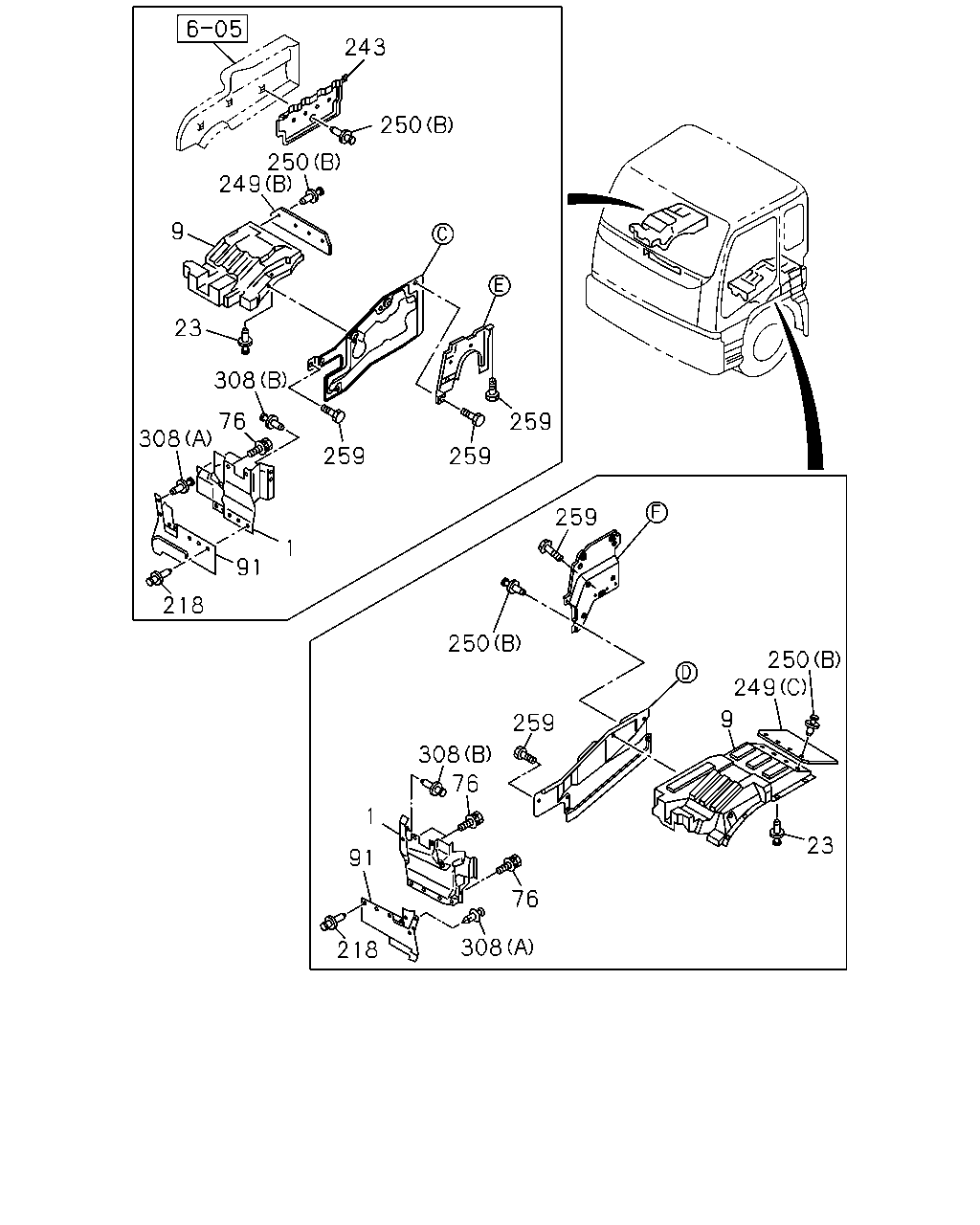

çizim 364980
243 250 250 249 9 23 308 76 308 259 259 259 1 91 218 259 250 250 249 9 23 259 308 76 1 91 76 308 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1306-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1306-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1306-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1306-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1306-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1306-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1306-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1306-
91 COVER; MUD,FRT 8-98134-826-2 01 1 1306-
91 COVER; MUD,FRT 8-98134-825-2 01 1 1306-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1306-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1306-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1306-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1306-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1306-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1306-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 1306-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1306-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1306-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1306-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 1306-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1306-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1306-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1306-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1306-
çizim 364981
130 130 281 185 249 185 167 162 122 160 122 167 160 167
BalonParca AdiParca NoAdetTipApplied Date
122 BOLT
M8X30 FLANGE 		0-28650-830-0 04 1 1306-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1306-
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1306-
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1306-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1306-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 1306-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1306-
160 COVER ASM; EXH
(A) 		1-79931-418-1 01 1 1306-
160 COVER ASM; EXH
(B) 		8-98046-699-0 01 1 1306-
162 BRACKET
(A) 		1-53441-520-0 02 1 1306-
162 BRACKET
(B) 		1-53441-552-1 01 1 1306-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1306-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 1306-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 25 1 1306-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1306-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1306-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1306-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1306-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 1306-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1306-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1306-
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1306-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1306-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (C) 		1-73237-931-0 01 1 1306-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1306-

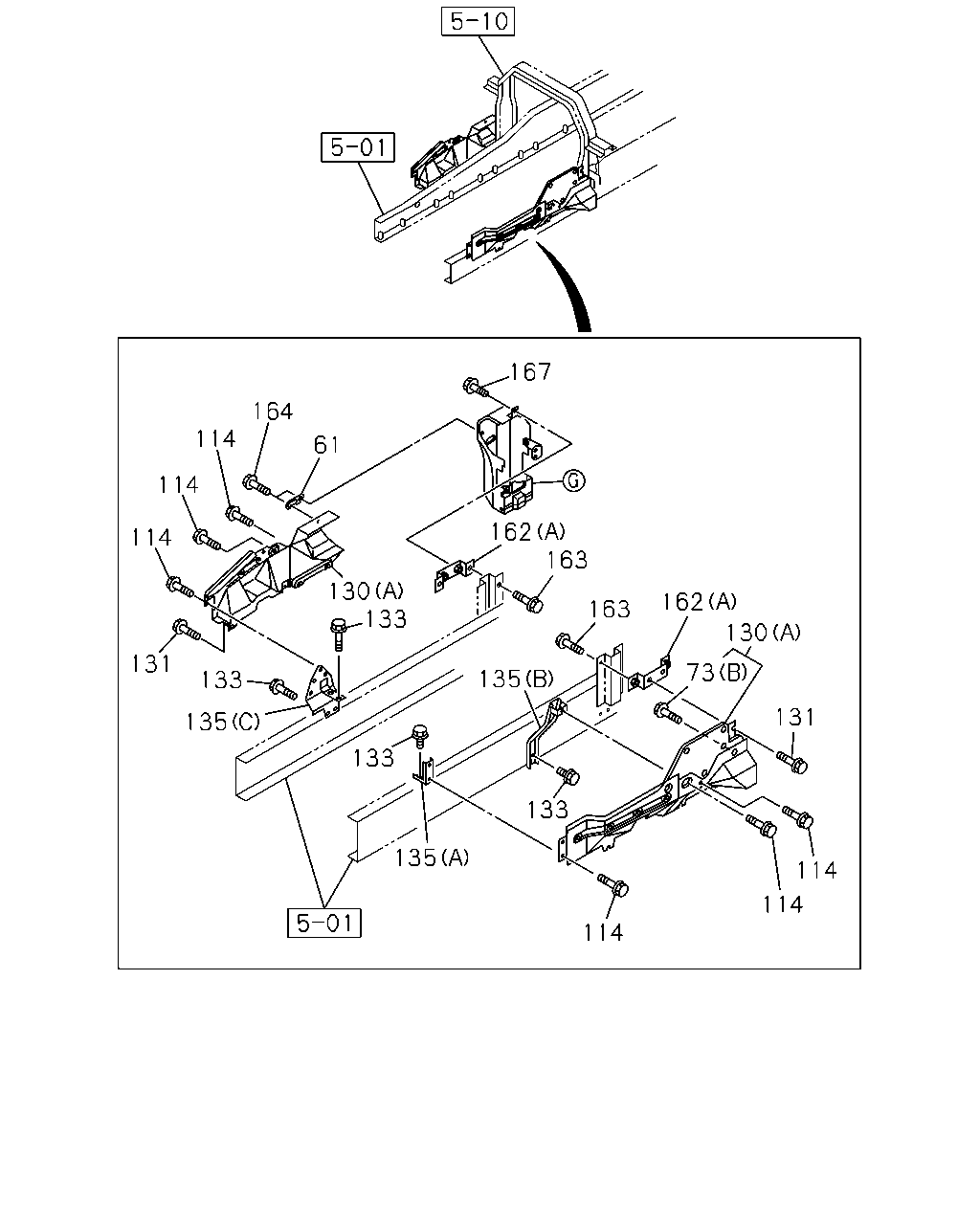

çizim 365081
167 162 163 163 162 130 73 131 114 114 114 133 135 135 133 133 130 61 164 114 114 114 131 133 135
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 8-98039-501-1 01 1 1306-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1306-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1306-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1306-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 1306-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1306-
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1306-
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1306-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1306-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 1306-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1306-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1306-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
133 BOLT; FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
133 BOLT; FRAME
SMOOTHER-G(C1W) M10X35 FLANGE 		0-28651-035-0 01 1 1306-
133 BOLT; FRAME
SMOOTHER-G(C1W) M14X45 FLANGE 		0-28851-445-0 01 1 1306-
135 BRACKET; SIDE PANEL
(B) 		1-53441-598-1 01 1 1306-
135 BRACKET; SIDE PANEL
(A) 		8-98225-728-0 01 1 1306-
135 BRACKET; SIDE PANEL
SMOOTHER-G(C1W) (C) 		8-98216-394-1 01 1 1306-
135 BRACKET; SIDE PANEL
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		8-98216-298-1 01 1 1306-
162 BRACKET
(A) 		1-53441-520-0 02 1 1306-
162 BRACKET
(B) 		1-53441-552-1 01 1 1306-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 1306-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
çizim 365541
130 281 185 249 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1306-
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1306-
130 PANEL; SHUTTER NOISE
(A) 		8-98240-672-0 01 1 1306-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 1306-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 1306-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1306-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1306-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 1306-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 25 1 1306-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1306-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1306-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1306-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1306-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 1306-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1306-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1306-
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1306-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1306-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (C) 		1-73237-931-0 01 1 1306-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1306-

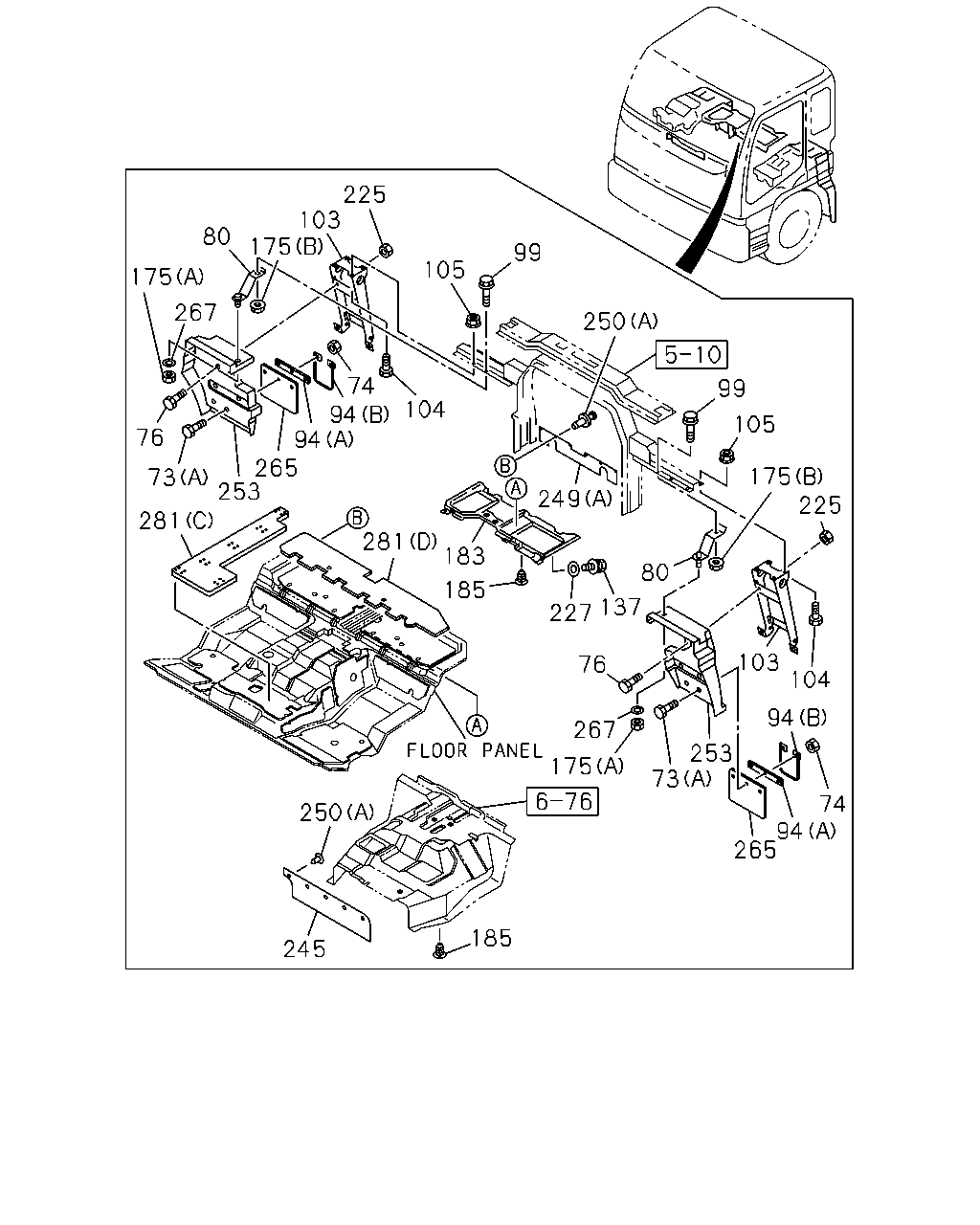

çizim 366042
99 250 99 175 105 225 103 104 94 74 94 265 185 73 250 245 175 267 253 76 80 137 227 249 185 281 183 265 253 281 94 104 74 94 105 225 103 175 80 267 175 76 73
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1306-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1306-
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1306-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1306-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1306-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1306-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1306-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 1306-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 1306-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1306-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 02 1 1306-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 02 1 1503-
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1306-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1306-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1306-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1306-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1306-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 1306-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1306-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 1306-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 25 1 1306-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1306-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1306-
245 RUBBER; SHUTTER,RAD 8-98227-395-0 01 1 1306-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1306-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1306-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1306-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1306-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 1306-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1306-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1306-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1306-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 1306-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1306-
253 GUARD; MUD 8-98134-766-1 01 1 1306-
253 GUARD; MUD 8-98134-759-0 01 1 1306-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 1306-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1306-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1306-
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1306-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1306-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (C) 		1-73237-931-0 01 1 1306-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1306-
