Isuzu WW
▶
TRUCKS
▶
CYH
▶
11524 - CYH RHD EURO2
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

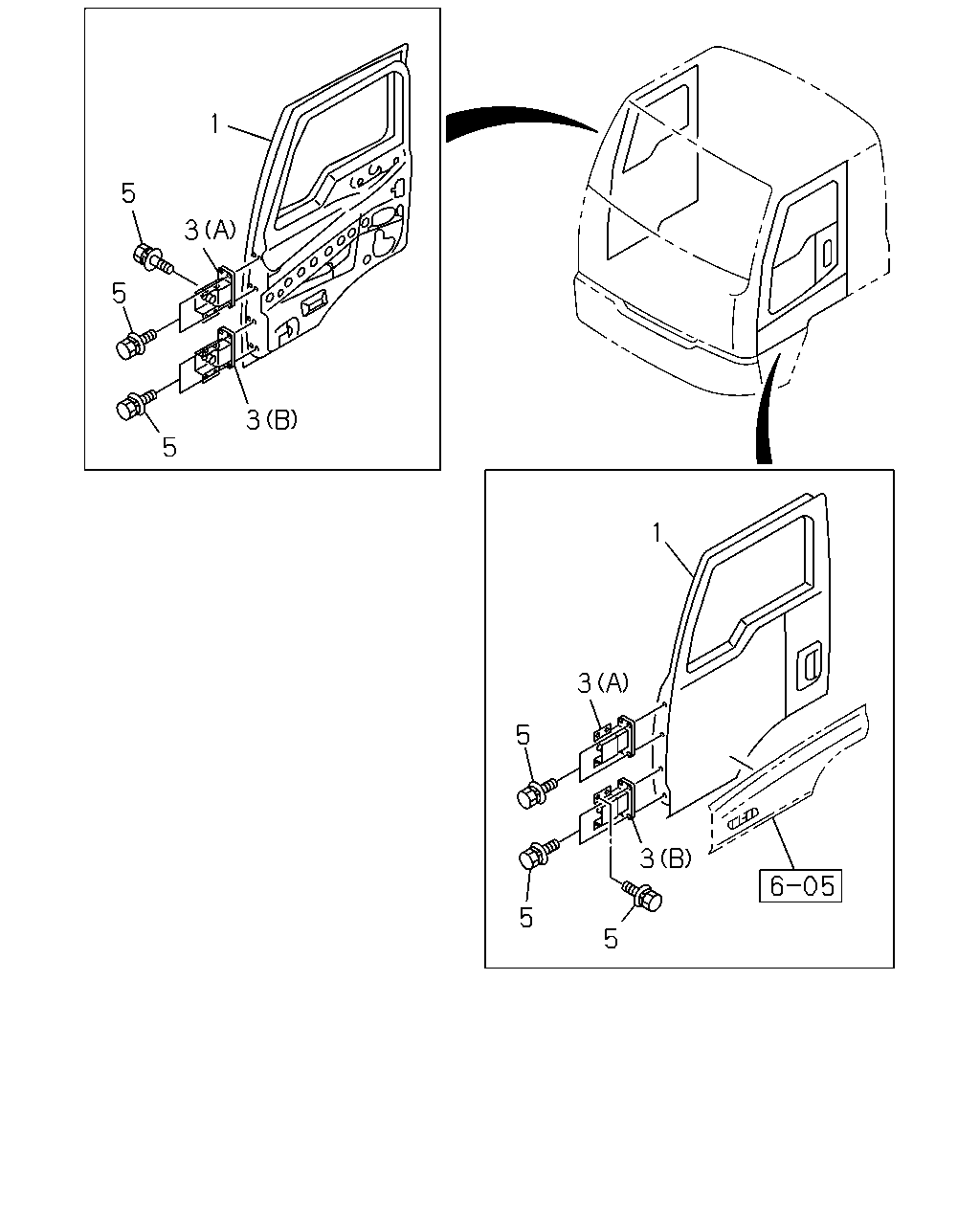

6-30 — FRONT DOOR AND HINGE
(#124222) — 14 parça
1
3
3
5
5
5
1
5
5
5
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
PAPUA NEW GUINEA EQUIPMENT(PV5)
1-64080-392-2
01
1
1306-
1
DOOR ASM; FRT,WO/TRIM
PAPUA NEW GUINEA EQUIPMENT(PV5)
1-64080-390-2
01
1
1306-
1
DOOR ASM; FRT,WO/TRIM
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5)
8-97632-566-0
01
1
1306-
1
DOOR ASM; FRT,WO/TRIM
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5)
8-97632-565-0
01
1
1306-
3
HINGE; DOOR FRT
PAPUA NEW GUINEA EQUIPMENT(PV5) (A) UPPER
1-64780-097-1
01
1
1306-
3
HINGE; DOOR FRT
PAPUA NEW GUINEA EQUIPMENT(PV5) (B) LOWER
1-64780-098-2
01
1
1306-
3
HINGE; DOOR FRT
PAPUA NEW GUINEA EQUIPMENT(PV5) (A) UPPER
1-64780-088-3
01
1
1306-
3
HINGE; DOOR FRT
PAPUA NEW GUINEA EQUIPMENT(PV5) (B) LOWER
1-64780-089-4
01
1
1306-
3
HINGE; DOOR FRT
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5) (A) UPPER
1-64780-088-3
02
1
1306-
3
HINGE; DOOR FRT
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5) (B) LOWER
1-64780-089-4
02
1
1306-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
1306-
5
BOLT; HINGE
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5) M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
1306-
5
BOLT; HINGE
PAPUA NEW GUINEA EQUIPMENT(PV5) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
1306-
5
BOLT; HINGE
PAPUA NEW GUINEA EQUIPMENT(PV5) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
1306-
