6-05 — FRONT PANEL
(#124219) — 177 parça
◀

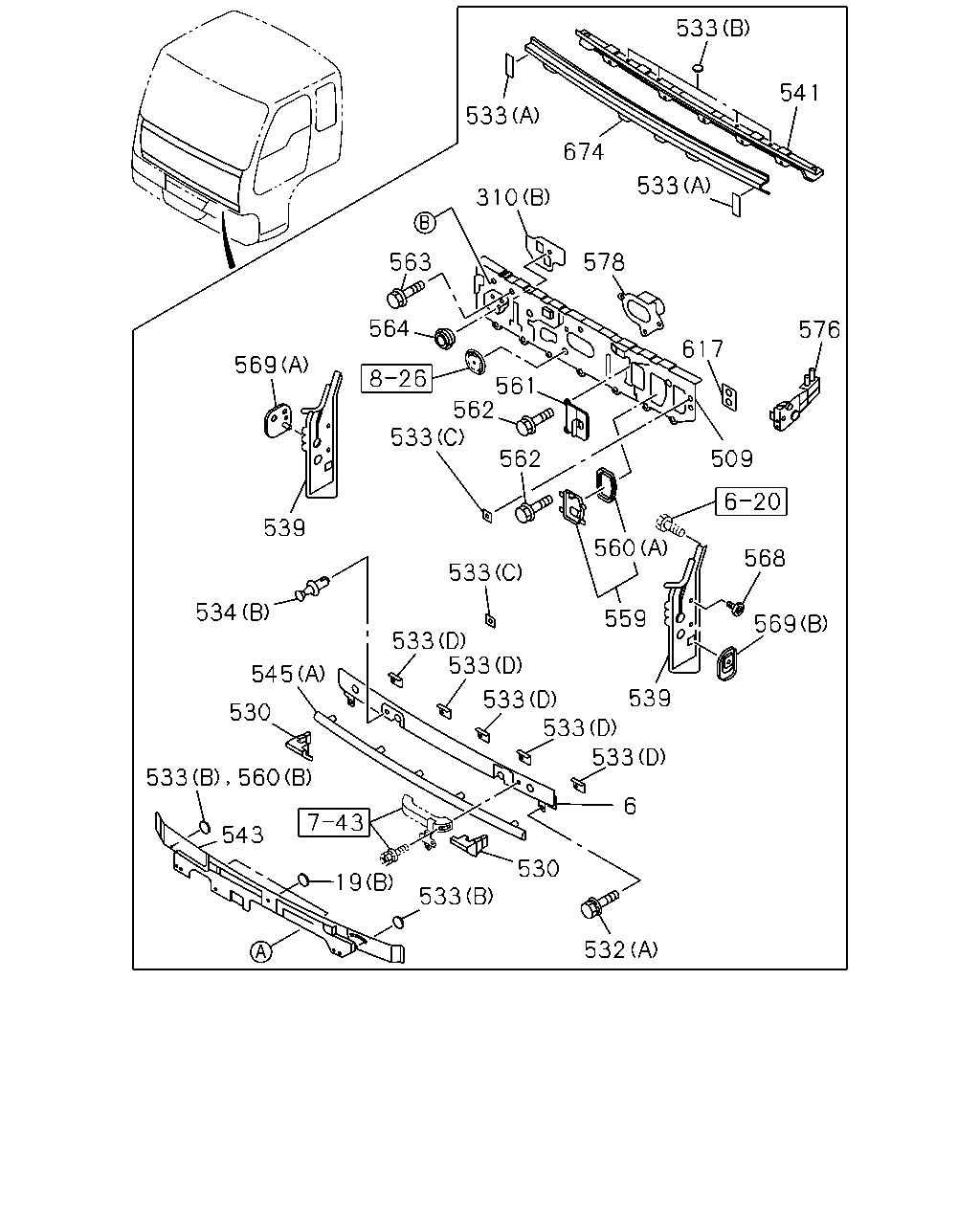

[605A] DASH PANEL (47 parça)

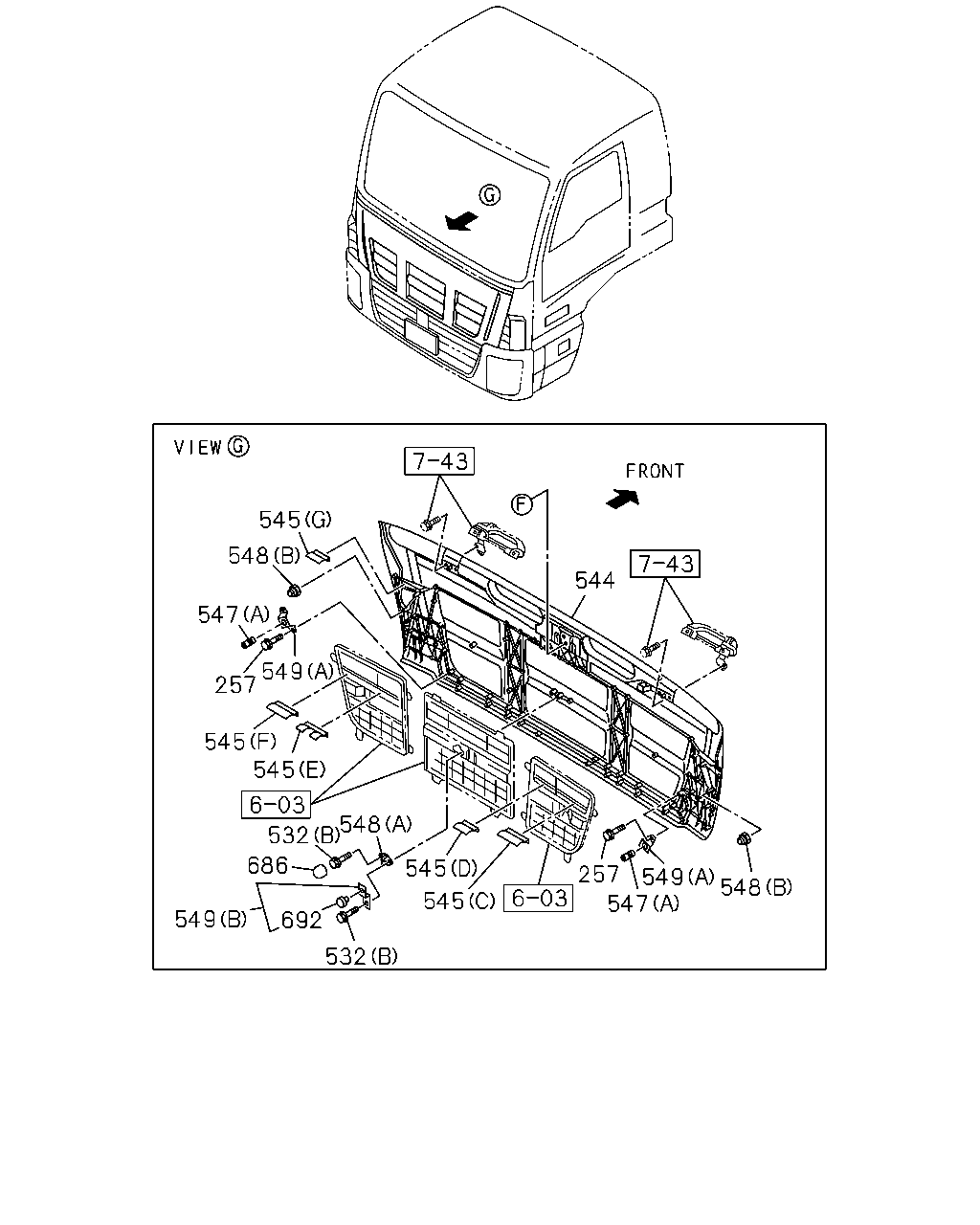

[605A] FRONT LID (20 parça)

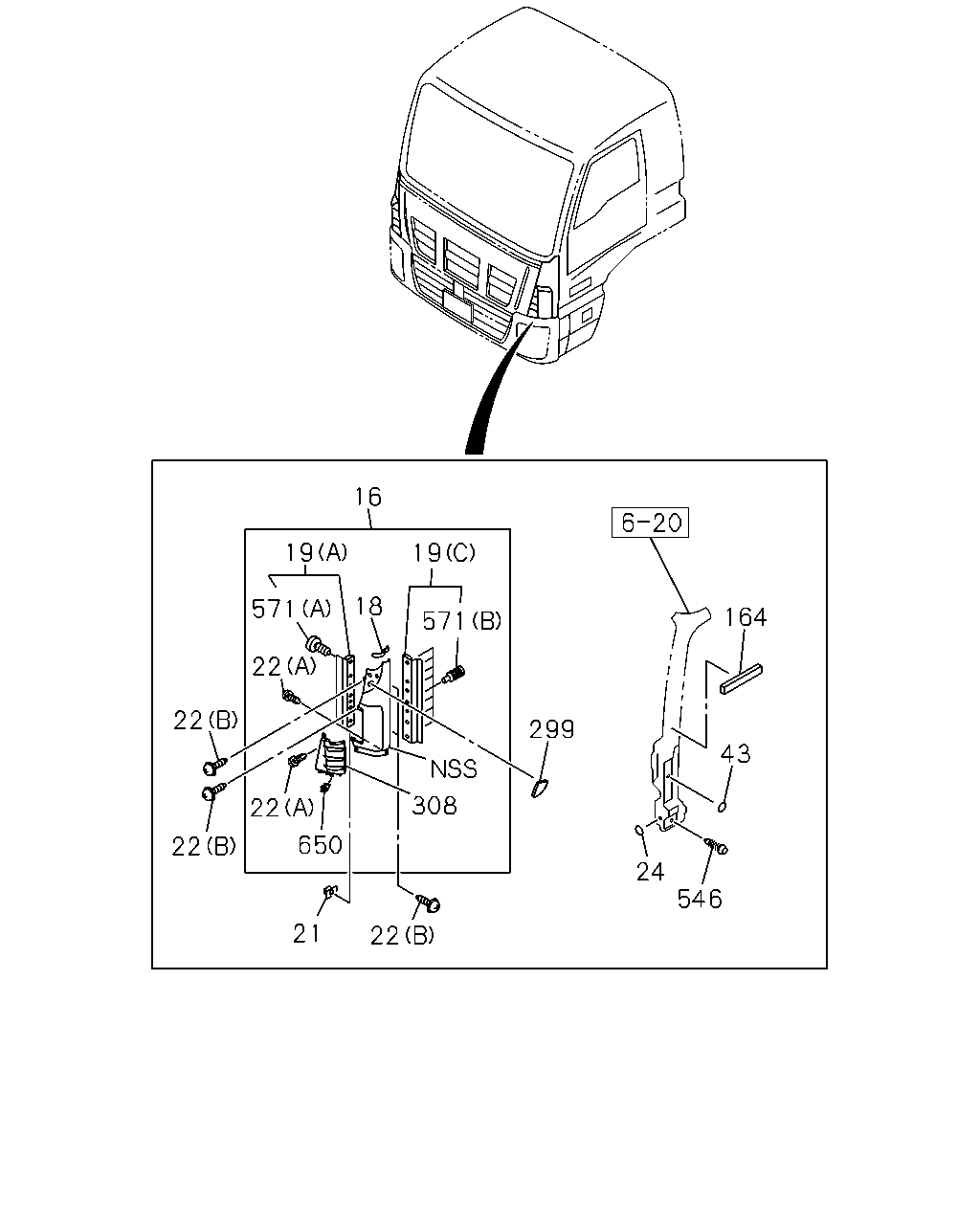

[605A] FRONT SIDE PANEL (32 parça)

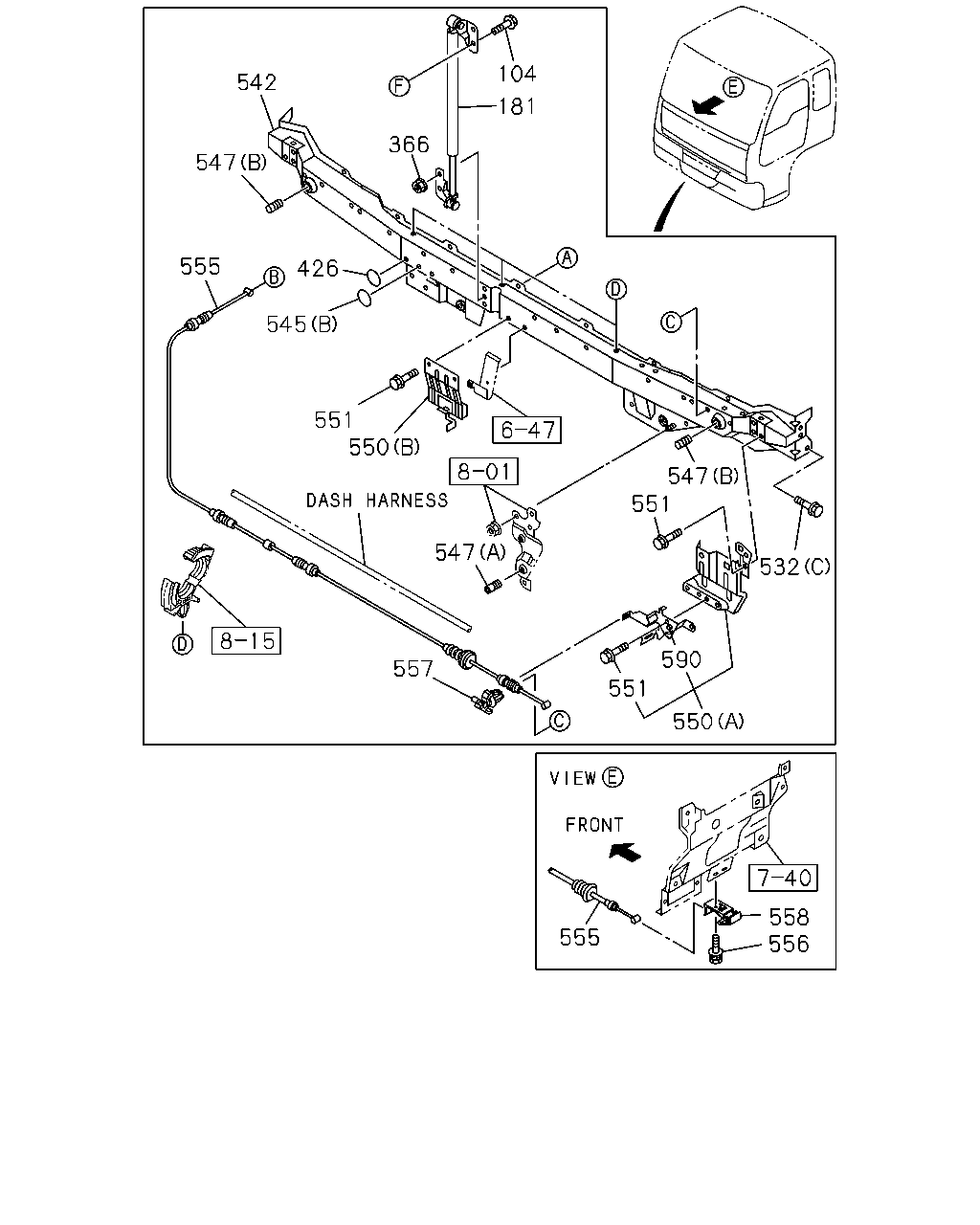

[605A] LID LOCK AND CABLE (29 parça)

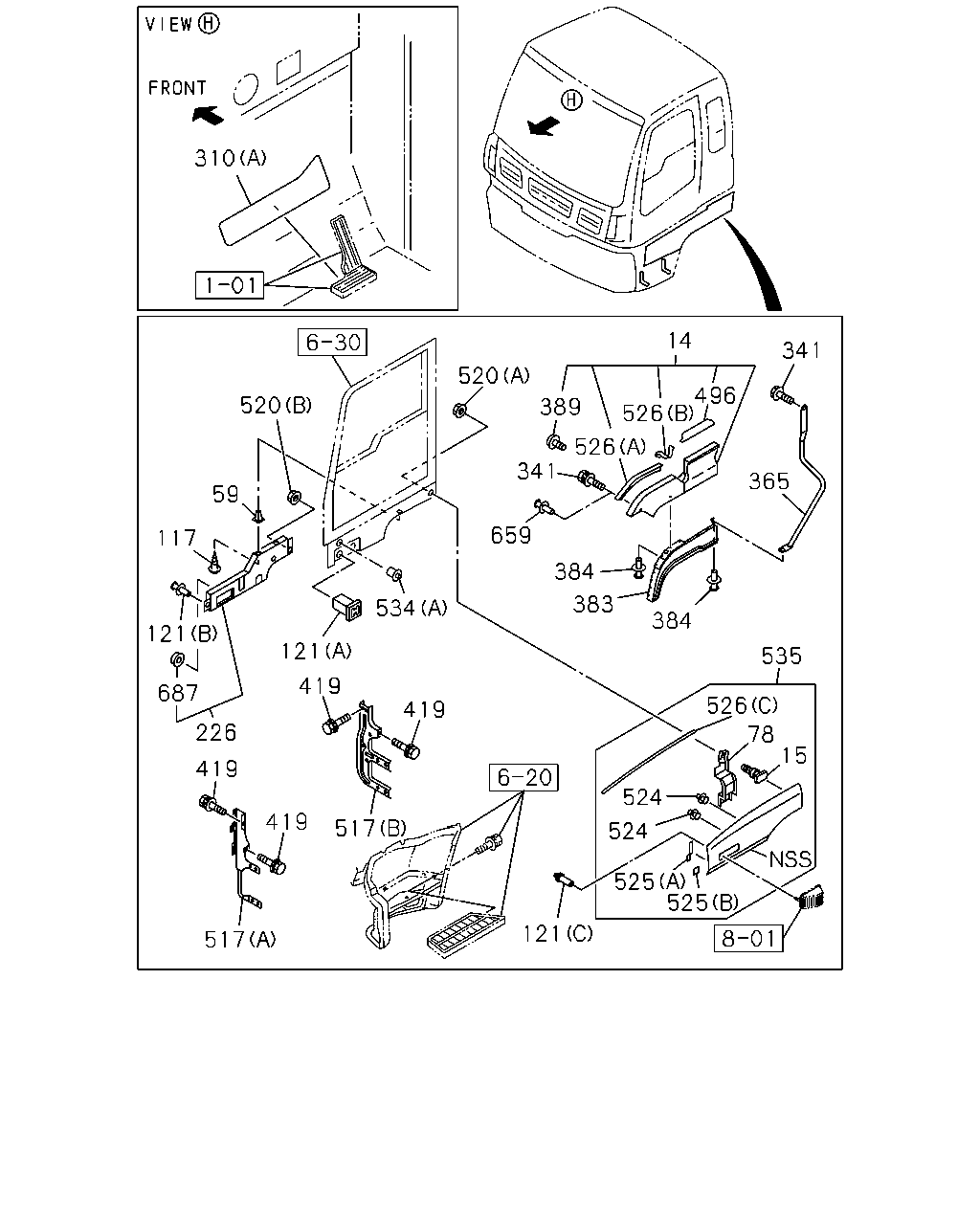

[605A] FENDER (49 parça)
▶
533
541
533
674
533
310
578
617
576
563
564
569
561
562
533
562
509
568
569
560
559
539
533
539
534
545
533
533
533
533
533
533
530
560
6
530
532
533
19
543
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
PANEL; FRONT
1-65473-144-0
01
1
1306-
19
SEAL; FRT SIDE PANEL
(B) OD=45 BLACK
1-76798-017-0
03
1
1306-
19
SEAL; FRT SIDE PANEL
(C)
1-71907-411-0
01
1
1306-
19
SEAL; FRT SIDE PANEL
(A)
8-98149-434-0
01
1
1306-
19
SEAL; FRT SIDE PANEL
(C)
1-71907-410-0
01
1
1306-
19
SEAL; FRT SIDE PANEL
(A)
8-98149-433-0
01
1
1306-
310
SILENCER; FRT PANEL
(A)
1-72377-007-1
01
1
1306-
310
SILENCER; FRT PANEL
(B)
1-72377-008-1
01
1
1306-
509
PANEL; DASH
1-62270-478-6
01
1
1306-
530
STOPPER; FRT PANEL,SIDE
1-71907-487-0
01
1
1306-
530
STOPPER; FRT PANEL,SIDE
1-71907-482-1
01
1
1306-
532
BOLT; FRT PANEL
(A) M8X20
1-79198-002-0
02
1
1306-
532
BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
1306-
532
BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
1306-
533
SEAL; FRT PANEL
(D) L=30
1-71996-079-2
07
1
1306-
533
SEAL; FRT PANEL
(A) 20X65
1-76778-046-3
02
1
1306-
533
SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK
5-76777-035-0
12
1
1306-
533
SEAL; FRT PANEL
(C) 25X25
8-94272-533-0
02
1
1306-
534
FASTENER
(B) D6X12.5
8-94146-425-0
02
1
1306-
534
FASTENER
(A) ID=5.4 OD=6.8
8-98241-984-0
08
1
1306-
539
CLOSING; PILLAR
1-61480-674-6
01
1
1306-
539
CLOSING; PILLAR
1-61480-673-6
01
1
1306-
541
PANEL; FRONT,INNER
1-61470-690-0
01
1
1306-
543
CLOSING; FRT MTG RAIL
1-61470-727-0
01
1
1306-
545
SEAL; FRT LID
(A) L=2038
1-71907-481-1
01
1
1306-
545
SEAL; FRT LID
(B) OD=25 BLACK
1-76798-019-0
01
1
1306-
545
SEAL; FRT LID
(C)
8-98133-467-0
01
1
1306-
545
SEAL; FRT LID
(D)
8-98133-468-0
01
1
1306-
545
SEAL; FRT LID
(E)
8-98133-469-0
01
1
1306-
545
SEAL; FRT LID
(F)
8-98133-470-0
01
1
1306-
545
SEAL; FRT LID
(G)
8-98136-568-0
01
1
1306-
559
COVER; EVAPOLATOR
1-71996-194-1
01
1
1306-
560
SEAL; COVER
(A)
1-71998-827-1
01
1
1306-
560
SEAL; COVER
HEATER & DEFROSTER(C41) (B) OD=36 T=0.05 BLACK
5-76777-035-0
01
1
1306-
561
COVER; HEATER CORE
1-71998-829-1
01
1
1306-
562
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
1306-
563
BOLT; DASH PANEL
M8X20
1-79198-002-0
16
1
1306-
563
BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER
8-94279-209-0
02
1
1306-
564
GROMMET; DASH PANEL
OD=23.5
1-09983-101-0
02
1
1306-
568
PATCH; INST REINF
1-61480-675-2
02
1
1306-
569
PATCH; LWR GRIP
(B)
1-61480-736-2
01
1
1306-
569
PATCH; LWR GRIP
(A)
1-61480-689-2
01
1
1306-
576
FRAME; INST SIDE
1-62280-177-7
01
1
1306-
576
FRAME; INST SIDE
1-62280-176-6
01
1
1306-
578
COVER; WIPER MOTOR
1-62280-254-1
01
1
1306-
617
SEAL; DASH
1-61281-497-1
02
1
1306-
674
PANEL; UPR
1-61470-688-2
01
1
1306-
545
548
547
549
257
545
545
532
686
549
692
548
545
545
544
549
257
547
548
532
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
257
BOLT; BRKT
M6X12 W/LK&PL WASHER
8-94279-200-0
04
1
1306-
532
BOLT; FRT PANEL
(A) M8X20
1-79198-002-0
02
1
1306-
532
BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
1306-
532
BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
1306-
544
LID; FRT
WHITE
8-97417-923-3
01
1
1306-
545
SEAL; FRT LID
(A) L=2038
1-71907-481-1
01
1
1306-
545
SEAL; FRT LID
(B) OD=25 BLACK
1-76798-019-0
01
1
1306-
545
SEAL; FRT LID
(C)
8-98133-467-0
01
1
1306-
545
SEAL; FRT LID
(D)
8-98133-468-0
01
1
1306-
545
SEAL; FRT LID
(E)
8-98133-469-0
01
1
1306-
545
SEAL; FRT LID
(F)
8-98133-470-0
01
1
1306-
545
SEAL; FRT LID
(G)
8-98136-568-0
01
1
1306-
547
RUBBER; CUSHION
(A) OD=22 L=39
1-71907-419-0
02
1
1306-
547
RUBBER; CUSHION
(B) OD=22 L=29
8-94324-556-2
02
1
1306-
548
STRIKER; FRT LID PANEL
(A)
1-79317-003-1
01
1
1306-
548
STRIKER; FRT LID PANEL
(B)
1-79318-008-1
02
1
1306-
549
BRACKET; STOPPER,FRT LID
(B)
8-98274-092-0
01
1
1411-
549
BRACKET; STOPPER,FRT LID
(A)
8-98135-101-0
02
1
1306-
686
CAP; BOLT
8-98217-298-0
01
1
1306-1410
692
BUFFER
8-98251-459-0
01
1
1411-
546
24
43
164
299
22
21
308
650
22
22
571
22
19
18
22
571
19
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
PANEL; FRONT,SIDE
WHITE
8-97417-875-2
01
1
1306-
16
PANEL; FRONT,SIDE
WHITE
8-97417-867-2
01
1
1306-
18
SEAL; A-POST UPR,FRT SIDE PANEL
1-71998-899-2
01
1
1306-
18
SEAL; A-POST UPR,FRT SIDE PANEL
1-71998-898-2
01
1
1306-
19
SEAL; FRT SIDE PANEL
(B) OD=45 BLACK
1-76798-017-0
03
1
1306-
19
SEAL; FRT SIDE PANEL
(C)
1-71907-411-0
01
1
1306-
19
SEAL; FRT SIDE PANEL
(A)
8-98149-434-0
01
1
1306-
19
SEAL; FRT SIDE PANEL
(C)
1-71907-410-0
01
1
1306-
19
SEAL; FRT SIDE PANEL
(A)
8-98149-433-0
01
1
1306-
21
GROMMET; SCREW,FRT SIDE PANEL
D=10.5X7 L=10.5 M5
1-09983-160-3
14
1
1306-
22
SCREW; FRT PANEL SIDE
(A) M5X16 W/PL WASHER
1-09981-532-0
04
1
1306-
22
SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING
8-97893-344-0
14
1
1306-
24
SEAL; FRT PANEL LWR
OD=25 BLACK
1-76798-019-0
05
1
1306-
43
GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK
1-76798-017-0
02
1
1306-
164
SEAL; FRT PILLAR
1-71907-414-0
02
1
1306-
299
COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) GENERAL EXPORT EQUIPMENT(TAA) WHITE
8-97423-349-1
01
1
1306-
299
COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) WHITE
8-97423-348-1
01
1
1306-
299
COVER; FRT PANEL SIDE
BODY COLOR GOLDEN YELLOW(904) GENERAL EXPORT EQUIPMENT(TAA) YELLOW
8-97424-991-1
01
1
1306-
299
COVER; FRT PANEL SIDE
BODY COLOR GOLDEN YELLOW(904) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) YELLOW
8-97424-988-1
01
1
1306-
299
COVER; FRT PANEL SIDE
BODY COLOR MARINE BLUE(890) GENERAL EXPORT EQUIPMENT(TAA) BLUE
8-97424-990-1
01
1
1306-
299
COVER; FRT PANEL SIDE
BODY COLOR MARINE BLUE(890) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) BLUE
8-97424-987-1
01
1
1306-
308
PLATE; FRT PANEL
BODY COLOR ARC WHITE(729) WHITE
8-97417-907-1
01
1
1306-
308
PLATE; FRT PANEL
BODY COLOR ARC WHITE(729) WHITE
8-97417-899-1
01
1
1306-
308
PLATE; FRT PANEL
BODY COLOR GOLDEN YELLOW(904) YELLOW
8-97425-015-1
01
1
1306-
308
PLATE; FRT PANEL
BODY COLOR GOLDEN YELLOW(904) YELLOW
8-97425-009-1
01
1
1306-
308
PLATE; FRT PANEL
BODY COLOR MARINE BLUE(890) BLUE
8-97425-013-1
01
1
1306-
308
PLATE; FRT PANEL
BODY COLOR MARINE BLUE(890) BLUE
8-97425-007-1
01
1
1306-
546
PLUG; DUMMY HOLE
OD=16 L=11
1-76378-155-0
02
1
1306-
571
CLIP; SEAL
(A)
1-09987-228-0
20
1
1306-
571
CLIP; SEAL
(B) PINK
1-09987-256-0
08
1
1306-
571
CLIP; SEAL
(B) NATURAL
1-09987-257-0
08
1
1306-
650
NUT; SPIRE
M5
1-09984-162-0
04
1
1306-
181
104
366
542
547
555
426
545
551
550
547
557
555
556
558
550
551
590
532
551
547
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
104
BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER
8-94279-203-0
02
1
1306-
181
SUPPORT ASM; DOOR CHECK,FRT
1-71107-864-0
01
1
1306-
366
NUT; SUPPORT
M8 CUTTING NUT W/FLANGE
1-09985-340-0
02
1
1306-
426
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK
1-76798-019-0
01
1
1306-
426
GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK
1-76798-019-0
02
1
1306-
532
BOLT; FRT PANEL
(A) M8X20
1-79198-002-0
02
1
1306-
532
BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
1306-
532
BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
1306-
542
RAIL; FRT MOUNTING
1-61470-721-1
01
1
1306-
545
SEAL; FRT LID
(A) L=2038
1-71907-481-1
01
1
1306-
545
SEAL; FRT LID
(B) OD=25 BLACK
1-76798-019-0
01
1
1306-
545
SEAL; FRT LID
(C)
8-98133-467-0
01
1
1306-
545
SEAL; FRT LID
(D)
8-98133-468-0
01
1
1306-
545
SEAL; FRT LID
(E)
8-98133-469-0
01
1
1306-
545
SEAL; FRT LID
(F)
8-98133-470-0
01
1
1306-
545
SEAL; FRT LID
(G)
8-98136-568-0
01
1
1306-
547
RUBBER; CUSHION
(A) OD=22 L=39
1-71907-419-0
02
1
1306-
547
RUBBER; CUSHION
(B) OD=22 L=29
8-94324-556-2
02
1
1306-
550
LOCK ASM; FRT LID
(B)
8-98174-767-0
01
1
1306-
550
LOCK ASM; FRT LID
(A)
1-79317-026-1
01
1
1306-
550
LOCK ASM; FRT LID
(A)
1-79317-025-1
01
1
1306-
551
BOLT; LOCK
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
1306-
551
BOLT; LOCK
M8X20.5 W/LK&PL WASHER
8-94279-207-0
06
1
1306-
555
CABLE; FRT LID
L=2512
1-79347-007-3
01
1
1306-
556
BOLT; CABLE
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
1306-
557
CLIP; CABLE
ID=4.8
8-94128-483-0
02
1
1306-
558
LEVER; FRT LID
1-79338-007-1
01
1
1306-
590
LOCK; FRT LID
1-79318-010-2
01
1
1306-
590
LOCK; FRT LID
1-79318-009-4
01
1
1306-
525
525
524
524
15
78
526
535
517
517
419
419
226
687
419
419
121
121
534
117
59
520
384
383
384
659
341
365
341
496
14
526
526
389
520
310
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
FENDER; FRT
BODY COLOR ARC WHITE(729)
8-98154-745-1
01
1
1306-
14
FENDER; FRT
BODY COLOR ARC WHITE(729)
8-98154-744-1
01
1
1306-
14
FENDER; FRT
BODY COLOR GOLDEN YELLOW(904)
8-98155-611-0
01
1
1306-
14
FENDER; FRT
BODY COLOR GOLDEN YELLOW(904)
8-98155-610-0
01
1
1306-
14
FENDER; FRT
BODY COLOR MARINE BLUE(890)
8-98155-611-0
01
1
1306-
14
FENDER; FRT
BODY COLOR MARINE BLUE(890)
8-98155-610-0
01
1
1306-
15
BOLT; FENDER
M6X7
1-71268-294-0
04
1
1306-
59
GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
10
1
1306-
78
BRACKET; FENDER
1-71267-215-0
01
1
1306-
78
BRACKET; FENDER
1-71267-214-0
01
1
1306-
117
SCREW; COVER
M5X16 W/PL WASHER TAPPING
8-94279-123-0
10
1
1306-
121
GROMMET; FENDER
(B) D8X13.5
1-09987-248-1
08
1
1306-
121
GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1306-
121
GROMMET; FENDER
(C)
8-98111-356-0
02
1
1306-1306
226
PROTECTOR; FRT
8-98109-134-1
01
1
1306-1306
226
PROTECTOR; FRT
8-98234-710-0
01
1
1307-
226
PROTECTOR; FRT
8-98109-132-1
01
1
1306-1306
226
PROTECTOR; FRT
8-98234-709-0
01
1
1307-
310
SILENCER; FRT PANEL
(A)
1-72377-007-1
01
1
1306-
310
SILENCER; FRT PANEL
(B)
1-72377-008-1
01
1
1306-
341
BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER
1-09980-495-0
14
1
1306-
365
SUPPORT; FENDER
8-98120-232-0
01
1
1306-
365
SUPPORT; FENDER
8-98120-231-0
01
1
1306-
383
GUARD; MUD,FENDER LWR
1-71907-457-2
01
1
1306-
383
GUARD; MUD,FENDER LWR
1-71907-456-2
01
1
1306-
384
CLIP; FENDER LWR
D8X13.5
1-09987-248-1
13
1
1306-
389
SCREW; STAND,FENDER
M6X22
1-65481-386-0
06
1
1306-
419
BOLT; STEP
M8X24.5 W/LK&PL WASHER
8-98059-720-0
11
1
1306-
496
RUBBER; STEP
1-71998-862-2
01
1
1306-
496
RUBBER; STEP
1-71998-861-2
01
1
1306-
517
SUPPORT; STEP PANEL
(A)
8-98125-815-1
01
1
1306-
517
SUPPORT; STEP PANEL
(B)
8-98125-817-2
01
1
1306-
517
SUPPORT; STEP PANEL
(A)
8-98125-814-2
01
1
1306-
517
SUPPORT; STEP PANEL
(B)
8-98125-816-2
01
1
1306-
520
NUT; FENDER
(A) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1306-
520
NUT; FENDER
(B) M6
8-94343-366-1
02
1
1306-
524
CLIP; FENDER COVER
D5.4X8
1-09983-154-0
08
1
1306-
525
SEAL; FENDER
(A) 10X145
1-71267-342-0
02
1
1306-
525
SEAL; FENDER
(B) 10X30
8-97631-981-0
02
1
1306-
526
FINISHER; FENDER
(C)
1-71268-275-1
02
1
1306-
526
FINISHER; FENDER
(A)
1-71907-641-0
02
1
1306-
526
FINISHER; FENDER
(B)
1-71907-643-0
01
1
1306-
526
FINISHER; FENDER
(B)
1-71907-642-0
01
1
1306-
534
FASTENER
(B) D6X12.5
8-94146-425-0
02
1
1306-
534
FASTENER
(A) ID=5.4 OD=6.8
8-98241-984-0
08
1
1306-
535
FENDER; BLISTER
WHITE
8-98234-067-0
01
1
1306-
535
FENDER; BLISTER
WHITE
8-98234-066-0
01
1
1306-
659
CLIP; FENDER
D8X13.5
1-09987-248-1
02
1
1306-
687
COVER; FENDER
8-98234-587-0
02
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
