Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#124211) — 226 parça

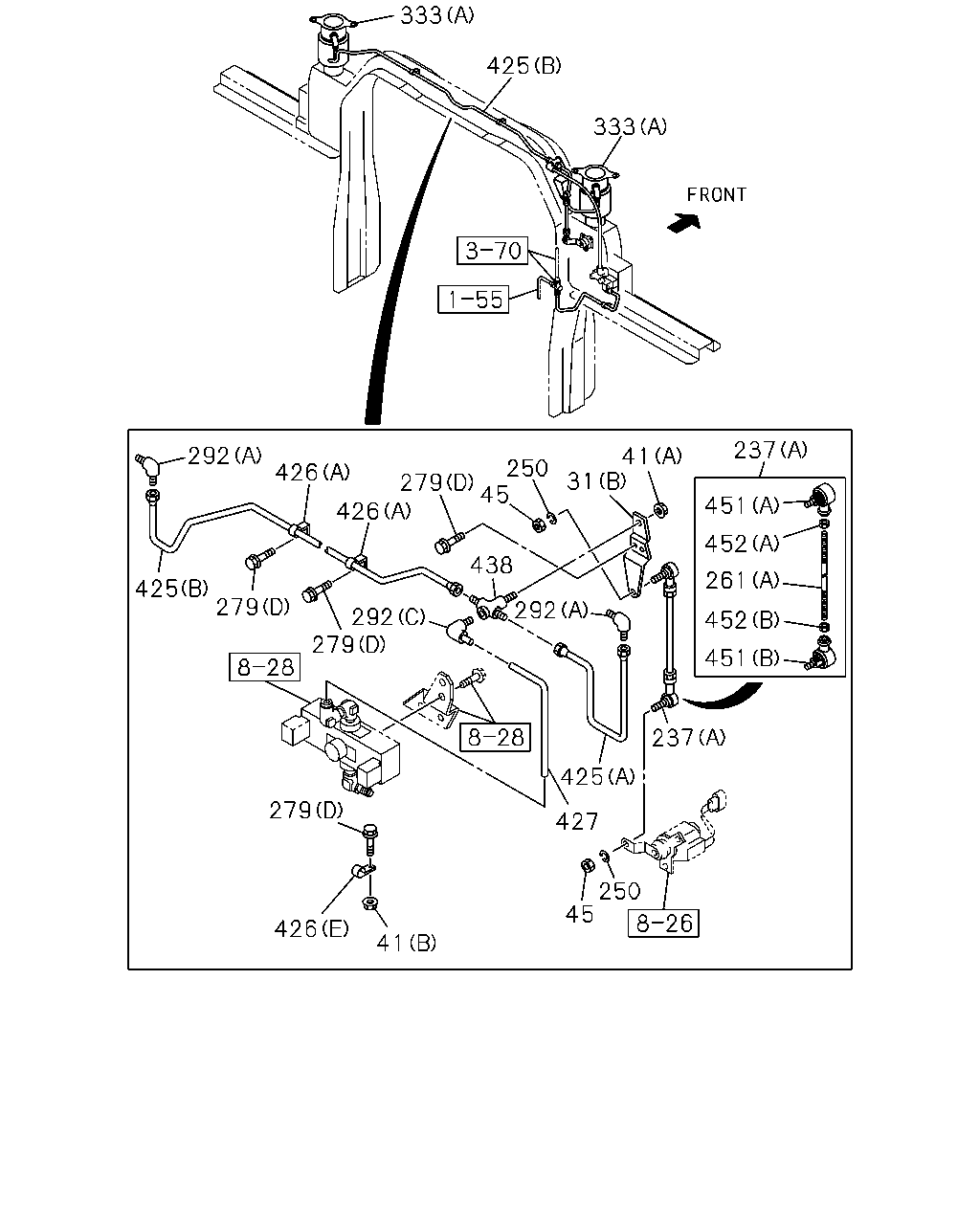

333 425 333 237 451 452 261 452 451 237 250 45 427 425 41 426 279 279 292 279 425 426 426 292 279 250 45 438 292 31 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1306-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-274-1	01	1	1306-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-273-2	01	1	1306-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1306-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-98131-521-2	01	1	1306-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1306-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	1306-1411
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91180-108-0	01	1	1306-1411
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91180-212-0	01	1	1306-1411
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	1306-1411
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1306-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1306-1411
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1306-1411
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	1306-1411
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	1306-1411
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	1306-1411
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1306-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1306-1411
279	BOLT FULL FLOATING CAB(W16) (A) M8X60 FLANGE	0-28050-860-0	02	1	1306-1411
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	05	1	1306-1411
279	BOLT FULL FLOATING CAB(W16) (E) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1306-1411
292	CONNECTOR; CAB SUSPENSION (D) M12	1-53458-941-0	01	1	1306-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1306-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1306-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1306-1411
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1306-1411
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1306-1411
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (B) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	1306-1411
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=291	8-98095-656-0	01	1	1306-1411
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	1306-1411
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1306-1411
426	CLIP FULL FLOATING CAB(W16) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-1411
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	1306-1411
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1306-1411
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1306-1411
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	1306-1411
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	02	1	1306-1411
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	02	1	1306-1411
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	1306-1411
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	1306-1411

294 202 205 204 203 202 204 203 201 173 203 204 205 66 174 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	BRACKET; S/ABS	8-98214-572-0	01	1	1306-
66	BRACKET; S/ABS	1-53458-786-0	01	1	1306-
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK)	8-98240-971-0	01	1	1306-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	8-98171-654-0	01	1	1306-1411
174	OUTRIGGER	1-53456-418-3	01	1	1306-
174	OUTRIGGER	8-98158-646-0	01	1	1306-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-728-1	02	1	1306-
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1306-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	1306-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	1306-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	1306-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1306-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	1306-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	1306-
294	MEMBER; FLOATING CAB SUSPENSION-FULL FLOATING(SMK)	1-53454-950-3	01	1	1306-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	1306-1411

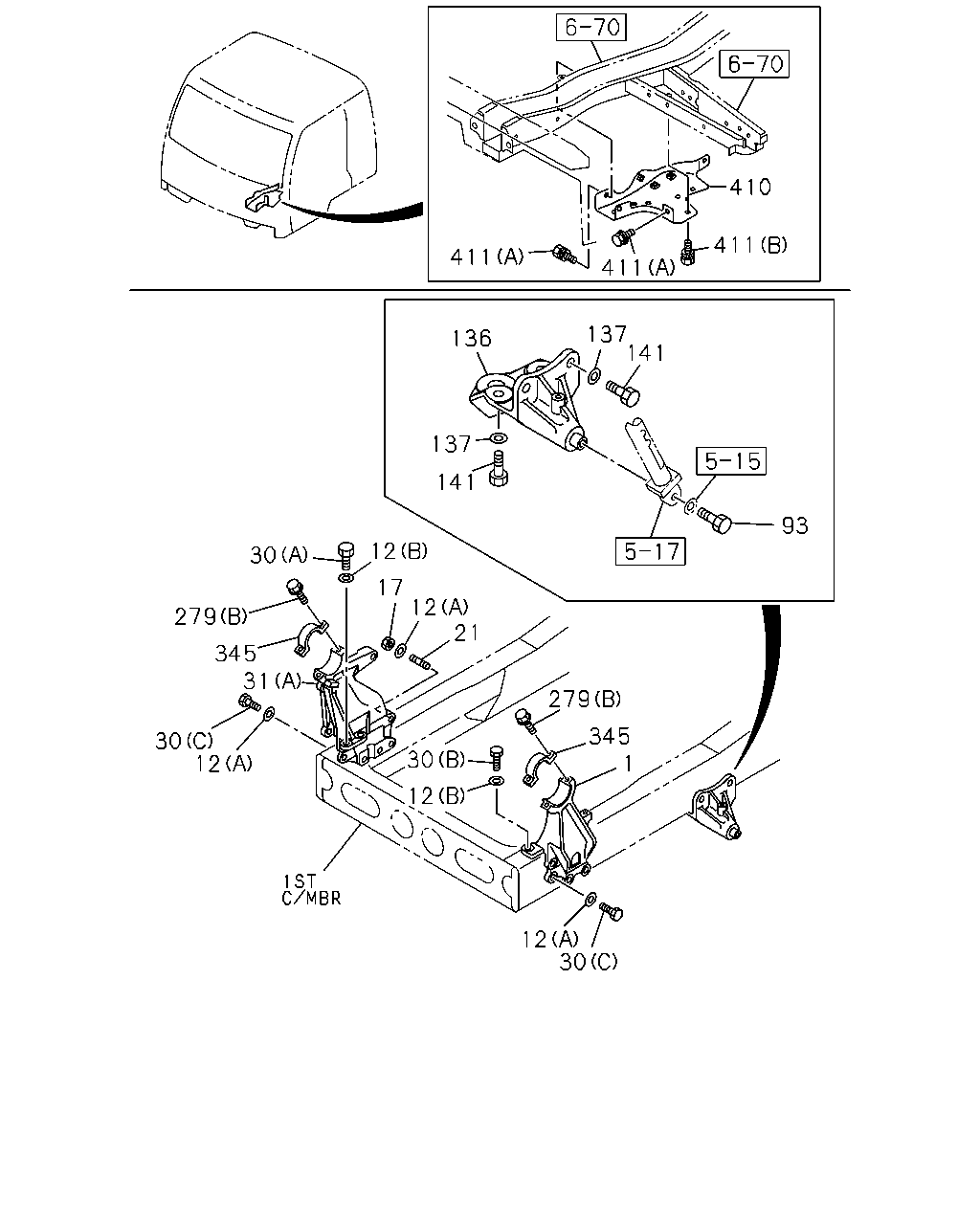

410 411 411 411 136 137 137 141 141 93 12 30 17 279 345 31 30 12 12 21 279 345 30 12 12 30 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	8-98120-797-0	01	1	1306-
12	WASHER; LK,BRKT (A) ID=16.2	1-09503-316-0	11	1	1306-
12	WASHER; LK,BRKT (B) ID=15	8-98010-627-1	04	1	1306-
17	NUT; BRKT,CAB TILT M16	0-91110-516-0	01	1	1306-
21	STUD; BRKT,CAB TILT M16X55 L=79	8-98200-993-0	01	1	1306-
30	BOLT; CAB FRT FOOT (B) M14X50	0-20951-450-0	02	1	1306-
30	BOLT; CAB FRT FOOT (A) M14X60	0-20951-460-0	02	1	1306-
30	BOLT; CAB FRT FOOT (C) M16X60	0-20951-660-0	05	1	1306-
30	BOLT; CAB FRT FOOT (C) M16X60	0-20951-660-0	05	1	1306-
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1306-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-274-1	01	1	1306-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-273-2	01	1	1306-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1306-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-98131-521-2	01	1	1306-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1306-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	1306-1411
93	BOLT; PIN M10X30	1-09000-283-0	01	1	1306-
136	BRACKET; OIL CYL	1-53458-829-0	01	1	1306-
137	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1306-
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	1306-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1306-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1306-1411
279	BOLT FULL FLOATING CAB(W16) (A) M8X60 FLANGE	0-28050-860-0	02	1	1306-1411
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	05	1	1306-1411
279	BOLT FULL FLOATING CAB(W16) (E) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1306-1411
345	CAP; CAB	1-53458-336-3	02	1	1306-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	1306-
411	BOLT; REINFORCEMENT (B) M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	1306-
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1306-

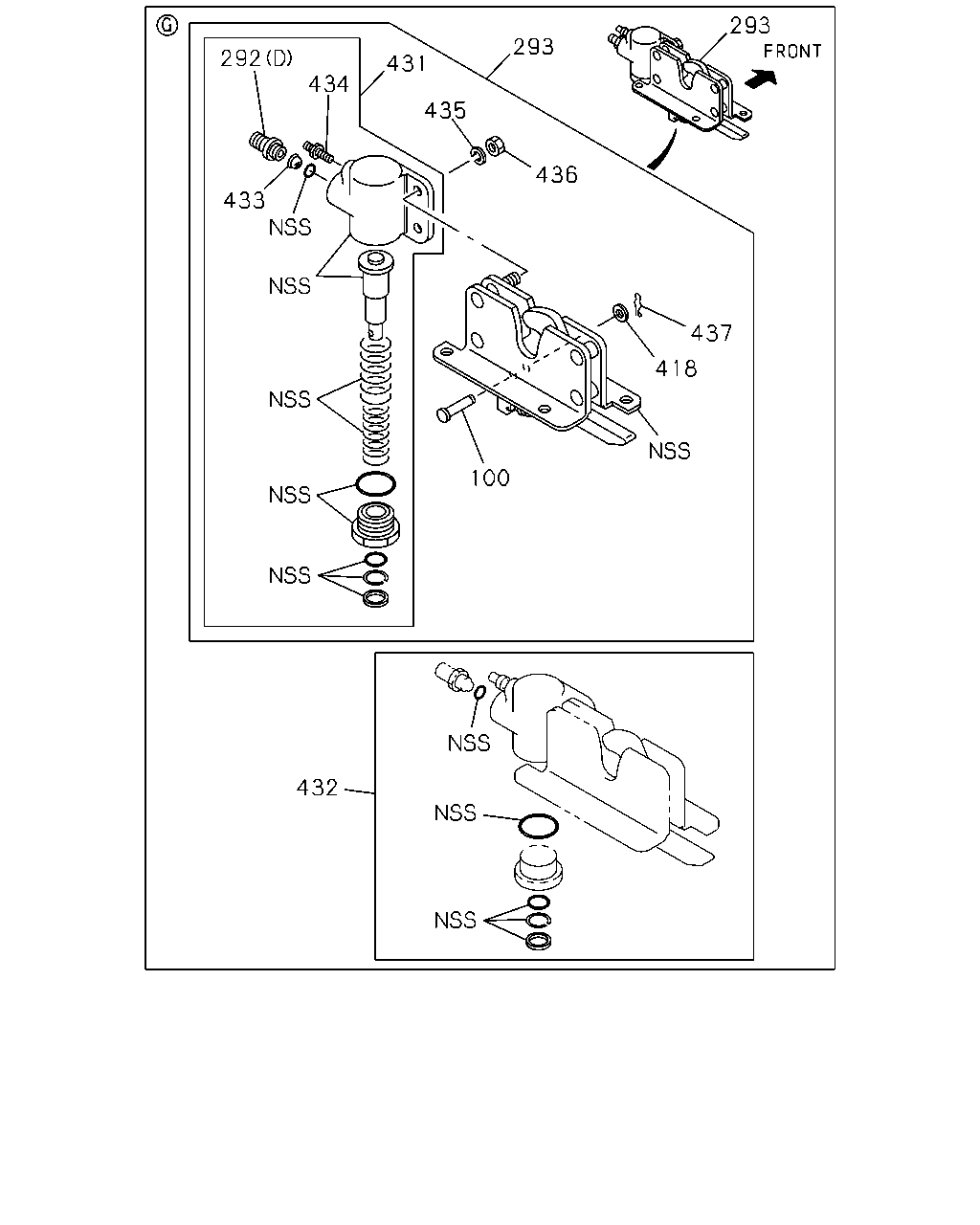

292 434 433 431 435 436 293 293 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	1306-
292	CONNECTOR; CAB SUSPENSION (D) M12	1-53458-941-0	01	1	1306-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1306-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1306-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1306-1411
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	1306-
418	WASHER; PL,PIN	1-53458-059-0	01	1	1306-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	1306-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	1306-
433	FILTER; AIR CYL	1-53458-048-0	01	1	1306-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	1306-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	1306-
436	NUT; AIR CYL	1-53458-528-0	02	1	1306-
437	PIN; SNAP	1-53458-526-0	01	1	1306-

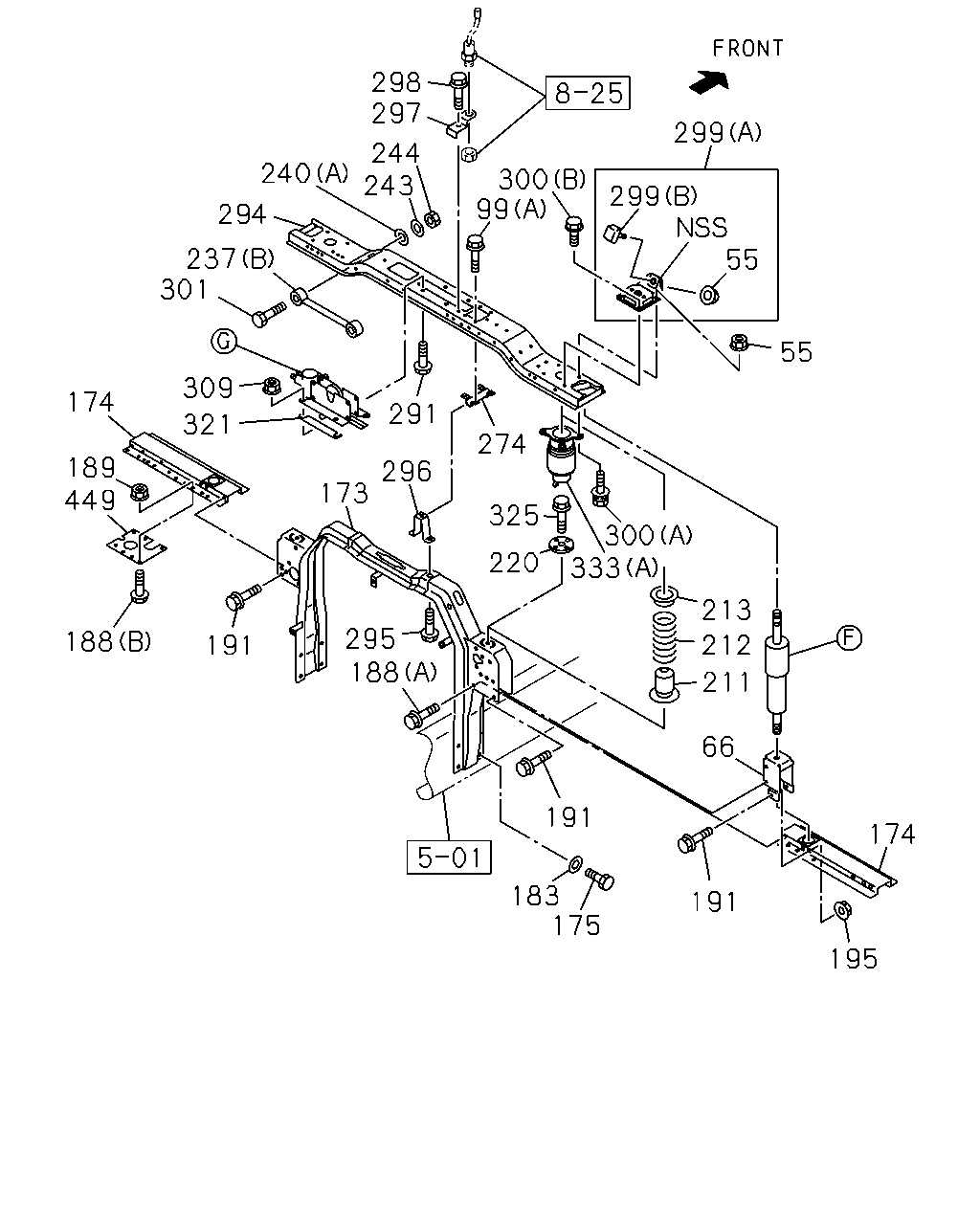

299 55 299 298 297 244 243 240 294 237 301 309 321 173 291 174 189 449 188 191 295 188 175 191 195 174 213 212 211 66 300 333 220 274 325 55 191 300 99 296 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	1306-
66	BRACKET; S/ABS	8-98214-572-0	01	1	1306-
66	BRACKET; S/ABS	1-53458-786-0	01	1	1306-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1306-
99	BOLT; BRKT (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1306-
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK)	8-98240-971-0	01	1	1306-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	8-98171-654-0	01	1	1306-1411
174	OUTRIGGER	1-53456-418-3	01	1	1306-
174	OUTRIGGER	8-98158-646-0	01	1	1306-
175	BOLT; MEMBER TO FRAME M14X35	0-20951-435-0	08	1	1306-
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1306-
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	04	1	1306-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	1306-
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	04	1	1306-
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	07	1	1306-
195	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	1306-
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-128-0	02	1	1306-
212	SPRING; COIL CAB SUSPENSION-FULL FLOATING(SMK)	1-09580-515-0	02	1	1306-
213	SEAT; SPR,S/ABS CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-132-1	02	1	1306-
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	1306-1411
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1306-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1306-1411
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1306-1411
240	WASHER; PL,BRKT (A) ID=12.5 OD=22	0-91610-512-0	02	1	1306-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1306-
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	1306-
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	1306-
274	PIN	1-53458-996-0	01	1	1306-
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	1306-
294	MEMBER; FLOATING CAB SUSPENSION-FULL FLOATING(SMK)	1-53454-950-3	01	1	1306-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	1306-1411
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	1306-
296	STOPPER; UPR	1-53458-973-1	01	1	1306-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	1306-
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	1306-
299	RUBBER; MTG (A)	1-53366-194-0	02	1	1306-
300	BOLT; MTG RUBBER CAB SUSPENSION-FULL FLOATING(SMK) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	1306-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (B) M8X16 FLANGE	0-28050-816-0	04	1	1306-1411
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1306-1411
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	1306-
309	NUT M10 FLANGE	0-91180-210-0	04	1	1306-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	1306-
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	02	1	1306-1411
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1306-1411
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1306-1411
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	1306-

202 202 203 204 205 65 204 203 70 72 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-604-1	02	1	1306-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	1306-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	1306-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	1306-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	1306-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	22	1	1306-
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1306-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	1306-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	1306-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	1306-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1306-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	1306-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	1306-

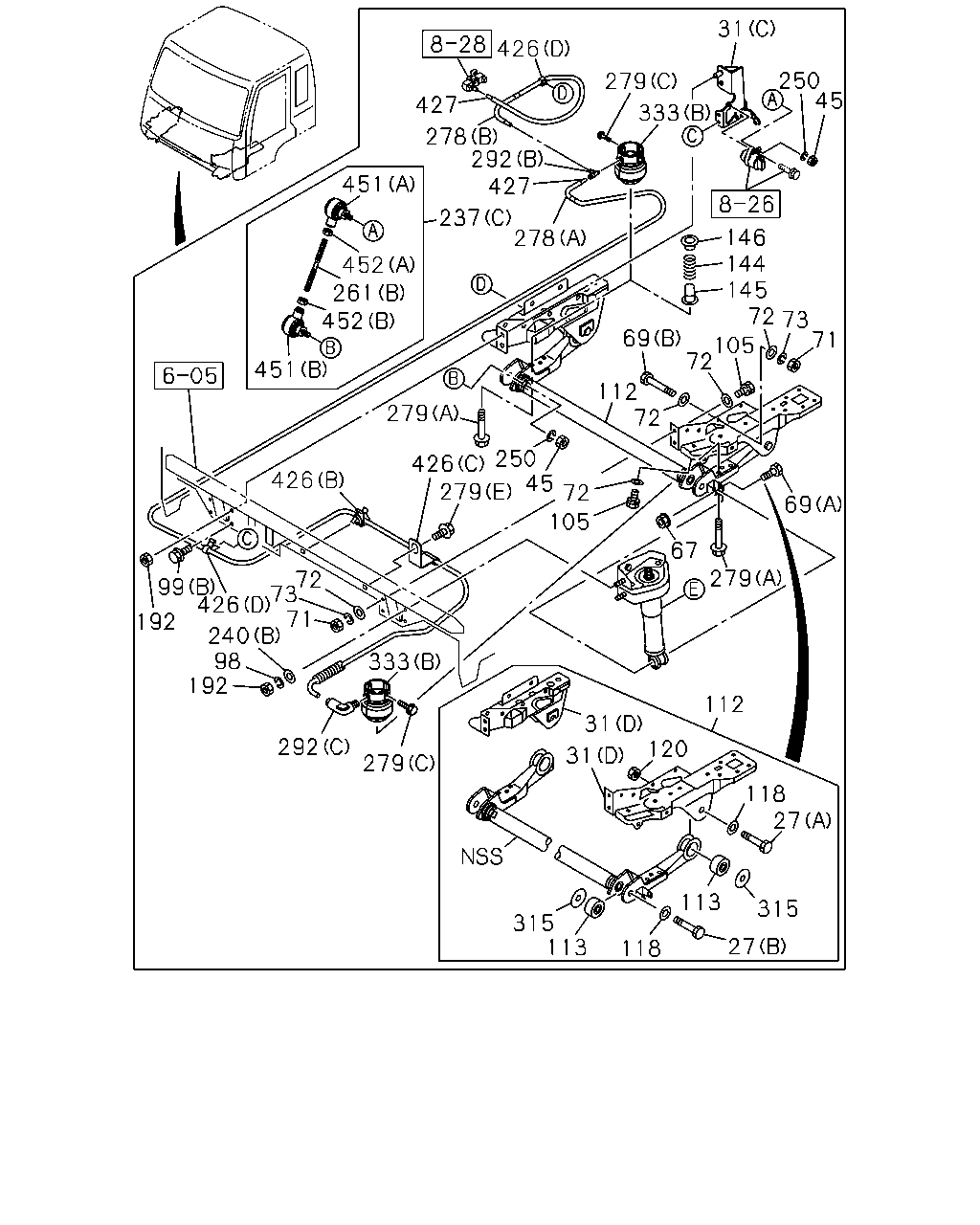

426 279 31 250 333 427 278 292 427 278 237 451 452 261 452 451 99 192 240 426 73 71 72 98 192 292 279 333 279 67 105 72 45 250 279 426 279 426 315 113 118 27 315 27 118 112 31 120 31 113 69 71 73 72 105 72 69 112 72 145 144 146 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	1306-1411
27	BOLT; BUSHING CAB SUSPENSION-FULL FLOATING(SMK) (B) M18X120	1-09000-442-1	02	1	1412-
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	1306-1411
27	BOLT; BUSHING CAB SUSPENSION-FULL FLOATING(SMK) (A) M18X90	9-91066-890-0	02	1	1412-
31	BRACKET; CAB (A)	8-98152-139-0	01	1	1306-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-274-1	01	1	1306-
31	BRACKET; CAB CAB SUSPENSION-FULL FLOATING(SMK) (D)	1-53453-273-2	01	1	1306-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	1306-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-98131-521-2	01	1	1306-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	1306-1411
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	1306-1411
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	1306-1411
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	1306-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	1306-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	1306-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	1306-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	22	1	1306-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	1306-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	1306-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1306-
99	BOLT; BRKT (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	1306-
105	BOLT; BRKT TO CAB FRAME M10X30 W/SP WASHER	1-09980-546-0	08	1	1306-
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION-FULL FLOATING(SMK)	1-53450-565-7	01	1	1306-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	8-98127-505-1	01	1	1306-1411
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI	1-53458-714-0	04	1	1306-1411
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-714-0	04	1	1412-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	1306-1411
118	WASHER; PL,STOPPER RUBBER,LINK ARM CAB SUSPENSION-FULL FLOATING(SMK) ID=19 OD=30	1-09503-279-0	04	1	1412-
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	1306-1411
120	NUT; STOPPER RUBBER,LINK ARM CAB SUSPENSION-FULL FLOATING(SMK) M18	0-91110-518-0	02	1	1412-
144	SPRING; COIL,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING(SMK)	1-09580-537-0	02	1	1306-
145	RUBBER; CUSHION,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-139-0	02	1	1306-
146	SEAT; SPRING,CAB FRT SUSPENSION CAB SUSPENSION-FULL FLOATING(SMK)	1-53366-138-0	02	1	1306-
192	NUT; BRKT FIX M10	1-09984-142-0	05	1	1306-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	1306-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	1306-1411
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	1306-1411
240	WASHER; PL,BRKT (A) ID=12.5 OD=22	0-91610-512-0	02	1	1306-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1306-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	1306-1411
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	1306-1411
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	1306-1411
278	COVER FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1306-1411
278	COVER FULL FLOATING CAB(W16) (A) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1306-1411
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1306-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	1306-1411
279	BOLT FULL FLOATING CAB(W16) (A) M8X60 FLANGE	0-28050-860-0	02	1	1306-1411
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	05	1	1306-1411
279	BOLT FULL FLOATING CAB(W16) (E) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	1306-1411
292	CONNECTOR; CAB SUSPENSION (D) M12	1-53458-941-0	01	1	1306-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1306-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1306-1411
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	1306-1411
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	1306-1411
315	WASHER; CAB MTG CAB SUSPENSION-FULL FLOATING(SMK) ID=34.5	1-53458-281-1	04	1	1412-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	1306-1411
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	1306-1411
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	1306-1411
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1306-1411
426	CLIP FULL FLOATING CAB(W16) (D) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-1411
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	1306-1411
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	8-98033-780-0	01	1	1306-1411
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	1306-1411
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	02	1	1306-1411
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	02	1	1306-1411
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	1306-1411
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	1306-1411

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
