8-73 — BLOWER UNIT (#12421) — 101 parça

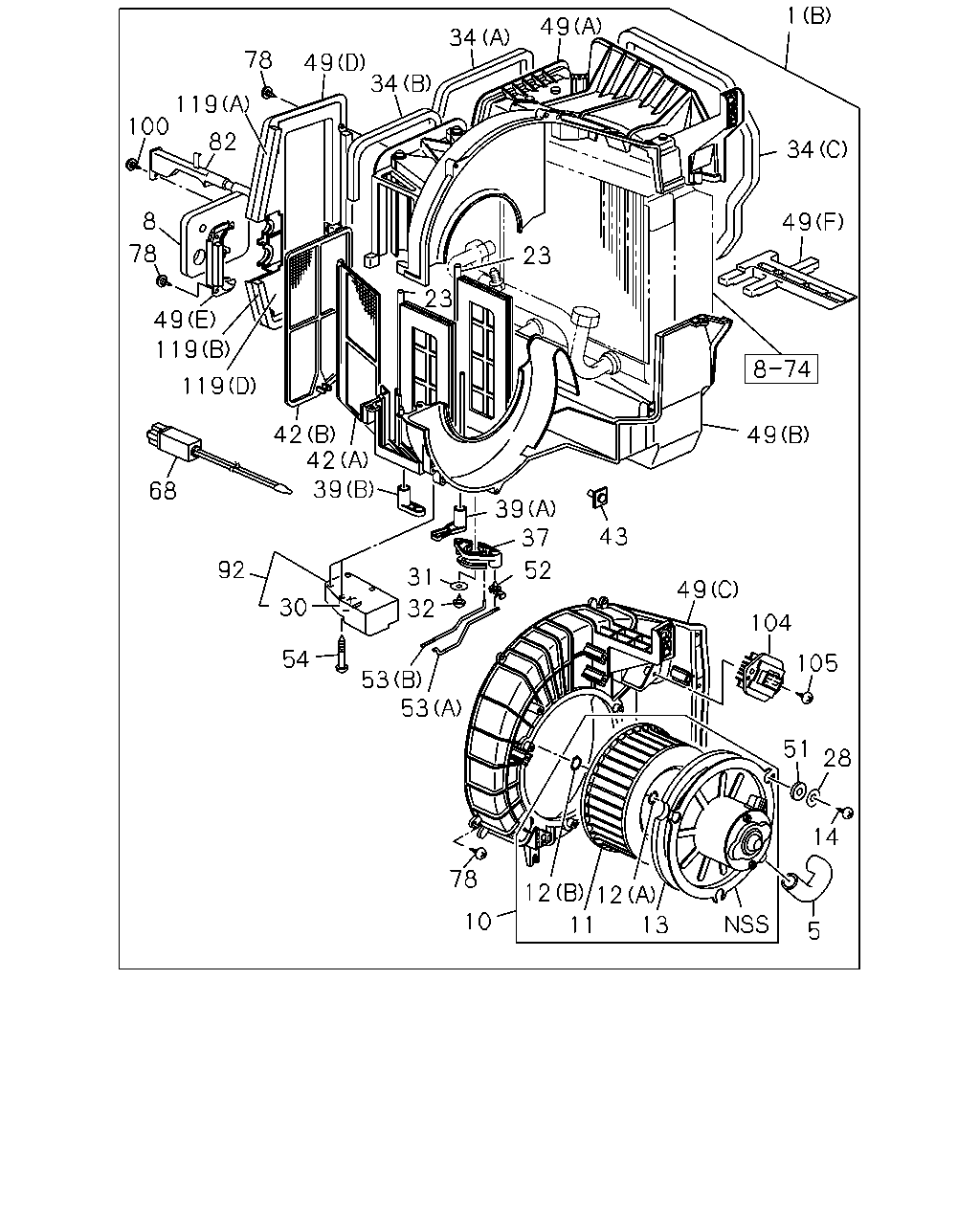

çizim 22114
1 49 34 78 49 34 119 100 82 34 8 49 78 23 23 49 119 119 42 42 39 49 68 39 37 43 92 52 31 49 30 32 104 54 105 5 53 51 28 14 78 12 12 10 13 11 5
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-150-5 01 1 0105-
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-105-9 01 1 0105-
5 HOSE; AIR 1-83563-140-0 01 1 0105-
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 0105-
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83579-801-1 01 1 0105-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0105-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0105-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0105-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0105-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0105-
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 0105-
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 03 1 0105-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0105-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0105-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0105-
31 WASHER; LEVER 1-83579-095-0 01 1 0105-
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 0105-
32 SCREW; LEVER
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 01 1 0105-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0105-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0105-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0105-
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0105-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0105-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0105-
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 0105-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 0105-
43 BOLT; CASE 1-83579-657-2 04 1 0105-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0105-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0105-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0105-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0105-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 0105-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 0105-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (G) 		1-83564-352-5 01 1 0105-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0105-
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0105-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0105-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0105-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0105-
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 0105-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 0105-
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-871-1 01 1 0105-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0105-
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 0105-
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-092-0 01 1 0105-
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83519-073-1 01 1 0105-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0105-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0105-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0105-
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 0105-
119 LINING; CASE
HEATER & DEFROSTER(C41) (C) 		1-83579-839-0 02 1 0105-

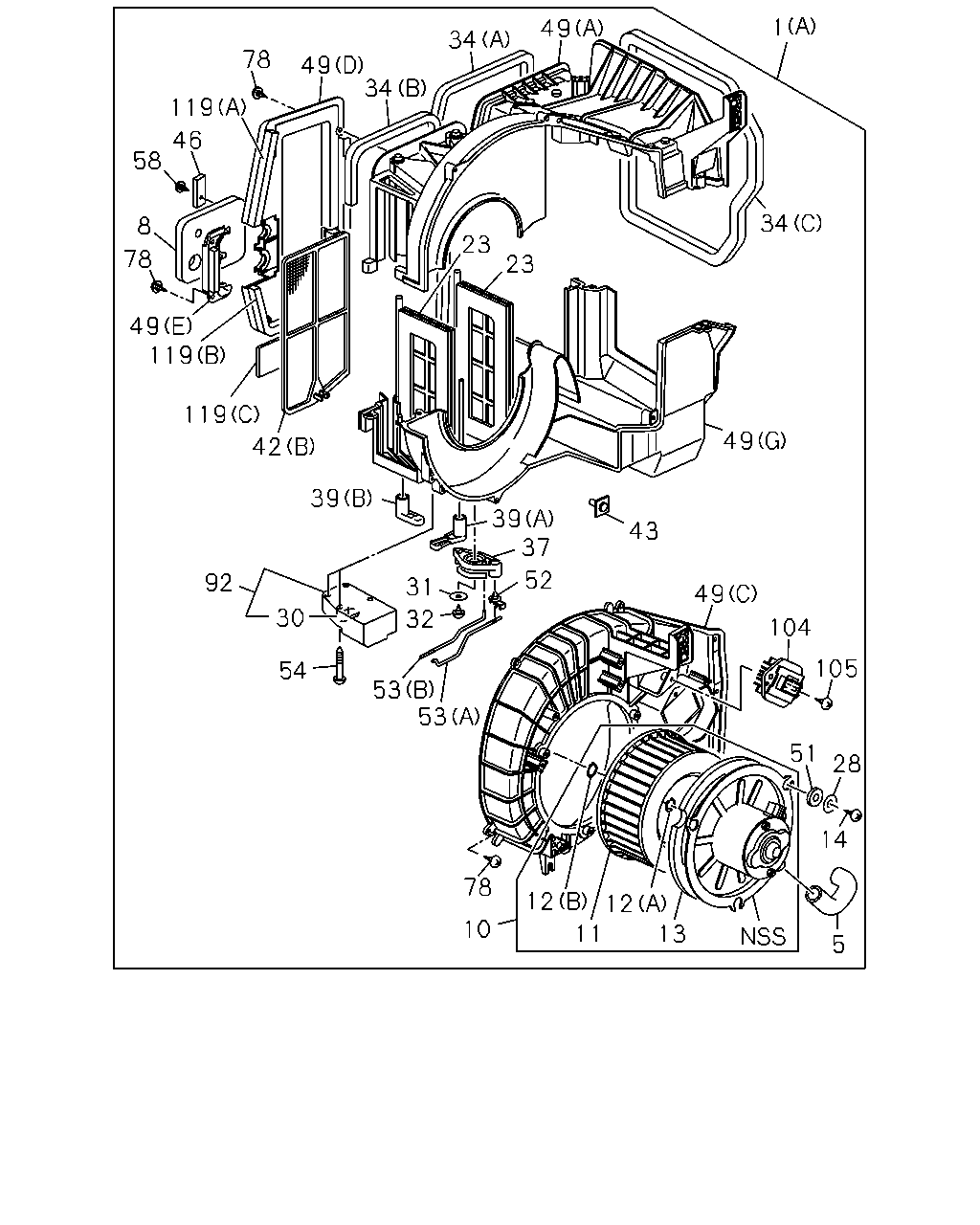

çizim 22115
49 34 78 49 34 119 46 58 34 8 23 78 23 49 119 119 49 42 39 39 37 43 52 92 31 49 30 32 104 105 54 53 53 51 28 14 78 12 12 10 13 11 5 1
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-150-5 01 1 0105-
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-105-9 01 1 0105-
5 HOSE; AIR 1-83563-140-0 01 1 0105-
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 0105-
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83579-801-1 01 1 0105-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0105-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0105-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0105-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0105-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0105-
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 0105-
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 03 1 0105-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0105-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0105-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0105-
31 WASHER; LEVER 1-83579-095-0 01 1 0105-
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 0105-
32 SCREW; LEVER
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 01 1 0105-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0105-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0105-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0105-
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0105-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0105-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0105-
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 0105-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 0105-
43 BOLT; CASE 1-83579-657-2 04 1 0105-
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83571-870-1 01 1 0105-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0105-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0105-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0105-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0105-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 0105-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 0105-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (G) 		1-83564-352-5 01 1 0105-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0105-
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0105-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0105-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0105-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0105-
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41) M4X16 		8-94324-850-0 01 1 0105-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 0105-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0105-
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-092-0 01 1 0105-
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83519-073-1 01 1 0105-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0105-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0105-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0105-
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 0105-
119 LINING; CASE
HEATER & DEFROSTER(C41) (C) 		1-83579-839-0 02 1 0105-
