◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11524 - CYH RHD EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#124209) — 92 parça

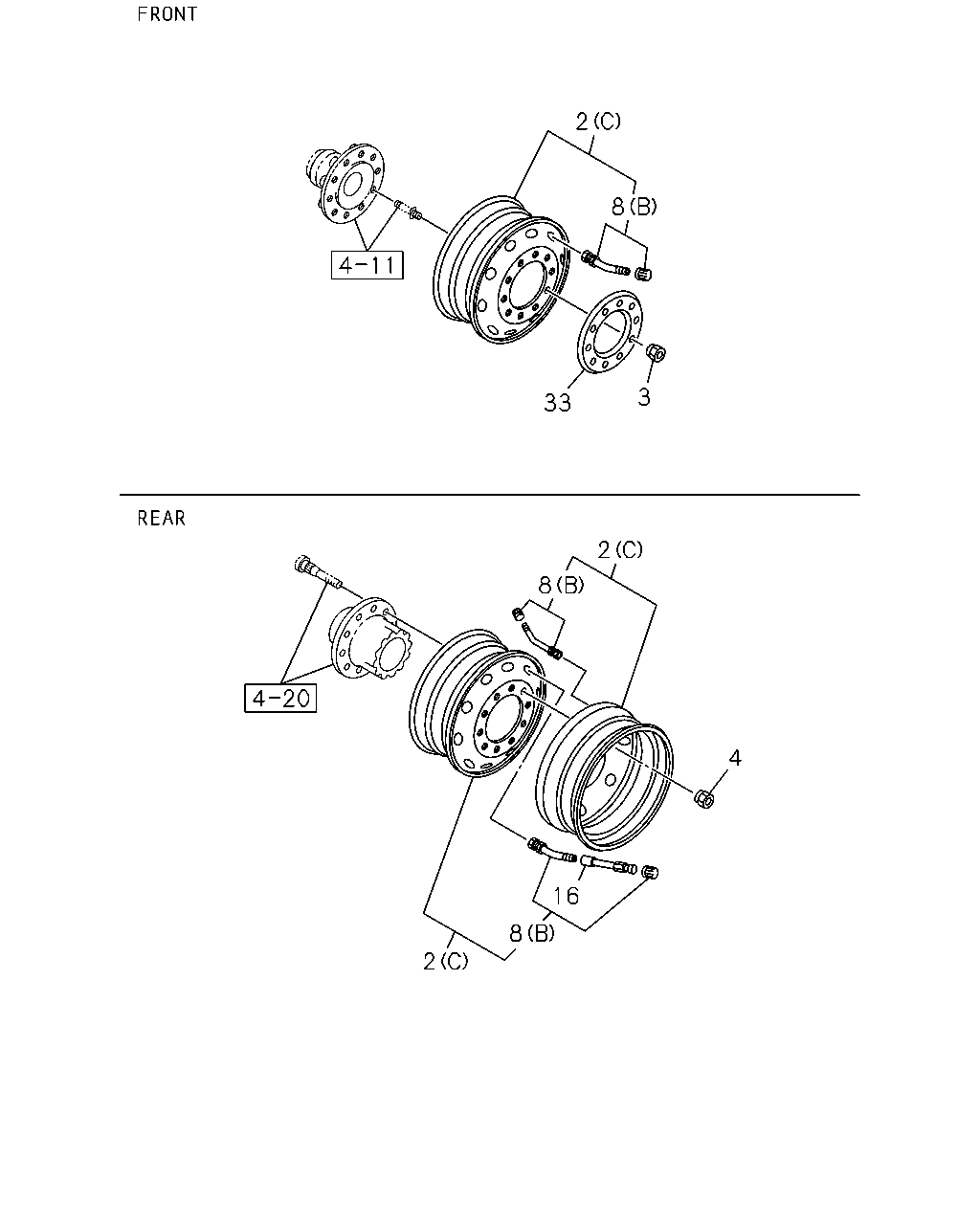

çizim 363494
2 8 33 3 2 8 4 16 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (B) FRONT 		8-98202-326-0 04 1 1412-
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (B) REAR 		8-98217-247-0 08 1 1412-
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		8-98202-326-0 01 1 1412-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) FRONT,REAR 		1-42350-448-0 12 1 1306-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-448-0 01 1 1306-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) FRONT,REAR 		8-98217-247-0 12 1 1306-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) FRONT,REAR 		8-98281-497-0 12 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		8-98217-247-0 01 1 1306-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) FRONT,REAR 		1-42350-694-0 12 1 1306-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE 		1-42350-694-0 01 1 1306-
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (C) FRONT,REAR 		1-42350-764-0 12 1 1306-
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE 		1-42350-764-0 01 1 1306-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 40 1 1306-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 1306-
8 VALVE; TIRE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (A) FRONT,REAR 		1-42370-048-0 12 1 1412-
8 VALVE; TIRE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-048-0 01 1 1412-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-048-0 12 1 1306-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-019-3 12 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-048-0 01 1 1306-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) FRONT,REAR 		1-42370-044-0 12 1 1306-
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42370-044-0 01 1 1306-
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR 		1-42370-041-1 12 1 1306-
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42370-041-1 01 1 1306-
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) L=115 		8-98167-051-0 04 1 1306-
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) L=170 		8-98167-052-0 04 1 1306-1411
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20165-12(Q64) L=170 		8-98167-052-0 04 1 1412-
33 COVER; WHEEL
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FT WHEEL COVER<JEH> 		1-43139-065-1 04 1 1306-1411
33 COVER; WHEEL
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FT WHEEL COVER<JEH> 		1-43139-065-1 04 1 1412-

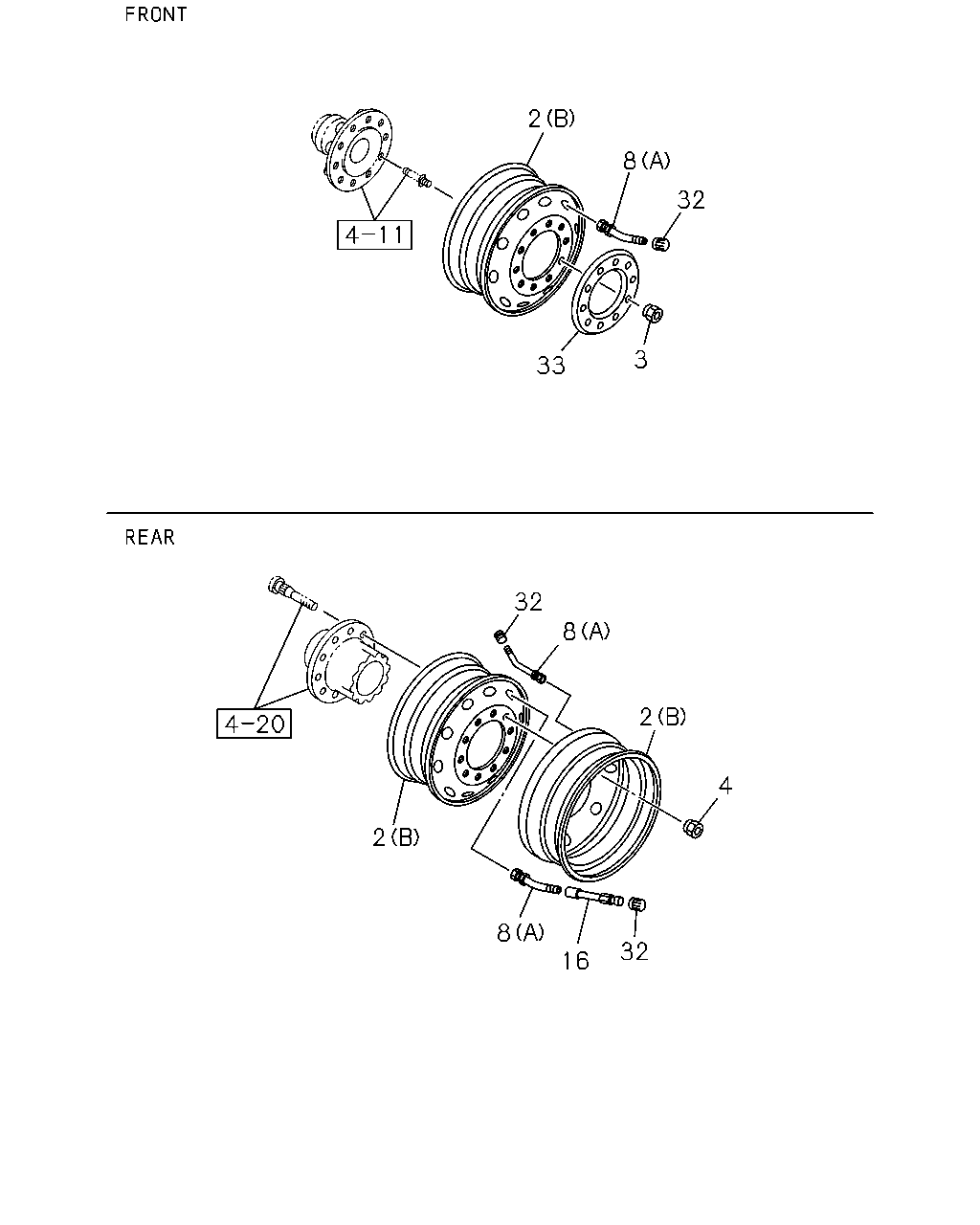

çizim 364661
8 32 3 33 2 32 8 2 4 32 16 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (B) FRONT 		8-98202-326-0 04 1 1412-
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (B) REAR 		8-98217-247-0 08 1 1412-
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		8-98202-326-0 01 1 1412-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) FRONT,REAR 		1-42350-448-0 12 1 1306-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-448-0 01 1 1306-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) FRONT,REAR 		8-98217-247-0 12 1 1306-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) FRONT,REAR 		8-98281-497-0 12 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		8-98217-247-0 01 1 1306-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) FRONT,REAR 		1-42350-694-0 12 1 1306-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE 		1-42350-694-0 01 1 1306-
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (C) FRONT,REAR 		1-42350-764-0 12 1 1306-
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE 		1-42350-764-0 01 1 1306-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 40 1 1306-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 1306-
8 VALVE; TIRE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (A) FRONT,REAR 		1-42370-048-0 12 1 1412-
8 VALVE; TIRE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-048-0 01 1 1412-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-048-0 12 1 1306-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-019-3 12 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-048-0 01 1 1306-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) FRONT,REAR 		1-42370-044-0 12 1 1306-
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42370-044-0 01 1 1306-
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR 		1-42370-041-1 12 1 1306-
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42370-041-1 01 1 1306-
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) L=115 		8-98167-051-0 04 1 1306-
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) L=170 		8-98167-052-0 04 1 1306-1411
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20165-12(Q64) L=170 		8-98167-052-0 04 1 1412-
32 CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 09 1 1306-
32 CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 08 1 1306-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 12 1 1306-1411
32 CAP; VALVE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH), DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 12 1 1412-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1306-1411
32 CAP; VALVE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH), DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1412-
33 COVER; WHEEL
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FT WHEEL COVER<JEH> 		1-43139-065-1 04 1 1306-1411
33 COVER; WHEEL
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FT WHEEL COVER<JEH> 		1-43139-065-1 04 1 1412-

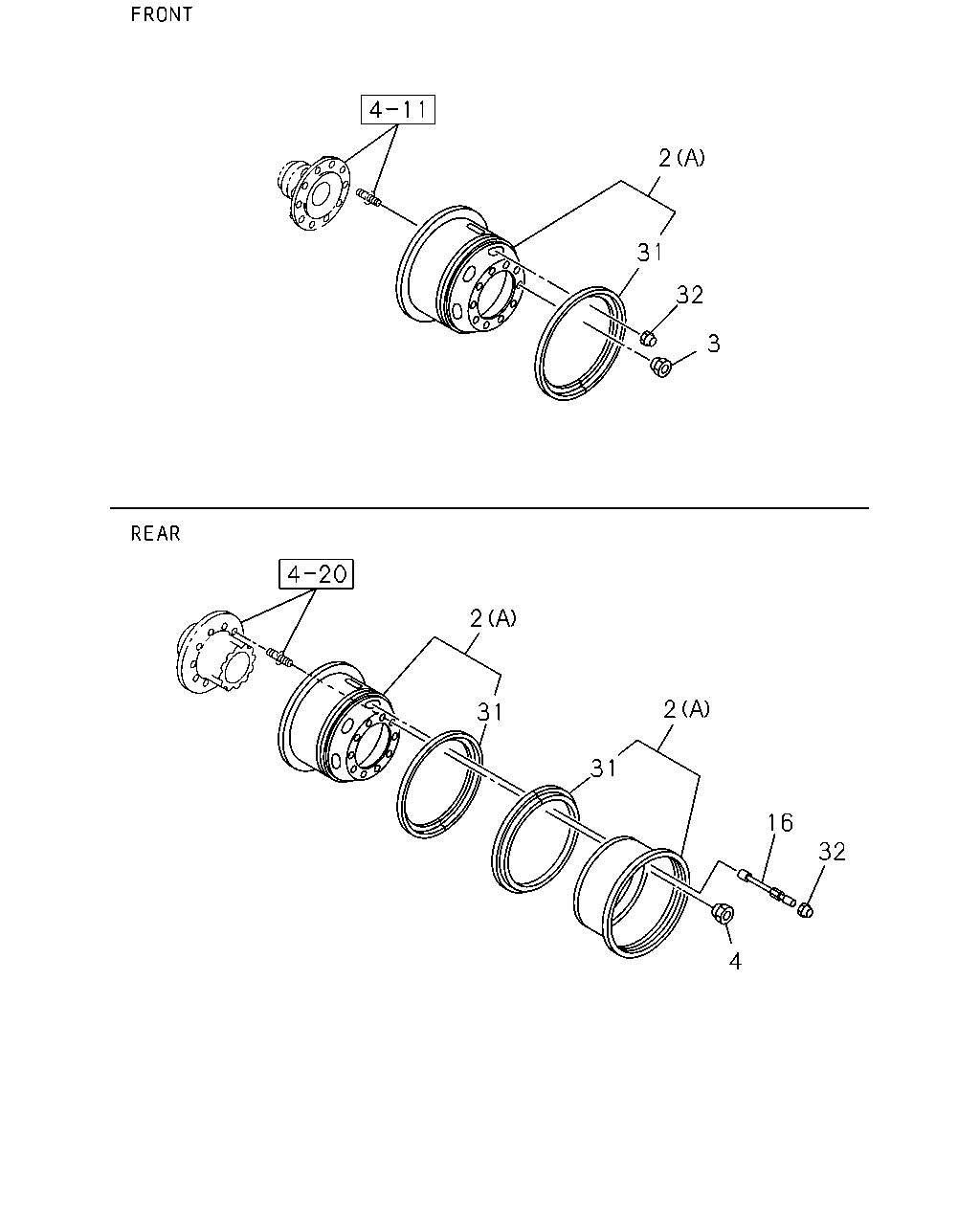

çizim 366436
32 31 3 2 2 31 31 2 16 32 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (B) FRONT 		8-98202-326-0 04 1 1412-
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) (B) REAR 		8-98217-247-0 08 1 1412-
2 WHEEL; DISC
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		8-98202-326-0 01 1 1412-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) FRONT,REAR 		1-42350-448-0 12 1 1306-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-448-0 01 1 1306-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) FRONT,REAR 		8-98217-247-0 12 1 1306-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) FRONT,REAR 		8-98281-497-0 12 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		8-98217-247-0 01 1 1306-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C) FRONT,REAR 		1-42350-694-0 12 1 1306-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE 		1-42350-694-0 01 1 1306-
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (C) FRONT,REAR 		1-42350-764-0 12 1 1306-
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE 		1-42350-764-0 01 1 1306-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 40 1 1306-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 1306-
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) L=115 		8-98167-051-0 04 1 1306-
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) L=170 		8-98167-052-0 04 1 1306-1411
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20165-12(Q64) L=170 		8-98167-052-0 04 1 1412-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT,REAR 		1-42355-014-0 12 1 1306-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-014-0 01 1 1306-
32 CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 09 1 1306-
32 CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 08 1 1306-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 12 1 1306-1411
32 CAP; VALVE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH), DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 12 1 1412-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1306-1411
32 CAP; VALVE
FT10 9.00X22.5 175-14 RR10 8.25X22.5 165-13(FJH), DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
