◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11524 - CYH RHD EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#124205) — 94 parça

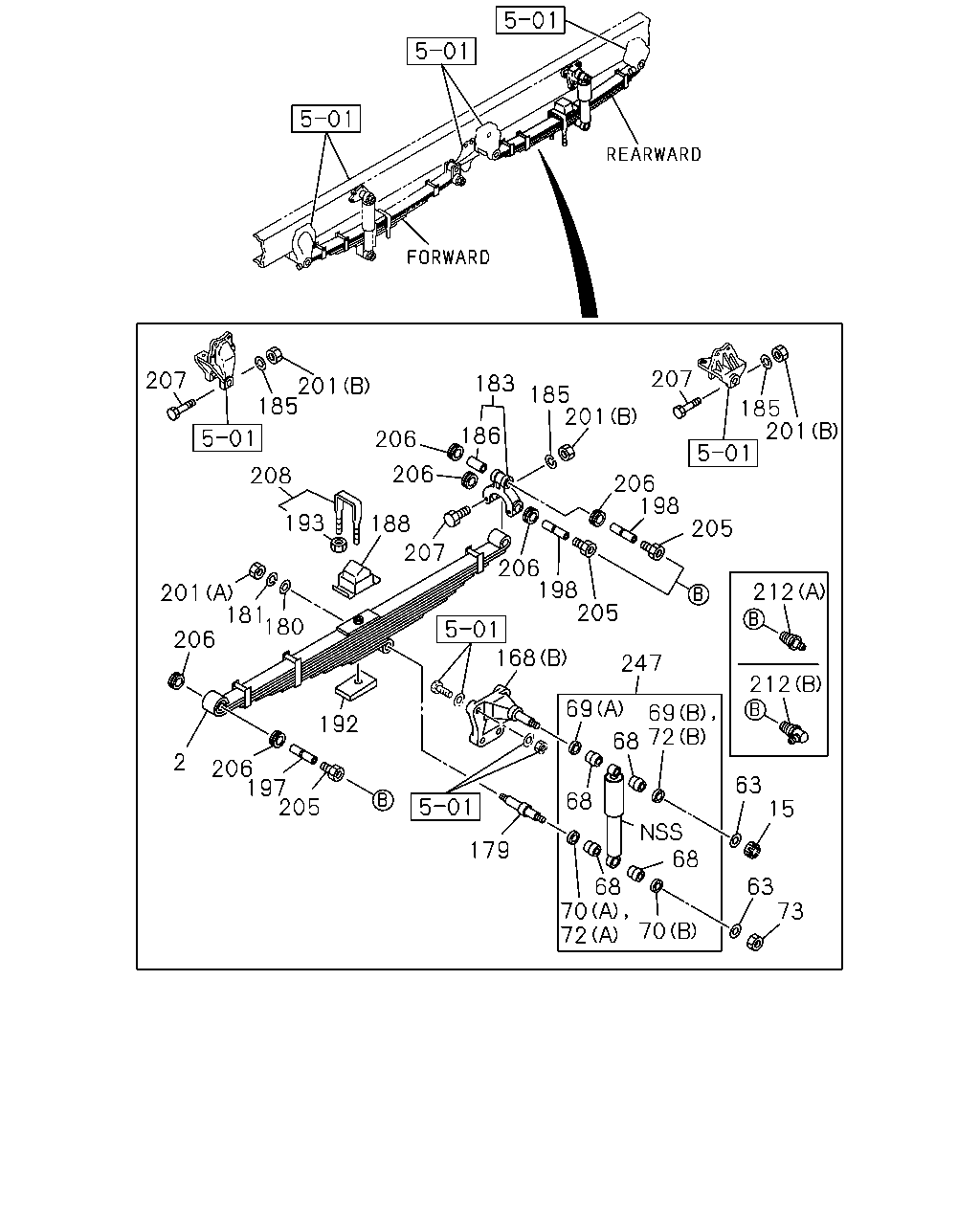

çizim 365809
207 185 201 208 193 201 206 2 206 197 205 192 180 181 188 207 168 179 70 72 70 73 63 15 63 72 69 68 68 68 68 69 247 205 198 206 206 206 183 186 185 201 206 198 205 212 212 201 185 207
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> FORWARD 4-LEAF 		8-98157-780-0 02 1 1306-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> REARWARD 5-LEAF 		8-98157-783-0 02 1 1306-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> FORWARD 8-LEAF 		8-98157-782-0 02 1 1306-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> REARWARD 9-LEAF 		8-98157-784-0 02 1 1306-
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1306-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 1306-
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> 		9-51631-026-0 16 1 1306-
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> 		9-51631-026-0 08 1 1306-
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> 		9-51631-026-0 08 1 1306-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 1306-
69 WASHER; UPR,S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 1306-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 1306-
70 WASHER; LWR,S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 1306-
72 WASHER; CENTER,S/ABS UPR BUSHING
MULTI LEAF SUSPENSION FRT<SAQ> (A) ID=27 		9-51631-027-0 02 1 1306-
72 WASHER; CENTER,S/ABS UPR BUSHING
MULTI LEAF SUSPENSION FRT<SAQ> (B) ID=21 		9-51631-028-0 02 1 1306-
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 04 1 1306-
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1306-
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1306-
179 PIN 1-51682-094-1 02 1 1306-
179 PIN 1-51682-094-1 02 1 1306-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 1306-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 1306-
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 02 1 1306-
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 02 1 1306-
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1306-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 1306-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1306-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
REARWARD 		1-51172-081-1 02 1 1306-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT TAPER LEAF SUSPENSION<SAR> FORWARD 		1-51172-081-1 02 1 1306-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MULTI LEAF SUSPENSION FRT<SAQ> FORWARD 		1-51172-085-2 02 1 1306-
192 PIECE; DIST 1-51177-281-1 02 1 1306-
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1306-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 1306-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 1306-
201 NUT; PIN LK
(B) M12 		0-91110-512-0 24 1 1306-
201 NUT; PIN LK
(A) M24 		0-91110-524-0 02 1 1306-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 1306-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1306-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 1306-
208 U-BOLT SET; FRT SPRING
FORWARD L=270 		1-87870-327-2 04 1 1306-
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> REARWARD L=270 		1-87870-327-2 04 1 1306-
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> REARWARD L=240 		1-87870-376-2 04 1 1306-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 05 1 1306-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 07 1 1306-
247 ABSORBER ASM; SHOCK,RWD FRT
FRT TAPER LEAF SUSPENSION<SAR> 		8-98162-765-0 02 1 1306-
247 ABSORBER ASM; SHOCK,RWD FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-783-0 02 1 1306-

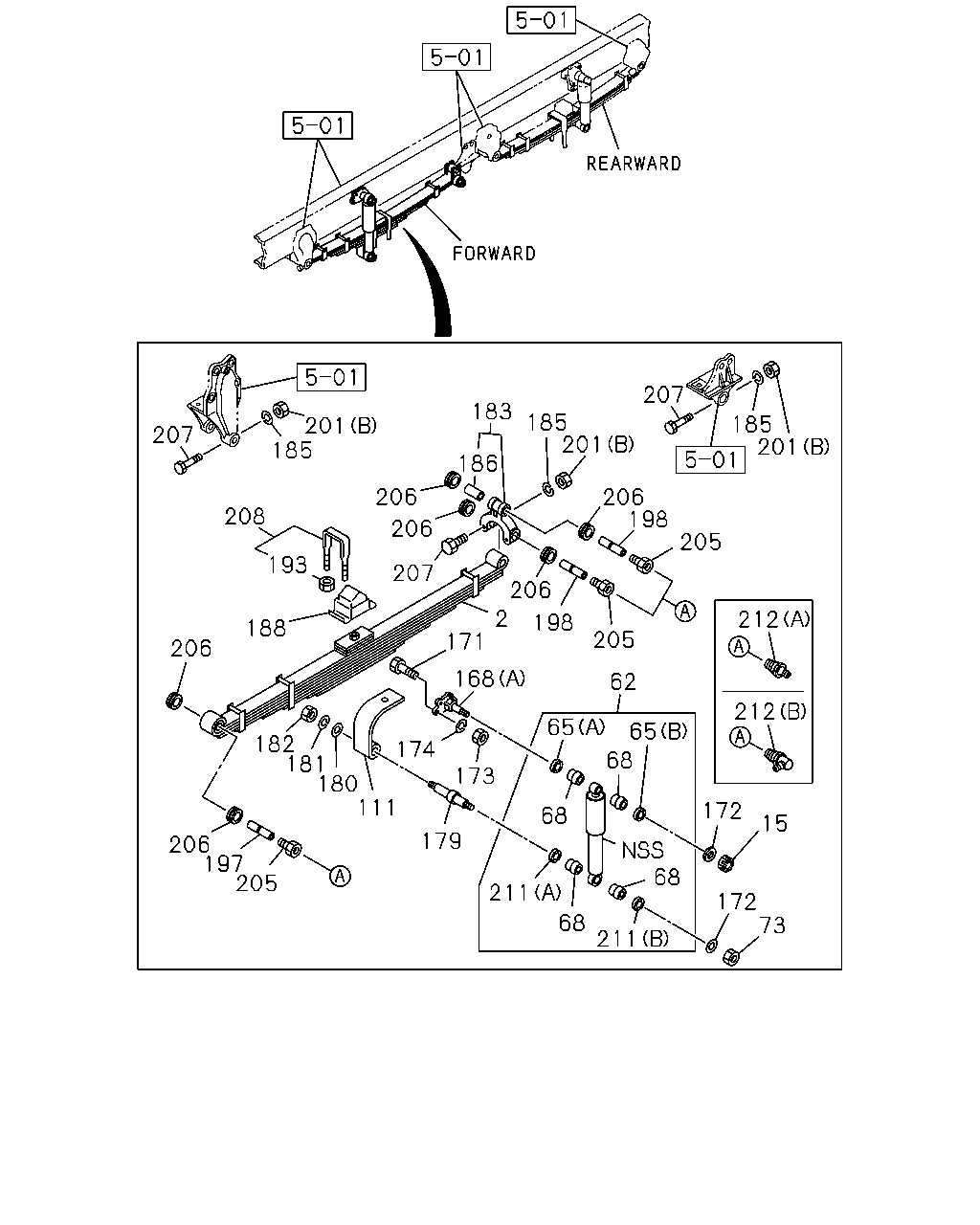

çizim 367115
207 201 185 208 193 188 206 182 206 197 205 179 111 180 181 173 174 168 171 207 206 206 183 186 206 2 198 205 62 65 68 211 68 211 68 68 65 172 15 172 73 205 198 206 201 185 207 185 201 212 212
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> FORWARD 4-LEAF 		8-98157-780-0 02 1 1306-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> REARWARD 5-LEAF 		8-98157-783-0 02 1 1306-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> FORWARD 8-LEAF 		8-98157-782-0 02 1 1306-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> REARWARD 9-LEAF 		8-98157-784-0 02 1 1306-
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1306-
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		8-98162-769-0 02 1 1306-
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-443-0 02 1 1306-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 1306-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 1306-
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> 		9-51631-026-0 16 1 1306-
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> 		9-51631-026-0 08 1 1306-
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> 		9-51631-026-0 08 1 1306-
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 04 1 1306-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-627-0 02 1 1306-
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1306-
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1306-
171 BOLT; S/ABS BRKT
M14X45 		9-92061-445-0 08 1 1306-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 1306-
173 NUT; S/ABS
M14 		0-91110-514-0 08 1 1306-
174 WASHER; LK,S/ABS
ID=14.2 		0-91510-614-0 08 1 1306-
179 PIN 1-51682-094-1 02 1 1306-
179 PIN 1-51682-094-1 02 1 1306-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 1306-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 1306-
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 02 1 1306-
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 02 1 1306-
182 NUT; S/ABS LWR
M24 		0-91110-524-0 02 1 1306-
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1306-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 1306-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1306-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
REARWARD 		1-51172-081-1 02 1 1306-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT TAPER LEAF SUSPENSION<SAR> FORWARD 		1-51172-081-1 02 1 1306-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MULTI LEAF SUSPENSION FRT<SAQ> FORWARD 		1-51172-085-2 02 1 1306-
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1306-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 1306-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 1306-
201 NUT; PIN LK
(B) M12 		0-91110-512-0 24 1 1306-
201 NUT; PIN LK
(A) M24 		0-91110-524-0 02 1 1306-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 1306-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1306-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 1306-
208 U-BOLT SET; FRT SPRING
FORWARD L=270 		1-87870-327-2 04 1 1306-
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> REARWARD L=270 		1-87870-327-2 04 1 1306-
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> REARWARD L=240 		1-87870-376-2 04 1 1306-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1306-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1306-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 05 1 1306-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 07 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
