Isuzu WW
▶
TRUCKS
▶
CXY
▶
10869 - CXY(51) RHD AUSTRALIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-71 - COMPRESSOR; AIR CONDITIONING
▶
8-71 — COMPRESSOR; AIR CONDITIONING
(#12420) — 20 parça
◀

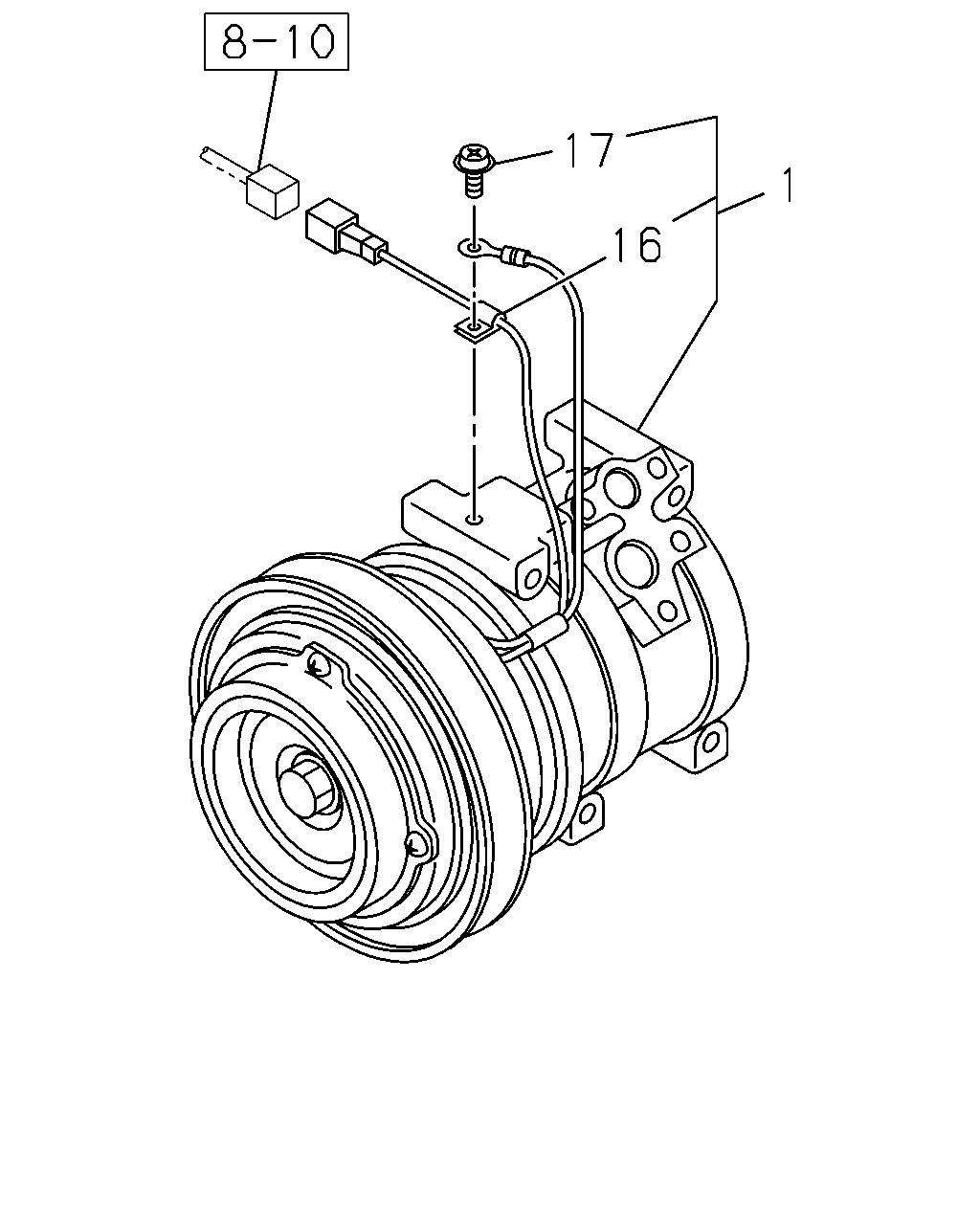

[871A] '03/2- (4 parça)

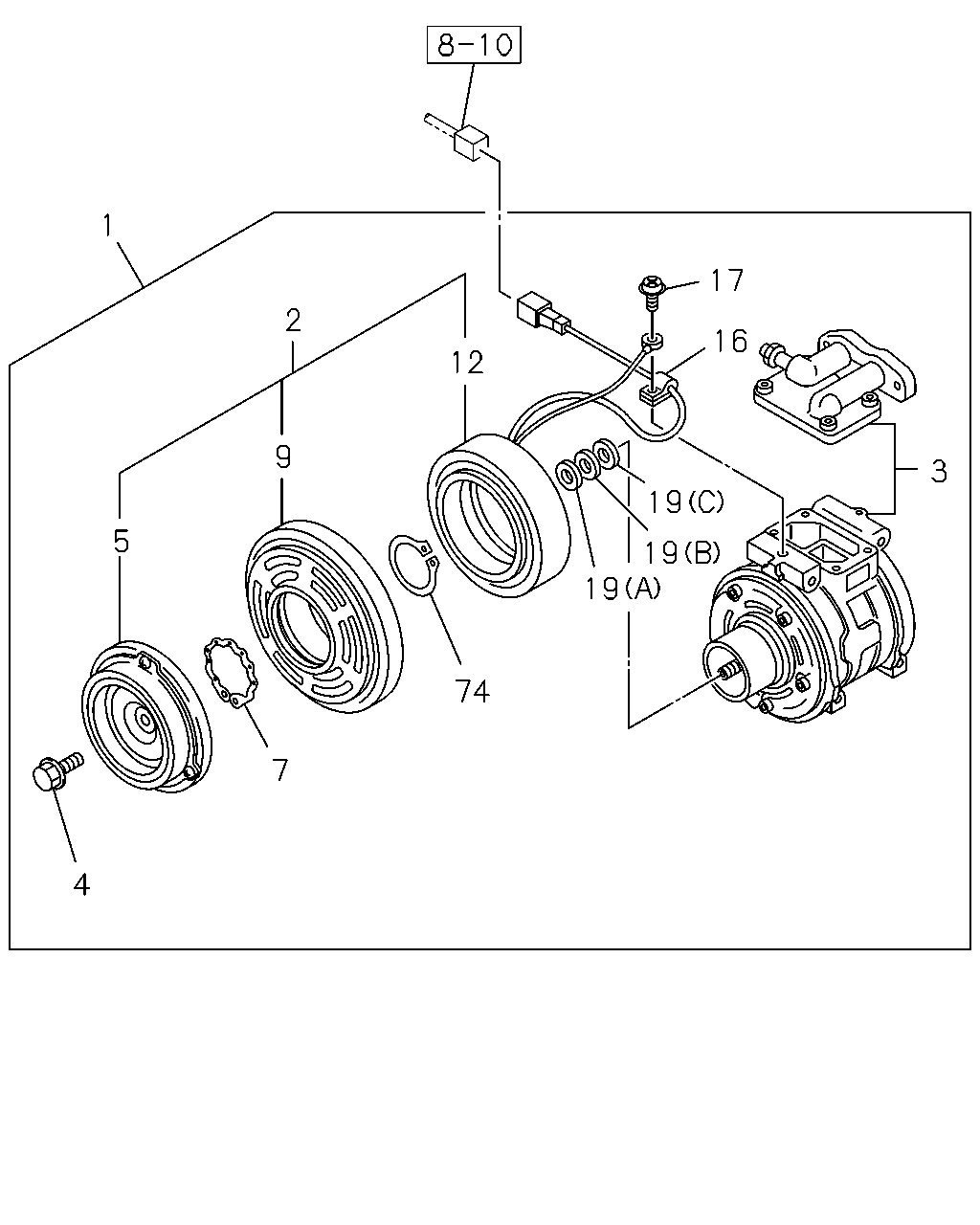

[871A] -'03/1 (16 parça)
▶
17
1
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83532-270-2
01
1
0105-0301
1
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83532-313-0
01
1
0302-
16
CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-893-0
01
1
0105-
17
SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
5-81129-130-0
01
1
0105-
1
17
2
16
12
9
3
19
5
19
19
74
7
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83532-270-2
01
1
0105-0301
1
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83532-313-0
01
1
0302-
2
CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83533-043-0
01
1
0105-0301
3
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83532-274-0
01
1
0105-0301
4
BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-323-0
01
1
0105-0301
5
ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) PRESS
1-83579-886-0
01
1
0105-0301
5
ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) FORGING
1-83579-887-0
01
1
0105-0301
7
RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-888-0
01
1
0105-0301
9
PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-885-0
01
1
0105-0301
12
COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-322-0
01
1
0105-0301
16
CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-893-0
01
1
0105-
17
SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
5-81129-130-0
01
1
0105-
19
WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) (A) T=0.1
1-83579-890-0
01
1
0105-0301
19
WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) (B) T=0.3
1-83579-891-0
01
1
0105-0301
19
WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) (C) T=0.5
1-83579-892-0
01
1
0105-0301
74
RING; SNAP,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-889-0
01
1
0105-0301
