◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-82 - POWER TAKE OFF; TRANSMISSION REAR ▶
2-82 — POWER TAKE OFF; TRANSMISSION REAR (#1242) — 58 parça

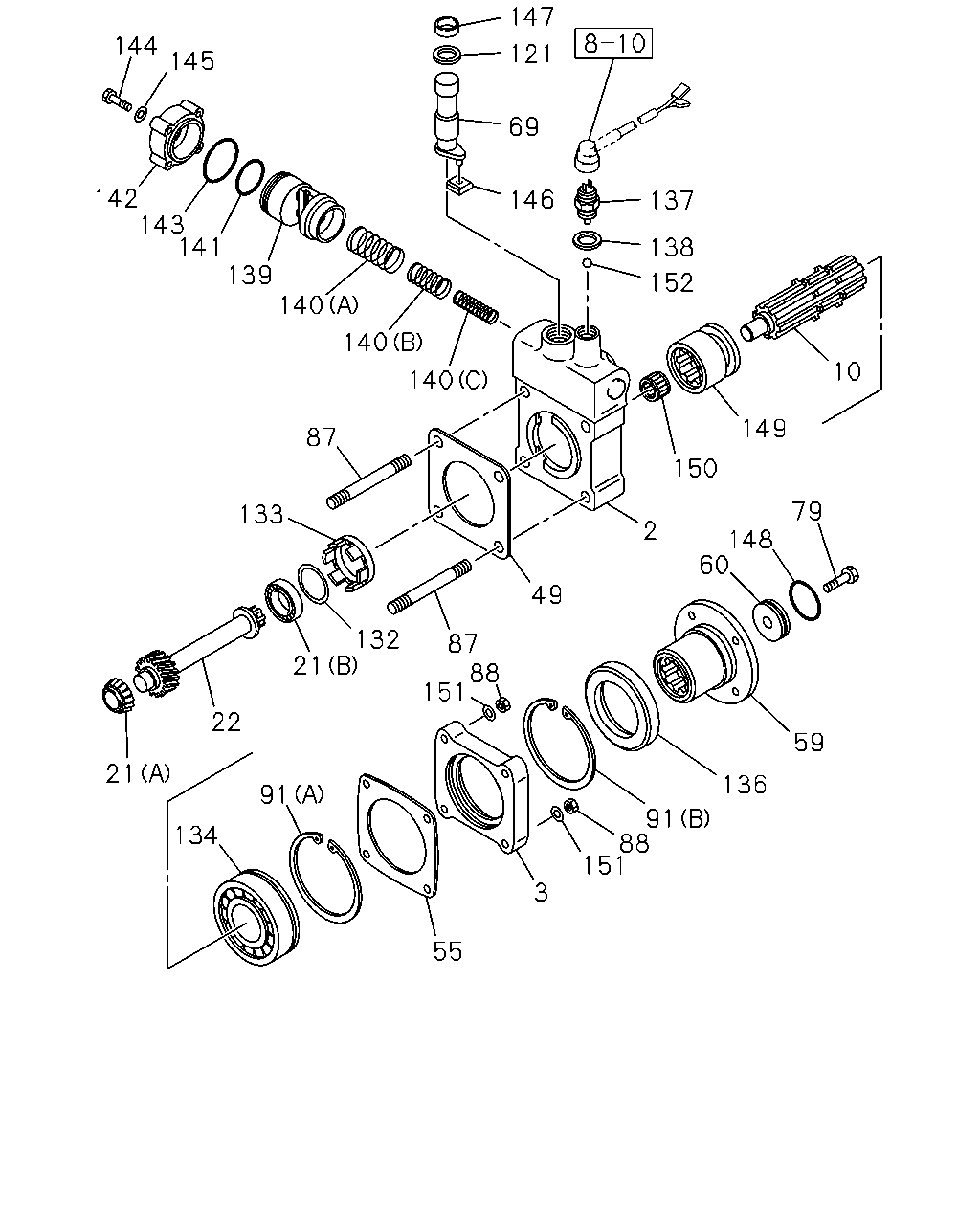

çizim 27510
147 144 121 145 69 142 143 141 146 137 138 139 140 152 140 10 140 149 87 150 79 133 2 148 60 49 132 21 87 88 151 22 59 21 136 91 91 88 151 134 3 55
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; GEAR,TRANS RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-076-0 01 1 9505-
3 COVER; GEAR CASE,TRANS RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38159-002-0 01 1 9505-
10 SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38221-047-0 01 1 9505-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-33389-045-0 01 1 9505-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-33389-054-0 01 1 9505-
22 SHAFT; MAIN DRIVE,TRANS RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33381-009-0 01 1 9505-
49 GASKET; PTO GEAR CASE TO TRANS
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33132-054-0 01 1 9505-
55 GASKET; BRG COVER,TRANS RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33132-054-0 01 1 9505-
59 YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38229-010-0 01 1 9505-
60 WASHER; YOKE,OUTPUT SHAFT,RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38519-013-0 01 1 9505-
69 LEVER; PTO CONT,TRANS RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-032-0 01 1 9505-
79 BOLT
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-37249-074-0 01 1 9505-
87 STUD; GEAR CASE
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-034-0 04 1 9505-
88 NUT; COVER
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-027-0 04 1 9505-
91 RING; SNAP
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38219-016-0 01 1 9505-
91 RING; SNAP
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38219-017-0 01 1 9505-
121 RING; SNAP,SHIFT LEVER
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38369-004-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.60 		1-33389-047-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.55 		1-33389-048-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.50 		1-33389-049-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.45 		1-33389-050-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.40 		1-33389-051-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.35 		1-33389-052-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.30 		1-33389-053-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.25 		1-33389-055-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.20 		1-33389-056-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.15 		1-33389-057-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.10 		1-33389-058-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.05 		1-33389-059-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.00 		1-33389-060-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.95 		1-33389-061-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.90 		1-33389-062-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.85 		1-33389-063-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.80 		1-33389-064-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.75 		1-33389-065-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.70 		1-33389-066-0 01 1 9505-
132 SHIM; BRG
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.65 		1-33389-067-0 01 1 9505-
133 BUSHING; SHAFT
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33389-046-0 01 1 9505-
134 BEARING; OUTPUT SHAFT
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38219-015-0 01 1 9505-
136 SEAL; SHAFT
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38519-010-0 01 1 9505-
137 SWITCH; RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82440-080-1 01 1 9505-
138 GASKET; SW
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33119-249-0 01 1 9505-
139 PISTON; RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38129-016-0 01 1 9505-
140 SPRING; PISTON,RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38129-013-0 01 1 9505-
140 SPRING; PISTON,RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38129-014-0 01 1 9505-
140 SPRING; PISTON,RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-38129-015-0 01 1 9505-
141 GASKET; PISTON,RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38129-023-0 01 1 9505-
142 CYLINDER; RR PTO
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38159-003-0 01 1 9505-
143 GASKET; CYL
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38129-018-0 01 1 9505-
144 BOLT; CYL
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38129-024-0 04 1 9505-
145 WASHER; LK,CYL
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38129-025-0 04 1 9505-
146 PAD; CONT LEVER
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38369-009-0 01 1 9505-
147 CUP; SEALING
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38369-006-0 01 1 9505-
148 GASKET; YOKE
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38519-014-0 01 1 9505-
149 SLEEVE; SLIDING
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38229-008-0 01 1 9505-
150 BEARING; OUTPUT SHAFT
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38249-018-0 01 1 9505-
151 WASHER; PL,COVER
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-028-0 04 1 9505-
152 BALL; SW
FINAL GEAR 37/8 17" EATON(W5A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-032-0 01 1 9505-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
