Isuzu WW
▶
TRUCKS
▶
CYH
▶
11524 - CYH RHD EURO2
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶

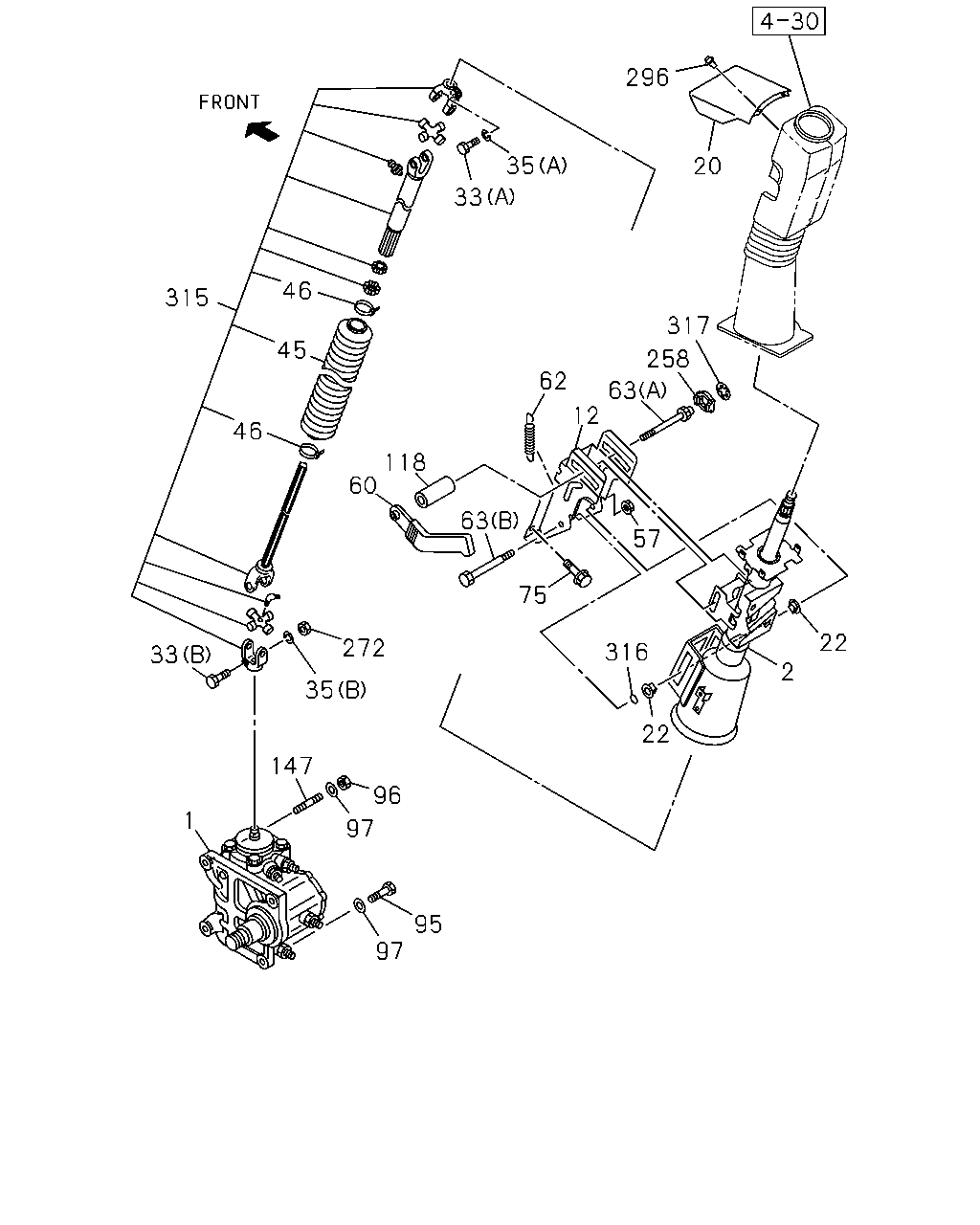

4-31 — STEERING COLUMN AND SHAFT
(#124198) — 30 parça
315
33
272
35
147
96
97
97
95
1
46
45
46
33
35
60
118
63
62
75
57
316
22
2
22
12
63
258
317
20
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-922-2
01
1
1306-
2
SHAFT ASM; STRG
1-44130-689-1
01
1
1306-
12
BRACKET; LWR,STRG COLUMN
1-44227-167-0
01
1
1306-
20
COVER; STRG SHAFT
1-72438-121-3
01
1
1306-
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
1306-
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-786-0
01
1
1306-
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-153-0
01
1
1306-
35
WASHER; LK,STRG SHAFT
(B) ID=10.2
0-91510-810-0
01
1
1306-
35
WASHER; LK,STRG SHAFT
(A)
1-44139-154-0
01
1
1306-
45
BOOT; STRG SHAFT
1-44139-163-0
01
1
1306-1409
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
1410-
46
CLIP; BOOT
1-44139-156-0
02
1
1306-
57
NUT; ADJ BOLT
1-44227-151-0
01
1
1306-
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
1306-
62
SPRING; LK,LEVER
1-44227-153-0
01
1
1306-
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-145-0
01
1
1306-
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-149-0
01
1
1306-
75
BOLT; STRG COLUMN
M8X20 FLANGE
0-28650-820-0
04
1
1306-
95
BOLT; STRG UNIT
M18X60
8-98036-497-0
03
1
1306-
96
NUT; STRG UNIT
M18
0-91110-518-0
01
1
1306-
97
WASHER; PL,STRG UNIT
ID=18
9-09851-862-0
04
1
1306-
118
NUT; LEVER,TILT BOLT
1-44227-163-0
01
1
1306-
147
STUD; STRG UNIT
M18X49 L=76
1-09300-107-0
01
1
1306-
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
1306-
272
NUT; SHAFT TO YOKE
M10
0-91110-510-0
01
1
1306-
296
CLIP; COVER
D6X12.5
8-94146-425-0
02
1
1306-
315
JOINT; SPLINE
1-44135-392-0
01
1
1306-1409
315
JOINT; SPLINE
1-44135-345-2
01
1
1410-
316
RING
1-44227-152-0
01
1
1306-
317
NUT; PUSH
1-44227-148-0
01
1
1306-
