Isuzu WW
▶
TRUCKS
▶
CYH
▶
11524 - CYH RHD EURO2
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

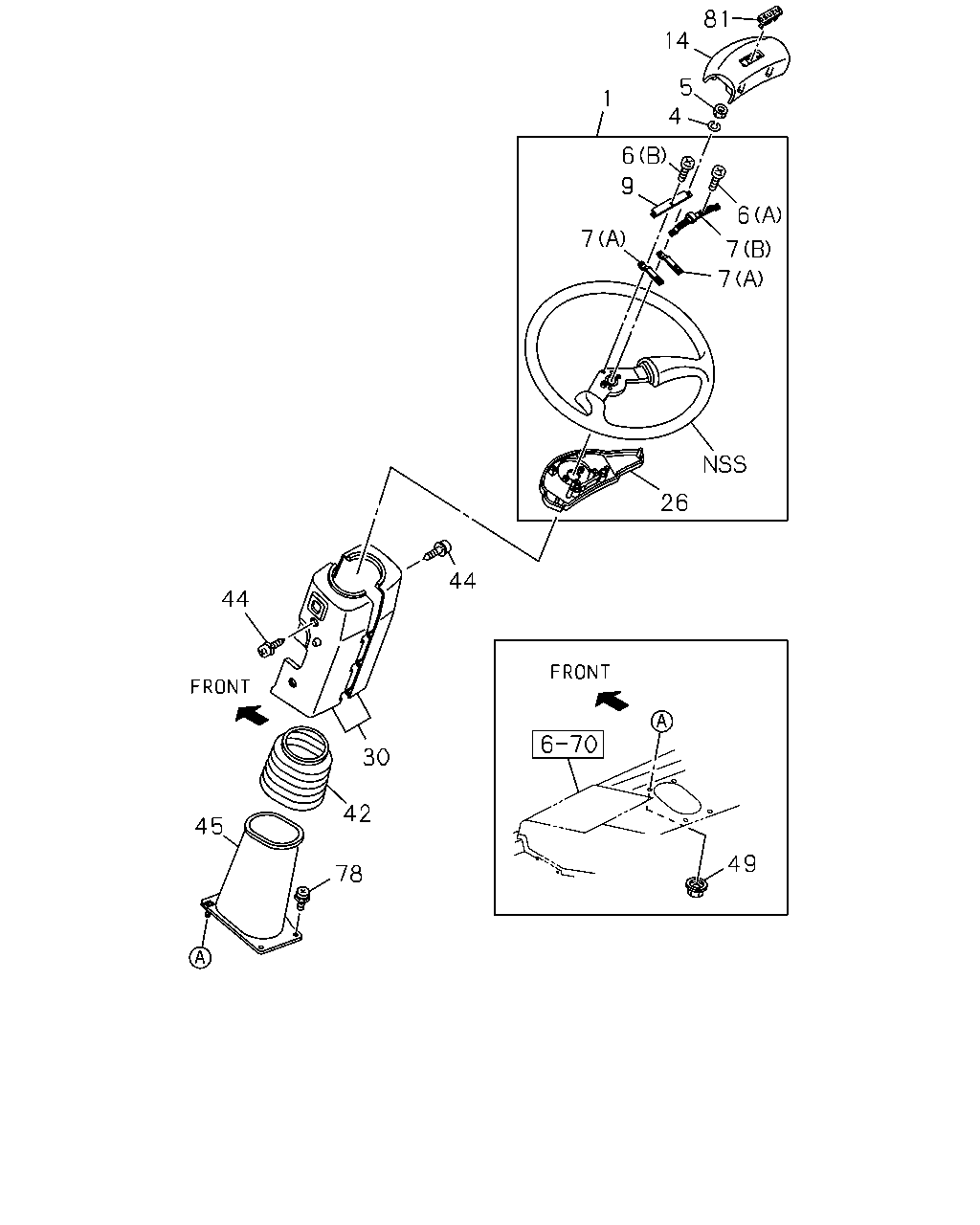

4-30 - STEERING WHEEL AND COWL
▶
4-30 — STEERING WHEEL AND COWL
(#124197) — 17 parça
45
78
42
30
44
44
49
26
7
1
6
9
4
5
14
81
6
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
WHEEL; STRG
1-44110-146-1
01
1
1306-
4
WASHER; LK,STRG WHEEL
ID=20.2
0-91510-520-0
01
1
1306-
5
NUT; STRG WHEEL TO SHAFT
M20
0-91111-520-0
01
1
1306-
6
SCREW; HORN SPR CONTACT
(B) M4X10
1-44129-034-0
01
1
1306-
6
SCREW; HORN SPR CONTACT
(A) M4X16
1-44129-036-0
04
1
1306-
7
SPRING; HORN CONTACT
(A)
1-44129-033-0
02
1
1306-
7
SPRING; HORN CONTACT
(B)
1-44129-037-0
01
1
1306-
9
PLATE; HORN CONTACT
1-44129-038-0
01
1
1306-
14
BUTTON; HORN,STRG WHEEL
1-44120-045-2
01
1
1306-
26
COVER; STRG WHEEL,LWR
1-44129-039-1
01
1
1306-
30
COWL; STEERING
1-79997-342-3
01
1
1306-
42
BOOT; STEERING COLUMN
1-79996-385-1
01
1
1306-
44
SCREW; STRG COWL
M6X12
8-97094-854-0
04
1
1306-
45
BOOT; STRG SHAFT
1-79998-738-2
01
1
1306-
49
NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1306-
78
BOLT; STRG
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
1306-
81
EMBLEM; STRG WHEEL
1-76210-638-1
01
1
1306-
