◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11524 - CYH RHD EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#124196) — 792 parça

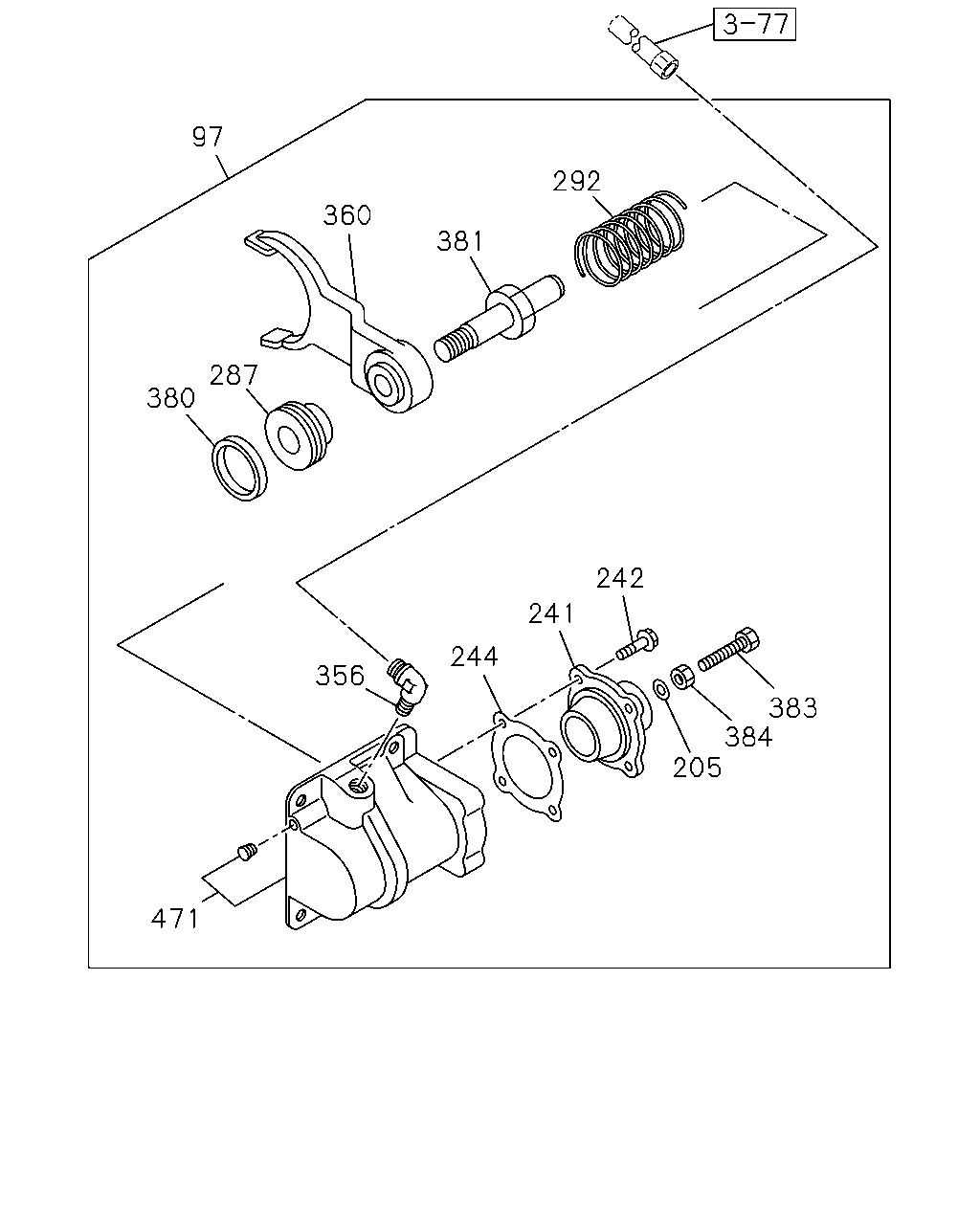

çizim 364553
97 360 287 380 381 292 242 241 244 356 471 205 383 384
BalonParca AdiParca NoAdetTipApplied Date A B C
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1306- ● ● ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 1306- ● ● ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 1306- ● ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 1306- ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 1306- ● ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 1306- ● ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 1306- ● ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1306- ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 1306- ● ● ●
380 GASKET; PISTON 1-48269-064-0 01 1 1306- ● ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 1306- ● ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 1306- ● ● ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 1306- ● ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 1306- ● ● ●
çizim 366471
1 71 69 70 85 25 85 21 20 24 22 21 17 20 17 70 84 55 69 89 56 88 88 65 66 61 61 64 63 62 60 50 41 40 39 100 126 4 37 45 48 43 49
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41002-547-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-561-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41001-393-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-443-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41003-558-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41003-563-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-108-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41002-119-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41001-394-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-761-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41003-555-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41003-560-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41003-559-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41003-564-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-514-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41002-515-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41001-396-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-445-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41003-557-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41003-562-0 01 1 1306- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 04 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 04 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1306- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 02 1 1306- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 02 1 1306- ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-169-0 01 1 1306- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 01 1 1306- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 01 1 1306- ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 1306- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 04 1 1306- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 04 1 1306- ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-055-0 04 1 1306- ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 1306- ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 1306- ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 1306- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1306- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1306- ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1306- ● ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1306- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1306- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1306- ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1306- ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1306- ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1306- ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1306- ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1306- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1306- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1306- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1306- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1306- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-546-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-606-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-477-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-605-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-627-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41210-626-0 01 1 1306-1501 ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> 41/9 		1-41210-626-0 01 1 1502- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-479-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41210-608-0 01 1 1306-1501 ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41210-608-0 01 1 1306-1501 ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> 41/9 		1-41210-608-0 01 1 1502- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1306- ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1306- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1306- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1306- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1306- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1306- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1306- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1306- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1306- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1306- ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1306- ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1306- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1306- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1306- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1306- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1306- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1306- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1306- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1306- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1306- ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1306- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1306- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1306- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1306- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1306- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1306- ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1306- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1306-1501 ●
126 COUPLING; DRIVING PINION
EXC. LIMITED SLIP DIFF VAR2<G86> 		1-37245-336-0 01 1 1306-1501 ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1502- ● ● ●
126 COUPLING; DRIVING PINION
LIMITED SLIP DIFF VAR2<G86> 		1-37245-343-0 01 1 1306-1501 ● ●

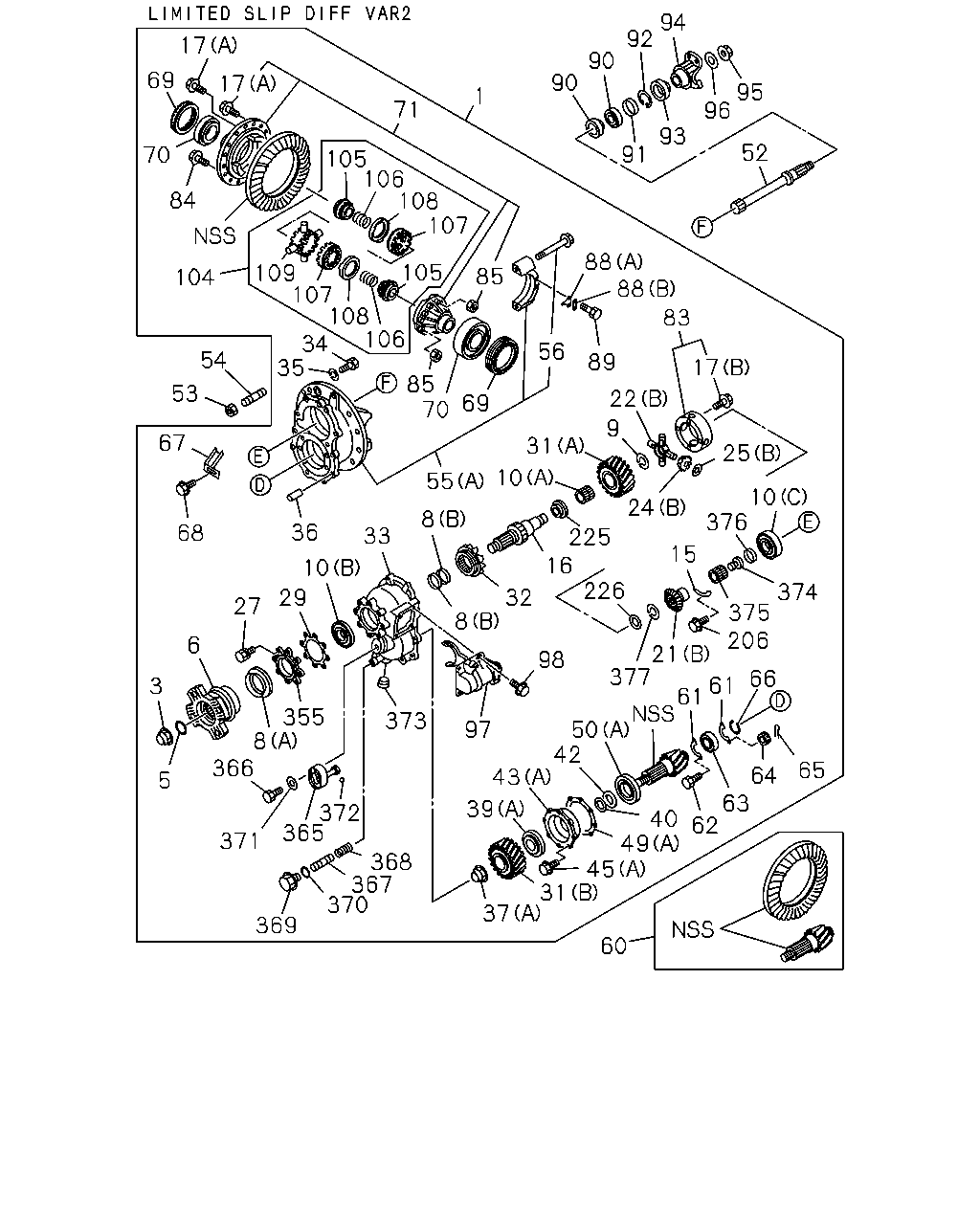

çizim 366766
92 94 95 52 96 93 91 90 90 1 88 83 88 17 22 89 56 85 107 108 71 105 17 17 69 70 84 104 107 109 34 108 85 55 69 70 105 106 54 53 35 67 68 27 36 8 33 10 29 355 8 366 5 6 3 365 368 367 370 369 371 372 373 97 43 39 37 45 60 31 40 49 63 377 50 42 64 61 61 65 66 206 374 375 10 376 15 24 225 226 16 32 8 98 10 31 9 25 106 21 62
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41002-547-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-561-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41001-393-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-443-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41003-558-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41003-563-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-108-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41002-119-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41001-394-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-761-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41003-555-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41003-560-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41003-559-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41003-564-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-514-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41002-515-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41001-396-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-445-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41003-557-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41003-562-0 01 1 1306- ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1306- ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1306- ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1306- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1306- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1306- ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1306- ● ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1306- ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1306- ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1306- ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1306- ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1306- ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1306- ● ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 1306- ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 04 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 04 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 1306- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 02 1 1306- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 02 1 1306- ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-169-0 01 1 1306- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 01 1 1306- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 01 1 1306- ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 1306- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 04 1 1306- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 04 1 1306- ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-055-0 04 1 1306- ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 1306- ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 1306- ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 1306- ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1306- ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1306- ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1306- ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1306- ● ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1306- ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-044-0 01 1 1306- ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 1306- ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1306- ● ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1306- ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1306- ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 1306- ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1306- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1306- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 1306- ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1306- ● ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1306- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1306- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1306- ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1306- ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1306- ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1306- ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1306- ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1306- ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1306- ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1306- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1306- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1306- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1306- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1306- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-546-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-606-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-477-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-605-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-627-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41210-626-0 01 1 1306-1501 ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> 41/9 		1-41210-626-0 01 1 1502- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-479-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41210-608-0 01 1 1306-1501 ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41210-608-0 01 1 1306-1501 ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> 41/9 		1-41210-608-0 01 1 1502- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1306- ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1306- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1306- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1306- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1306- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1306- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1306- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1306- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1306- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1306- ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1306- ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1306- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1306- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1306- ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1306- ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1306- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1306- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1306- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1306- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1306- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1306- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1306- ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 1306- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1306- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1306- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1306- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1306- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1306- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1306- ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1306- ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1306- ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1306- ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1306- ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1306- ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1306- ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1306- ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1306- ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1306- ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1306- ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF VAR2<G86> 		1-41530-023-0 01 1 1306- ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF VAR2<G86> 		1-41530-023-0 01 1 1306- ● ● ●
105 GEAR; SIDE
LIMITED SLIP DIFF VAR2<G86> Z=24 		1-41539-028-0 02 1 1306- ● ● ●
105 GEAR; SIDE
LIMITED SLIP DIFF VAR2<G86> Z=24 		1-41539-028-0 02 1 1306- ● ● ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41535-004-0 02 1 1306- ● ● ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41535-004-0 02 1 1306- ● ● ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF VAR2<G86> 		1-41532-006-0 02 1 1306- ● ● ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF VAR2<G86> 		1-41532-006-0 02 1 1306- ● ● ●
108 RING; HOLD OUT
LIMITED SLIP DIFF VAR2<G86> 		1-41539-024-0 02 1 1306- ● ● ●
108 RING; HOLD OUT
LIMITED SLIP DIFF VAR2<G86> 		1-41539-024-0 02 1 1306- ● ● ●
109 SPIDER; DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41539-027-0 01 1 1306- ● ● ●
109 SPIDER; DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41539-027-0 01 1 1306- ● ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 1306- ● ● ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 1306- ● ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 1306- ● ● ●
355 RETAINER; BRG 1-41227-016-0 01 1 1306- ● ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 1306- ● ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 1306- ● ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 1306- ● ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 1306- ● ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 1306- ● ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 1306- ● ● ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 1306- ● ● ●
372 BALL; CASE 9-00097-517-0 01 1 1306- ● ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 1306- ● ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 1306- ● ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 1306- ● ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 1306- ● ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 1306- ● ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 1306- ● ● ●

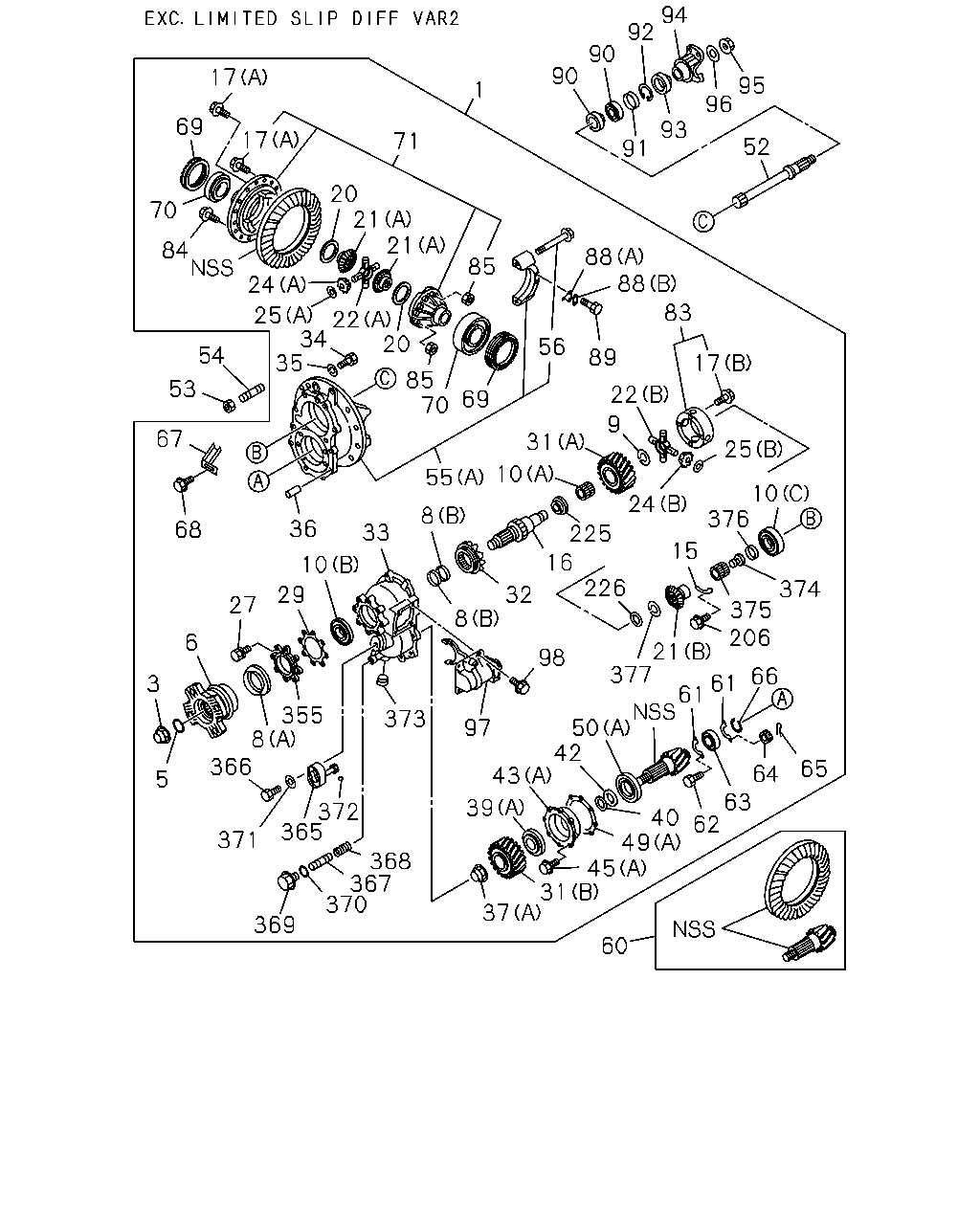

çizim 367171
94 92 90 90 95 96 93 91 52 88 83 71 1 17 69 70 20 17 84 21 24 21 25 85 22 34 35 85 20 70 54 53 67 68 36 69 56 31 10 55 33 8 10 29 27 6 3 5 371 369 365 370 372 367 366 373 355 8 97 43 39 37 49 45 31 60 62 40 65 64 63 61 61 50 42 377 98 8 16 9 22 89 88 17 25 376 10 374 375 206 66 21 226 225 24 15 368 32
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41002-547-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-561-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41001-393-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-443-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41003-558-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41003-563-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-108-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41002-119-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41001-394-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-761-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41003-555-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41003-560-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41003-559-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41003-564-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-514-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41002-515-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41001-396-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-445-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41003-557-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41003-562-0 01 1 1306- ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 1306- ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 1306- ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 1306- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 1306- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 1306- ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 1306- ● ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 1306- ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 1306- ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 1306- ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 1306- ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 1306- ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 1306- ● ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 1306- ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 04 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 04 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1306- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 1306- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 02 1 1306- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 02 1 1306- ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-169-0 01 1 1306- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 01 1 1306- ● ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 01 1 1306- ● ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 1306- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 04 1 1306- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 04 1 1306- ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-055-0 04 1 1306- ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 1306- ● ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 04 1 1306- ● ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 1306- ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 1306- ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 1306- ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 1306- ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 1306- ● ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 1306- ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-044-0 01 1 1306- ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 1306- ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 1306- ● ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 1306- ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 1306- ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 1306- ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 1306- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1306- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 1306- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 1306- ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1306- ● ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1306- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1306- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1306- ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1306- ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1306- ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1306- ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1306- ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 1306- ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 1306- ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 1306- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1306- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1306- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1306- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1306- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-546-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-606-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-477-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-605-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-627-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41210-626-0 01 1 1306-1501 ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> 41/9 		1-41210-626-0 01 1 1502- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-479-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41210-608-0 01 1 1306-1501 ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41210-608-0 01 1 1306-1501 ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> 41/9 		1-41210-608-0 01 1 1502- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1306- ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1306- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1306- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1306- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1306- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1306- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1306- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1306- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1306- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1306- ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1306- ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1306- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1306- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1306- ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 1306- ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1306- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1306- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1306- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1306- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1306- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1306- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1306- ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 1306- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1306- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1306- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1306- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1306- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1306- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1306- ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 1306- ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 1306- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 1306- ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 1306- ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 1306- ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 1306- ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 1306- ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 1306- ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 1306- ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 1306- ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 1306- ● ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 1306- ● ● ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 1306- ● ● ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 1306- ● ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 1306- ● ● ●
355 RETAINER; BRG 1-41227-016-0 01 1 1306- ● ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 1306- ● ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 1306- ● ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 1306- ● ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 1306- ● ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 1306- ● ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 1306- ● ● ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 1306- ● ● ●
372 BALL; CASE 9-00097-517-0 01 1 1306- ● ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 1306- ● ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 1306- ● ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 1306- ● ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 1306- ● ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 1306- ● ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 1306- ● ● ●
çizim 367342
85 85 104 71 1 105 106 108 107 105 106 108 107 109 70 69 17 70 69 88 17 56 89 88 55 65 64 63 62 50 49 43 48 45 37 4 126 100 39 40 41 61 61 66 60 84
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41002-547-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-561-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 39/7 		1-41001-393-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 39/7 		1-41002-443-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41003-558-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41003-563-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-108-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41002-119-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/8 		1-41001-394-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8 		1-41002-761-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41003-555-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41003-560-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41003-559-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41003-564-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-514-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41002-515-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41001-396-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> FORWARD 41/9 		1-41002-445-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41003-557-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/9 		1-41003-562-0 01 1 1306- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 04 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 		1-09070-007-0 04 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 08 1 1306- ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 		1-09070-108-0 08 1 1306- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 1306- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 1306- ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1306- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1306- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1306- ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 1306- ● ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 1306- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 1306- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 1306- ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 1306- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 1306- ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 1306- ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 1306- ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 1306- ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 1306- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 1306- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 1306- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1306- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 1306- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-546-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-606-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/8 		1-41210-477-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> REARWARD 41/8 		1-41210-605-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-627-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41210-626-0 01 1 1306-1501 ●
60 GEAR SET; FINAL DRIVE,RR
FINAL DRIVE GEAR HARD FINISH<BDU> 41/9 		1-41210-626-0 01 1 1502- ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> FORWARD 41/9 		1-41210-479-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41210-608-0 01 1 1306-1501 ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU>,LIMITED SLIP DIFF VAR2<G86> REARWARD 41/9 		1-41210-608-0 01 1 1306-1501 ●
60 GEAR SET; FINAL DRIVE,RR
EXC. FINAL DRIVE GEAR HARD FINISH<BDU> 41/9 		1-41210-608-0 01 1 1502- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1306- ● ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 1306- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1306- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 1306- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1306- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 1306- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1306- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 1306- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1306- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1306- ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1306- ● ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1306- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1306- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1306- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 1306- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1306- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 1306- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1306- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 1306- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1306- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-142-0 01 1 1306- ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1306- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 1306- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1306- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1306- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 1306- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1306- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1306- ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1306- ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF VAR2<G86> 		1-41530-023-0 01 1 1306- ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF VAR2<G86> 		1-41530-023-0 01 1 1306- ● ● ●
105 GEAR; SIDE
LIMITED SLIP DIFF VAR2<G86> Z=24 		1-41539-028-0 02 1 1306- ● ● ●
105 GEAR; SIDE
LIMITED SLIP DIFF VAR2<G86> Z=24 		1-41539-028-0 02 1 1306- ● ● ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41535-004-0 02 1 1306- ● ● ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41535-004-0 02 1 1306- ● ● ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF VAR2<G86> 		1-41532-006-0 02 1 1306- ● ● ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF VAR2<G86> 		1-41532-006-0 02 1 1306- ● ● ●
108 RING; HOLD OUT
LIMITED SLIP DIFF VAR2<G86> 		1-41539-024-0 02 1 1306- ● ● ●
108 RING; HOLD OUT
LIMITED SLIP DIFF VAR2<G86> 		1-41539-024-0 02 1 1306- ● ● ●
109 SPIDER; DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41539-027-0 01 1 1306- ● ● ●
109 SPIDER; DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41539-027-0 01 1 1306- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1306-1501 ●
126 COUPLING; DRIVING PINION
EXC. LIMITED SLIP DIFF VAR2<G86> 		1-37245-336-0 01 1 1306-1501 ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 1502- ● ● ●
126 COUPLING; DRIVING PINION
LIMITED SLIP DIFF VAR2<G86> 		1-37245-343-0 01 1 1306-1501 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
