◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11524 - CYH RHD EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#124193) — 120 parça

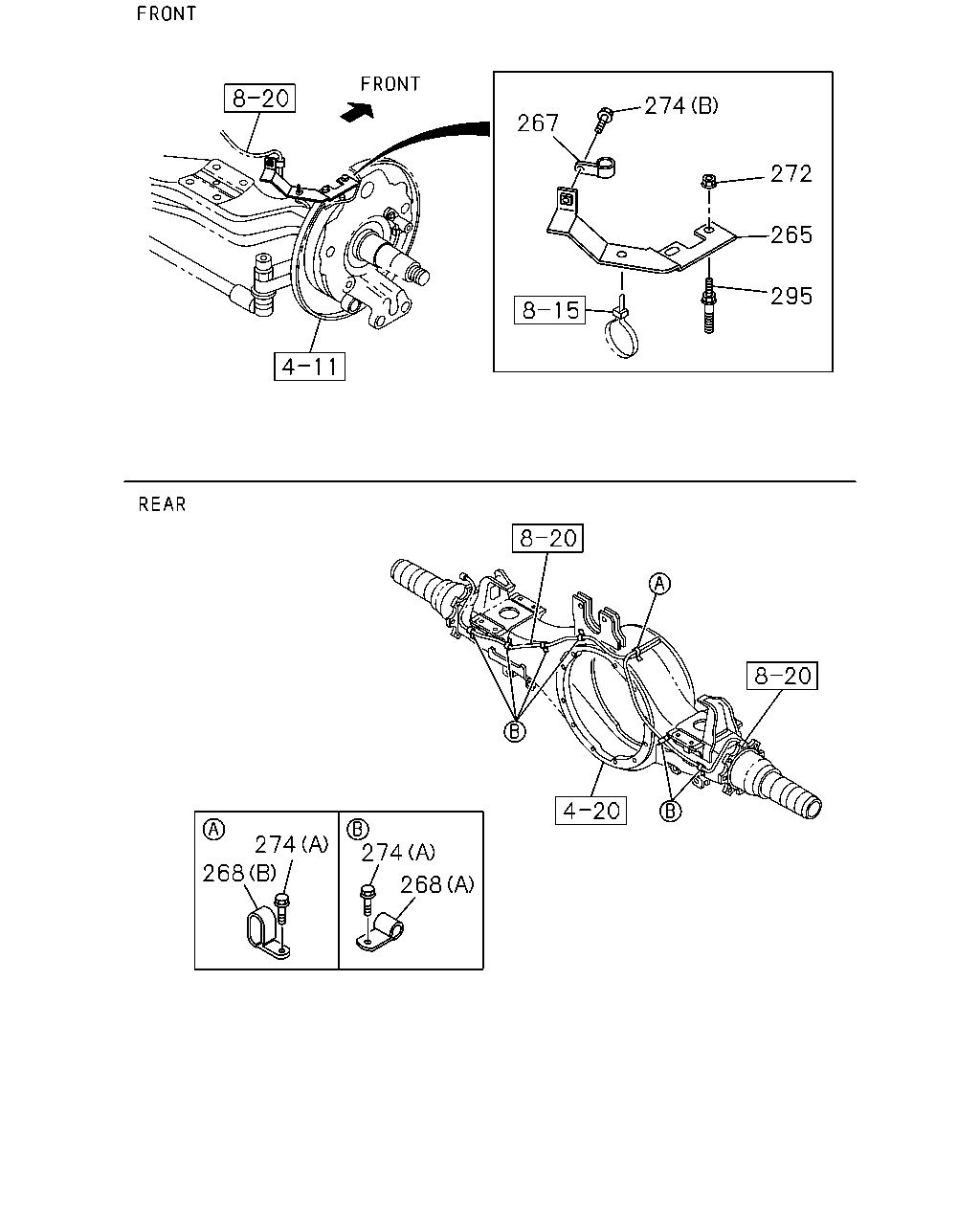

çizim 363455
267 274 272 265 295 274 268 274 268
BalonParca AdiParca NoAdetTipApplied Date
265 BRACKET; CLIP I BEAM 1-82698-427-0 01 1 1306-
265 BRACKET; CLIP I BEAM 1-82698-426-0 01 1 1306-
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 1306-
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 06 1 1306-
268 CLIP; HARNESS
(B) ID=11X2 L=20 		1-09700-871-0 01 1 1306-
272 NUT; CLIP
M10 FLANGE 		0-91180-110-0 04 1 1306-
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 07 1 1306-
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1306-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1306-

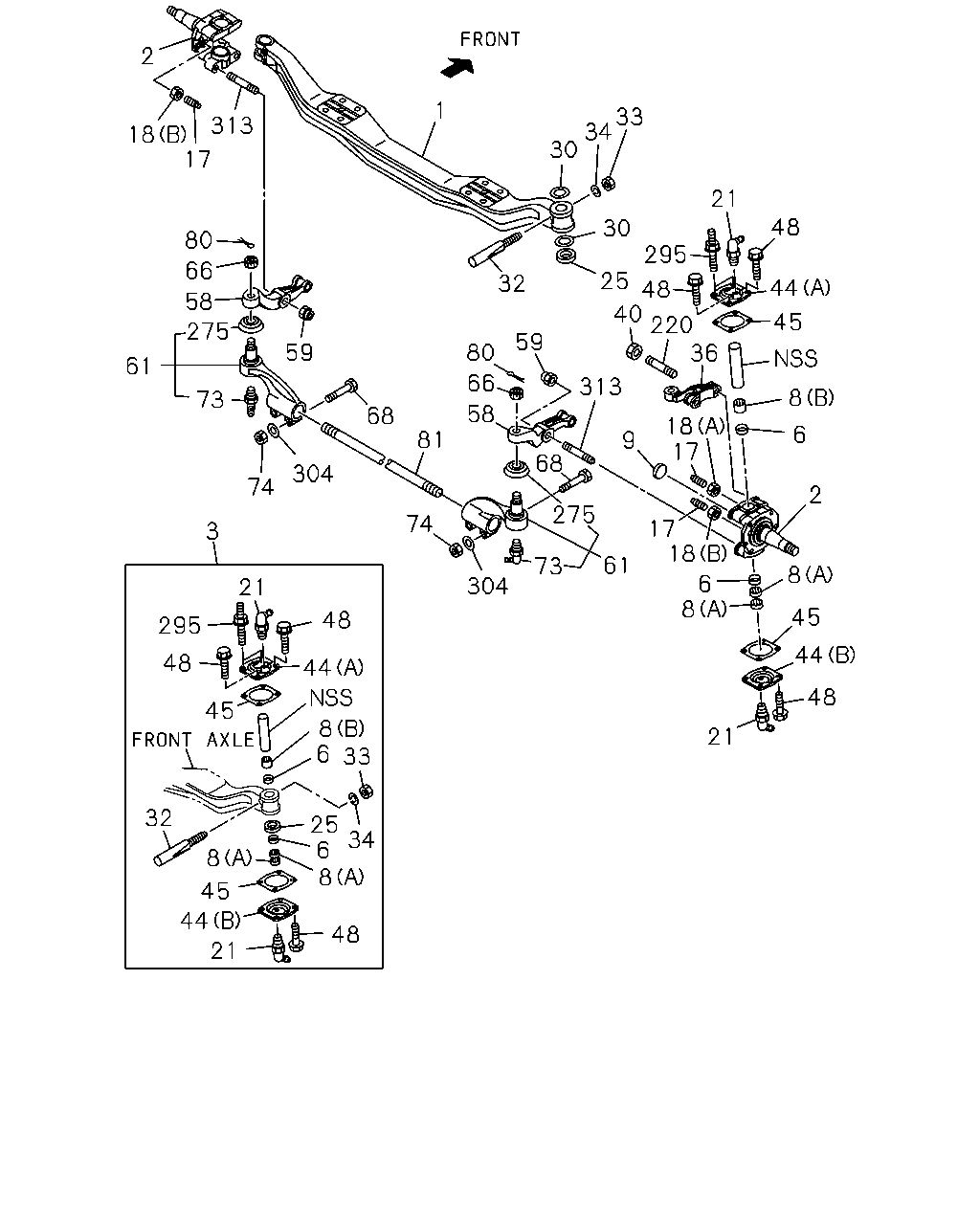

çizim 366834
2 18 17 313 80 66 58 275 61 73 59 68 81 304 74 3 74 304 73 61 275 68 58 66 80 59 32 313 9 17 18 6 8 21 48 44 45 8 2 6 8 45 44 48 21 295 48 220 36 18 17 40 25 30 30 34 33 21 48 44 8 6 33 25 6 34 8 48 21 44 45 8 32 45 48 295 1
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-178-3 01 1 1306-
1 AXLE; FRT 1-43111-178-3 01 1 1306-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1306-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1306-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1306-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1306-
3 KING PIN SET 1-87831-349-2 02 1 1306-
3 KING PIN SET 1-87831-349-2 02 1 1306-
6 SEAL; KING PIN 9-09926-024-0 04 1 1306-
6 SEAL; KING PIN 9-09926-024-0 04 1 1306-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1306-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1306-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1306-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1306-
9 PLUG; KNUCKLE
OD=22 		1-09600-011-2 02 1 1306-
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 02 1 1306-
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 03 1 1306-
17 BOLT; STOPPER KNUCKLE
M18X56 		1-09009-108-0 01 1 1306-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1306-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1306-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1306-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1306-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1306-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1306-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1306-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1306-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1306-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1306-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1306-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1306-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1306-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1306-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1306-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1306-
36 ARM; KNUCKLE 1-43133-083-3 01 1 1306-
36 ARM; KNUCKLE 1-43133-083-3 01 1 1306-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1306-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1306-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1306-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1306-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1306-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1306-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1306-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1306-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1306-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 16 1 1306-
58 ARM; TIE ROD
REARWARD 		1-43135-060-2 01 1 1306-
58 ARM; TIE ROD
FORWARD 		8-98145-593-0 01 1 1306-
58 ARM; TIE ROD
REARWARD 		1-43134-060-2 01 1 1306-
58 ARM; TIE ROD
FORWARD 		8-98145-592-0 01 1 1306-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1306-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1306-
61 ROD END; TIE ROD 8-98096-753-0 01 1 1306-1306
61 ROD END; TIE ROD 8-98096-753-0 01 1 1306-1306
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-
61 ROD END; TIE ROD 8-98096-754-0 01 1 1306-1306
61 ROD END; TIE ROD 8-98096-754-0 01 1 1306-1306
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1306-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1306-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1306-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1306-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1306-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1306-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1306-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1306-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1306-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1306-
81 ROD; TIE 8-98105-064-0 01 1 1306-
81 ROD; TIE 8-98105-064-0 01 1 1306-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1306-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1306-
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1306-1306
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1306-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1306-
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 1306-
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 1306-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1306-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
