4-01 — PROPELLER SHAFT (#124192) — 152 parça

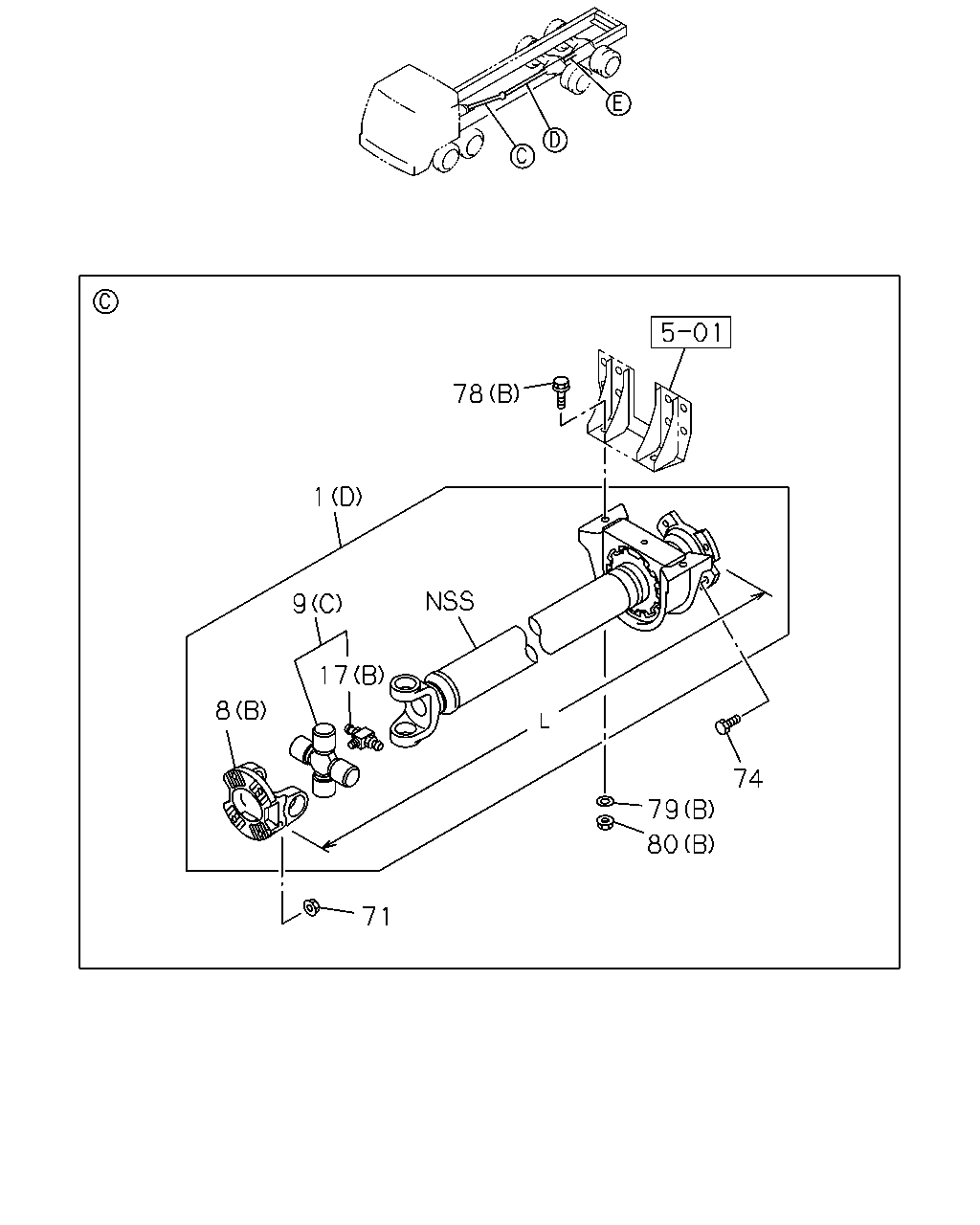

78 1 9 17 8 71 79 80 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP P115 PROP SHAFT(C5X) (A) L=1615	1-37125-302-0	01	1	1306-
1	SHAFT; PROP P115 PROP SHAFT(C5X) (B) L=874	8-98030-327-0	01	1	1306-
1	SHAFT; PROP P130 PROP SHAFT(BEE) (D) L=870	8-98145-460-0	01	1	1306-
1	SHAFT; PROP P130 PROP SHAFT(BEE) (C) L=1950	8-98145-465-0	01	1	1306-
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37211-084-0	02	1	1306-
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37211-084-0	01	1	1306-
8	YOKE; FLANGE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37211-083-0	02	1	1306-
8	YOKE; FLANGE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37211-083-0	01	1	1306-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1306-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-112-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-112-0	01	1	1306-
9	JOURNAL ASM; PROP SHAFT P130 PROP SHAFT(BEE) (C)	1-37300-118-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT P130 PROP SHAFT(BEE) (C)	1-37300-118-0	01	1	1306-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37319-013-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37319-013-0	01	1	1306-
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1306-
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	04	1	1306-
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP P115 PROP SHAFT(C5X) (A) M16X45	1-09042-030-0	02	1	1306-
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP P130 PROP SHAFT(BEE) (B) M14X45 FLANGE	0-28851-445-0	02	1	1306-
79	WASHER; PL,HOLDER SET,CENTER BRG P115 PROP SHAFT(C5X) (A) ID=17	1-09503-241-1	02	1	1306-
79	WASHER; PL,HOLDER SET,CENTER BRG P130 PROP SHAFT(BEE) (B) ID=15	0-91614-614-0	02	1	1306-
80	NUT; HOLDER SET,CENTER BRG,1ST PROP P115 PROP SHAFT(C5X) (A) M16 SLOTTED	8-98049-689-0	02	1	1306-
80	NUT; HOLDER SET,CENTER BRG,1ST PROP P130 PROP SHAFT(BEE) (B) M14 FLANGE	0-91180-214-0	02	1	1306-

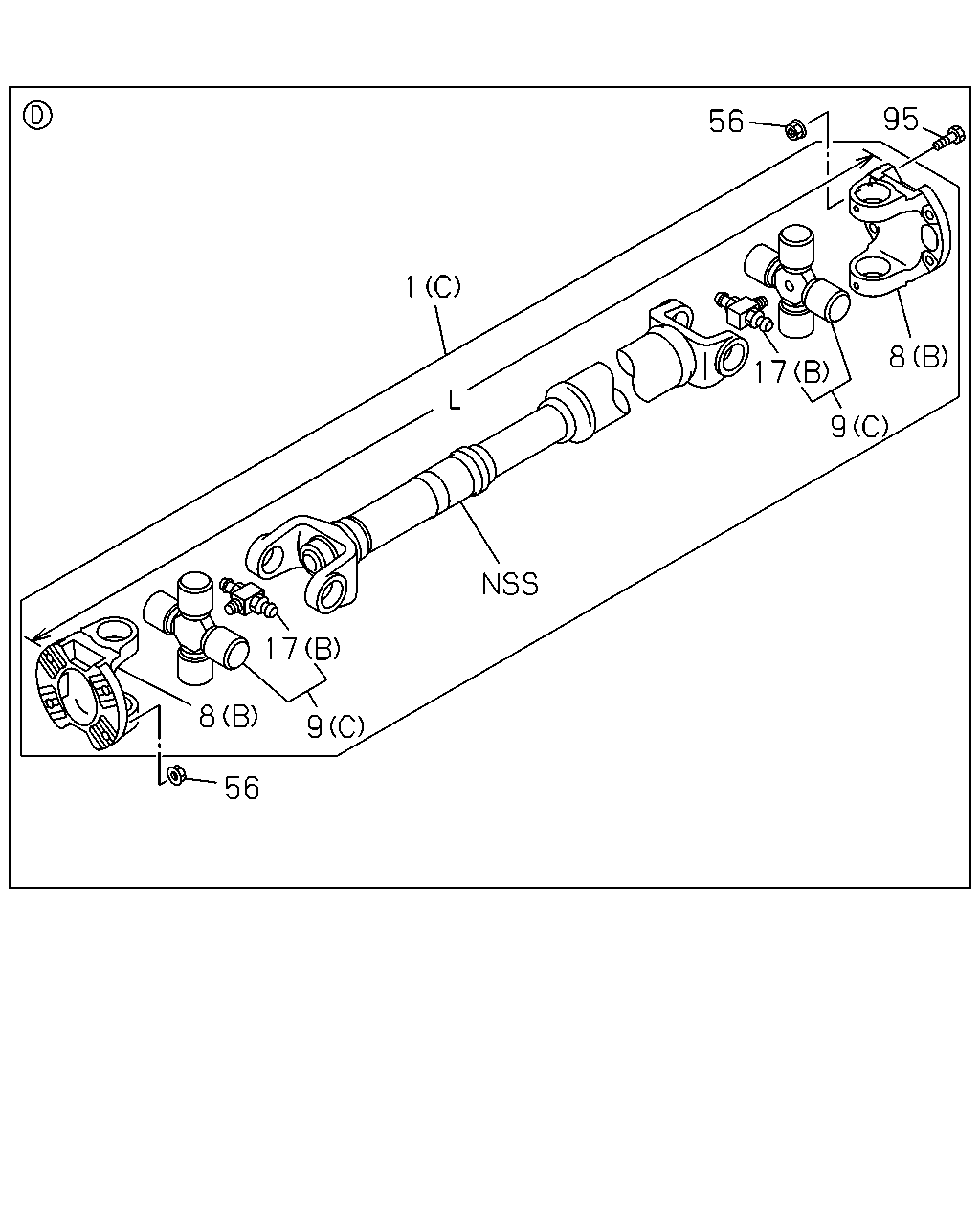

95 56 8 9 17 1 17 8 56 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP P115 PROP SHAFT(C5X) (A) L=1615	1-37125-302-0	01	1	1306-
1	SHAFT; PROP P115 PROP SHAFT(C5X) (B) L=874	8-98030-327-0	01	1	1306-
1	SHAFT; PROP P130 PROP SHAFT(BEE) (D) L=870	8-98145-460-0	01	1	1306-
1	SHAFT; PROP P130 PROP SHAFT(BEE) (C) L=1950	8-98145-465-0	01	1	1306-
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37211-084-0	02	1	1306-
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37211-084-0	01	1	1306-
8	YOKE; FLANGE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37211-083-0	02	1	1306-
8	YOKE; FLANGE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37211-083-0	01	1	1306-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1306-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-112-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-112-0	01	1	1306-
9	JOURNAL ASM; PROP SHAFT P130 PROP SHAFT(BEE) (C)	1-37300-118-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT P130 PROP SHAFT(BEE) (C)	1-37300-118-0	01	1	1306-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37319-013-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37319-013-0	01	1	1306-
56	NUT; YOKE M14 FLANGE	8-97365-444-0	08	1	1306-
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	1306-

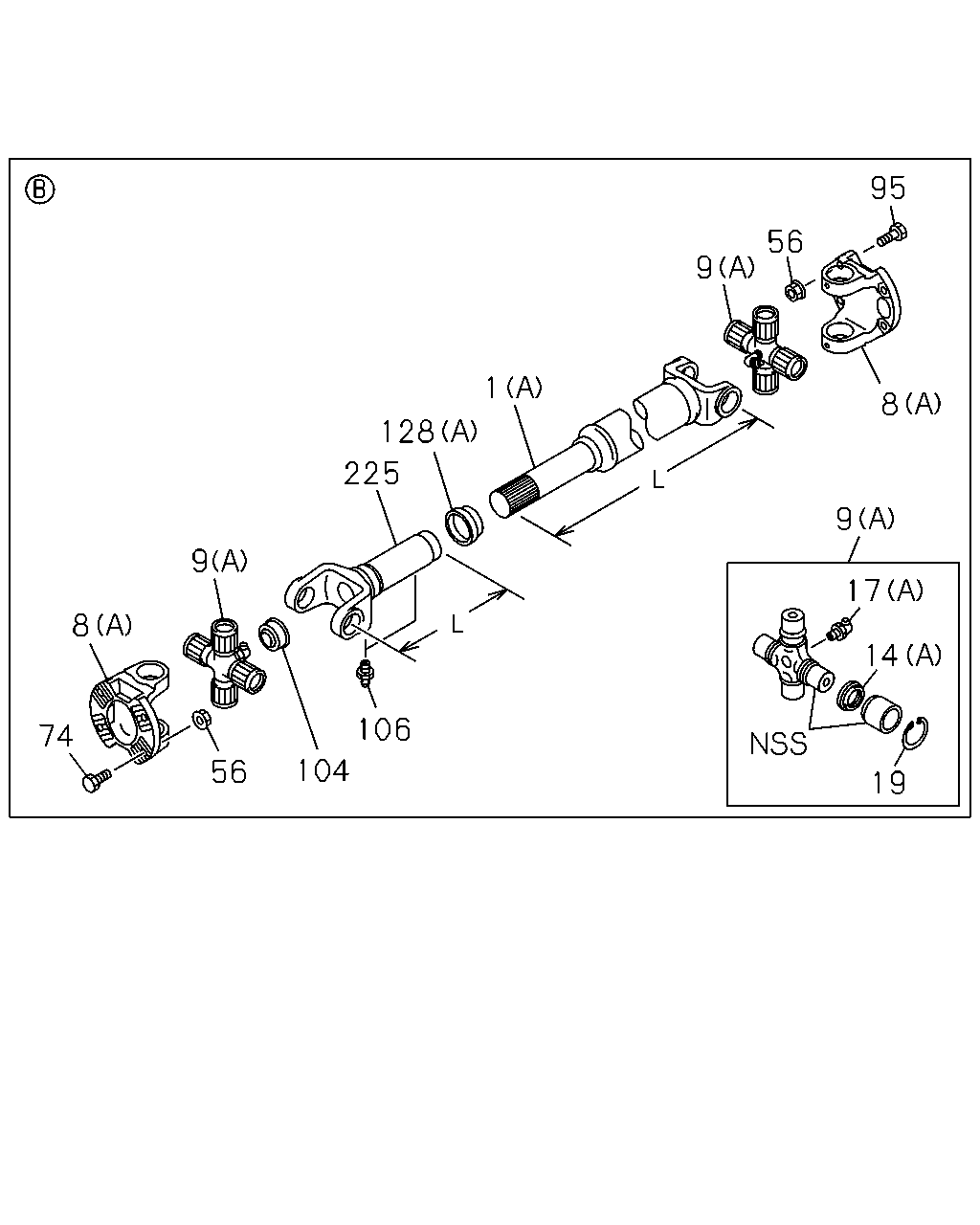

95 9 56 8 9 17 14 19 106 225 128 1 9 8 74 56 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP P115 PROP SHAFT(C5X) (A) L=1615	1-37125-302-0	01	1	1306-
1	SHAFT; PROP P115 PROP SHAFT(C5X) (B) L=874	8-98030-327-0	01	1	1306-
1	SHAFT; PROP P130 PROP SHAFT(BEE) (D) L=870	8-98145-460-0	01	1	1306-
1	SHAFT; PROP P130 PROP SHAFT(BEE) (C) L=1950	8-98145-465-0	01	1	1306-
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37211-084-0	02	1	1306-
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37211-084-0	01	1	1306-
8	YOKE; FLANGE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37211-083-0	02	1	1306-
8	YOKE; FLANGE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37211-083-0	01	1	1306-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1306-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-112-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-112-0	01	1	1306-
9	JOURNAL ASM; PROP SHAFT P130 PROP SHAFT(BEE) (C)	1-37300-118-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT P130 PROP SHAFT(BEE) (C)	1-37300-118-0	01	1	1306-
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1306-
14	COVER; DUST,SPIDER P115 PROP SHAFT(C5X) (A)	1-37249-133-0	08	1	1306-
14	COVER; DUST,SPIDER P115 PROP SHAFT(C5X) (A)	1-37249-133-0	04	1	1306-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37319-013-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37319-013-0	01	1	1306-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT(C5X) T=2.2	1-09587-103-1	08	1	1306-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT(C5X) T=2.2	1-09587-103-1	04	1	1306-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT(C5X) T=2.17	1-09587-107-0	08	1	1306-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT(C5X) T=2.17	1-09587-107-0	04	1	1306-
56	NUT; YOKE M14 FLANGE	8-97365-444-0	08	1	1306-
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	04	1	1306-
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	1306-
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1306-
104	PLUG; SLEEVE YOKE P115 PROP SHAFT(C5X)	1-09600-049-0	01	1	1306-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1306-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT(C5X) PT1/8 STRAIGHT	0-90301-410-0	02	1	1306-
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	1306-
128	SEAL; SLEEVE P115 PROP SHAFT(C5X) (A)	1-37247-020-0	01	1	1306-
225	YOKE; SLEEVE,PROP SHAFT P115 PROP SHAFT(C5X) L=339	1-37241-140-0	01	1	1306-

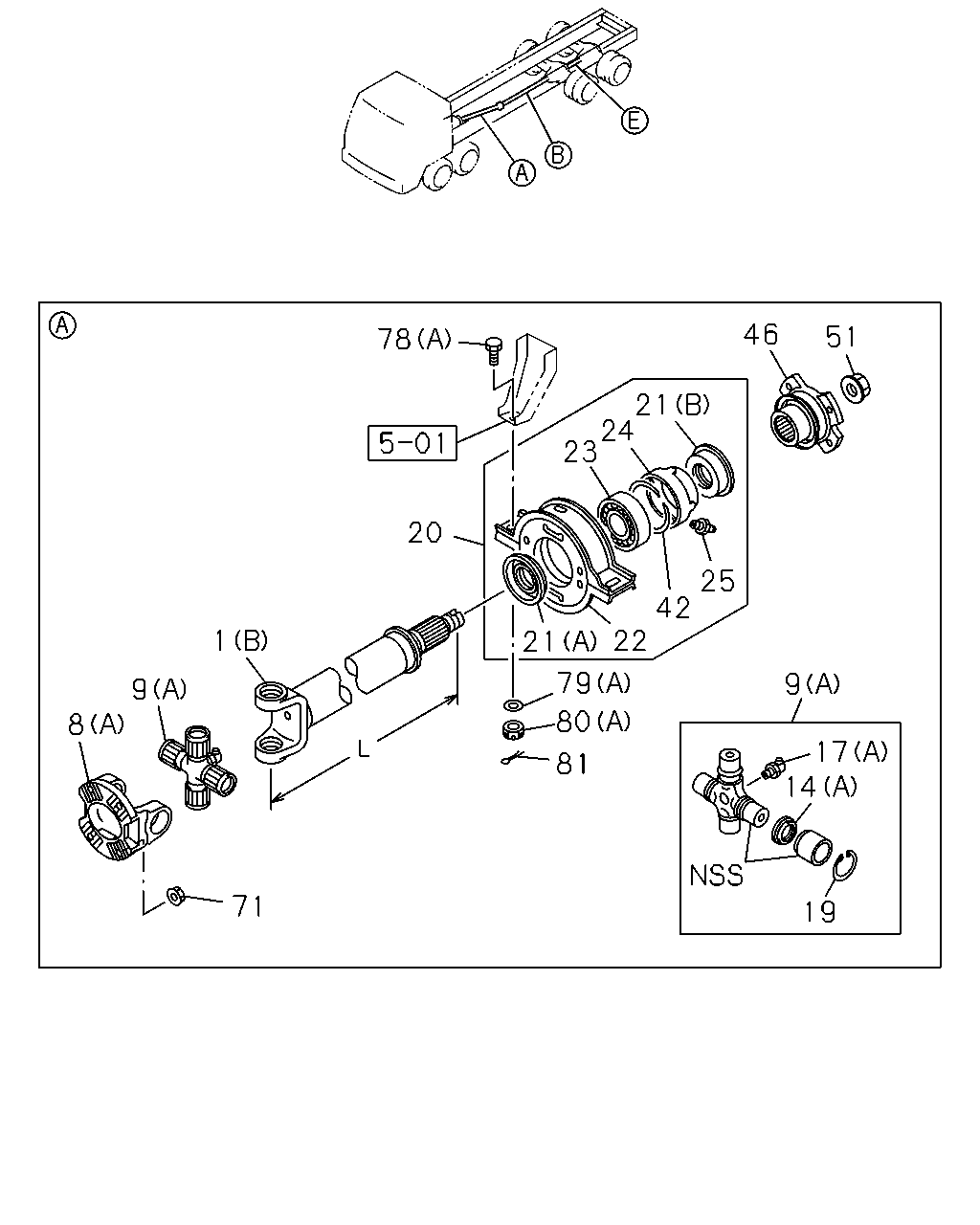

8 9 1 20 78 71 81 80 79 21 22 42 25 21 24 23 46 51 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP P115 PROP SHAFT(C5X) (A) L=1615	1-37125-302-0	01	1	1306-
1	SHAFT; PROP P115 PROP SHAFT(C5X) (B) L=874	8-98030-327-0	01	1	1306-
1	SHAFT; PROP P130 PROP SHAFT(BEE) (D) L=870	8-98145-460-0	01	1	1306-
1	SHAFT; PROP P130 PROP SHAFT(BEE) (C) L=1950	8-98145-465-0	01	1	1306-
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37211-084-0	02	1	1306-
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37211-084-0	01	1	1306-
8	YOKE; FLANGE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37211-083-0	02	1	1306-
8	YOKE; FLANGE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37211-083-0	01	1	1306-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1306-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-112-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-112-0	01	1	1306-
9	JOURNAL ASM; PROP SHAFT P130 PROP SHAFT(BEE) (C)	1-37300-118-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT P130 PROP SHAFT(BEE) (C)	1-37300-118-0	01	1	1306-
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1306-
14	COVER; DUST,SPIDER P115 PROP SHAFT(C5X) (A)	1-37249-133-0	08	1	1306-
14	COVER; DUST,SPIDER P115 PROP SHAFT(C5X) (A)	1-37249-133-0	04	1	1306-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37319-013-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37319-013-0	01	1	1306-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT(C5X) T=2.2	1-09587-103-1	08	1	1306-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT(C5X) T=2.2	1-09587-103-1	04	1	1306-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT(C5X) T=2.17	1-09587-107-0	08	1	1306-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT(C5X) T=2.17	1-09587-107-0	04	1	1306-
20	BEARING ASM; CTR,PROP SHAFT P115 PROP SHAFT(C5X) ID=65	1-37510-116-1	01	1	1306-
21	SEAL; OIL,CENTER BRG P115 PROP SHAFT(C5X) (A) OD=114	1-09625-222-1	01	1	1306-
21	SEAL; OIL,CENTER BRG P115 PROP SHAFT(C5X) (B) OD=106	1-09625-622-0	01	1	1306-
22	RUBBER; CUSHION,CENTER BRG,1ST P115 PROP SHAFT(C5X)	1-37516-056-0	01	1	1306-
23	BEARING; CENTER,PROP SHAFT P115 PROP SHAFT(C5X)	1-09800-210-0	01	1	1306-
24	RETAINER; CENTER BRG,1ST P115 PROP SHAFT(C5X)	1-37529-110-0	01	1	1306-
25	NIPPLE; GREASE,CENTER BRG P115 PROP SHAFT(C5X) MT6 STRAIGHT	1-09380-006-0	01	1	1306-
42	RING; SNAP,CTR BRG P115 PROP SHAFT(C5X)	1-09587-085-1	01	1	1306-
46	FLANGE; SPLINED,PROP SHAFT,1ST P115 PROP SHAFT(C5X)	1-37245-349-0	01	1	1306-
51	NUT; FLANGE,SPLINED P115 PROP SHAFT(C5X) M45 FLAMGE	1-09449-040-0	01	1	1306-
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1306-
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP P115 PROP SHAFT(C5X) (A) M16X45	1-09042-030-0	02	1	1306-
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP P130 PROP SHAFT(BEE) (B) M14X45 FLANGE	0-28851-445-0	02	1	1306-
79	WASHER; PL,HOLDER SET,CENTER BRG P115 PROP SHAFT(C5X) (A) ID=17	1-09503-241-1	02	1	1306-
79	WASHER; PL,HOLDER SET,CENTER BRG P130 PROP SHAFT(BEE) (B) ID=15	0-91614-614-0	02	1	1306-
80	NUT; HOLDER SET,CENTER BRG,1ST PROP P115 PROP SHAFT(C5X) (A) M16 SLOTTED	8-98049-689-0	02	1	1306-
80	NUT; HOLDER SET,CENTER BRG,1ST PROP P130 PROP SHAFT(BEE) (B) M14 FLANGE	0-91180-214-0	02	1	1306-
81	PIN; SPLIT,HOLDER SET,CENTER BRG P115 PROP SHAFT(C5X) OD=3.7 L=25	0-81124-025-0	02	1	1306-

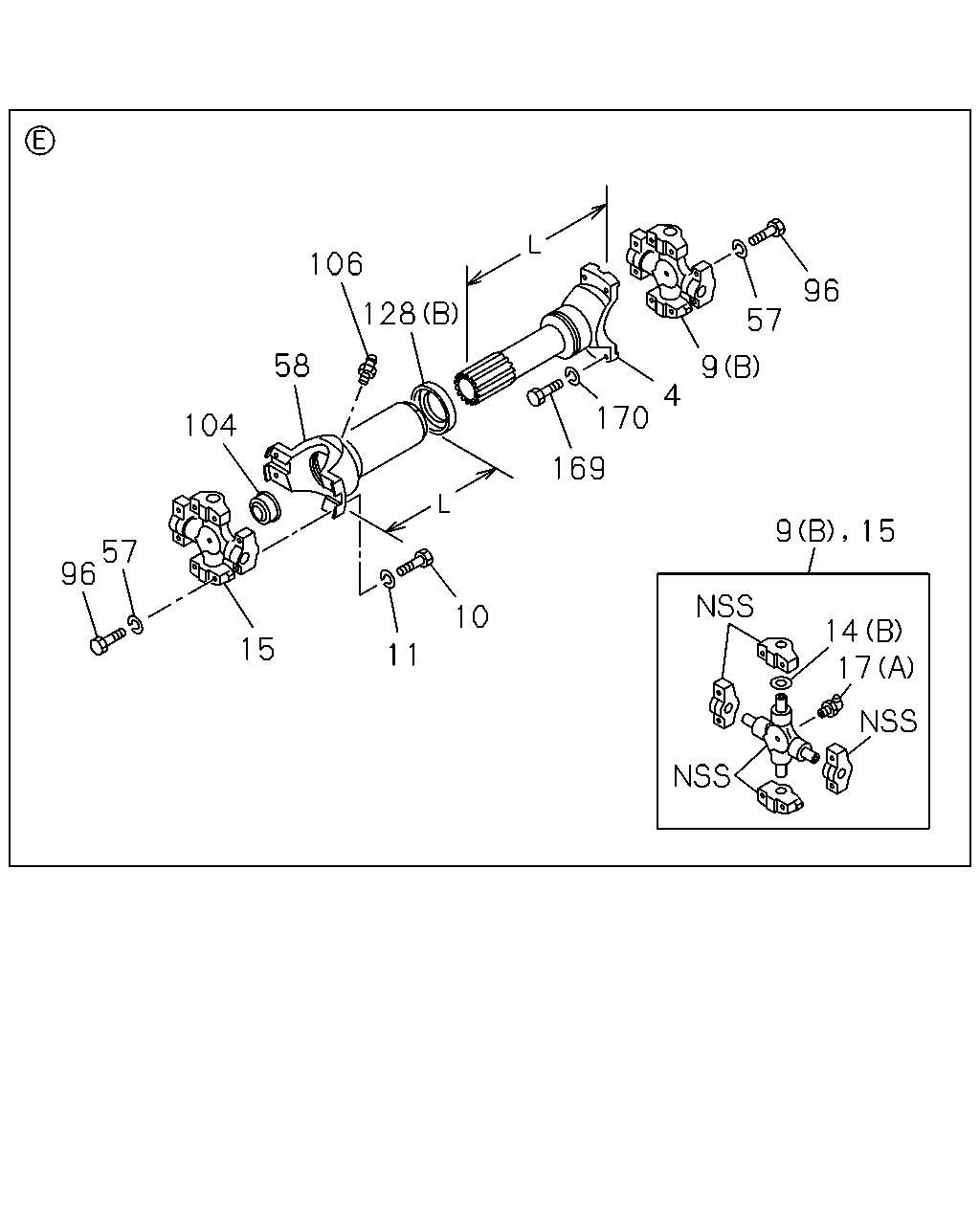

106 58 104 57 96 15 11 169 4 9 15 170 128 57 96 9 14 17 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SHAFT; PROP L=418	1-37171-129-3	01	1	1306-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1306-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-112-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT(C5X) (A)	1-37300-112-0	01	1	1306-
9	JOURNAL ASM; PROP SHAFT P130 PROP SHAFT(BEE) (C)	1-37300-118-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT P130 PROP SHAFT(BEE) (C)	1-37300-118-0	01	1	1306-
10	BOLT; UJT M12X45	8-98036-382-0	04	1	1306-
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	0-91510-612-0	04	1	1306-
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1306-
14	COVER; DUST,SPIDER P115 PROP SHAFT(C5X) (A)	1-37249-133-0	08	1	1306-
14	COVER; DUST,SPIDER P115 PROP SHAFT(C5X) (A)	1-37249-133-0	04	1	1306-
15	UNIVERSAL CENTER	1-37300-100-1	01	1	1306-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37319-013-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT P130 PROP SHAFT(BEE) (B)	1-37319-013-0	01	1	1306-
57	WASHER; LK,YOKE ID=12.2	0-91510-612-0	08	1	1306-
58	FLANGE; SPLINED L=265	1-37245-317-0	01	1	1306-
96	BOLT; PROP SHAFT M12X45	8-98036-382-0	08	1	1306-
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1306-
104	PLUG; SLEEVE YOKE P115 PROP SHAFT(C5X)	1-09600-049-0	01	1	1306-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1306-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT(C5X) PT1/8 STRAIGHT	0-90301-410-0	02	1	1306-
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	1306-
128	SEAL; SLEEVE P115 PROP SHAFT(C5X) (A)	1-37247-020-0	01	1	1306-
169	BOLT; YOKE,SLEEVE M12X45	8-98036-382-0	04	1	1306-
170	WASHER; LK,YOKE,SLEEVE ID=12.2	0-91510-612-0	04	1	1306-
