Isuzu WW
▶
TRUCKS
▶
CYH
▶
11524 - CYH RHD EURO2
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶

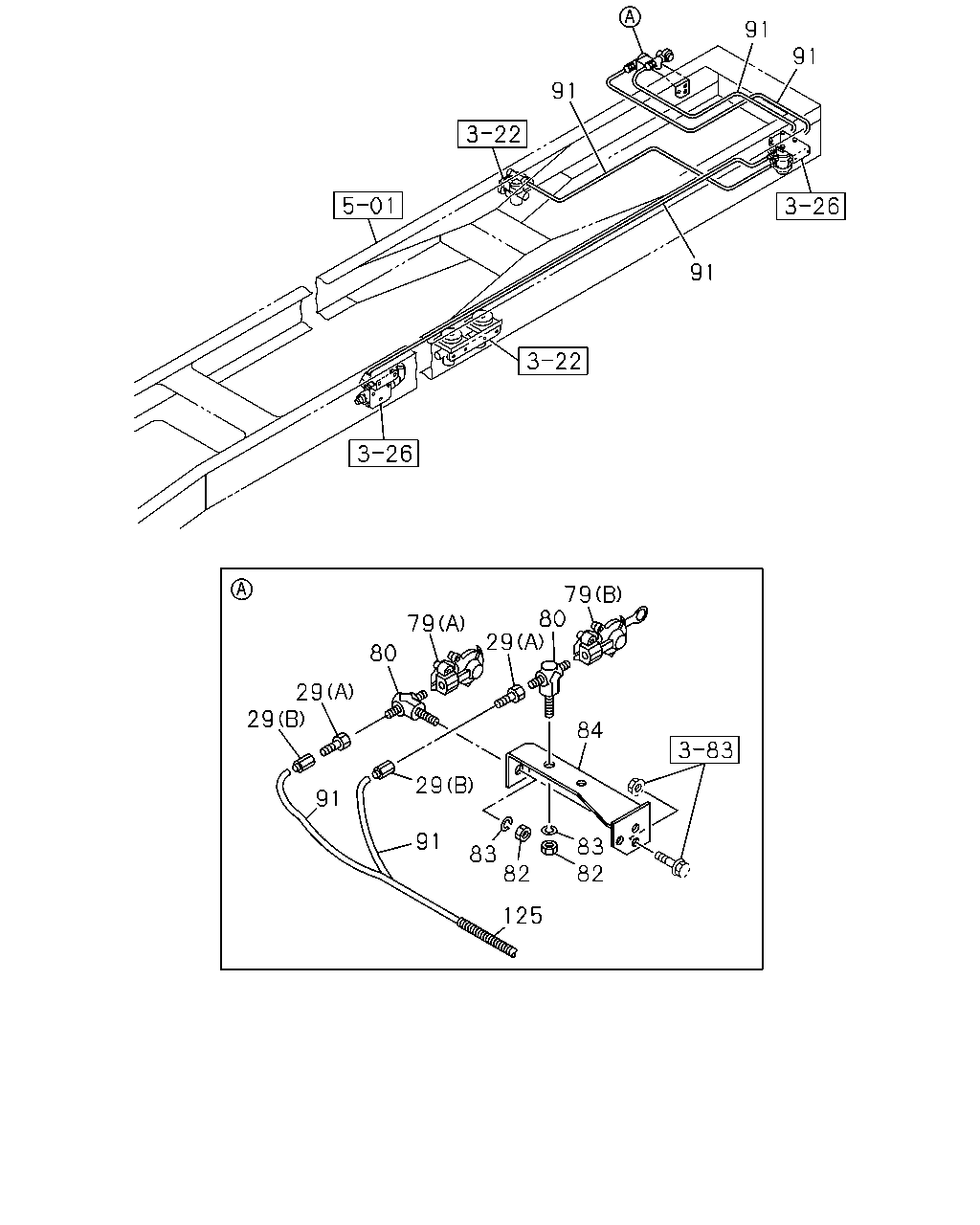

3-80 — BRAKE PIPING; TRAILER
(#124190) — 11 parça
91
79
80
29
29
91
91
83
82
125
29
29
80
79
84
83
82
91
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
CONNECTOR; COCK
FULL TRAILER PIPING<Z25> (A)
1-09650-222-1
02
1
1306-
29
CONNECTOR; COCK
FULL TRAILER PIPING<Z25> (B) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1306-
79
COUPLING; AIR,TRAILER
FULL TRAILER PIPING<Z25> (A) RED
1-47478-466-1
01
1
1306-
79
COUPLING; AIR,TRAILER
FULL TRAILER PIPING<Z25> (B) YELLOW
1-47478-467-1
01
1
1306-
80
NIPPLE; AIR COUPLING
FULL TRAILER PIPING<Z25>
1-09656-377-1
02
1
1306-
82
NUT; LK,CONNECTOR
FULL TRAILER PIPING<Z25> M16
0-91111-516-0
02
1
1306-
83
WASHER; LK,CONNECTOR
FULL TRAILER PIPING<Z25> ID=16.2
0-91510-516-0
02
1
1306-
84
BRACKET; COUPLER
FULL TRAILER PIPING<Z25>
1-47465-883-1
01
1
1306-
91
TUBE; NYLON
FULL TRAILER PIPING<Z25> SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1306-
91
TUBE; NYLON
FULL TRAILER PIPING<Z25> SERVICED BY L=2000 OD=12
1-87411-011-0
03
1
1306-
125
TUBE; CORRUGATE
FULL TRAILER PIPING<Z25> SERVICED BY L=2000 ID=25
1-87411-031-0
01
1
1306-
