8-60 — HEATER UNIT; FRONT (#12419) — 91 parça

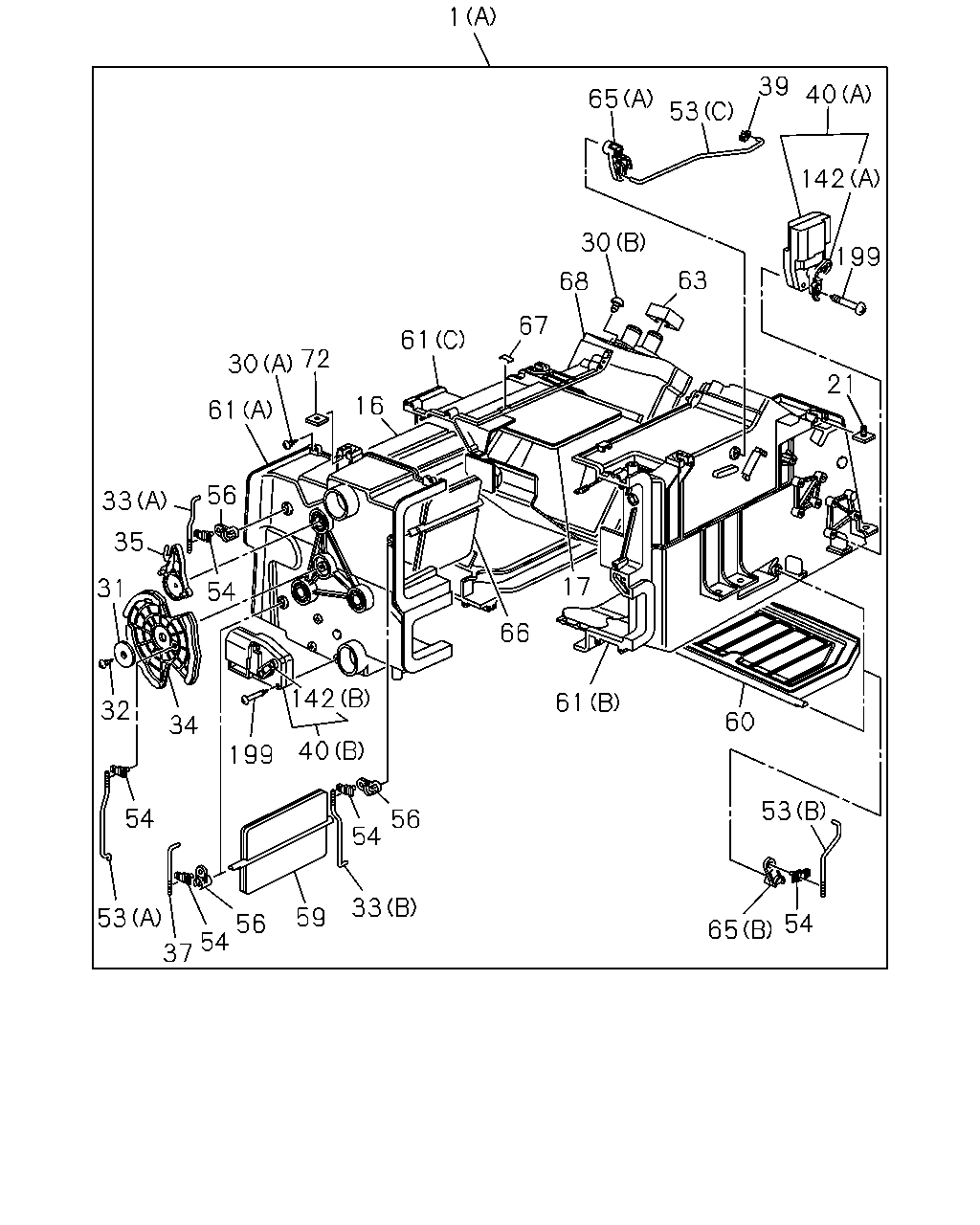

çizim 21810
1 39 40 65 53 142 30 199 63 68 67 61 72 30 21 16 61 56 33 35 17 31 54 66 142 61 32 60 34 40 199 53 54 56 54 33 59 53 56 54 37 54 65
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
CENTER SEAT DELETE(SP9) (B) 		1-83511-134-6 01 1 0105-0109
1 HEATER UNIT
CENTER SEAT DELETE(SP9) (B) 		1-83511-179-1 01 1 0110-
1 HEATER UNIT
EXC. CENTER SEAT DELETE(SP9) (A) 		1-83511-129-8 01 1 0105-0109
1 HEATER UNIT
EXC. CENTER SEAT DELETE(SP9) (A) 		1-83511-175-1 01 1 0110-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0105-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0105-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0105-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0105-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0105-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0105-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0105-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0105-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0105-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0105-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0105-
37 ROD; LEVER 1-83579-620-1 01 1 0105-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0105-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0105-
40 ACTUATOR; HTR UNIT
CENTER SEAT DELETE(SP9) (B) 		1-83579-676-1 01 1 0105-
40 ACTUATOR; HTR UNIT
EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0105-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0105-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0105-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0105-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0105-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0105-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0105-
60 DOOR; MIX,HTR UNIT 1-83579-629-0 01 1 0105-0109
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0110-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0105-
61 CASE; HTR UNIT
CENTER SEAT DELETE(SP9) (B) 		1-83564-323-5 01 1 0105-
61 CASE; HTR UNIT
CENTER SEAT DELETE(SP9) (A) 		1-83564-347-3 01 1 0105-
61 CASE; HTR UNIT
EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0105-
61 CASE; HTR UNIT
EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0105-
63 LINING; HTR UNIT 1-83579-557-0 02 1 0105-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0105-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0105-
66 SHUTTER; HTR UNIT,CENTER LWR
CENTER SEAT DELETE(SP9) 		1-83579-680-0 01 1 0105-
66 SHUTTER; HTR UNIT,CENTER LWR
EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0105-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0105-
68 CORE; HTR UNIT 1-83562-078-1 01 1 0105-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0105-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0105-
142 LEVER; ACTUATOR
CENTER SEAT DELETE(SP9) (B) 		1-83564-409-0 01 1 0105-
142 LEVER; ACTUATOR
EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0105-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0105-

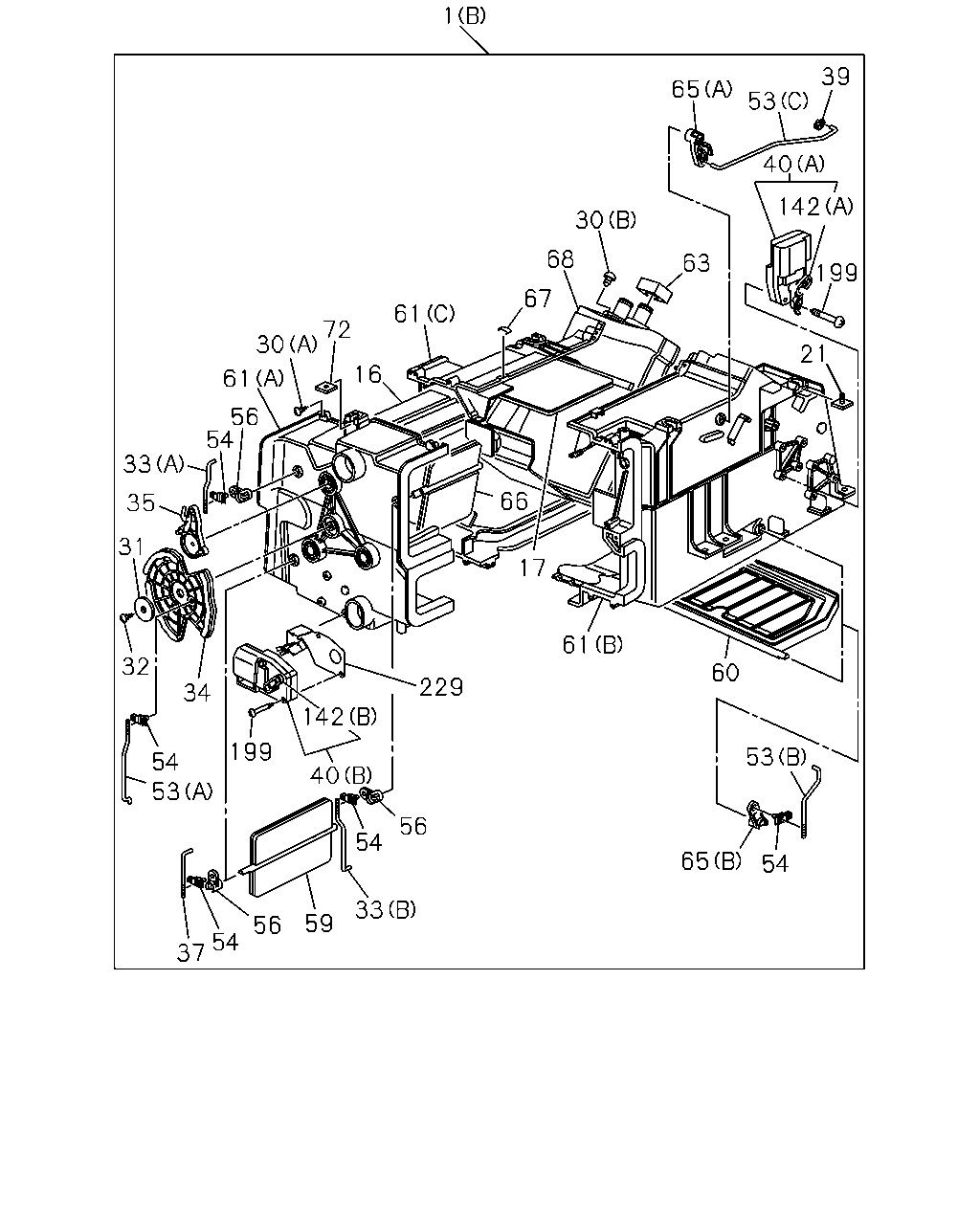

çizim 22007
1 39 65 53 40 142 30 68 63 199 67 61 72 30 21 16 61 56 54 33 66 35 31 17 61 32 60 229 34 142 199 53 54 53 40 56 54 65 54 33 59 56 54 37
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
CENTER SEAT DELETE(SP9) (B) 		1-83511-134-6 01 1 0105-0109
1 HEATER UNIT
CENTER SEAT DELETE(SP9) (B) 		1-83511-179-1 01 1 0110-
1 HEATER UNIT
EXC. CENTER SEAT DELETE(SP9) (A) 		1-83511-129-8 01 1 0105-0109
1 HEATER UNIT
EXC. CENTER SEAT DELETE(SP9) (A) 		1-83511-175-1 01 1 0110-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0105-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0105-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0105-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0105-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0105-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0105-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0105-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0105-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0105-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0105-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0105-
37 ROD; LEVER 1-83579-620-1 01 1 0105-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0105-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0105-
40 ACTUATOR; HTR UNIT
CENTER SEAT DELETE(SP9) (B) 		1-83579-676-1 01 1 0105-
40 ACTUATOR; HTR UNIT
EXC. CENTER SEAT DELETE(SP9) (B) 		1-83579-649-1 01 1 0105-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0105-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0105-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0105-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0105-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0105-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0105-
60 DOOR; MIX,HTR UNIT 1-83579-629-0 01 1 0105-0109
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0110-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0105-
61 CASE; HTR UNIT
CENTER SEAT DELETE(SP9) (B) 		1-83564-323-5 01 1 0105-
61 CASE; HTR UNIT
CENTER SEAT DELETE(SP9) (A) 		1-83564-347-3 01 1 0105-
61 CASE; HTR UNIT
EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-401-0 01 1 0105-
61 CASE; HTR UNIT
EXC. CENTER SEAT DELETE(SP9) (A) 		1-83564-402-0 01 1 0105-
63 LINING; HTR UNIT 1-83579-557-0 02 1 0105-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0105-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0105-
66 SHUTTER; HTR UNIT,CENTER LWR
CENTER SEAT DELETE(SP9) 		1-83579-680-0 01 1 0105-
66 SHUTTER; HTR UNIT,CENTER LWR
EXC. CENTER SEAT DELETE(SP9) 		1-83579-627-0 01 1 0105-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0105-
68 CORE; HTR UNIT 1-83562-078-1 01 1 0105-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0105-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0105-
142 LEVER; ACTUATOR
CENTER SEAT DELETE(SP9) (B) 		1-83564-409-0 01 1 0105-
142 LEVER; ACTUATOR
EXC. CENTER SEAT DELETE(SP9) (B) 		1-83564-345-1 01 1 0105-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0105-
229 SWITCH ASM; MICRO,HEATER UNIT
CENTER SEAT DELETE(SP9) 		1-83579-786-2 01 1 0105-
