Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#124189) — 262 parça

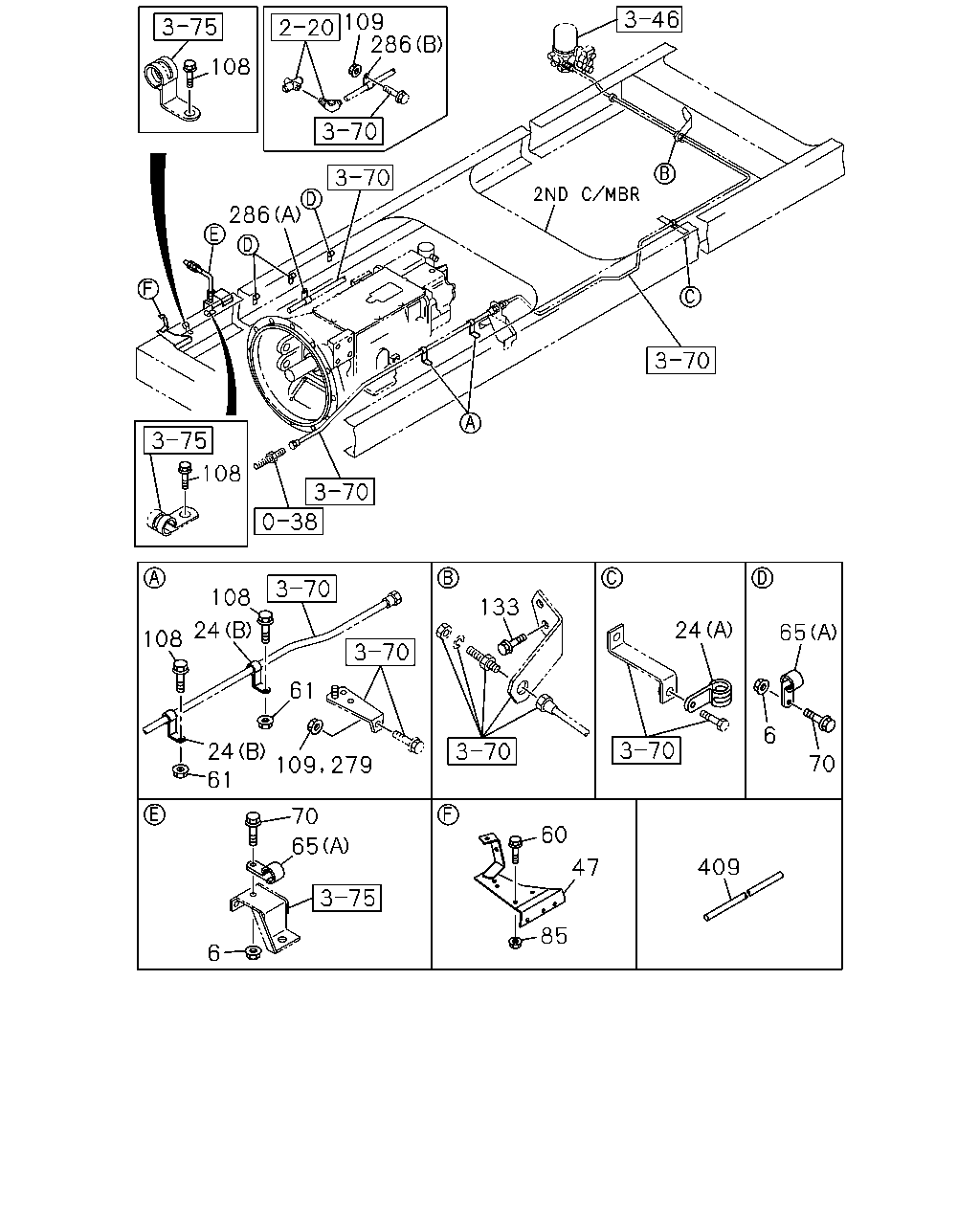

108 109 286 108 108 24 108 24 61 61 109 279 70 65 6 133 60 47 85 24 65 6 70 409 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	1306-
24	CLIP; PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1306-
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1306-
47	BRACKET; PIPE CLIP	8-97632-326-1	01	1	1306-
60	BOLT; CLIP FIX M8X25 FLANGE	0-28650-825-0	02	1	1306-
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	1306-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1306-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1306-
65	CLIP; AIR PIPE (A) ID=13 L=20	0-95235-235-0	05	1	1306-
65	CLIP; AIR PIPE (C) ID=13X2 L=20	0-95325-236-0	01	1	1306-
65	CLIP; AIR PIPE (C) ID=16X2 L=20	0-95325-535-0	01	1	1306-
65	CLIP; AIR PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	1306-
70	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	08	1	1306-
70	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	01	1	1306-
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	05	1	1306-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-
108	BOLT; TUBE CLIP EXC. FULL TRAILER PIPING<Z25> M8X20 FLANGE	0-28650-820-0	01	1	1306-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	03	1	1306-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1306-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1306-
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1306-
109	NUT; TUBE CLIP MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1306-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	1306-
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	0-91180-108-0	02	1	1306-
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1306-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1306-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	06	1	1306-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1306-
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=15 L=28	1-09701-216-0	01	1	1306-
286	CLIP; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=18 L=28	1-09701-067-0	01	1	1306-
409	TUBE; DISTANCE TRANSMISSION CONTROL CABLE TYPE(C1A) L=22	9-22159-024-0	01	1	1306-

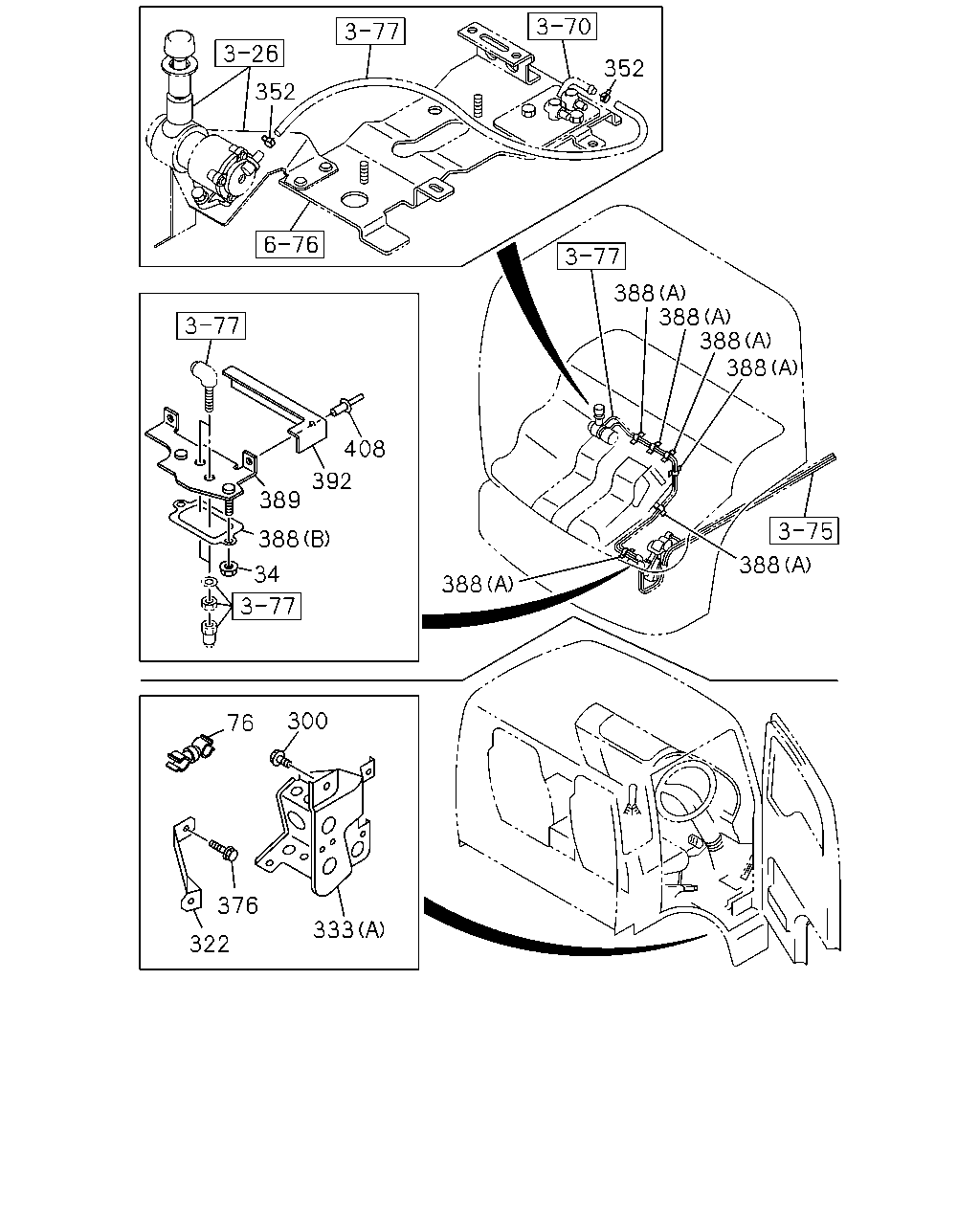

352 388 388 388 388 388 388 333 322 376 300 76 34 388 389 392 408 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
34	NUT; BRKT EXC. FULL TRAILER PIPING<Z25> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	1306-
76	CLIP; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=6 & 8.3	8-94167-742-0	02	1	1306-
76	CLIP; NYLON TUBE MJT7S M/T(Y3E) SMOOTHER-G(C1W) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=6 & 8.3	8-94167-742-0	02	1	1306-
300	BOLT; TUBE CLIP CAB SUSPENSION-FULL FLOATING(SMK) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1306-
322	BRACKET; CLIP	8-98227-231-0	01	1	1306-
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	1306-
333	BRACKET; BRK AIR PIPE CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-79907-150-0	01	1	1306-
352	CLIP; EXH HOSE EXC. FULL TRAILER PIPING<Z25> ID=14	8-94238-572-0	02	1	1306-
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
388	SEAL EXC. FULL TRAILER PIPING<Z25> (B)	1-47478-174-1	01	1	1306-
388	SEAL EXC. FULL TRAILER PIPING<Z25> (A) 180X40	1-72498-019-1	07	1	1306-
389	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25>	1-47479-166-1	01	1	1306-
392	COVER; BRKT EXC. FULL TRAILER PIPING<Z25>	1-79907-090-0	01	1	1306-
408	FASTENER; COVER EXC. FULL TRAILER PIPING<Z25> D8X13.5	1-09987-248-1	02	1	1306-

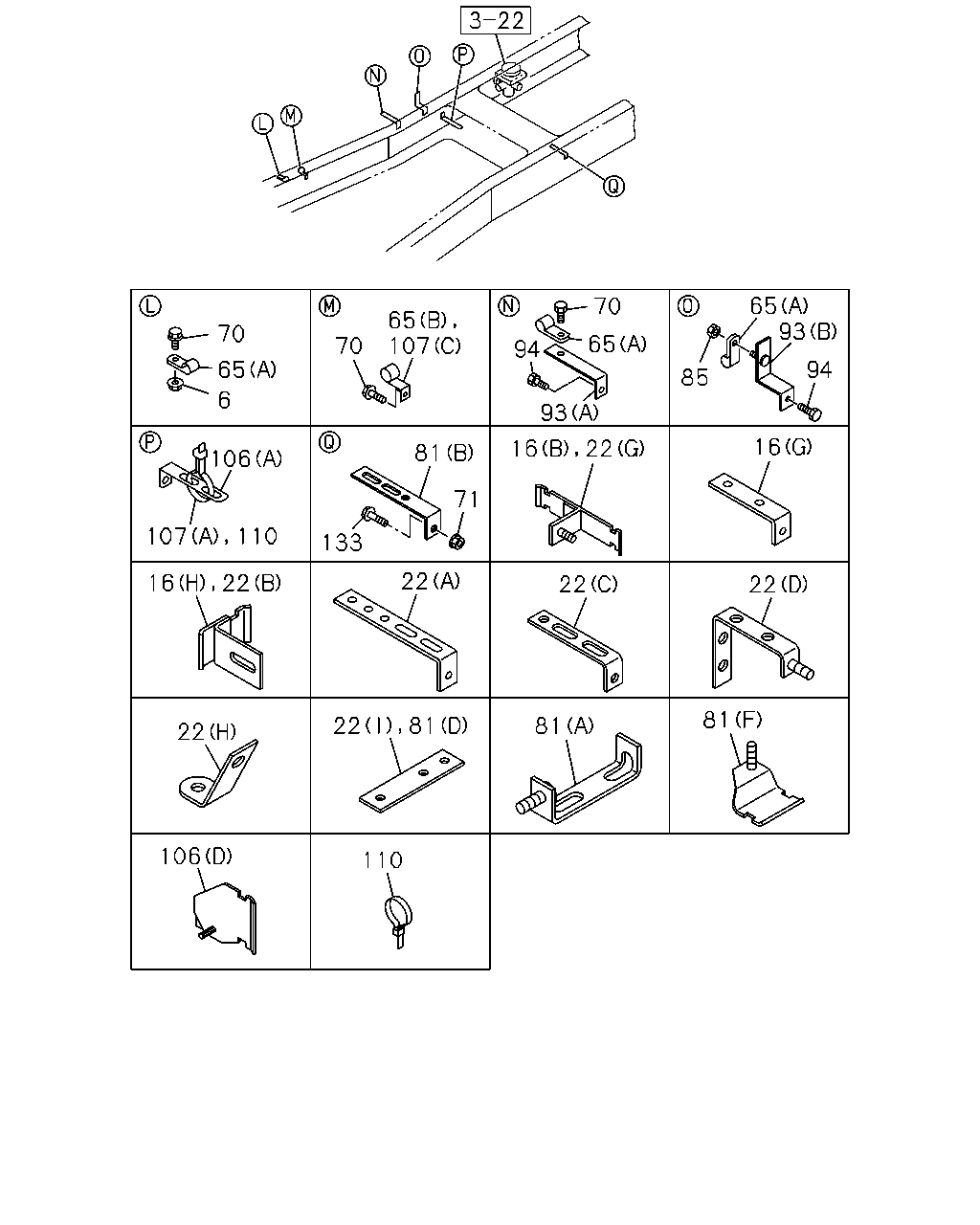

70 65 6 106 107 110 16 22 22 106 22 110 81 22 133 81 71 16 22 81 22 81 22 16 93 94 107 70 65 70 65 85 65 94 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	1306-
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1306-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1306-
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1306-
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1306-
16	BRACKET; PIPE CLIP (D)	1-47479-722-1	01	1	1306-
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	01	1	1306-
16	BRACKET; PIPE CLIP (G) L=30	1-47479-481-0	01	1	1306-
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	1306-
16	BRACKET; PIPE CLIP (H)	1-47479-693-0	02	1	1306-
22	BRACKET; CLIP (I) L=150	1-47471-217-0	02	1	1306-
22	BRACKET; CLIP (H)	1-47477-571-3	01	1	1306-
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	1306-
22	BRACKET; CLIP (J)	1-47479-546-0	01	1	1306-
22	BRACKET; CLIP (K)	1-47479-720-0	01	1	1306-
22	BRACKET; CLIP (L)	1-47479-722-1	01	1	1306-
22	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	03	1	1306-
22	BRACKET; CLIP (D)	1-47479-800-0	01	1	1306-
22	BRACKET; CLIP (E)	1-47479-898-0	01	1	1306-
22	BRACKET; CLIP (G)	1-47479-554-0	01	1	1306-
22	BRACKET; CLIP (B)	1-47479-693-0	02	1	1306-
22	BRACKET; CLIP (C)	1-47479-754-0	01	1	1306-
65	CLIP; AIR PIPE (A) ID=13 L=20	0-95235-235-0	05	1	1306-
65	CLIP; AIR PIPE (C) ID=13X2 L=20	0-95325-236-0	01	1	1306-
65	CLIP; AIR PIPE (C) ID=16X2 L=20	0-95325-535-0	01	1	1306-
65	CLIP; AIR PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	1306-
70	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	08	1	1306-
70	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	01	1	1306-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1306-
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	01	1	1306-
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	01	1	1306-
81	BRACKET; CLIP (D) L=130	1-47478-959-0	02	1	1306-
81	BRACKET; CLIP (F)	8-98046-950-0	01	1	1306-
81	BRACKET; CLIP (C)	8-98052-412-0	01	1	1306-
81	BRACKET; CLIP (E)	8-98052-414-0	01	1	1306-
81	BRACKET; CLIP (A)	8-98061-758-0	02	1	1306-
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	05	1	1306-
93	BRACKET; PIPE CLIP (B) L=85 H=40	1-47476-676-0	01	1	1306-
93	BRACKET; PIPE CLIP (A) L=175 H=30	1-47479-386-1	01	1	1306-
93	BRACKET; PIPE CLIP (D)	1-82698-358-0	01	1	1306-
93	BRACKET; PIPE CLIP (C) L=95	1-82699-085-0	02	1	1306-
93	BRACKET; PIPE CLIP (E) L=80 H=20	1-82699-304-0	02	1	1306-
94	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	07	1	1306-
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	1306-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	1306-
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	1306-
106	BRACKET; TUBE CLIP (F)	8-98052-408-0	01	1	1306-1412
106	BRACKET; TUBE CLIP (F)	8-98297-188-0	01	1	1501-
106	BRACKET; TUBE CLIP (G)	8-98052-410-0	01	1	1306-
106	BRACKET; TUBE CLIP (B)	8-98061-758-0	01	1	1306-
106	BRACKET; TUBE CLIP (C)	8-98199-563-0	02	1	1306-
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=31 H=30 L=35	1-09700-994-0	03	1	1306-
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	13	1	1306-
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (C) ID=25 H=30 L=35	1-09700-875-0	03	1	1306-
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (B) ID=28 L=40	1-09701-261-0	01	1	1306-
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	14	1	1306-
110	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	01	1	1306-
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1306-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1306-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	06	1	1306-

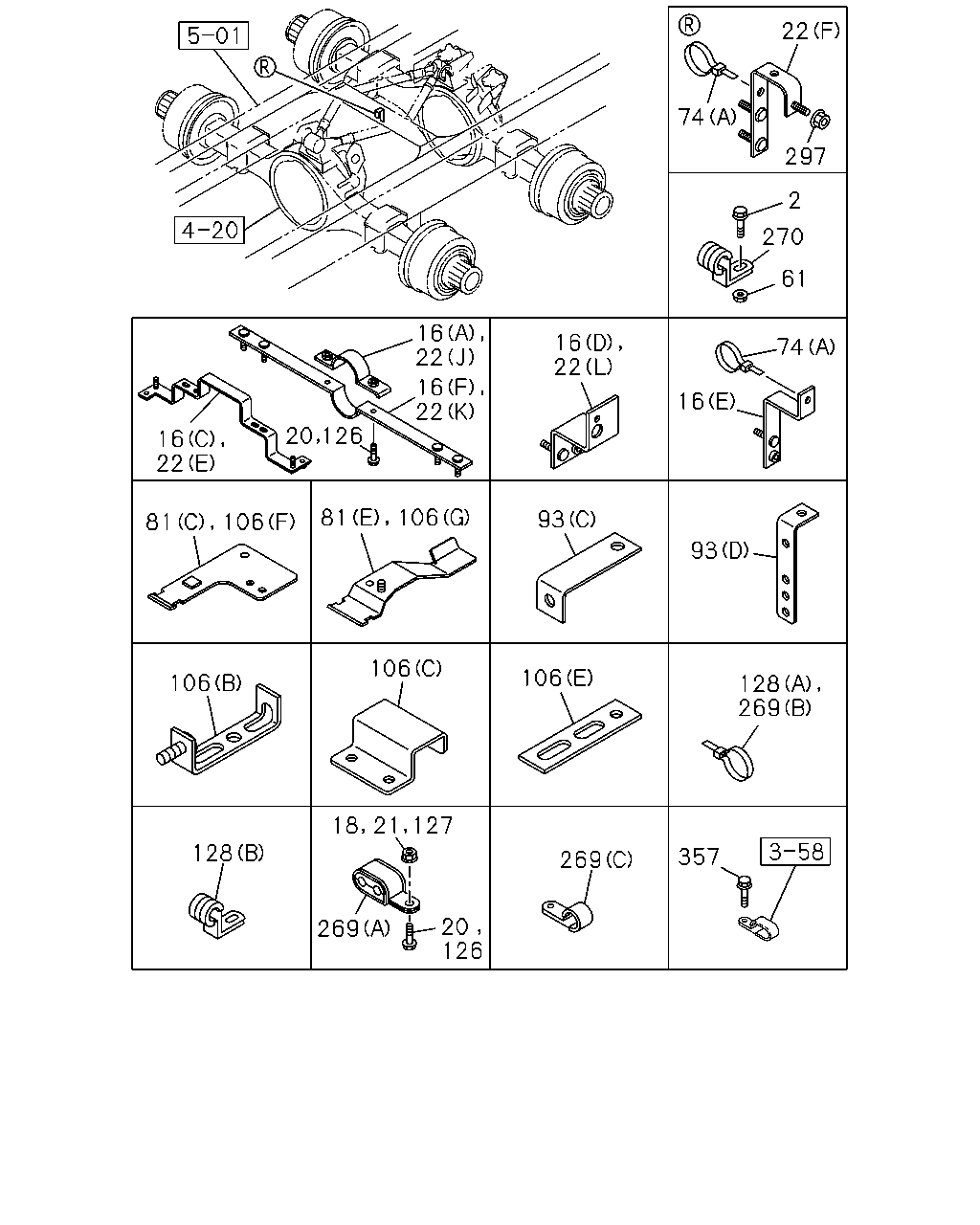

22 74 297 2 270 61 16 22 20 126 16 22 16 22 16 16 22 74 81 106 81 106 93 93 106 106 106 128 269 128 18 21 127 20 126 269 269 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1306-
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1306-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1306-
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1306-
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	01	1	1306-
16	BRACKET; PIPE CLIP (D)	1-47479-722-1	01	1	1306-
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	01	1	1306-
16	BRACKET; PIPE CLIP (G) L=30	1-47479-481-0	01	1	1306-
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	1306-
16	BRACKET; PIPE CLIP (H)	1-47479-693-0	02	1	1306-
18	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	1306-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1306-
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1306-
20	BOLT; CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1306-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	1306-
22	BRACKET; CLIP (I) L=150	1-47471-217-0	02	1	1306-
22	BRACKET; CLIP (H)	1-47477-571-3	01	1	1306-
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	1306-
22	BRACKET; CLIP (J)	1-47479-546-0	01	1	1306-
22	BRACKET; CLIP (K)	1-47479-720-0	01	1	1306-
22	BRACKET; CLIP (L)	1-47479-722-1	01	1	1306-
22	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	03	1	1306-
22	BRACKET; CLIP (D)	1-47479-800-0	01	1	1306-
22	BRACKET; CLIP (E)	1-47479-898-0	01	1	1306-
22	BRACKET; CLIP (G)	1-47479-554-0	01	1	1306-
22	BRACKET; CLIP (B)	1-47479-693-0	02	1	1306-
22	BRACKET; CLIP (C)	1-47479-754-0	01	1	1306-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1306-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1306-
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1306-
74	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	02	1	1306-
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	1306-
74	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	20	1	1306-
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	01	1	1306-
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	01	1	1306-
81	BRACKET; CLIP (D) L=130	1-47478-959-0	02	1	1306-
81	BRACKET; CLIP (F)	8-98046-950-0	01	1	1306-
81	BRACKET; CLIP (C)	8-98052-412-0	01	1	1306-
81	BRACKET; CLIP (E)	8-98052-414-0	01	1	1306-
81	BRACKET; CLIP (A)	8-98061-758-0	02	1	1306-
93	BRACKET; PIPE CLIP (B) L=85 H=40	1-47476-676-0	01	1	1306-
93	BRACKET; PIPE CLIP (A) L=175 H=30	1-47479-386-1	01	1	1306-
93	BRACKET; PIPE CLIP (D)	1-82698-358-0	01	1	1306-
93	BRACKET; PIPE CLIP (C) L=95	1-82699-085-0	02	1	1306-
93	BRACKET; PIPE CLIP (E) L=80 H=20	1-82699-304-0	02	1	1306-
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	1306-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	1306-
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	1306-
106	BRACKET; TUBE CLIP (F)	8-98052-408-0	01	1	1306-1412
106	BRACKET; TUBE CLIP (F)	8-98297-188-0	01	1	1501-
106	BRACKET; TUBE CLIP (G)	8-98052-410-0	01	1	1306-
106	BRACKET; TUBE CLIP (B)	8-98061-758-0	01	1	1306-
106	BRACKET; TUBE CLIP (C)	8-98199-563-0	02	1	1306-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	1306-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
128	CLIP; NYLON TUBE (B) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-
128	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	10	1	1306-
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	1306-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	1306-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	1306-
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	1306-
270	CLIP; NYLON TUBE ID=16 H=25 L=25	1-09701-162-0	02	1	1306-
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> ID=31 H=30 L=35	1-09700-994-0	01	1	1306-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	12	1	1306-
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91180-212-0	01	1	1306-
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	1306-

133 317 27 75 321 20 292 296 293 333 297 376 297 20 292 296 321 75 297 403 317 4 65 28 29 93 27 31 30 74 107 74 107 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE ID=16X2 L=20	0-95325-535-0	01	1	1306-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1306-
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1306-
20	BOLT; CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-
27	CLIP; FLEX HOSE (B) ID=26 L=27	1-09701-006-0	01	1	1306-
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	1306-
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	01	1	1306-
29	BRACKET; CLIP,AIR PIPE L=145 B=25	1-47479-123-0	01	1	1306-
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1306-
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
65	CLIP; AIR PIPE (A) ID=13 L=20	0-95235-235-0	05	1	1306-
65	CLIP; AIR PIPE (C) ID=13X2 L=20	0-95325-236-0	01	1	1306-
65	CLIP; AIR PIPE (C) ID=16X2 L=20	0-95325-535-0	01	1	1306-
65	CLIP; AIR PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	1306-
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1306-
74	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	02	1	1306-
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	1306-
74	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	20	1	1306-
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1306-
93	BRACKET; PIPE CLIP (B) L=85 H=40	1-47476-676-0	01	1	1306-
93	BRACKET; PIPE CLIP (A) L=175 H=30	1-47479-386-1	01	1	1306-
93	BRACKET; PIPE CLIP (D)	1-82698-358-0	01	1	1306-
93	BRACKET; PIPE CLIP (C) L=95	1-82699-085-0	02	1	1306-
93	BRACKET; PIPE CLIP (E) L=80 H=20	1-82699-304-0	02	1	1306-
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=31 H=30 L=35	1-09700-994-0	03	1	1306-
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	13	1	1306-
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (C) ID=25 H=30 L=35	1-09700-875-0	03	1	1306-
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (B) ID=28 L=40	1-09701-261-0	01	1	1306-
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	14	1	1306-
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1306-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1306-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	06	1	1306-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	1306-
293	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1306-
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	1306-
296	BRACKET; CLIP (B) L=85 H=40	1-47476-676-0	01	1	1306-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	12	1	1306-
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91180-212-0	01	1	1306-
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1306-
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	1306-
321	BRACKET; CLIP MJX16P M/T(Y3Z) (A)	1-47477-337-1	01	1	1306-
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	1306-
333	BRACKET; BRK AIR PIPE CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-79907-150-0	01	1	1306-
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1306-
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
403	WASHER; PL SMOOTHER-G(C1W) D=12	0-91614-612-0	01	1	1306-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
