3-75 — BRAKE PIPING; AIR,FRONT (#124187) — 146 parça

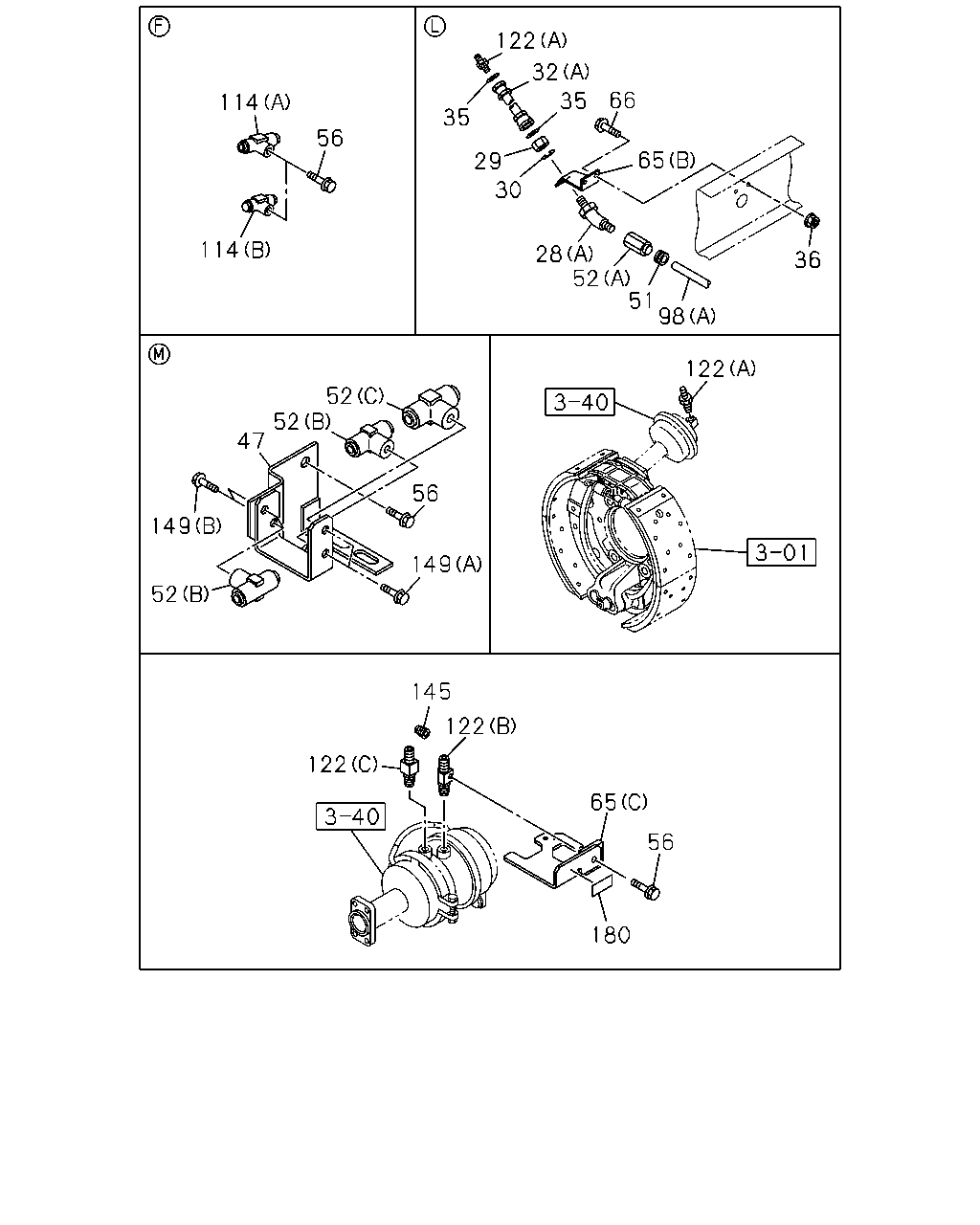

122 32 35 29 35 30 66 65 28 52 51 98 36 122 145 122 122 65 56 180 149 56 52 52 47 149 52 114 114 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	NIPPLE; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	02	1	1306-
28	NIPPLE; AIR PIPE (A) M20	1-09654-199-2	01	1	1306-
28	NIPPLE; AIR PIPE (C) M20 & M20 ELBOW	1-09654-397-1	02	1	1306-
29	NUT; NIPPLE M20	0-91111-520-0	01	1	1306-
29	NUT; NIPPLE M20	0-91111-520-0	06	1	1306-
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	01	1	1306-
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	04	1	1306-
32	HOSE; FLEX,FRT (B) L=550	0-57847-550-1	04	1	1306-
32	HOSE; FLEX,FRT (A) L=470	0-57847-470-1	01	1	1306-
32	HOSE; FLEX,FRT (A) L=500	0-57847-500-1	01	1	1306-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1306-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
47	BRACKET; PIPE UNION FULL TRAILER PIPING<Z25>	8-97636-508-0	01	1	1306-
51	GROMMET; NYLON TUBE ID=24 OD=30 T=17	9-09956-092-1	01	1	1306-
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1306-
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (C)	1-09661-128-0	01	1	1306-
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1306-
56	BOLT; UNION BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-
56	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-
56	BOLT; UNION BRKT FULL TRAILER PIPING<Z25> M12X30 FLANGE	0-28051-230-0	02	1	1306-
56	BOLT; UNION BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1306-
56	BOLT; UNION BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1306-
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	1306-
65	BRACKET; FLEX HOSE (B)	1-47477-369-1	01	1	1306-
65	BRACKET; FLEX HOSE (C)	8-98162-738-2	01	1	1306-
65	BRACKET; FLEX HOSE (D)	8-98176-155-0	01	1	1306-
65	BRACKET; FLEX HOSE (C)	8-98162-737-2	01	1	1306-
65	BRACKET; FLEX HOSE (D)	8-98179-015-0	01	1	1306-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1306-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1306-
66	BOLT; HOSE BRKT M8X40 FLANGE	0-28650-840-0	05	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1306-
98	TUBE; NYLON (B) L=160 OD=12	8-98054-251-0	01	1	1306-
98	TUBE; NYLON (C) L=220 OD=12	8-98054-252-0	01	1	1306-
114	UNION; NYLON TUBE (A)	1-09661-128-0	02	1	1306-
114	UNION; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 2WAY	1-09661-518-0	01	1	1306-
114	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 2WAY	1-09661-518-0	01	1	1306-
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	02	1	1306-
122	CONNECTOR; FLEX HOSE (B)	8-98161-478-0	01	1	1306-
122	CONNECTOR; FLEX HOSE (C)	8-98161-479-0	01	1	1306-
122	CONNECTOR; FLEX HOSE (B)	8-98161-476-0	01	1	1306-
122	CONNECTOR; FLEX HOSE (C)	8-98161-477-0	01	1	1306-
145	PLUG PT1/4	9-99204-513-0	01	1	1306-
149	BOLT; UNION FULL TRAILER PIPING<Z25> (A) M8X16 FLANGE	0-28050-816-0	02	1	1306-
149	BOLT; UNION FULL TRAILER PIPING<Z25> (B) M8X20 FLANGE	0-28050-820-0	02	1	1306-
180	PLATE; CAUTION	8-98164-504-0	02	1	1306-

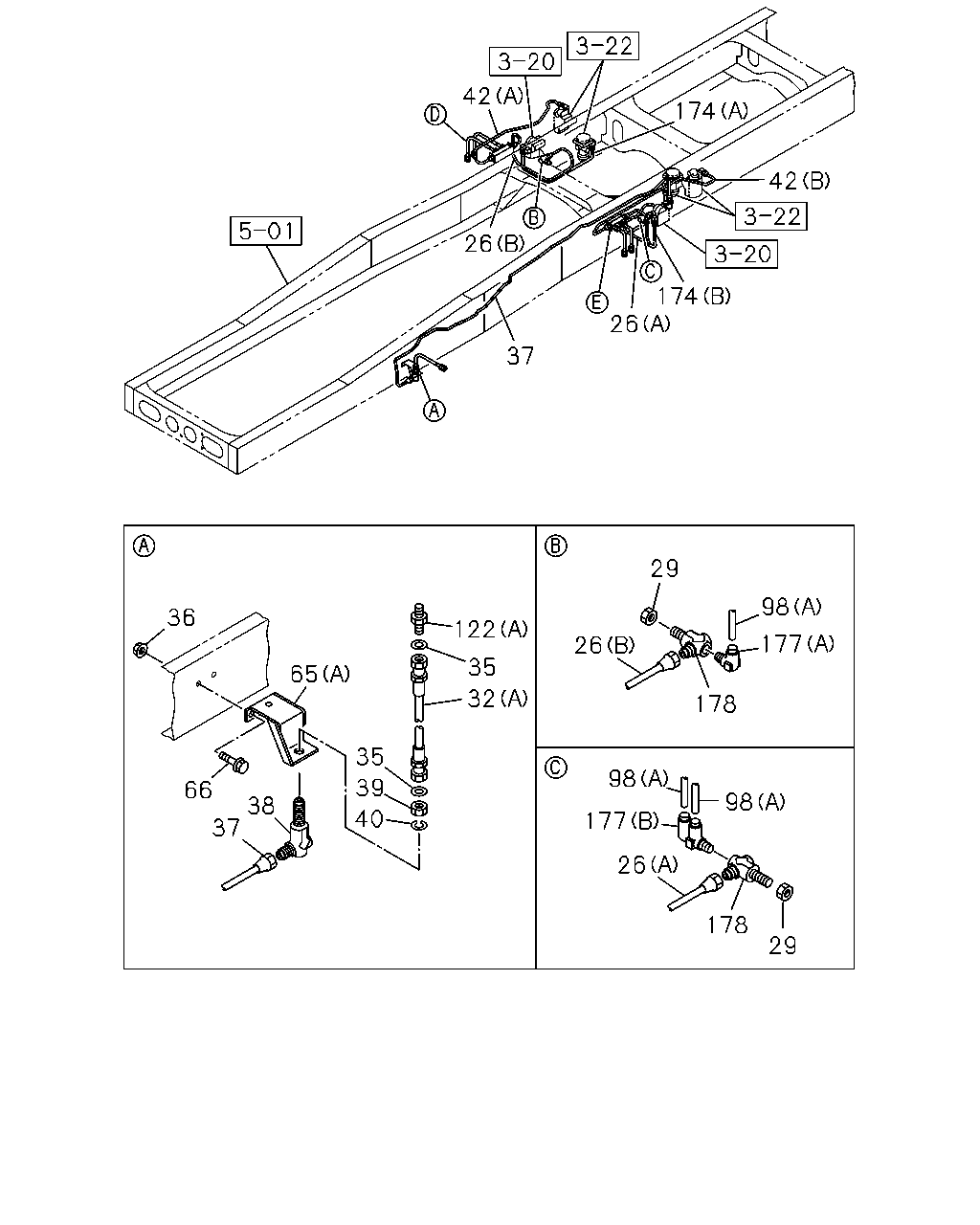

42 174 26 37 26 174 42 36 65 66 37 38 35 39 40 122 35 32 29 26 98 177 178 98 177 98 26 178 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	PIPE; AIR,UNION TO FLEX HOSE (A) L=1132	8-98241-290-0	01	1	1306-
26	PIPE; AIR,UNION TO FLEX HOSE (B) L=1081	8-98241-338-1	01	1	1306-
29	NUT; NIPPLE M20	0-91111-520-0	01	1	1306-
29	NUT; NIPPLE M20	0-91111-520-0	06	1	1306-
32	HOSE; FLEX,FRT (B) L=550	0-57847-550-1	04	1	1306-
32	HOSE; FLEX,FRT (A) L=470	0-57847-470-1	01	1	1306-
32	HOSE; FLEX,FRT (A) L=500	0-57847-500-1	01	1	1306-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1306-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
37	PIPE; AIR,UNION TO FLEX HOSE L=3119 SERVICED BY L=2800	1-49115-496-0	01	1	1306-1504
37	PIPE; AIR,UNION TO FLEX HOSE L=3120 SERVICED BY L=2800	1-49115-496-0	01	1	1505-
38	UNION; AIR PIPE M20 & M20 ELBOW	1-09654-128-1	01	1	1306-
39	NUT; PIPE UNION M20	0-91111-520-0	01	1	1306-
40	WASHER; LK,PIPE UNION ID=20.2	0-91510-520-0	01	1	1306-
42	PIPE; AIR,QUICK RELAY VALVE TO UNION (B) L=1223 SERVICED BY L=1300	1-49115-488-0	01	1	1306-
42	PIPE; AIR,QUICK RELAY VALVE TO UNION (A) L=1109	8-98241-297-1	01	1	1306-
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	1306-
65	BRACKET; FLEX HOSE (B)	1-47477-369-1	01	1	1306-
65	BRACKET; FLEX HOSE (C)	8-98162-738-2	01	1	1306-
65	BRACKET; FLEX HOSE (D)	8-98176-155-0	01	1	1306-
65	BRACKET; FLEX HOSE (C)	8-98162-737-2	01	1	1306-
65	BRACKET; FLEX HOSE (D)	8-98179-015-0	01	1	1306-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1306-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1306-
66	BOLT; HOSE BRKT M8X40 FLANGE	0-28650-840-0	05	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1306-
98	TUBE; NYLON (B) L=160 OD=12	8-98054-251-0	01	1	1306-
98	TUBE; NYLON (C) L=220 OD=12	8-98054-252-0	01	1	1306-
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	02	1	1306-
122	CONNECTOR; FLEX HOSE (B)	8-98161-478-0	01	1	1306-
122	CONNECTOR; FLEX HOSE (C)	8-98161-479-0	01	1	1306-
122	CONNECTOR; FLEX HOSE (B)	8-98161-476-0	01	1	1306-
122	CONNECTOR; FLEX HOSE (C)	8-98161-477-0	01	1	1306-
174	PIPE; AIR,RELAY VLV TO MODULATOR (B) L=750	8-98169-332-0	01	1	1306-
174	PIPE; AIR,RELAY VLV TO MODULATOR (A) L=774	8-98241-579-0	01	1	1306-
177	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1306-
177	CONNECTOR (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1306-
178	UNION	1-09650-251-1	02	1	1306-

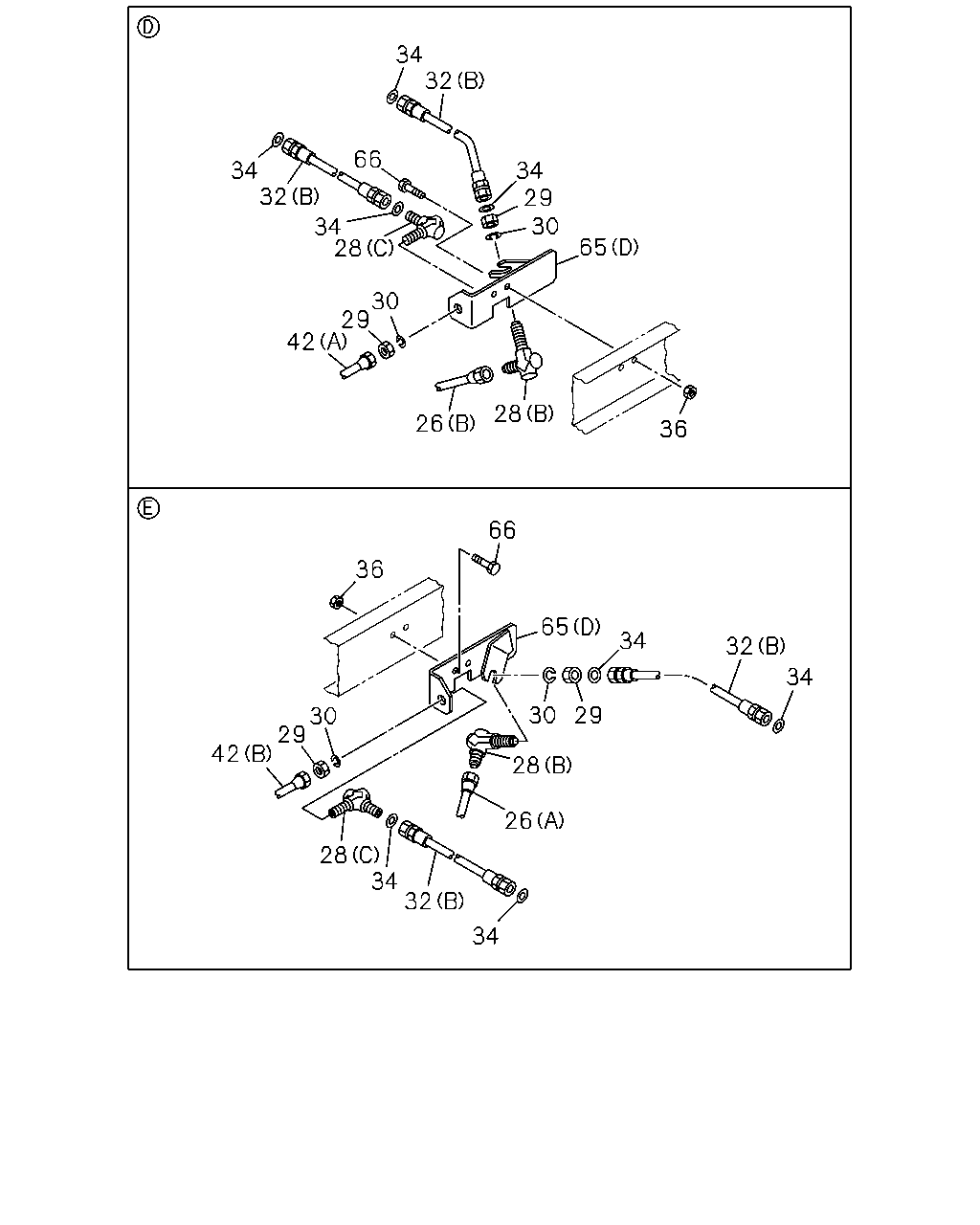

34 32 34 32 34 28 30 29 42 34 29 30 65 26 28 36 36 66 30 29 42 28 34 32 34 26 28 30 65 34 32 34 29 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	PIPE; AIR,UNION TO FLEX HOSE (A) L=1132	8-98241-290-0	01	1	1306-
26	PIPE; AIR,UNION TO FLEX HOSE (B) L=1081	8-98241-338-1	01	1	1306-
28	NIPPLE; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	02	1	1306-
28	NIPPLE; AIR PIPE (A) M20	1-09654-199-2	01	1	1306-
28	NIPPLE; AIR PIPE (C) M20 & M20 ELBOW	1-09654-397-1	02	1	1306-
29	NUT; NIPPLE M20	0-91111-520-0	01	1	1306-
29	NUT; NIPPLE M20	0-91111-520-0	06	1	1306-
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	01	1	1306-
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	04	1	1306-
32	HOSE; FLEX,FRT (B) L=550	0-57847-550-1	04	1	1306-
32	HOSE; FLEX,FRT (A) L=470	0-57847-470-1	01	1	1306-
32	HOSE; FLEX,FRT (A) L=500	0-57847-500-1	01	1	1306-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	08	1	1306-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
42	PIPE; AIR,QUICK RELAY VALVE TO UNION (B) L=1223 SERVICED BY L=1300	1-49115-488-0	01	1	1306-
42	PIPE; AIR,QUICK RELAY VALVE TO UNION (A) L=1109	8-98241-297-1	01	1	1306-
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	1306-
65	BRACKET; FLEX HOSE (B)	1-47477-369-1	01	1	1306-
65	BRACKET; FLEX HOSE (C)	8-98162-738-2	01	1	1306-
65	BRACKET; FLEX HOSE (D)	8-98176-155-0	01	1	1306-
65	BRACKET; FLEX HOSE (C)	8-98162-737-2	01	1	1306-
65	BRACKET; FLEX HOSE (D)	8-98179-015-0	01	1	1306-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1306-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1306-
66	BOLT; HOSE BRKT M8X40 FLANGE	0-28650-840-0	05	1	1306-

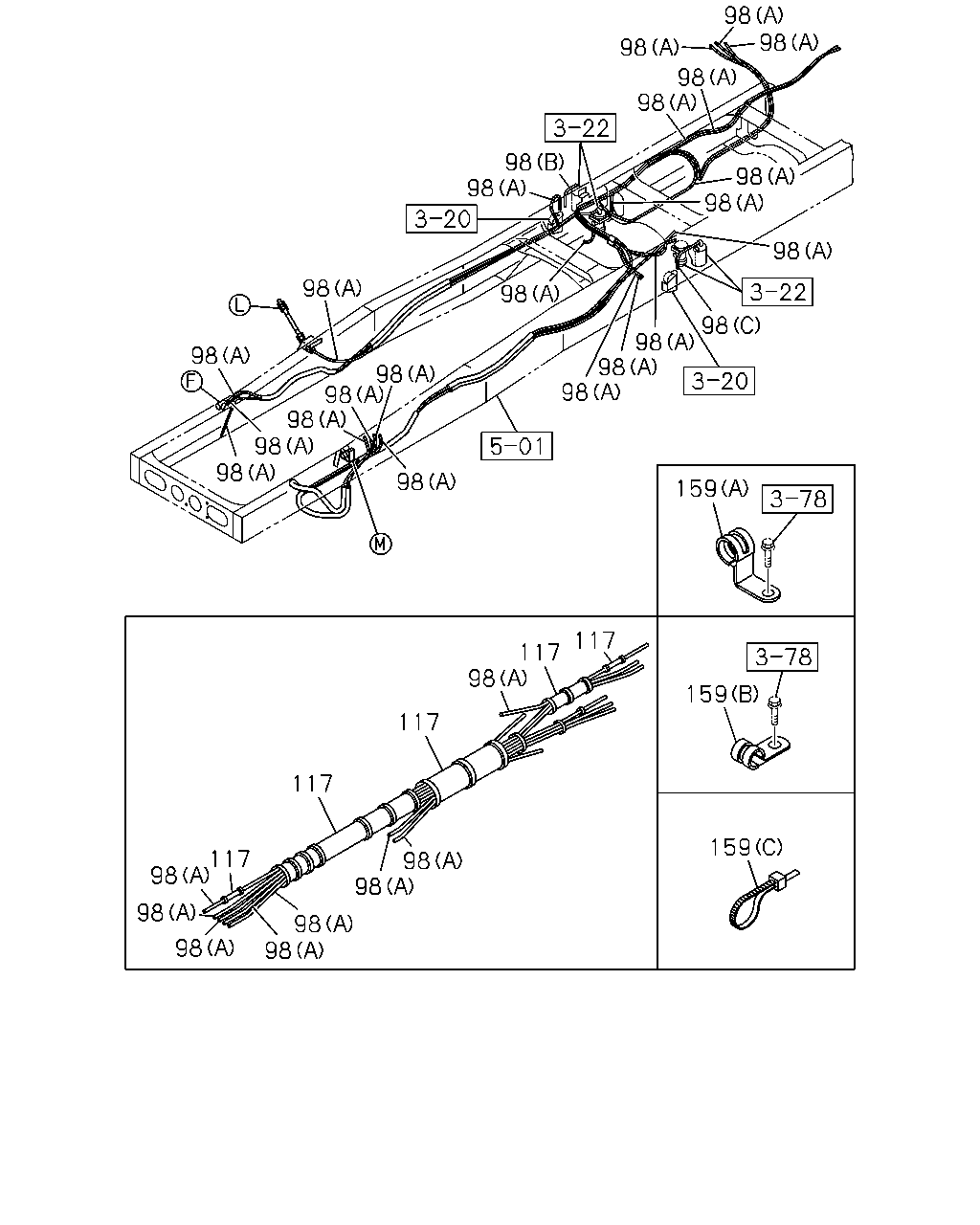

98 98 98 98 98 98 98 98 98 98 98 98 98 98 159 159 159 117 117 98 117 117 117 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1306-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1306-
98	TUBE; NYLON (B) L=160 OD=12	8-98054-251-0	01	1	1306-
98	TUBE; NYLON (C) L=220 OD=12	8-98054-252-0	01	1	1306-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1306-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1306-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1306-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1306-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1306-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1306-
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1306-
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	1306-
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	1306-
159	CLIP; NYLON TUBE MJT7S M/T(Y3E) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 L=33	1-09700-945-0	04	1	1306-
159	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 L=33	1-09700-945-0	02	1	1306-
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 L=33	1-09700-945-0	02	1	1306-
159	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) L=350	1-09707-183-0	01	1	1306-
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) L=350	1-09707-183-0	01	1	1306-
159	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=39 L=33	8-98009-359-0	02	1	1306-
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=39 L=33	8-98009-359-0	02	1	1306-
