3-26 — TRAILER CONTROL (#124179) — 128 parça

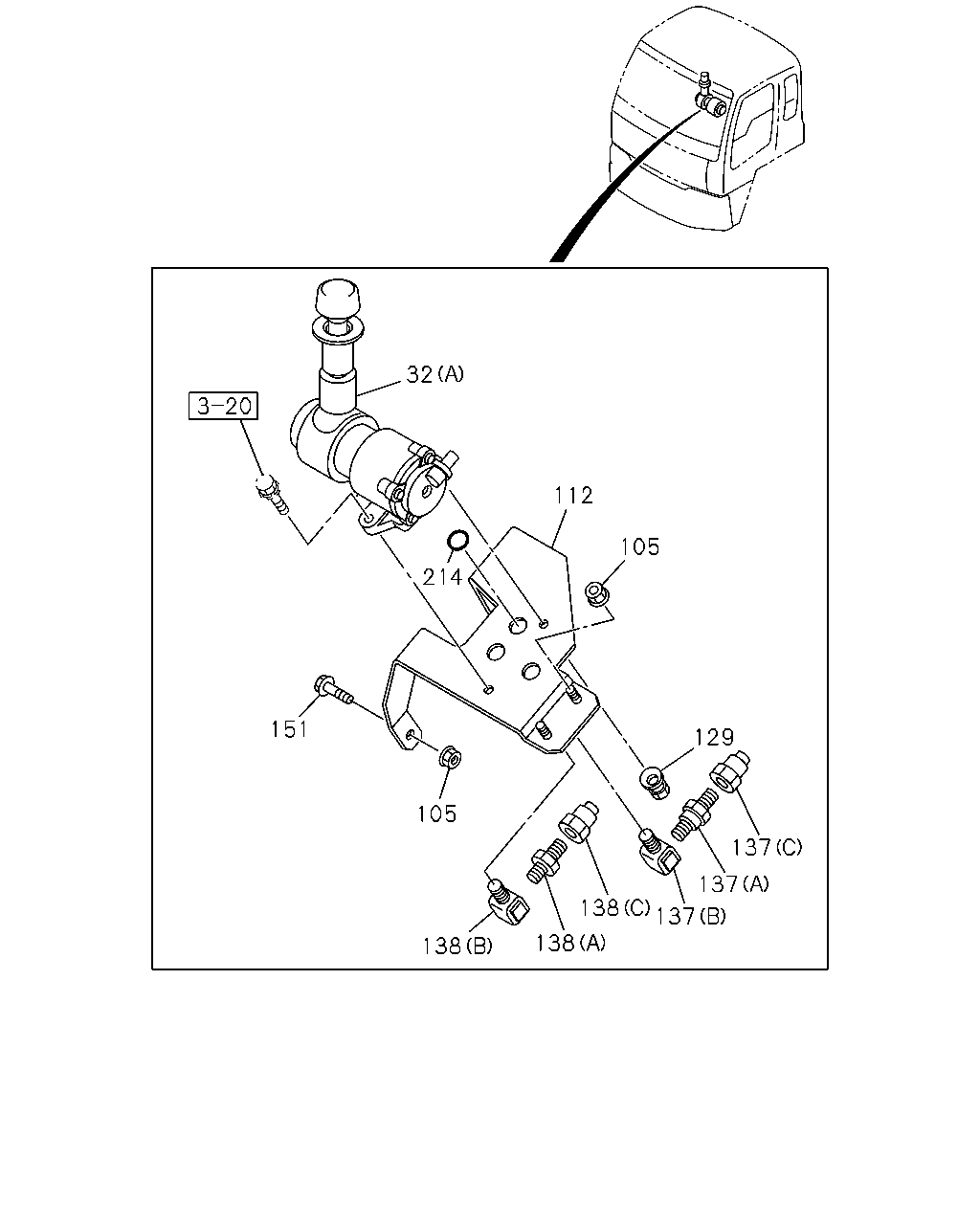

32 112 105 214 151 105 129 137 137 137 138 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1306-
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1306-
105	NUT; BRKT EXC. FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1306-
112	BRACKET; CONT VLV EXC. FULL TRAILER PIPING<Z25>	1-79996-387-0	01	1	1306-
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1306-
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	03	1	1306-
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (A)	1-09650-352-1	01	1	1306-
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1306-
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1306-
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1306-
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1306-
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1306-
151	BOLT; VLV BRKT EXC. FULL TRAILER PIPING<Z25> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1306-
214	SEAL; COVER,HAND BRK EXC. FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	02	1	1306-

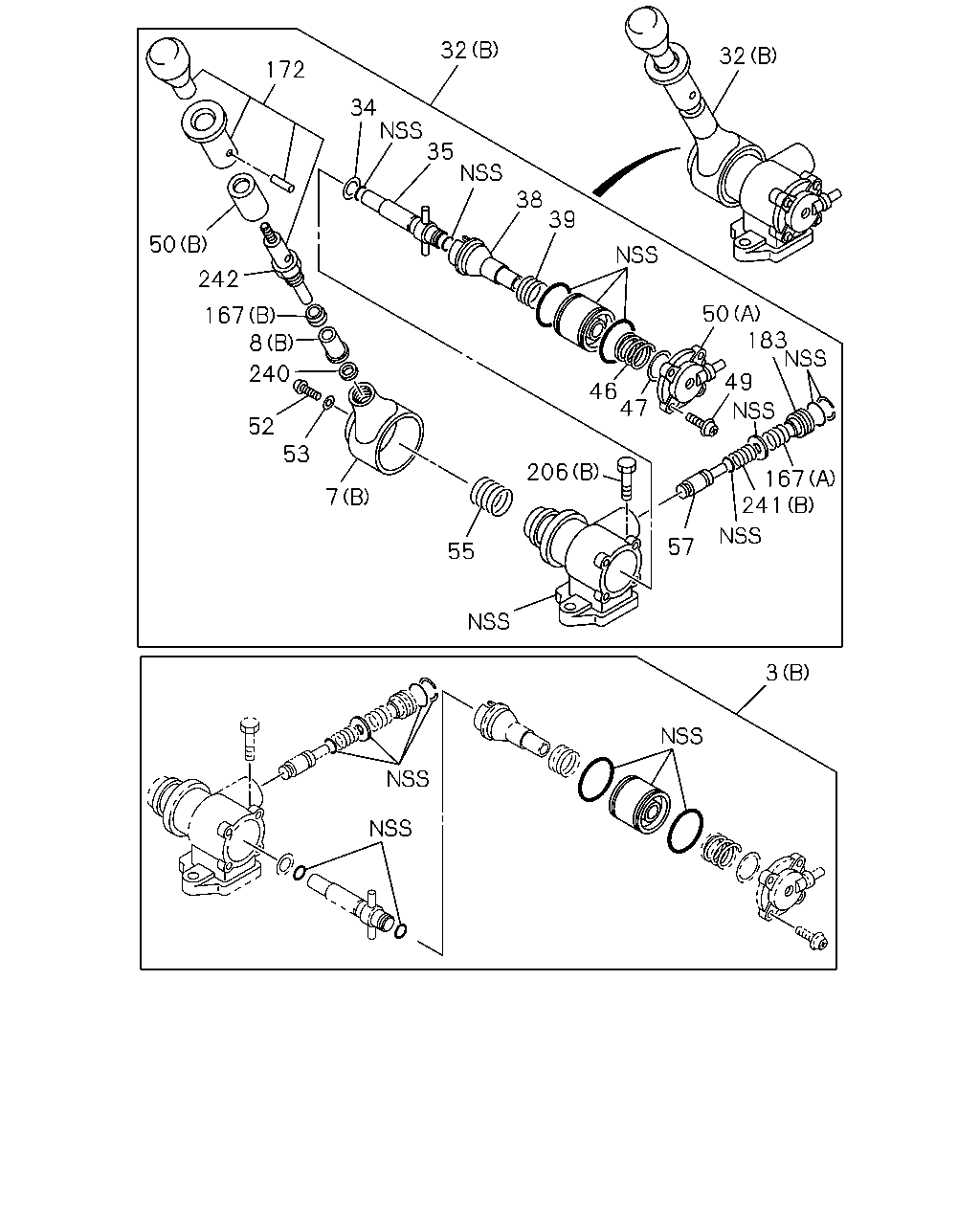

50 242 167 8 240 52 53 7 172 34 35 32 38 39 32 46 47 206 55 50 183 49 167 241 57 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25> (B)	1-85576-376-0	01	1	1306-
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-85576-375-0	01	1	1306-
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (A)	1-48119-577-1	01	1	1306-
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-201-0	01	1	1306-
7	HEAD; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-195-0	01	1	1306-
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (A)	1-48119-327-0	01	1	1306-
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-200-0	01	1	1306-
8	STOPPER; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-194-0	01	1	1306-
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1306-
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1306-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1306-
35	HOLDER; CAM FULL TRAILER PIPING<Z25>	1-48469-171-0	01	1	1306-
35	HOLDER; CAM EXC. FULL TRAILER PIPING<Z25>	1-48469-148-0	01	1	1306-
38	SEAT; EXH VLV FULL TRAILER PIPING<Z25>	1-48469-172-0	01	1	1306-
38	SEAT; EXH VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-149-0	01	1	1306-
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1306-
46	SPRING; MAIN,PISTON FULL TRAILER PIPING<Z25>	1-48469-173-0	01	1	1306-
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-152-0	01	1	1306-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1306-
49	SCREW; COVER	1-48469-169-0	04	1	1306-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1306-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1306-
52	SCREW; HANDLE	1-48469-062-0	01	1	1306-
53	WASHER; HANDLE	1-48469-061-0	01	1	1306-
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1306-
57	PLUNGER; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-180-0	01	1	1306-
167	SPRING; VALVE FULL TRAILER PIPING<Z25> (A)	1-48469-177-0	01	1	1306-
167	SPRING; VALVE FULL TRAILER PIPING<Z25> (B)	1-48469-184-0	01	1	1306-
172	KNOB; VALVE FULL TRAILER PIPING<Z25>	1-48469-203-0	01	1	1306-
172	KNOB; VALVE EXC. FULL TRAILER PIPING<Z25>	1-48469-204-0	01	1	1306-
183	RETAINER; VALVE FULL TRAILER PIPING<Z25>	1-48469-185-0	01	1	1306-
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1306-
206	BOLT; HAND BRK VALVE FULL TRAILER PIPING<Z25> (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1306-
240	RING; STOPPER FULL TRAILER PIPING<Z25>	1-48469-199-0	01	1	1306-
240	RING; STOPPER EXC. FULL TRAILER PIPING<Z25>	1-48469-193-0	01	1	1306-
241	SPRING; RETURN FULL TRAILER PIPING<Z25> (A)	1-48119-576-0	01	1	1306-
241	SPRING; RETURN FULL TRAILER PIPING<Z25> (B)	1-48469-182-0	01	1	1306-
242	NUT; LK FULL TRAILER PIPING<Z25>	1-48469-179-0	01	1	1306-

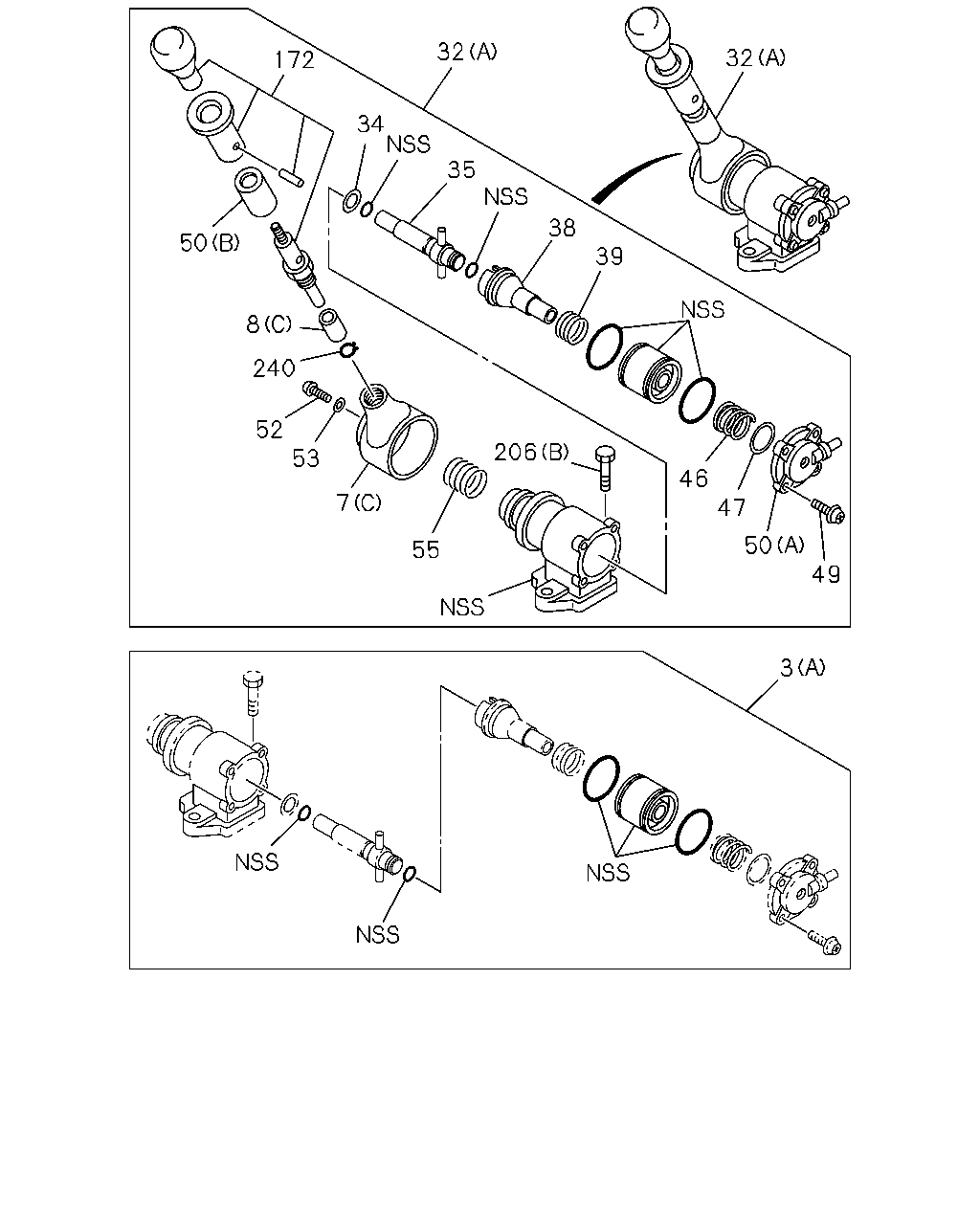

50 172 34 32 8 240 52 53 7 55 206 35 38 39 32 46 47 50 49 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25> (B)	1-85576-376-0	01	1	1306-
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-85576-375-0	01	1	1306-
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (A)	1-48119-577-1	01	1	1306-
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-201-0	01	1	1306-
7	HEAD; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-195-0	01	1	1306-
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (A)	1-48119-327-0	01	1	1306-
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-200-0	01	1	1306-
8	STOPPER; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-194-0	01	1	1306-
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1306-
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1306-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1306-
35	HOLDER; CAM FULL TRAILER PIPING<Z25>	1-48469-171-0	01	1	1306-
35	HOLDER; CAM EXC. FULL TRAILER PIPING<Z25>	1-48469-148-0	01	1	1306-
38	SEAT; EXH VLV FULL TRAILER PIPING<Z25>	1-48469-172-0	01	1	1306-
38	SEAT; EXH VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-149-0	01	1	1306-
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1306-
46	SPRING; MAIN,PISTON FULL TRAILER PIPING<Z25>	1-48469-173-0	01	1	1306-
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-152-0	01	1	1306-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1306-
49	SCREW; COVER	1-48469-169-0	04	1	1306-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1306-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1306-
52	SCREW; HANDLE	1-48469-062-0	01	1	1306-
53	WASHER; HANDLE	1-48469-061-0	01	1	1306-
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1306-
172	KNOB; VALVE FULL TRAILER PIPING<Z25>	1-48469-203-0	01	1	1306-
172	KNOB; VALVE EXC. FULL TRAILER PIPING<Z25>	1-48469-204-0	01	1	1306-
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1306-
206	BOLT; HAND BRK VALVE FULL TRAILER PIPING<Z25> (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1306-
240	RING; STOPPER FULL TRAILER PIPING<Z25>	1-48469-199-0	01	1	1306-
240	RING; STOPPER EXC. FULL TRAILER PIPING<Z25>	1-48469-193-0	01	1	1306-

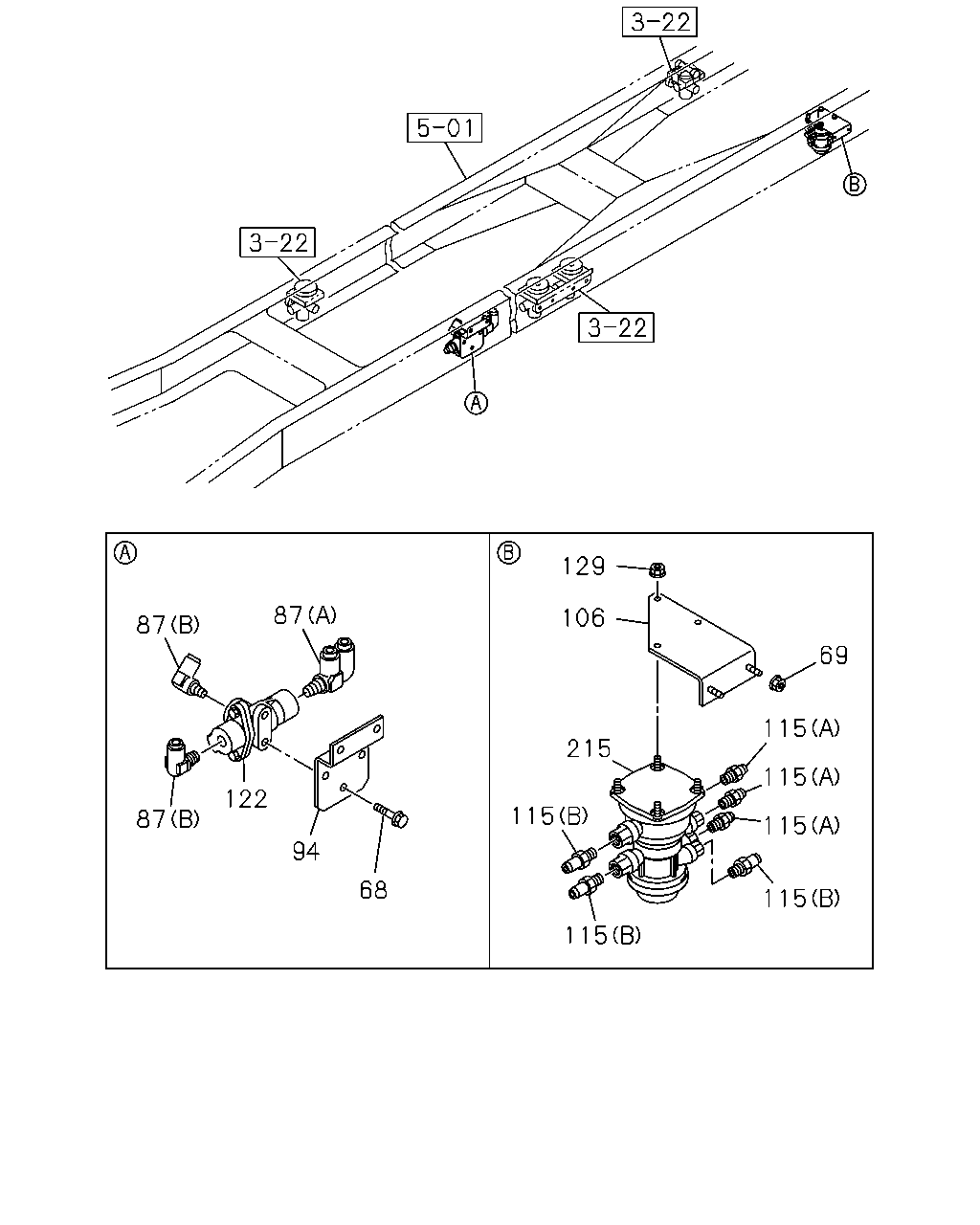

87 87 87 122 94 68 129 106 215 115 115 69 115 115 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	BOLT; DOUBLE CHECK VLV FULL TRAILER PIPING<Z25> M8X14 FLANGE	0-28080-814-0	02	1	1306-
69	NUT; VLV BRKT FULL TRAILER PIPING<Z25> M10 FLANGE	0-91180-210-0	02	1	1306-
87	CONNECTOR; DBL CHECK VLV FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1306-
87	CONNECTOR; DBL CHECK VLV FULL TRAILER PIPING<Z25> (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1306-
94	BRACKET; CHECK VLV FULL TRAILER PIPING<Z25>	1-47479-367-0	01	1	1306-
106	BRACKET; VLV FULL TRAILER PIPING<Z25>	8-98110-679-1	01	1	1306-
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	1306-
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1306-
122	VALVE ASM; DOUBLE CHECK FULL TRAILER PIPING<Z25>	1-48410-531-1	01	1	1306-
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1306-
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	03	1	1306-
215	VALVE; TRAILER CONT FULL TRAILER PIPING<Z25>	8-98091-694-0	01	1	1306-

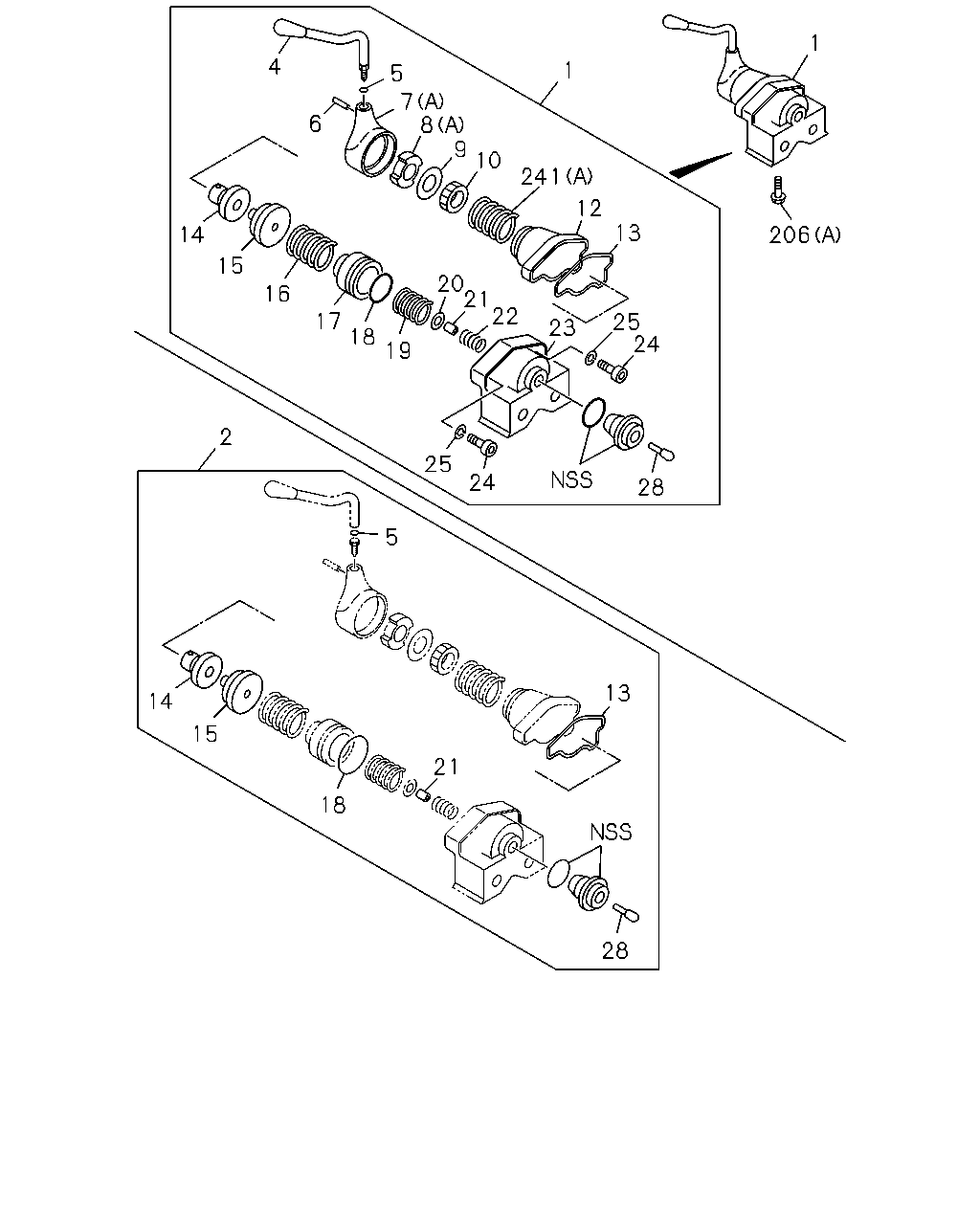

14 4 6 15 16 17 5 7 8 18 19 20 21 22 9 10 241 1 12 13 25 23 24 25 24 28 206 1 2 5 14 15 18 21 13 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK FULL TRAILER PIPING<Z25>	1-48100-859-0	01	1	1306-
2	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-85576-305-0	01	1	1306-
4	HANDLE ASM; BRK VLV FULL TRAILER PIPING<Z25>	1-48119-580-1	01	1	1306-
5	GASKET; HANDLE FULL TRAILER PIPING<Z25>	1-48119-128-0	01	1	1306-
6	PIN; SPR FULL TRAILER PIPING<Z25>	1-48119-143-0	01	1	1306-
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (A)	1-48119-577-1	01	1	1306-
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-201-0	01	1	1306-
7	HEAD; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-195-0	01	1	1306-
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (A)	1-48119-327-0	01	1	1306-
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-200-0	01	1	1306-
8	STOPPER; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-194-0	01	1	1306-
9	WASHER; LK,ADJ FULL TRAILER PIPING<Z25>	1-48119-123-0	01	1	1306-
10	RING; ADJ FULL TRAILER PIPING<Z25>	1-48119-122-0	01	1	1306-
12	COVER; BRK VLV FULL TRAILER PIPING<Z25>	1-48129-319-1	01	1	1306-
13	GASKET; BODY TO COVER FULL TRAILER PIPING<Z25>	1-48119-120-0	01	1	1306-
14	FOLLOWER; CAM FULL TRAILER PIPING<Z25>	1-48129-135-0	01	1	1306-
15	CAM; FOLLOWER FULL TRAILER PIPING<Z25>	1-48129-134-0	01	1	1306-
16	SPRING; GRUDUATING FULL TRAILER PIPING<Z25>	1-48129-101-0	01	1	1306-
17	PISTON; SPR FULL TRAILER PIPING<Z25>	1-48129-095-0	01	1	1306-
18	GASKET; BODY FULL TRAILER PIPING<Z25>	1-48129-096-0	01	1	1306-
19	SPRING; PISTON FULL TRAILER PIPING<Z25>	1-48129-094-0	01	1	1306-
20	GUIDE; VLV FULL TRAILER PIPING<Z25>	1-48129-090-0	01	1	1306-
21	VALVE; IN & EXH FULL TRAILER PIPING<Z25>	1-48121-017-0	01	1	1306-
22	SPRING; VLV FULL TRAILER PIPING<Z25>	1-48123-024-0	01	1	1306-
23	BODY; BRK VLV FULL TRAILER PIPING<Z25>	1-48111-060-1	01	1	1306-
24	BOLT; EXH VLV FULL TRAILER PIPING<Z25>	1-48129-092-0	02	1	1306-
25	WASHER; LK,EXH VLV FULL TRAILER PIPING<Z25>	1-48129-093-0	02	1	1306-
28	STEM ASM; BRK VLV FULL TRAILER PIPING<Z25>	1-48129-089-0	01	1	1306-
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1306-
206	BOLT; HAND BRK VALVE FULL TRAILER PIPING<Z25> (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1306-
241	SPRING; RETURN FULL TRAILER PIPING<Z25> (A)	1-48119-576-0	01	1	1306-
241	SPRING; RETURN FULL TRAILER PIPING<Z25> (B)	1-48469-182-0	01	1	1306-

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	180	REPAIR KIT; RELAY VLV FULL TRAILER PIPING<Z25>	1-85576-449-0	01	1	1306-
