3-22 — AIR CONTROL PARTS (#124178) — 131 parça

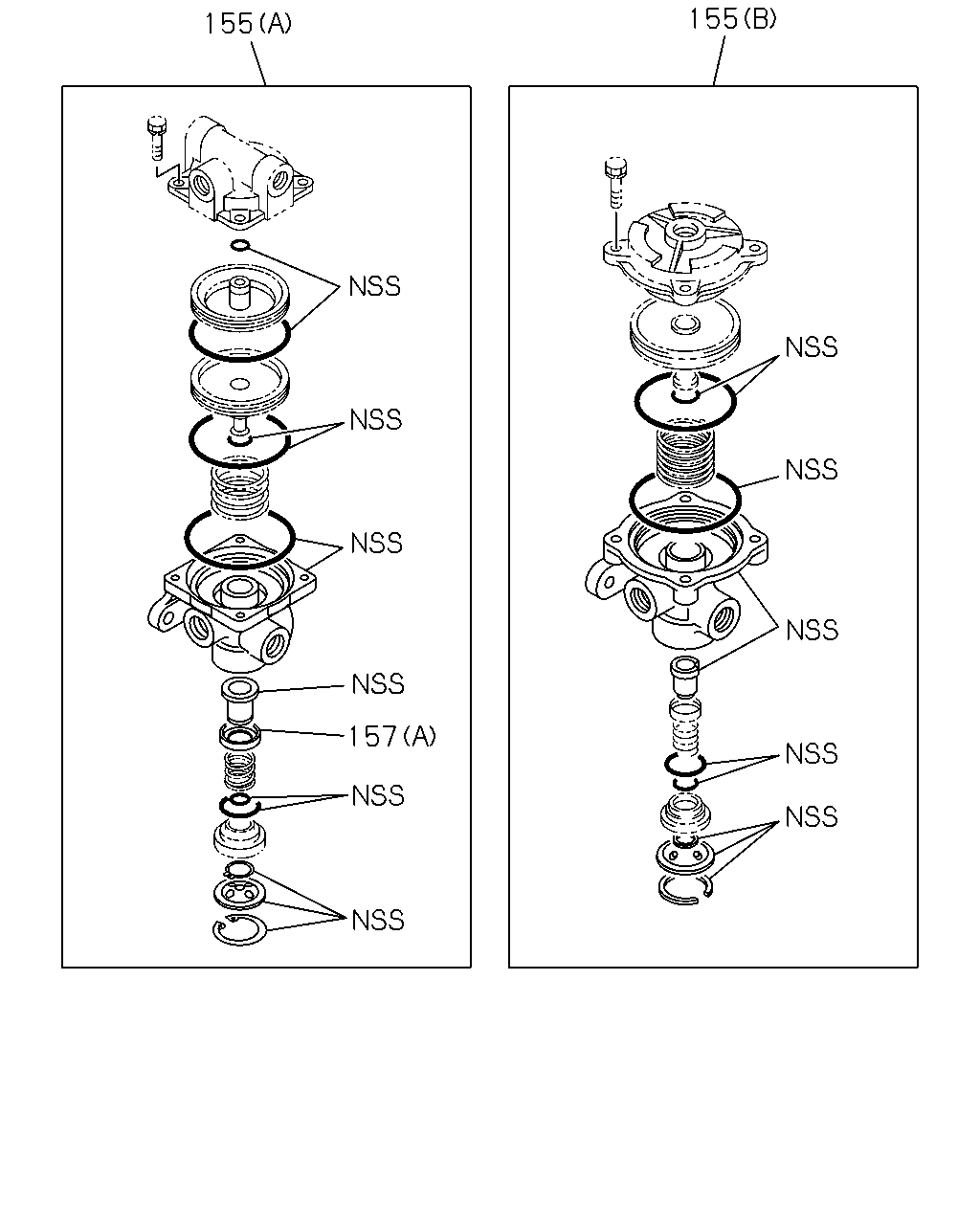

155 157 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	02	1	1306-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	1306-
155	REPAIR KIT; RELAY VALVE EXC. FULL TRAILER PIPING<Z25> (B)	1-85576-033-0	01	1	1306-
155	REPAIR KIT; RELAY VALVE EXC. FULL TRAILER PIPING<Z25> (A)	1-85576-035-0	01	1	1306-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1306-
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	1306-
157	RETAINER; VALVE EXC. FULL TRAILER PIPING<Z25> (A)	1-48213-002-0	02	1	1306-
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1306-

13 45 216 262 158 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE	8-98170-207-0	02	1	1306-
45	VALVE; QUICK RELEASE	8-98170-207-0	02	1	1306-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1306-
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	1306-
157	RETAINER; VALVE EXC. FULL TRAILER PIPING<Z25> (A)	1-48213-002-0	02	1	1306-
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1306-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1306-
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1306-
158	SPRING; VALVE EXC. FULL TRAILER PIPING<Z25> (A)	1-47819-089-0	02	1	1306-
158	SPRING; VALVE (B)	9-48419-003-0	02	1	1306-
216	REPAIR KIT; QUICK RELEASE VLV	8-98171-596-0	02	1	1306-
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1306-

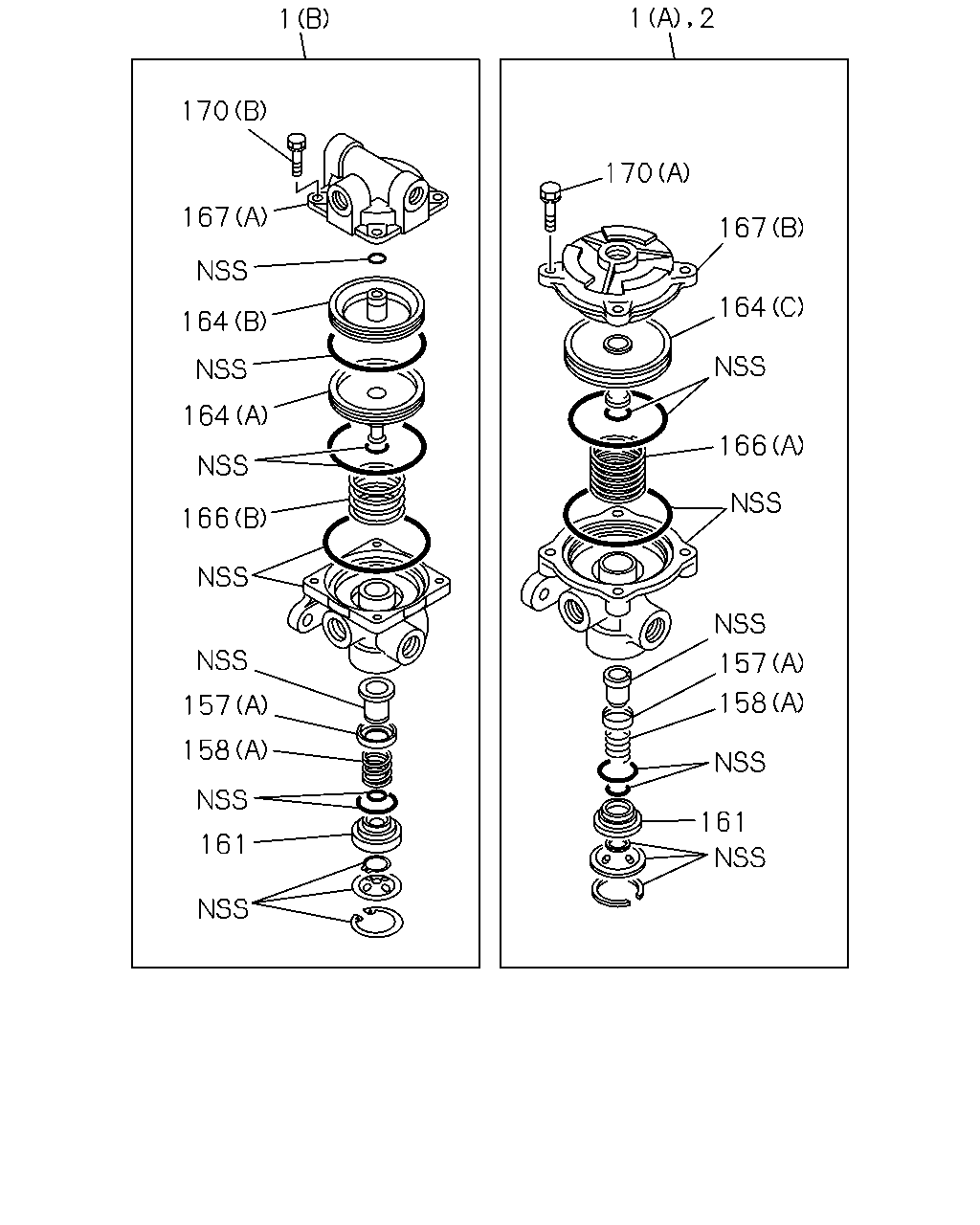

1 1 2 170 167 164 164 166 157 158 161 161 158 157 166 164 167 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR (A)	1-48210-875-0	01	1	1306-
1	VALVE; RELAY RWD RR EXC. FULL TRAILER PIPING<Z25> (B)	1-48240-041-1	01	1	1306-
2	VALVE; RELAY	1-48210-875-0	02	1	1306-
2	VALVE; RELAY EXC. FULL TRAILER PIPING<Z25>	1-48210-875-0	01	1	1306-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1306-
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	1306-
157	RETAINER; VALVE EXC. FULL TRAILER PIPING<Z25> (A)	1-48213-002-0	02	1	1306-
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1306-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1306-
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1306-
158	SPRING; VALVE EXC. FULL TRAILER PIPING<Z25> (A)	1-47819-089-0	02	1	1306-
158	SPRING; VALVE (B)	9-48419-003-0	02	1	1306-
161	GUIDE; VALVE	1-48129-014-0	01	1	1306-
161	GUIDE; VALVE	1-48129-014-0	02	1	1306-
161	GUIDE; VALVE EXC. FULL TRAILER PIPING<Z25>	1-48129-014-0	02	1	1306-
164	PISTON; RELAY VALVE (C)	1-48219-071-0	02	1	1306-
164	PISTON; RELAY VALVE (C)	1-48219-071-0	01	1	1306-
164	PISTON; RELAY VALVE EXC. FULL TRAILER PIPING<Z25> (C)	1-48219-071-0	01	1	1306-
164	PISTON; RELAY VALVE EXC. FULL TRAILER PIPING<Z25> (A)	1-48219-032-0	01	1	1306-
164	PISTON; RELAY VALVE EXC. FULL TRAILER PIPING<Z25> (B)	1-48219-047-0	01	1	1306-
166	SPRING; PISTON (A)	1-47819-090-0	02	1	1306-
166	SPRING; PISTON (A)	1-47819-090-0	01	1	1306-
166	SPRING; PISTON EXC. FULL TRAILER PIPING<Z25> (A)	1-47819-090-0	01	1	1306-
166	SPRING; PISTON EXC. FULL TRAILER PIPING<Z25> (B)	1-48219-048-0	01	1	1306-
167	COVER; VALVE (B)	1-48219-070-0	02	1	1306-
167	COVER; VALVE (B)	1-48219-070-0	01	1	1306-
167	COVER; VALVE EXC. FULL TRAILER PIPING<Z25> (B)	1-48219-070-0	01	1	1306-
167	COVER; VALVE (C)	8-98043-421-0	02	1	1306-
167	COVER; VALVE EXC. FULL TRAILER PIPING<Z25> (A)	1-48219-050-1	01	1	1306-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	08	1	1306-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	1306-
170	SCREW; COVER TO BODY EXC. FULL TRAILER PIPING<Z25> (A)	1-48219-039-0	04	1	1306-
170	SCREW; COVER TO BODY EXC. FULL TRAILER PIPING<Z25> (B)	1-48219-041-0	04	1	1306-

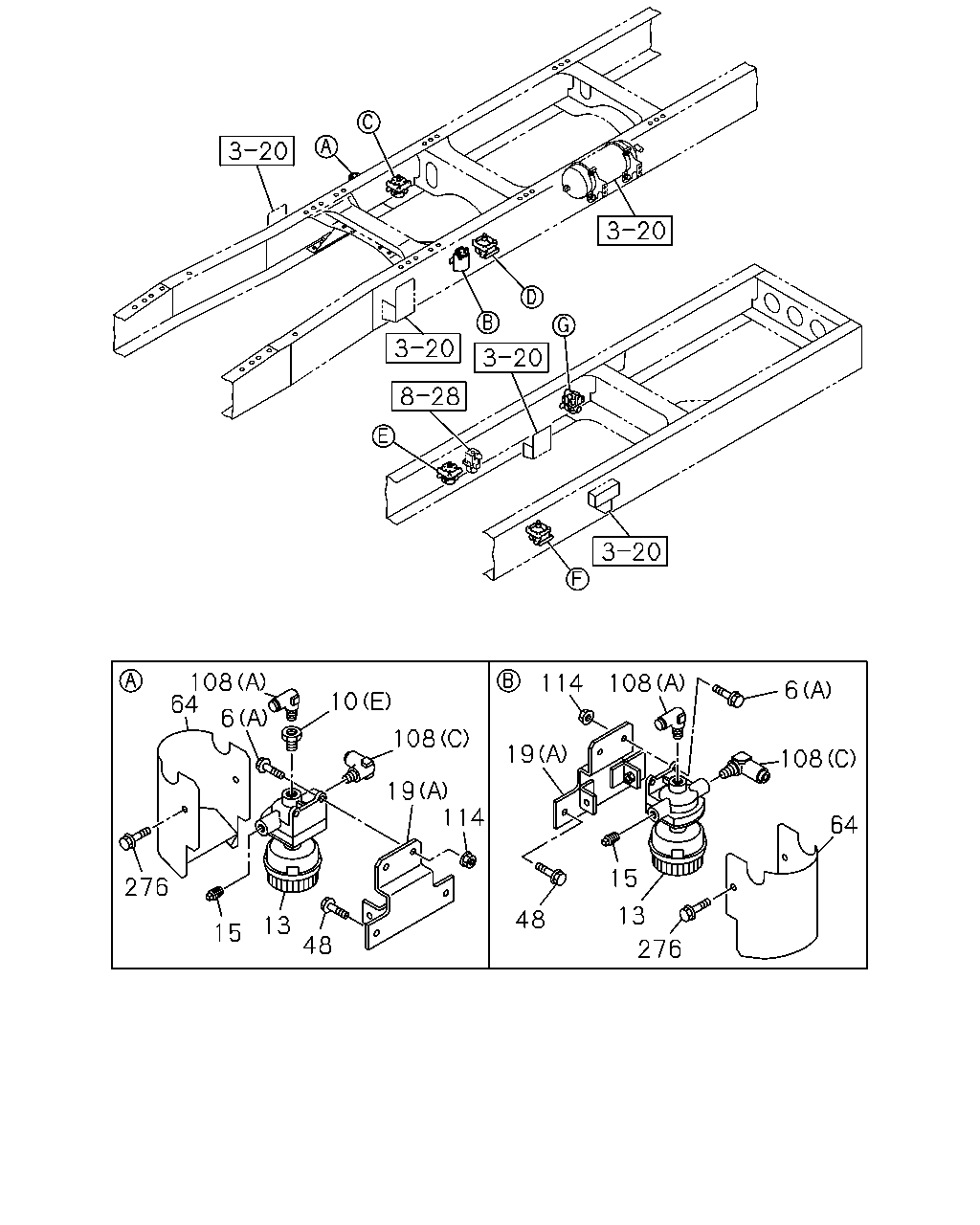

108 64 6 276 10 108 19 114 15 13 48 114 108 19 48 6 108 15 13 276 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV (A) M8X25 FLANGE	0-28650-825-0	04	1	1306-
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	1306-
10	CONNECTOR (E) PT3/8	1-09664-210-0	01	1	1306-
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1306-
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1306-
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1306-
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (D) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	1306-
13	VALVE ASM; QUICK RELEASE	8-98170-207-0	02	1	1306-
15	PLUG; VALVE PT3/8	9-09204-517-0	02	1	1306-
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	02	1	1306-
19	BRACKET; QUICK RELEASE VLV (B)	1-47471-390-0	02	1	1306-
48	BOLT; QUICK RELEASE VLV M8X35 FLANGE	0-28650-835-0	04	1	1306-
64	PROTECTOR; QUICK RELEASE VALVE	8-98043-421-0	02	1	1306-
108	CONNECTOR; ELBOW (C) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1306-
108	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	01	1	1306-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1306-
114	NUT; VLV M8 FLANGE	0-91180-108-0	04	1	1306-
276	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	04	1	1306-

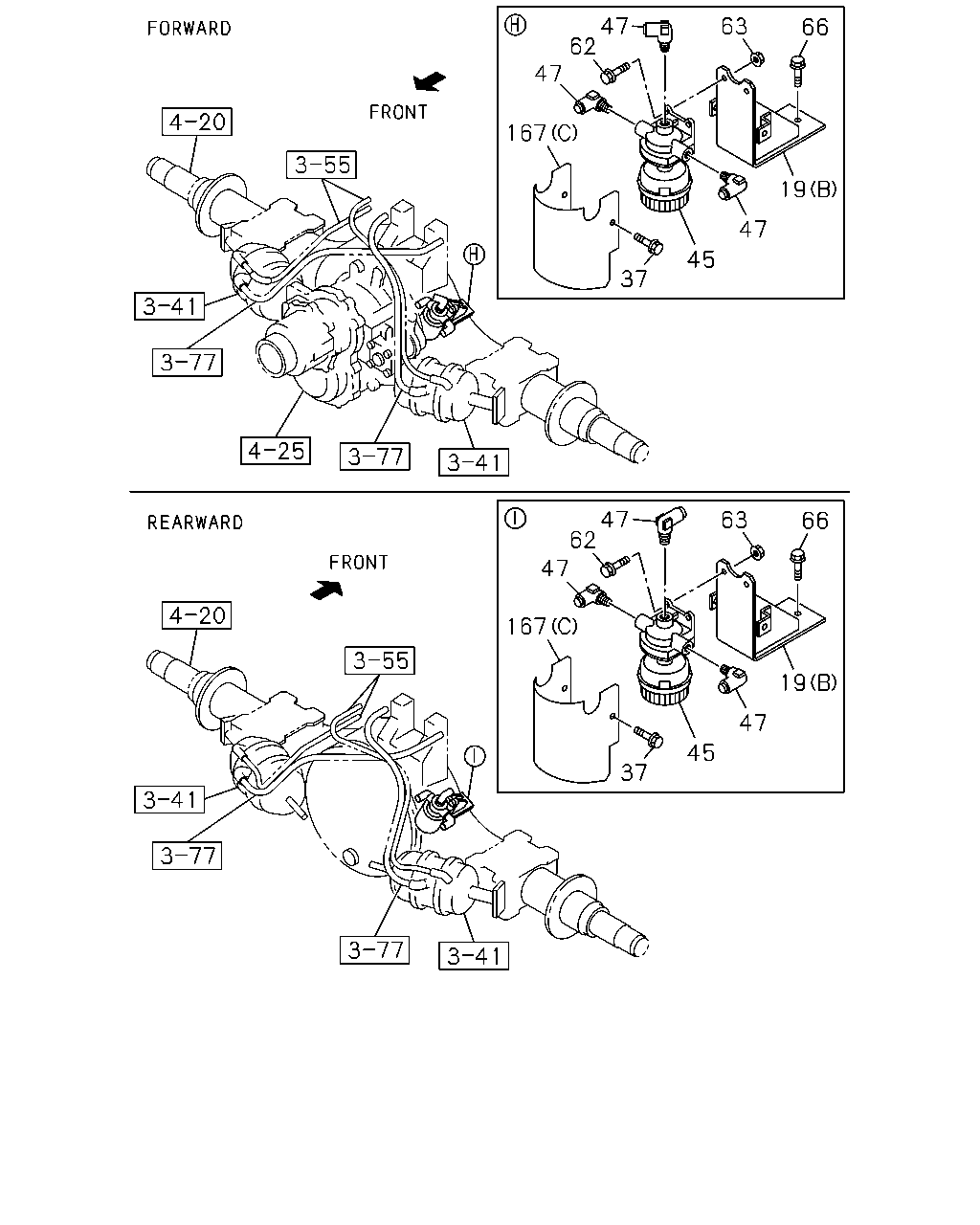

37 167 47 47 63 66 19 47 45 37 45 47 19 66 63 47 62 47 167 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	02	1	1306-
19	BRACKET; QUICK RELEASE VLV (B)	1-47471-390-0	02	1	1306-
37	BOLT; COVER M8X10 FLANGE	0-28050-810-0	04	1	1306-
45	VALVE; QUICK RELEASE	8-98170-207-0	02	1	1306-
47	CONNECTOR; RELAY VLV,CONT DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1306-
62	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	04	1	1306-
62	BOLT; BRKT FIX EXC. FULL TRAILER PIPING<Z25> M10X35 FLANGE	0-28651-035-0	02	1	1306-
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	1306-
63	NUT; BRKT FIX EXC. FULL TRAILER PIPING<Z25> M10 FLANGE	0-91180-210-0	02	1	1306-
66	BOLT; BRKT,RELAY VLV RR M8X16 FLANGE	0-28050-816-0	04	1	1306-
167	COVER; VALVE (B)	1-48219-070-0	02	1	1306-
167	COVER; VALVE (B)	1-48219-070-0	01	1	1306-
167	COVER; VALVE EXC. FULL TRAILER PIPING<Z25> (B)	1-48219-070-0	01	1	1306-
167	COVER; VALVE (C)	8-98043-421-0	02	1	1306-
167	COVER; VALVE EXC. FULL TRAILER PIPING<Z25> (A)	1-48219-050-1	01	1	1306-

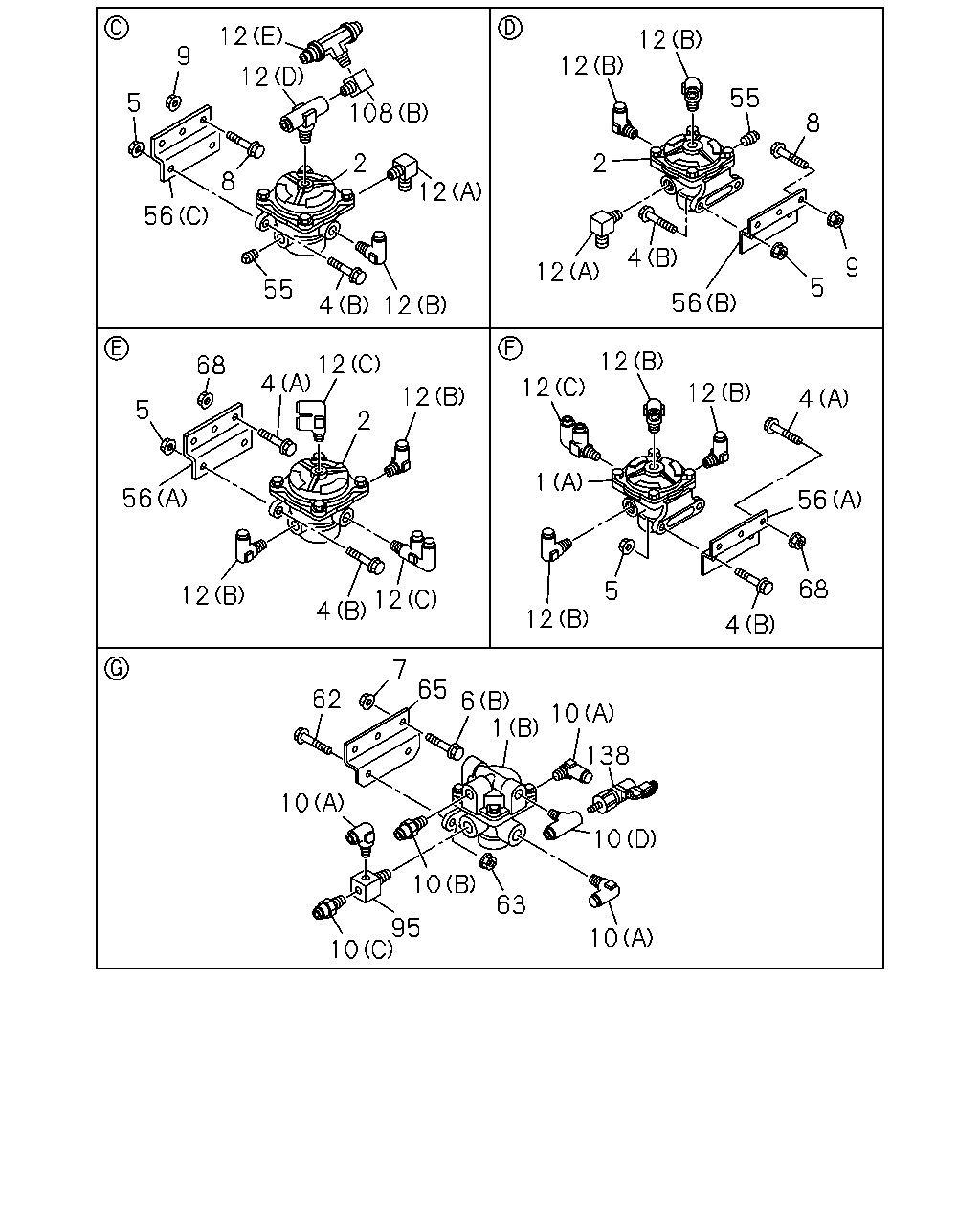

12 9 5 12 108 2 8 56 55 4 12 12 12 12 55 8 2 12 4 56 5 9 68 4 5 12 12 2 56 12 4 12 12 12 12 4 1 12 5 4 68 56 62 7 65 6 1 10 138 10 10 10 95 10 63 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR (A)	1-48210-875-0	01	1	1306-
1	VALVE; RELAY RWD RR EXC. FULL TRAILER PIPING<Z25> (B)	1-48240-041-1	01	1	1306-
2	VALVE; RELAY	1-48210-875-0	02	1	1306-
2	VALVE; RELAY EXC. FULL TRAILER PIPING<Z25>	1-48210-875-0	01	1	1306-
4	BOLT; RELAY VLV TO BRKT (A) M8X35 FLANGE	0-28650-835-0	04	1	1306-
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1306-
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1306-
4	BOLT; RELAY VLV TO BRKT EXC. FULL TRAILER PIPING<Z25> (B) M10X35 FLANGE	0-28651-035-0	02	1	1306-
5	NUT M10 FLANGE	0-91180-210-0	04	1	1306-
5	NUT M10 FLANGE	0-91180-210-0	02	1	1306-
5	NUT EXC. FULL TRAILER PIPING<Z25> M10 FLANGE	0-91180-210-0	02	1	1306-
6	BOLT; VLV (A) M8X25 FLANGE	0-28650-825-0	04	1	1306-
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	1306-
7	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	02	1	1306-
8	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1306-
9	NUT M10 FLANGE	0-91180-210-0	04	1	1306-
10	CONNECTOR (E) PT3/8	1-09664-210-0	01	1	1306-
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1306-
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1306-
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1306-
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (D) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	1306-
12	CONNECTOR; RELAY VLV (A) M22 & PT3/8 ELBOW	1-09650-440-0	02	1	1306-
12	CONNECTOR; RELAY VLV (E) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1306-
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1306-
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1306-
12	CONNECTOR; RELAY VLV (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1306-
12	CONNECTOR; RELAY VLV (D)	1-09661-232-0	01	1	1306-
12	CONNECTOR; RELAY VLV EXC. FULL TRAILER PIPING<Z25> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1306-
12	CONNECTOR; RELAY VLV EXC. FULL TRAILER PIPING<Z25> (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1306-
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1306-
56	BRACKET; RELAY VLV (C)	1-47478-233-0	01	1	1306-
56	BRACKET; RELAY VLV (A)	1-47479-328-0	01	1	1306-
56	BRACKET; RELAY VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-47479-328-0	01	1	1306-
56	BRACKET; RELAY VLV (B)	8-98174-437-0	01	1	1306-
62	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	04	1	1306-
62	BOLT; BRKT FIX EXC. FULL TRAILER PIPING<Z25> M10X35 FLANGE	0-28651-035-0	02	1	1306-
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	1306-
63	NUT; BRKT FIX EXC. FULL TRAILER PIPING<Z25> M10 FLANGE	0-91180-210-0	02	1	1306-
65	BRACKET; RELAY VLV RR EXC. FULL TRAILER PIPING<Z25>	1-47479-328-0	01	1	1306-
68	NUT; RELAY VLV TO BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
95	UNION; AIR VLV EXC. FULL TRAILER PIPING<Z25> PT3/8 3WAY	1-09661-300-0	01	1	1306-
108	CONNECTOR; ELBOW (C) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1306-
108	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	01	1	1306-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1306-
138	SWITCH; RELAY VALVE EXC. FULL TRAILER PIPING<Z25> STAMP 2.0	8-98010-856-2	01	1	1306-
