3-20 — AIR TANK (#124177) — 251 parça

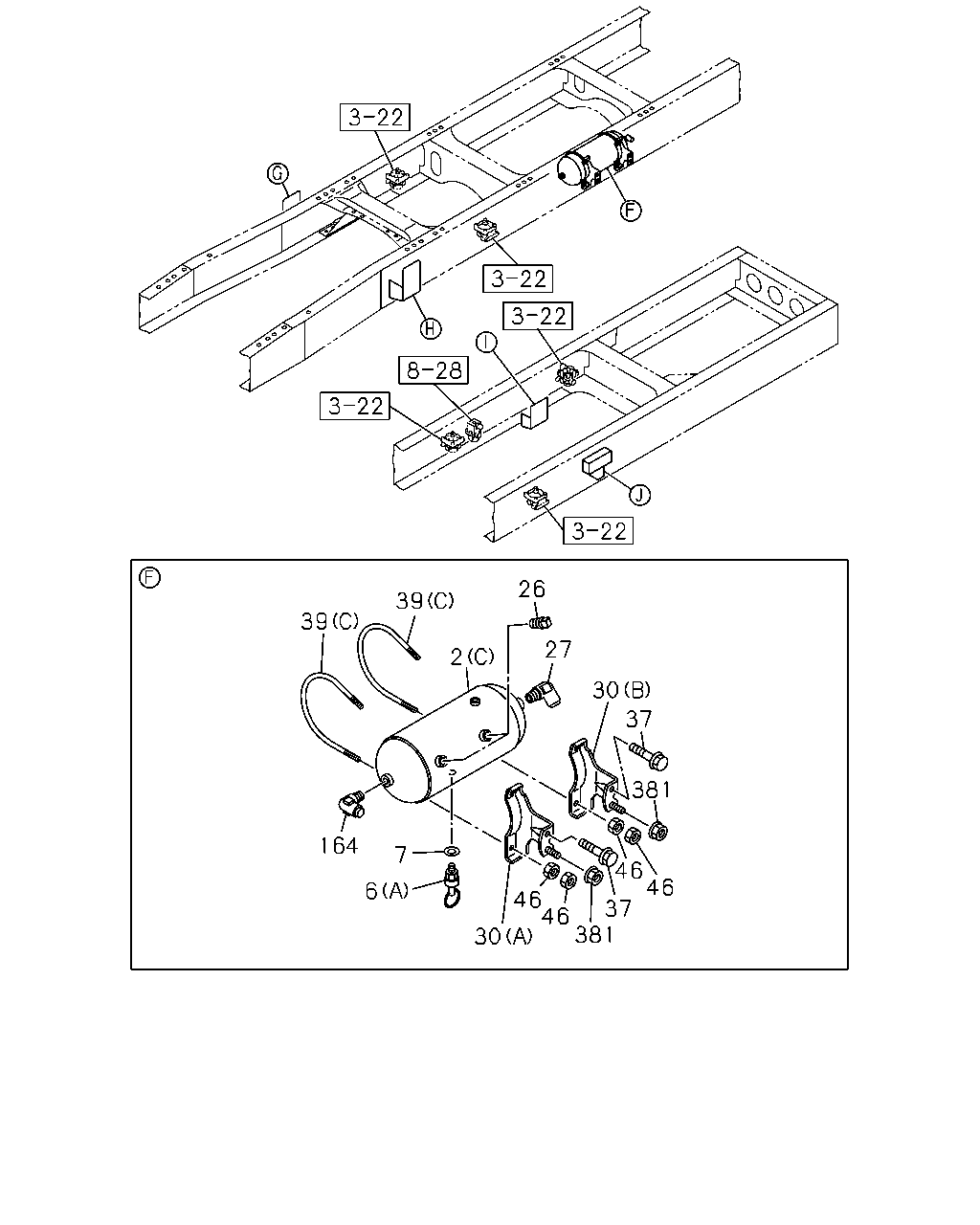

çizim 364047
26 39 39 2 27 30 37 7 164 6 30 381 46 46 381 46 46 37
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1306-
2 TANK; AIR
(B) 		1-48371-389-1 02 1 1306-
2 TANK; AIR
(C) 		8-98145-093-0 01 1 1306-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-006-1 01 1 1306-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 03 1 1306-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 05 1 1306-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1306-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1306-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1306-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1306-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1306-
30 BRACKET; AIR TANK,SUB
(A) 		1-48316-076-1 01 1 1306-
30 BRACKET; AIR TANK,SUB
(B) 		8-98149-219-0 01 1 1306-
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 02 1 1306-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 05 1 1306-
39 U-BOLT; AIR TANK
(C) 		1-48317-302-0 02 1 1306-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 20 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
164 CONNECTOR; SUB AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
381 NUT; SUB TANK
M10 FLANGE 		0-91180-210-0 02 1 1306-

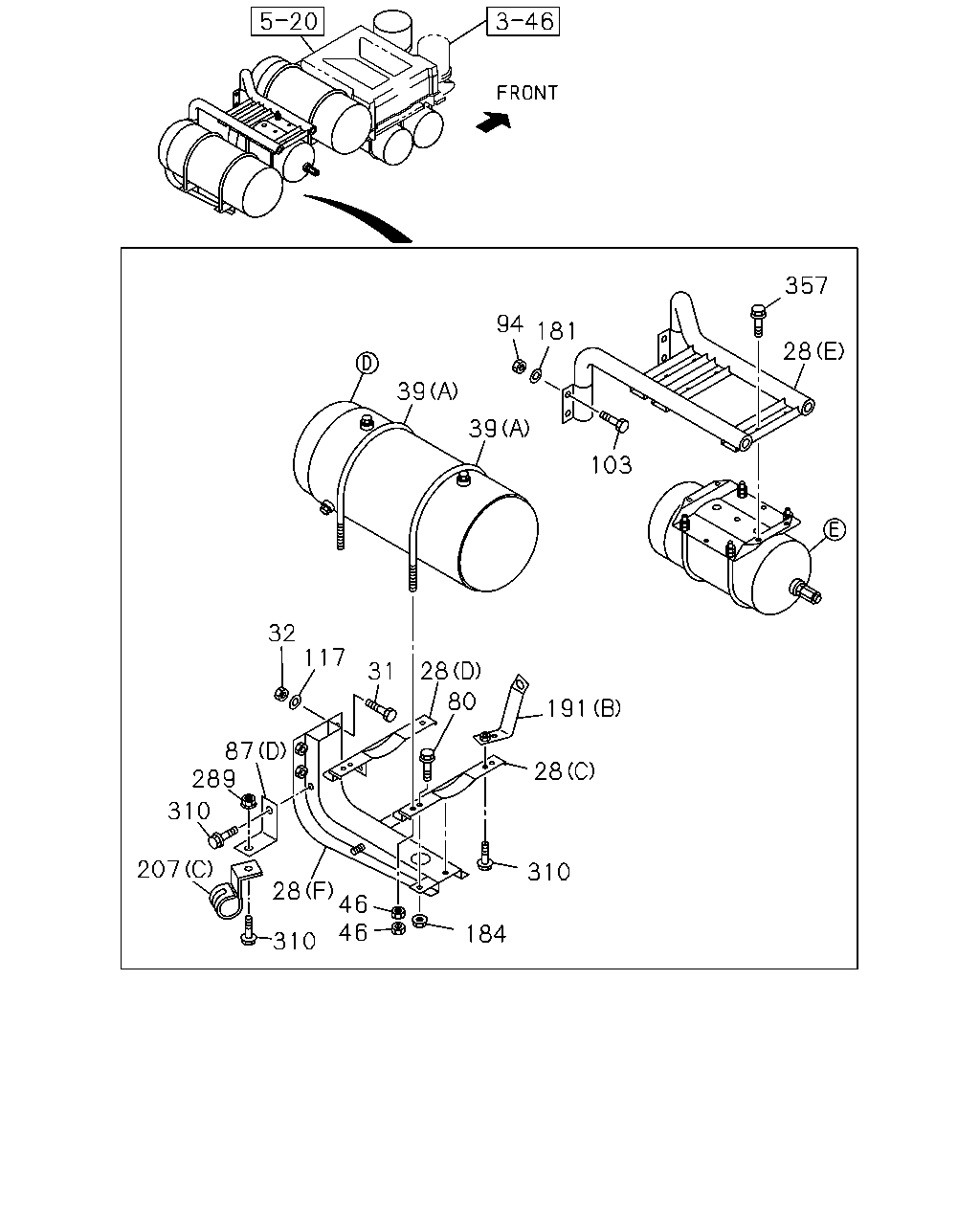

çizim 364104
39 39 94 181 103 357 28 32 117 31 28 80 191 28 310 184 46 46 310 28 207 310 289 87
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1306-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1306-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1306-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1306-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1306-
28 BRACKET; AIR TANK
EXC. FULL FLOATING CAB(W16) (A) 		8-98200-121-2 01 1 1306-1411
28 BRACKET; AIR TANK
(A) 		8-98200-121-2 01 1 1412-
31 BOLT; BRKT TO FRAME
M14X50 		0-20851-450-0 04 1 1306-
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 04 1 1306-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 05 1 1306-
39 U-BOLT; AIR TANK
(C) 		1-48317-302-0 02 1 1306-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 20 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
80 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
80 BOLT; BRKT
M12X25 FLANGE 		0-28651-225-0 04 1 1306-
87 BRACKET; AIR PIPE JOINT
(E) 		1-47471-189-0 02 1 1306-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(D) 		8-98053-747-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(B) 		8-98060-053-0 01 1 1306-
94 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 1306-
103 BOLT; BRKT
M14X40 		0-20851-440-0 04 1 1306-
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 1306-
181 WASHER; LK,AIR TANK
ID=14.2 		0-91510-514-0 04 1 1306-
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1306-
184 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1306-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1306-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-023-1 01 1 1306-
207 CLIP; AIR PIPE
(D) ID=7 L=20 		0-95234-635-0 01 1 1306-
207 CLIP; AIR PIPE
(D) ID=16 L=20 		0-95235-535-0 01 1 1306-
207 CLIP; AIR PIPE
(A) ID=35 L=35 		1-09700-895-0 01 1 1306-
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 01 1 1306-
207 CLIP; AIR PIPE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1306-
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 18 1 1306-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 06 1 1306-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 1306-
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
357 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 1306-
çizim 364115
203 203 180 10 126 176 174 175 383 344 124 369 126 176 383 11 124 28 180 429
BalonParca AdiParca NoAdetTipApplied Date
10 PLUG; AIR TANK
(B) M22 		1-09661-502-0 01 1 1306-
10 PLUG; AIR TANK
(C) PT3/8 		9-09204-517-0 01 1 1306-
10 PLUG; AIR TANK
(D) PT3/4 		9-09204-526-0 01 1 1306-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 04 1 1306-
10 PLUG; AIR TANK
EXC. FULL FLOATING CAB(W16) (A) PT1/4 		9-99204-513-0 01 1 1306-1411
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 1412-
11 VALVE; SAFETY,AIR TANK
EXC. FULL FLOATING CAB(W16) 		1-48320-012-2 01 1 1306-1411
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 1412-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1306-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1306-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1306-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1306-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1306-
28 BRACKET; AIR TANK
EXC. FULL FLOATING CAB(W16) (A) 		8-98200-121-2 01 1 1306-1411
28 BRACKET; AIR TANK
(A) 		8-98200-121-2 01 1 1412-
124 SWITCH; AIR PRESSURE
EXC. FULL FLOATING CAB(W16) STAMP 5.5 		8-97609-249-0 02 1 1306-1411
124 SWITCH; AIR PRESSURE
STAMP 5.5 		8-97609-249-0 02 1 1412-
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1306-
126 CONNECTOR; ELBOW
EXC. FULL FLOATING CAB(W16) (B) 		8-98227-936-0 01 1 1306-1411
126 CONNECTOR; ELBOW
(B) 		8-98227-936-0 01 1 1412-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) (C) PT1/4 2WAY 		1-09660-693-0 01 1 1306-1411
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (C) PT1/4 2WAY 		1-09660-693-0 01 1 1412-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) 		1-09680-099-0 01 1 1306-1411
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1412-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) 		9-48319-102-0 01 1 1306-1411
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1412-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1306-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1306-
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1306-
176 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 02 1 1306-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) (C) 		1-09660-090-0 02 1 1306-1411
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) 		1-09660-090-0 02 1 1412-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4>,FULL FLOATING CAB(W16) (C) 		1-09660-090-0 01 1 1306-1411
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) 		1-09660-090-0 01 1 1412-
180 WASHER; LK
EXC. FULL FLOATING CAB(W16) ID=18.2 		0-91510-518-0 02 1 1306-1411
180 WASHER; LK
ID=18.2 		0-91510-518-0 02 1 1412-
203 NUT
EXC. FULL FLOATING CAB(W16) M18 		0-91110-518-0 02 1 1306-1411
203 NUT
M18 		0-91110-518-0 02 1 1412-
344 CONNECTOR; 4WAY
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) PT1/4 4WAY 		1-09660-358-0 01 1 1306-1411
344 CONNECTOR; 4WAY
TIRE INFLATOR DEVICE<SG4> PT1/4 4WAY 		1-09660-358-0 01 1 1412-
369 CONNECTOR; 3WAY
EXC. TIRE INFLATOR DEVICE<SG4>,FULL FLOATING CAB(W16) 		1-09661-729-0 01 1 1306-1411
369 CONNECTOR; 3WAY
EXC. TIRE INFLATOR DEVICE<SG4> 		1-09661-729-0 01 1 1412-
383 UNION; 3 WAY
(A) 		1-09660-363-0 01 1 1306-
383 UNION; 3 WAY
EXC. FULL FLOATING CAB(W16) (B) 		1-09661-092-0 02 1 1306-1411
383 UNION; 3 WAY
(B) 		1-09661-092-0 02 1 1412-
429 SENSOR
EXC. FULL FLOATING CAB(W16) THREAD R1/4 		1-80220-023-1 01 1 1306-1411
429 SENSOR
THREAD R1/4 		1-80220-023-1 01 1 1412-

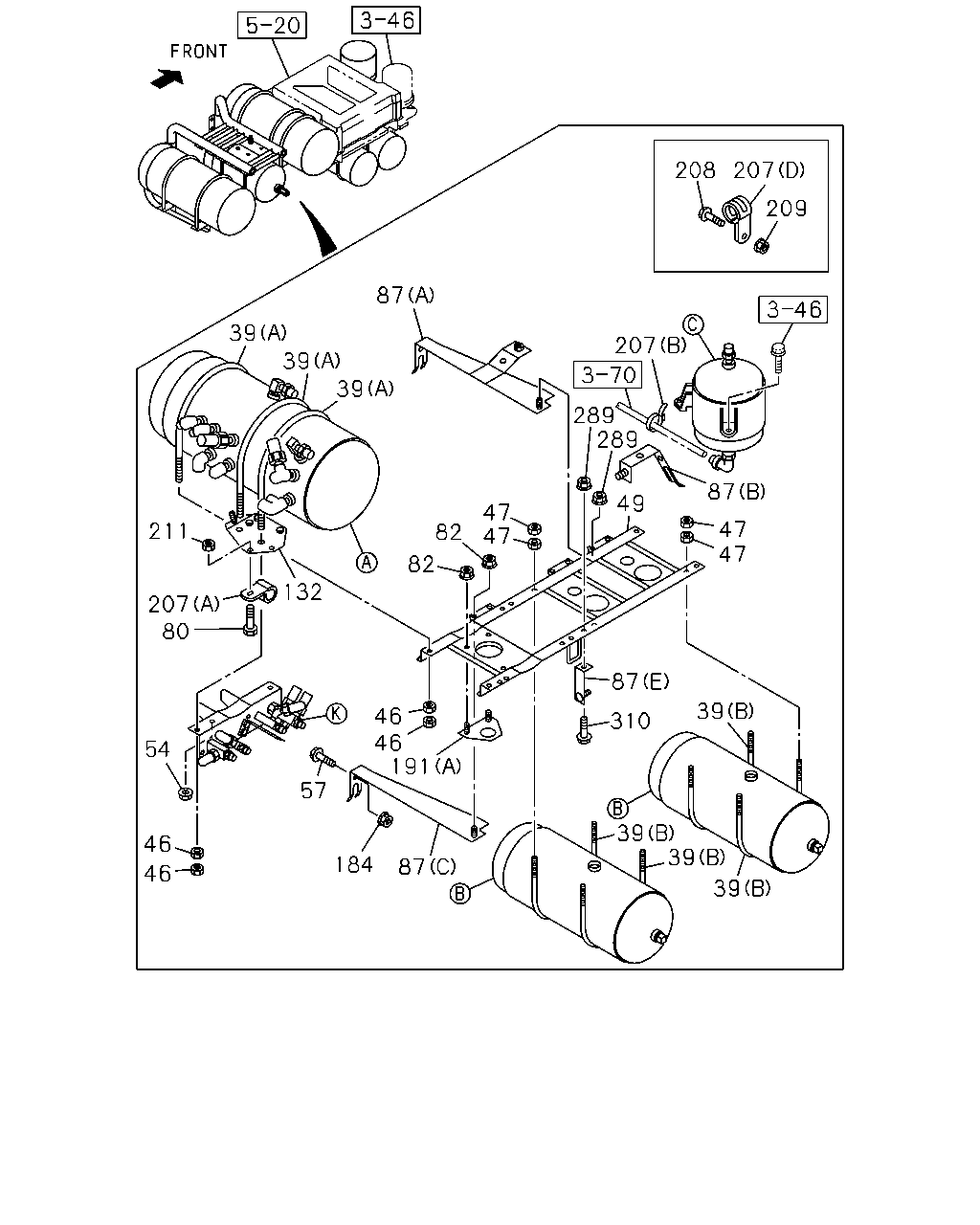

çizim 365622
39 39 39 87 211 207 80 132 54 46 46 184 57 191 46 46 82 82 47 47 87 39 39 39 39 310 87 47 47 87 49 289 289 207 209 207 208
BalonParca AdiParca NoAdetTipApplied Date
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 05 1 1306-
39 U-BOLT; AIR TANK
(C) 		1-48317-302-0 02 1 1306-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 20 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 1306-
49 BRACKET; AIR TANK 8-98241-376-0 01 1 1306-
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 01 1 1306-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1306-
80 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
80 BOLT; BRKT
M12X25 FLANGE 		0-28651-225-0 04 1 1306-
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
87 BRACKET; AIR PIPE JOINT
(E) 		1-47471-189-0 02 1 1306-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(D) 		8-98053-747-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(B) 		8-98060-053-0 01 1 1306-
132 BRACKET; STRING GUIDE 8-98200-122-0 01 1 1306-
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1306-
184 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1306-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1306-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-023-1 01 1 1306-
207 CLIP; AIR PIPE
(D) ID=7 L=20 		0-95234-635-0 01 1 1306-
207 CLIP; AIR PIPE
(D) ID=16 L=20 		0-95235-535-0 01 1 1306-
207 CLIP; AIR PIPE
(A) ID=35 L=35 		1-09700-895-0 01 1 1306-
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 01 1 1306-
207 CLIP; AIR PIPE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1306-
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 18 1 1306-
208 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1306-
209 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1306-
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 02 1 1306-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 06 1 1306-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 1306-
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
çizim 366783
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1306-

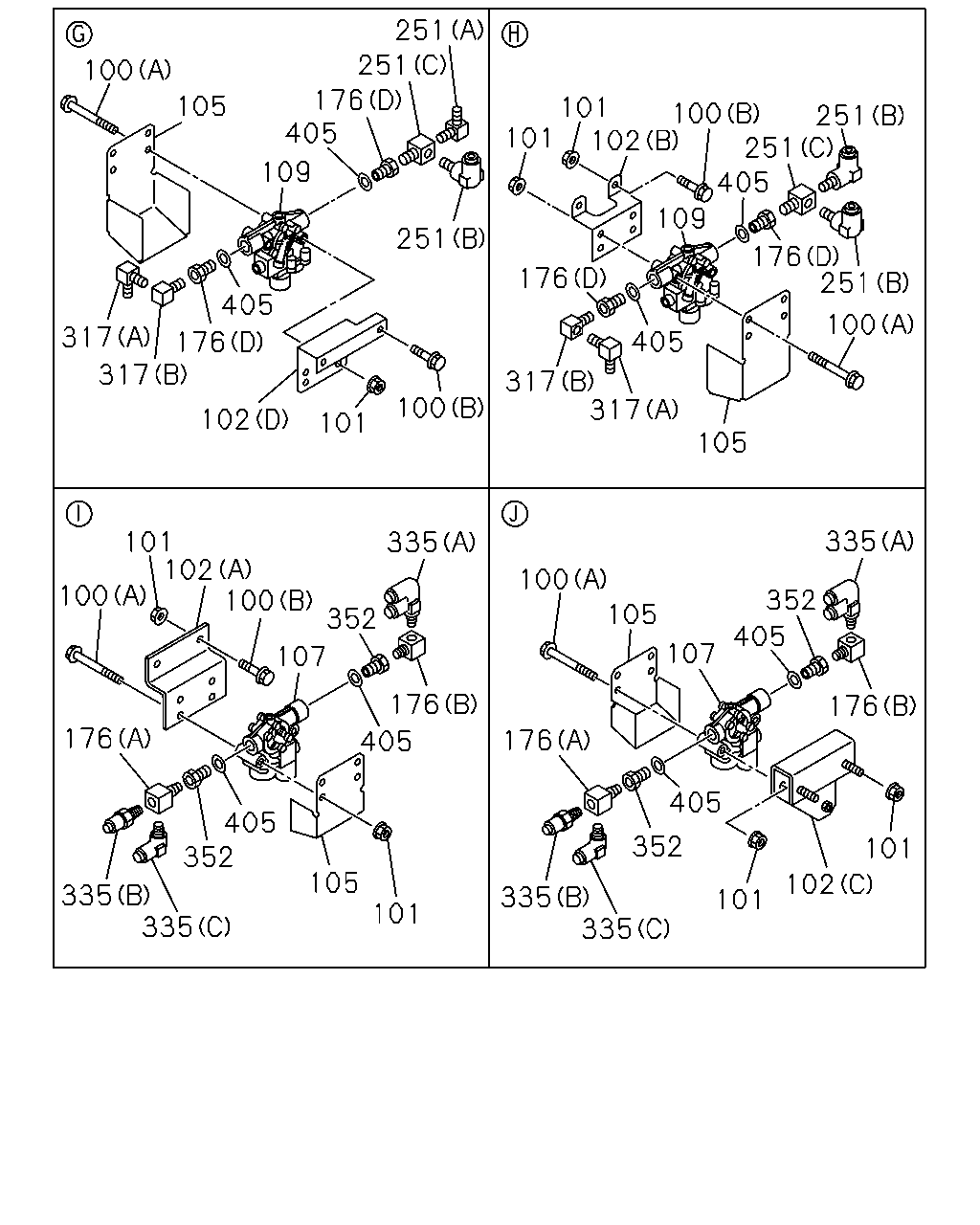

çizim 366972
251 251 176 405 109 251 100 101 102 317 317 176 405 105 100 101 101 100 102 251 251 405 109 251 176 100 105 317 405 317 176 335 352 405 176 101 102 101 352 335 335 405 107 105 100 176 101 105 405 335 352 107 405 100 102 101 100 176 352 335 335 176
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1306-1504
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 02 1 1306-1504
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 02 1 1306-1504
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 02 1 1505-
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 02 1 1505-
100 BOLT; MODULATOR
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1306-
100 BOLT; MODULATOR
(B) M8X35 FLANGE 		0-28650-835-0 04 1 1306-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 06 1 1306-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1306-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1306-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1306-
102 BRACKET; MODULATOR
(B) 		1-47479-635-0 01 1 1306-1504
102 BRACKET; MODULATOR
(B) 		8-98302-564-0 01 1 1505-
102 BRACKET; MODULATOR
(D) 		8-98144-754-0 01 1 1306-1504
102 BRACKET; MODULATOR
(D) 		8-98302-582-0 01 1 1505-
102 BRACKET; MODULATOR
(C) 		8-98043-398-0 01 1 1306-1504
102 BRACKET; MODULATOR
(C) 		8-98300-022-0 01 1 1505-
102 BRACKET; MODULATOR
(A) 		1-47471-180-0 01 1 1306-1504
102 BRACKET; MODULATOR
(A) 		8-98300-018-0 01 1 1505-
105 COVER; MODULATOR 1-47471-354-0 02 1 1306-1504
105 COVER; MODULATOR 8-98302-925-0 01 1 1505-
105 COVER; MODULATOR 8-98302-925-0 01 1 1505-
105 COVER; MODULATOR 1-47471-354-0 01 1 1306-1504
105 COVER; MODULATOR 1-47471-354-0 01 1 1306-1504
105 COVER; MODULATOR 8-98302-924-0 01 1 1505-
105 COVER; MODULATOR 8-98302-924-0 01 1 1505-
107 MODULATOR; RR 1-48240-115-0 02 1 1306-1504
107 MODULATOR; RR 8-98215-454-0 02 1 1505-
109 MODULATOR; FRT 1-48240-115-0 01 1 1306-1504
109 MODULATOR; FRT 1-48240-115-0 01 1 1306-1504
109 MODULATOR; FRT 8-98215-454-0 01 1 1505-
109 MODULATOR; FRT 8-98215-454-0 01 1 1505-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1306-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1306-
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1306-
176 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 02 1 1306-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) (C) 		1-09660-090-0 02 1 1306-1411
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) 		1-09660-090-0 02 1 1412-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4>,FULL FLOATING CAB(W16) (C) 		1-09660-090-0 01 1 1306-1411
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) 		1-09660-090-0 01 1 1412-
251 CONNECTOR; DELIVERY
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1306-
251 CONNECTOR; DELIVERY
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
251 CONNECTOR; DELIVERY
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1306-
251 CONNECTOR; DELIVERY
(C) PT3/8 3WAY 		1-09661-300-0 01 1 1306-
251 CONNECTOR; DELIVERY
(C) PT3/8 3WAY 		1-09661-300-0 01 1 1306-
317 CONNECTOR; MODULATOR
(A) M22 & PT3/8 ELBOW 		1-09650-440-0 01 1 1306-
317 CONNECTOR; MODULATOR
(A) M22 & PT3/8 ELBOW 		1-09650-440-0 01 1 1306-
317 CONNECTOR; MODULATOR
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1306-
317 CONNECTOR; MODULATOR
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1306-
335 CONNECTOR; MODULATOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1306-
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1306-
335 CONNECTOR; MODULATOR
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1306-
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1306-
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1306-
405 GASKET
ID=22.5 		9-09571-422-0 02 1 1306-
405 GASKET
ID=22.5 		9-09571-422-0 02 1 1306-

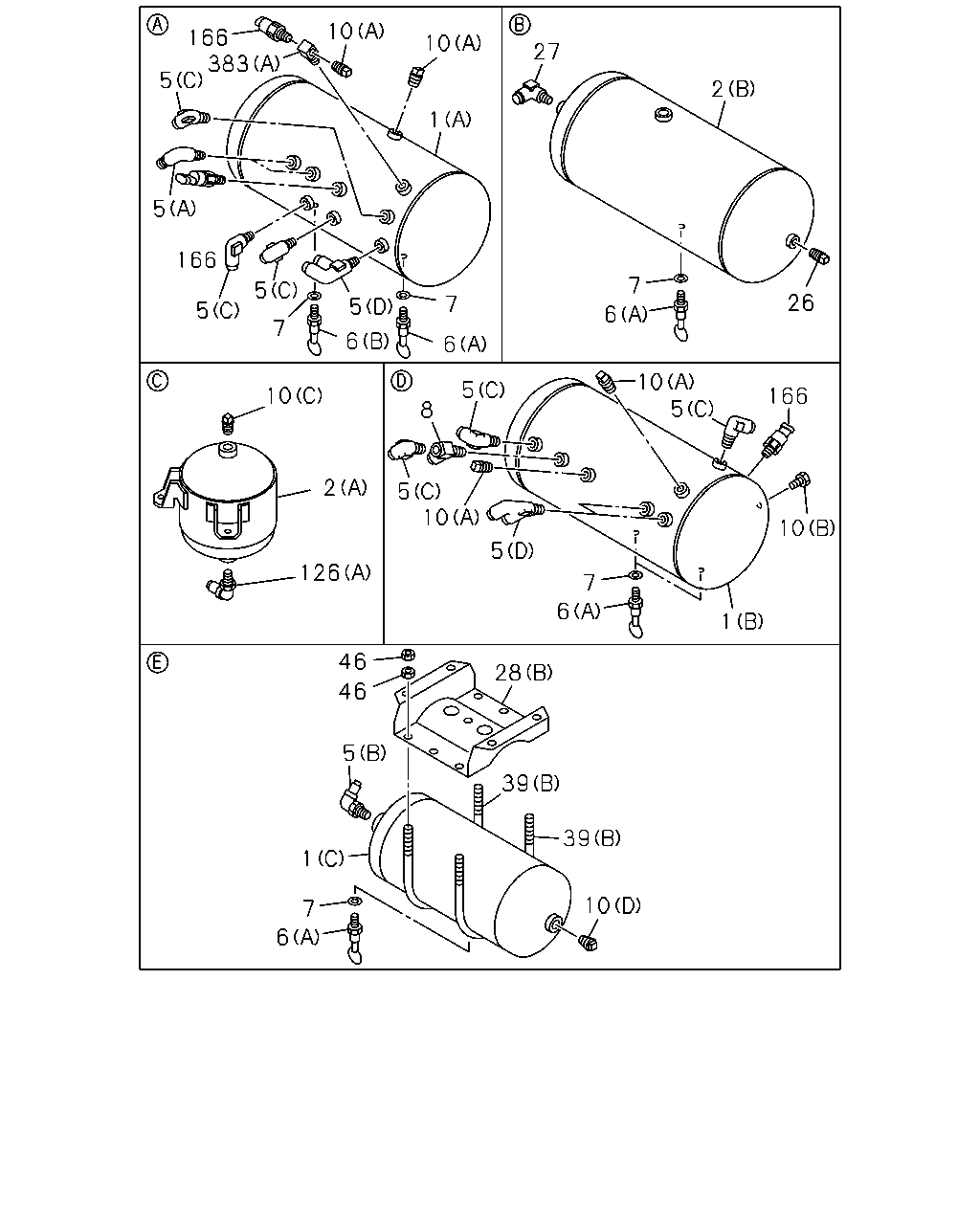

çizim 367013
166 383 5 5 166 5 7 5 6 5 6 7 1 10 10 10 2 126 46 46 5 1 7 6 10 39 39 28 6 7 5 10 5 8 5 10 5 166 10 1 6 7 27 2 26
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 1306-
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1306-
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1306-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1306-
2 TANK; AIR
(B) 		1-48371-389-1 02 1 1306-
2 TANK; AIR
(C) 		8-98145-093-0 01 1 1306-
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1306-
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 03 1 1306-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1306-
5 UNION; AIR TANK
(A) 		1-09661-550-0 02 1 1306-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-006-1 01 1 1306-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 03 1 1306-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-017-0 05 1 1306-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1306-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1306-
8 CONNECTOR; AIR TANK
DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1306-
10 PLUG; AIR TANK
(B) M22 		1-09661-502-0 01 1 1306-
10 PLUG; AIR TANK
(C) PT3/8 		9-09204-517-0 01 1 1306-
10 PLUG; AIR TANK
(D) PT3/4 		9-09204-526-0 01 1 1306-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 04 1 1306-
10 PLUG; AIR TANK
EXC. FULL FLOATING CAB(W16) (A) PT1/4 		9-99204-513-0 01 1 1306-1411
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 01 1 1412-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1306-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1306-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1306-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1306-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1306-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1306-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1306-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1306-
28 BRACKET; AIR TANK
EXC. FULL FLOATING CAB(W16) (A) 		8-98200-121-2 01 1 1306-1411
28 BRACKET; AIR TANK
(A) 		8-98200-121-2 01 1 1412-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 05 1 1306-
39 U-BOLT; AIR TANK
(C) 		1-48317-302-0 02 1 1306-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 20 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1306-
126 CONNECTOR; ELBOW
EXC. FULL FLOATING CAB(W16) (B) 		8-98227-936-0 01 1 1306-1411
126 CONNECTOR; ELBOW
(B) 		8-98227-936-0 01 1 1412-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) (C) PT1/4 2WAY 		1-09660-693-0 01 1 1306-1411
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (C) PT1/4 2WAY 		1-09660-693-0 01 1 1412-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 03 1 1306-
383 UNION; 3 WAY
(A) 		1-09660-363-0 01 1 1306-
383 UNION; 3 WAY
EXC. FULL FLOATING CAB(W16) (B) 		1-09661-092-0 02 1 1306-1411
383 UNION; 3 WAY
(B) 		1-09661-092-0 02 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
