Isuzu WW
▶
TRUCKS
▶
CYH
▶
11524 - CYH RHD EURO2
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

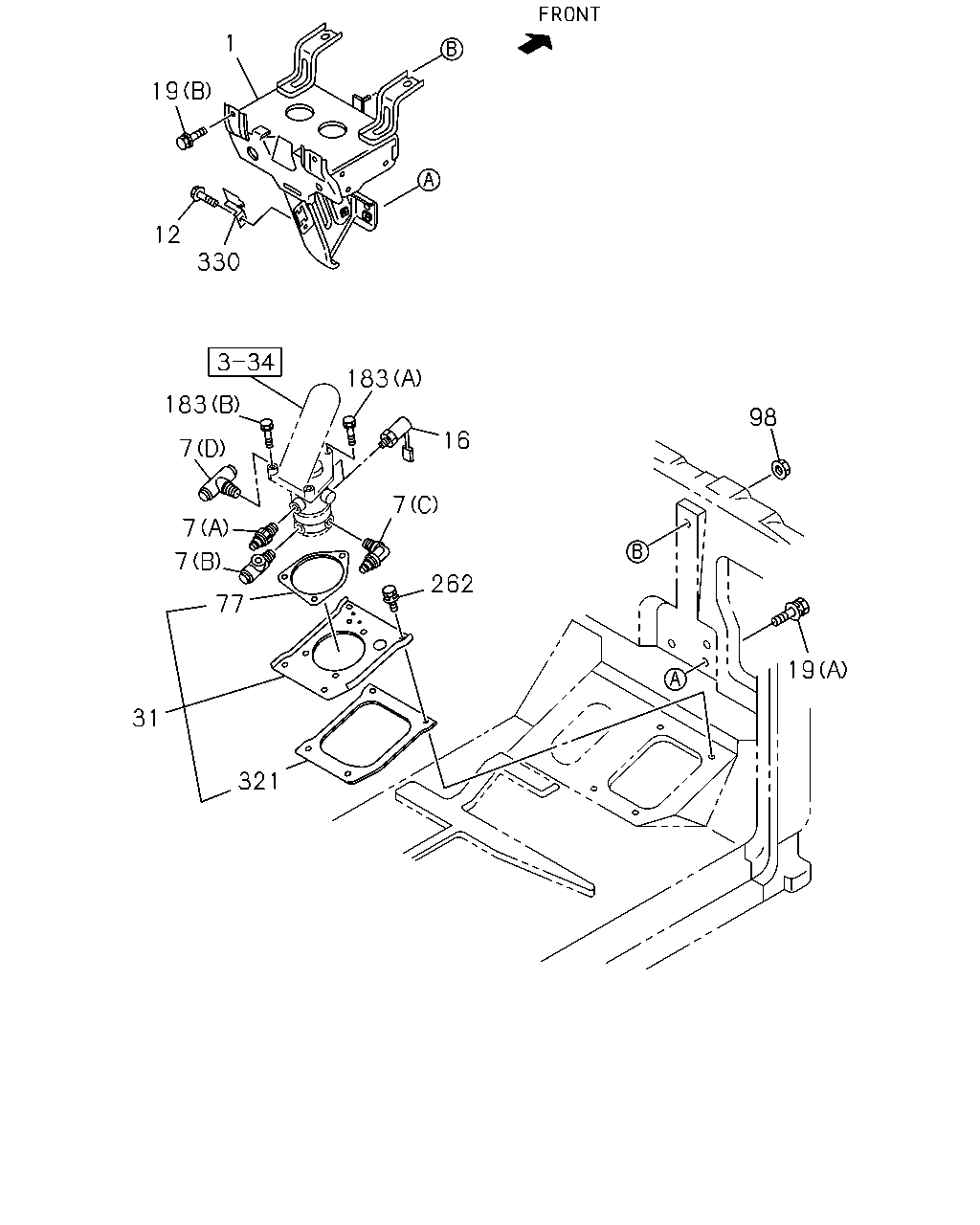

3-10 — BRAKE PEDAL AND CONTROL
(#124175) — 18 parça
1
19
12
330
183
7
183
7
16
262
77
7
7
31
321
98
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
MJT7S M/T(Y3E)
1-73908-477-0
01
1
1306-
1
BRACKET ASM; PEDAL
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A)
1-73908-490-0
01
1
1306-
7
CONNECTOR; BRK VALVE
CAB SUSPENSION-FULL FLOATING(SMK) (C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1306-
7
CONNECTOR; BRK VALVE
CAB SUSPENSION-FULL FLOATING(SMK) (A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1306-
7
CONNECTOR; BRK VALVE
CAB SUSPENSION-FULL FLOATING(SMK) (D)
1-09661-284-0
01
1
1306-
7
CONNECTOR; BRK VALVE
CAB SUSPENSION-FULL FLOATING(SMK) (B)
1-09661-285-0
01
1
1306-
12
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
1306-
16
SWITCH; STOP LAMP
STAMP 0.3
8-98010-857-0
02
1
1306-
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
1306-
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1306-
31
PLATE; MTG,BRKT VLV
1-73996-271-3
01
1
1306-
77
RUBBER; SEAL,BRK
1-73996-207-0
01
1
1306-
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
1306-
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
01
1
1306-
183
BOLT; BRK VLV
(B) M10X35 W/LK WASHER
1-09980-504-0
02
1
1306-
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1306-
321
SEAL; VALVE
1-73996-143-0
01
1
1306-
330
BRACKET; CONNECTOR
8-97616-605-0
01
1
1306-
