3-01 — FRONT WHEEL BRAKE (#124173) — 106 parça

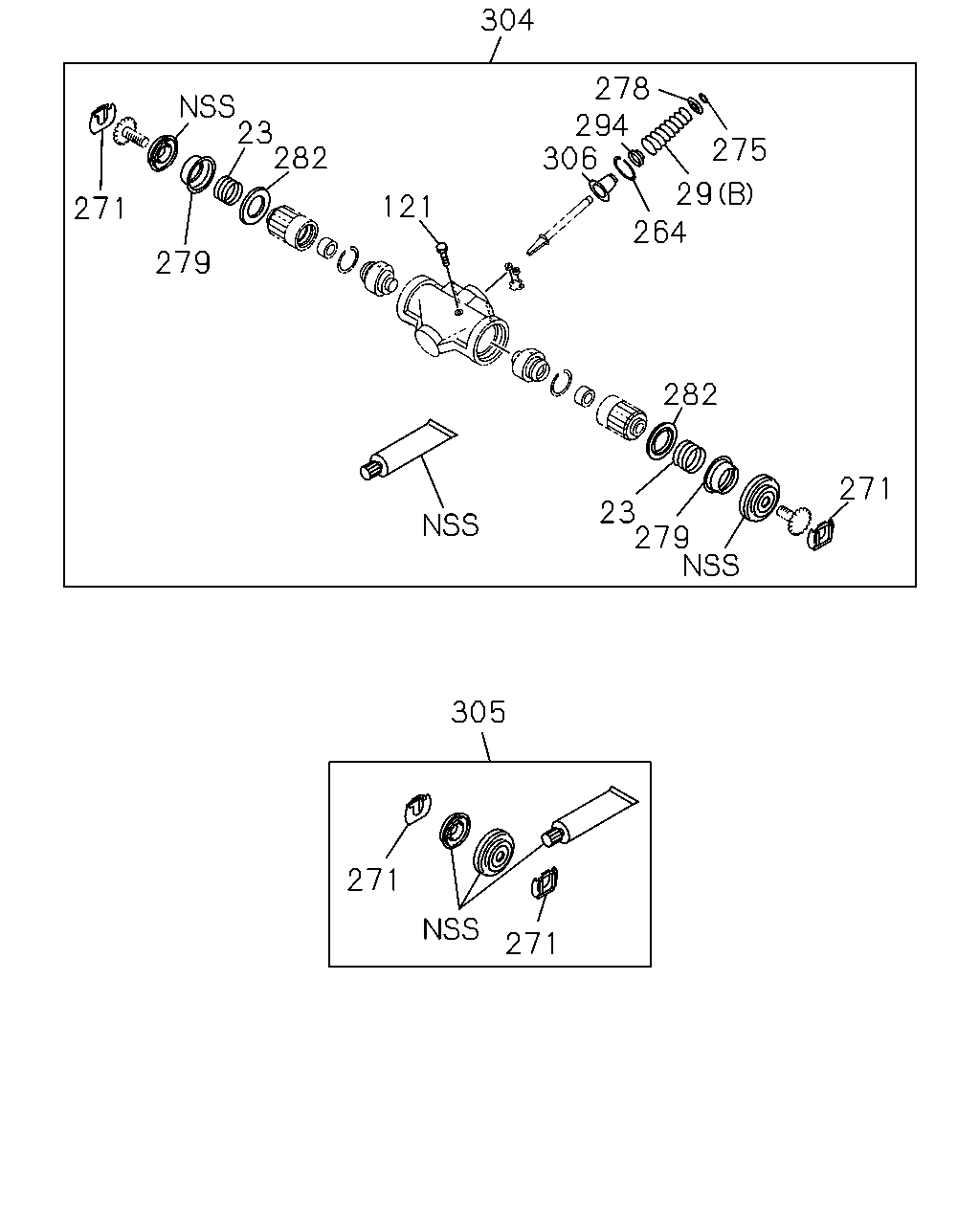

çizim 363745
304 271 271 305 279 271 282 29 275 278 306 294 121 282 23 271 23 279 264
BalonParca AdiParca NoAdetTipApplied Date
23 SPRING; COIL 1-47629-196-0 04 1 1306-
23 SPRING; COIL 1-47629-196-0 04 1 1306-
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 1306-
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 1306-
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1306-
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1306-
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1306-
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1306-
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1306-
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1306-
271 CLIP; ADJ 1-47621-017-0 04 1 1306-
271 CLIP; ADJ 1-47621-017-0 04 1 1306-
275 RING; RETAINER 1-47649-031-0 02 1 1306-
275 RING; RETAINER 1-47649-031-0 02 1 1306-
278 RETAINER; SPRING 1-47649-020-0 02 1 1306-
278 RETAINER; SPRING 1-47649-020-0 02 1 1306-
279 CAGE; SPRING 1-47629-192-0 04 1 1306-
279 CAGE; SPRING 1-47629-192-0 04 1 1306-
282 RING; DRIVE 1-47629-200-0 04 1 1306-
282 RING; DRIVE 1-47629-200-0 04 1 1306-
294 BOOT; WEDGE 1-47649-042-0 02 1 1306-
294 BOOT; WEDGE 1-47649-042-0 02 1 1306-
304 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1306-
304 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1306-
305 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1306-
305 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1306-
306 CAP; EXPANDER 1-47649-044-0 02 1 1306-
306 CAP; EXPANDER 1-47649-044-0 02 1 1306-

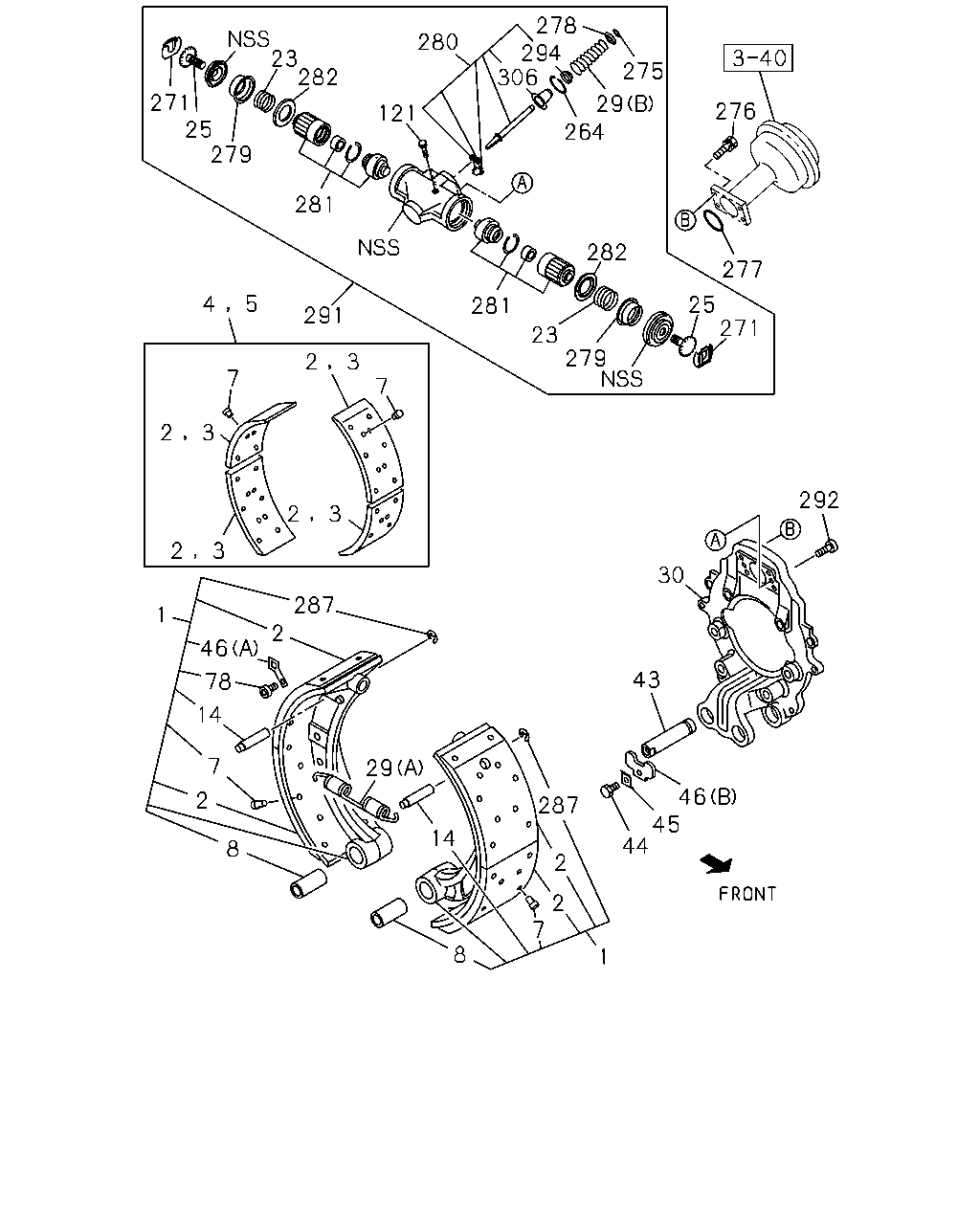

çizim 366470
1 287 2 2 7 8 14 29 8 2 7 14 78 46 2 287 1 2 3 2 3 7 3 2 7 2 3 4 5 291 271 25 279 281 281 23 279 23 282 121 280 278 294 306 264 29 275 276 277 282 25 271 292 30 43 44 45 46
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT
LEADING 		1-47170-318-0 01 1 1306-
1 SHOE; BRK,FRT
LEADING 		1-47170-318-0 01 1 1306-
1 SHOE; BRK,FRT
TRAILING 		1-47170-319-0 01 1 1306-
1 SHOE; BRK,FRT
TRAILING 		1-47170-319-0 01 1 1306-
1 SHOE; BRK,FRT
LEADING 		1-47170-316-0 01 1 1306-
1 SHOE; BRK,FRT
LEADING 		1-47170-316-0 01 1 1306-
1 SHOE; BRK,FRT
TRAILING 		1-47170-317-0 01 1 1306-
1 SHOE; BRK,FRT
TRAILING 		1-47170-317-0 01 1 1306-
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 1306-
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 1306-
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 1306-
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 1306-
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 1306-
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 1306-
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 1306-
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 1306-
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 1306-
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 1306-
7 RIVET; LINING,FRT BRK
L=15.5 		1-09732-053-0 80 1 1306-
7 RIVET; LINING,FRT BRK
L=15.5 		1-09732-053-0 80 1 1306-
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 1306-
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 1306-
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 1306-
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 1306-
23 SPRING; COIL 1-47629-196-0 04 1 1306-
23 SPRING; COIL 1-47629-196-0 04 1 1306-
25 SCREW; ADJ,FRT WHEEL CYL 1-47623-035-2 04 1 1306-
25 SCREW; ADJ,FRT WHEEL CYL 1-47623-035-2 04 1 1306-
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 1306-
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 04 1 1306-
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1306-
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 1306-
30 BRACKET; ANCHOR,FRT 8-98091-252-0 02 1 1306-
30 BRACKET; ANCHOR,FRT 8-98091-252-0 02 1 1306-
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 1306-
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 1306-
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 1306-
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 1306-
45 WASHER; LK 1-47133-011-0 02 1 1306-
45 WASHER; LK 1-47133-011-0 02 1 1306-
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 1306-
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 1306-
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 1306-
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 1306-
78 BOLT; LK,PLATE 1-47119-153-0 04 1 1306-
78 BOLT; LK,PLATE 1-47119-153-0 04 1 1306-
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1306-
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1306-
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1306-
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1306-
271 CLIP; ADJ 1-47621-017-0 04 1 1306-
271 CLIP; ADJ 1-47621-017-0 04 1 1306-
275 RING; RETAINER 1-47649-031-0 02 1 1306-
275 RING; RETAINER 1-47649-031-0 02 1 1306-
276 BOLT; CHAMBER
FORWARD M10X42.5 		1-47139-163-0 08 1 1306-
276 BOLT; CHAMBER
REARWARD M10X45 		1-47139-174-0 08 1 1306-
277 RING; CHAMBER 1-48259-231-0 02 1 1306-
277 RING; CHAMBER 1-48259-231-0 02 1 1306-
278 RETAINER; SPRING 1-47649-020-0 02 1 1306-
278 RETAINER; SPRING 1-47649-020-0 02 1 1306-
279 CAGE; SPRING 1-47629-192-0 04 1 1306-
279 CAGE; SPRING 1-47629-192-0 04 1 1306-
280 WEDGE; FRT WHEEL CYL 1-47640-012-0 02 1 1306-
280 WEDGE; FRT WHEEL CYL 1-47640-012-0 02 1 1306-
281 SLEEVE 1-47629-247-1 04 1 1306-
281 SLEEVE 1-47629-247-1 04 1 1306-
282 RING; DRIVE 1-47629-200-0 04 1 1306-
282 RING; DRIVE 1-47629-200-0 04 1 1306-
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 1306-
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 1306-
291 EXPANDER 1-47601-087-0 02 1 1306-
291 EXPANDER 1-47601-087-0 02 1 1306-
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1306-
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1306-
294 BOOT; WEDGE 1-47649-042-0 02 1 1306-
294 BOOT; WEDGE 1-47649-042-0 02 1 1306-
306 CAP; EXPANDER 1-47649-044-0 02 1 1306-
306 CAP; EXPANDER 1-47649-044-0 02 1 1306-
