2-38 — SHIFT CONTROL (#124168) — 9 parça

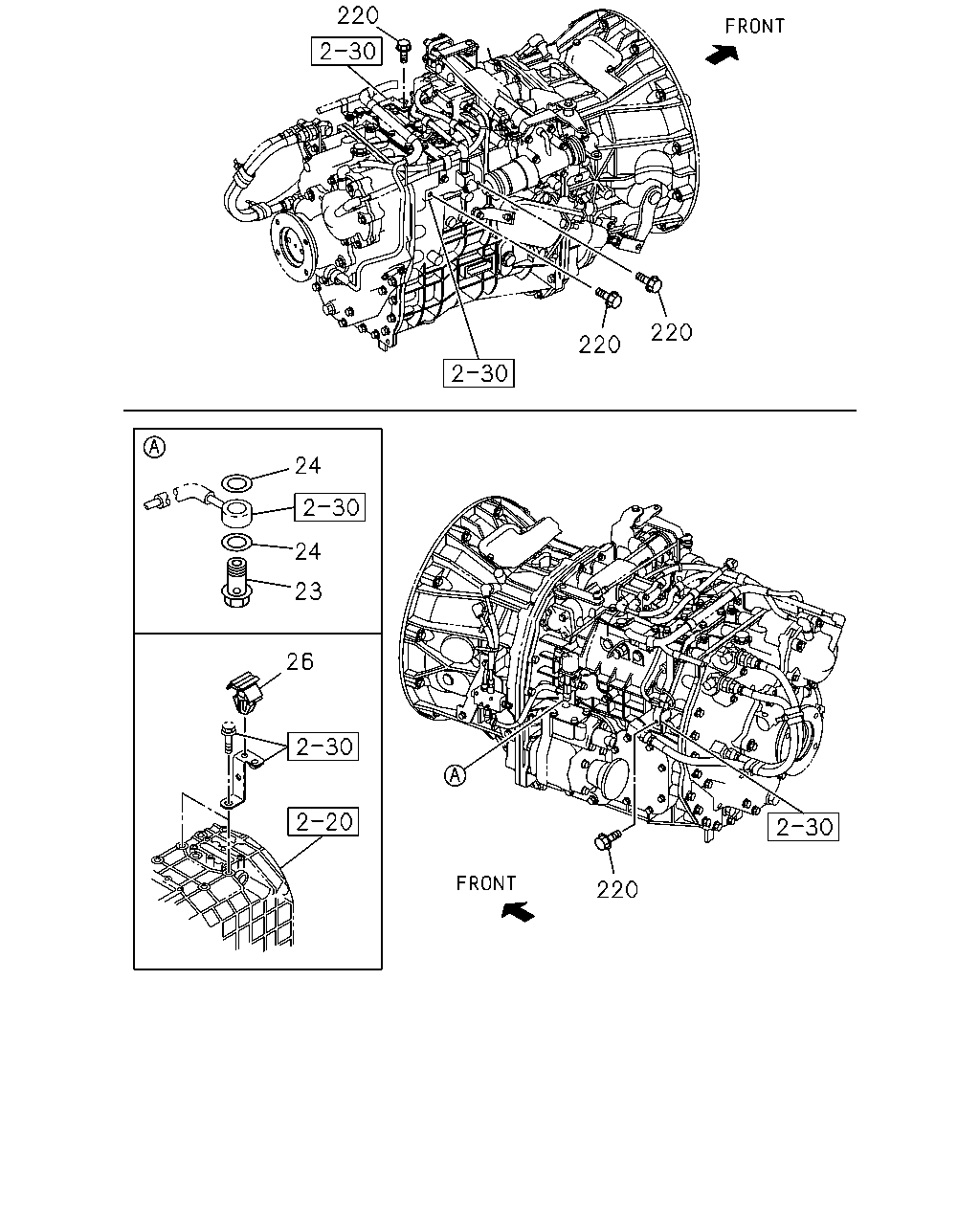

çizim 363052
220 26 23 24 24 220 220 220
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; EYE
TRANSMISSION CONTROL CABLE TYPE(C1A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1306- ●
24 GASKET
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=12.2 		1-09630-084-0 02 1 1306-1312 ●
24 GASKET
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=12.2 		8-98251-344-0 02 1 1401- ●
26 CLIP
OD=9 H=6 		1-09709-178-0 02 1 1306- ●
26 CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) OD=9 H=6 		1-09709-178-0 02 1 1306- ●
220 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X25 FLANGE 		0-28751-025-0 03 1 1306- ●

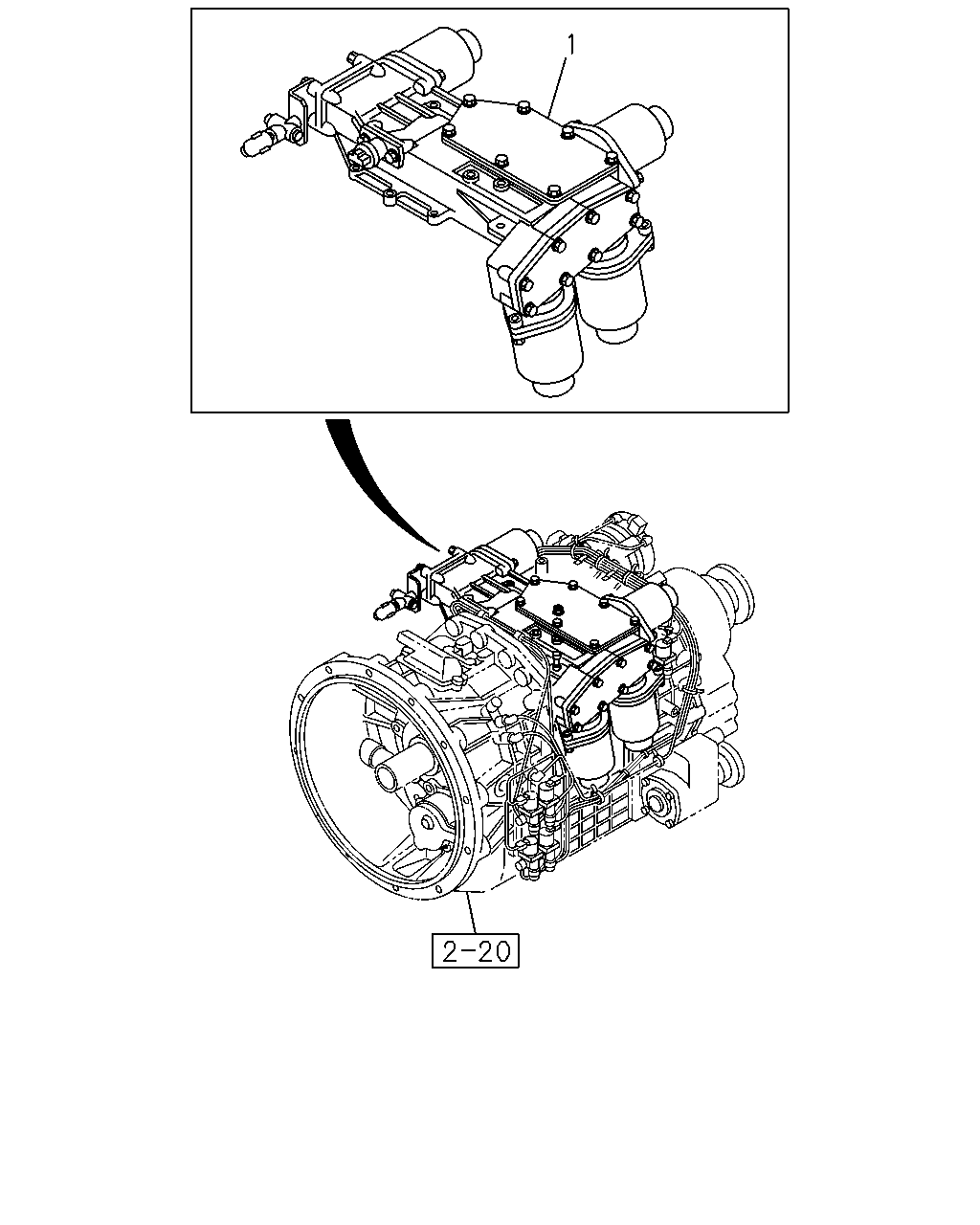

çizim 366073
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W) 		8-98186-519-0 01 1 1306-1310 ●
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W) 		8-98254-321-0 01 1 1311-1506 ●
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W) 		8-98302-719-0 01 1 1507- ●
