2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#124166) — 84 parça

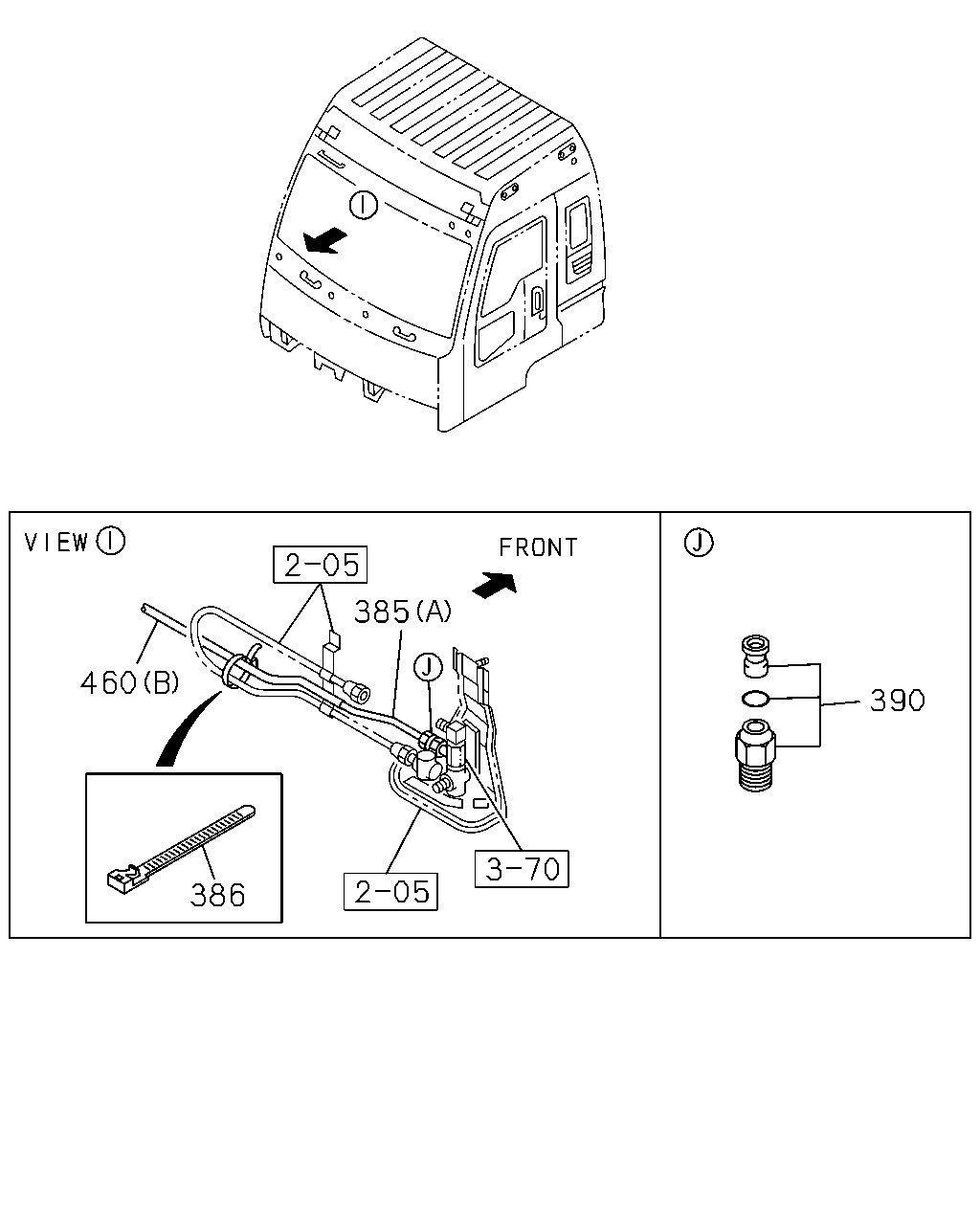

çizim 363054
460 386 385 390
BalonParca AdiParca NoAdetTipApplied Date
385 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=1440 SERVICED BY L=8000 		1-09369-762-0 01 1 1306-
385 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 1306-
385 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 1306-
386 CLIP; CONT CABLE & TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) L=140 		5-09707-031-1 01 1 1306-
390 CONNECTOR; STRAIGHT,TRANS SIDE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09661-174-0 01 1 1306-
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=250 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1306-
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=900 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1306-
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1306-

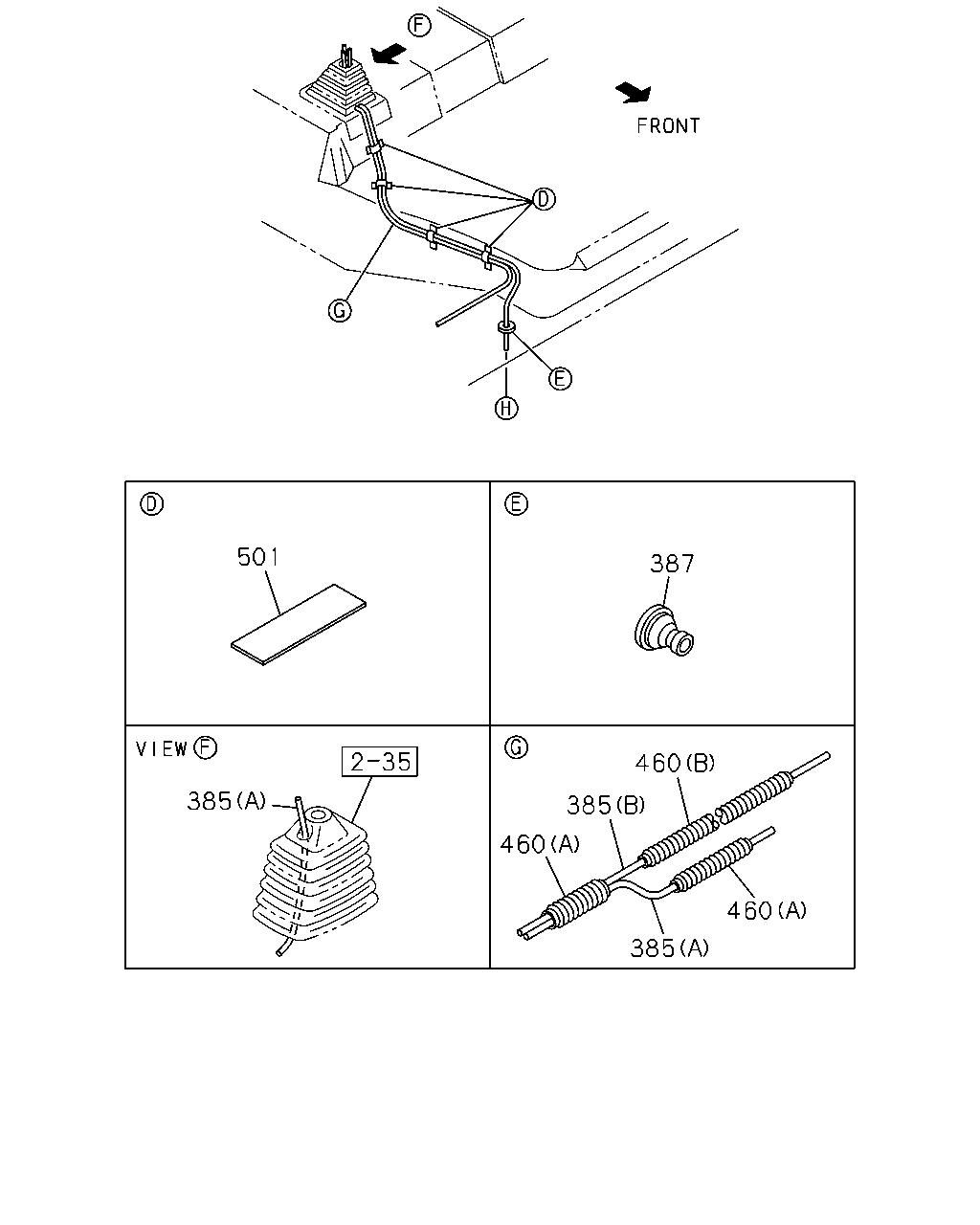

çizim 363058
501 385 460 385 460 385 460 387
BalonParca AdiParca NoAdetTipApplied Date
385 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=1440 SERVICED BY L=8000 		1-09369-762-0 01 1 1306-
385 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 1306-
385 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 1306-
387 GROMMET; CONT TUBE,FULLER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09332-102-0 01 1 1306-
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=250 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1306-
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=900 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1306-
460 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1306-
501 SEAL; HARNESS PROTECTOR
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) 100X40 		1-72498-022-1 04 1 1306-

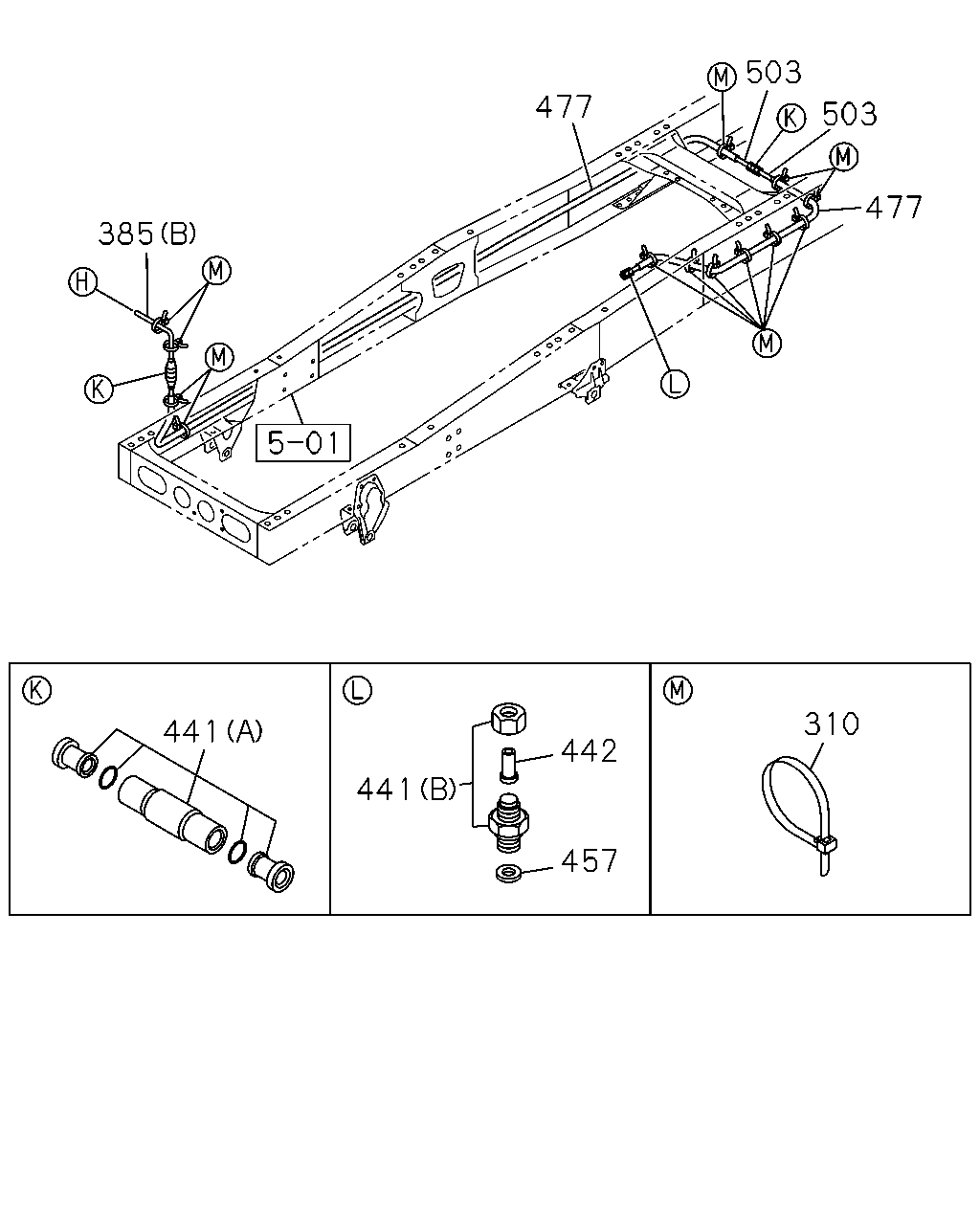

çizim 363068
385 477 503 503 477 441 441 442 457 310
BalonParca AdiParca NoAdetTipApplied Date
310 CLIP; TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) L=350 		1-09707-183-0 21 1 1306-
385 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=1440 SERVICED BY L=8000 		1-09369-762-0 01 1 1306-
385 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 1306-
385 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 1306-
441 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-09660-466-0 01 1 1306-
441 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98134-660-0 02 1 1306-
442 INSERT; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 1306-
457 GASKET
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1306-
477 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1306-
477 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=6000 ID=7 		1-87411-018-0 01 1 1306-
503 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 1306-
503 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=6000 OD=4 		1-87410-079-0 01 1 1306-

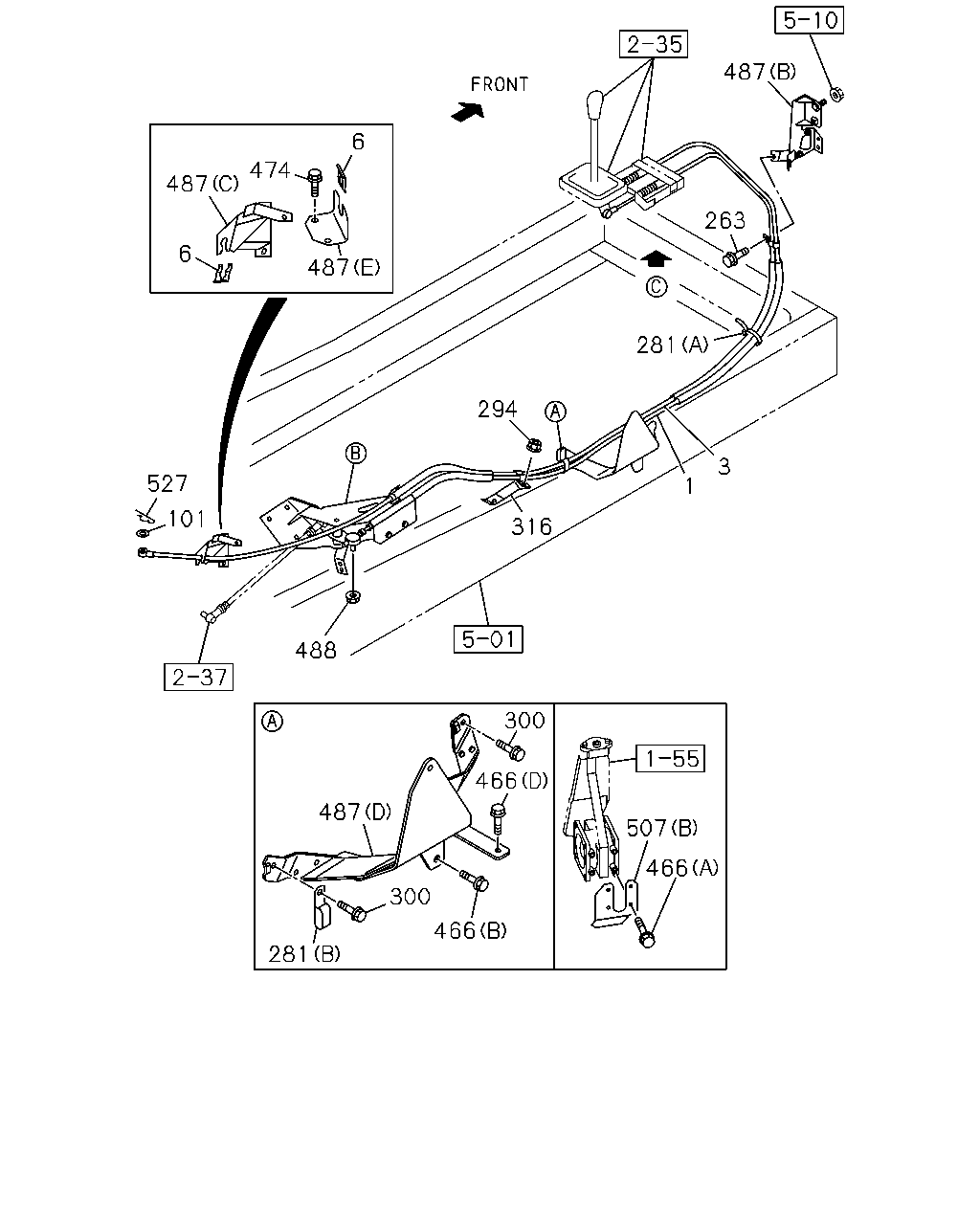

çizim 363173
466 507 300 466 466 300 281 487 488 316 294 101 527 281 263 487 6 487 474 487 6 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=2776 		8-98216-275-2 01 1 1306-
3 CABLE; SELECT,TRANS CONT
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) L=3394 		8-98222-466-2 01 1 1306-
3 CABLE; SELECT,TRANS CONT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) L=3545 		8-98216-278-3 01 1 1306-
6 CLIP; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2 		1-09701-209-1 02 1 1306-
101 WASHER; PL
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=16 		0-91610-508-0 01 1 1306-
263 BOLT; CLIP,TRANS CONT WIRE
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X16 FLANGE 		0-28050-816-0 02 1 1306-
281 CLIP; BAND
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=350 		1-09707-183-0 01 1 1306-
281 CLIP; BAND
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32 		8-97389-264-0 01 1 1306-
294 NUT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 01 1 1306-
300 BOLT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE 		0-28050-820-0 03 1 1306-
316 BRACKET; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98150-331-0 01 1 1306-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M6X16 FLANGE 		0-28050-616-0 04 1 1306-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X20 FLANGE 		0-28651-020-0 01 1 1306-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X35 FLANGE 		0-28651-035-0 01 1 1306-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M14X45 FLANGE 		0-28851-445-0 01 1 1306-
474 BOLT; BRKT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE 		0-28151-020-0 02 1 1306-
487 BRACKET; CONT CABLE
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-33657-872-2 01 1 1306-
487 BRACKET; CONT CABLE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (E) 		1-33657-873-0 01 1 1306-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98049-854-0 01 1 1306-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-98216-298-1 01 1 1306-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. FULL FLOATING CAB(W16) (B) 		8-98131-521-2 01 1 1306-1411
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98131-521-2 01 1 1412-
488 NUT; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-056-0 01 1 1306-
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98151-604-0 01 1 1306-
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98171-722-0 01 1 1306-
527 PIN; SNAP
TRANSMISSION CONTROL CABLE TYPE(C1A) L=23 		8-94170-378-0 01 1 1306-

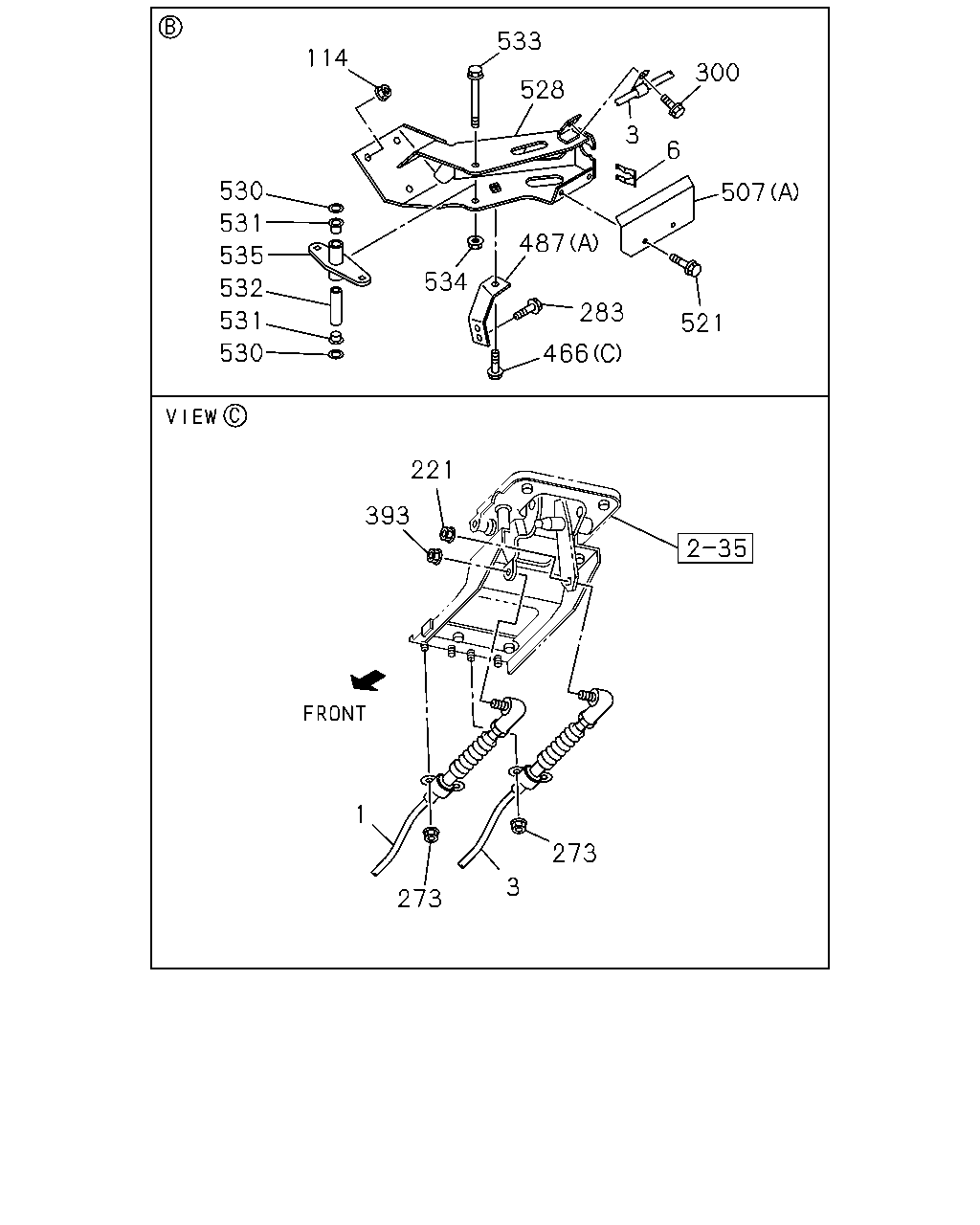

çizim 363179
273 1 3 273 393 221 530 531 532 535 531 530 114 533 528 487 534 466 283 507 521 300 3 6
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=2776 		8-98216-275-2 01 1 1306-
3 CABLE; SELECT,TRANS CONT
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) L=3394 		8-98222-466-2 01 1 1306-
3 CABLE; SELECT,TRANS CONT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) L=3545 		8-98216-278-3 01 1 1306-
6 CLIP; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2 		1-09701-209-1 02 1 1306-
114 NUT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M12 FLANGE 		0-91180-212-0 03 1 1306-
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-061-0 01 1 1306-
273 NUT; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		0-91180-110-0 04 1 1306-
283 BOLT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE 		0-28151-020-0 02 1 1306-
300 BOLT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE 		0-28050-820-0 03 1 1306-
393 NUT; SELECT CABLE,CAB
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		1-09440-062-1 01 1 1306-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M6X16 FLANGE 		0-28050-616-0 04 1 1306-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X20 FLANGE 		0-28651-020-0 01 1 1306-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X35 FLANGE 		0-28651-035-0 01 1 1306-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M14X45 FLANGE 		0-28851-445-0 01 1 1306-
487 BRACKET; CONT CABLE
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-33657-872-2 01 1 1306-
487 BRACKET; CONT CABLE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (E) 		1-33657-873-0 01 1 1306-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98049-854-0 01 1 1306-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-98216-298-1 01 1 1306-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. FULL FLOATING CAB(W16) (B) 		8-98131-521-2 01 1 1306-1411
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98131-521-2 01 1 1412-
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98151-604-0 01 1 1306-
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98171-722-0 01 1 1306-
521 BOLT; PROTECTOR
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE 		0-28050-820-0 02 1 1306-
528 BRACKET; LOWER,RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98049-809-1 01 1 1306-
530 RING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09623-636-0 02 1 1306-
531 BUSHING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09330-119-0 02 1 1306-
532 COLLAR; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98049-429-0 01 1 1306-
533 BOLT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X100 FLANGE 		0-28051-000-0 01 1 1306-
534 NUT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-056-0 01 1 1306-
535 LEVER; RELAY,SHIFT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98049-430-0 01 1 1306-
