◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11524 - CYH RHD EURO2 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#124165) — 86 parça

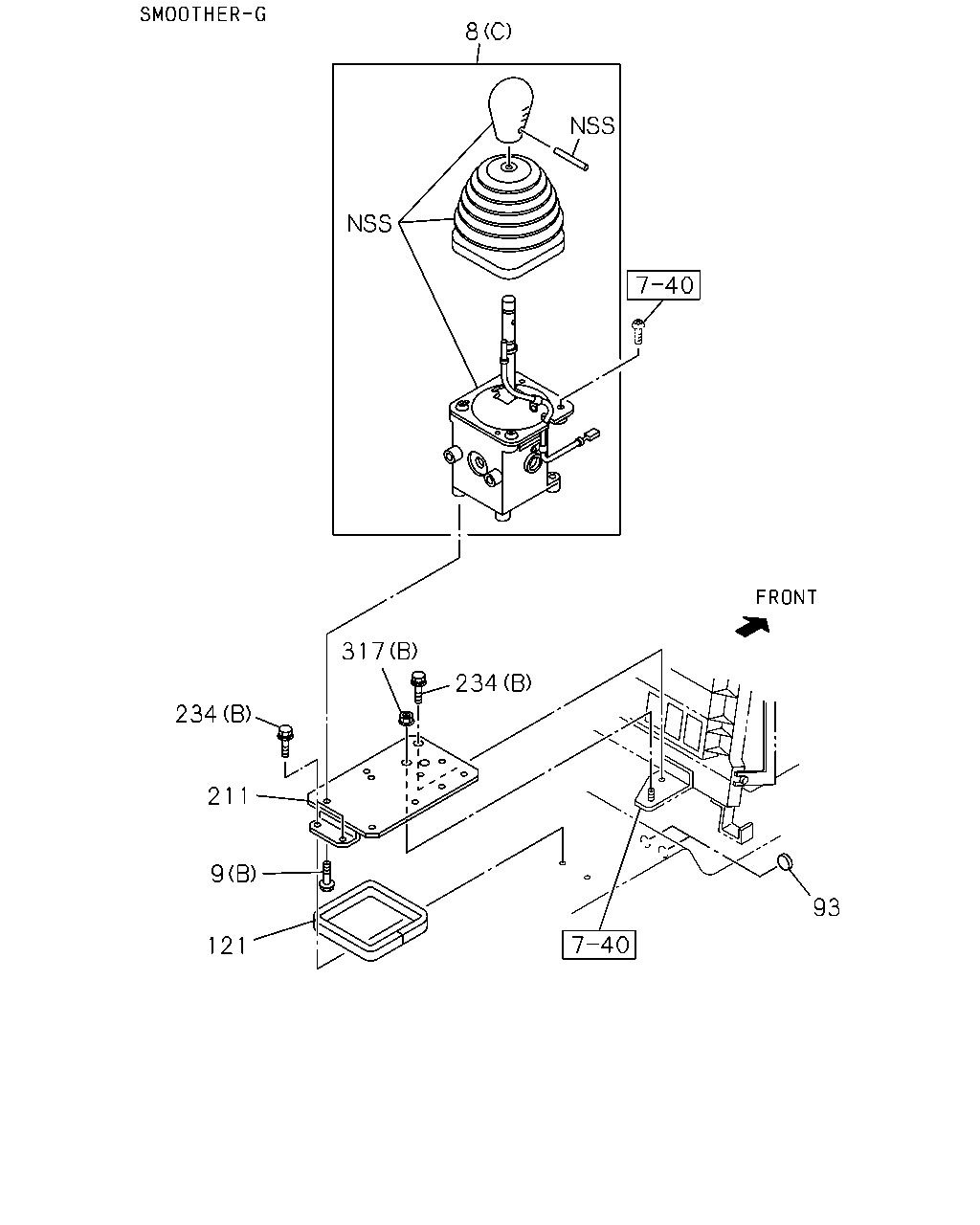

çizim 363035
8 93 234 317 234 211 9 121
BalonParca AdiParca NoAdetTipApplied Date
8 LEVER; CHANGE
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33613-344-0 01 1 1306-
8 LEVER; CHANGE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33613-345-0 01 1 1306-
8 LEVER; CHANGE
SMOOTHER-G(C1W) (C) 		8-98181-427-0 01 1 1306-1401
8 LEVER; CHANGE
SMOOTHER-G(C1W) (C) 		8-98149-127-1 01 1 1402-
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1306-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1306-
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 02 1 1306-
93 SEAL; HOLE COVER,GEAR CONT
SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 01 1 1306-
121 SEAL; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79997-354-0 01 1 1306-
211 BRACKET; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79907-115-1 01 1 1306-
234 BOLT; BRKT
SMOOTHER-G(C1W) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1306-
234 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
317 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 FLANGE 		0-91180-108-0 01 1 1306-
317 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1306-

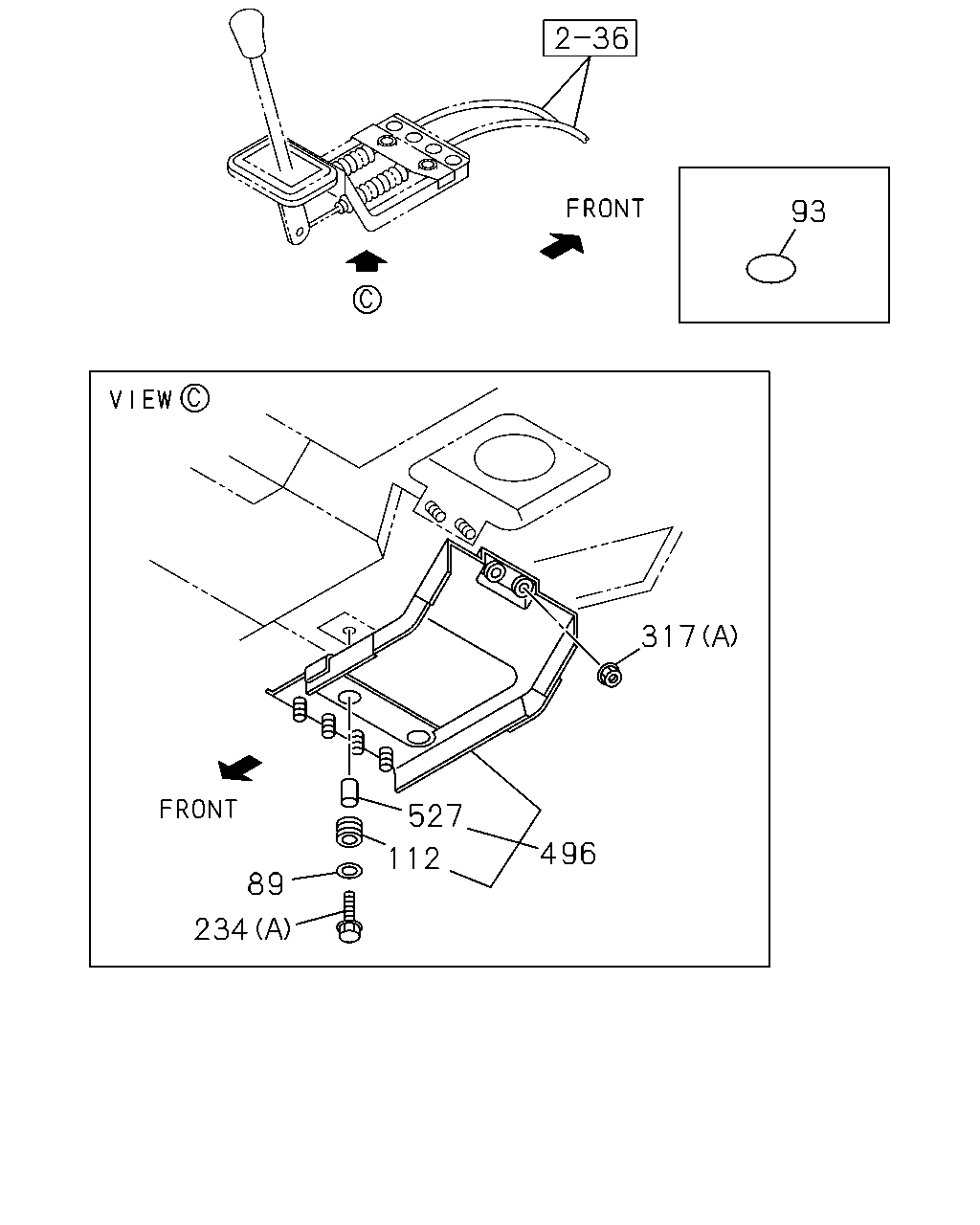

çizim 363041
93 89 234 112 527 496 317
BalonParca AdiParca NoAdetTipApplied Date
89 WASHER; PL,LWR SUPPORT BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22 		0-91610-708-0 02 1 1306-
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 02 1 1306-
93 SEAL; HOLE COVER,GEAR CONT
SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 01 1 1306-
112 RUBBER; CUSHION
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-442-0 04 1 1306-
234 BOLT; BRKT
SMOOTHER-G(C1W) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1306-
234 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
317 NUT; BRKT
SMOOTHER-G(C1W) (B) M8 FLANGE 		0-91180-108-0 01 1 1306-
317 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1306-
496 BRACKET ASM; T/M CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33657-852-2 01 1 1306-
527 COLLAR; DIST,T/M CABLE BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-443-0 04 1 1306-

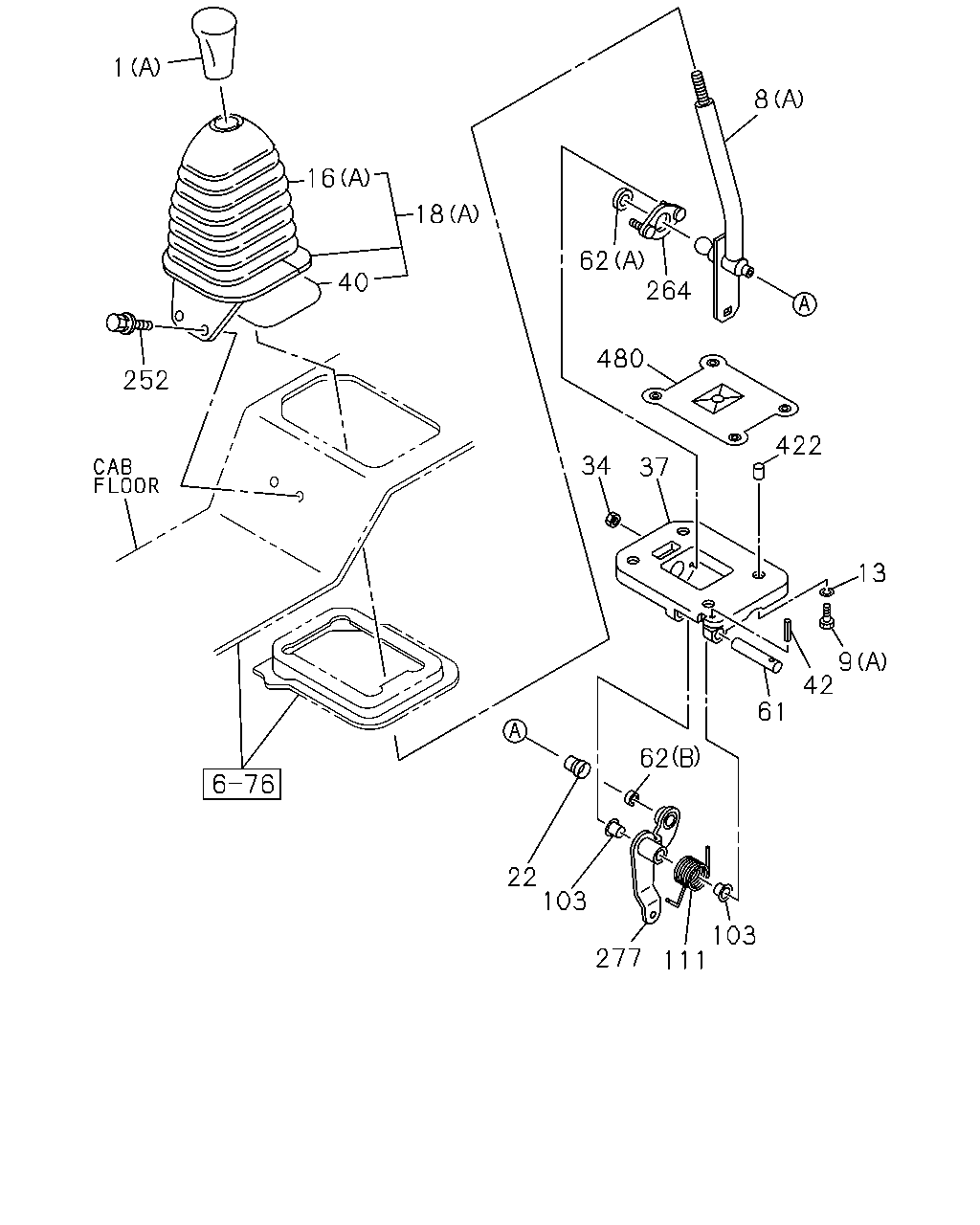

çizim 363151
1 252 40 16 18 8 62 264 480 34 37 422 13 9 42 61 62 103 111 277 103 22
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33611-082-1 01 1 1306-
1 KNOB; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33611-038-0 01 1 1306-
8 LEVER; CHANGE
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33613-344-0 01 1 1306-
8 LEVER; CHANGE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33613-345-0 01 1 1306-
8 LEVER; CHANGE
SMOOTHER-G(C1W) (C) 		8-98181-427-0 01 1 1306-1401
8 LEVER; CHANGE
SMOOTHER-G(C1W) (C) 		8-98149-127-1 01 1 1402-
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1306-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1306-
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22 		0-91610-708-0 04 1 1306-
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-79996-688-0 01 1 1306-
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-79996-687-0 01 1 1306-
18 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-79996-686-0 01 1 1306-
18 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-79996-685-0 01 1 1306-
22 COVER; DUST,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-573-0 01 1 1306-
34 NUT
TRANSMISSION CONTROL CABLE TYPE(C1A) M6 FLANGE 		0-91180-106-0 02 1 1306-
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98100-876-1 01 1 1306-
40 SEAL; BOOT HOLDER CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-79996-345-0 01 1 1306-
42 PIN; SPRING,SELECT LEVER PIN
TRANSMISSION CONTROL CABLE TYPE(C1A) D=5 L=28 		8-94252-581-0 01 1 1306-
61 PIN; SELECT LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-470-0 01 1 1306-
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33619-427-0 01 1 1306-
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-97011-900-0 01 1 1306-
103 BUSHING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14 OD=16 		8-94252-671-0 02 1 1306-
111 SPRING
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09585-142-1 01 1 1306-
111 SPRING
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09585-133-1 01 1 1306-
252 BOLT; COVER,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1306-
264 PLATE; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-469-0 01 1 1306-
277 LEVER; RELAY
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33651-636-1 01 1 1306-
422 BUSHING; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97091-427-0 04 1 1306-
480 RUBBER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98119-365-0 01 1 1306-

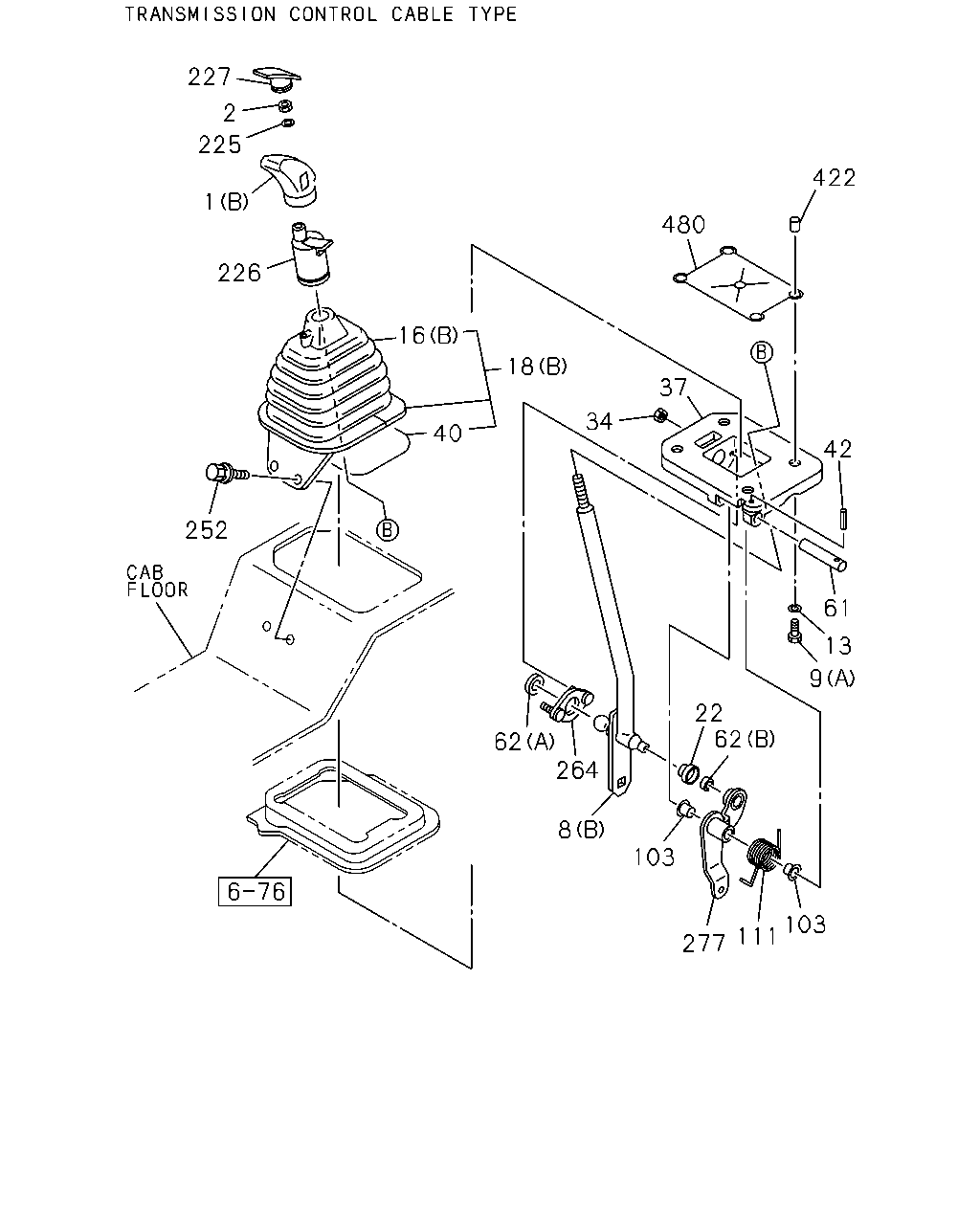

çizim 363159
227 2 225 1 226 252 40 18 16 34 37 480 422 42 61 13 9 62 22 62 264 8 103 277 111 103
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33611-082-1 01 1 1306-
1 KNOB; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33611-038-0 01 1 1306-
2 NUT; KNOB
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		0-91180-210-0 01 1 1306-
8 LEVER; CHANGE
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33613-344-0 01 1 1306-
8 LEVER; CHANGE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33613-345-0 01 1 1306-
8 LEVER; CHANGE
SMOOTHER-G(C1W) (C) 		8-98181-427-0 01 1 1306-1401
8 LEVER; CHANGE
SMOOTHER-G(C1W) (C) 		8-98149-127-1 01 1 1402-
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1306-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 1306-
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22 		0-91610-708-0 04 1 1306-
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-79996-688-0 01 1 1306-
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-79996-687-0 01 1 1306-
18 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-79996-686-0 01 1 1306-
18 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-79996-685-0 01 1 1306-
22 COVER; DUST,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-573-0 01 1 1306-
34 NUT
TRANSMISSION CONTROL CABLE TYPE(C1A) M6 FLANGE 		0-91180-106-0 02 1 1306-
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98100-876-1 01 1 1306-
40 SEAL; BOOT HOLDER CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-79996-345-0 01 1 1306-
42 PIN; SPRING,SELECT LEVER PIN
TRANSMISSION CONTROL CABLE TYPE(C1A) D=5 L=28 		8-94252-581-0 01 1 1306-
61 PIN; SELECT LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-470-0 01 1 1306-
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33619-427-0 01 1 1306-
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-97011-900-0 01 1 1306-
103 BUSHING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14 OD=16 		8-94252-671-0 02 1 1306-
111 SPRING
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09585-142-1 01 1 1306-
111 SPRING
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09585-133-1 01 1 1306-
225 WASHER; PL,KNOB
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1306-
226 VALVE; SELECTOR
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33710-008-0 01 1 1306-
227 COVER; KNOB
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-219-0 01 1 1306-
252 BOLT; COVER,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1306-
264 PLATE; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-469-0 01 1 1306-
277 LEVER; RELAY
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33651-636-1 01 1 1306-
422 BUSHING; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97091-427-0 04 1 1306-
480 RUBBER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98119-365-0 01 1 1306-
