Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#124163) — 628 parça

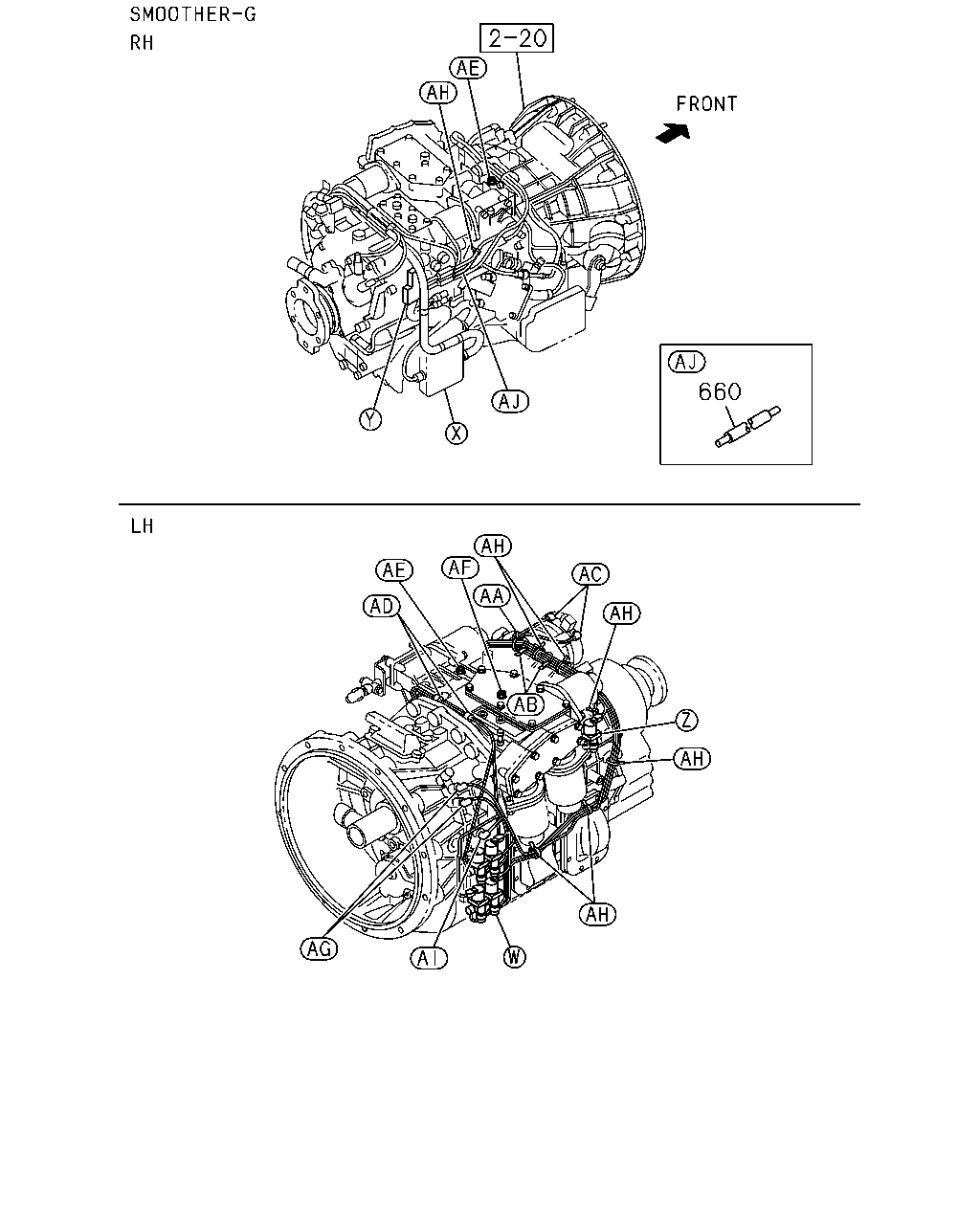

660

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	660	PROTECTOR; NYLON TUBE SMOOTHER-G(C1W)	1-09377-342-0	01	1	1306-	●

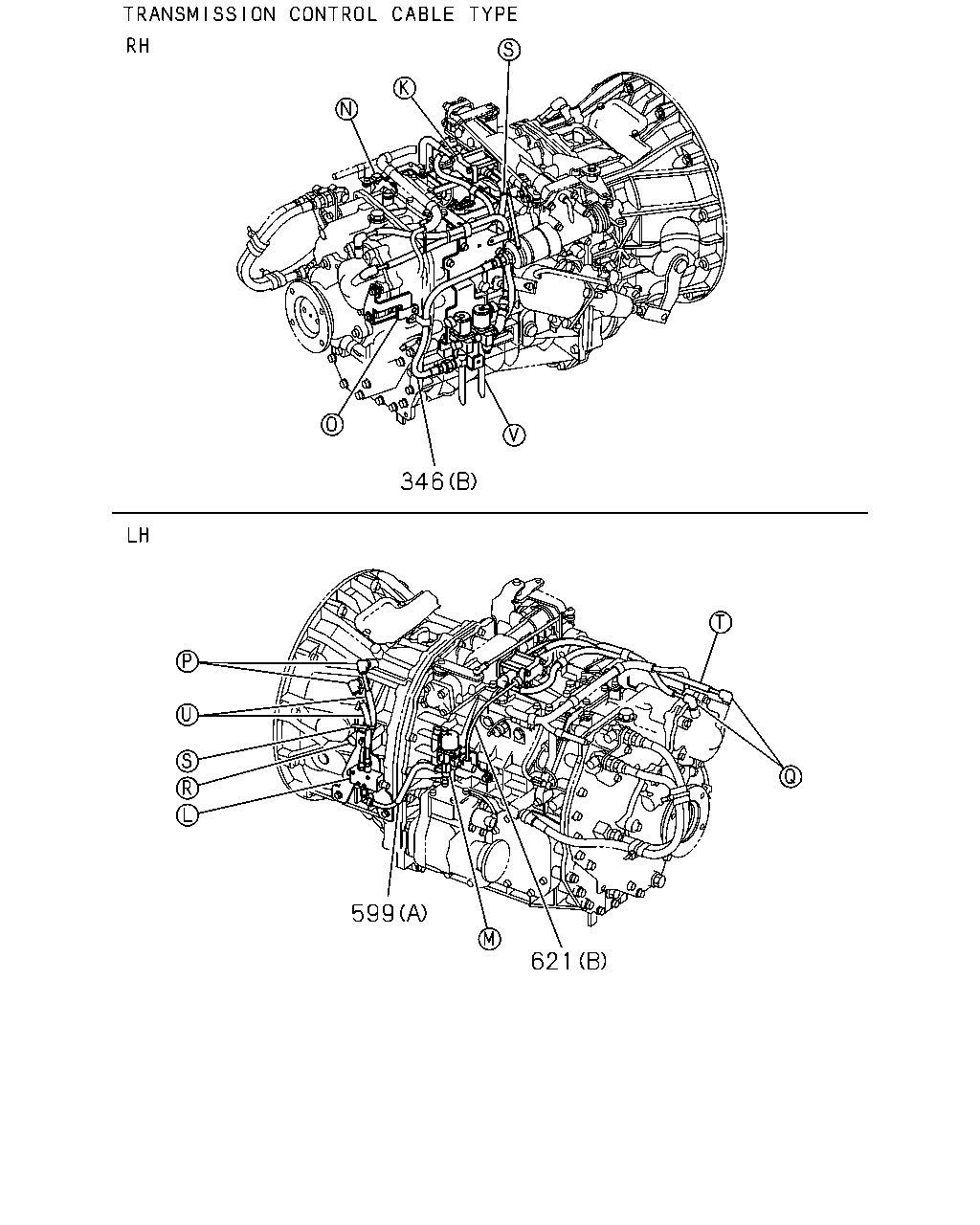

346 599 621

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	02	1	1306-1401	●
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1402-	●
346	HOSE; AIR SMOOTHER-G(C1W) (A) ID=6 OD=9 L=150	1-33739-872-0	04	1	1306-	●
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=450	1-09363-965-0	01	1	1306-	●
599	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-09377-036-1	01	1	1306-	●
599	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33712-027-0	01	1	1306-	●
621	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	1306-	●
621	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1306-	●

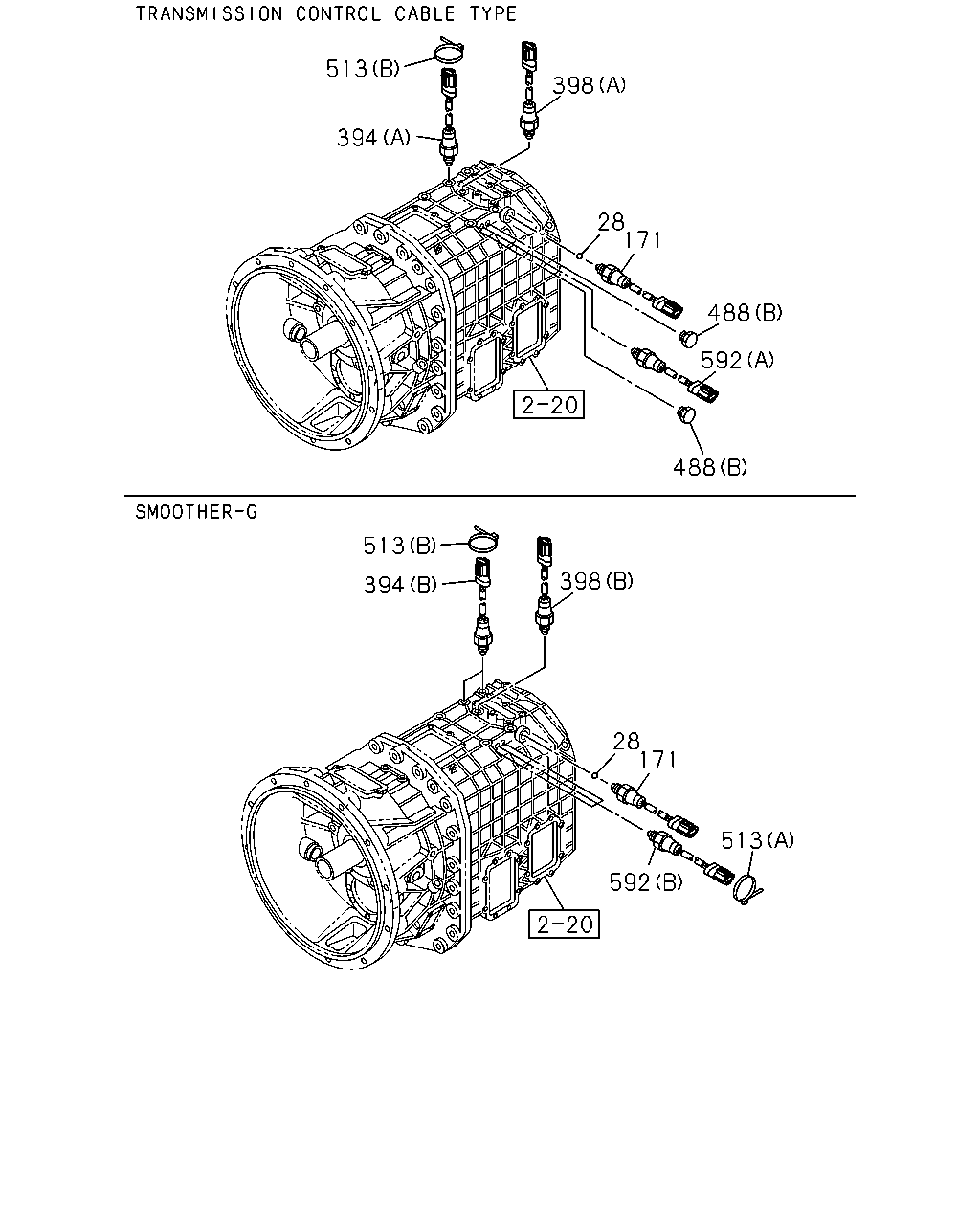

513 394 398 28 171 488 592 488 513 394 398 28 171 513 592

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BALL; INTER LK	9-00097-501-0	04	1	1306-		●
28	BALL; INTER LK	9-00097-501-0	02	1	1306-	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1306-	●	●
394	SWITCH; RANGE CHANGE SMOOTHER-G(C1W) (B)	8-98228-481-0	02	1	1306-	●
394	SWITCH; RANGE CHANGE TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98228-482-0	02	1	1306-	●
398	SWITCH; REV LAMP (A)	8-98228-482-0	01	1	1306-		●
398	SWITCH; REV LAMP TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98228-482-0	01	1	1306-	●
398	SWITCH; REV LAMP SMOOTHER-G(C1W) (B)	8-98228-483-0	01	1	1306-	●
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1306-	●
488	PLUG; AIR CYL TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M14X9	8-98042-944-0	02	1	1306-	●
488	PLUG; AIR CYL TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT1/4	9-99204-513-0	01	1	1306-	●
513	CLIP; BAND (B) L=140	5-09707-031-1	02	1	1306-	●	●
513	CLIP; BAND SMOOTHER-G(C1W) (A) L=250	5-09707-030-1	10	1	1306-	●
592	SWITCH; POSITION SMOOTHER-G(C1W) (B)	8-98228-481-0	03	1	1306-	●
592	SWITCH; POSITION TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98228-482-0	01	1	1306-	●

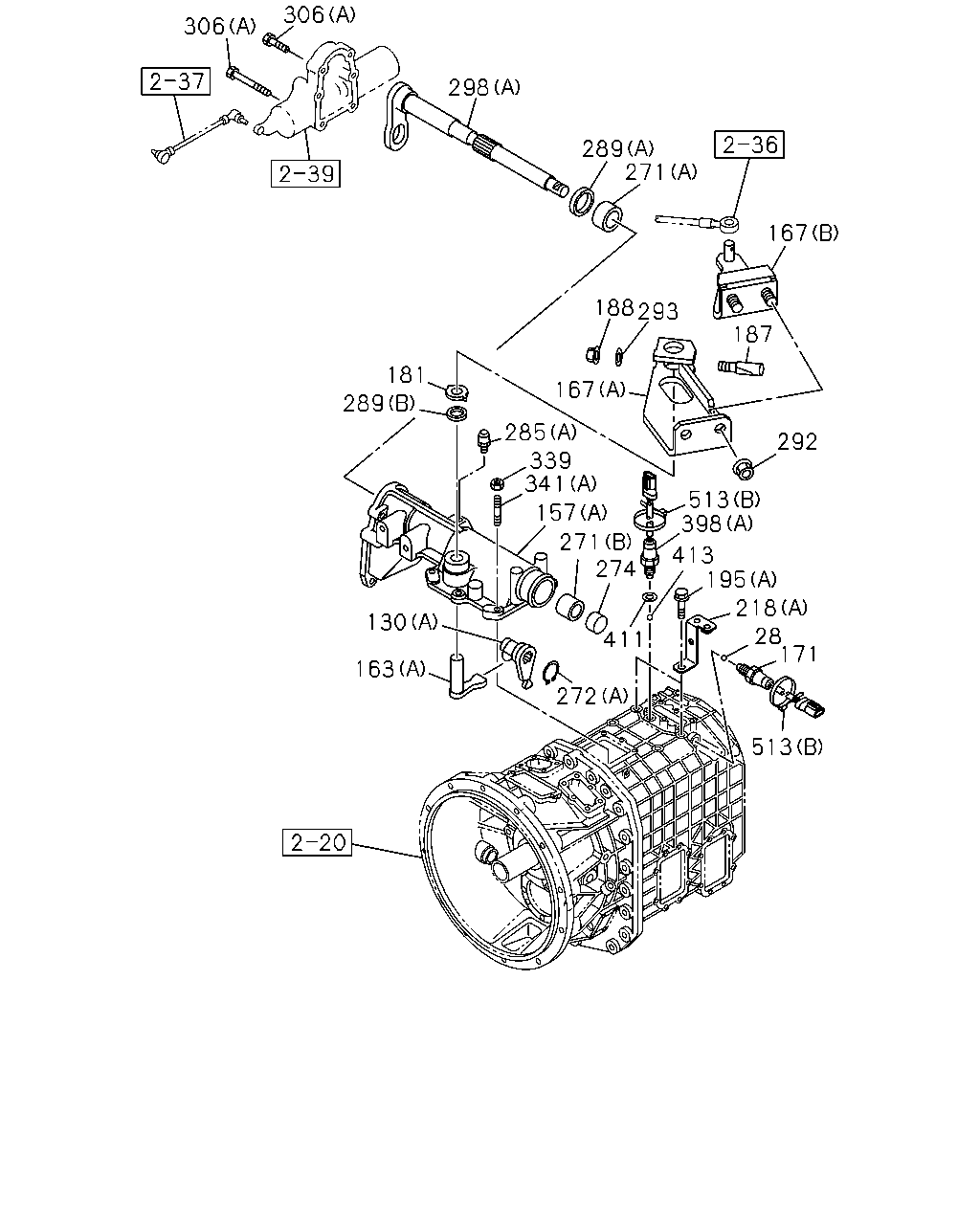

306 306 298 289 271 167 187 292 293 188 167 181 289 285 339 341 157 271 274 513 398 413 195 218 28 171 513 411 272 163 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BALL; INTER LK	9-00097-501-0	04	1	1306-		●
28	BALL; INTER LK	9-00097-501-0	02	1	1306-	●
130	LEVER; SHIFT,INTERNAL (A)	1-33521-124-0	01	1	1306-		●
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33521-189-0	01	1	1306-	●
157	BOX; QUAD,TRANS (A)	1-33541-507-3	01	1	1306-1311		●
157	BOX; QUAD,TRANS (A)	8-98231-390-0	01	1	1312-		●
157	BOX; QUAD,TRANS TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98220-885-0	01	1	1306-	●
163	LEVER; SELECT,INTERNAL (A)	1-33522-201-0	01	1	1306-		●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33522-202-0	01	1	1306-	●
167	LEVER; SELECT,EXTERNAL (A)	1-33521-192-1	01	1	1306-		●
167	LEVER; SELECT,EXTERNAL (B)	1-33521-193-1	01	1	1306-		●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-33521-194-0	01	1	1306-	●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A) (D)	8-98052-192-0	01	1	1306-	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1306-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	1306-		●
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) OD=40	1-09532-008-0	01	1	1306-	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	1306-		●
187	BOLT; SELECT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M8X42	1-33659-045-0	01	1	1306-	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	1306-		●
188	NUT; SELECT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	1-09440-062-1	01	1	1306-	●
195	BOLT (A) M10X25 FLANGE	0-28751-025-0	02	1	1306-		●
195	BOLT (B) M8X16 FLANGE	0-28050-816-0	02	1	1306-	●
195	BOLT SMOOTHER-G(C1W) (A) M10X25 FLANGE	0-28751-025-0	03	1	1306-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	8-98133-847-0	02	1	1306-		●
218	BRACKET; HARNESS CLIP,QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-82698-350-0	01	1	1306-	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	1306-		●
271	BUSHING; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=20 OD=23	1-33549-016-0	01	1	1306-	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	1306-		●
271	BUSHING; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=28 OD=32	1-33549-104-0	01	1	1306-	●
272	RING; SNAP,QUAD BOX (A)	1-09588-175-0	01	1	1306-		●
272	RING; SNAP,QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-09588-213-0	01	1	1306-	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	1306-		●
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98220-886-0	01	1	1306-	●
285	BREATHER; AIR,QUAD BOX (A)	1-33149-008-0	01	1	1306-		●
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33149-003-0	01	1	1306-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-386-0	01	1	1306-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (B) OD=30	1-09625-386-0	01	1	1306-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-647-0	01	1	1306-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) OD=41	1-09625-647-0	01	1	1306-	●
292	NUT; LINK ROD M8 FLANGE	0-91180-108-0	02	1	1306-1408		●
292	NUT; LINK ROD TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	0-91180-108-0	02	1	1306-1408	●
292	NUT; LINK ROD M8 FLANGE	0-91180-108-0	02	1	1409-		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	1306-		●
293	WASHER; PL,TAPER BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22	0-91610-708-0	01	1	1306-	●
298	SHAFT; SHIFT LEVER (A)	1-33522-180-0	01	1	1306-		●
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98222-566-0	01	1	1306-	●
306	BOLT; SHIFT ASSISTOR (A) M10X45 FLANGE	0-28151-045-0	02	1	1306-		●
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X45 FLANGE	0-28151-045-0	02	1	1306-	●
306	BOLT; SHIFT ASSISTOR (B) M10X80 FLANGE	0-28151-080-0	04	1	1306-		●
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X80 FLANGE	0-28151-080-0	04	1	1306-	●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	06	1	1306-		●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	1306-	●
341	STUD; QUAD BOX (A) M10X25 L=40	0-44011-025-0	06	1	1306-		●
341	STUD; QUAD BOX SMOOTHER-G(C1W) (B) M10X35 L=50	0-44011-035-0	04	1	1306-	●
341	STUD; QUAD BOX SMOOTHER-G(C1W) (C) M10X81.5 L=96.5	8-98019-465-0	01	1	1306-	●
341	STUD; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X35 L=50	0-44011-035-0	05	1	1306-	●
398	SWITCH; REV LAMP (A)	8-98228-482-0	01	1	1306-		●
398	SWITCH; REV LAMP TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98228-482-0	01	1	1306-	●
398	SWITCH; REV LAMP SMOOTHER-G(C1W) (B)	8-98228-483-0	01	1	1306-	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	1306-		●
413	BALL; BACK SW	9-00097-013-0	01	1	1306-		●
513	CLIP; BAND (B) L=140	5-09707-031-1	02	1	1306-	●	●
513	CLIP; BAND SMOOTHER-G(C1W) (A) L=250	5-09707-030-1	10	1	1306-	●

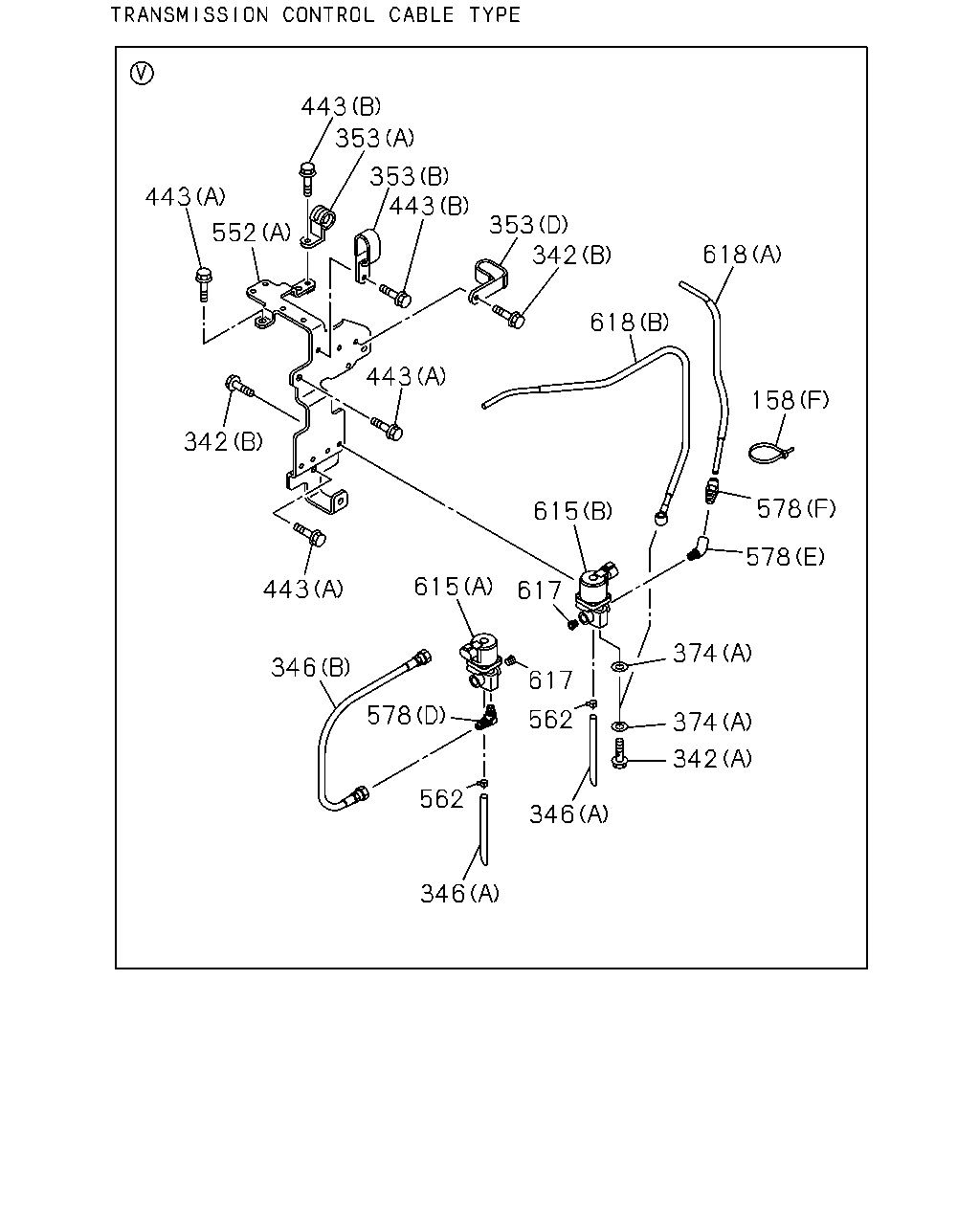

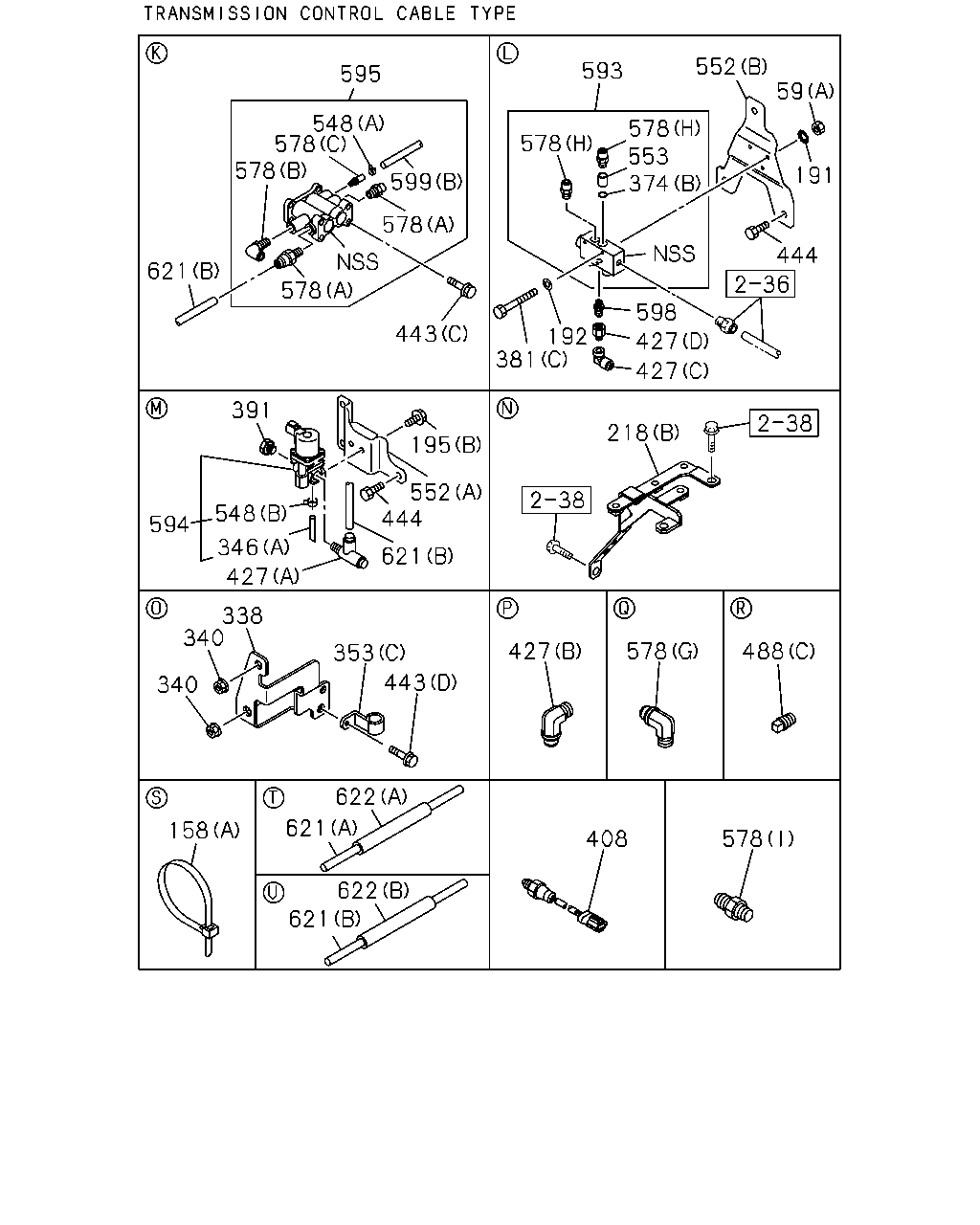

443 353 353 443 353 342 618 618 158 578 578 374 374 342 346 346 562 562 617 617 615 615 578 346 443 443 342 552 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	0-95235-896-0	02	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (C) ID=19 L=25	1-09700-515-1	01	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (D) ID=28 L=30	1-09700-607-1	01	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (F) L=150	1-82569-328-0	10	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	02	1	1306-	●
158	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=140	5-09707-031-1	02	1	1306-	●
342	BOLT SMOOTHER-G(C1W) (C) M12X41	1-09675-140-0	01	1	1306-	●
342	BOLT SMOOTHER-G(C1W) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	1306-	●
342	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8X16 FLANGE	0-28050-816-0	05	1	1306-	●
342	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1306-	●
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	02	1	1306-1401	●
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1402-	●
346	HOSE; AIR SMOOTHER-G(C1W) (A) ID=6 OD=9 L=150	1-33739-872-0	04	1	1306-	●
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=450	1-09363-965-0	01	1	1306-	●
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (C) ID=12 H=24 L=20	1-09700-605-0	01	1	1306-	●
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-	●
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (D) ID=33X16.5 L=50	5-09700-341-0	01	1	1306-	●
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=16X2 L=40	9-09535-576-0	01	1	1306-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	1-09630-084-0	15	1	1306-1312	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	8-98251-344-0	15	1	1401-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (C) ID=16.8	9-09565-117-0	02	1	1306-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	1-09630-084-0	02	1	1306-1312	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	8-98251-344-0	02	1	1401-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-09661-390-0	01	1	1306-	●
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8X16 FLANGE	0-28050-816-0	02	1	1306-	●
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M8X90 FLANGE	0-28050-890-0	04	1	1306-	●
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X25 FLANGE	0-28751-025-0	05	1	1306-	●
552	BRACKET SMOOTHER-G(C1W) (E)	1-82569-397-1	01	1	1306-	●
552	BRACKET SMOOTHER-G(C1W) (C)	1-82698-607-0	01	1	1306-	●
552	BRACKET SMOOTHER-G(C1W) (D)	8-98197-639-0	01	1	1306-	●
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33719-082-0	01	1	1306-	●
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33719-083-0	01	1	1306-	●
562	CLAMP; LOCKING SMOOTHER-G(C1W) ID=7.8	8-94246-958-0	05	1	1306-	●
562	CLAMP; LOCKING TRANSMISSION CONTROL CABLE TYPE(C1A) ID=7.8	8-94246-958-0	02	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (L) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (J)	1-09661-134-0	01	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (K) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (G) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (H)	1-09661-292-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (E) R1/4 & RC1/4	1-09664-211-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33712-023-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33712-024-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-33712-026-0	01	1	1306-	●
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (C) M12	1-82560-342-0	02	1	1306-	●
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (E)	1-82560-344-0	01	1	1306-	●
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (D) M12 & PT3/8	1-82560-451-0	02	1	1306-	●
615	VALVE; MAGNETIC TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98222-558-0	01	1	1306-	●
615	VALVE; MAGNETIC TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98222-559-0	01	1	1306-	●
617	PLUG TRANSMISSION CONTROL CABLE TYPE(C1A)	8-97320-204-0	02	1	1306-	●
618	TUBE; NYLON SMOOTHER-G(C1W) (G) L=140	1-09376-826-0	01	1	1306-	●
618	TUBE; NYLON SMOOTHER-G(C1W) (H) L=550	1-09376-830-1	01	1	1306-	●
618	TUBE; NYLON SMOOTHER-G(C1W) (C) L=1400	1-09377-321-0	01	1	1306-	●
618	TUBE; NYLON SMOOTHER-G(C1W) (D) L=750	1-09377-322-0	01	1	1306-	●
618	TUBE; NYLON SMOOTHER-G(C1W) (E) L=700	1-09377-323-0	01	1	1306-	●
618	TUBE; NYLON SMOOTHER-G(C1W) (F) L=1500	1-09377-324-0	01	1	1306-	●
618	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=730	8-98222-118-0	01	1	1306-	●
618	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=400	8-98222-734-0	01	1	1306-	●

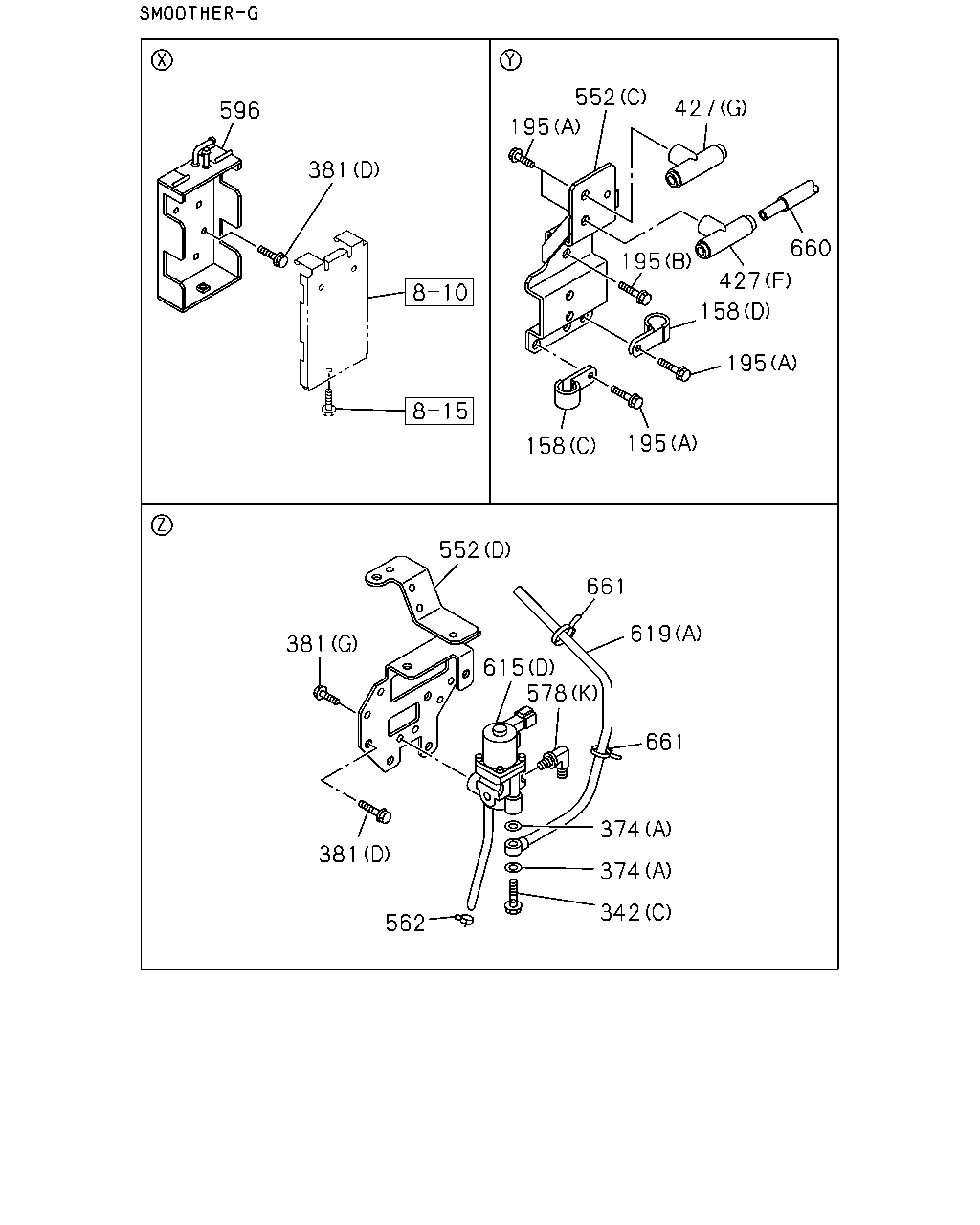

596 381 552 381 381 562 661 615 578 619 661 374 374 342 158 195 195 158 427 660 195 427 552 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	0-95235-896-0	02	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (C) ID=19 L=25	1-09700-515-1	01	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (D) ID=28 L=30	1-09700-607-1	01	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (F) L=150	1-82569-328-0	10	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	02	1	1306-	●
158	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=140	5-09707-031-1	02	1	1306-	●
195	BOLT (A) M10X25 FLANGE	0-28751-025-0	02	1	1306-		●
195	BOLT (B) M8X16 FLANGE	0-28050-816-0	02	1	1306-	●
195	BOLT SMOOTHER-G(C1W) (A) M10X25 FLANGE	0-28751-025-0	03	1	1306-	●
342	BOLT SMOOTHER-G(C1W) (C) M12X41	1-09675-140-0	01	1	1306-	●
342	BOLT SMOOTHER-G(C1W) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	1306-	●
342	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8X16 FLANGE	0-28050-816-0	05	1	1306-	●
342	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1306-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	1-09630-084-0	15	1	1306-1312	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	8-98251-344-0	15	1	1401-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (C) ID=16.8	9-09565-117-0	02	1	1306-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	1-09630-084-0	02	1	1306-1312	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	8-98251-344-0	02	1	1401-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-09661-390-0	01	1	1306-	●
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1306-	●	●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1306-	●	●
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28050-650-0	02	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (G) M8X16 FLANGE	0-28050-816-0	02	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28050-820-0	05	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28751-025-0	11	1	1306-	●
381	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09044-111-0	04	1	1306-	●
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (H) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	1306-	●
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (F) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1306-	●
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (G) 2WAY	1-09661-518-0	01	1	1306-	●
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (E)	1-09661-770-0	02	1	1306-	●
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1306-	●
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (C) DIN8 ELBOW	1-09660-924-1	01	1	1306-	●
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M12	1-09660-931-1	01	1	1306-	●
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (A) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1306-	●
552	BRACKET SMOOTHER-G(C1W) (E)	1-82569-397-1	01	1	1306-	●
552	BRACKET SMOOTHER-G(C1W) (C)	1-82698-607-0	01	1	1306-	●
552	BRACKET SMOOTHER-G(C1W) (D)	8-98197-639-0	01	1	1306-	●
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33719-082-0	01	1	1306-	●
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33719-083-0	01	1	1306-	●
562	CLAMP; LOCKING SMOOTHER-G(C1W) ID=7.8	8-94246-958-0	05	1	1306-	●
562	CLAMP; LOCKING TRANSMISSION CONTROL CABLE TYPE(C1A) ID=7.8	8-94246-958-0	02	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (L) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (J)	1-09661-134-0	01	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (K) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (G) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (H)	1-09661-292-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (E) R1/4 & RC1/4	1-09664-211-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33712-023-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33712-024-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-33712-026-0	01	1	1306-	●
596	BOX; CONNECTOR SMOOTHER-G(C1W)	8-98160-716-1	01	1	1306-	●
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (C) M12	1-82560-342-0	02	1	1306-	●
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (E)	1-82560-344-0	01	1	1306-	●
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (D) M12 & PT3/8	1-82560-451-0	02	1	1306-	●
615	VALVE; MAGNETIC TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98222-558-0	01	1	1306-	●
615	VALVE; MAGNETIC TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98222-559-0	01	1	1306-	●
619	TUBE; NYLON SMOOTHER-G(C1W) (C) L=420	1-09376-829-1	01	1	1306-	●
619	TUBE; NYLON SMOOTHER-G(C1W) (A) L=630	8-98074-302-0	01	1	1306-	●
619	TUBE; NYLON SMOOTHER-G(C1W) (B) L=480	8-98081-861-0	01	1	1306-	●
660	PROTECTOR; NYLON TUBE SMOOTHER-G(C1W)	1-09377-342-0	01	1	1306-	●
661	CLIP SMOOTHER-G(C1W) L=150	1-82569-328-0	02	1	1306-	●

381 222 512 339 341 158 427 444 512 339 341 513 578 339 341 427

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	0-95235-896-0	02	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (C) ID=19 L=25	1-09700-515-1	01	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (D) ID=28 L=30	1-09700-607-1	01	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (F) L=150	1-82569-328-0	10	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	02	1	1306-	●
158	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=140	5-09707-031-1	02	1	1306-	●
222	BRACKET; CLIP SMOOTHER-G(C1W)	1-82698-591-0	01	1	1306-	●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	06	1	1306-		●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	1306-	●
341	STUD; QUAD BOX (A) M10X25 L=40	0-44011-025-0	06	1	1306-		●
341	STUD; QUAD BOX SMOOTHER-G(C1W) (B) M10X35 L=50	0-44011-035-0	04	1	1306-	●
341	STUD; QUAD BOX SMOOTHER-G(C1W) (C) M10X81.5 L=96.5	8-98019-465-0	01	1	1306-	●
341	STUD; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X35 L=50	0-44011-035-0	05	1	1306-	●
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1306-	●	●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1306-	●	●
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28050-650-0	02	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (G) M8X16 FLANGE	0-28050-816-0	02	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28050-820-0	05	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28751-025-0	11	1	1306-	●
381	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09044-111-0	04	1	1306-	●
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (H) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	1306-	●
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (F) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1306-	●
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (G) 2WAY	1-09661-518-0	01	1	1306-	●
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (E)	1-09661-770-0	02	1	1306-	●
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1306-	●
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (C) DIN8 ELBOW	1-09660-924-1	01	1	1306-	●
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M12	1-09660-931-1	01	1	1306-	●
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (A) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1306-	●
444	BOLT; CLIP SMOOTHER-G(C1W) M10X25 FLANGE	0-28751-025-0	04	1	1306-	●
444	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) M10X25 FLANGE	0-28751-025-0	06	1	1306-	●
512	CLIP; PIPE SMOOTHER-G(C1W) ID=13X2 L=25	9-09916-814-0	03	1	1306-	●
513	CLIP; BAND (B) L=140	5-09707-031-1	02	1	1306-	●	●
513	CLIP; BAND SMOOTHER-G(C1W) (A) L=250	5-09707-030-1	10	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (L) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (J)	1-09661-134-0	01	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (K) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (G) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (H)	1-09661-292-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (E) R1/4 & RC1/4	1-09664-211-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33712-023-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33712-024-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-33712-026-0	01	1	1306-	●

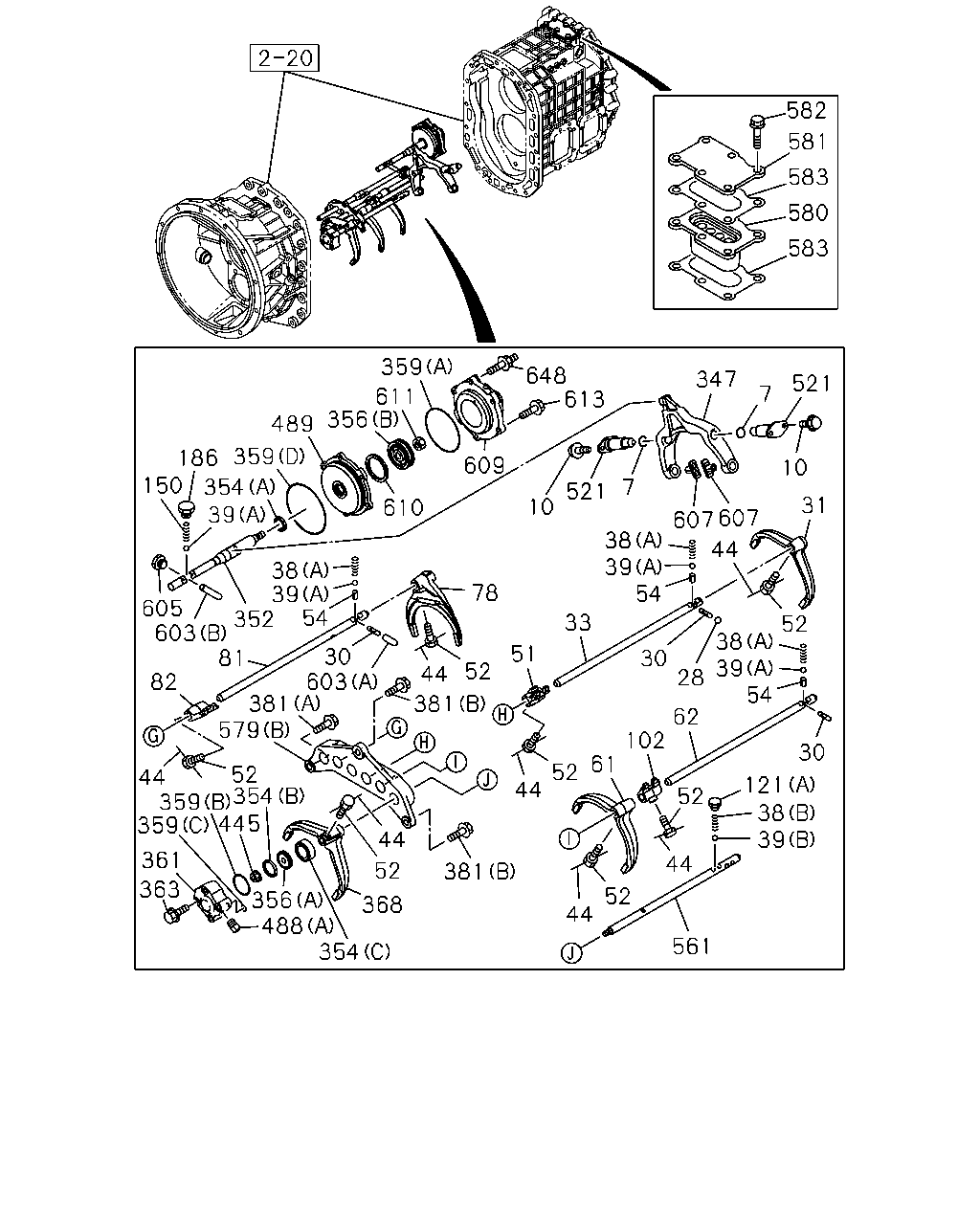

582 581 583 580 583 150 39 354 186 359 489 356 611 359 648 613 347 7 521 10 31 607 607 44 54 39 38 7 521 10 78 609 610 38 39 54 352 603 605 81 82 44 579 381 603 30 44 52 381 51 33 30 28 38 39 54 52 30 62 102 121 38 39 561 44 52 61 52 44 44 381 44 52 368 354 488 356 363 361 359 359 354 445 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	02	1	1306-	●
10	BOLT; SPINDLE M10X30 FLANGE	0-28751-030-0	04	1	1306-	●
28	BALL; INTER LK	9-00097-501-0	04	1	1306-		●
28	BALL; INTER LK	9-00097-501-0	02	1	1306-	●
30	PIN; INTER LK	9-33534-003-0	03	1	1306-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-587-0	01	1	1306-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-458-0	01	1	1306-	●
38	SPRING; DETENT (A)	1-09580-379-0	04	1	1306-		●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	1306-	●
38	SPRING; DETENT (A)	1-09580-379-0	03	1	1306-	●
38	SPRING; DETENT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09580-580-0	02	1	1306-	●
39	BALL; DETENT (A)	1-09843-012-0	04	1	1306-	●	●
39	BALL; DETENT (B)	9-00097-013-0	01	1	1306-	●
44	WIRE; LK L=180	1-09780-024-0	10	1	1306-		●
44	WIRE; LK L=200	9-08351-020-0	02	1	1306-		●
44	WIRE; LK L=200	9-08351-020-0	07	1	1306-	●
51	BLOCK; SHIFT,1ST & 2ND SMOOTHER-G(C1W)	1-33511-590-0	01	1	1306-	●
51	BLOCK; SHIFT,1ST & 2ND TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33511-617-0	01	1	1306-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	12	1	1306-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	07	1	1306-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	1306-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-586-0	01	1	1306-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-459-0	01	1	1306-	●
78	ARM; SHIFT,REV	1-33511-589-0	01	1	1306-	●
81	ROD; SHIFT,REV BLOCK	1-33531-457-0	01	1	1306-	●
82	BLOCK; SHIFT,REV SMOOTHER-G(C1W)	1-33511-451-0	01	1	1306-	●
82	BLOCK; SHIFT,REV TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33511-600-0	01	1	1306-	●
102	BLOCK; SHIFT,3RD & 4TH SMOOTHER-G(C1W)	8-98044-038-0	01	1	1306-	●
102	BLOCK; SHIFT,3RD & 4TH TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33511-615-0	01	1	1306-	●
121	PLUG; DETENT SPR (A) M16X12	0-92002-416-0	01	1	1306-	●
121	PLUG; DETENT SPR TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M14X9	8-98042-944-0	02	1	1306-	●
150	SPRING; DETENT BALL	1-09580-379-0	01	1	1306-	●
186	PLUG; SHIFTER ROD M16X12	0-92002-416-0	01	1	1306-	●
347	ARM; SHIFT,RANGE CHANGE	1-33511-585-0	01	1	1306-	●
352	ROD; SHIFT,RANGE CHANGE	1-33531-482-0	01	1	1306-	●
354	SEAL; AIR CYL (A)	1-19387-056-0	01	1	1306-	●
354	SEAL; AIR CYL (B)	1-33739-978-0	01	1	1306-	●
354	SEAL; AIR CYL (C)	1-33739-981-0	01	1	1306-	●
356	PISTON; AIR CYL (A)	1-33551-017-0	01	1	1306-	●
356	PISTON; AIR CYL (B)	1-33551-025-0	01	1	1306-	●
359	GASKET; AIR CYL (A) ID=124.6	1-09623-468-0	01	1	1306-	●
359	GASKET; AIR CYL (B) ID=55.6	8-98075-598-0	01	1	1306-	●
359	GASKET; AIR CYL (C) ID=6.8	9-09565-107-0	01	1	1306-	●
359	GASKET; AIR CYL (D) ID=144.4	9-09920-735-0	01	1	1306-	●
361	CYLINDER; AIR,SHIFT	1-33561-019-0	01	1	1306-	●
363	BOLT; AIR CYL M10X60 FLANGE	8-98169-763-0	04	1	1306-	●
368	ARM; SHIFT,SPLITTER GEAR	1-33511-588-0	01	1	1306-	●
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1306-	●	●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1306-	●	●
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28050-650-0	02	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (G) M8X16 FLANGE	0-28050-816-0	02	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28050-820-0	05	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28751-025-0	11	1	1306-	●
381	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09044-111-0	04	1	1306-	●
445	NUT; SHIFT CYL M12 LOCK NUT FLANGE	0-91380-012-0	01	1	1306-	●
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1306-	●
488	PLUG; AIR CYL TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M14X9	8-98042-944-0	02	1	1306-	●
488	PLUG; AIR CYL TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT1/4	9-99204-513-0	01	1	1306-	●
489	COVER; AIR CYL	1-33569-052-0	01	1	1306-	●
521	SPINDLE; 6TH	1-33519-131-0	02	1	1306-	●
561	ROD; SHIFT SMOOTHER-G(C1W)	1-33531-460-0	01	1	1306-	●
561	ROD; SHIFT TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33531-466-0	01	1	1306-	●
579	BLOCK; SHIFT,ROD GUIDE (A)	1-33539-065-1	01	1	1306-		●
579	BLOCK; SHIFT,ROD GUIDE (B)	1-33539-066-2	01	1	1306-	●
580	BLOCK; INTERLOCK	1-33539-064-1	01	1	1306-	●	●
581	COVER; BLOCK	1-33141-056-0	01	1	1306-	●	●
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28151-035-0	06	1	1306-	●	●
583	GASKET; SPRING GUIDE	1-33142-047-0	02	1	1306-	●	●
603	ROD; INTER LK (A) L=49	1-33534-005-0	01	1	1306-	●
603	ROD; INTER LK TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=77	1-33534-010-0	01	1	1306-	●
605	PLUG; INTER LK M18X12	0-92002-418-0	01	1	1306-	●
607	PIECE; SHIFT	1-33518-010-0	02	1	1306-	●
609	BODY; AIR,CYL	1-33561-018-0	01	1	1306-	●
610	SEAL; PISTON	1-33738-054-0	01	1	1306-	●
611	NUT; SHAFT	8-97324-304-0	01	1	1306-	●
613	BOLT; AIR CYL M10X45 FLANGE	0-28151-045-0	03	1	1306-	●
648	STUD; AIR CYL M10X20,M10X45 L=75	8-98010-335-0	03	1	1306-	●

306 306 298 289 271 474 474 234 588 234 181 142 339 341 285 59 292 121 167 602 38 121 601 243 606 163 38 602 130 272 259 587 243 274 271 157 600 289 187 293 188 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SPRING; DETENT (A)	1-09580-379-0	04	1	1306-		●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	1306-	●
38	SPRING; DETENT (A)	1-09580-379-0	03	1	1306-	●
38	SPRING; DETENT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09580-580-0	02	1	1306-	●
59	NUT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8 FLANGE	0-91180-108-0	02	1	1409-	●
59	NUT TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-09440-068-0	04	1	1306-	●
121	PLUG; DETENT SPR (A) M16X12	0-92002-416-0	01	1	1306-	●
121	PLUG; DETENT SPR TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M14X9	8-98042-944-0	02	1	1306-	●
130	LEVER; SHIFT,INTERNAL (A)	1-33521-124-0	01	1	1306-		●
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33521-189-0	01	1	1306-	●
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) M10X30 FLANGE	0-28751-030-0	01	1	1306-	●
157	BOX; QUAD,TRANS (A)	1-33541-507-3	01	1	1306-1311		●
157	BOX; QUAD,TRANS (A)	8-98231-390-0	01	1	1312-		●
157	BOX; QUAD,TRANS TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98220-885-0	01	1	1306-	●
163	LEVER; SELECT,INTERNAL (A)	1-33522-201-0	01	1	1306-		●
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33522-202-0	01	1	1306-	●
167	LEVER; SELECT,EXTERNAL (A)	1-33521-192-1	01	1	1306-		●
167	LEVER; SELECT,EXTERNAL (B)	1-33521-193-1	01	1	1306-		●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-33521-194-0	01	1	1306-	●
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A) (D)	8-98052-192-0	01	1	1306-	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	1306-		●
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) OD=40	1-09532-008-0	01	1	1306-	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	1306-		●
187	BOLT; SELECT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M8X42	1-33659-045-0	01	1	1306-	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	1306-		●
188	NUT; SELECT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	1-09440-062-1	01	1	1306-	●
234	RING; SNAP TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14.7	0-91800-616-0	02	1	1306-	●
243	BOLT; COVER (A) M10X30 FLANGE	0-28151-030-0	08	1	1306-		●
243	BOLT; COVER (B) M10X28 FLANGE REAMER	8-97365-375-0	04	1	1306-		●
243	BOLT; COVER TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M8X20 FLANGE	0-28050-820-0	06	1	1306-	●
243	BOLT; COVER TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M8X35 FLANGE	0-28650-835-0	04	1	1306-	●
259	GUIDE; SELECT,CONT BOX TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98222-568-0	01	1	1306-	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	1306-		●
271	BUSHING; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=20 OD=23	1-33549-016-0	01	1	1306-	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	1306-		●
271	BUSHING; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=28 OD=32	1-33549-104-0	01	1	1306-	●
272	RING; SNAP,QUAD BOX (A)	1-09588-175-0	01	1	1306-		●
272	RING; SNAP,QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-09588-213-0	01	1	1306-	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	1306-		●
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98220-886-0	01	1	1306-	●
285	BREATHER; AIR,QUAD BOX (A)	1-33149-008-0	01	1	1306-		●
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33149-003-0	01	1	1306-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-386-0	01	1	1306-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (B) OD=30	1-09625-386-0	01	1	1306-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-09625-647-0	01	1	1306-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) OD=41	1-09625-647-0	01	1	1306-	●
292	NUT; LINK ROD M8 FLANGE	0-91180-108-0	02	1	1306-1408		●
292	NUT; LINK ROD TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	0-91180-108-0	02	1	1306-1408	●
292	NUT; LINK ROD M8 FLANGE	0-91180-108-0	02	1	1409-		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	1306-		●
293	WASHER; PL,TAPER BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22	0-91610-708-0	01	1	1306-	●
298	SHAFT; SHIFT LEVER (A)	1-33522-180-0	01	1	1306-		●
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98222-566-0	01	1	1306-	●
306	BOLT; SHIFT ASSISTOR (A) M10X45 FLANGE	0-28151-045-0	02	1	1306-		●
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X45 FLANGE	0-28151-045-0	02	1	1306-	●
306	BOLT; SHIFT ASSISTOR (B) M10X80 FLANGE	0-28151-080-0	04	1	1306-		●
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X80 FLANGE	0-28151-080-0	04	1	1306-	●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	06	1	1306-		●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	1306-	●
341	STUD; QUAD BOX (A) M10X25 L=40	0-44011-025-0	06	1	1306-		●
341	STUD; QUAD BOX SMOOTHER-G(C1W) (B) M10X35 L=50	0-44011-035-0	04	1	1306-	●
341	STUD; QUAD BOX SMOOTHER-G(C1W) (C) M10X81.5 L=96.5	8-98019-465-0	01	1	1306-	●
341	STUD; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X35 L=50	0-44011-035-0	05	1	1306-	●
474	WASHER; SPRING STOPPER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98222-569-0	02	1	1306-	●
587	PIN; SHIFT GUIDE TRANSMISSION CONTROL CABLE TYPE(C1A)	9-08160-420-0	01	1	1306-	●
588	SPRING; RETURN,QUADRANT BOX TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09580-576-0	01	1	1306-	●
600	PLUNGER; VLV TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33263-037-0	02	1	1306-	●
601	COVER; SHAFT,SELECT TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33545-011-0	01	1	1306-	●
602	PLUNGER; DETENT TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33263-037-0	02	1	1306-	●
606	INHIBITOR TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33529-116-0	01	1	1306-	●

552 381 618 619 619 381 158 158 381 158 374 342 374 158 615 158 346 374 562 374 374 342 615 618 374 374 342 346 562 346 374 374 342 374 342 374 562 618 374 381 616 578 616 58 615 374 158 342 374 562 346 374 616 381 158 578 618 615 158 620 618 618 158 158 158 58 616

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
58	NUT (A) M12 FLANGE	0-91180-212-0	01	1	1306-		●
58	NUT SMOOTHER-G(C1W) (B) M6 FLANGE	0-91180-106-0	02	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	0-95235-896-0	02	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (C) ID=19 L=25	1-09700-515-1	01	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (D) ID=28 L=30	1-09700-607-1	01	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (F) L=150	1-82569-328-0	10	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	02	1	1306-	●
158	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=140	5-09707-031-1	02	1	1306-	●
342	BOLT SMOOTHER-G(C1W) (C) M12X41	1-09675-140-0	01	1	1306-	●
342	BOLT SMOOTHER-G(C1W) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	1306-	●
342	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8X16 FLANGE	0-28050-816-0	05	1	1306-	●
342	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1306-	●
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	02	1	1306-1401	●
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1402-	●
346	HOSE; AIR SMOOTHER-G(C1W) (A) ID=6 OD=9 L=150	1-33739-872-0	04	1	1306-	●
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=450	1-09363-965-0	01	1	1306-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	1-09630-084-0	15	1	1306-1312	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	8-98251-344-0	15	1	1401-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (C) ID=16.8	9-09565-117-0	02	1	1306-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	1-09630-084-0	02	1	1306-1312	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	8-98251-344-0	02	1	1401-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-09661-390-0	01	1	1306-	●
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1306-	●	●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1306-	●	●
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28050-650-0	02	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (G) M8X16 FLANGE	0-28050-816-0	02	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28050-820-0	05	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28751-025-0	11	1	1306-	●
381	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09044-111-0	04	1	1306-	●
552	BRACKET SMOOTHER-G(C1W) (E)	1-82569-397-1	01	1	1306-	●
552	BRACKET SMOOTHER-G(C1W) (C)	1-82698-607-0	01	1	1306-	●
552	BRACKET SMOOTHER-G(C1W) (D)	8-98197-639-0	01	1	1306-	●
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33719-082-0	01	1	1306-	●
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33719-083-0	01	1	1306-	●
562	CLAMP; LOCKING SMOOTHER-G(C1W) ID=7.8	8-94246-958-0	05	1	1306-	●
562	CLAMP; LOCKING TRANSMISSION CONTROL CABLE TYPE(C1A) ID=7.8	8-94246-958-0	02	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (L) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (J)	1-09661-134-0	01	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (K) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (G) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (H)	1-09661-292-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (E) R1/4 & RC1/4	1-09664-211-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33712-023-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33712-024-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-33712-026-0	01	1	1306-	●
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (C) M12	1-82560-342-0	02	1	1306-	●
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (E)	1-82560-344-0	01	1	1306-	●
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (D) M12 & PT3/8	1-82560-451-0	02	1	1306-	●
615	VALVE; MAGNETIC TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98222-558-0	01	1	1306-	●
615	VALVE; MAGNETIC TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98222-559-0	01	1	1306-	●
616	COLLAR SMOOTHER-G(C1W)	1-82569-266-0	04	1	1306-	●
618	TUBE; NYLON SMOOTHER-G(C1W) (G) L=140	1-09376-826-0	01	1	1306-	●
618	TUBE; NYLON SMOOTHER-G(C1W) (H) L=550	1-09376-830-1	01	1	1306-	●
618	TUBE; NYLON SMOOTHER-G(C1W) (C) L=1400	1-09377-321-0	01	1	1306-	●
618	TUBE; NYLON SMOOTHER-G(C1W) (D) L=750	1-09377-322-0	01	1	1306-	●
618	TUBE; NYLON SMOOTHER-G(C1W) (E) L=700	1-09377-323-0	01	1	1306-	●
618	TUBE; NYLON SMOOTHER-G(C1W) (F) L=1500	1-09377-324-0	01	1	1306-	●
618	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=730	8-98222-118-0	01	1	1306-	●
618	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=400	8-98222-734-0	01	1	1306-	●
619	TUBE; NYLON SMOOTHER-G(C1W) (C) L=420	1-09376-829-1	01	1	1306-	●
619	TUBE; NYLON SMOOTHER-G(C1W) (A) L=630	8-98074-302-0	01	1	1306-	●
619	TUBE; NYLON SMOOTHER-G(C1W) (B) L=480	8-98081-861-0	01	1	1306-	●
620	HARNESS SMOOTHER-G(C1W)	1-82677-897-1	01	1	1306-	●

595 548 578 578 599 578 443 578 621 593 578 578 374 553 552 191 59 598 427 427 192 381 195 391 548 346 594 427 621 552 444 427 353 443 340 340 338 578 488 218 408 578 622 622 621 158 621 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
59	NUT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8 FLANGE	0-91180-108-0	02	1	1409-	●
59	NUT TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-09440-068-0	04	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	0-95235-896-0	02	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (C) ID=19 L=25	1-09700-515-1	01	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (D) ID=28 L=30	1-09700-607-1	01	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (F) L=150	1-82569-328-0	10	1	1306-	●
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	02	1	1306-	●
158	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=140	5-09707-031-1	02	1	1306-	●
191	WASHER; LK TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09503-311-0	04	1	1306-	●
192	WASHER; PL ID=16.5	9-09857-042-0	01	1	1306-		●
192	WASHER; PL TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09503-310-0	04	1	1306-	●
195	BOLT (A) M10X25 FLANGE	0-28751-025-0	02	1	1306-		●
195	BOLT (B) M8X16 FLANGE	0-28050-816-0	02	1	1306-	●
195	BOLT SMOOTHER-G(C1W) (A) M10X25 FLANGE	0-28751-025-0	03	1	1306-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	8-98133-847-0	02	1	1306-		●
218	BRACKET; HARNESS CLIP,QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-82698-350-0	01	1	1306-	●
338	BRACKET; FLEX TUBE TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98222-750-1	01	1	1306-	●
340	NUT; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	0-91180-210-0	02	1	1306-	●
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	02	1	1306-1401	●
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1402-	●
346	HOSE; AIR SMOOTHER-G(C1W) (A) ID=6 OD=9 L=150	1-33739-872-0	04	1	1306-	●
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=450	1-09363-965-0	01	1	1306-	●
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (C) ID=12 H=24 L=20	1-09700-605-0	01	1	1306-	●
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-	●
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (D) ID=33X16.5 L=50	5-09700-341-0	01	1	1306-	●
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=16X2 L=40	9-09535-576-0	01	1	1306-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	1-09630-084-0	15	1	1306-1312	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	8-98251-344-0	15	1	1401-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (C) ID=16.8	9-09565-117-0	02	1	1306-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	1-09630-084-0	02	1	1306-1312	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	8-98251-344-0	02	1	1401-	●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-09661-390-0	01	1	1306-	●
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1306-	●	●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1306-	●	●
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28050-650-0	02	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (G) M8X16 FLANGE	0-28050-816-0	02	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28050-820-0	05	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28751-025-0	11	1	1306-	●
381	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09044-111-0	04	1	1306-	●
391	PLUG; SW HOLE TRANSMISSION CONTROL CABLE TYPE(C1A) M12X9	0-92002-412-0	01	1	1306-	●
408	SWITCH; SELECT,4TH 5TH TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98228-507-0	01	1	1306-	●
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (H) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	1306-	●
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (F) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1306-	●
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (G) 2WAY	1-09661-518-0	01	1	1306-	●
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (E)	1-09661-770-0	02	1	1306-	●
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1306-	●
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (C) DIN8 ELBOW	1-09660-924-1	01	1	1306-	●
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M12	1-09660-931-1	01	1	1306-	●
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (A) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1306-	●
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8X16 FLANGE	0-28050-816-0	02	1	1306-	●
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M8X90 FLANGE	0-28050-890-0	04	1	1306-	●
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X25 FLANGE	0-28751-025-0	05	1	1306-	●
444	BOLT; CLIP SMOOTHER-G(C1W) M10X25 FLANGE	0-28751-025-0	04	1	1306-	●
444	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) M10X25 FLANGE	0-28751-025-0	06	1	1306-	●
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1306-	●
488	PLUG; AIR CYL TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M14X9	8-98042-944-0	02	1	1306-	●
488	PLUG; AIR CYL TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT1/4	9-99204-513-0	01	1	1306-	●
548	CLIP; HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=7.8	8-94246-958-0	01	1	1306-	●
548	CLIP; HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33712-028-0	01	1	1306-	●
552	BRACKET SMOOTHER-G(C1W) (E)	1-82569-397-1	01	1	1306-	●
552	BRACKET SMOOTHER-G(C1W) (C)	1-82698-607-0	01	1	1306-	●
552	BRACKET SMOOTHER-G(C1W) (D)	8-98197-639-0	01	1	1306-	●
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33719-082-0	01	1	1306-	●
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33719-083-0	01	1	1306-	●
553	ADAPTER; AIR TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09661-389-0	01	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (L) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (J)	1-09661-134-0	01	1	1306-	●
578	CONNECTOR SMOOTHER-G(C1W) (K) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (G) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (H)	1-09661-292-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (E) R1/4 & RC1/4	1-09664-211-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33712-023-0	02	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33712-024-0	01	1	1306-	●
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-33712-026-0	01	1	1306-	●
593	VALVE; SPLITTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33712-009-0	01	1	1306-	●
594	VALVE; MAGNETIC,AIR TRANSMISSION CONTROL CABLE TYPE(C1A)	1-82564-069-0	01	1	1306-	●
595	VALVE; RANGE TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33712-029-1	01	1	1306-	●
598	UNION TRANSMISSION CONTROL CABLE TYPE(C1A) M10 & M12 STRAIGHT	1-09664-235-0	01	1	1306-	●
599	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-09377-036-1	01	1	1306-	●
599	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33712-027-0	01	1	1306-	●
621	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	1306-	●
621	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1306-	●
622	TUBE; CORRUGATE TRANSMISSION CONTROL CABLE TYPE(C1A) (A) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	1306-	●
622	TUBE; CORRUGATE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	1306-	●

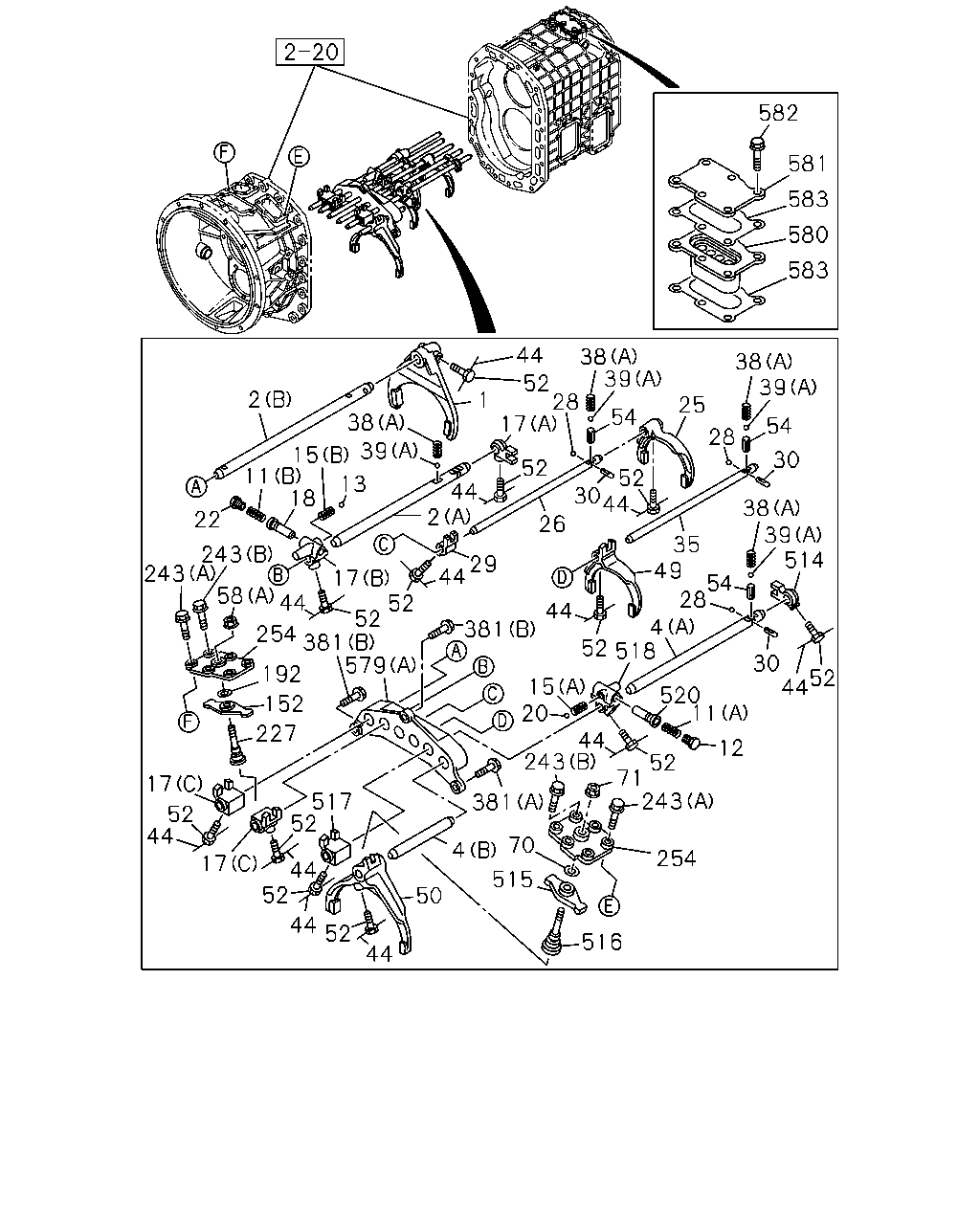

582 581 583 580 583 22 11 2 15 13 18 39 38 1 52 44 38 28 17 44 2 52 39 54 25 52 44 30 26 29 44 52 17 52 44 243 243 58 254 381 192 152 227 579 17 52 44 17 52 517 44 52 44 52 44 50 4 515 516 70 381 243 44 71 243 254 52 20 381 44 52 518 12 11 520 4 49 28 35 54 30 44 52 514 39 38 30 28 54 39 38 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-579-0	01	1	1306-		●
2	ROD; SHIFT,1ST & REV (A)	1-33531-438-0	01	1	1306-		●
2	ROD; SHIFT,1ST & REV (B)	1-33531-456-0	01	1	1306-		●
4	ROD; SHIFT,6TH (A)	1-33531-443-1	01	1	1306-		●
4	ROD; SHIFT,6TH (B)	1-33531-445-0	01	1	1306-		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	1306-		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	1306-		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	1306-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	1306-		●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-439-0	01	1	1306-		●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	1306-		●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-202-3	01	1	1306-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-552-1	01	1	1306-		●
17	BLOCK; SHIFT,1ST & REV (C)	1-33511-557-0	02	1	1306-		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	1306-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	1306-		●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	1306-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-435-0	01	1	1306-		●
26	ROD; SHIFT,2ND & 3RD	1-33531-440-1	01	1	1306-		●
28	BALL; INTER LK	9-00097-501-0	04	1	1306-		●
28	BALL; INTER LK	9-00097-501-0	02	1	1306-	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	1306-		●
30	PIN; INTER LK	9-33534-003-0	03	1	1306-	●	●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-442-1	01	1	1306-		●
38	SPRING; DETENT (A)	1-09580-379-0	04	1	1306-		●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	1306-	●
38	SPRING; DETENT (A)	1-09580-379-0	03	1	1306-	●
38	SPRING; DETENT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09580-580-0	02	1	1306-	●
39	BALL; DETENT (A)	1-09843-012-0	04	1	1306-	●	●
39	BALL; DETENT (B)	9-00097-013-0	01	1	1306-	●
44	WIRE; LK L=180	1-09780-024-0	10	1	1306-		●
44	WIRE; LK L=200	9-08351-020-0	02	1	1306-		●
44	WIRE; LK L=200	9-08351-020-0	07	1	1306-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-466-1	01	1	1306-		●
50	ARM; SHIFT,6TH	1-33511-550-0	01	1	1306-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	12	1	1306-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	07	1	1306-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	1306-	●	●
58	NUT (A) M12 FLANGE	0-91180-212-0	01	1	1306-		●
58	NUT SMOOTHER-G(C1W) (B) M6 FLANGE	0-91180-106-0	02	1	1306-	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	1306-		●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	1306-		●
152	LEVER; RELAY,SELECT	1-33511-560-1	01	1	1306-		●
192	WASHER; PL ID=16.5	9-09857-042-0	01	1	1306-		●
192	WASHER; PL TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09503-310-0	04	1	1306-	●
227	SPINDLE; 1ST & REV	1-33519-104-0	01	1	1306-		●
243	BOLT; COVER (A) M10X30 FLANGE	0-28151-030-0	08	1	1306-		●
243	BOLT; COVER (B) M10X28 FLANGE REAMER	8-97365-375-0	04	1	1306-		●
243	BOLT; COVER TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M8X20 FLANGE	0-28050-820-0	06	1	1306-	●
243	BOLT; COVER TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M8X35 FLANGE	0-28650-835-0	04	1	1306-	●
254	COVER; LEVER	1-33141-054-0	02	1	1306-		●
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1306-	●	●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1306-	●	●
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28050-650-0	02	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (G) M8X16 FLANGE	0-28050-816-0	02	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28050-820-0	05	1	1306-	●
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28751-025-0	11	1	1306-	●
381	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09044-111-0	04	1	1306-	●
514	BLOCK; 6-7 SETTING	1-33511-605-0	01	1	1306-		●
515	LEVER; SHIFT,6TH & 7TH	1-33511-560-1	01	1	1306-		●
516	SPINDLE; 6TH & 7TH	1-33519-104-0	01	1	1306-		●
517	BLOCK; SHIFT,6TH & 7TH	1-33511-557-0	01	1	1306-		●
518	BLOCK ASM; SHIFT,6TH & 7TH	1-33511-558-1	01	1	1306-		●
520	SLEEVE; 6TH & 7TH	1-33516-022-1	01	1	1306-		●
579	BLOCK; SHIFT,ROD GUIDE (A)	1-33539-065-1	01	1	1306-		●
579	BLOCK; SHIFT,ROD GUIDE (B)	1-33539-066-2	01	1	1306-	●
580	BLOCK; INTERLOCK	1-33539-064-1	01	1	1306-	●	●
581	COVER; BLOCK	1-33141-056-0	01	1	1306-	●	●
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28151-035-0	06	1	1306-	●	●
583	GASKET; SPRING GUIDE	1-33142-047-0	02	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
