◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11524 - CYH RHD EURO2 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#124162) — 504 parça

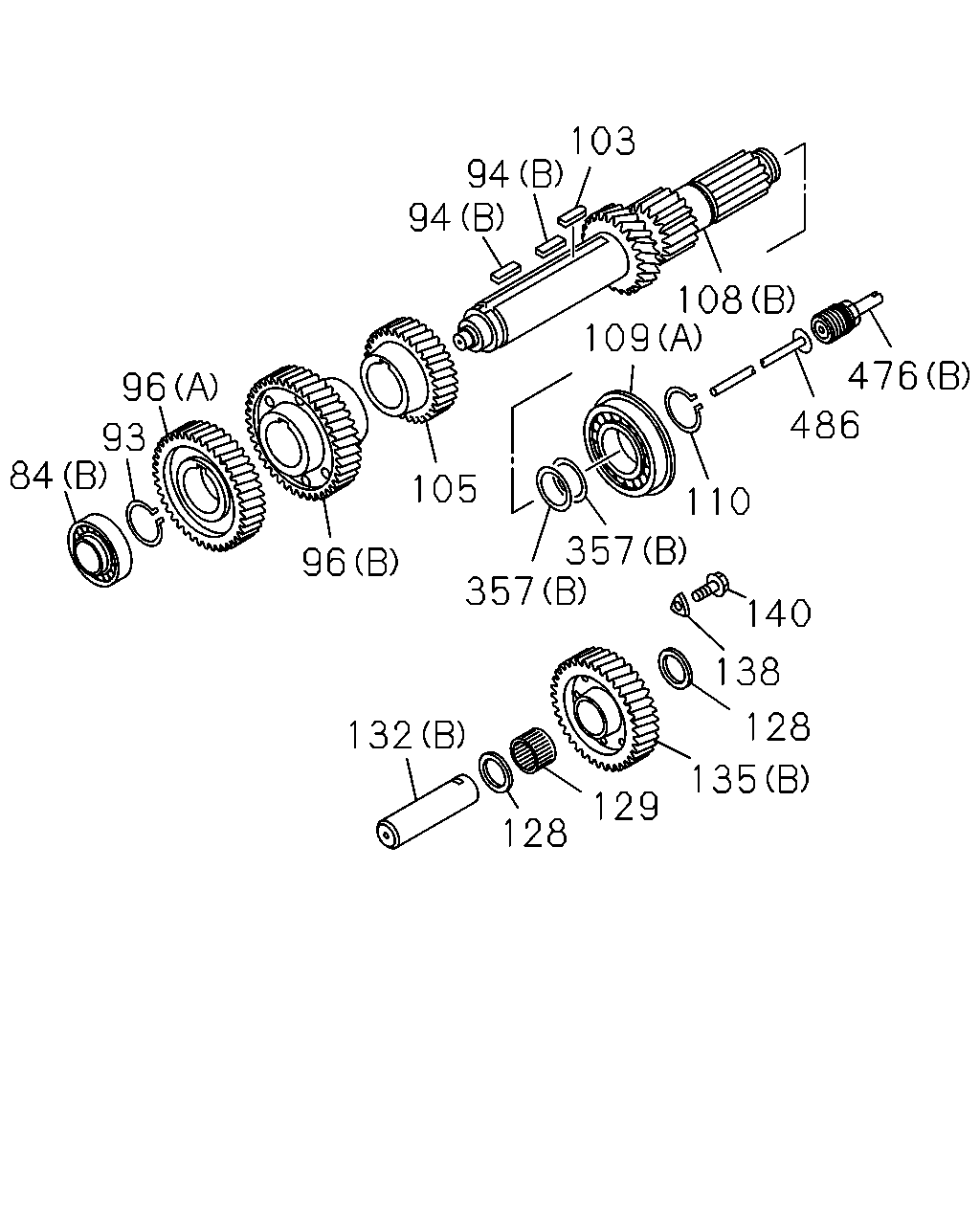

çizim 363116
84 93 96 94 94 103 108 109 105 96 357 357 110 486 476 140 138 128 135 129 128 132
BalonParca AdiParca NoAdetTipApplied Date A B
84 BEARING; COUNTER SHAFT,FRT
(A) NTN 		1-09810-119-0 01 1 1306- ●
84 BEARING; COUNTER SHAFT,FRT
(A) NSK 		1-09810-241-0 01 1 1306- ●
84 BEARING; COUNTER SHAFT,FRT
(B) NSK 		1-09810-221-0 01 1 1306- ●
84 BEARING; COUNTER SHAFT,FRT
(B) NTN 		1-09810-222-0 01 1 1306- ●
93 RING; SNAP,COUNTER FRT BRG 1-09588-149-0 01 1 1306- ● ●
94 KEY; FEATHER,COUNTER SHAFT
(A) L=67 		1-09735-049-0 01 1 1306- ●
94 KEY; FEATHER,COUNTER SHAFT
(B) L=70 		1-09735-046-0 02 1 1306- ●
96 GEAR; COUNTER DRIVE
(C) Z=41 		1-33331-272-0 01 1 1306- ●
96 GEAR; COUNTER DRIVE
(A) Z=35 		1-33331-258-2 01 1 1306- ●
96 GEAR; COUNTER DRIVE
(B) Z=38 		1-33338-374-3 01 1 1306- ●
103 KEY; COUNTER GEAR
L=63 		1-09735-027-0 01 1 1306- ●
103 KEY; COUNTER GEAR
L=67 		1-09735-049-0 01 1 1306- ●
103 KEY; COUNTER GEAR
L=75.3 		1-09735-042-0 01 1 1306- ●
105 GEAR; 3RD,COUNTER
Z=36 		1-33338-373-1 01 1 1306- ●
108 SHAFT; COUNTER
(A) Z=24-17-12 		1-33311-331-0 01 1 1306- ●
108 SHAFT; COUNTER
(B) Z=26-21 		1-33311-325-1 01 1 1306- ●
109 BEARING; COUNTER SHAFT,RR
(B) NSK 		1-09810-205-0 01 1 1306- ●
109 BEARING; COUNTER SHAFT,RR
(B) NTN 		1-09810-206-0 01 1 1306- ●
109 BEARING; COUNTER SHAFT,RR
(A) NSK 		1-09810-186-0 01 1 1306- ● ●
109 BEARING; COUNTER SHAFT,RR
(A) NTN 		1-09810-207-0 01 1 1306- ● ●
110 RING; SNAP,COUNTER BRG 1-09588-193-1 01 1 1306- ● ●
128 WASHER; THRUST,REV SHAFT
T=4.0 		9-33363-015-0 02 1 1306- ● ●
129 BEARING; NEEDLE,IDLER
NSK 		1-09811-384-0 01 1 1306- ● ●
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-385-0 01 1 1306- ● ●
132 SHAFT; REV
(A) 		1-33351-025-4 01 1 1306- ●
132 SHAFT; REV
(B) 		1-33351-035-1 01 1 1306- ●
135 GEAR; REV IDLER
(A) Z=36 		1-33361-075-0 01 1 1306- ●
135 GEAR; REV IDLER
(B) Z=30 		1-33361-081-1 01 1 1306- ●
138 PIECE; LK,REV SHAFT 9-33354-007-0 01 1 1306- ● ●
140 BOLT; LK PIECE
M10X25 		1-09049-006-1 01 1 1306- ● ●
357 RING
(A) 		1-31349-015-0 01 1 1306- ●
357 RING
(B) 		1-31349-044-0 04 1 1306- ●
476 ADAPTER; PUMP DRIVE
(A) 		1-33339-066-0 01 1 1306- ●
476 ADAPTER; PUMP DRIVE
(B) 		1-33339-091-1 01 1 1306- ●
486 NOZZLE; CONT SHAFT 1-33219-254-1 01 1 1306- ●

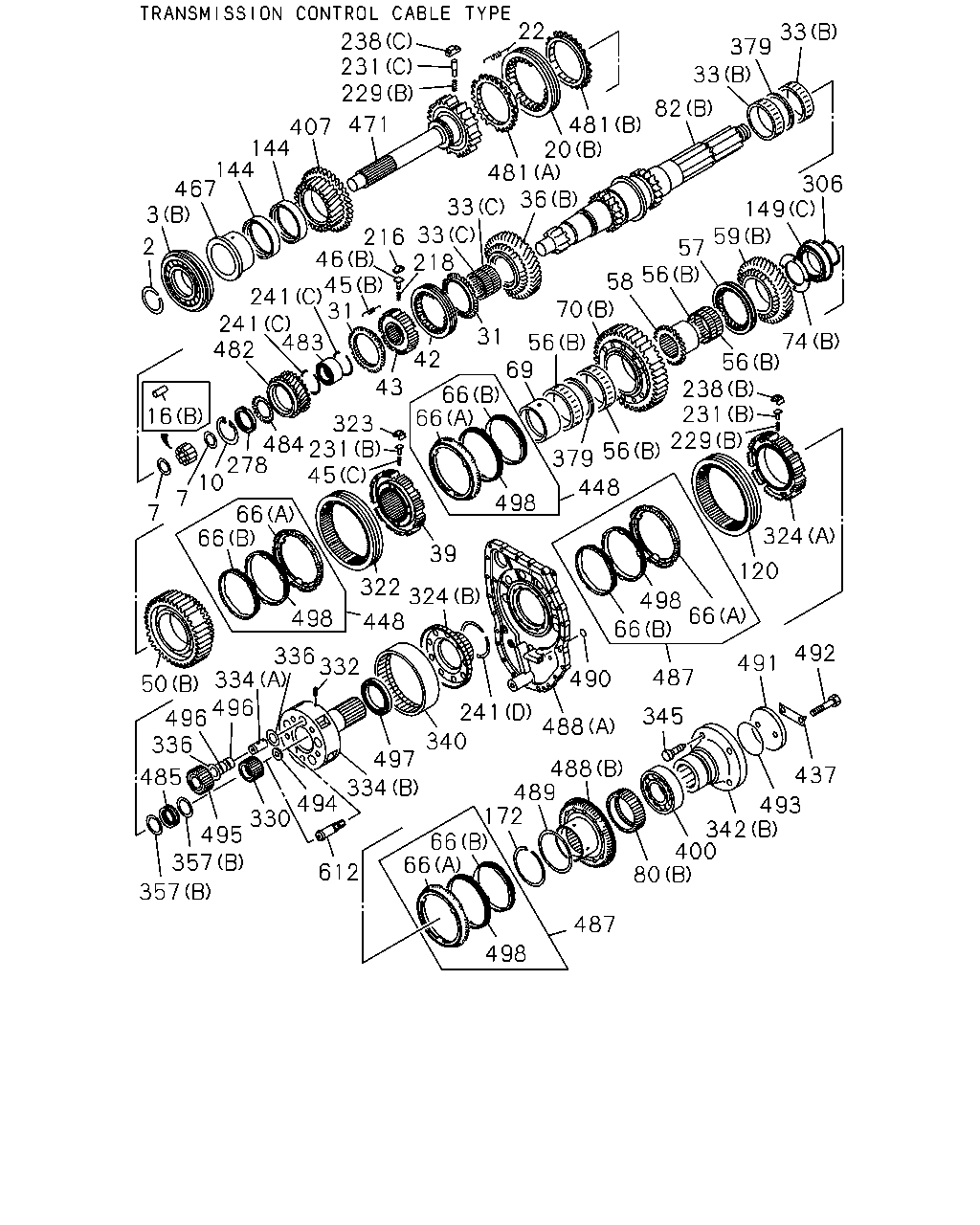

çizim 365876
238 229 231 407 471 144 144 467 3 2 241 241 46 482 16 7 7 10 278 484 323 231 43 483 31 45 216 33 33 481 20 218 36 481 22 82 33 379 33 306 149 59 57 56 58 70 56 69 31 42 66 66 45 66 66 50 498 39 498 379 56 229 448 231 238 56 74 324 322 448 332 336 334 496 496 336 485 357 357 495 612 330 497 334 494 66 340 488 241 490 488 489 172 66 498 80 487 400 345 342 437 491 487 66 120 498 66 492 493 324
BalonParca AdiParca NoAdetTipApplied Date A B
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.53 WHITE 		1-09588-181-0 AR 1 1306- ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.56 YELLOW 		1-09588-182-0 AR 1 1306- ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.60 BLUE 		1-09588-183-0 AR 1 1306- ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.64 GREEN 		1-09588-184-0 AR 1 1306- ● ●
3 BEARING; TOP GEAR SHAFT
(A) NSK 		1-09810-273-0 01 1 1306- ●
3 BEARING; TOP GEAR SHAFT
(A) NTN 		1-09810-274-0 01 1 1306- ●
3 BEARING; TOP GEAR SHAFT
(B) NSK 		1-09810-278-0 01 1 1306- ●
7 WASHER; THRUST,MAINSHAFT 1-33239-262-0 02 1 1306- ● ●
10 RING; SNAP,PILOT BRG
OD=72.5 		9-09180-168-0 01 1 1306- ● ●
16 BEARING; PILOT,MAINSHAFT
(A) NSK 		1-09810-242-0 16 1 1306- ●
16 BEARING; PILOT,MAINSHAFT
(A) NTN 		1-09810-243-0 16 1 1306- ●
16 BEARING; PILOT,MAINSHAFT
(B) NSK 		1-09810-260-0 16 1 1306- ●
16 BEARING; PILOT,MAINSHAFT
(B) NTN 		1-09810-261-0 16 1 1306- ●
20 SLEEVE
(A) 		1-33262-222-0 01 1 1306- ●
20 SLEEVE
(B) 		1-33262-216-1 01 1 1306- ●
22 SPRING; BLOCK,INSERT 1-09583-363-0 03 1 1306- ●
31 RING; BLOCK,3RD & 4TH
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98212-814-1 02 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR
(A) NSK 		1-09811-380-0 02 1 1306-1311 ●
33 BEARING; NEEDLE,3RD GEAR
(A) NTN 		1-09811-381-0 02 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR
(C) NSK 		1-09811-378-0 02 1 1306-1308 ●
33 BEARING; NEEDLE,3RD GEAR
(C) NTN 		1-09811-379-0 02 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR
(B) NSK 		1-09811-422-0 02 1 1306-1311 ●
33 BEARING; NEEDLE,3RD GEAR
(B) NTN 		1-09811-423-0 02 1 1306- ●
36 GEAR; 3RD,MAINSHAFT
(A) Z=44 		1-33252-447-0 01 1 1306- ●
36 GEAR; 3RD,MAINSHAFT
SMOOTHER-G(C1W) (C) Z=41 		1-33253-680-1 01 1 1306- ●
36 GEAR; 3RD,MAINSHAFT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) Z=41 		1-33253-704-1 01 1 1306- ●
39 HUB; CLU,LOW & 2ND
SMOOTHER-G(C1W) 		1-33261-279-1 01 1 1306- ●
39 HUB; CLU,LOW & 2ND
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33261-277-0 01 1 1306- ●
42 SLEEVE 1-33262-222-0 01 1 1306- ● ●
43 HUB; CLU,3RD & 4TH,MAIN 1-33261-278-1 01 1 1306- ●
45 SPRING; BLOCK INSERT
(A) D=3.8 		1-09580-395-0 06 1 1306- ●
45 SPRING; BLOCK INSERT
(B) 		1-09583-171-0 03 1 1306- ●
45 SPRING; BLOCK INSERT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-09583-171-0 03 1 1306- ●
45 SPRING; BLOCK INSERT
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-09580-578-0 03 1 1306- ●
46 PLUNGER; DETENT,SYN
(A) 		1-33269-037-1 06 1 1306- ●
46 PLUNGER; DETENT,SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33263-020-0 03 1 1306- ●
50 GEAR; 2ND,MAINSHAFT
(A) Z=53 		1-33251-358-1 01 1 1306- ●
50 GEAR; 2ND,MAINSHAFT
SMOOTHER-G(C1W) (C) Z=43 		1-33251-393-1 01 1 1306- ●
50 GEAR; 2ND,MAINSHAFT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) Z=43 		1-33251-411-1 01 1 1306- ●
56 BEARING; NEEDLE,1ST,REV
(A) NSK 		1-09811-376-0 04 1 1306-1311 ●
56 BEARING; NEEDLE,1ST,REV
(A) NTN 		1-09811-401-0 04 1 1306- ●
56 BEARING; NEEDLE,1ST,REV
(B) NSK 		1-09811-422-0 04 1 1306-1311 ●
56 BEARING; NEEDLE,1ST,REV
(B) NTN 		1-09811-423-0 04 1 1306- ●
57 SLEEVE; REV 1-33262-209-1 01 1 1306- ●
58 HUB; CLU,REV 1-33261-286-1 01 1 1306- ●
59 GEAR; REV MAINSHAFT
(A) Z=50 		1-33257-075-0 01 1 1306- ●
59 GEAR; REV MAINSHAFT
(B) Z=44 		1-33257-081-2 01 1 1306- ●
66 RING; BLOCK,SYN
SMOOTHER-G(C1W) (A) 		1-33265-588-0 02 1 1306-1312 ●
66 RING; BLOCK,SYN
SMOOTHER-G(C1W) (A) 		8-98239-909-1 02 1 1401- ●
66 RING; BLOCK,SYN
SMOOTHER-G(C1W) (B) 		1-33265-590-0 02 1 1306-1307 ●
66 RING; BLOCK,SYN
SMOOTHER-G(C1W) (B) 		8-98239-294-0 02 1 1308-1312 ●
66 RING; BLOCK,SYN
SMOOTHER-G(C1W) (B) 		8-98239-911-1 02 1 1401- ●
66 RING; BLOCK,SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33265-588-0 04 1 1306-1312 ●
66 RING; BLOCK,SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98239-909-1 04 1 1401- ●
66 RING; BLOCK,SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33265-590-0 04 1 1306-1307 ●
66 RING; BLOCK,SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98239-294-0 04 1 1308-1312 ●
66 RING; BLOCK,SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98239-911-1 04 1 1401- ●
69 COLLAR; 1ST GEAR MAIN 1-33234-099-0 01 1 1306- ●
70 GEAR; 1ST,MAINSHAFT
(A) Z=54 		1-33255-070-0 01 1 1306- ●
70 GEAR; 1ST,MAINSHAFT
SMOOTHER-G(C1W) (C) Z=49 		1-33255-071-1 01 1 1306- ●
70 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) Z=49 		1-33255-074-1 01 1 1306- ●
74 WASHER; THRUST,REV GEAR
(A) 		1-33239-093-1 02 1 1306-1506 ●
74 WASHER; THRUST,REV GEAR
(A) 		8-98304-662-0 02 1 1507- ●
74 WASHER; THRUST,REV GEAR
(B) 		1-33239-308-0 01 1 1306- ●
80 GEAR; SPD DRIVE
(A) Z=5 		1-33371-028-1 01 1 1306- ●
80 GEAR; SPD DRIVE
(B) Z=11 		1-33371-069-0 01 1 1306- ●
82 SHAFT; MAIN,TRANS
(A) Z=24-37-28-24 		1-33231-298-0 01 1 1306-1506 ●
82 SHAFT; MAIN,TRANS
(A) Z=24-37-28-24 		8-98304-660-0 01 1 1507- ●
82 SHAFT; MAIN,TRANS
(B) Z=37-40-28-19 		1-33231-327-2 01 1 1306- ●
120 SLEEVE 1-33262-229-0 01 1 1306- ●
144 BEARING; NEEDLE,INPUT GEAR
NSK 		1-09811-422-0 02 1 1306-1311 ●
144 BEARING; NEEDLE,INPUT GEAR
NTN 		1-09811-423-0 02 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(B) NSK 		1-09810-172-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(B) NTN 		1-09810-173-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(A) NSK 		1-09810-203-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(A) NTN 		1-09810-204-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(C) NSK 		1-09810-256-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(C) NTN 		1-09810-257-0 01 1 1306- ●
172 RING; SNAP,CLU HUB
OD=121.2 		1-09587-031-0 01 1 1306- ●
216 INSERT; CLU HUB,2ND TO 3RD
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33263-025-2 03 1 1306- ●
218 SPRING; INSERT,CLU HUB,2ND TO 3RD
TRANSMISSION CONTROL CABLE TYPE(C1A) D=6.2 		1-09580-091-1 03 1 1306- ●
229 SPRING; PLUNGER
(B) D=3.8 		1-09580-395-0 06 1 1404- ●
229 SPRING; PLUNGER
(A) D=6.2 		1-09580-091-1 06 1 1306- ●
229 SPRING; PLUNGER
(B) D=6.2 		1-09580-091-1 15 1 1306-1403 ●
229 SPRING; PLUNGER
(B) D=6.2 		1-09580-091-1 09 1 1404- ●
231 PLUNGER
(A) 		1-33263-020-0 03 1 1306- ●
231 PLUNGER
(C) 		1-33263-033-0 06 1 1306-1403 ●
231 PLUNGER
(C) 		8-98273-831-0 06 1 1404- ●
231 PLUNGER
SMOOTHER-G(C1W) (B) 		1-33263-038-1 09 1 1306- ●
231 PLUNGER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33263-038-1 12 1 1306- ●
238 INSERT
(A) 		1-33263-025-2 06 1 1306- ●
238 INSERT
(C) 		1-33263-036-0 06 1 1306- ●
238 INSERT
(B) 		1-33263-039-0 09 1 1306- ●
241 RING; SNAP
(A) 		1-09588-185-0 01 1 1306- ●
241 RING; SNAP
(B) 		1-09588-189-0 01 1 1306- ●
241 RING; SNAP
(C) 		1-09587-023-0 02 1 1306- ●
241 RING; SNAP
(D) 		1-09587-104-0 01 1 1306- ●
278 NUT; BRG 1-09449-080-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT 1-09588-149-0 01 1 1306- ●
322 SLEEVE; SYN,LOW & 2ND
SMOOTHER-G(C1W) 		1-33262-222-0 01 1 1306- ●
322 SLEEVE; SYN,LOW & 2ND
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33262-228-0 01 1 1306- ●
323 INSERT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33263-041-0 03 1 1306- ●
324 HUB; CLU
(C) 		1-33261-238-0 01 1 1306- ●
324 HUB; CLU
(A) 		1-34231-015-0 01 1 1306- ●
324 HUB; CLU
(B) 		1-34371-017-0 01 1 1306-1307 ●
324 HUB; CLU
(B) 		8-98239-089-0 01 1 1308- ●
330 GEAR; SUN
Z=24 		1-34311-010-0 01 1 1306- ●
332 PIN; LOCK,SHAFT 1-09748-025-0 05 1 1306- ●
334 SHAFT; PLANETARY GEAR
(A) 		1-34353-010-1 05 1 1306- ●
334 SHAFT; PLANETARY GEAR
(B) 		1-34372-034-0 01 1 1306-1307 ●
334 SHAFT; PLANETARY GEAR
(B) 		8-98238-294-0 01 1 1308- ●
336 WASHER; THRUST,PLANETARY GEAR 1-09503-230-0 10 1 1306- ●
340 GEAR; RING
Z=86 OKUBO GEAR 		1-34371-014-0 01 1 1306- ●
340 GEAR; RING
Z=86 NIPPON GEAR 		1-34371-018-0 01 1 1306- ●
340 GEAR; RING
Z=86 ISUZU GEAR 		1-34371-019-0 01 1 1306- ●
342 FLANGE; OUTPUT
(A) 		8-98210-980-0 01 1 1306- ●
342 FLANGE; OUTPUT
(B) 		1-37243-370-0 01 1 1306- ●
345 BOLT; FLANGE TO YOKE
M14X48.5 		1-09046-013-0 04 1 1306- ● ●
357 RING
(A) 		1-31349-015-0 01 1 1306- ●
357 RING
(B) 		1-31349-044-0 04 1 1306- ●
379 PIECE; DIST,MAINSHAFT 1-33363-034-0 02 1 1306- ●
400 BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING 		8-98153-252-0 01 1 1306- ●
407 GEAR; PRIMARY MAIN
Z=33 		1-33253-717-0 01 1 1306- ●
437 PLATE; LOCK 1-34252-032-0 01 1 1306- ●
448 SYNCHRONIZER ASM; 1ST & 2ND
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33265-616-0 02 1 1306-1307 ●
448 SYNCHRONIZER ASM; 1ST & 2ND
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98239-293-0 02 1 1308-1312 ●
448 SYNCHRONIZER ASM; 1ST & 2ND
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98239-908-1 02 1 1401- ●
467 COLLAR; SHAFT 1-33234-091-1 01 1 1306- ●
471 SHAFT; INPUT 8-98174-781-0 01 1 1306- ●
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 1306-1407 ●
481 RING; BLOCK
(A) HIGH 		8-98239-518-1 01 1 1408-1410 ●
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 1411- ●
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 1306-1407 ●
481 RING; BLOCK
(B) LOW 		8-98239-519-1 01 1 1408-1410 ●
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 1411- ●
482 GEAR; PRIMARY
SMOOTHER-G(C1W) Z=29 		1-33253-720-0 01 1 1306- ●
482 GEAR; PRIMARY
TRANSMISSION CONTROL CABLE TYPE(C1A) Z=29 		1-33253-718-0 01 1 1306- ●
483 BEARING; TAPER
NTN 		8-98174-410-0 01 1 1306-1504 ●
483 BEARING; TAPER
NTN 		8-98316-126-0 01 1 1505- ●
484 PLATE; SETTING 1-33313-023-0 01 1 1306- ●
485 PIECE; GUIDE 1-33363-040-1 01 1 1306- ●
487 SYNCHRONIZER; RANGE CHANGE 1-33265-616-0 02 1 1306-1307 ●
487 SYNCHRONIZER; RANGE CHANGE 8-98239-293-0 02 1 1308-1312 ●
487 SYNCHRONIZER; RANGE CHANGE 8-98239-908-1 02 1 1401- ●
488 CLUTCH; DOG,RANGE
(A) 		8-98060-771-1 01 1 1306-1307 ●
488 CLUTCH; DOG,RANGE
(A) 		8-98239-163-0 01 1 1308- ●
488 CLUTCH; DOG,RANGE
(B) 		8-98218-291-0 01 1 1306-1307 ●
488 CLUTCH; DOG,RANGE
(B) 		8-98238-509-0 01 1 1308- ●
489 WASHER; THRUST 1-09503-308-0 01 1 1306- ●
490 GASKET; SEAL,CASE
ID=10 		1-09623-369-0 01 1 1306- ●
491 PLATE; OUTPUT SHAFT 1-34252-026-0 01 1 1306- ●
492 BOLT; PLATE 1-09000-740-0 02 1 1306- ●
493 GASKET; OUTPUT SHAFT 9-09561-385-0 01 1 1306- ●
494 PLATE; OUTPUT SHAFT 1-34379-020-0 01 1 1306-1307 ●
495 PINION; PLANETARY
Z=30 		1-34361-023-0 05 1 1306- ●
496 BEARING; PLANETARY
NSK 		1-09811-424-0 10 1 1306- ●
496 BEARING; PLANETARY
NTN 		1-09811-425-0 10 1 1306- ●
497 BEARING; RING GEAR
NSK 		1-09810-276-0 01 1 1306-1307 ●
497 BEARING; RING GEAR
NTN 		1-09810-277-0 01 1 1306-1307 ●
497 BEARING; RING GEAR
NTN 		8-98239-433-0 01 1 1308- ●
498 CONE; SYN
SMOOTHER-G(C1W) 		1-33265-617-0 02 1 1306-1312 ●
498 CONE; SYN
SMOOTHER-G(C1W) 		8-98239-910-0 02 1 1401- ●
498 CONE; SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33265-617-0 04 1 1306-1312 ●
498 CONE; SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98239-910-0 04 1 1401- ●
612 GALLERY; OIL 8-98239-463-0 01 1 1308- ●

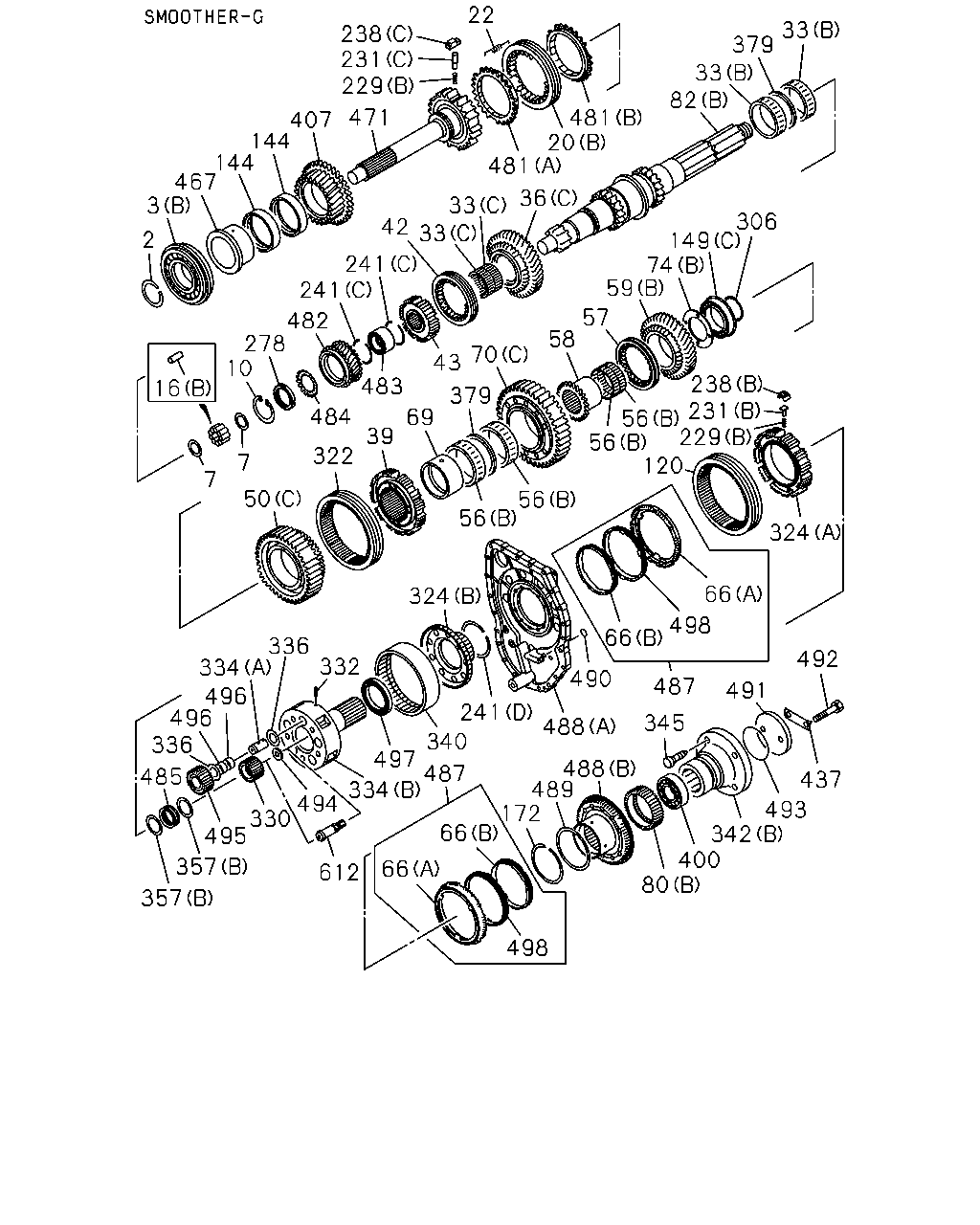

çizim 366809
22 238 229 231 278 241 241 238 229 231 241 20 471 407 467 482 481 481 43 483 484 487 498 491 437 400 492 488 490 488 489 495 485 496 496 497 487 494 493 3 33 33 36 33 379 33 306 379 39 322 336 334 332 324 324 342 345 357 330 336 334 498 357 56 56 56 56 58 57 59 50 66 66 66 69 66 144 144 42 2 10 16 82 149 70 7 7 120 612 172 80 340 74
BalonParca AdiParca NoAdetTipApplied Date A B
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.53 WHITE 		1-09588-181-0 AR 1 1306- ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.56 YELLOW 		1-09588-182-0 AR 1 1306- ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.60 BLUE 		1-09588-183-0 AR 1 1306- ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.64 GREEN 		1-09588-184-0 AR 1 1306- ● ●
3 BEARING; TOP GEAR SHAFT
(A) NSK 		1-09810-273-0 01 1 1306- ●
3 BEARING; TOP GEAR SHAFT
(A) NTN 		1-09810-274-0 01 1 1306- ●
3 BEARING; TOP GEAR SHAFT
(B) NSK 		1-09810-278-0 01 1 1306- ●
7 WASHER; THRUST,MAINSHAFT 1-33239-262-0 02 1 1306- ● ●
10 RING; SNAP,PILOT BRG
OD=72.5 		9-09180-168-0 01 1 1306- ● ●
16 BEARING; PILOT,MAINSHAFT
(A) NSK 		1-09810-242-0 16 1 1306- ●
16 BEARING; PILOT,MAINSHAFT
(A) NTN 		1-09810-243-0 16 1 1306- ●
16 BEARING; PILOT,MAINSHAFT
(B) NSK 		1-09810-260-0 16 1 1306- ●
16 BEARING; PILOT,MAINSHAFT
(B) NTN 		1-09810-261-0 16 1 1306- ●
20 SLEEVE
(A) 		1-33262-222-0 01 1 1306- ●
20 SLEEVE
(B) 		1-33262-216-1 01 1 1306- ●
22 SPRING; BLOCK,INSERT 1-09583-363-0 03 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR
(A) NSK 		1-09811-380-0 02 1 1306-1311 ●
33 BEARING; NEEDLE,3RD GEAR
(A) NTN 		1-09811-381-0 02 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR
(C) NSK 		1-09811-378-0 02 1 1306-1308 ●
33 BEARING; NEEDLE,3RD GEAR
(C) NTN 		1-09811-379-0 02 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR
(B) NSK 		1-09811-422-0 02 1 1306-1311 ●
33 BEARING; NEEDLE,3RD GEAR
(B) NTN 		1-09811-423-0 02 1 1306- ●
36 GEAR; 3RD,MAINSHAFT
(A) Z=44 		1-33252-447-0 01 1 1306- ●
36 GEAR; 3RD,MAINSHAFT
SMOOTHER-G(C1W) (C) Z=41 		1-33253-680-1 01 1 1306- ●
36 GEAR; 3RD,MAINSHAFT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) Z=41 		1-33253-704-1 01 1 1306- ●
39 HUB; CLU,LOW & 2ND
SMOOTHER-G(C1W) 		1-33261-279-1 01 1 1306- ●
39 HUB; CLU,LOW & 2ND
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33261-277-0 01 1 1306- ●
42 SLEEVE 1-33262-222-0 01 1 1306- ● ●
43 HUB; CLU,3RD & 4TH,MAIN 1-33261-278-1 01 1 1306- ●
50 GEAR; 2ND,MAINSHAFT
(A) Z=53 		1-33251-358-1 01 1 1306- ●
50 GEAR; 2ND,MAINSHAFT
SMOOTHER-G(C1W) (C) Z=43 		1-33251-393-1 01 1 1306- ●
50 GEAR; 2ND,MAINSHAFT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) Z=43 		1-33251-411-1 01 1 1306- ●
56 BEARING; NEEDLE,1ST,REV
(A) NSK 		1-09811-376-0 04 1 1306-1311 ●
56 BEARING; NEEDLE,1ST,REV
(A) NTN 		1-09811-401-0 04 1 1306- ●
56 BEARING; NEEDLE,1ST,REV
(B) NSK 		1-09811-422-0 04 1 1306-1311 ●
56 BEARING; NEEDLE,1ST,REV
(B) NTN 		1-09811-423-0 04 1 1306- ●
57 SLEEVE; REV 1-33262-209-1 01 1 1306- ●
58 HUB; CLU,REV 1-33261-286-1 01 1 1306- ●
59 GEAR; REV MAINSHAFT
(A) Z=50 		1-33257-075-0 01 1 1306- ●
59 GEAR; REV MAINSHAFT
(B) Z=44 		1-33257-081-2 01 1 1306- ●
66 RING; BLOCK,SYN
SMOOTHER-G(C1W) (A) 		1-33265-588-0 02 1 1306-1312 ●
66 RING; BLOCK,SYN
SMOOTHER-G(C1W) (A) 		8-98239-909-1 02 1 1401- ●
66 RING; BLOCK,SYN
SMOOTHER-G(C1W) (B) 		1-33265-590-0 02 1 1306-1307 ●
66 RING; BLOCK,SYN
SMOOTHER-G(C1W) (B) 		8-98239-294-0 02 1 1308-1312 ●
66 RING; BLOCK,SYN
SMOOTHER-G(C1W) (B) 		8-98239-911-1 02 1 1401- ●
66 RING; BLOCK,SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33265-588-0 04 1 1306-1312 ●
66 RING; BLOCK,SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98239-909-1 04 1 1401- ●
66 RING; BLOCK,SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33265-590-0 04 1 1306-1307 ●
66 RING; BLOCK,SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98239-294-0 04 1 1308-1312 ●
66 RING; BLOCK,SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98239-911-1 04 1 1401- ●
69 COLLAR; 1ST GEAR MAIN 1-33234-099-0 01 1 1306- ●
70 GEAR; 1ST,MAINSHAFT
(A) Z=54 		1-33255-070-0 01 1 1306- ●
70 GEAR; 1ST,MAINSHAFT
SMOOTHER-G(C1W) (C) Z=49 		1-33255-071-1 01 1 1306- ●
70 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) Z=49 		1-33255-074-1 01 1 1306- ●
74 WASHER; THRUST,REV GEAR
(A) 		1-33239-093-1 02 1 1306-1506 ●
74 WASHER; THRUST,REV GEAR
(A) 		8-98304-662-0 02 1 1507- ●
74 WASHER; THRUST,REV GEAR
(B) 		1-33239-308-0 01 1 1306- ●
80 GEAR; SPD DRIVE
(A) Z=5 		1-33371-028-1 01 1 1306- ●
80 GEAR; SPD DRIVE
(B) Z=11 		1-33371-069-0 01 1 1306- ●
82 SHAFT; MAIN,TRANS
(A) Z=24-37-28-24 		1-33231-298-0 01 1 1306-1506 ●
82 SHAFT; MAIN,TRANS
(A) Z=24-37-28-24 		8-98304-660-0 01 1 1507- ●
82 SHAFT; MAIN,TRANS
(B) Z=37-40-28-19 		1-33231-327-2 01 1 1306- ●
120 SLEEVE 1-33262-229-0 01 1 1306- ●
144 BEARING; NEEDLE,INPUT GEAR
NSK 		1-09811-422-0 02 1 1306-1311 ●
144 BEARING; NEEDLE,INPUT GEAR
NTN 		1-09811-423-0 02 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(B) NSK 		1-09810-172-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(B) NTN 		1-09810-173-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(A) NSK 		1-09810-203-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(A) NTN 		1-09810-204-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(C) NSK 		1-09810-256-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(C) NTN 		1-09810-257-0 01 1 1306- ●
172 RING; SNAP,CLU HUB
OD=121.2 		1-09587-031-0 01 1 1306- ●
229 SPRING; PLUNGER
(B) D=3.8 		1-09580-395-0 06 1 1404- ●
229 SPRING; PLUNGER
(A) D=6.2 		1-09580-091-1 06 1 1306- ●
229 SPRING; PLUNGER
(B) D=6.2 		1-09580-091-1 15 1 1306-1403 ●
229 SPRING; PLUNGER
(B) D=6.2 		1-09580-091-1 09 1 1404- ●
231 PLUNGER
(A) 		1-33263-020-0 03 1 1306- ●
231 PLUNGER
(C) 		1-33263-033-0 06 1 1306-1403 ●
231 PLUNGER
(C) 		8-98273-831-0 06 1 1404- ●
231 PLUNGER
SMOOTHER-G(C1W) (B) 		1-33263-038-1 09 1 1306- ●
231 PLUNGER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33263-038-1 12 1 1306- ●
238 INSERT
(A) 		1-33263-025-2 06 1 1306- ●
238 INSERT
(C) 		1-33263-036-0 06 1 1306- ●
238 INSERT
(B) 		1-33263-039-0 09 1 1306- ●
241 RING; SNAP
(A) 		1-09588-185-0 01 1 1306- ●
241 RING; SNAP
(B) 		1-09588-189-0 01 1 1306- ●
241 RING; SNAP
(C) 		1-09587-023-0 02 1 1306- ●
241 RING; SNAP
(D) 		1-09587-104-0 01 1 1306- ●
278 NUT; BRG 1-09449-080-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT 1-09588-149-0 01 1 1306- ●
322 SLEEVE; SYN,LOW & 2ND
SMOOTHER-G(C1W) 		1-33262-222-0 01 1 1306- ●
322 SLEEVE; SYN,LOW & 2ND
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33262-228-0 01 1 1306- ●
324 HUB; CLU
(C) 		1-33261-238-0 01 1 1306- ●
324 HUB; CLU
(A) 		1-34231-015-0 01 1 1306- ●
324 HUB; CLU
(B) 		1-34371-017-0 01 1 1306-1307 ●
324 HUB; CLU
(B) 		8-98239-089-0 01 1 1308- ●
330 GEAR; SUN
Z=24 		1-34311-010-0 01 1 1306- ●
332 PIN; LOCK,SHAFT 1-09748-025-0 05 1 1306- ●
334 SHAFT; PLANETARY GEAR
(A) 		1-34353-010-1 05 1 1306- ●
334 SHAFT; PLANETARY GEAR
(B) 		1-34372-034-0 01 1 1306-1307 ●
334 SHAFT; PLANETARY GEAR
(B) 		8-98238-294-0 01 1 1308- ●
336 WASHER; THRUST,PLANETARY GEAR 1-09503-230-0 10 1 1306- ●
340 GEAR; RING
Z=86 OKUBO GEAR 		1-34371-014-0 01 1 1306- ●
340 GEAR; RING
Z=86 NIPPON GEAR 		1-34371-018-0 01 1 1306- ●
340 GEAR; RING
Z=86 ISUZU GEAR 		1-34371-019-0 01 1 1306- ●
342 FLANGE; OUTPUT
(A) 		8-98210-980-0 01 1 1306- ●
342 FLANGE; OUTPUT
(B) 		1-37243-370-0 01 1 1306- ●
345 BOLT; FLANGE TO YOKE
M14X48.5 		1-09046-013-0 04 1 1306- ● ●
357 RING
(A) 		1-31349-015-0 01 1 1306- ●
357 RING
(B) 		1-31349-044-0 04 1 1306- ●
379 PIECE; DIST,MAINSHAFT 1-33363-034-0 02 1 1306- ●
400 BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING 		8-98153-252-0 01 1 1306- ●
407 GEAR; PRIMARY MAIN
Z=33 		1-33253-717-0 01 1 1306- ●
437 PLATE; LOCK 1-34252-032-0 01 1 1306- ●
467 COLLAR; SHAFT 1-33234-091-1 01 1 1306- ●
471 SHAFT; INPUT 8-98174-781-0 01 1 1306- ●
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 1306-1407 ●
481 RING; BLOCK
(A) HIGH 		8-98239-518-1 01 1 1408-1410 ●
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 1411- ●
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 1306-1407 ●
481 RING; BLOCK
(B) LOW 		8-98239-519-1 01 1 1408-1410 ●
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 1411- ●
482 GEAR; PRIMARY
SMOOTHER-G(C1W) Z=29 		1-33253-720-0 01 1 1306- ●
482 GEAR; PRIMARY
TRANSMISSION CONTROL CABLE TYPE(C1A) Z=29 		1-33253-718-0 01 1 1306- ●
483 BEARING; TAPER
NTN 		8-98174-410-0 01 1 1306-1504 ●
483 BEARING; TAPER
NTN 		8-98316-126-0 01 1 1505- ●
484 PLATE; SETTING 1-33313-023-0 01 1 1306- ●
485 PIECE; GUIDE 1-33363-040-1 01 1 1306- ●
487 SYNCHRONIZER; RANGE CHANGE 1-33265-616-0 02 1 1306-1307 ●
487 SYNCHRONIZER; RANGE CHANGE 8-98239-293-0 02 1 1308-1312 ●
487 SYNCHRONIZER; RANGE CHANGE 8-98239-908-1 02 1 1401- ●
488 CLUTCH; DOG,RANGE
(A) 		8-98060-771-1 01 1 1306-1307 ●
488 CLUTCH; DOG,RANGE
(A) 		8-98239-163-0 01 1 1308- ●
488 CLUTCH; DOG,RANGE
(B) 		8-98218-291-0 01 1 1306-1307 ●
488 CLUTCH; DOG,RANGE
(B) 		8-98238-509-0 01 1 1308- ●
489 WASHER; THRUST 1-09503-308-0 01 1 1306- ●
490 GASKET; SEAL,CASE
ID=10 		1-09623-369-0 01 1 1306- ●
491 PLATE; OUTPUT SHAFT 1-34252-026-0 01 1 1306- ●
492 BOLT; PLATE 1-09000-740-0 02 1 1306- ●
493 GASKET; OUTPUT SHAFT 9-09561-385-0 01 1 1306- ●
494 PLATE; OUTPUT SHAFT 1-34379-020-0 01 1 1306-1307 ●
495 PINION; PLANETARY
Z=30 		1-34361-023-0 05 1 1306- ●
496 BEARING; PLANETARY
NSK 		1-09811-424-0 10 1 1306- ●
496 BEARING; PLANETARY
NTN 		1-09811-425-0 10 1 1306- ●
497 BEARING; RING GEAR
NSK 		1-09810-276-0 01 1 1306-1307 ●
497 BEARING; RING GEAR
NTN 		1-09810-277-0 01 1 1306-1307 ●
497 BEARING; RING GEAR
NTN 		8-98239-433-0 01 1 1308- ●
498 CONE; SYN
SMOOTHER-G(C1W) 		1-33265-617-0 02 1 1306-1312 ●
498 CONE; SYN
SMOOTHER-G(C1W) 		8-98239-910-0 02 1 1401- ●
498 CONE; SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33265-617-0 04 1 1306-1312 ●
498 CONE; SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98239-910-0 04 1 1401- ●
612 GALLERY; OIL 8-98239-463-0 01 1 1308- ●

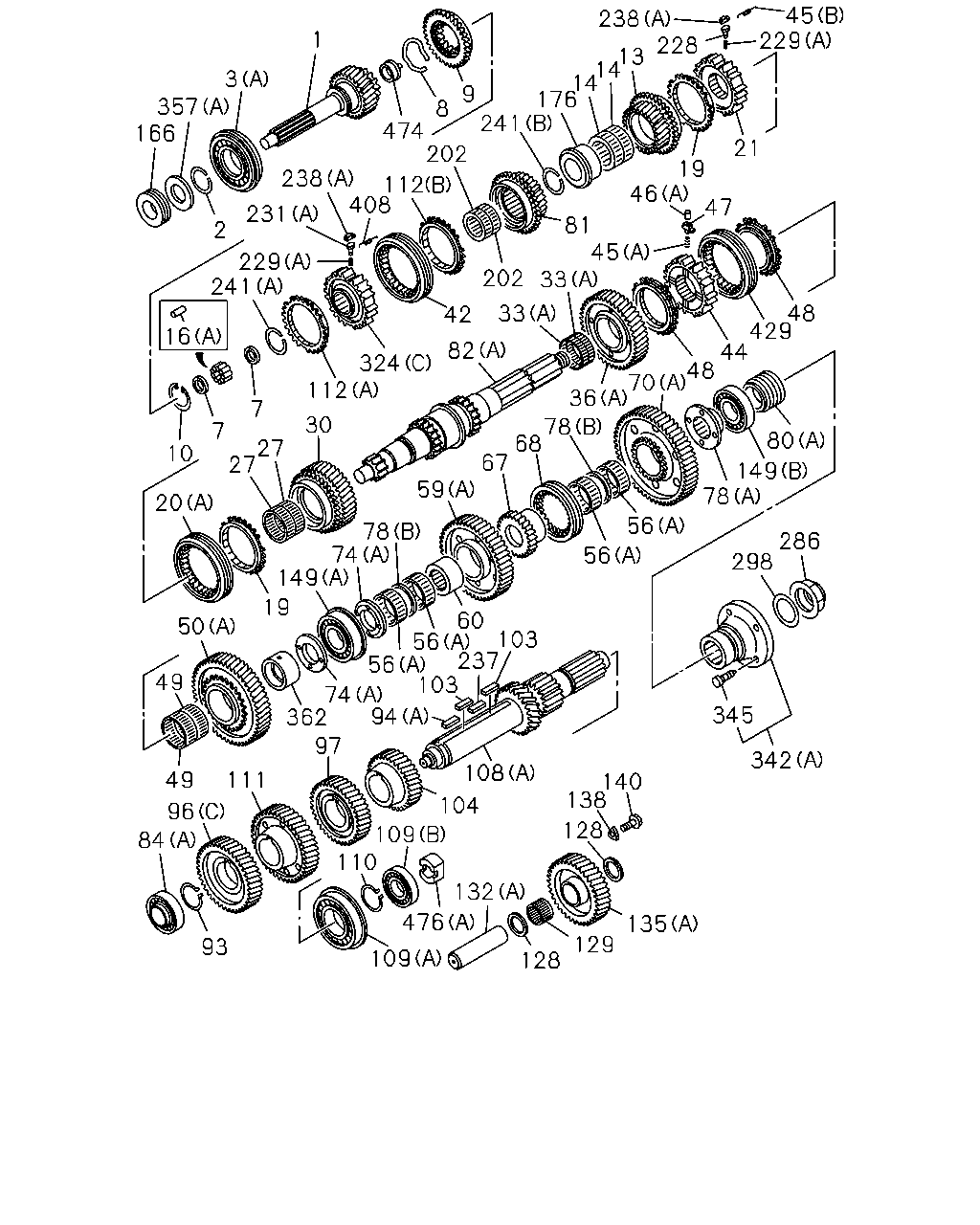

çizim 367120
1 3 357 166 2 231 238 474 8 9 16 241 229 408 112 202 241 176 14 14 13 238 228 229 45 21 19 46 81 202 42 324 112 7 7 10 20 27 27 30 82 33 33 45 47 48 429 44 48 70 36 78 68 67 59 78 74 149 19 50 49 49 362 74 56 56 60 56 56 78 149 80 103 237 103 94 97 111 96 84 93 110 109 104 108 140 138 128 132 476 109 128 129 135 342 345 298 286
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS
Z=27 		1-33211-992-0 01 1 1306- ●
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.53 WHITE 		1-09588-181-0 AR 1 1306- ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.56 YELLOW 		1-09588-182-0 AR 1 1306- ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.60 BLUE 		1-09588-183-0 AR 1 1306- ● ●
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.64 GREEN 		1-09588-184-0 AR 1 1306- ● ●
3 BEARING; TOP GEAR SHAFT
(A) NSK 		1-09810-273-0 01 1 1306- ●
3 BEARING; TOP GEAR SHAFT
(A) NTN 		1-09810-274-0 01 1 1306- ●
3 BEARING; TOP GEAR SHAFT
(B) NSK 		1-09810-278-0 01 1 1306- ●
7 WASHER; THRUST,MAINSHAFT 1-33239-262-0 02 1 1306- ● ●
8 CLIP; DOG CLU 1-33219-024-0 01 1 1306- ●
9 CLUTCH; DOG,TOP GEAR
Z=66 		1-33265-401-0 01 1 1306- ●
10 RING; SNAP,PILOT BRG
OD=72.5 		9-09180-168-0 01 1 1306- ● ●
13 GEAR; 5TH,MAINSHAFT
Z=31 		1-33253-673-0 01 1 1306- ●
14 BEARING; NEEDLE,5TH
NSK 		1-09811-376-0 02 1 1306-1311 ●
14 BEARING; NEEDLE,5TH
NTN 		1-09811-401-0 02 1 1306- ●
16 BEARING; PILOT,MAINSHAFT
(A) NSK 		1-09810-242-0 16 1 1306- ●
16 BEARING; PILOT,MAINSHAFT
(A) NTN 		1-09810-243-0 16 1 1306- ●
16 BEARING; PILOT,MAINSHAFT
(B) NSK 		1-09810-260-0 16 1 1306- ●
16 BEARING; PILOT,MAINSHAFT
(B) NTN 		1-09810-261-0 16 1 1306- ●
19 RING; BLOCK,4TH & 5TH
Z=66 		1-33265-545-1 02 1 1306- ●
20 SLEEVE
(A) 		1-33262-222-0 01 1 1306- ●
20 SLEEVE
(B) 		1-33262-216-1 01 1 1306- ●
21 HUB; CLU,4TH & 5TH 1-33261-252-0 01 1 1306- ●
27 BEARING; 4TH GEAR
NSK 		1-09811-376-0 02 1 1306-1311 ●
27 BEARING; 4TH GEAR
NTN 		1-09811-401-0 02 1 1306- ●
30 GEAR; 4TH,MAINSHAFT
Z=42 		1-33253-691-0 01 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR
(A) NSK 		1-09811-380-0 02 1 1306-1311 ●
33 BEARING; NEEDLE,3RD GEAR
(A) NTN 		1-09811-381-0 02 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR
(C) NSK 		1-09811-378-0 02 1 1306-1308 ●
33 BEARING; NEEDLE,3RD GEAR
(C) NTN 		1-09811-379-0 02 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR
(B) NSK 		1-09811-422-0 02 1 1306-1311 ●
33 BEARING; NEEDLE,3RD GEAR
(B) NTN 		1-09811-423-0 02 1 1306- ●
36 GEAR; 3RD,MAINSHAFT
(A) Z=44 		1-33252-447-0 01 1 1306- ●
36 GEAR; 3RD,MAINSHAFT
SMOOTHER-G(C1W) (C) Z=41 		1-33253-680-1 01 1 1306- ●
36 GEAR; 3RD,MAINSHAFT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) Z=41 		1-33253-704-1 01 1 1306- ●
42 SLEEVE 1-33262-222-0 01 1 1306- ● ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-261-0 01 1 1306- ●
45 SPRING; BLOCK INSERT
(A) D=3.8 		1-09580-395-0 06 1 1306- ●
45 SPRING; BLOCK INSERT
(B) 		1-09583-171-0 03 1 1306- ●
45 SPRING; BLOCK INSERT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-09583-171-0 03 1 1306- ●
45 SPRING; BLOCK INSERT
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-09580-578-0 03 1 1306- ●
46 PLUNGER; DETENT,SYN
(A) 		1-33269-037-1 06 1 1306- ●
46 PLUNGER; DETENT,SYN
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33263-020-0 03 1 1306- ●
47 BLOCK; INDEX,SYN 1-33269-035-1 06 1 1306- ●
48 SYNCHRONIZER ASM; 2ND & 3RD 1-33265-612-1 02 1 1306- ●
49 BEARING; NEEDLE,2ND GEAR
NSK 		1-09811-378-0 02 1 1306-1308 ●
49 BEARING; NEEDLE,2ND GEAR
NTN 		1-09811-379-0 02 1 1306- ●
50 GEAR; 2ND,MAINSHAFT
(A) Z=53 		1-33251-358-1 01 1 1306- ●
50 GEAR; 2ND,MAINSHAFT
SMOOTHER-G(C1W) (C) Z=43 		1-33251-393-1 01 1 1306- ●
50 GEAR; 2ND,MAINSHAFT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) Z=43 		1-33251-411-1 01 1 1306- ●
56 BEARING; NEEDLE,1ST,REV
(A) NSK 		1-09811-376-0 04 1 1306-1311 ●
56 BEARING; NEEDLE,1ST,REV
(A) NTN 		1-09811-401-0 04 1 1306- ●
56 BEARING; NEEDLE,1ST,REV
(B) NSK 		1-09811-422-0 04 1 1306-1311 ●
56 BEARING; NEEDLE,1ST,REV
(B) NTN 		1-09811-423-0 04 1 1306- ●
59 GEAR; REV MAINSHAFT
(A) Z=50 		1-33257-075-0 01 1 1306- ●
59 GEAR; REV MAINSHAFT
(B) Z=44 		1-33257-081-2 01 1 1306- ●
60 COLLAR; REV MAIN 1-33234-087-0 01 1 1306- ●
67 HUB; CLU,1ST TO REV 1-33261-222-0 01 1 1306- ●
68 SLEEVE; 1ST TO REV 1-33262-160-0 01 1 1306- ●
70 GEAR; 1ST,MAINSHAFT
(A) Z=54 		1-33255-070-0 01 1 1306- ●
70 GEAR; 1ST,MAINSHAFT
SMOOTHER-G(C1W) (C) Z=49 		1-33255-071-1 01 1 1306- ●
70 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) Z=49 		1-33255-074-1 01 1 1306- ●
74 WASHER; THRUST,REV GEAR
(A) 		1-33239-093-1 02 1 1306-1506 ●
74 WASHER; THRUST,REV GEAR
(A) 		8-98304-662-0 02 1 1507- ●
74 WASHER; THRUST,REV GEAR
(B) 		1-33239-308-0 01 1 1306- ●
78 COLLAR; DIST,MAINSHAFT BRG
(A) 		1-33235-098-0 01 1 1306- ●
78 COLLAR; DIST,MAINSHAFT BRG
(B) 		1-33363-030-0 02 1 1306- ●
80 GEAR; SPD DRIVE
(A) Z=5 		1-33371-028-1 01 1 1306- ●
80 GEAR; SPD DRIVE
(B) Z=11 		1-33371-069-0 01 1 1306- ●
81 GEAR; 7TH,MAIN
Z=24 		1-33253-654-0 01 1 1306- ●
82 SHAFT; MAIN,TRANS
(A) Z=24-37-28-24 		1-33231-298-0 01 1 1306-1506 ●
82 SHAFT; MAIN,TRANS
(A) Z=24-37-28-24 		8-98304-660-0 01 1 1507- ●
82 SHAFT; MAIN,TRANS
(B) Z=37-40-28-19 		1-33231-327-2 01 1 1306- ●
84 BEARING; COUNTER SHAFT,FRT
(A) NTN 		1-09810-119-0 01 1 1306- ●
84 BEARING; COUNTER SHAFT,FRT
(A) NSK 		1-09810-241-0 01 1 1306- ●
84 BEARING; COUNTER SHAFT,FRT
(B) NSK 		1-09810-221-0 01 1 1306- ●
84 BEARING; COUNTER SHAFT,FRT
(B) NTN 		1-09810-222-0 01 1 1306- ●
93 RING; SNAP,COUNTER FRT BRG 1-09588-149-0 01 1 1306- ● ●
94 KEY; FEATHER,COUNTER SHAFT
(A) L=67 		1-09735-049-0 01 1 1306- ●
94 KEY; FEATHER,COUNTER SHAFT
(B) L=70 		1-09735-046-0 02 1 1306- ●
96 GEAR; COUNTER DRIVE
(C) Z=41 		1-33331-272-0 01 1 1306- ●
96 GEAR; COUNTER DRIVE
(A) Z=35 		1-33331-258-2 01 1 1306- ●
96 GEAR; COUNTER DRIVE
(B) Z=38 		1-33338-374-3 01 1 1306- ●
97 GEAR; 5TH,COUNTER
Z=36 		1-33338-386-0 01 1 1306- ●
103 KEY; COUNTER GEAR
L=63 		1-09735-027-0 01 1 1306- ●
103 KEY; COUNTER GEAR
L=67 		1-09735-049-0 01 1 1306- ●
103 KEY; COUNTER GEAR
L=75.3 		1-09735-042-0 01 1 1306- ●
104 GEAR; 4TH,COUNTER
Z=35 		1-33338-380-0 01 1 1306- ●
108 SHAFT; COUNTER
(A) Z=24-17-12 		1-33311-331-0 01 1 1306- ●
108 SHAFT; COUNTER
(B) Z=26-21 		1-33311-325-1 01 1 1306- ●
109 BEARING; COUNTER SHAFT,RR
(B) NSK 		1-09810-205-0 01 1 1306- ●
109 BEARING; COUNTER SHAFT,RR
(B) NTN 		1-09810-206-0 01 1 1306- ●
109 BEARING; COUNTER SHAFT,RR
(A) NSK 		1-09810-186-0 01 1 1306- ● ●
109 BEARING; COUNTER SHAFT,RR
(A) NTN 		1-09810-207-0 01 1 1306- ● ●
110 RING; SNAP,COUNTER BRG 1-09588-193-1 01 1 1306- ● ●
111 GEAR; 7TH COUNTER SHAFT
Z=50 		1-33338-388-0 01 1 1306- ●
112 RING; BLOCK,7TH SYN
(A) Z=66 		1-33265-376-7 01 1 1306- ●
112 RING; BLOCK,7TH SYN
(B) Z=66 		1-33265-545-1 01 1 1306- ●
128 WASHER; THRUST,REV SHAFT
T=4.0 		9-33363-015-0 02 1 1306- ● ●
129 BEARING; NEEDLE,IDLER
NSK 		1-09811-384-0 01 1 1306- ● ●
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-385-0 01 1 1306- ● ●
132 SHAFT; REV
(A) 		1-33351-025-4 01 1 1306- ●
132 SHAFT; REV
(B) 		1-33351-035-1 01 1 1306- ●
135 GEAR; REV IDLER
(A) Z=36 		1-33361-075-0 01 1 1306- ●
135 GEAR; REV IDLER
(B) Z=30 		1-33361-081-1 01 1 1306- ●
138 PIECE; LK,REV SHAFT 9-33354-007-0 01 1 1306- ● ●
140 BOLT; LK PIECE
M10X25 		1-09049-006-1 01 1 1306- ● ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(B) NSK 		1-09810-172-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(B) NTN 		1-09810-173-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(A) NSK 		1-09810-203-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(A) NTN 		1-09810-204-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(C) NSK 		1-09810-256-0 01 1 1306- ●
149 BEARING; NEEDLE,MAINSHAFT,RR
(C) NTN 		1-09810-257-0 01 1 1306- ●
166 PIECE; DIST 1-33363-032-1 01 1 1306- ●
176 COLLAR; 5TH GEAR 1-33234-069-1 01 1 1306- ●
202 BEARING; COUNTER GEAR
NSK 		1-09811-382-0 02 1 1306-1311 ●
202 BEARING; COUNTER GEAR
NTN 		1-09811-383-0 02 1 1306- ●
228 PLUNGER; SYN 1-33263-020-0 03 1 1306- ●
229 SPRING; PLUNGER
(B) D=3.8 		1-09580-395-0 06 1 1404- ●
229 SPRING; PLUNGER
(A) D=6.2 		1-09580-091-1 06 1 1306- ●
229 SPRING; PLUNGER
(B) D=6.2 		1-09580-091-1 15 1 1306-1403 ●
229 SPRING; PLUNGER
(B) D=6.2 		1-09580-091-1 09 1 1404- ●
231 PLUNGER
(A) 		1-33263-020-0 03 1 1306- ●
231 PLUNGER
(C) 		1-33263-033-0 06 1 1306-1403 ●
231 PLUNGER
(C) 		8-98273-831-0 06 1 1404- ●
231 PLUNGER
SMOOTHER-G(C1W) (B) 		1-33263-038-1 09 1 1306- ●
231 PLUNGER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33263-038-1 12 1 1306- ●
237 KEY; 5TH GEAR
L=67 		1-09735-049-0 01 1 1306- ●
238 INSERT
(A) 		1-33263-025-2 06 1 1306- ●
238 INSERT
(C) 		1-33263-036-0 06 1 1306- ●
238 INSERT
(B) 		1-33263-039-0 09 1 1306- ●
241 RING; SNAP
(A) 		1-09588-185-0 01 1 1306- ●
241 RING; SNAP
(B) 		1-09588-189-0 01 1 1306- ●
241 RING; SNAP
(C) 		1-09587-023-0 02 1 1306- ●
241 RING; SNAP
(D) 		1-09587-104-0 01 1 1306- ●
286 NUT; LK,MAINSHAFT
M46 		1-09449-062-0 01 1 1306- ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-305-0 01 1 1306- ●
324 HUB; CLU
(C) 		1-33261-238-0 01 1 1306- ●
324 HUB; CLU
(A) 		1-34231-015-0 01 1 1306- ●
324 HUB; CLU
(B) 		1-34371-017-0 01 1 1306-1307 ●
324 HUB; CLU
(B) 		8-98239-089-0 01 1 1308- ●
342 FLANGE; OUTPUT
(A) 		8-98210-980-0 01 1 1306- ●
342 FLANGE; OUTPUT
(B) 		1-37243-370-0 01 1 1306- ●
345 BOLT; FLANGE TO YOKE
M14X48.5 		1-09046-013-0 04 1 1306- ● ●
357 RING
(A) 		1-31349-015-0 01 1 1306- ●
357 RING
(B) 		1-31349-044-0 04 1 1306- ●
362 COLLAR; 2ND GEAR 1-33234-072-0 01 1 1306- ●
408 SPRING 1-09583-171-0 03 1 1306- ●
429 SLEEVE; 2ND & 3RD 1-33262-219-0 01 1 1306- ●
474 NOZZLE; OIL 1-33219-257-0 01 1 1306- ●
476 ADAPTER; PUMP DRIVE
(A) 		1-33339-066-0 01 1 1306- ●
476 ADAPTER; PUMP DRIVE
(B) 		1-33339-091-1 01 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
