Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#124160) — 344 parça

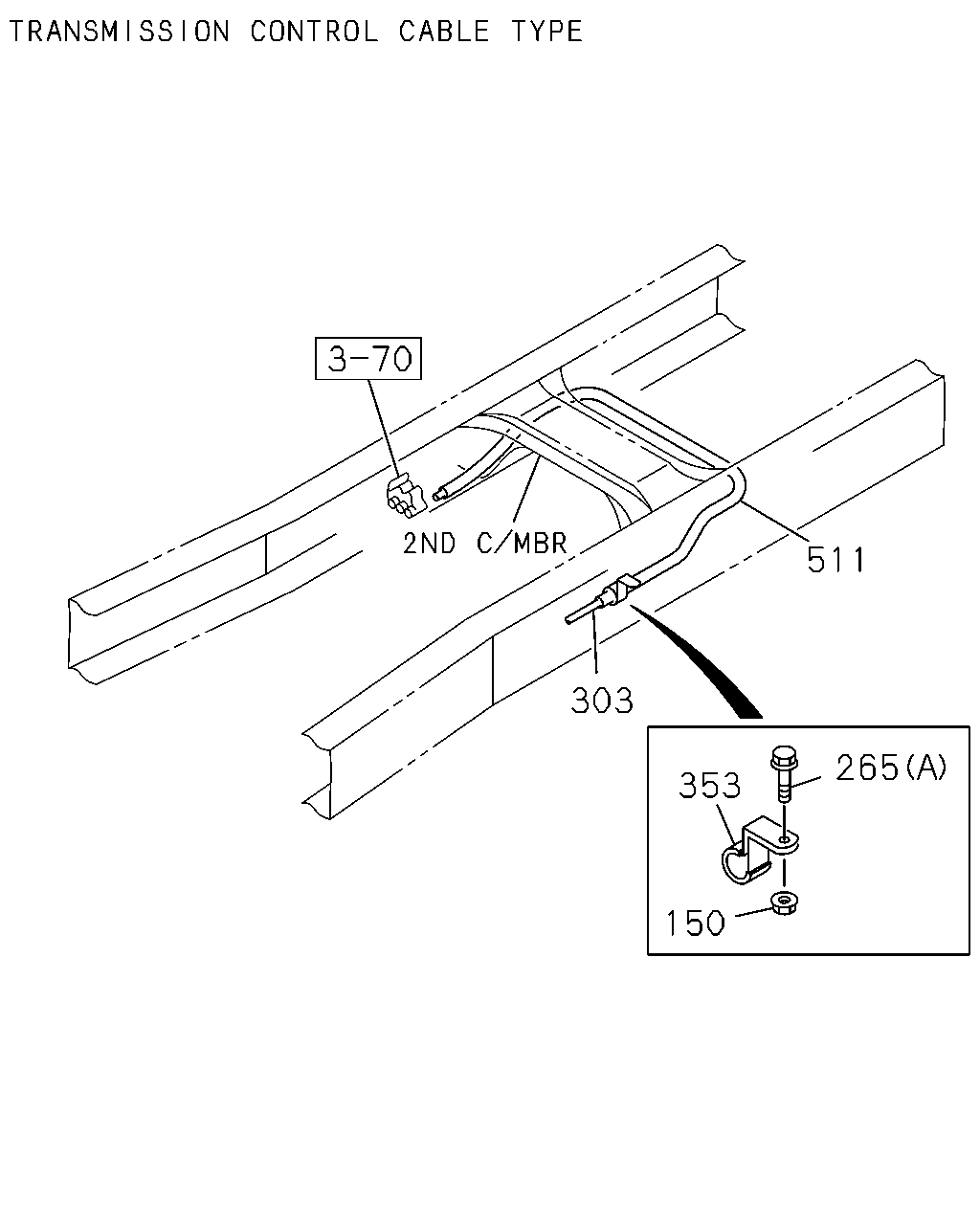

511 303 353 150 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
150	NUT TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	0-91180-108-0	01	1	1306-	●
265	BOLT; CLIP SMOOTHER-G(C1W) (B) M8X16 FLANGE	0-28050-816-0	01	1	1306-	●
265	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
303	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1306-	●
353	CLIP; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) ID=18 H=23 L=28	1-09701-070-0	01	1	1306-	●
511	TUBE; CORRUGATE TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1306-	●

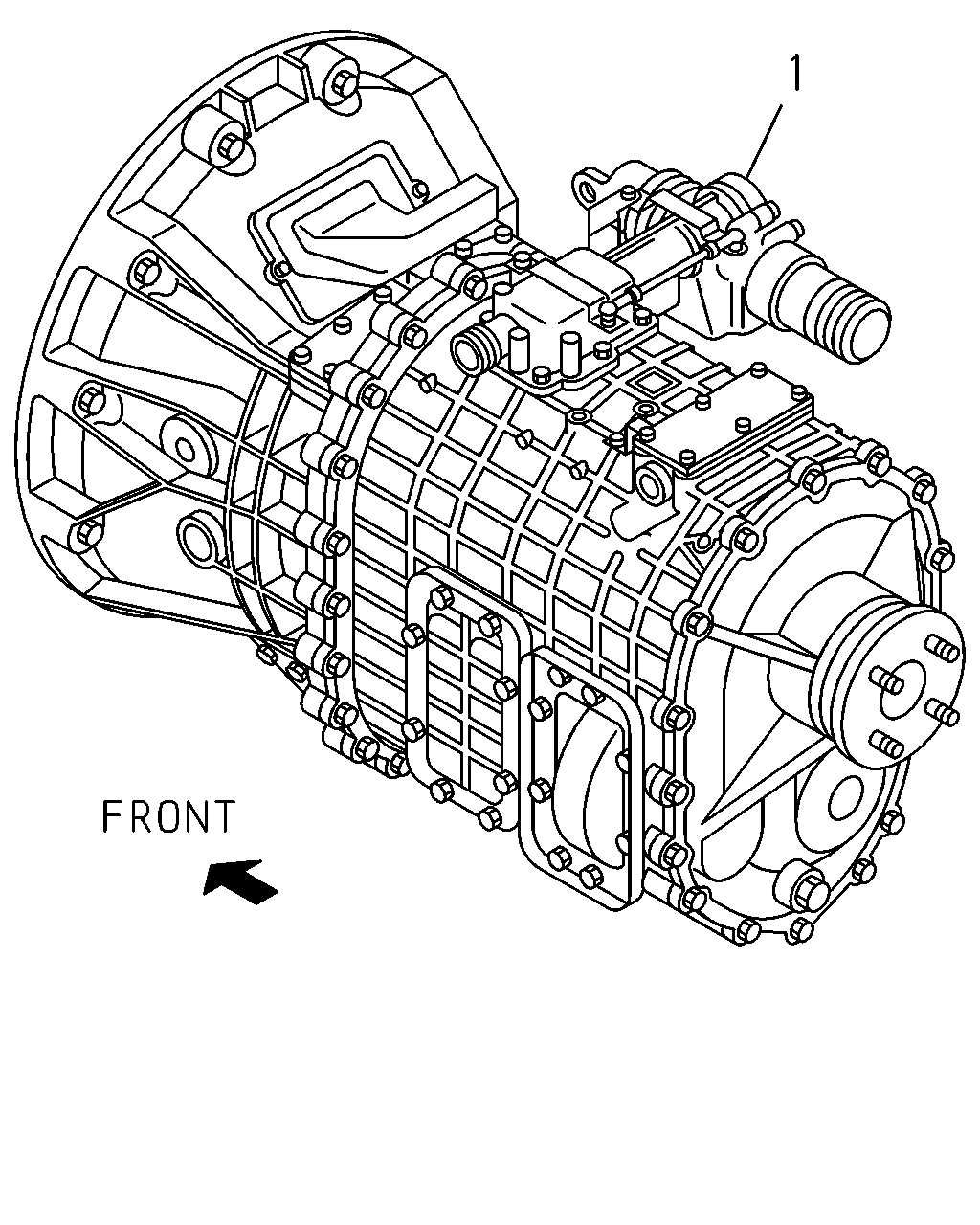

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL SMOOTHER-G(C1W)	1-33044-455-0	01	1	1306-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1306-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33044-615-0	01	1	1306-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33044-615-0	01	1	1306-	●

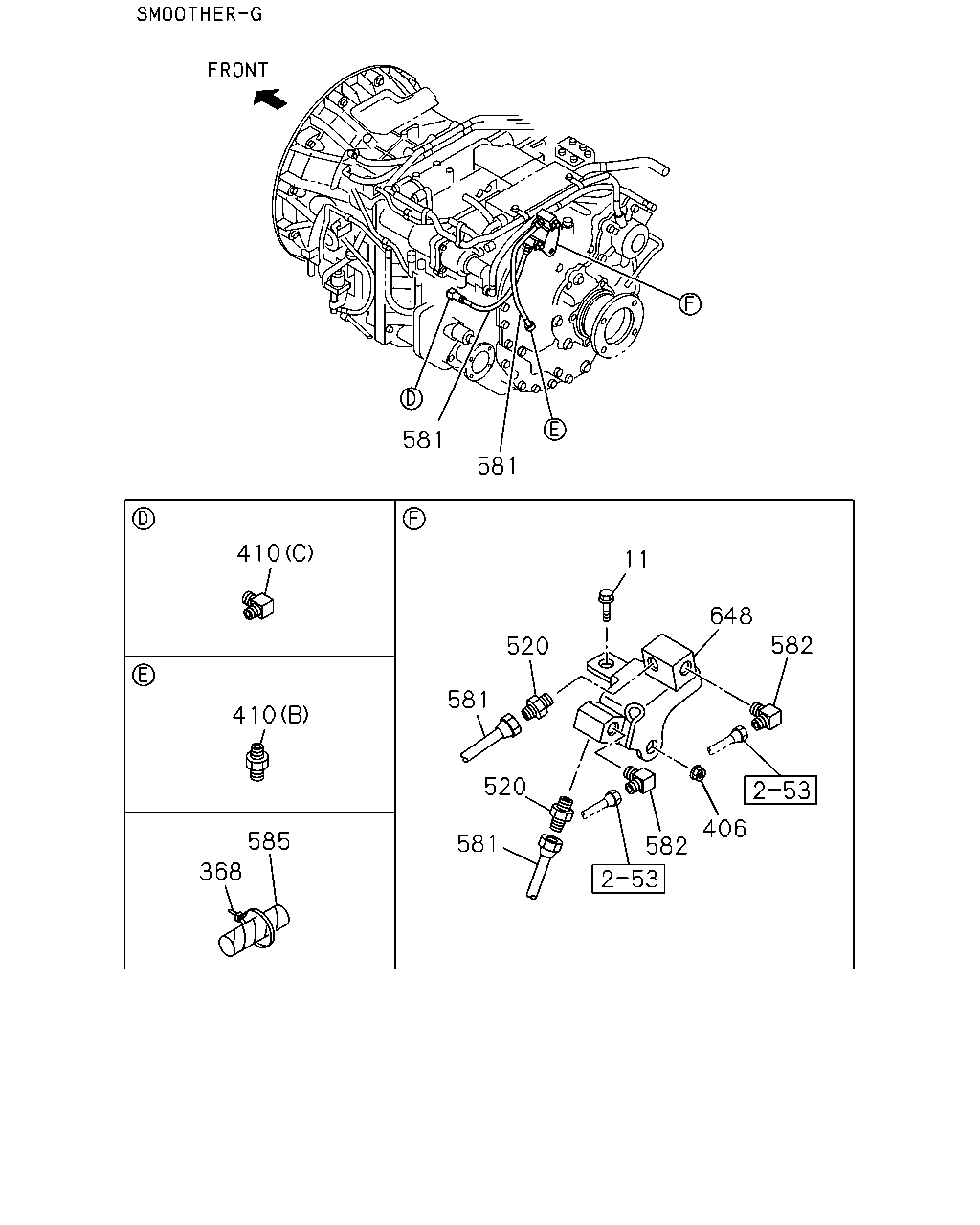

581 581 11 520 581 520 581 582 406 582 648 368 585

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
11	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	01	1	1306-	●
368	CLIP; BAND,CABLE L=250	1-09707-126-0	01	1	1306-	●
406	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1306-	●
520	CONNECTOR R1/4 & M16	0-92306-008-0	02	1	1306-	●
581	HOSE; OIL COOLER L=360	1-09365-234-0	02	1	1306-	●
582	NIPPLE; ELBOW R3/8 & M22 ELBOW	1-09660-612-1	02	1	1306-	●
585	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1306-	●
648	UNION ASM	8-98131-605-2	01	1	1306-	●

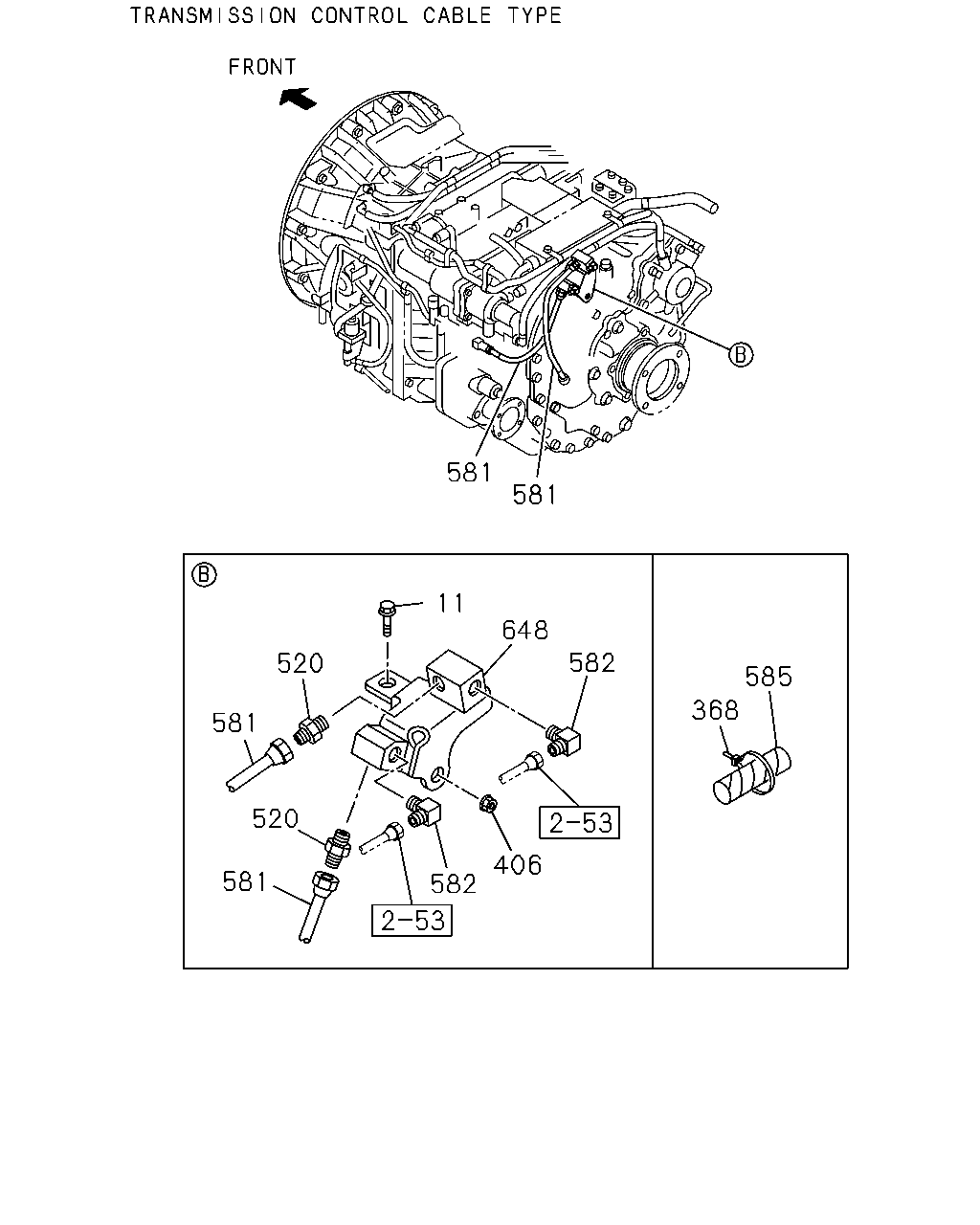

581 581 11 648 582 406 582 581 520 581 520 410 410 585 368

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	01	1	1306-	●
368	CLIP; BAND,CABLE L=250	1-09707-126-0	01	1	1306-	●
406	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1306-	●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	02	1	1306-		●
410	UNION; OIL PIPE (B) R1/4 & M16	0-92306-008-0	01	1	1306-	●
410	UNION; OIL PIPE (C) R1/4 & M16 ELBOW	1-09660-800-1	01	1	1306-	●
520	CONNECTOR R1/4 & M16	0-92306-008-0	02	1	1306-	●
581	HOSE; OIL COOLER L=360	1-09365-234-0	02	1	1306-	●
582	NIPPLE; ELBOW R3/8 & M22 ELBOW	1-09660-612-1	02	1	1306-	●
585	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1306-	●
648	UNION ASM	8-98131-605-2	01	1	1306-	●

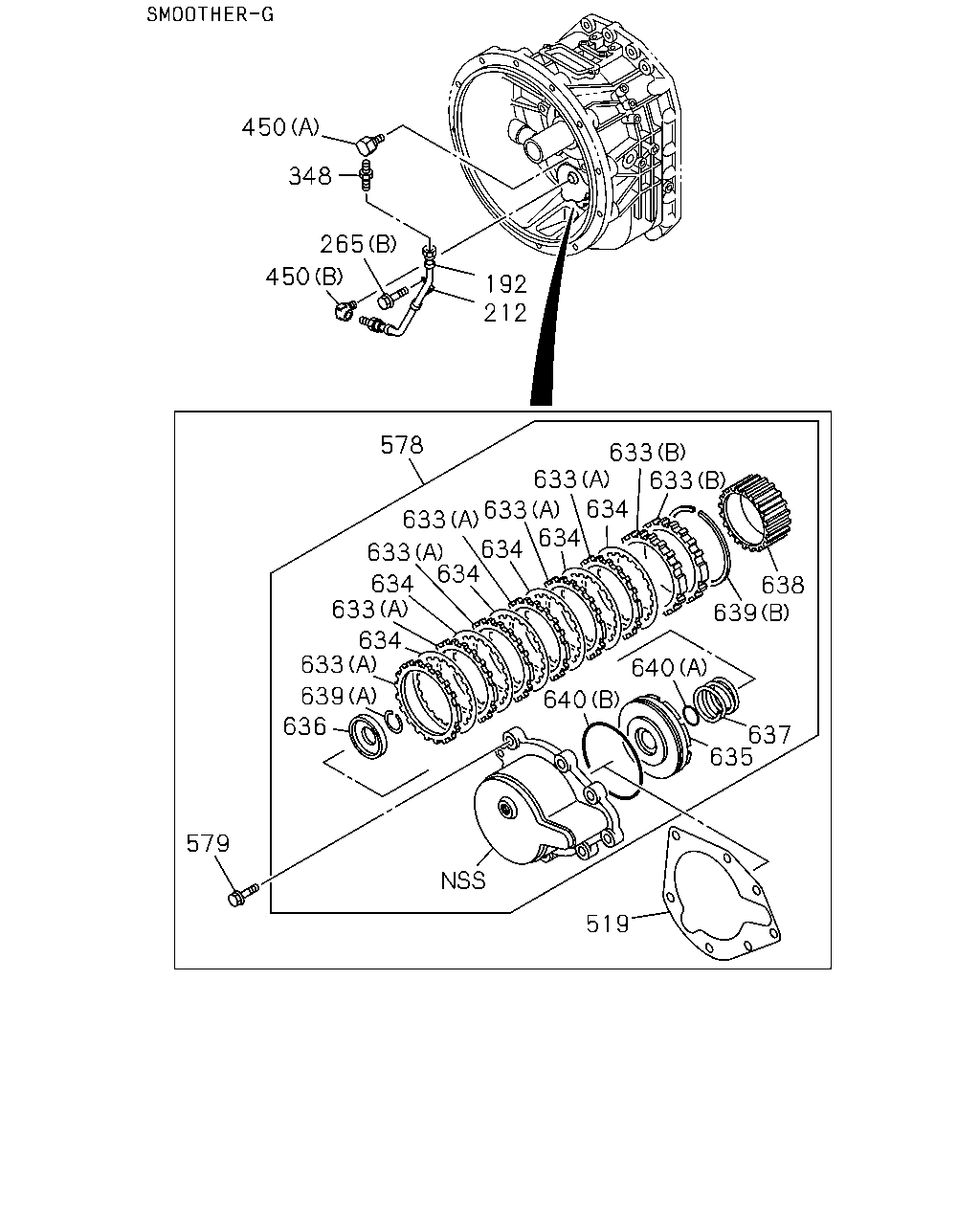

450 348 265 450 192 212 578 633 633 633 634 634 633 633 634 633 634 634 633 634 633 639 636 579 519 635 640 640 639 638 637

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
192	HOSE; FLEX,TRANS SMOOTHER-G(C1W) L=252	1-09365-062-0	01	1	1306-	●
212	CLIP; FLEX HOSE SMOOTHER-G(C1W) ID=9 H=20 L=25	1-09701-073-0	01	1	1306-	●
265	BOLT; CLIP SMOOTHER-G(C1W) (B) M8X16 FLANGE	0-28050-816-0	01	1	1306-	●
265	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
348	NIPPLE; GREASE,SHAFT SMOOTHER-G(C1W)	9-09902-299-0	01	1	1306-	●
450	ADAPTER; OIL SMOOTHER-G(C1W) (A)	1-09660-012-0	01	1	1306-	●
450	ADAPTER; OIL SMOOTHER-G(C1W) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1306-	●
519	GASKET; SHAFT SMOOTHER-G(C1W)	1-34142-034-0	01	1	1306-	●
578	BRAKE; COUNTER SHAFT SMOOTHER-G(C1W)	1-33316-005-1	01	1	1306-	●
579	BOLT; COUNTER SHAFT SMOOTHER-G(C1W) M10X30 FLANGE	0-28151-030-0	07	1	1306-	●
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (A)	1-33319-208-0	06	1	1306-	●
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=3.6	1-33319-209-0	02	1	1306-	●
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=3.8	1-33319-210-0	02	1	1306-	●
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=4.0	1-33319-211-0	02	1	1306-	●
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=4.2	1-33319-212-0	02	1	1306-	●
634	PLATE; FRICTION,BRAKE SMOOTHER-G(C1W)	1-33319-207-0	06	1	1306-	●
635	PISTON; BRAKE SMOOTHER-G(C1W) T=4.90	1-33319-230-0	01	1	1306-	●
636	PLATE; PRESSURE,BRAKE SMOOTHER-G(C1W)	1-33319-213-1	01	1	1306-	●
637	SPRING; BRAKE SMOOTHER-G(C1W)	1-33319-215-0	01	1	1306-	●
638	HUB; BRAKE SMOOTHER-G(C1W)	1-33319-220-0	01	1	1306-	●
639	RING; BRAKE SMOOTHER-G(C1W) (A)	1-33319-216-0	01	1	1306-	●
639	RING; BRAKE SMOOTHER-G(C1W) (B)	1-33319-217-0	01	1	1306-	●
640	GASKET; BRAKE SMOOTHER-G(C1W) (A)	1-33319-218-0	01	1	1306-	●
640	GASKET; BRAKE SMOOTHER-G(C1W) (B)	1-33319-219-0	01	1	1306-	●

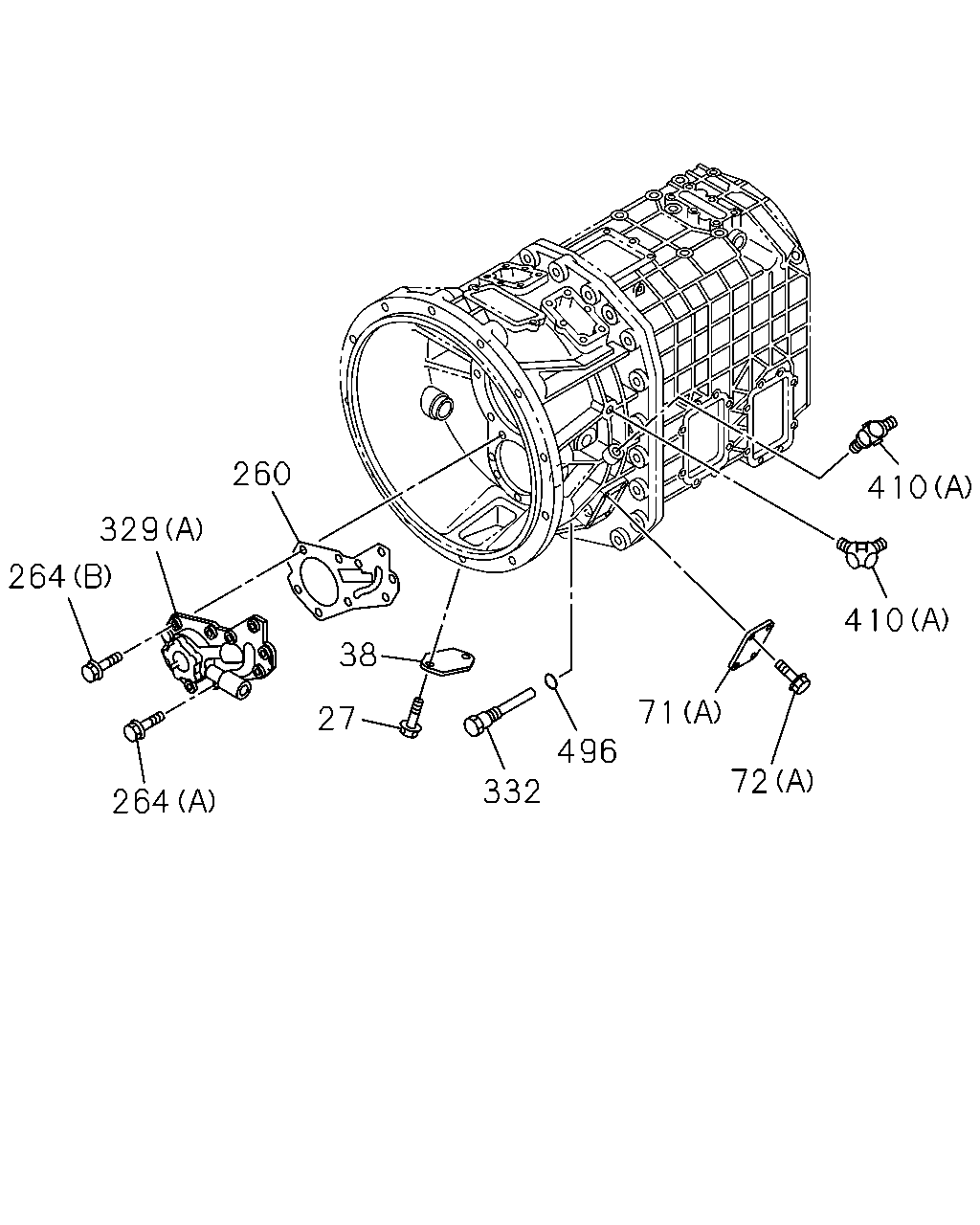

260 329 264 38 27 264 332 496 71 72 410 410

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1306-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1306-	●	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1306-		●
71	COVER; SIDE,TRANS CASE SMOOTHER-G(C1W) (C)	1-33141-057-1	01	1	1306-	●
71	COVER; SIDE,TRANS CASE TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	1306-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1306-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	1306-		●
71	COVER; SIDE,TRANS CASE SMOOTHER-G(C1W) (D)	1-33141-066-0	01	1	1306-	●
71	COVER; SIDE,TRANS CASE TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-33141-066-0	01	1	1306-	●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1306-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	1306-		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1306-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	1306-		●
72	BOLT; SIDE COVER SMOOTHER-G(C1W) (E) M10X35 FLANGE	0-28751-035-0	08	1	1306-	●
72	BOLT; SIDE COVER TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) M10X35 FLANGE	0-28751-035-0	08	1	1306-	●
72	BOLT; SIDE COVER TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A) (F) M12X30 FLANGE	1-09044-086-0	08	1	1306-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (F) M12X30 FLANGE	1-09044-086-0	08	1	1306-	●
260	GASKET; OIL PUMP	1-34142-031-0	01	1	1306-		●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1306-		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1306-		●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	1306-	●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	1306-	●
329	PUMP ASM; OIL (A)	1-34150-112-0	01	1	1306-		●
329	PUMP ASM; OIL (B)	1-34150-117-0	01	1	1306-1408	●
329	PUMP ASM; OIL (B)	8-98283-996-0	01	1	1409-	●
332	FILTER; OIL	1-34159-050-1	01	1	1306-		●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	02	1	1306-		●
410	UNION; OIL PIPE (B) R1/4 & M16	0-92306-008-0	01	1	1306-	●
410	UNION; OIL PIPE (C) R1/4 & M16 ELBOW	1-09660-800-1	01	1	1306-	●
496	GASKET; OIL FILTER ID=24.2	1-09630-090-0	01	1	1306-		●

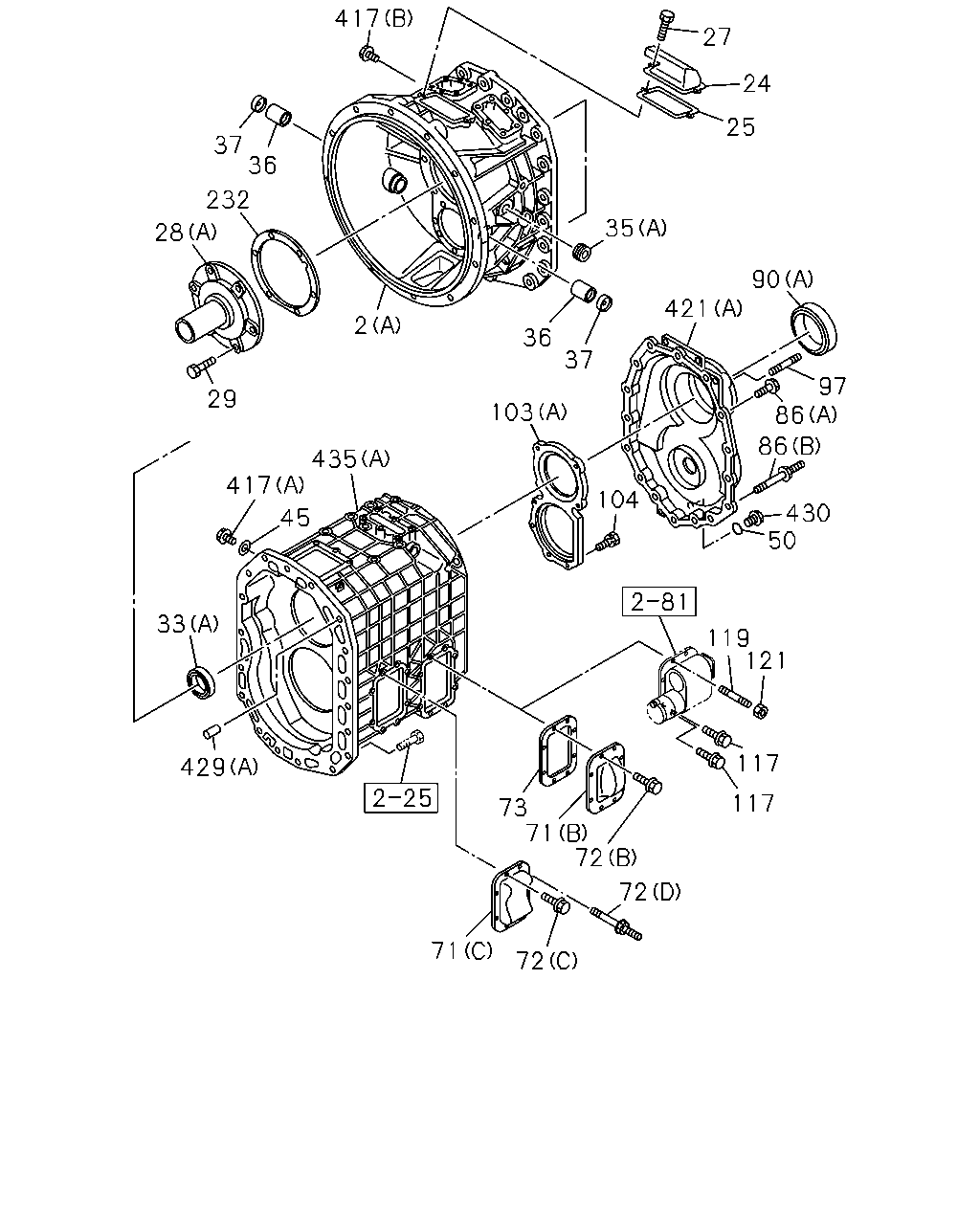

71 72 73 71 72 72 117 121 117 119 429 33 417 435 45 29 28 2 232 36 37 417 104 103 36 37 421 35 90 97 86 86 430 50 25 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU (A)	8-98077-166-1	01	1	1306-1405		●
2	HOUSING; CLU (A)	8-98200-947-0	01	1	1406-		●
2	HOUSING; CLU (B)	8-98168-737-0	01	1	1306-	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1306-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1306-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1306-	●	●
28	COVER; FRT,TRANS CASE (A)	1-33121-158-3	01	1	1306-		●
28	COVER; FRT,TRANS CASE (B)	1-33121-153-0	01	1	1306-	●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1306-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-562-0	01	1	1306-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-624-0	01	1	1306-	●
35	GROMMET; CLU HSG (A) OD=45	9-31139-007-0	01	1	1306-		●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	1306-	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1306-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1306-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1306-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1306-		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1306-		●
71	COVER; SIDE,TRANS CASE SMOOTHER-G(C1W) (C)	1-33141-057-1	01	1	1306-	●
71	COVER; SIDE,TRANS CASE TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	1306-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1306-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	1306-		●
71	COVER; SIDE,TRANS CASE SMOOTHER-G(C1W) (D)	1-33141-066-0	01	1	1306-	●
71	COVER; SIDE,TRANS CASE TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-33141-066-0	01	1	1306-	●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1306-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	1306-		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1306-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	1306-		●
72	BOLT; SIDE COVER SMOOTHER-G(C1W) (E) M10X35 FLANGE	0-28751-035-0	08	1	1306-	●
72	BOLT; SIDE COVER TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) M10X35 FLANGE	0-28751-035-0	08	1	1306-	●
72	BOLT; SIDE COVER TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A) (F) M12X30 FLANGE	1-09044-086-0	08	1	1306-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (F) M12X30 FLANGE	1-09044-086-0	08	1	1306-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	1306-		●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	1306-		●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1306-		●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	1306-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-577-1	01	1	1306-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-625-0	01	1	1306-	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	1306-		●
103	RETAINER; BRG (A)	1-33151-059-0	01	1	1306-		●
103	RETAINER; BRG SMOOTHER-G(C1W) (C)	1-33151-060-1	01	1	1306-	●
103	RETAINER; BRG TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33151-061-0	01	1	1306-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1306-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	1306-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	1306-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A) M10X28 FLANGE	8-98044-944-0	02	1	1306-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) TRANSMISSION CONTROL CABLE TYPE(C1A) M12X35 FLANGE	0-28751-235-0	04	1	1306-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	1306-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A) M10X25 L=40	0-44011-025-0	06	1	1306-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) TRANSMISSION CONTROL CABLE TYPE(C1A) M12X30 L=48	8-98059-951-0	04	1	1306-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	1306-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) TRANSMISSION CONTROL CABLE TYPE(C1A) M12 FLANGE	0-91180-212-0	04	1	1306-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	0-91180-210-0	06	1	1306-	●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1306-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1306-		●
417	PLUG; OIL FILLER,TRANS TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M22X12	1-09604-035-0	01	1	1306-	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1306-	●	●
421	COVER; RR,TRANS (A)	8-98191-936-1	01	1	1306-1502		●
421	COVER; RR,TRANS (A)	8-98304-558-0	01	1	1503-		●
421	COVER; RR,TRANS (B)	1-33131-238-0	01	1	1306-	●
429	PIN; STRAIGHT (A) OD=10 L=18	9-08151-018-0	06	1	1306-	●	●
429	PIN; STRAIGHT (B) OD=12 L=32	9-08161-232-0	01	1	1306-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1306-		●
435	CASE; TRANS (A)	8-98132-970-0	01	1	1306-		●
435	CASE; TRANS SMOOTHER-G(C1W) (C)	8-98049-690-1	01	1	1306-	●
435	CASE; TRANS TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33111-361-1	01	1	1306-	●

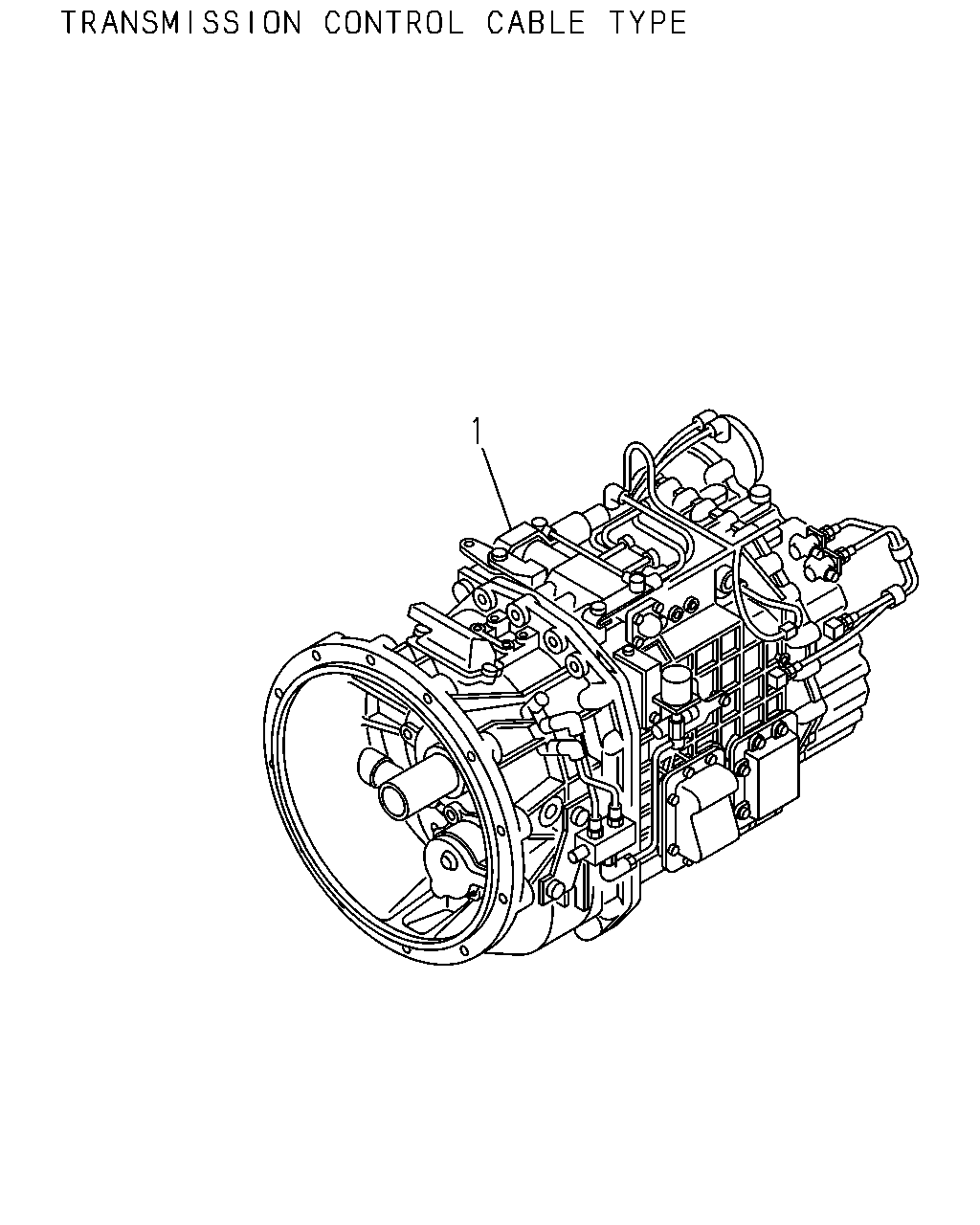

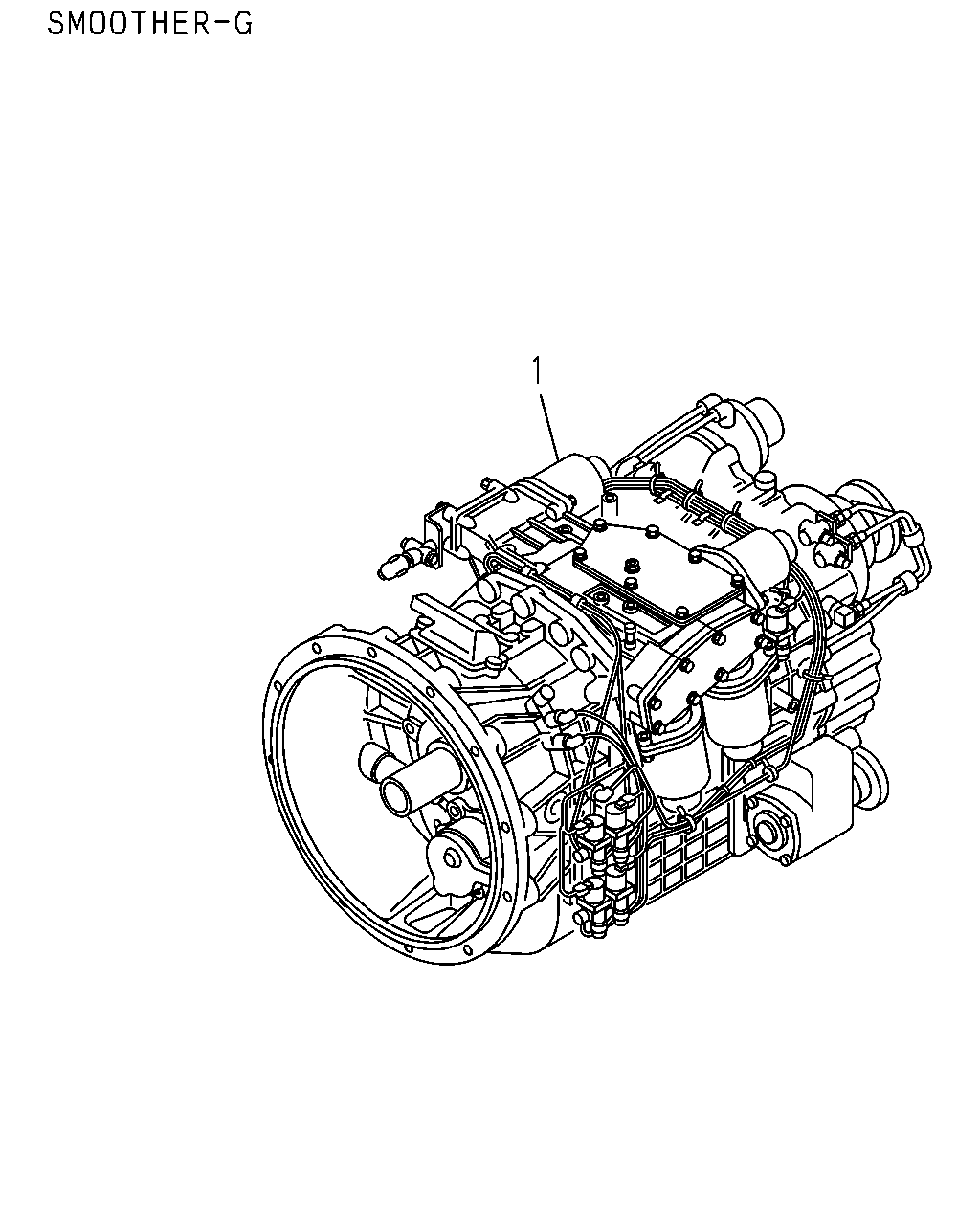

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL SMOOTHER-G(C1W)	1-33044-455-0	01	1	1306-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1306-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33044-615-0	01	1	1306-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33044-615-0	01	1	1306-	●

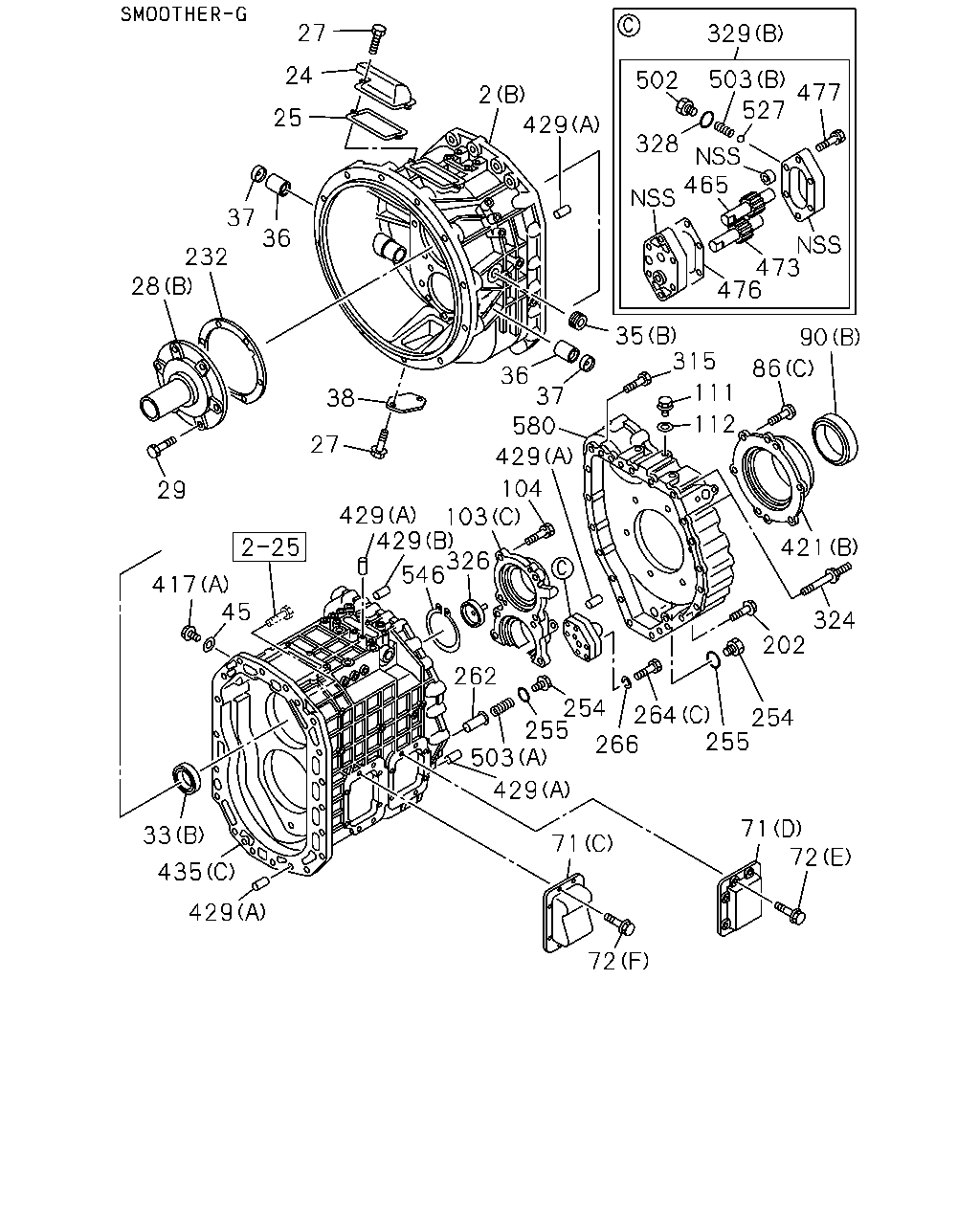

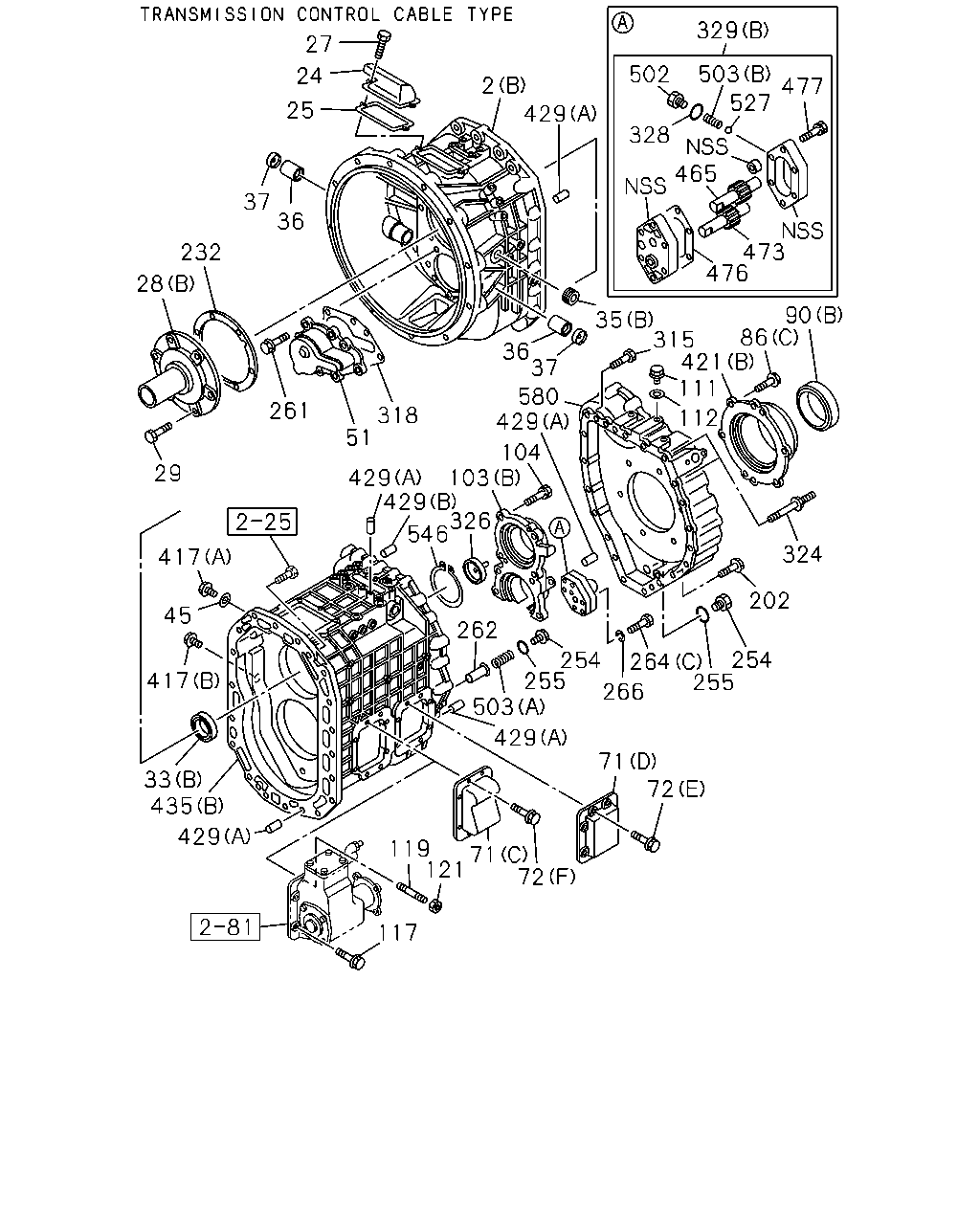

27 24 25 37 36 232 28 29 261 417 45 417 33 435 429 2 429 318 51 429 429 546 119 117 121 35 36 37 580 429 104 103 326 262 503 429 71 72 71 72 255 254 266 264 255 254 202 324 112 111 421 315 86 90 476 473 465 328 502 503 527 477 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU (A)	8-98077-166-1	01	1	1306-1405		●
2	HOUSING; CLU (A)	8-98200-947-0	01	1	1406-		●
2	HOUSING; CLU (B)	8-98168-737-0	01	1	1306-	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1306-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1306-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1306-	●	●
28	COVER; FRT,TRANS CASE (A)	1-33121-158-3	01	1	1306-		●
28	COVER; FRT,TRANS CASE (B)	1-33121-153-0	01	1	1306-	●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1306-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-562-0	01	1	1306-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-624-0	01	1	1306-	●
35	GROMMET; CLU HSG (A) OD=45	9-31139-007-0	01	1	1306-		●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	1306-	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1306-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1306-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1306-	●	●
51	COVER; SEAL,COUNTER,FRT TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33319-200-1	01	1	1306-	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1306-		●
71	COVER; SIDE,TRANS CASE SMOOTHER-G(C1W) (C)	1-33141-057-1	01	1	1306-	●
71	COVER; SIDE,TRANS CASE TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	1306-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1306-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	1306-		●
71	COVER; SIDE,TRANS CASE SMOOTHER-G(C1W) (D)	1-33141-066-0	01	1	1306-	●
71	COVER; SIDE,TRANS CASE TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-33141-066-0	01	1	1306-	●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1306-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	1306-		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1306-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	1306-		●
72	BOLT; SIDE COVER SMOOTHER-G(C1W) (E) M10X35 FLANGE	0-28751-035-0	08	1	1306-	●
72	BOLT; SIDE COVER TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) M10X35 FLANGE	0-28751-035-0	08	1	1306-	●
72	BOLT; SIDE COVER TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A) (F) M12X30 FLANGE	1-09044-086-0	08	1	1306-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (F) M12X30 FLANGE	1-09044-086-0	08	1	1306-	●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	1306-		●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1306-		●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	1306-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-577-1	01	1	1306-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-625-0	01	1	1306-	●
103	RETAINER; BRG (A)	1-33151-059-0	01	1	1306-		●
103	RETAINER; BRG SMOOTHER-G(C1W) (C)	1-33151-060-1	01	1	1306-	●
103	RETAINER; BRG TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33151-061-0	01	1	1306-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1306-	●	●
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	1306-	●
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1306-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	1306-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	1306-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A) M10X28 FLANGE	8-98044-944-0	02	1	1306-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) TRANSMISSION CONTROL CABLE TYPE(C1A) M12X35 FLANGE	0-28751-235-0	04	1	1306-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	1306-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A) M10X25 L=40	0-44011-025-0	06	1	1306-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) TRANSMISSION CONTROL CABLE TYPE(C1A) M12X30 L=48	8-98059-951-0	04	1	1306-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	1306-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) TRANSMISSION CONTROL CABLE TYPE(C1A) M12 FLANGE	0-91180-212-0	04	1	1306-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	0-91180-210-0	06	1	1306-	●
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	1306-	●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1306-	●	●
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	1306-	●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	1306-	●
261	BOLT; COVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10X30 FLANGE	0-28151-030-0	07	1	1306-	●
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	1306-	●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1306-		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1306-		●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	1306-	●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	1306-	●
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	1306-	●
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	1306-	●
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	1306-	●
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	1306-	●
318	GASKET; COVER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-34142-034-0	01	1	1306-	●
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	1306-	●
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	1306-	●
328	GASKET; PLUG	1-34159-100-0	01	1	1306-	●
329	PUMP ASM; OIL (A)	1-34150-112-0	01	1	1306-		●
329	PUMP ASM; OIL (B)	1-34150-117-0	01	1	1306-1408	●
329	PUMP ASM; OIL (B)	8-98283-996-0	01	1	1409-	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1306-		●
417	PLUG; OIL FILLER,TRANS TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M22X12	1-09604-035-0	01	1	1306-	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1306-	●	●
421	COVER; RR,TRANS (A)	8-98191-936-1	01	1	1306-1502		●
421	COVER; RR,TRANS (A)	8-98304-558-0	01	1	1503-		●
421	COVER; RR,TRANS (B)	1-33131-238-0	01	1	1306-	●
429	PIN; STRAIGHT (A) OD=10 L=18	9-08151-018-0	06	1	1306-	●	●
429	PIN; STRAIGHT (B) OD=12 L=32	9-08161-232-0	01	1	1306-	●
435	CASE; TRANS (A)	8-98132-970-0	01	1	1306-		●
435	CASE; TRANS SMOOTHER-G(C1W) (C)	8-98049-690-1	01	1	1306-	●
435	CASE; TRANS TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33111-361-1	01	1	1306-	●
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	1306-1408	●
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	1306-1408	●
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	1306-	●
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	1306-1408	●
502	PLUG; OIL PUMP	1-34159-101-0	01	1	1306-	●
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	1306-	●
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	1306-	●
527	BALL; OIL PUMP	9-00097-531-0	01	1	1306-	●
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	1306-	●
580	CASE; RANGE	1-33115-051-2	01	1	1306-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-653-0	01	1	1306-		●
1	TRANSMISSION ASM; MANUAL SMOOTHER-G(C1W)	1-33044-455-0	01	1	1306-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1306-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33044-615-0	01	1	1306-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33044-615-0	01	1	1306-	●

27 24 25 37 36 232 28 29 27 38 417 45 429 429 546 326 103 104 429 580 37 36 2 429 502 503 329 477 527 328 465 476 473 90 86 315 111 112 35 421 324 202 254 255 264 266 254 255 503 429 71 71 72 72 262 435 429 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU (A)	8-98077-166-1	01	1	1306-1405		●
2	HOUSING; CLU (A)	8-98200-947-0	01	1	1406-		●
2	HOUSING; CLU (B)	8-98168-737-0	01	1	1306-	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1306-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1306-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1306-	●	●
28	COVER; FRT,TRANS CASE (A)	1-33121-158-3	01	1	1306-		●
28	COVER; FRT,TRANS CASE (B)	1-33121-153-0	01	1	1306-	●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1306-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-562-0	01	1	1306-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-624-0	01	1	1306-	●
35	GROMMET; CLU HSG (A) OD=45	9-31139-007-0	01	1	1306-		●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	1306-	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1306-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1306-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1306-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1306-	●	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	1306-		●
71	COVER; SIDE,TRANS CASE SMOOTHER-G(C1W) (C)	1-33141-057-1	01	1	1306-	●
71	COVER; SIDE,TRANS CASE TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	1306-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	1306-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	1306-		●
71	COVER; SIDE,TRANS CASE SMOOTHER-G(C1W) (D)	1-33141-066-0	01	1	1306-	●
71	COVER; SIDE,TRANS CASE TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-33141-066-0	01	1	1306-	●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	1306-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	1306-		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	1306-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	1306-		●
72	BOLT; SIDE COVER SMOOTHER-G(C1W) (E) M10X35 FLANGE	0-28751-035-0	08	1	1306-	●
72	BOLT; SIDE COVER TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) M10X35 FLANGE	0-28751-035-0	08	1	1306-	●
72	BOLT; SIDE COVER TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A) (F) M12X30 FLANGE	1-09044-086-0	08	1	1306-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (F) M12X30 FLANGE	1-09044-086-0	08	1	1306-	●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	1306-		●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	1306-		●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	1306-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-577-1	01	1	1306-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-625-0	01	1	1306-	●
103	RETAINER; BRG (A)	1-33151-059-0	01	1	1306-		●
103	RETAINER; BRG SMOOTHER-G(C1W) (C)	1-33151-060-1	01	1	1306-	●
103	RETAINER; BRG TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33151-061-0	01	1	1306-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1306-	●	●
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	1306-	●
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1306-	●
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	1306-	●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1306-	●	●
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	1306-	●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	1306-	●
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	1306-	●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	1306-		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1306-		●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	1306-	●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	1306-	●
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	1306-	●
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	1306-	●
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	1306-	●
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	1306-	●
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	1306-	●
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	1306-	●
328	GASKET; PLUG	1-34159-100-0	01	1	1306-	●
329	PUMP ASM; OIL (A)	1-34150-112-0	01	1	1306-		●
329	PUMP ASM; OIL (B)	1-34150-117-0	01	1	1306-1408	●
329	PUMP ASM; OIL (B)	8-98283-996-0	01	1	1409-	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1306-		●
417	PLUG; OIL FILLER,TRANS TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M22X12	1-09604-035-0	01	1	1306-	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1306-	●	●
421	COVER; RR,TRANS (A)	8-98191-936-1	01	1	1306-1502		●
421	COVER; RR,TRANS (A)	8-98304-558-0	01	1	1503-		●
421	COVER; RR,TRANS (B)	1-33131-238-0	01	1	1306-	●
429	PIN; STRAIGHT (A) OD=10 L=18	9-08151-018-0	06	1	1306-	●	●
429	PIN; STRAIGHT (B) OD=12 L=32	9-08161-232-0	01	1	1306-	●
435	CASE; TRANS (A)	8-98132-970-0	01	1	1306-		●
435	CASE; TRANS SMOOTHER-G(C1W) (C)	8-98049-690-1	01	1	1306-	●
435	CASE; TRANS TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33111-361-1	01	1	1306-	●
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	1306-1408	●
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	1306-1408	●
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	1306-	●
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	1306-1408	●
502	PLUG; OIL PUMP	1-34159-101-0	01	1	1306-	●
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	1306-	●
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	1306-	●
527	BALL; OIL PUMP	9-00097-531-0	01	1	1306-	●
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	1306-	●
580	CASE; RANGE	1-33115-051-2	01	1	1306-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
