◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11524 - CYH RHD EURO2 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#124159) — 12 parça

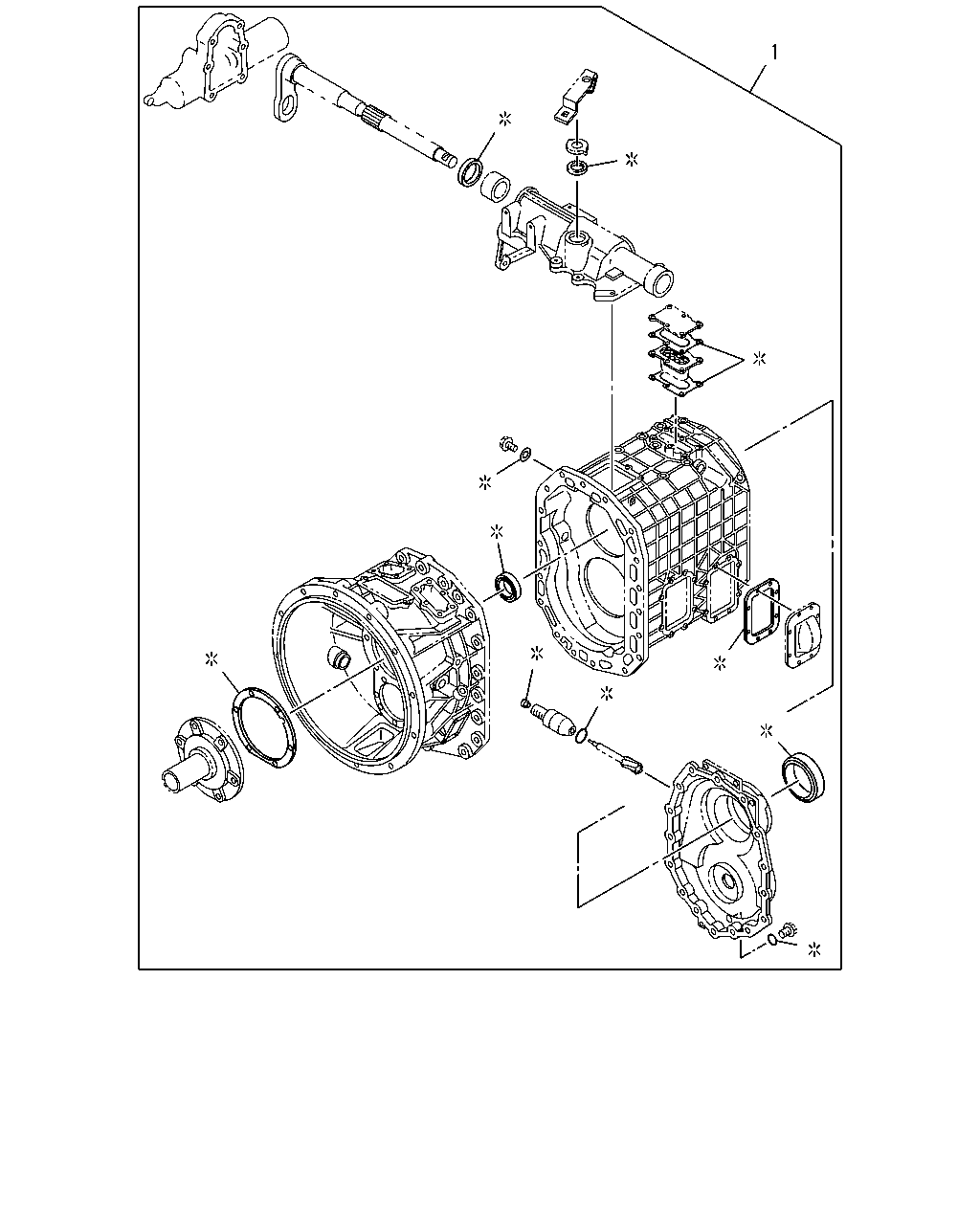

çizim 362847
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; TRANS OVERHAUL 1-87831-290-1 01 1 1306- ●
1 GASKET SET; TRANS OVERHAUL
SMOOTHER-G(C1W) 		1-87831-401-1 01 1 1306- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-87831-314-0 01 1 1306-1312 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-87831-445-1 01 1 1401- ●

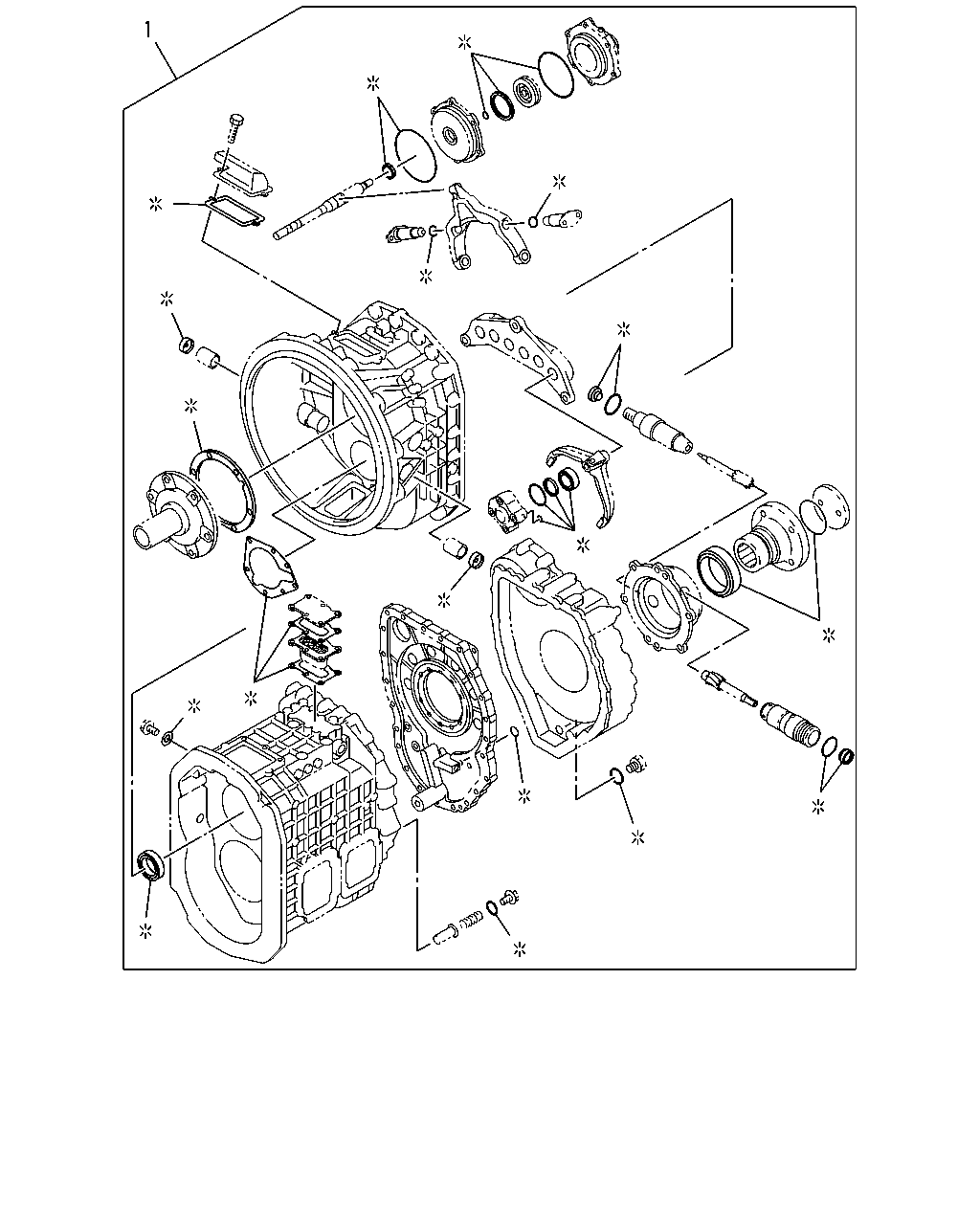

çizim 365789
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; TRANS OVERHAUL 1-87831-290-1 01 1 1306- ●
1 GASKET SET; TRANS OVERHAUL
SMOOTHER-G(C1W) 		1-87831-401-1 01 1 1306- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-87831-314-0 01 1 1306-1312 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-87831-445-1 01 1 1401- ●

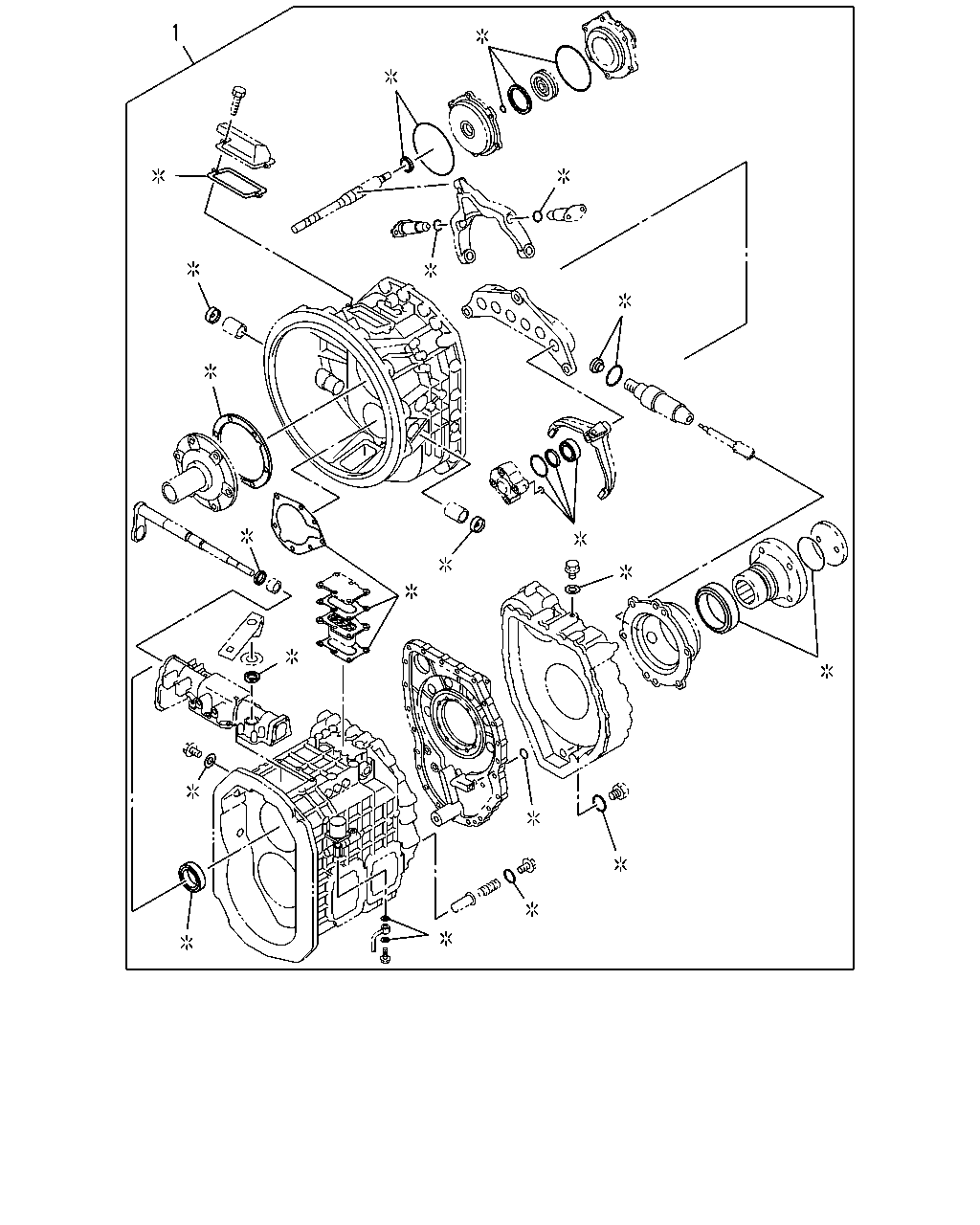

çizim 367056
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; TRANS OVERHAUL 1-87831-290-1 01 1 1306- ●
1 GASKET SET; TRANS OVERHAUL
SMOOTHER-G(C1W) 		1-87831-401-1 01 1 1306- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-87831-314-0 01 1 1306-1312 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-87831-445-1 01 1 1401- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
