Sayfa 2-07 - Isuzu EPC

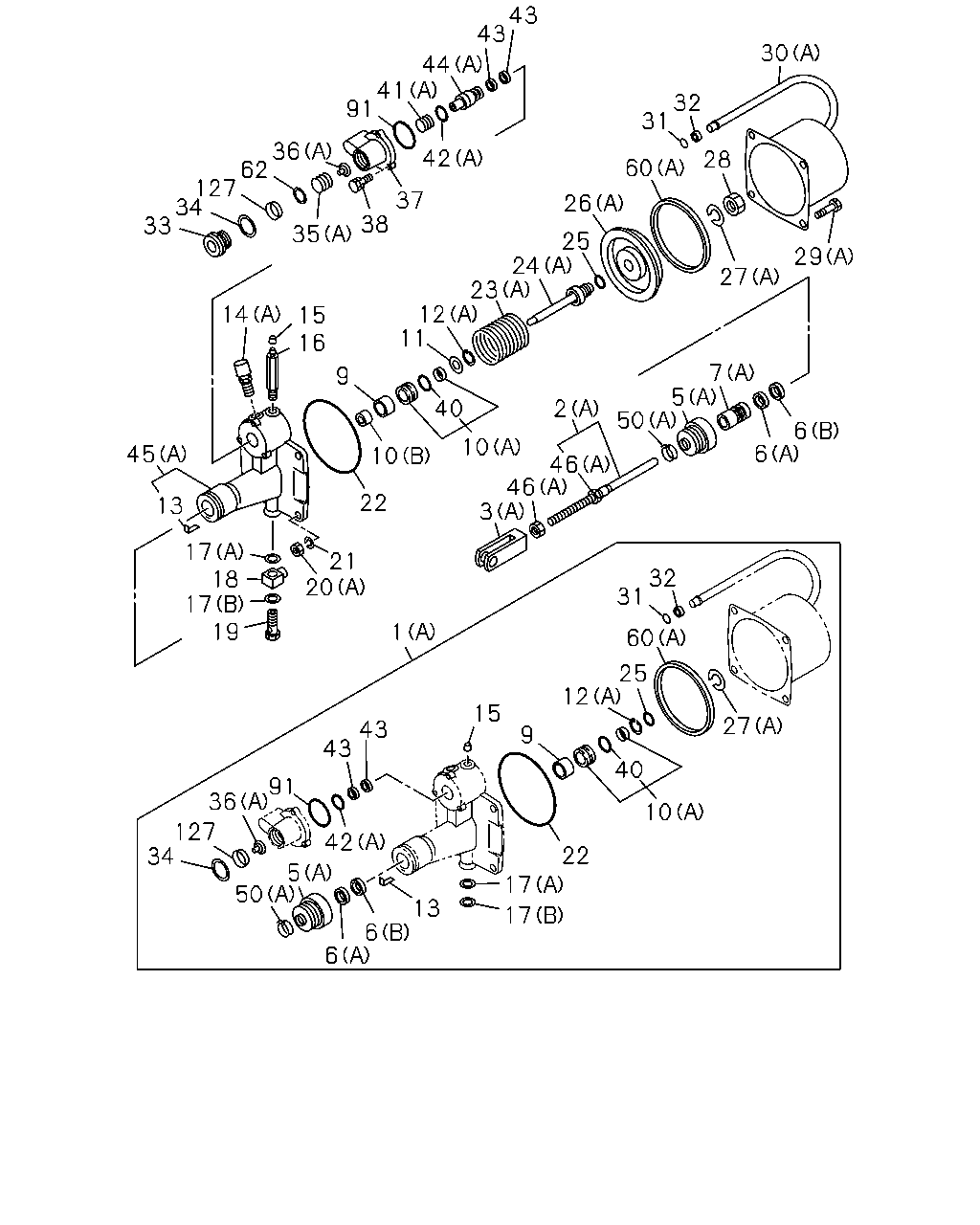

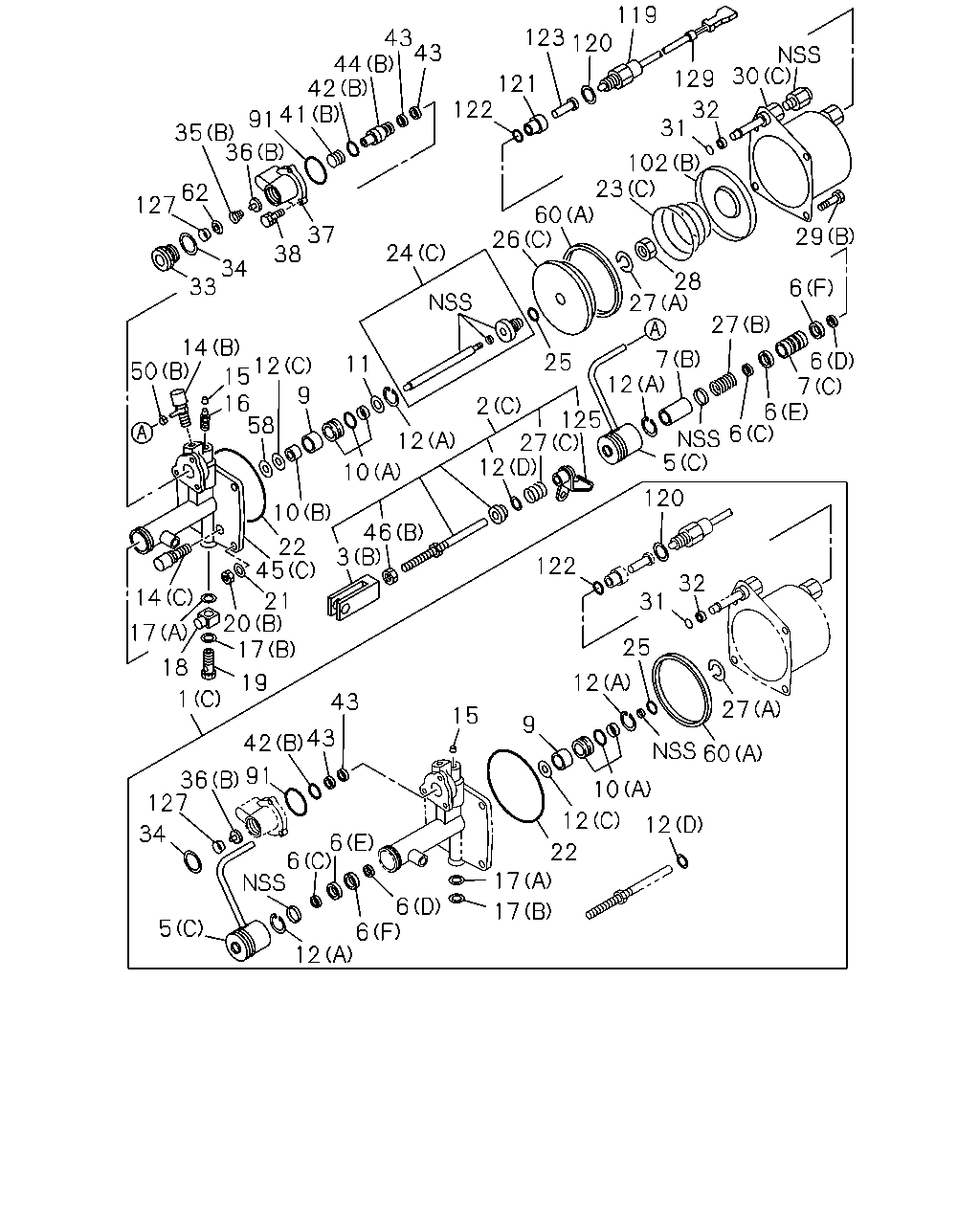

2-07 — CLUTCH BOOSTER; MINIPACK (#124157) — 330 parça

119 120 129 30 32 31 102 23 29 6 28 27 27 6 123 121 122 60 26 24 25 6 7 6 5 120 122 31 32 27 60 10 12 12 9 12 22 17 17 6 6 12 6 6 5 34 36 43 42 91 43 15 25 1 18 19 17 17 20 14 21 45 46 3 22 10 10 12 2 12 27 125 12 9 11 58 127 12 15 50 14 16 7 33 34 38 37 127 62 35 36 91 41 42 44 43 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER (A)	1-31829-501-0	01	1	1306-	●
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-620-0	01	1	1306-		●
1	REPAIR KIT; CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-560-0	01	1	1306-		●
2	ROD; PUSH,CLU BOOSTER (A)	1-31824-233-0	01	1	1306-	●
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31824-256-0	01	1	1306-		●
2	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31824-227-0	01	1	1306-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER (A)	1-31829-287-0	01	1	1306-	●
3	CLEVIS; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-287-0	01	1	1306-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-619-0	01	1	1306-		●
5	GUARD; PISTON,CLU BOOSTER (A)	1-31829-503-0	01	1	1306-	●
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-626-0	01	1	1306-		●
5	GUARD; PISTON,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-555-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	1306-	●
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-055-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	1306-	●
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-056-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-441-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-442-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (E)	1-31829-443-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (F)	1-31829-444-0	01	1	1306-		●
7	PISTON; CLU BOOSTER (A)	1-31821-048-0	01	1	1306-	●
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31821-048-0	01	1	1306-		●
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-068-0	01	1	1306-		●
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31821-081-0	01	1	1306-		●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	1306-	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	1306-	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	1306-	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	1306-	●	●
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	01	1	1306-	●
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-142-0	01	1	1306-		●
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-142-0	02	1	1306-		●
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-446-0	01	1	1306-		●
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-621-0	01	1	1306-		●
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-94415-036-0	01	1	1306-		●
14	COVER; EXH,CLU BOOSTER (A)	1-31829-564-0	01	1	1306-	●
14	COVER; EXH,CLU BOOSTER (B)	1-31829-366-0	01	1	1306-		●
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-365-0	01	1	1306-		●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	1306-	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	1306-	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	1306-	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	1306-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	1306-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	1306-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER (A) M10	9-09111-410-0	04	1	1306-	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10	9-09111-410-0	04	1	1306-		●
20	NUT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-624-0	04	1	1306-		●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	1306-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	1306-	●	●
23	SPRING; SHELL,CLU BOOSTER (A)	1-31829-350-0	01	1	1306-	●
23	SPRING; SHELL,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-506-0	01	1	1306-		●
23	SPRING; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-554-0	01	1	1306-		●
24	ROD; PUSH,CLU BOOSTER (A)	1-31824-158-0	01	1	1306-	●
24	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31824-211-0	01	1	1306-		●
24	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31824-224-0	01	1	1306-		●
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	1306-	●	●
26	PISTON; SHELL,CLU BOOSTER (A)	1-31821-072-0	01	1	1306-	●
26	PISTON; SHELL,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31821-080-0	01	1	1306-		●
26	PISTON; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31821-050-0	01	1	1306-		●
27	SPRING; CLU BOOSTER (A)	1-31829-291-0	01	1	1306-	●	●
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-505-0	01	1	1306-		●
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-510-0	01	1	1306-		●
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	1306-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER (A)	9-83315-099-0	04	1	1306-	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	9-83315-099-0	04	1	1306-		●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W) (B)	9-83315-078-0	04	1	1306-		●
30	SHELL; CYL,CLU BOOSTER (A)	1-31811-117-0	01	1	1306-	●
30	SHELL; CYL,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31811-120-0	01	1	1306-		●
30	SHELL; CYL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31811-128-0	01	1	1306-		●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	1306-	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	1306-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	1306-	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	1306-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER (A)	1-31829-537-0	01	1	1306-	●
35	SPRING; POPPET VLV,CLU BOOSTER (B)	1-31829-451-0	01	1	1306-		●
36	VALVE; POPPET,CLU BOOSTER (A)	1-31829-536-0	01	1	1306-	●
36	VALVE; POPPET,CLU BOOSTER (B)	1-31829-452-0	01	1	1306-		●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	1306-	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	1306-	●	●
41	SPRING; DIAPH,CLU BOOSTER (A)	1-31829-458-0	01	1	1306-	●
41	SPRING; DIAPH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-458-0	01	1	1306-		●
41	SPRING; DIAPH,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-288-0	01	1	1306-		●
42	GASKET; FITTING,CLU BOOSTER (A)	1-31829-148-0	01	1	1306-	●
42	GASKET; FITTING,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-148-0	01	1	1306-		●
42	GASKET; FITTING,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-143-0	01	1	1306-		●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	1306-	●	●
44	PISTON; UPR VLV,CLU BOOSTER (A)	1-31821-058-0	01	1	1306-	●
44	PISTON; UPR VLV,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31821-058-0	01	1	1306-		●
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-087-0	01	1	1306-		●
45	PLATE; END,CLU BOOSTER (A)	1-31811-067-0	01	1	1306-	●
45	PLATE; END,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31811-119-0	01	1	1306-		●
45	PLATE; END,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31811-133-0	01	1	1306-		●
46	NUT; PUSH ROD,CLU BOOSTER (A) M10	9-09111-410-0	02	1	1306-	●
46	NUT; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10	9-09111-410-0	02	1	1306-		●
46	NUT; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-625-0	01	1	1306-		●
50	CLAMP; PISTON GUARD,CLU BOOSTER (A)	1-31829-504-0	01	1	1306-	●
50	CLAMP; PISTON GUARD,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-063-0	01	1	1306-		●
58	WASHER; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-294-0	01	1	1306-		●
60	GASKET; SHELL,CLU BOOSTER (A)	1-31829-454-0	01	1	1306-	●
60	GASKET; SHELL,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-454-0	01	1	1306-		●
60	GASKET; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-292-0	01	1	1306-		●
62	RETAINER; POPPET	1-31829-489-0	01	1	1306-	●
62	RETAINER; POPPET SMOOTHER-G(C1W)	1-31829-489-0	01	1	1306-		●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	1306-	●	●
102	PLATE; BOOSTER SMOOTHER-G(C1W) (B)	1-31829-508-0	01	1	1306-		●
102	PLATE; BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-559-0	01	1	1306-		●
119	SWITCH; CLU BOOSTER SMOOTHER-G(C1W)	1-31824-178-0	01	1	1306-		●
120	GASKET; SWITCH SMOOTHER-G(C1W)	1-31829-361-0	01	1	1306-		●
121	GUIDE; ROD SMOOTHER-G(C1W)	1-31824-165-0	01	1	1306-		●
122	GASKET; ROD SMOOTHER-G(C1W)	1-31829-360-0	01	1	1306-		●
123	ROD; SWITCH SMOOTHER-G(C1W) L=23.2	1-31824-167-0	AR	1	1306-		●
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.0	1-31824-168-0	AR	1	1306-		●
123	ROD; SWITCH SMOOTHER-G(C1W) L=22.5	1-31824-176-0	AR	1	1306-		●
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.5	1-31824-189-0	AR	1	1306-		●
123	ROD; SWITCH SMOOTHER-G(C1W) L=25.0	1-31824-212-0	AR	1	1306-		●
125	BRACKET; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-622-0	01	1	1306-		●
127	FILTER; POPPET	1-31829-488-0	01	1	1306-	●
127	FILTER; POPPET SMOOTHER-G(C1W)	1-31829-488-0	01	1	1306-		●
129	CONNECTOR ASM; CLU BOOSTER SMOOTHER-G(C1W)	1-09656-753-0	01	1	1306-		●

6 6 5 32 31 25 27 60 52 10 40 9 22 17 12 17 15 6 43 43 42 91 6 5 36 34 1 20 19 21 3 46 46 2 88 64 12 7 12 10 22 45 17 18 17 9 40 52 11 23 24 25 26 60 31 32 28 27 102 29 10 15 16 14 33 35 38 37 42 43 43 44 41 91 36 34 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER (A)	1-31829-501-0	01	1	1306-	●
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-620-0	01	1	1306-		●
1	REPAIR KIT; CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-560-0	01	1	1306-		●
2	ROD; PUSH,CLU BOOSTER (A)	1-31824-233-0	01	1	1306-	●
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31824-256-0	01	1	1306-		●
2	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31824-227-0	01	1	1306-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER (A)	1-31829-287-0	01	1	1306-	●
3	CLEVIS; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-287-0	01	1	1306-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-619-0	01	1	1306-		●
5	GUARD; PISTON,CLU BOOSTER (A)	1-31829-503-0	01	1	1306-	●
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-626-0	01	1	1306-		●
5	GUARD; PISTON,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-555-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	1306-	●
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-055-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	1306-	●
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-056-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-441-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-442-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (E)	1-31829-443-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (F)	1-31829-444-0	01	1	1306-		●
7	PISTON; CLU BOOSTER (A)	1-31821-048-0	01	1	1306-	●
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31821-048-0	01	1	1306-		●
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-068-0	01	1	1306-		●
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31821-081-0	01	1	1306-		●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	1306-	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	1306-	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	1306-	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	1306-	●	●
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	01	1	1306-	●
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-142-0	01	1	1306-		●
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-142-0	02	1	1306-		●
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-446-0	01	1	1306-		●
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-621-0	01	1	1306-		●
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-94415-036-0	01	1	1306-		●
14	COVER; EXH,CLU BOOSTER (A)	1-31829-564-0	01	1	1306-	●
14	COVER; EXH,CLU BOOSTER (B)	1-31829-366-0	01	1	1306-		●
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-365-0	01	1	1306-		●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	1306-	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	1306-	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	1306-	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	1306-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	1306-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	1306-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER (A) M10	9-09111-410-0	04	1	1306-	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10	9-09111-410-0	04	1	1306-		●
20	NUT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-624-0	04	1	1306-		●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	1306-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	1306-	●	●
23	SPRING; SHELL,CLU BOOSTER (A)	1-31829-350-0	01	1	1306-	●
23	SPRING; SHELL,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-506-0	01	1	1306-		●
23	SPRING; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-554-0	01	1	1306-		●
24	ROD; PUSH,CLU BOOSTER (A)	1-31824-158-0	01	1	1306-	●
24	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31824-211-0	01	1	1306-		●
24	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31824-224-0	01	1	1306-		●
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	1306-	●	●
26	PISTON; SHELL,CLU BOOSTER (A)	1-31821-072-0	01	1	1306-	●
26	PISTON; SHELL,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31821-080-0	01	1	1306-		●
26	PISTON; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31821-050-0	01	1	1306-		●
27	SPRING; CLU BOOSTER (A)	1-31829-291-0	01	1	1306-	●	●
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-505-0	01	1	1306-		●
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-510-0	01	1	1306-		●
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	1306-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER (A)	9-83315-099-0	04	1	1306-	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	9-83315-099-0	04	1	1306-		●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W) (B)	9-83315-078-0	04	1	1306-		●
30	SHELL; CYL,CLU BOOSTER (A)	1-31811-117-0	01	1	1306-	●
30	SHELL; CYL,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31811-120-0	01	1	1306-		●
30	SHELL; CYL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31811-128-0	01	1	1306-		●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	1306-	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	1306-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	1306-	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	1306-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER (A)	1-31829-537-0	01	1	1306-	●
35	SPRING; POPPET VLV,CLU BOOSTER (B)	1-31829-451-0	01	1	1306-		●
36	VALVE; POPPET,CLU BOOSTER (A)	1-31829-536-0	01	1	1306-	●
36	VALVE; POPPET,CLU BOOSTER (B)	1-31829-452-0	01	1	1306-		●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	1306-	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	1306-	●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	1306-	●
40	GASKET; PISTON,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-037-0	01	1	1306-		●
41	SPRING; DIAPH,CLU BOOSTER (A)	1-31829-458-0	01	1	1306-	●
41	SPRING; DIAPH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-458-0	01	1	1306-		●
41	SPRING; DIAPH,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-288-0	01	1	1306-		●
42	GASKET; FITTING,CLU BOOSTER (A)	1-31829-148-0	01	1	1306-	●
42	GASKET; FITTING,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-148-0	01	1	1306-		●
42	GASKET; FITTING,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-143-0	01	1	1306-		●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	1306-	●	●
44	PISTON; UPR VLV,CLU BOOSTER (A)	1-31821-058-0	01	1	1306-	●
44	PISTON; UPR VLV,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31821-058-0	01	1	1306-		●
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-087-0	01	1	1306-		●
45	PLATE; END,CLU BOOSTER (A)	1-31811-067-0	01	1	1306-	●
45	PLATE; END,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31811-119-0	01	1	1306-		●
45	PLATE; END,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31811-133-0	01	1	1306-		●
46	NUT; PUSH ROD,CLU BOOSTER (A) M10	9-09111-410-0	02	1	1306-	●
46	NUT; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10	9-09111-410-0	02	1	1306-		●
46	NUT; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-625-0	01	1	1306-		●
52	SEAL; OIL,END PLATE,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-47819-027-0	01	1	1306-		●
60	GASKET; SHELL,CLU BOOSTER (A)	1-31829-454-0	01	1	1306-	●
60	GASKET; SHELL,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-454-0	01	1	1306-		●
60	GASKET; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-292-0	01	1	1306-		●
64	WASHER; PUSH ROD TRANSMISSION CONTROL CABLE TYPE(C1A) ID=10.5 OD=22	9-09164-610-0	01	1	1306-		●
88	CLAMP; HOSE,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-063-0	01	1	1306-		●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	1306-	●	●
102	PLATE; BOOSTER SMOOTHER-G(C1W) (B)	1-31829-508-0	01	1	1306-		●
102	PLATE; BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-559-0	01	1	1306-		●

35 33 34 127 62 36 91 38 37 42 41 44 43 43 14 45 13 17 18 17 19 20 22 21 16 15 11 9 12 23 24 25 26 40 2 5 7 27 31 32 30 29 28 60 6 6 32 31 46 50 3 10 46 1 10 43 43 36 127 34 50 91 42 5 6 6 13 15 9 17 17 22 12 10 40 25 60 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER (A)	1-31829-501-0	01	1	1306-	●
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-620-0	01	1	1306-		●
1	REPAIR KIT; CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-560-0	01	1	1306-		●
2	ROD; PUSH,CLU BOOSTER (A)	1-31824-233-0	01	1	1306-	●
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31824-256-0	01	1	1306-		●
2	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31824-227-0	01	1	1306-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER (A)	1-31829-287-0	01	1	1306-	●
3	CLEVIS; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-287-0	01	1	1306-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-619-0	01	1	1306-		●
5	GUARD; PISTON,CLU BOOSTER (A)	1-31829-503-0	01	1	1306-	●
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-626-0	01	1	1306-		●
5	GUARD; PISTON,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-555-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	1306-	●
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-055-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	1306-	●
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-056-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-441-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-442-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (E)	1-31829-443-0	01	1	1306-		●
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (F)	1-31829-444-0	01	1	1306-		●
7	PISTON; CLU BOOSTER (A)	1-31821-048-0	01	1	1306-	●
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31821-048-0	01	1	1306-		●
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-068-0	01	1	1306-		●
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31821-081-0	01	1	1306-		●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	1306-	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	1306-	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	1306-	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	1306-	●	●
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	01	1	1306-	●
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-142-0	01	1	1306-		●
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-142-0	02	1	1306-		●
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-446-0	01	1	1306-		●
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-621-0	01	1	1306-		●
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-94415-036-0	01	1	1306-		●
13	PIN; SPR	1-31829-109-0	01	1	1306-	●
14	COVER; EXH,CLU BOOSTER (A)	1-31829-564-0	01	1	1306-	●
14	COVER; EXH,CLU BOOSTER (B)	1-31829-366-0	01	1	1306-		●
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-365-0	01	1	1306-		●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	1306-	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	1306-	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	1306-	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	1306-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	1306-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	1306-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER (A) M10	9-09111-410-0	04	1	1306-	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10	9-09111-410-0	04	1	1306-		●
20	NUT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-624-0	04	1	1306-		●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	1306-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	1306-	●	●
23	SPRING; SHELL,CLU BOOSTER (A)	1-31829-350-0	01	1	1306-	●
23	SPRING; SHELL,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-506-0	01	1	1306-		●
23	SPRING; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-554-0	01	1	1306-		●
24	ROD; PUSH,CLU BOOSTER (A)	1-31824-158-0	01	1	1306-	●
24	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31824-211-0	01	1	1306-		●
24	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31824-224-0	01	1	1306-		●
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	1306-	●	●
26	PISTON; SHELL,CLU BOOSTER (A)	1-31821-072-0	01	1	1306-	●
26	PISTON; SHELL,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31821-080-0	01	1	1306-		●
26	PISTON; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31821-050-0	01	1	1306-		●
27	SPRING; CLU BOOSTER (A)	1-31829-291-0	01	1	1306-	●	●
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-505-0	01	1	1306-		●
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-510-0	01	1	1306-		●
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	1306-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER (A)	9-83315-099-0	04	1	1306-	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	9-83315-099-0	04	1	1306-		●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W) (B)	9-83315-078-0	04	1	1306-		●
30	SHELL; CYL,CLU BOOSTER (A)	1-31811-117-0	01	1	1306-	●
30	SHELL; CYL,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31811-120-0	01	1	1306-		●
30	SHELL; CYL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31811-128-0	01	1	1306-		●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	1306-	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	1306-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	1306-	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	1306-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER (A)	1-31829-537-0	01	1	1306-	●
35	SPRING; POPPET VLV,CLU BOOSTER (B)	1-31829-451-0	01	1	1306-		●
36	VALVE; POPPET,CLU BOOSTER (A)	1-31829-536-0	01	1	1306-	●
36	VALVE; POPPET,CLU BOOSTER (B)	1-31829-452-0	01	1	1306-		●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	1306-	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	1306-	●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	1306-	●
40	GASKET; PISTON,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-037-0	01	1	1306-		●
41	SPRING; DIAPH,CLU BOOSTER (A)	1-31829-458-0	01	1	1306-	●
41	SPRING; DIAPH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-458-0	01	1	1306-		●
41	SPRING; DIAPH,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-288-0	01	1	1306-		●
42	GASKET; FITTING,CLU BOOSTER (A)	1-31829-148-0	01	1	1306-	●
42	GASKET; FITTING,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-148-0	01	1	1306-		●
42	GASKET; FITTING,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-143-0	01	1	1306-		●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	1306-	●	●
44	PISTON; UPR VLV,CLU BOOSTER (A)	1-31821-058-0	01	1	1306-	●
44	PISTON; UPR VLV,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31821-058-0	01	1	1306-		●
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-087-0	01	1	1306-		●
45	PLATE; END,CLU BOOSTER (A)	1-31811-067-0	01	1	1306-	●
45	PLATE; END,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31811-119-0	01	1	1306-		●
45	PLATE; END,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31811-133-0	01	1	1306-		●
46	NUT; PUSH ROD,CLU BOOSTER (A) M10	9-09111-410-0	02	1	1306-	●
46	NUT; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10	9-09111-410-0	02	1	1306-		●
46	NUT; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-625-0	01	1	1306-		●
50	CLAMP; PISTON GUARD,CLU BOOSTER (A)	1-31829-504-0	01	1	1306-	●
50	CLAMP; PISTON GUARD,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-063-0	01	1	1306-		●
60	GASKET; SHELL,CLU BOOSTER (A)	1-31829-454-0	01	1	1306-	●
60	GASKET; SHELL,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-454-0	01	1	1306-		●
60	GASKET; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-31829-292-0	01	1	1306-		●
62	RETAINER; POPPET	1-31829-489-0	01	1	1306-	●
62	RETAINER; POPPET SMOOTHER-G(C1W)	1-31829-489-0	01	1	1306-		●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	1306-	●	●
127	FILTER; POPPET	1-31829-488-0	01	1	1306-	●
127	FILTER; POPPET SMOOTHER-G(C1W)	1-31829-488-0	01	1	1306-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
