2-05 — CLUTCH PIPING (#124156) — 110 parça
çizim 362822
24 153 167 56 1 104
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 1306-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 1306-
56 BRACKET; FLEX HOSE 8-98151-406-1 01 1 1306-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1366 SERVICED BY L=1400 		1-47428-765-0 01 1 1306-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 1306-
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) (B) L=2042 SERVICED BY L=2150 		1-47428-770-0 01 1 1306-
153 PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=2959 SERVICED BY L=3000 		1-47428-773-0 01 1 1306-1309
153 PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=1995 SERVICED BY L=2150 		1-47428-770-0 01 1 1310-
167 BRACKET; UNION 1-71117-183-3 01 1 1306-

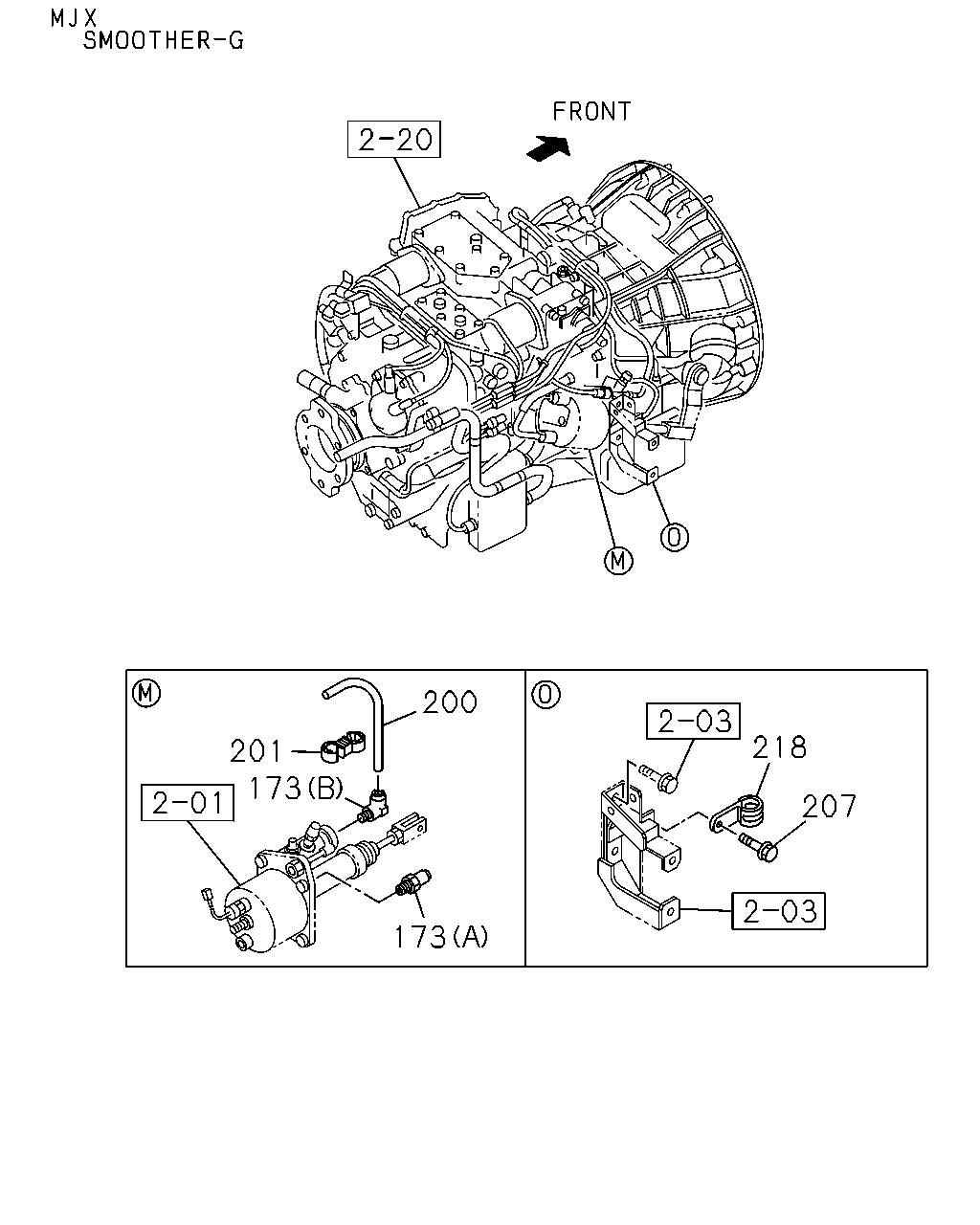

çizim 362823
201 200 173 173 218 207
BalonParca AdiParca NoAdetTipApplied Date
173 CONNECTOR
MJT7S M/T(Y3E) (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1306-
173 CONNECTOR
MJT7S M/T(Y3E) (D) R1/4 & RC1/4 		1-09664-211-0 01 1 1306-
173 CONNECTOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 1306-
173 CONNECTOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 1306-
200 TUBE; NYLON
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1306-
201 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=6.35 & 12 		1-09709-275-1 01 1 1306-
207 BOLT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X16 FLANGE 		0-28050-816-0 01 1 1306-
207 BOLT; CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) M10X16 FLANGE 		0-28151-016-0 02 1 1306-
218 CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=11 L=20 		0-95235-035-0 01 1 1306-

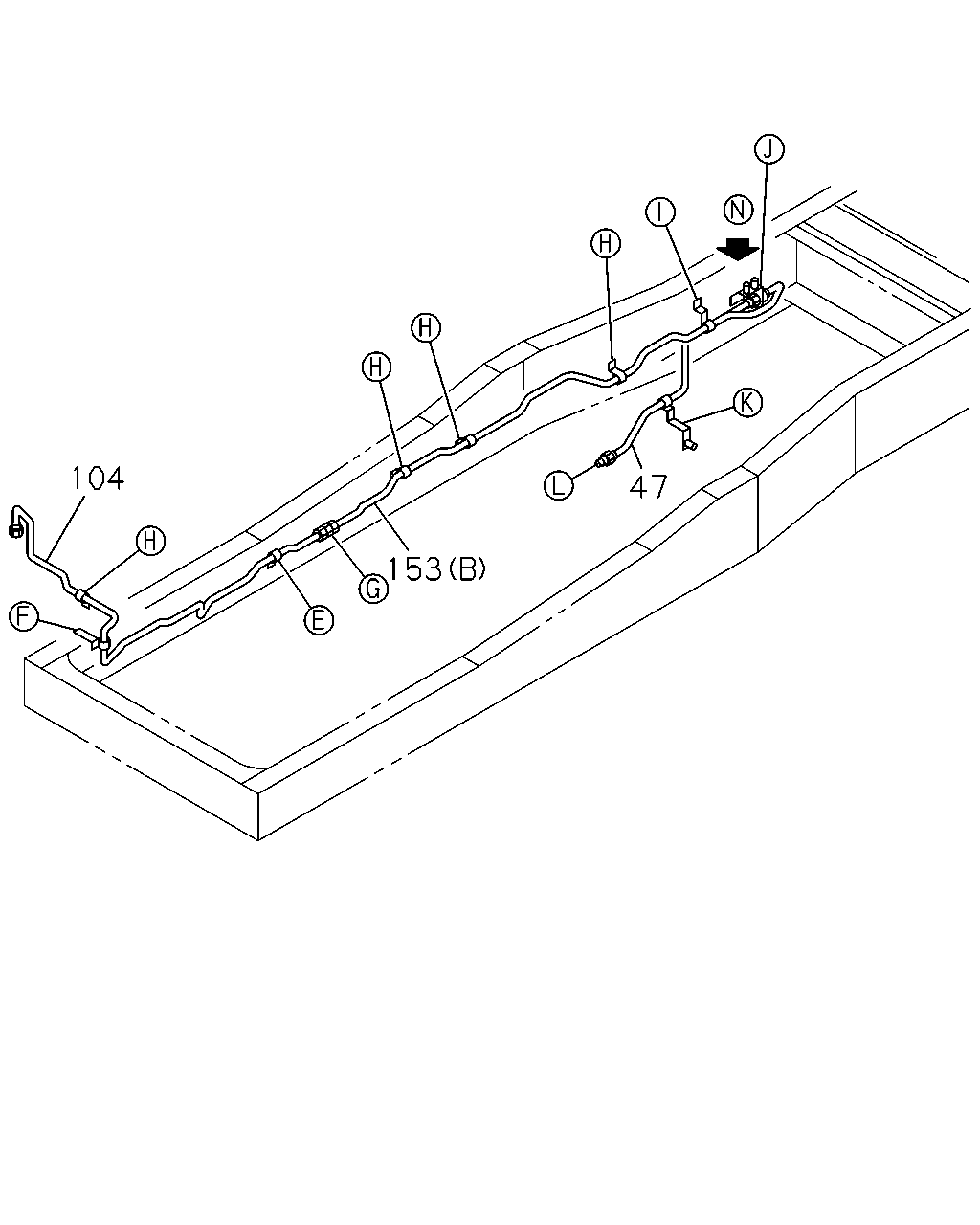

çizim 362831
153 104 47
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
MJT7S M/T(Y3E) L=600 		1-09364-705-0 01 1 1306-1309
47 HOSE; FLEX,CLU CONT
L=600 		1-09364-705-0 01 1 1310-
47 HOSE; FLEX,CLU CONT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) L=550 		1-09364-434-0 01 1 1306-1309
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1366 SERVICED BY L=1400 		1-47428-765-0 01 1 1306-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 1306-
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) (B) L=2042 SERVICED BY L=2150 		1-47428-770-0 01 1 1306-
153 PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=2959 SERVICED BY L=3000 		1-47428-773-0 01 1 1306-1309
153 PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=1995 SERVICED BY L=2150 		1-47428-770-0 01 1 1310-

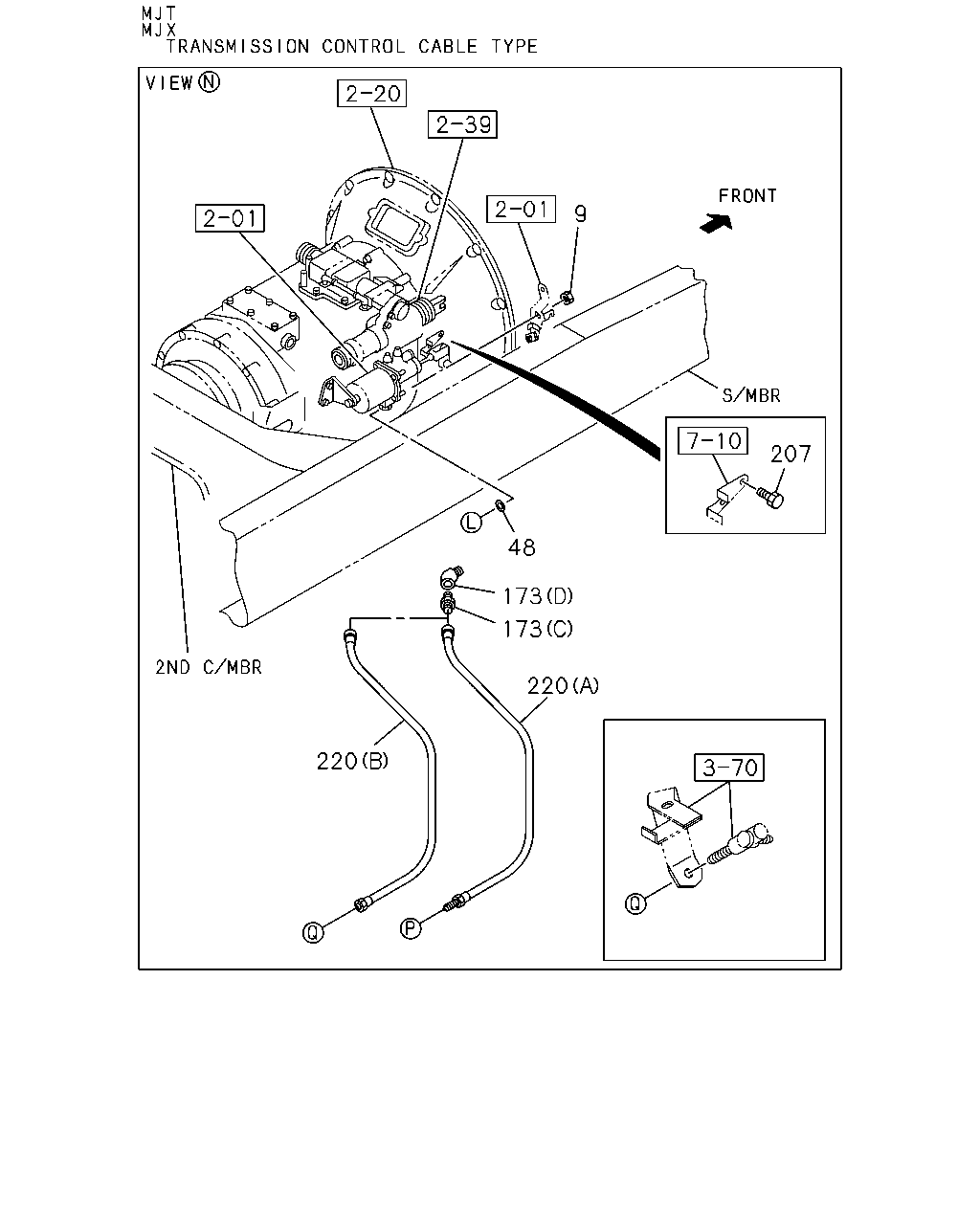

çizim 362835
9 207 48 173 173 220 220
BalonParca AdiParca NoAdetTipApplied Date
9 NUT; BRKT,FLEX HOSE
MJT7S M/T(Y3E) M10 FLANGE 		0-91180-210-0 02 1 1306-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1306-
173 CONNECTOR
MJT7S M/T(Y3E) (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1306-
173 CONNECTOR
MJT7S M/T(Y3E) (D) R1/4 & RC1/4 		1-09664-211-0 01 1 1306-
173 CONNECTOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 1306-
173 CONNECTOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 1306-
207 BOLT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X16 FLANGE 		0-28050-816-0 01 1 1306-
207 BOLT; CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) M10X16 FLANGE 		0-28151-016-0 02 1 1306-
220 HOSE; FLEX,POWER ASSIST
MJT7S M/T(Y3E) (A) L=350 		1-09363-624-0 01 1 1306-
220 HOSE; FLEX,POWER ASSIST
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=370 		1-09363-771-0 01 1 1306-

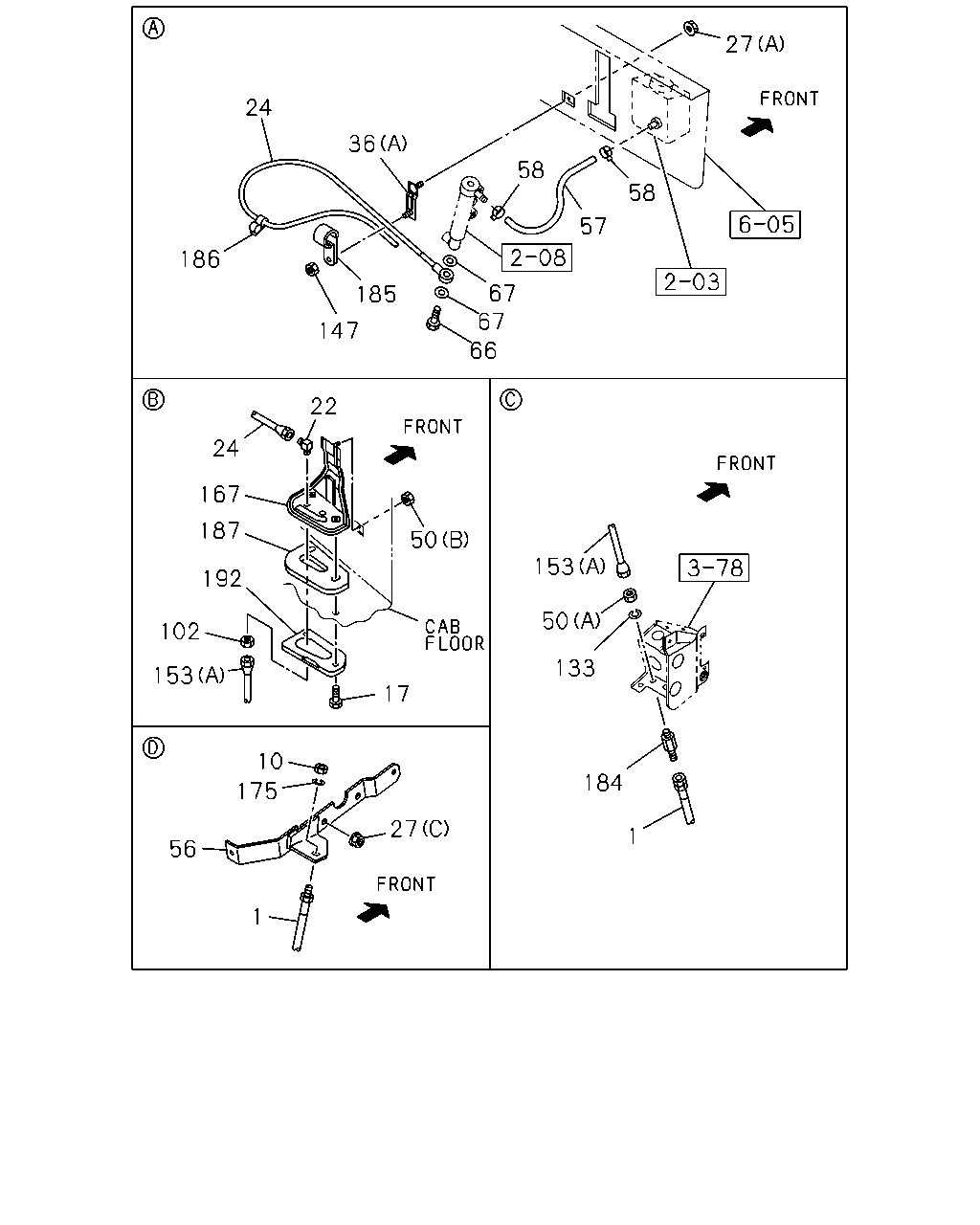

çizim 362981
27 58 58 36 24 185 67 67 147 66 186 22 24 167 187 192 102 153 10 175 56 27 17 50 153 50 133 184 1 57 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 1306-
10 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1306-
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 1306-
22 UNION; CLU PIPE
M14 ELBOW 		0-92125-208-0 01 1 1306-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 1306-
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1306-
27 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 02 1 1306-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 1306-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 1306-
36 BRACKET; CLIP
(C) L=80 H=20 		1-82699-304-0 01 1 1306-
36 BRACKET; CLIP
MJT7S M/T(Y3E) (B) 		1-47475-689-0 01 1 1306-
36 BRACKET; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-47475-689-0 01 1 1306-
36 BRACKET; CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=60 		8-98162-941-0 01 1 1306-
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 1306-
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1306-
56 BRACKET; FLEX HOSE 8-98151-406-1 01 1 1306-
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 1306-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 1306-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 1306-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 1306-1312
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1306-
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 1306-
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1306-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 1306-
153 PIPE ASM; CLU,UNION TO FLEX
MJT7S M/T(Y3E) (B) L=2042 SERVICED BY L=2150 		1-47428-770-0 01 1 1306-
153 PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=2959 SERVICED BY L=3000 		1-47428-773-0 01 1 1306-1309
153 PIPE ASM; CLU,UNION TO FLEX
MJX16P M/T(Y3Z) (B) L=1995 SERVICED BY L=2150 		1-47428-770-0 01 1 1310-
167 BRACKET; UNION 1-71117-183-3 01 1 1306-
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1306-
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 1306-
185 CLIP; BRKT
ID=9 L=20 		0-95405-308-0 01 1 1306-
186 HOLDER; CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 1306-
187 SEAL; BRKT 1-71117-222-0 01 1 1306-
192 PLATE 1-71117-221-0 01 1 1306-

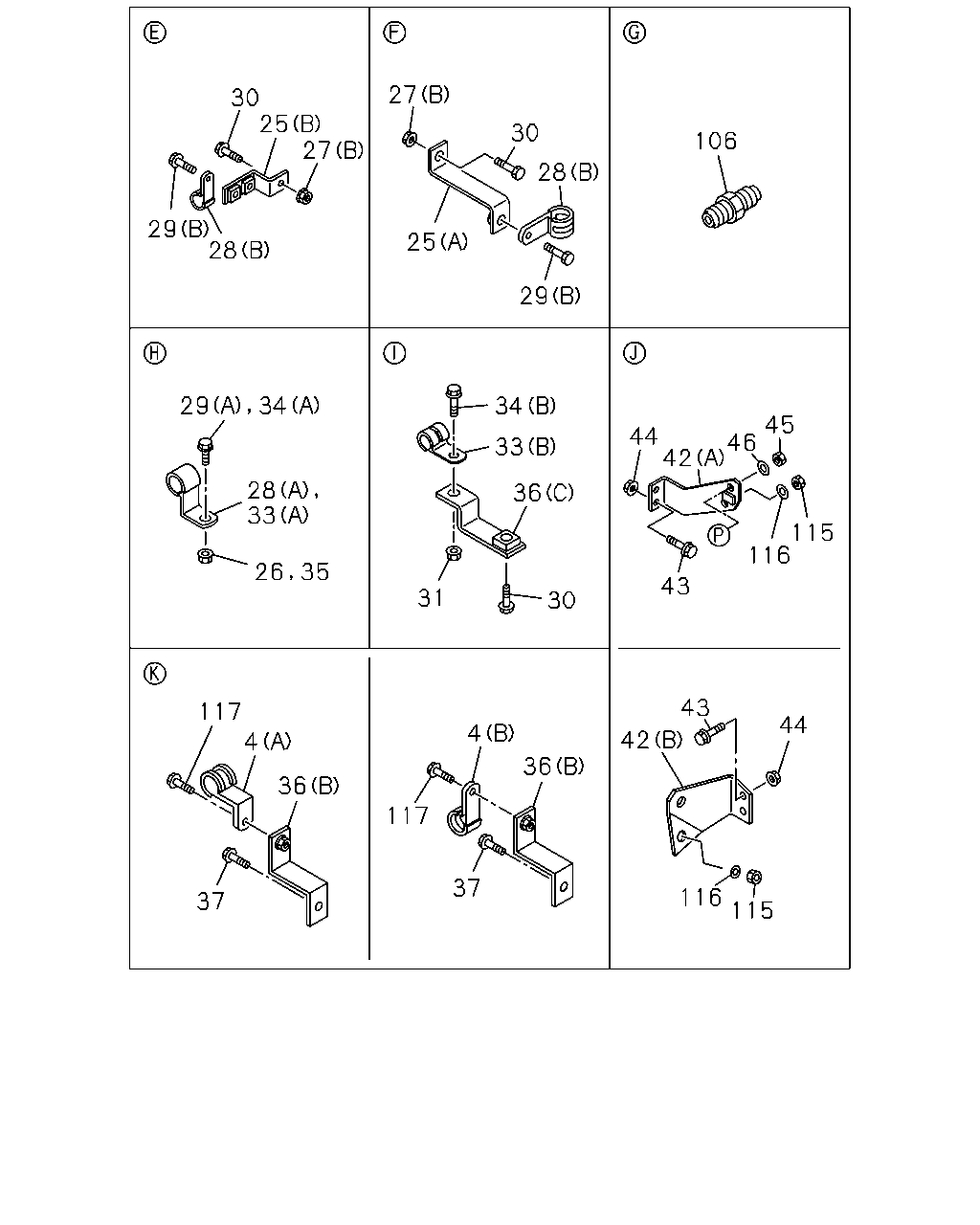

çizim 367144
106 30 27 28 25 27 29 30 29 25 28 29 34 28 26 33 34 35 33 30 31 36 44 45 115 116 43 42 46 117 4 36 37 117 4 36 37 43 44 42 115 116
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; FLEX HOSE,CLU CONT
MJT7S M/T(Y3E) (A) ID=16 H=25 L=25 		1-09701-162-0 01 1 1306-
4 CLIP; FLEX HOSE,CLU CONT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=16 H=25 L=25 		1-09701-162-0 01 1 1306-
4 CLIP; FLEX HOSE,CLU CONT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=16 L=28 		1-09700-872-0 01 1 1306-
25 BRACKET; OIL PIPE
(A) 		1-46147-101-0 01 1 1306-
25 BRACKET; OIL PIPE
(B) 		1-47479-482-0 01 1 1306-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1306-
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1306-
27 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 02 1 1306-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 1306-
28 CLIP; OIL PIPE
(B) ID=9 L=20 		0-95234-835-0 02 1 1306-
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1306-
29 BOLT; CLIP,OIL PIPE
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
29 BOLT; CLIP,OIL PIPE
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1306-
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1306-
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1306-
33 CLIP; OIL PIPE
(B) ID=9 L=20 		0-95234-835-0 01 1 1306-
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 1306-
34 BOLT; PIPE CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
34 BOLT; PIPE CLIP
(A) M8X35 FLANGE 		0-28650-835-0 03 1 1306-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1306-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 1306-
36 BRACKET; CLIP
(C) L=80 H=20 		1-82699-304-0 01 1 1306-
36 BRACKET; CLIP
MJT7S M/T(Y3E) (B) 		1-47475-689-0 01 1 1306-
36 BRACKET; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-47475-689-0 01 1 1306-
36 BRACKET; CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=60 		8-98162-941-0 01 1 1306-
37 BOLT; CLIP BRKT
MJT7S M/T(Y3E) M10X20 FLANGE 		0-28151-020-0 01 1 1306-
37 BOLT; CLIP BRKT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) M8X16 FLANGE 		0-28050-816-0 01 1 1306-
42 BRACKET; FLEX HOSE,CLU CONT
MJT7S M/T(Y3E) (A) 		1-47471-203-0 01 1 1306-
42 BRACKET; FLEX HOSE,CLU CONT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-47479-812-0 01 1 1306-1309
42 BRACKET; FLEX HOSE,CLU CONT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98251-782-0 01 1 1310-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 1306-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1306-
45 NUT; FLEX HOSE,CLU CONT
MJT7S M/T(Y3E) M12 		9-09840-280-0 01 1 1306-
46 WASHER; LK,FLEX HOSE,CLU CONT
MJT7S M/T(Y3E) ID=12.2 		0-91510-512-0 01 1 1306-
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 1306-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1306-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1306-
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 1306-
