Isuzu WW
▶
TRUCKS
▶
CYH
▶
11524 - CYH RHD EURO2
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#124145) — 29 parça
◀

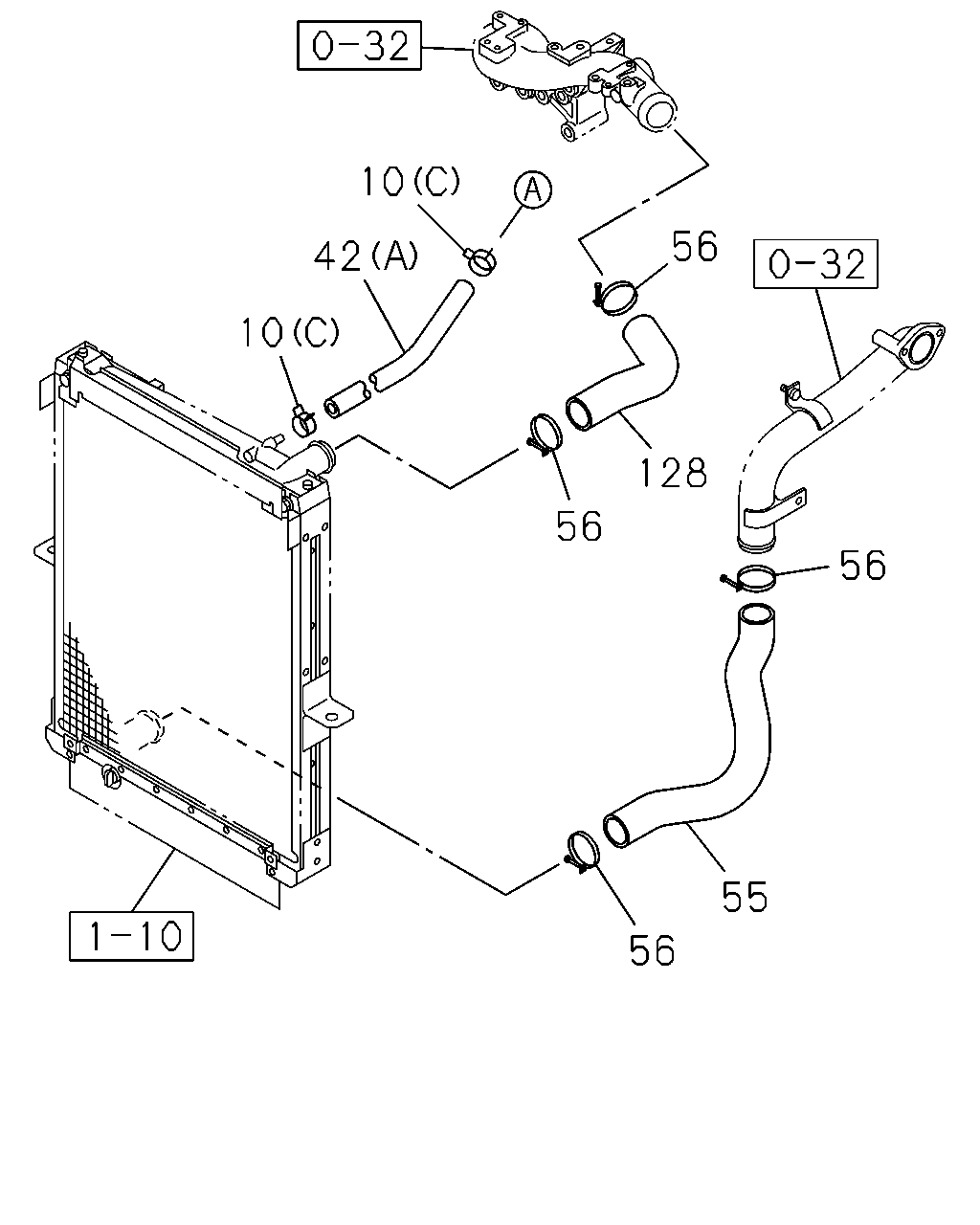

[111A] RADIATOR SIDE (8 parça)

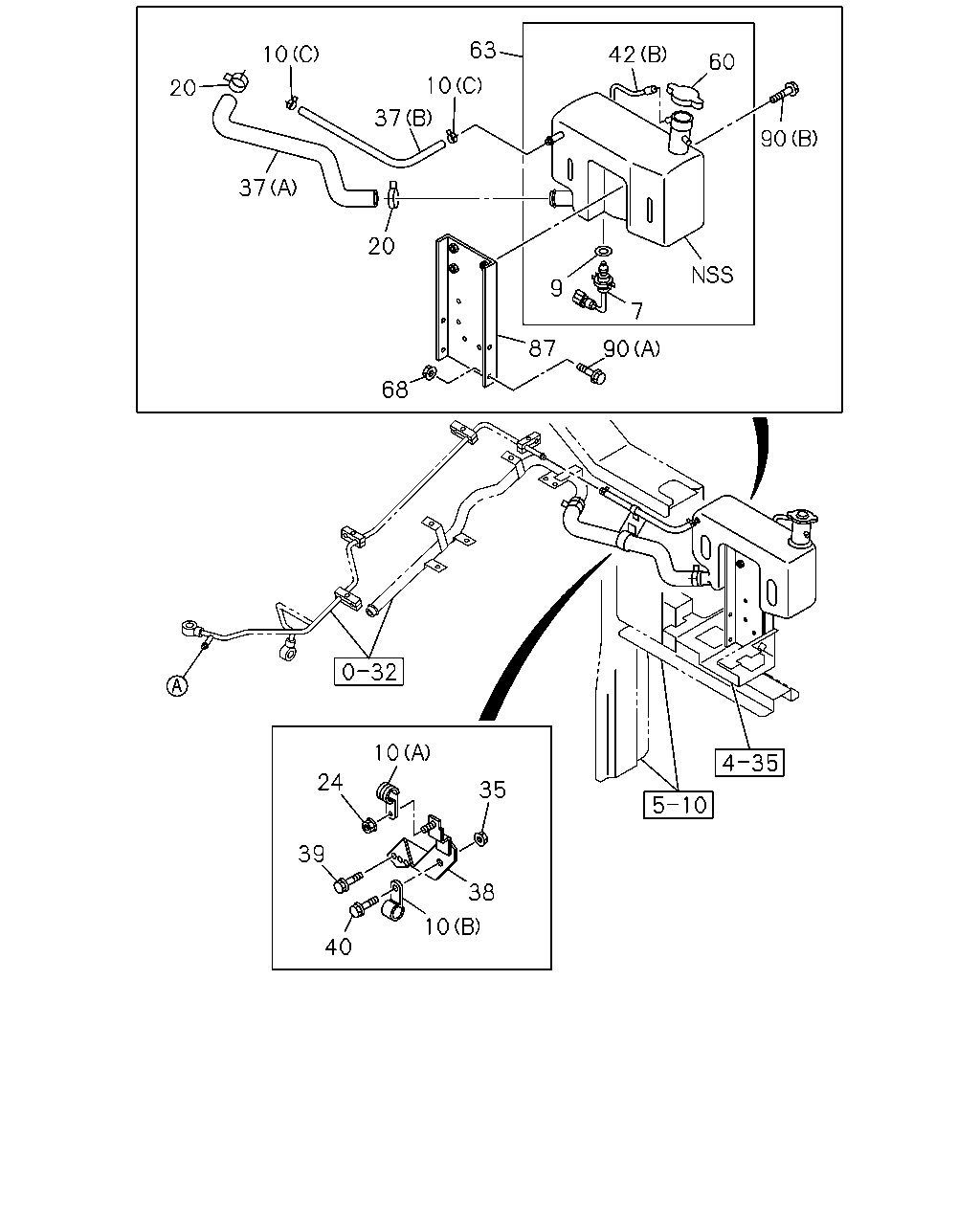

[111A] SUB TANK SIDE (21 parça)
▶
56
128
56
56
55
56
10
42
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(B) ID=43 L=40
1-09700-624-2
01
1
1306-
10
CLIP; RUBBER HOSE
(A) ID=14.5 L=20
1-09701-012-0
01
1
1306-
10
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
04
1
1306-
42
HOSE; RUBBER
(A) L=350 SERVICED BY L=3000
0-03559-300-0
01
1
1306-
42
HOSE; RUBBER
(B) L=650
1-21489-186-0
01
1
1306-
55
HOSE; WATER,RAD OUTLET
1-21430-201-1
01
1
1306-
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
04
1
1306-
128
HOSE; WATER,RAD INL
1-21430-200-0
01
1
1306-
10
38
35
10
24
39
40
87
90
7
9
90
68
60
42
63
10
37
20
37
10
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
8-97640-800-0
01
1
1306-
9
GASKET; SWITCH
ID=28 OD=35
1-09630-130-0
01
1
1306-
10
CLIP; RUBBER HOSE
(B) ID=43 L=40
1-09700-624-2
01
1
1306-
10
CLIP; RUBBER HOSE
(A) ID=14.5 L=20
1-09701-012-0
01
1
1306-
10
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
04
1
1306-
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
1306-
24
NUT
M8 FLANGE
0-91180-108-0
01
1
1306-
35
NUT
M10 FLANGE
0-91180-210-0
01
1
1306-
37
HOSE; RUBBER
(A)
8-98216-836-0
01
1
1306-
37
HOSE; RUBBER
(B)
8-98216-837-0
01
1
1306-
38
BRACKET; RUBBER HOSE
1-21489-202-2
01
1
1306-
39
BOLT; BRKT FIX
M8X25 FLANGE
0-28650-825-0
02
1
1306-
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
01
1
1306-
42
HOSE; RUBBER
(A) L=350 SERVICED BY L=3000
0-03559-300-0
01
1
1306-
42
HOSE; RUBBER
(B) L=650
1-21489-186-0
01
1
1306-
60
CAP; SUB TANK
1-21450-137-0
01
1
1306-
63
TANK ASM; SUB
8-98211-738-0
01
1
1306-
68
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1306-
87
BRACKET; SUB TANK
1-21489-193-2
01
1
1306-
90
BOLT; SUB TANK TO BRKT
(A) M8X25 FLANGE
0-28650-825-0
04
1
1306-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
1306-
