Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#12414) — 293 parça

120 617

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	SEAL	1-15739-002-0	01	1	0105-0407
120	SEAL	1-15739-008-0	01	1	0408-
617	WIRE; RACK SENSOR	9-81325-446-0	01	1	0105-

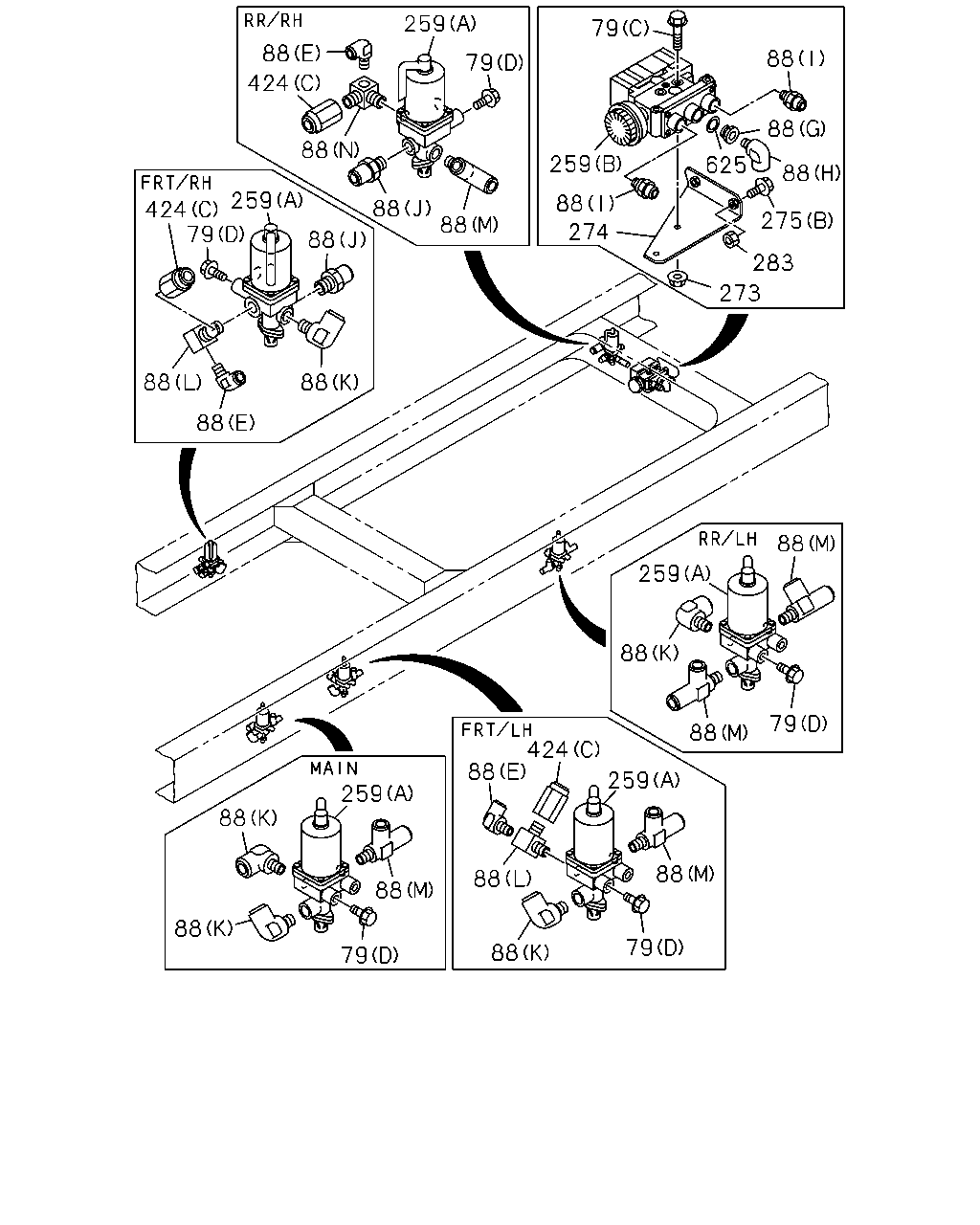

259 79 88 88 79 424 88 88 259 625 88 424 79 259 88 88 88 275 274 88 283 273 88 88 88 88 259 88 79 424 88 88 259 259 88 88 88 88 88 79 88 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
79	BOLT; MAG VLV (C) M8X70	0-10805-870-0	02	1	0105-0512
79	BOLT; MAG VLV (C) M8X70	0-10855-870-0	02	1	0601-
79	BOLT; MAG VLV (D) M8X25 FLANGE	0-28680-825-0	10	1	0105-0512
79	BOLT; MAG VLV (D) M8X25 FLANGE	0-28650-825-0	10	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0105-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	0105-
88	CONNECTOR; MAG VLV (L) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0105-
88	CONNECTOR; MAG VLV (N) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0105-
88	CONNECTOR; MAG VLV (K) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	0105-
88	CONNECTOR; MAG VLV (H) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0105-
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-
88	CONNECTOR; MAG VLV (I) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0105-
88	CONNECTOR; MAG VLV (M) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	0105-
88	CONNECTOR; MAG VLV (P) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV (P) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0301
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (O) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
259	VALVE; MAG,AIR SUSP CONT (A)	1-82563-703-0	05	1	0105-
259	VALVE; MAG,AIR SUSP CONT (B)	1-82563-713-0	01	1	0105-
273	NUT; MAG VLV FULL FLOATING CAB(W16) M10 FLANGE	0-91150-210-0	02	1	0306-
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	0105-
274	BRACKET; MAG VLV AIR SUSP	1-82569-289-0	01	1	0105-
275	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512
275	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-
283	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-
424	ADAPTER (C) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0105-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0105-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-0301
625	GASKET; CONNECTOR ID=22.5	9-09571-422-0	01	1	0105-

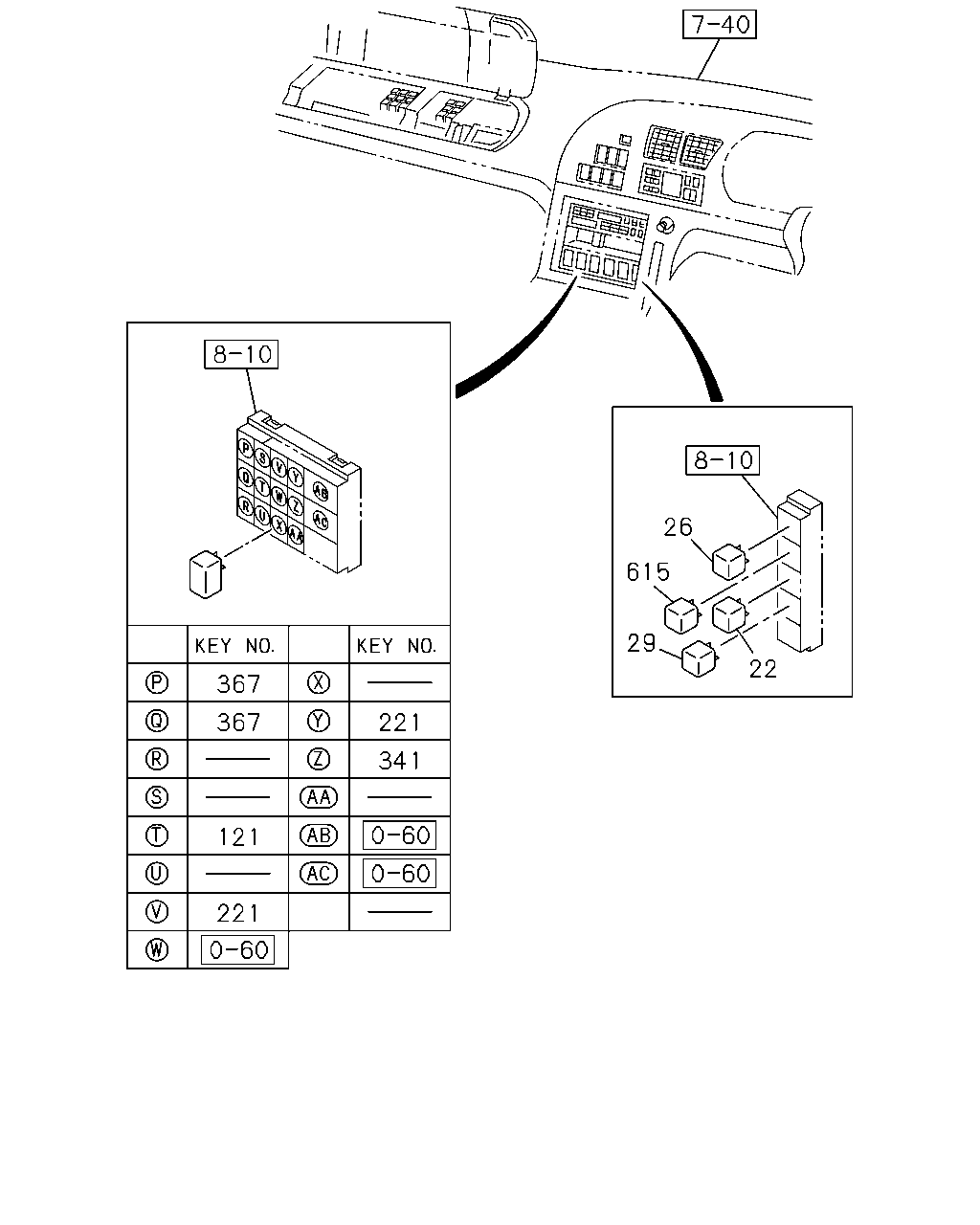

26 615 29 22 367 367 221 341 121 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
221	RELAY; AUTO CRUISE 24V 10A PANASONIC	8-97173-035-1	02	1	0105-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
615	RELAY; TRAILER 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-

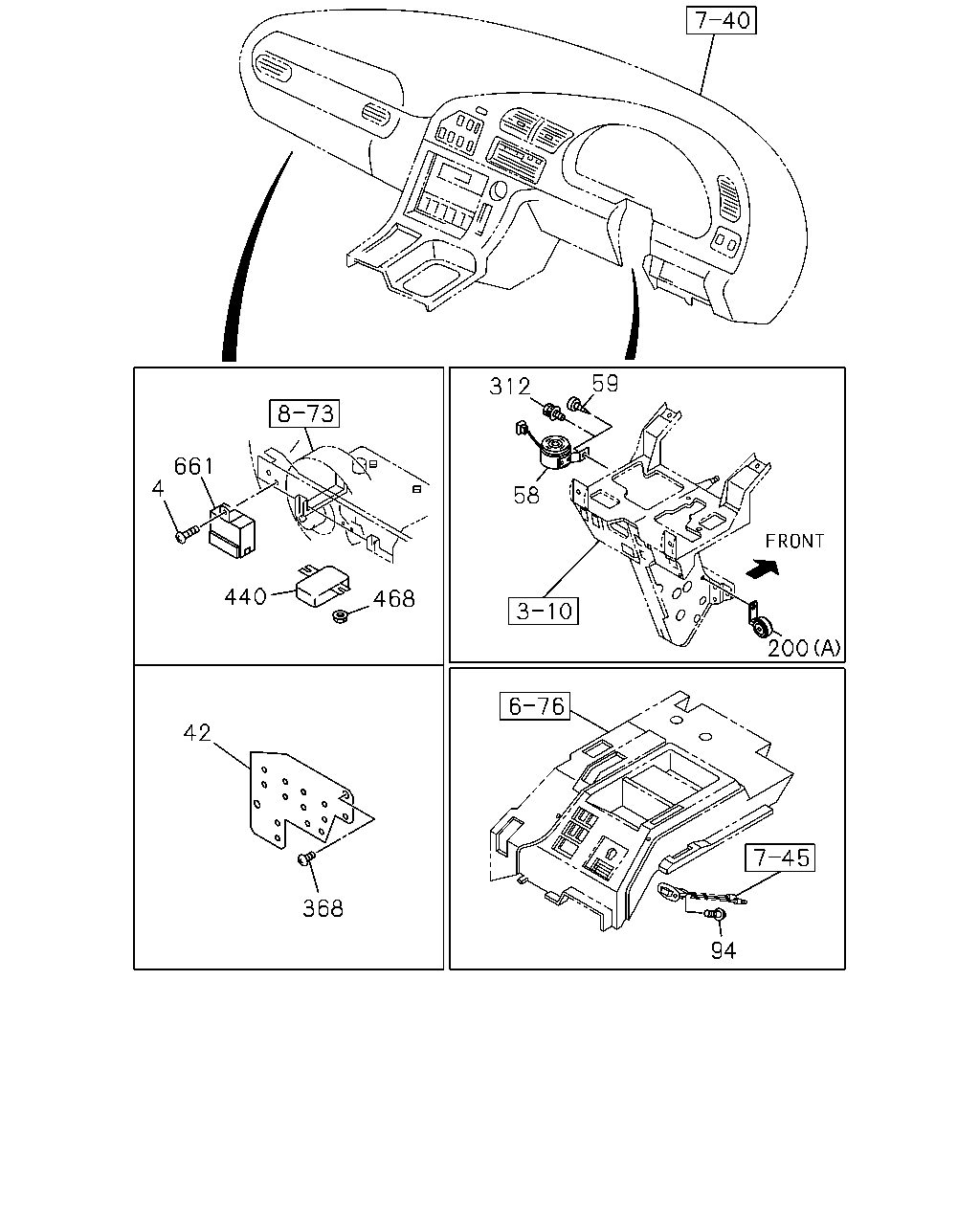

59 312 661 4 58 440 468 200 42 368 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0105-
42	BRACKET; RELAY	1-82698-351-1	01	1	0105-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0105-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0306-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0105-
200	BUZZER; WARNING,AIR SUSP (A)	1-83460-032-0	01	1	0105-
200	BUZZER; WARNING,AIR SUSP (B)	1-83460-040-0	01	1	0105-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-0305
368	SCREW; RELAY FIX M5X14	8-94279-325-0	03	1	0105-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0105-
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0105-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0105-

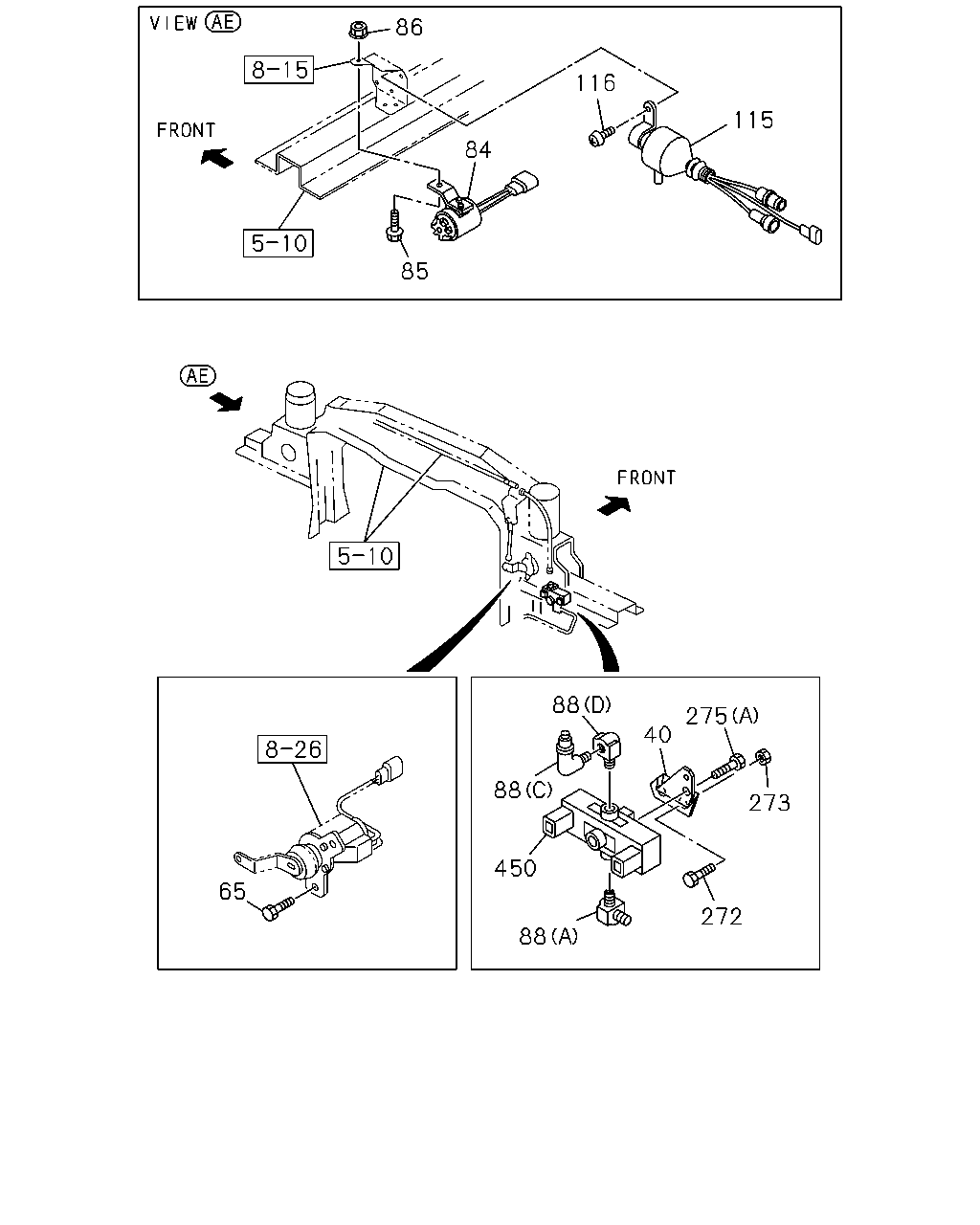

86 116 115 84 85 88 275 40 88 273 450 65 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16)	1-53458-380-0	01	1	0105-
65	BOLT; SOCKET FIX M6X16 FLANGE	0-28080-616-0	02	1	0105-0512
65	BOLT; SOCKET FIX M6X16 FLANGE	0-28050-616-0	02	1	0601-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-2	01	1	0105-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0105-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28050-816-0	01	1	0601-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0105-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	0105-
88	CONNECTOR; MAG VLV (L) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0105-
88	CONNECTOR; MAG VLV (N) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0105-
88	CONNECTOR; MAG VLV (K) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	0105-
88	CONNECTOR; MAG VLV (H) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0105-
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-
88	CONNECTOR; MAG VLV (I) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0105-
88	CONNECTOR; MAG VLV (M) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	0105-
88	CONNECTOR; MAG VLV (P) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV (P) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0301
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (O) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	0105-0210
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0211-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X30 FLANGE	0-28681-030-0	02	1	0105-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28681-020-0	02	1	0202-0305
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	0306-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X35 FLANGE	0-28651-035-0	02	1	0601-
273	NUT; MAG VLV FULL FLOATING CAB(W16) M10 FLANGE	0-91150-210-0	02	1	0306-
273	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	0105-
275	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512
275	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-

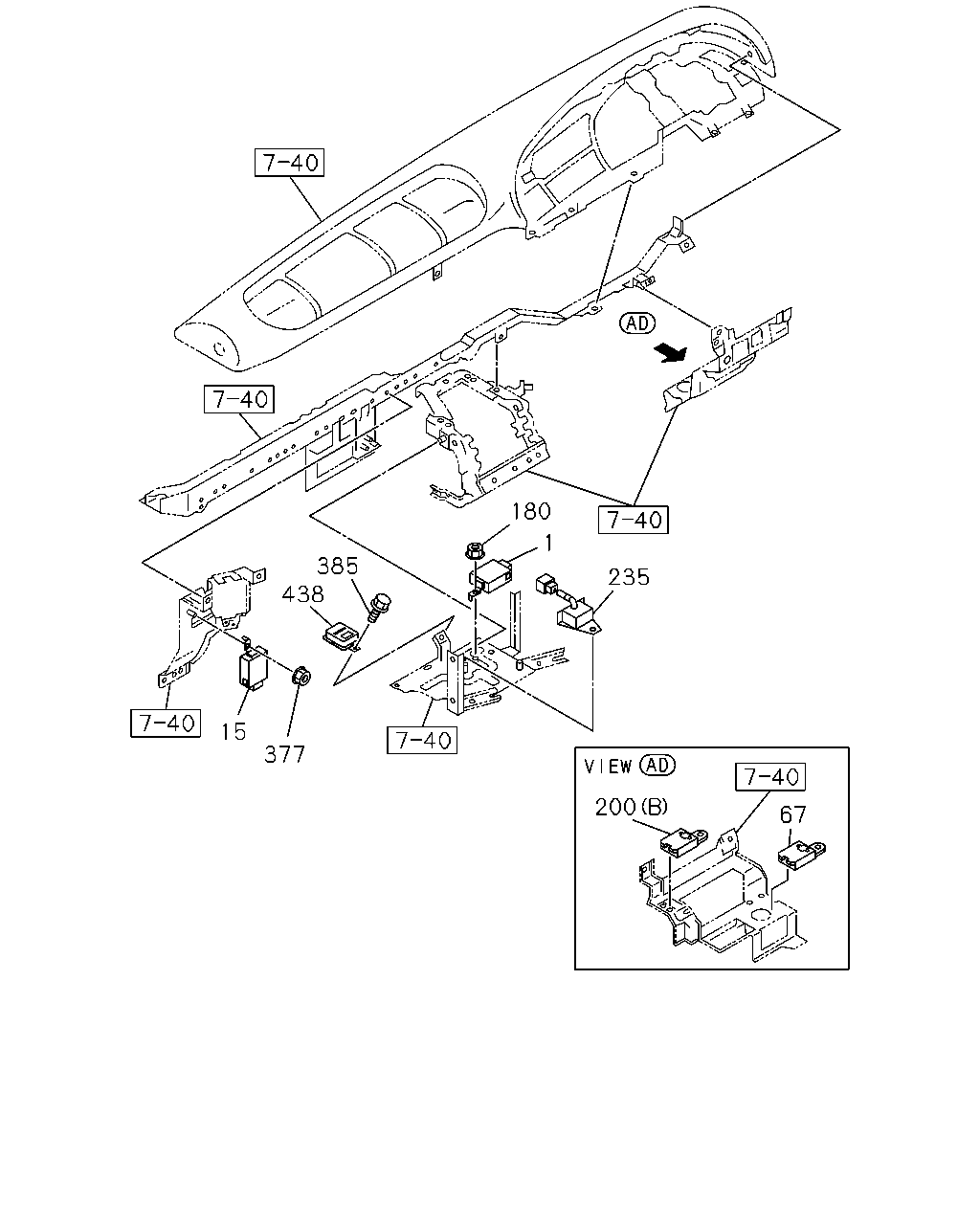

180 1 385 438 235 15 377 200 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0105-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0105-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0105-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0105-
200	BUZZER; WARNING,AIR SUSP (A)	1-83460-032-0	01	1	0105-
200	BUZZER; WARNING,AIR SUSP (B)	1-83460-040-0	01	1	0105-
235	TIMER; AIR SUSPENSION	1-82540-068-0	01	1	0105-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0105-
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0105-
438	UNIT; SPD CONTROL	1-82550-309-0	01	1	0105-

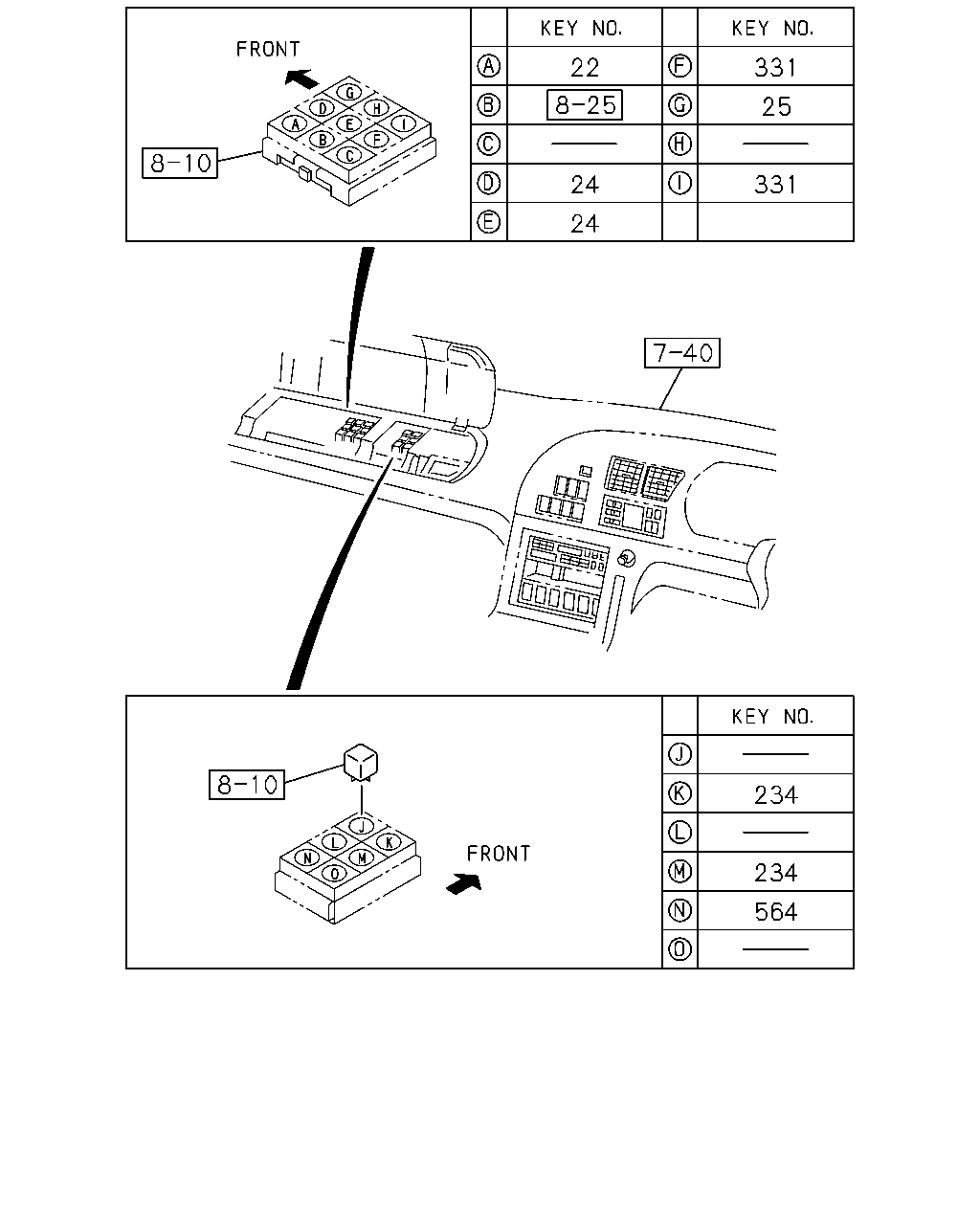

22 331 25 24 331 24 234 234 564

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
234	RELAY; AIR SUSPENSION 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
234	RELAY; AIR SUSPENSION 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
564	RELAY; DC-DC CONVERTER 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
564	RELAY; DC-DC CONVERTER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-

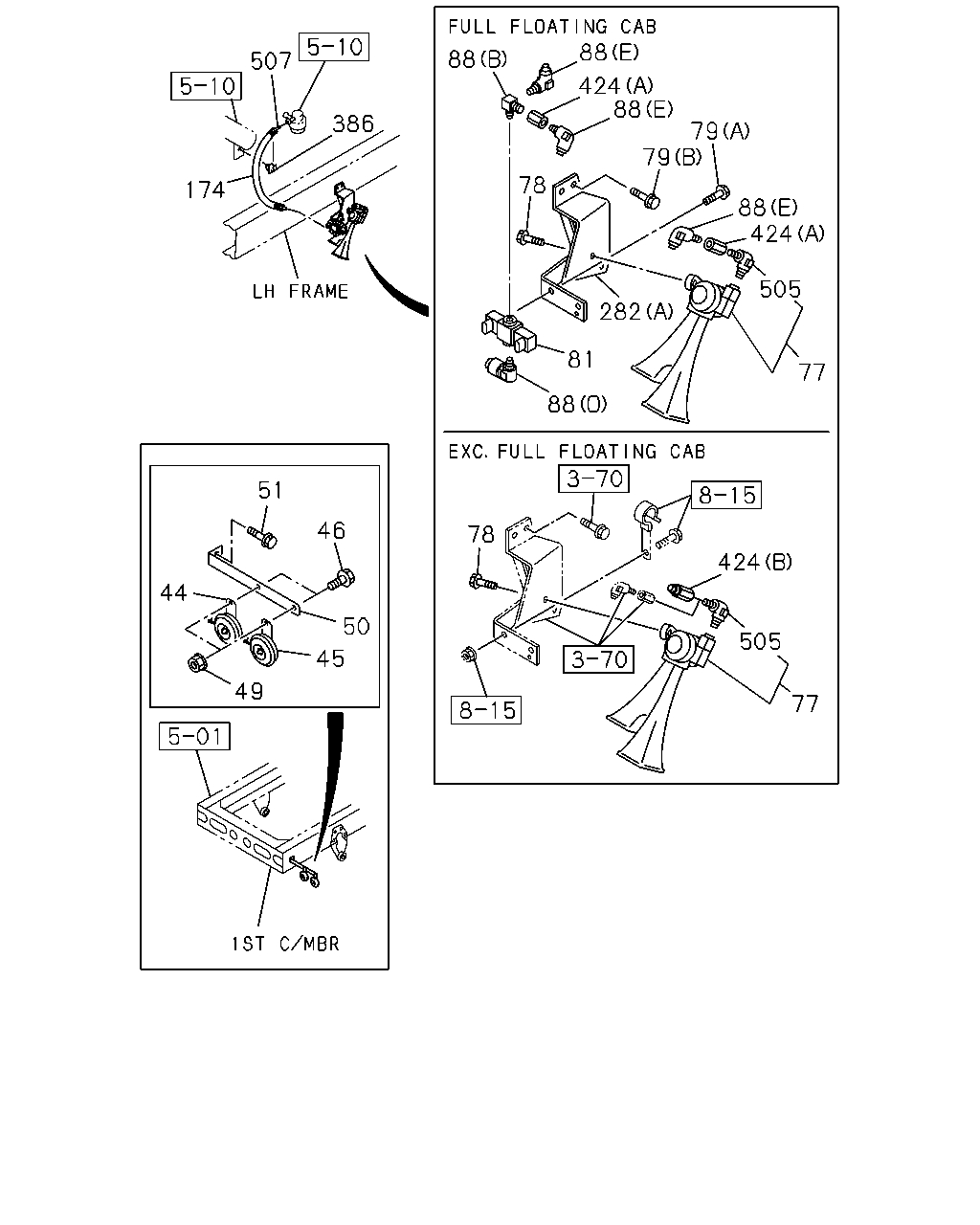

88 88 507 424 88 386 79 79 78 174 88 424 505 282 81 77 88 51 46 78 424 44 50 505 45 49 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	1-83410-061-1	01	1	0105-
45	HORN; LOW NOTE	1-83410-062-1	01	1	0105-
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0105-
50	BRACKET; HORN	1-53458-901-0	01	1	0105-
51	BOLT; HORN TO BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
51	BOLT; HORN TO BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
77	HORN ASM	1-83430-041-2	01	1	0105-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-
79	BOLT; MAG VLV (C) M8X70	0-10805-870-0	02	1	0105-0512
79	BOLT; MAG VLV (C) M8X70	0-10855-870-0	02	1	0601-
79	BOLT; MAG VLV (D) M8X25 FLANGE	0-28680-825-0	10	1	0105-0512
79	BOLT; MAG VLV (D) M8X25 FLANGE	0-28650-825-0	10	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0105-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	0105-
88	CONNECTOR; MAG VLV (L) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0105-
88	CONNECTOR; MAG VLV (N) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0105-
88	CONNECTOR; MAG VLV (K) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	0105-
88	CONNECTOR; MAG VLV (H) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0105-
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-
88	CONNECTOR; MAG VLV (I) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0105-
88	CONNECTOR; MAG VLV (M) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	0105-
88	CONNECTOR; MAG VLV (P) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV (P) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0301
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (O) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
174	COVER FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-0108
174	COVER FULL FLOATING CAB(W16) L=770 SERVICED BY L=2000	1-83129-347-0	01	1	0109-0109
174	COVER FULL FLOATING CAB(W16) L=770 SERVICED BY L=800	1-83129-031-1	01	1	0110-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0302-
282	BRACKET; MAG VLV (C)	1-82569-345-0	01	1	0302-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	0105-
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0105-
424	ADAPTER (C) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0105-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0105-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-0301
505	JOINT; AIR HORN	1-83439-006-0	01	1	0105-
507	TUBE; NYLON FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0105-0108
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0109-

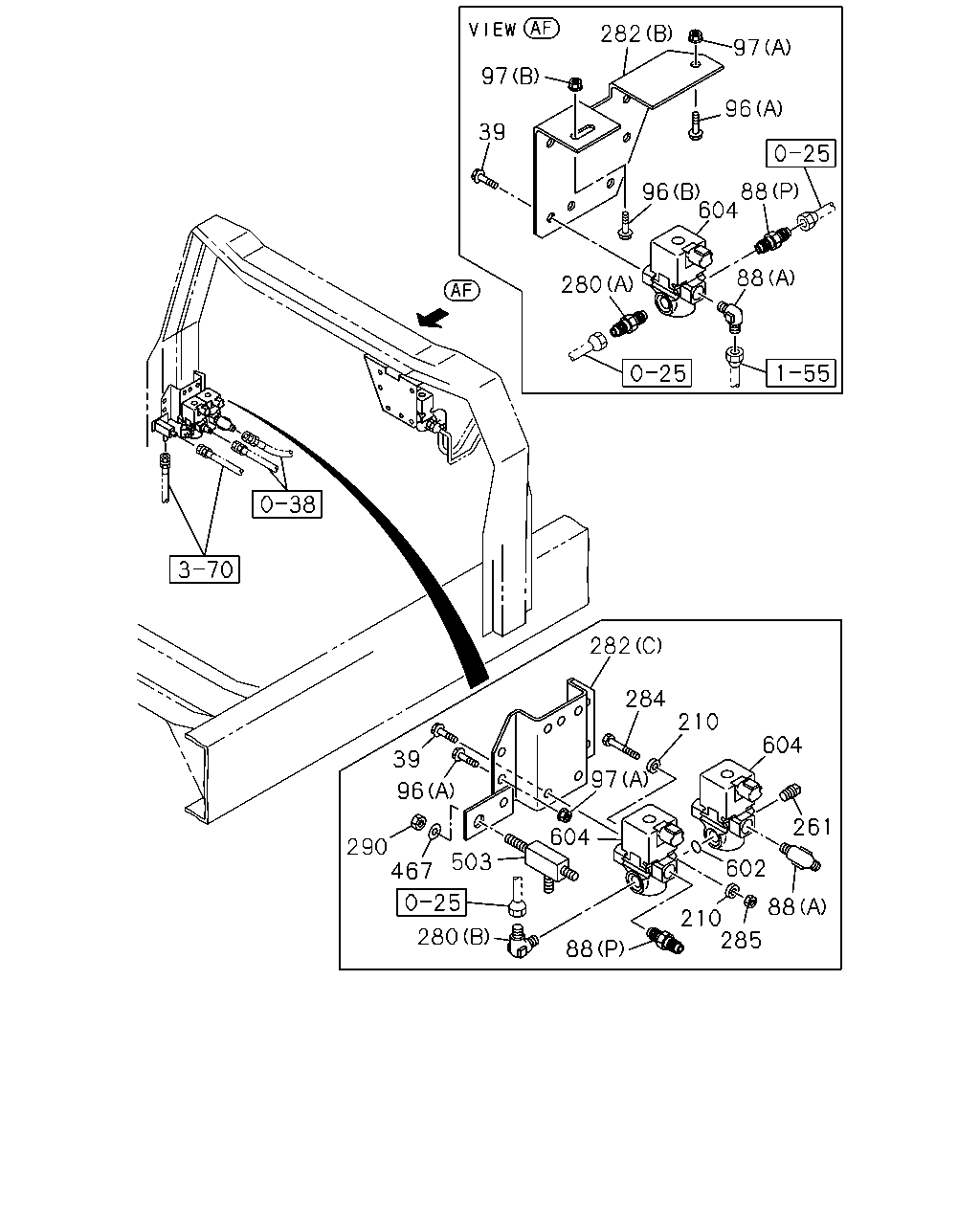

282 97 97 96 39 96 88 604 88 280 282 284 210 604 604 39 97 96 261 290 467 503 602 88 210 285 280 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0302-0512
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0302-0512
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	0105-
88	CONNECTOR; MAG VLV (L) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0105-
88	CONNECTOR; MAG VLV (N) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0105-
88	CONNECTOR; MAG VLV (K) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	0105-
88	CONNECTOR; MAG VLV (H) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0105-
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-
88	CONNECTOR; MAG VLV (I) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0105-
88	CONNECTOR; MAG VLV (M) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	0105-
88	CONNECTOR; MAG VLV (P) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV (P) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0301
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (O) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	05	1	0302-0512
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28681-025-0	01	1	0302-0512
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
97	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	05	1	0302-
97	NUT; BRKT FIX (B) M10 FLANGE	0-91150-210-0	01	1	0302-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0105-0301
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0302-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0302-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0301
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0302-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0302-
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0302-
282	BRACKET; MAG VLV (C)	1-82569-345-0	01	1	0302-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	0105-
284	BOLT; MAG VLV M6X50 FLANGE	0-28080-650-0	01	1	0105-0301
284	BOLT; MAG VLV M6X50 FLANGE	0-28080-650-0	01	1	0302-0512
284	BOLT; MAG VLV M6X50 FLANGE	0-28080-650-0	01	1	0302-0512
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0601-
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0105-0301
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0302-
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0302-
290	NUT M12	9-09840-280-0	01	1	0302-0309
290	NUT M12	9-99111-512-0	01	1	0310-0310
290	NUT M12	9-99111-412-0	01	1	0311-0512
290	NUT M12	0-91111-512-0	01	1	0601-
467	WASHER; LK,MAG VLV ID=12.2	9-09150-512-0	01	1	0302-
503	UNION M12 2WAY	1-09654-059-2	01	1	0302-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0105-0301
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0302-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0302-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	0302-
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0302-

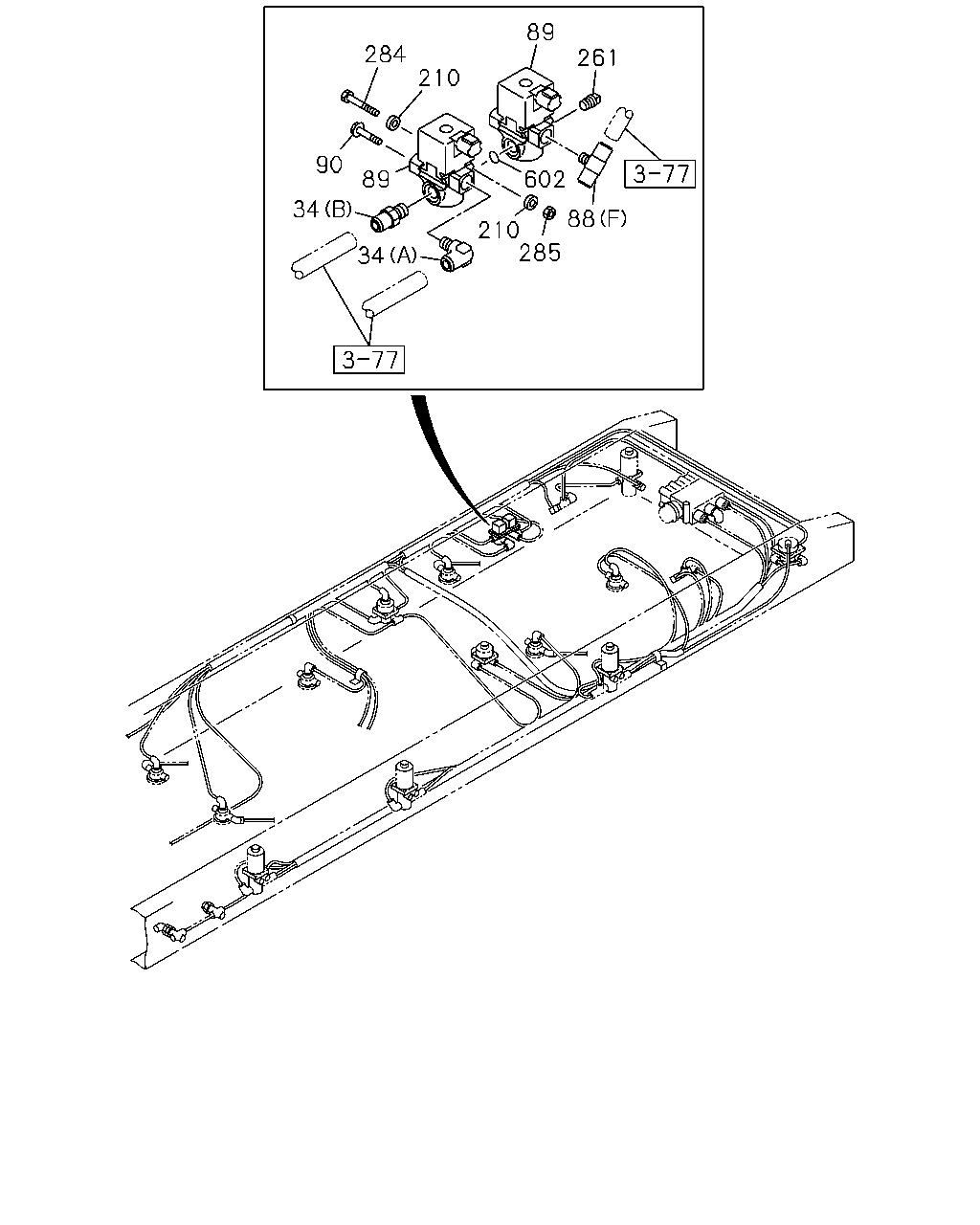

89 284 261 210 90 89 602 34 88 210 285 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	0105-
88	CONNECTOR; MAG VLV (L) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0105-
88	CONNECTOR; MAG VLV (N) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0105-
88	CONNECTOR; MAG VLV (K) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	0105-
88	CONNECTOR; MAG VLV (H) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0105-
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-
88	CONNECTOR; MAG VLV (I) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0105-
88	CONNECTOR; MAG VLV (M) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	0105-
88	CONNECTOR; MAG VLV (P) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV (P) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0301
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (O) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	02	1	0105-
90	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0601-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0105-0301
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0302-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0302-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0301
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0302-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0302-
284	BOLT; MAG VLV M6X50 FLANGE	0-28080-650-0	01	1	0105-0301
284	BOLT; MAG VLV M6X50 FLANGE	0-28080-650-0	01	1	0302-0512
284	BOLT; MAG VLV M6X50 FLANGE	0-28080-650-0	01	1	0302-0512
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0601-
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0105-0301
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0302-
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0302-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0105-0301
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0302-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
