◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11524 - CYH RHD EURO2 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#124139) — 93 parça
çizim 362550
208 208 208 64
BalonParca AdiParca NoAdetTipApplied Date
64 BOX; BATTERY RELAY
SMOOTHER-G(C1W) 		1-82510-650-0 01 1 1306-
64 BOX; BATTERY RELAY
EXC. SMOOTHER-G(C1W) 		1-82510-648-0 01 1 1306-
208 FUSE
(C) 80A 		1-82516-031-0 01 1 1306-
208 FUSE
(B) 100A 		1-82516-032-0 01 1 1306-
208 FUSE
SMOOTHER-G(C1W) (A) 40A GREEN 		8-94468-662-0 06 1 1306-
208 FUSE
EXC. SMOOTHER-G(C1W) (A) 40A GREEN 		8-94468-662-0 05 1 1306-

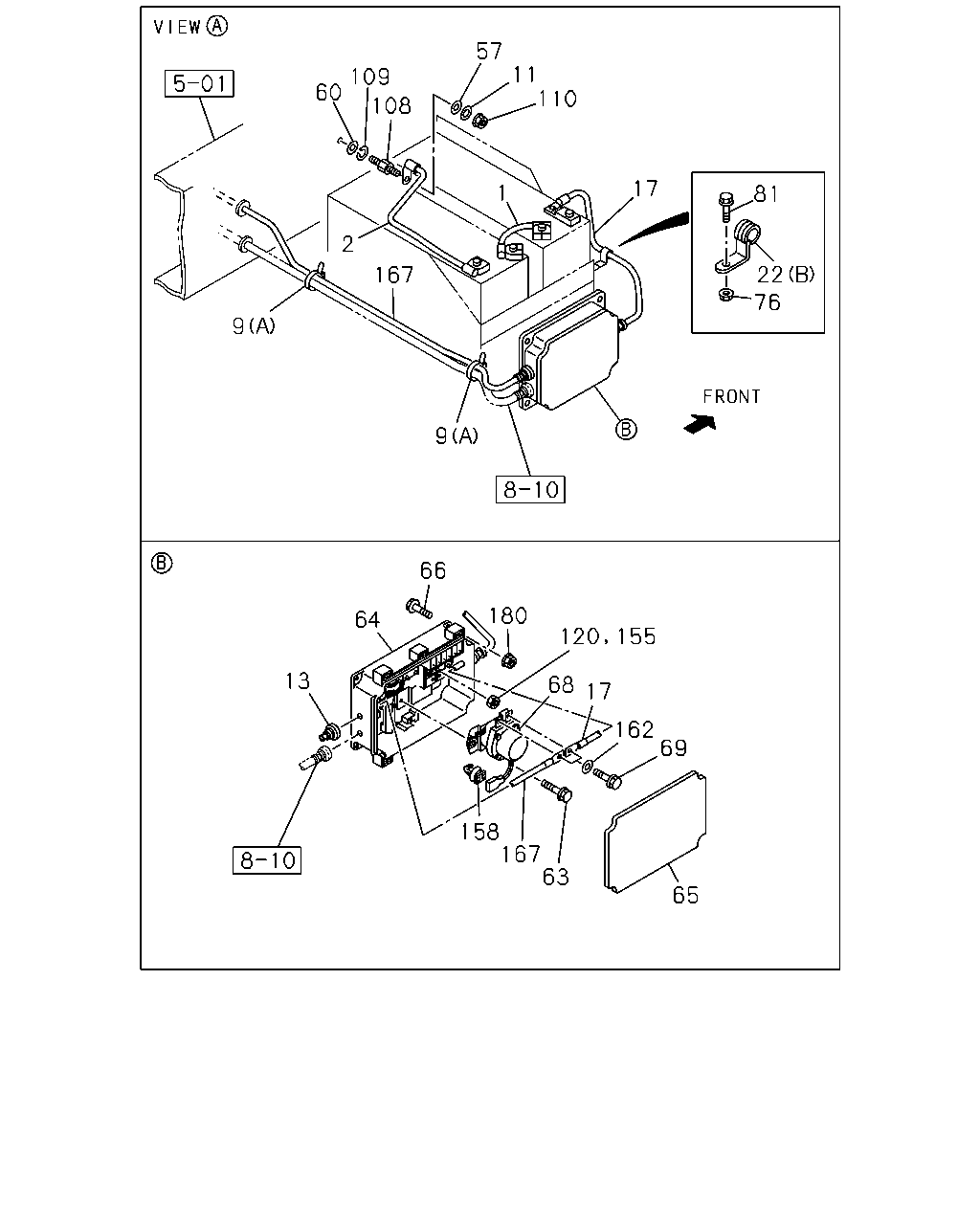

çizim 362597
65 63 167 158 69 162 17 68 155 120 180 66 64 13 76 22 81 17 1 110 11 57 108 109 60 2 9 167 9
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
BATTERY 115F51 N120<SJ3> L=265 		1-82650-388-1 01 1 1306-
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8> L=450 		1-82650-389-1 01 1 1306-
2 CABLE; BATTERY
L=640 		8-98223-230-0 01 1 1306-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 02 1 1306-
9 CLIP; BATTERY CABLE
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
9 CLIP; BATTERY CABLE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1306-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 03 1 1306-
9 CLIP; BATTERY CABLE
(C) ID=18 L=28 H=30 		1-09701-110-0 02 1 1306-
9 CLIP; BATTERY CABLE
(E) ID=21 L=24 		8-94176-807-1 02 1 1306-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1306-
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 1306-
17 CABLE; BATTERY (+) TO RELAY
L=480 		8-98239-412-0 01 1 1306-
22 CLIP; BATTERY CABLE
(B) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
22 CLIP; BATTERY CABLE
(A) ID=11 & 13 H=26 L=48 		1-09701-270-0 03 1 1306-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		0-91614-506-0 01 1 1306-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1306-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1306-
64 BOX; BATTERY RELAY
SMOOTHER-G(C1W) 		1-82510-650-0 01 1 1306-
64 BOX; BATTERY RELAY
EXC. SMOOTHER-G(C1W) 		1-82510-648-0 01 1 1306-
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 1306-
66 BOLT; COVER,BATTERY RELAY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1306-
68 RELAY; BATTERY 1-82550-313-0 01 1 1306-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1306-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 04 1 1306-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1306-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1306-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1306-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1306-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1306-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1306-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1306-
167 CABLE; BATTERY RELAY TO STARTER 8-98198-307-1 01 1 1306-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 1306-
çizim 362601
9 9 18 22 99 25 99 9 9 22 9 99 9 158
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 02 1 1306-
9 CLIP; BATTERY CABLE
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
9 CLIP; BATTERY CABLE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1306-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 03 1 1306-
9 CLIP; BATTERY CABLE
(C) ID=18 L=28 H=30 		1-09701-110-0 02 1 1306-
9 CLIP; BATTERY CABLE
(E) ID=21 L=24 		8-94176-807-1 02 1 1306-
18 CLIP; BATTERY CABLE
ID=21 L=24 		8-94176-807-1 01 1 1306-
22 CLIP; BATTERY CABLE
(B) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
22 CLIP; BATTERY CABLE
(A) ID=11 & 13 H=26 L=48 		1-09701-270-0 03 1 1306-
25 CLIP; BATTERY CABLE TO BRKT
ID=18 H=23 L=28 		1-09701-070-0 03 1 1306-
99 CLIP; BATTERY CABLE
(B) ID=18 L=54 		1-09701-068-0 01 1 1306-
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 03 1 1306-
99 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 01 1 1306-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1306-

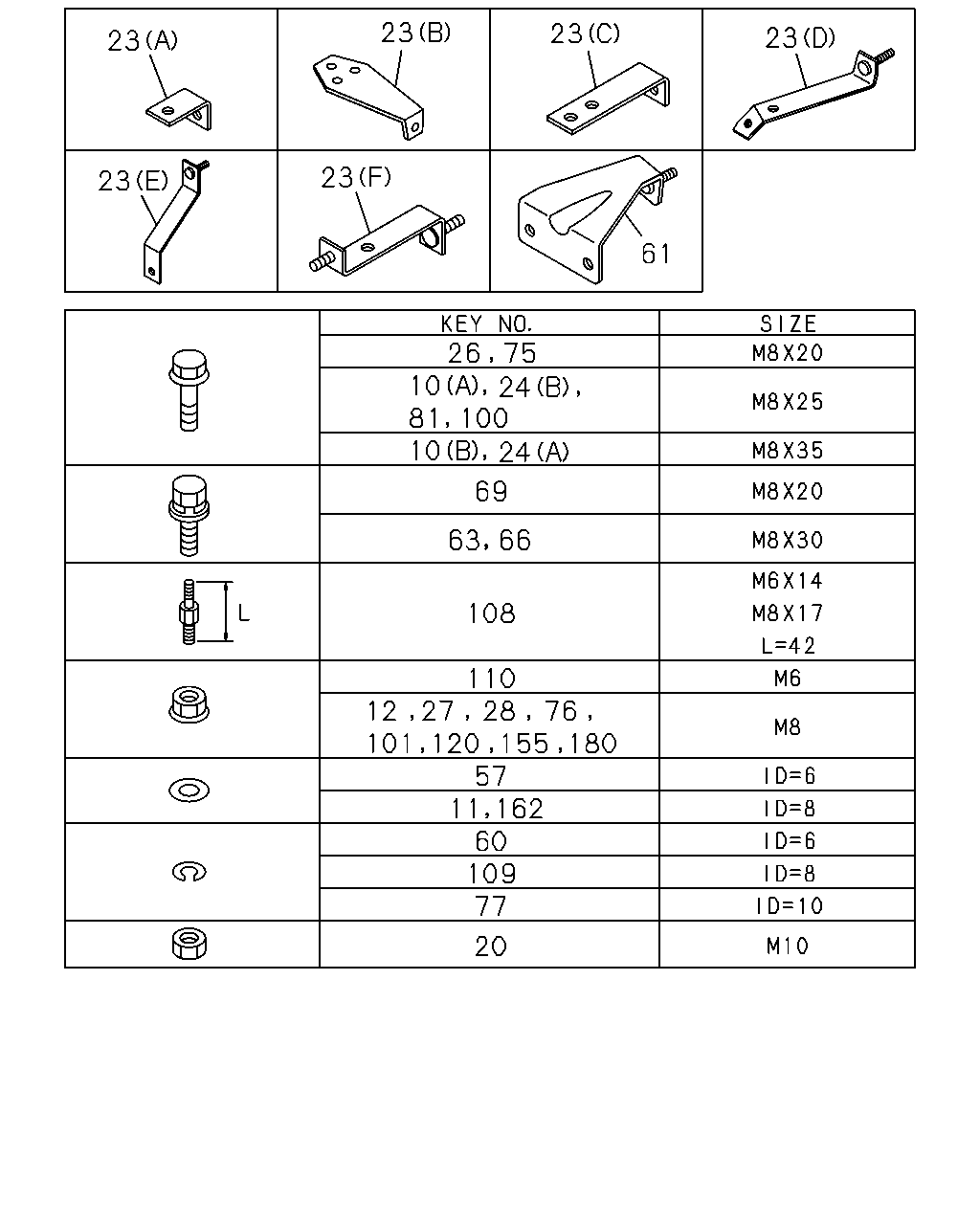

çizim 366511
20 77 109 60 162 11 57 180 155 120 101 76 28 27 12 110 108 66 63 69 24 10 10 81 100 24 75 26 61 23 23 23 23 23 23
BalonParca AdiParca NoAdetTipApplied Date
10 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 05 1 1306-
10 BOLT; BATTERY CABLE CLIP
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1306-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1306-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1306-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 08 1 1306-
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 1306-
23 BRACKET; CABLE CLIP TO FRAME
(A) L=40 		1-47478-410-0 01 1 1306-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82698-557-0 01 1 1306-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-82698-574-0 01 1 1306-
23 BRACKET; CABLE CLIP TO FRAME
(E) 		1-82698-575-1 01 1 1306-
23 BRACKET; CABLE CLIP TO FRAME
(F) 		1-82698-590-0 01 1 1306-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98171-604-0 01 1 1306-
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
24 BOLT; BRKT TO FRAME
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1306-
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1306-
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 03 1 1306-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1306-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		0-91614-506-0 01 1 1306-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1306-
61 BRACKET; BATTERY CABLE 8-98147-302-0 01 1 1306-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1306-
66 BOLT; COVER,BATTERY RELAY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1306-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1306-
75 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 1306-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 04 1 1306-
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-610-0 01 1 1306-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 1306-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1306-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1306-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1306-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1306-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1306-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1306-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1306-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 1306-

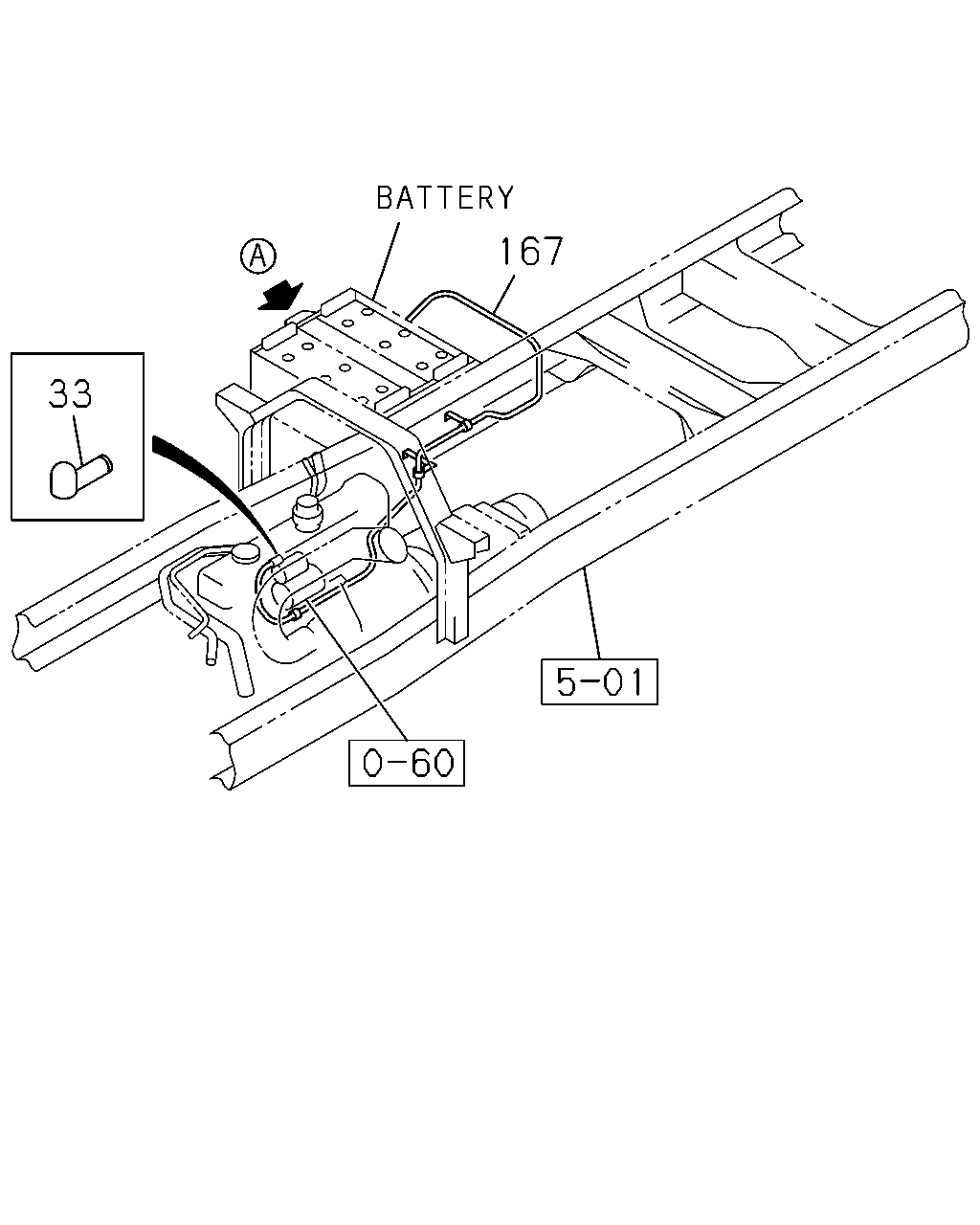

çizim 366752
167 33
BalonParca AdiParca NoAdetTipApplied Date
33 CAP; INSULATOR 8-97181-965-0 01 1 1306-
167 CABLE; BATTERY RELAY TO STARTER 8-98198-307-1 01 1 1306-
