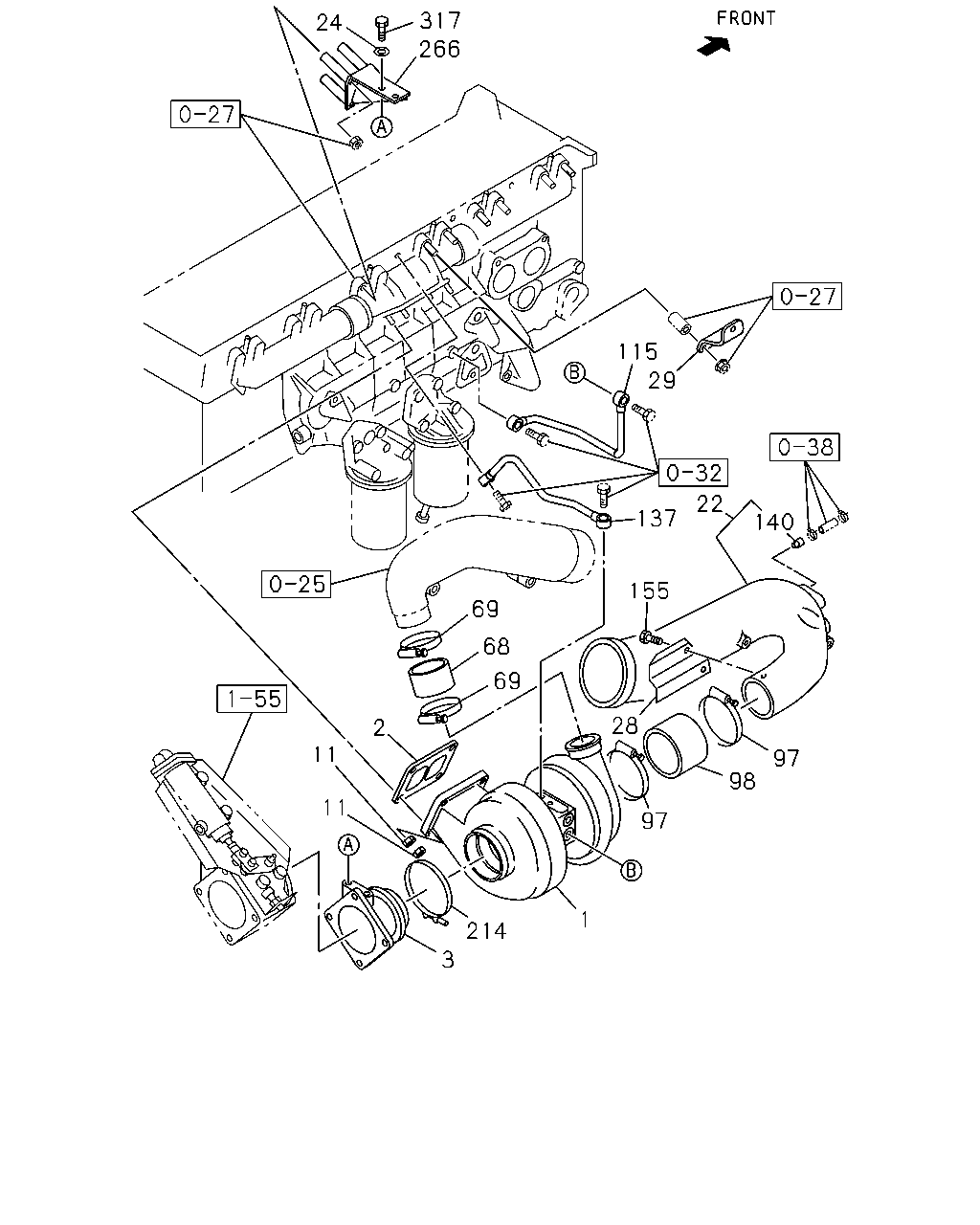

0-36 — TURBOCHARGER SYSTEM
(#124127) — 19 parça
24
317
266
115
29
140
22
137
155
69
68
69
2
11
11
3
214
1
97
98
97
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-374-3
01
1
1306-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-140-1
01
1
1306-
3
PIPE; EXH,TURBOCHARGER
8-98216-313-0
01
1
1306-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
1306-
22
DUCT; INL,ACL TO TURBOCHARGER
1-14134-484-3
01
1
1306-
24
WASHER; PL,PIPE
ID=10.5 OD=22
1-09500-007-0
02
1
1306-
28
PROTECTOR; HEAT,HOSE,AIR DUCT
1-14181-272-0
01
1
1306-
29
BRACKET; INL PIPE,ACL TO TURBOCHARGER
1-14119-392-0
01
1
1306-
68
HOSE; RUBBER,TURBOCHARGER TO INL COVER
1-09361-124-0
01
1
1306-
69
CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85
8-98096-592-0
02
1
1306-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=104-142
1-09707-139-0
02
1
1306-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-987-1
01
1
1306-
115
PIPE; WATER,TURBOCHARGER OUT
1-13721-826-1
01
1
1306-
137
PIPE; WATER,TURBOCHARGER IN
1-13721-827-0
01
1
1306-
140
PIPE; AIR PIPE
9-14119-228-1
02
1
1306-
155
BOLT; HEAT PROTECTOR
M8X12 FLANGE
0-28050-812-0
02
1
1306-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98059-890-0
01
1
1306-
266
BRACKET; EXH PIPE
1-14149-219-3
01
1
1306-
317
BOLT; EXH PIPE
M10X20
1-09020-073-2
02
1
1306-
