◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#124120) — 84 parça

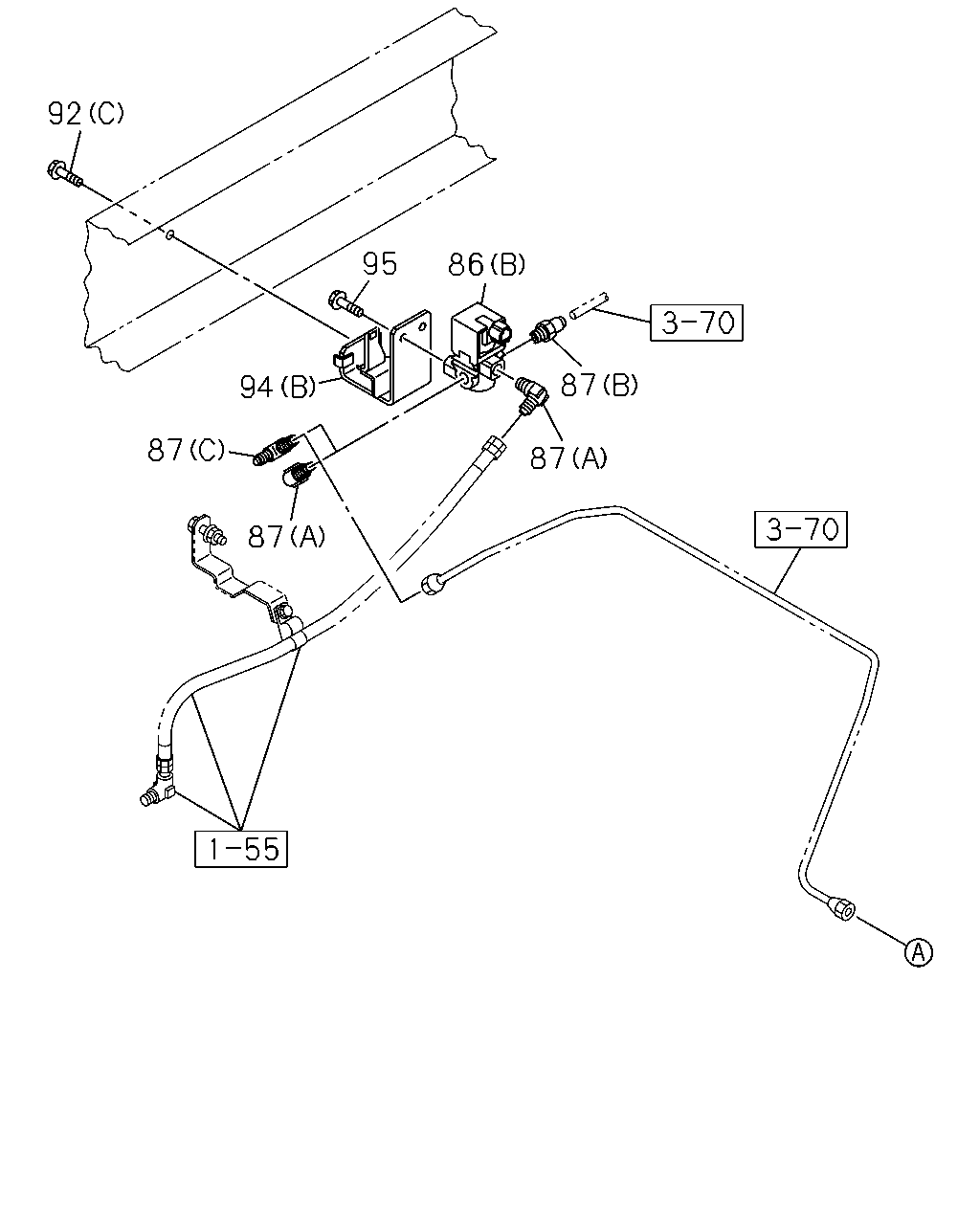

çizim 362916
92 87 94 95 87 87 87 86
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
(A) 		8-97633-075-0 01 1 1307-1312 ●
86 VALVE; MAG,EXH BRK
(A) 		8-97633-075-0 01 1 1401- ● ●
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 1307-1312 ●
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 1401- ● ●
87 CONNECTOR
AIR SUS(FCD***) (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1401- ●
87 CONNECTOR
(F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1401- ●
87 CONNECTOR
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1307-1312 ●
87 CONNECTOR
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1401- ● ●
87 CONNECTOR
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1307-1312 ●
87 CONNECTOR
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1401- ● ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307-1312 ●
87 CONNECTOR
LCT2500 A/T ALLISON(Y5W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307-1312 ●
87 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307-1312 ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1401- ● ●
87 CONNECTOR
LCT2500 A/T ALLISON(Y5W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1401- ● ●
87 CONNECTOR
LEAF SUS(FCR***) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1401- ●
87 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307-1312 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307-1312 ●
87 CONNECTOR
AIR SUS(FCD***) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1401- ● ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1401- ● ●
87 CONNECTOR
LEAF SUS(FCR***) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1401- ●
87 CONNECTOR
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1307-1312 ●
87 CONNECTOR
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1401- ● ●
87 CONNECTOR
AIR SUS(FCD***) (B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1401- ●
87 CONNECTOR
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1401- ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1307-1312 ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1401- ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
92 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 1307-1312 ●
92 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 1401- ● ●
92 BOLT; MAG VLV
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ●
92 BOLT; MAG VLV
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98034-702-0 01 1 1307-1312 ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98034-702-0 01 1 1401- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98123-165-0 01 1 1307-1312 ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98123-165-0 01 1 1401- ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●

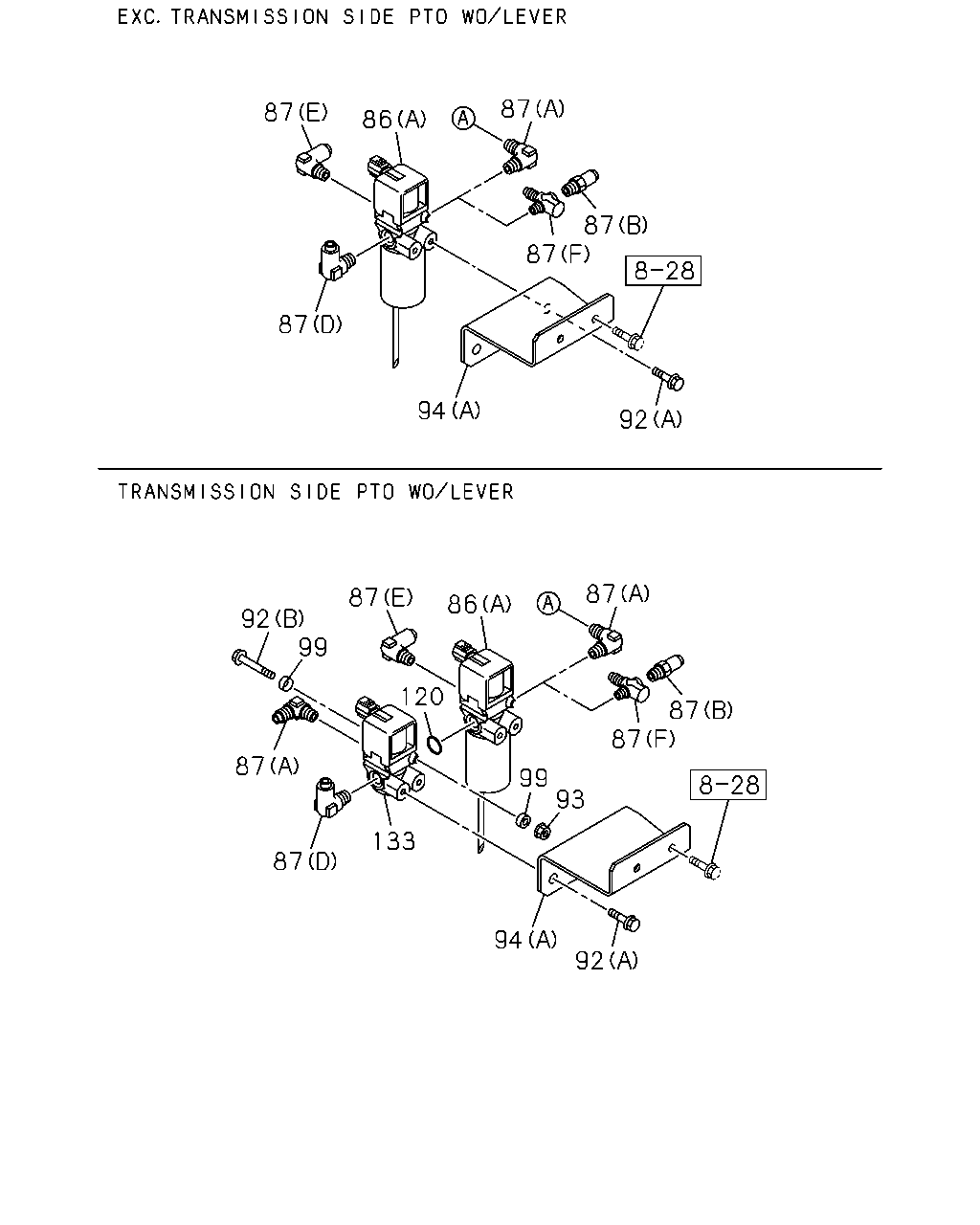

çizim 401307
87 87 86 87 87 87 92 94 86 87 87 87 99 93 92 94 133 87 87 92 99 87 120
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
(A) 		8-97633-075-0 01 1 1307-1312 ●
86 VALVE; MAG,EXH BRK
(A) 		8-97633-075-0 01 1 1401- ● ●
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 1307-1312 ●
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 1401- ● ●
87 CONNECTOR
AIR SUS(FCD***) (F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1401- ●
87 CONNECTOR
(F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1401- ●
87 CONNECTOR
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1307-1312 ●
87 CONNECTOR
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1401- ● ●
87 CONNECTOR
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1307-1312 ●
87 CONNECTOR
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1401- ● ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307-1312 ●
87 CONNECTOR
LCT2500 A/T ALLISON(Y5W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307-1312 ●
87 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307-1312 ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1401- ● ●
87 CONNECTOR
LCT2500 A/T ALLISON(Y5W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1401- ● ●
87 CONNECTOR
LEAF SUS(FCR***) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1401- ●
87 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307-1312 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307-1312 ●
87 CONNECTOR
AIR SUS(FCD***) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1401- ● ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1401- ● ●
87 CONNECTOR
LEAF SUS(FCR***) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1401- ●
87 CONNECTOR
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1307-1312 ●
87 CONNECTOR
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1401- ● ●
87 CONNECTOR
AIR SUS(FCD***) (B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1401- ●
87 CONNECTOR
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1401- ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1307-1312 ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1401- ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
92 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 1307-1312 ●
92 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 1401- ● ●
92 BOLT; MAG VLV
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ●
92 BOLT; MAG VLV
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ●
93 NUT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M6 FLANGE 		0-91180-106-0 01 1 1307-1312 ●
93 NUT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M6 FLANGE 		0-91180-106-0 01 1 1401- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98034-702-0 01 1 1307-1312 ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98034-702-0 01 1 1401- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98123-165-0 01 1 1307-1312 ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98123-165-0 01 1 1401- ● ●
99 WASHER; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 1307-1312 ●
99 WASHER; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 1401- ● ●
120 GASKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 1307-1312 ●
120 GASKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 1401- ● ●
133 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 1307-1312 ●
133 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 1401- ● ●
