1-50 — EXHAUST PIPE AND SILENCER (#124118) — 281 parça

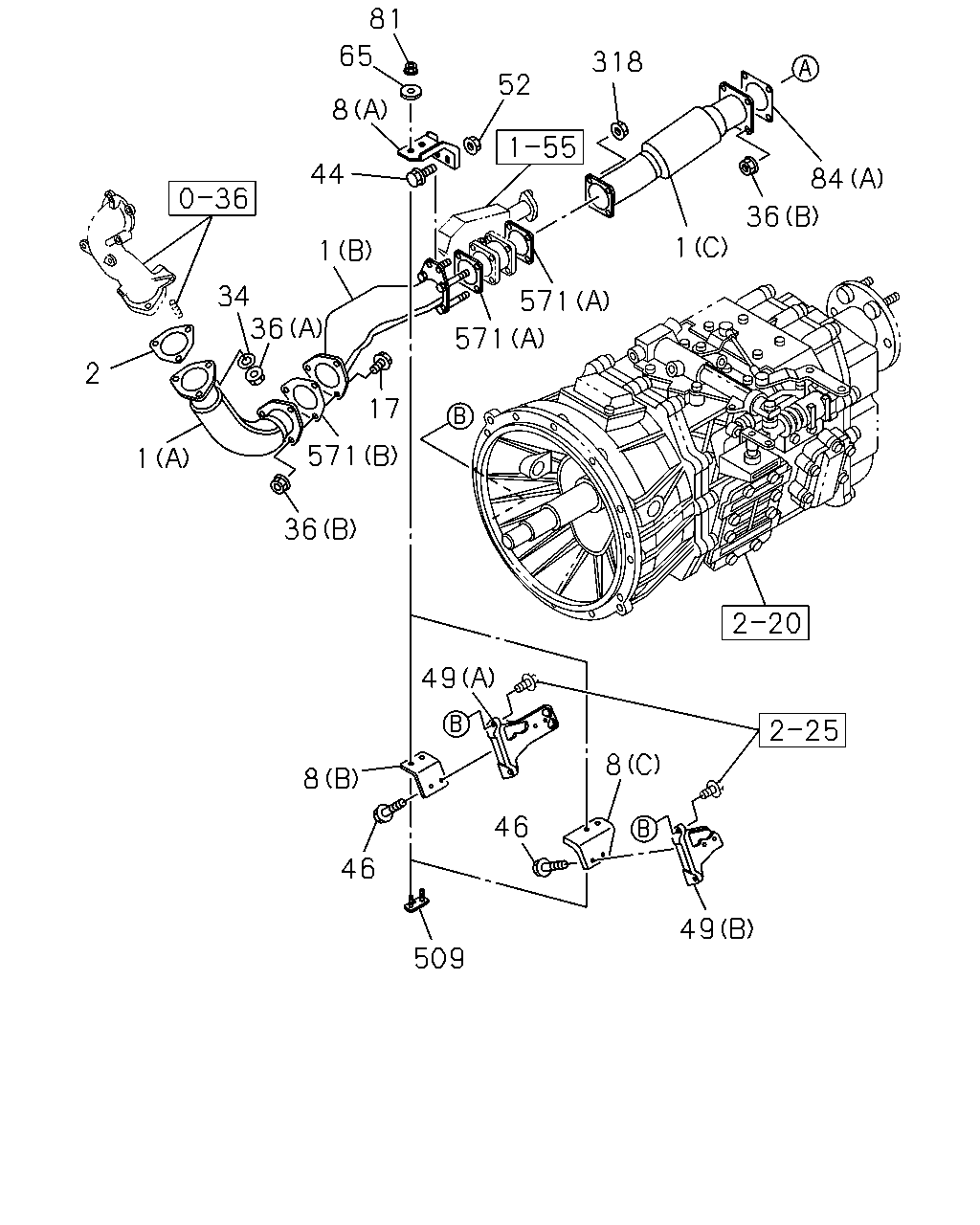

çizim 362879
81 65 8 44 1 34 36 2 1 571 17 36 8 46 509 49 8 46 49 571 52 318 1 36 84 571
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		1-22123-885-1 01 1 1307-1312 ●
1 PIPE; EXH
(C) 		1-22123-885-1 01 1 1401- ● ●
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1307-1312 ●
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1401- ● ●
1 PIPE; EXH
(B) 		8-98215-407-1 01 1 1307-1312 ●
1 PIPE; EXH
(B) 		8-98215-407-1 01 1 1401- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1307-1312 ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1401- ● ●
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (B) 		8-98233-626-0 01 1 1307-1310 ●
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (B) 		8-98259-870-0 01 1 1311-1312 ●
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (B) 		8-98259-870-0 01 1 1401- ● ●
8 BRACKET; EXH PIPE
LCT2500 A/T ALLISON(Y5W) (C) 		8-98234-526-0 01 1 1307-1310 ●
8 BRACKET; EXH PIPE
LCT2500 A/T ALLISON(Y5W) (C) 		8-98259-876-0 01 1 1311-1312 ●
8 BRACKET; EXH PIPE
LCT2500 A/T ALLISON(Y5W) (C) 		8-98259-876-0 01 1 1401- ● ●
8 BRACKET; EXH PIPE
(A) 		8-98233-627-0 01 1 1307-1312 ●
8 BRACKET; EXH PIPE
(A) 		8-98233-627-0 01 1 1401-1404 ● ●
8 BRACKET; EXH PIPE
(A) 		8-98275-817-0 01 1 1405- ● ●
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 1307-1312 ●
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 1401- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1307-1312 ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1401- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1307-1312 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1401- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1307-1312 ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1401- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1307-1312 ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1401- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1307-1312 ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1401- ● ●
46 BOLT; BRKT,EXH PIPE
M10X30 FLANGE 		0-28051-030-0 02 1 1307-1312 ●
46 BOLT; BRKT,EXH PIPE
M10X30 FLANGE 		0-28051-030-0 02 1 1401- ● ●
49 BRACKET; EXH PIPE TO TRANS
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98122-673-0 01 1 1307- ●
49 BRACKET; EXH PIPE TO TRANS
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98122-671-0 01 1 1307- ●
49 BRACKET; EXH PIPE TO TRANS
LCT2500 A/T ALLISON(Y5W) (B) 		8-98234-528-0 01 1 1307-1312 ●
49 BRACKET; EXH PIPE TO TRANS
LCT2500 A/T ALLISON(Y5W) (B) 		8-98234-528-0 01 1 1401- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1307-1312 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1401- ● ●
65 WASHER; PL
ID=10.5 		8-98073-091-0 02 1 1307-1312 ●
65 WASHER; PL
ID=10.5 		8-98073-091-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1310-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1401- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1307-1312 ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1401- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1307-1312 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1307-1312 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1401- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1401- ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1307-1312 ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1401- ● ●
509 STUD; BRKT 8-98233-625-0 01 1 1307-1311 ●
509 STUD; BRKT 8-98259-983-0 01 1 1312-1312 ●
509 STUD; BRKT 8-98259-983-0 01 1 1401- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1307-1312 ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1401- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1307-1312 ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1401- ● ●

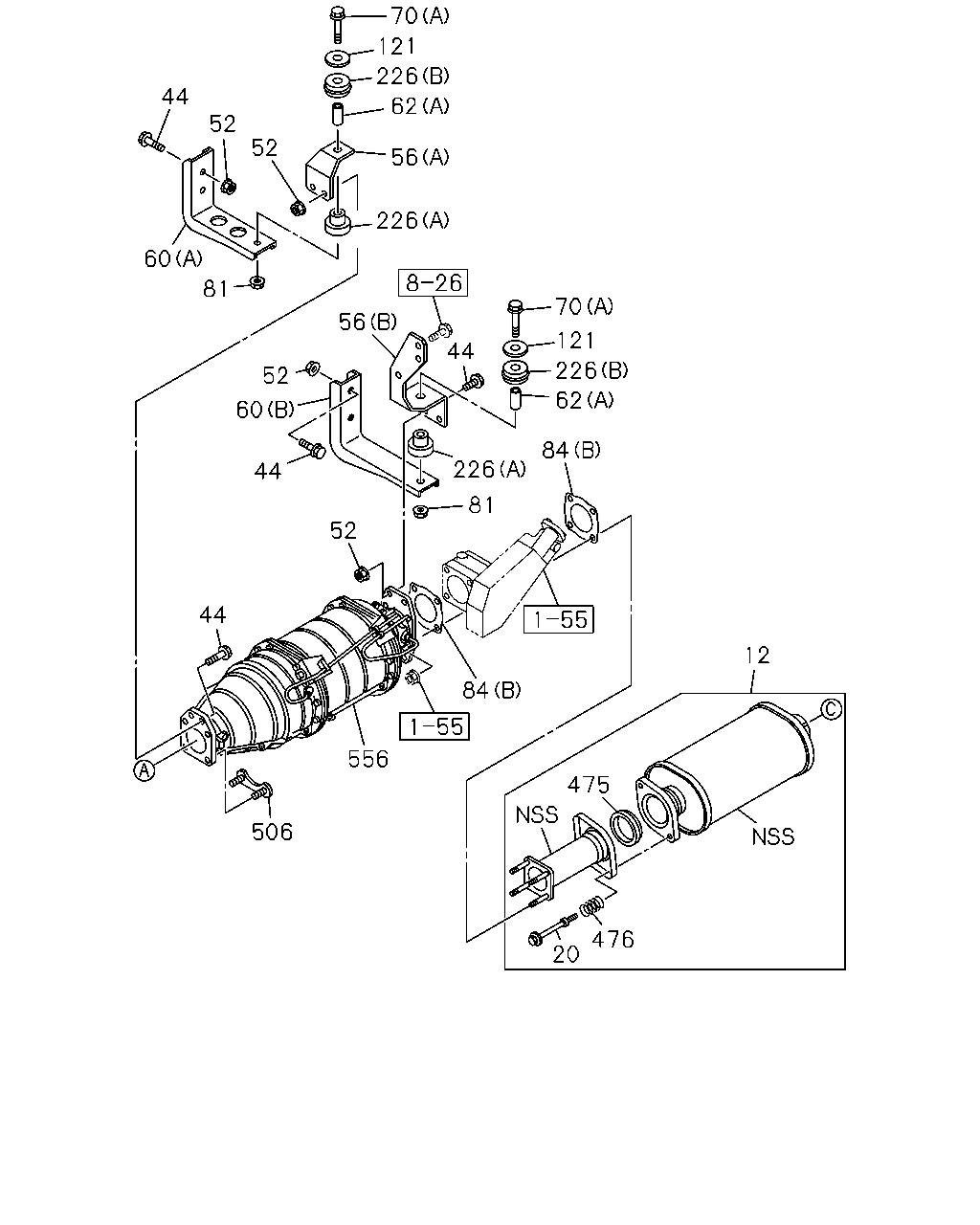

çizim 362900
44 52 52 60 81 70 121 226 62 56 226 56 52 60 44 52 226 81 70 121 226 62 84 44 44 506 556 84 12 475 20 476
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH 8-98234-507-0 01 1 1307-1312 ●
12 SILENCER ASM; EXH 8-98234-507-0 01 1 1401- ● ●
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1307-1312 ●
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1401- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1307-1312 ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1401- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1307-1312 ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1401- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1307-1312 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (E) 		8-98059-762-0 01 1 1307- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) 		8-98233-506-0 01 1 1307-1312 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) 		8-98233-506-0 01 1 1401- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98233-506-0 01 1 1401- ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 1307-1309 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310-1312 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 1307-1312 ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 1307-1312 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 1401- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98233-467-0 01 1 1307- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) 		8-98233-509-0 01 1 1307-1312 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) 		8-98233-509-0 01 1 1401- ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98233-509-0 01 1 1401- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 1307-1312 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 1401- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 1307-1312 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 1401- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 1307-1309 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310-1312 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1401- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1307-1312 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1401- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1307-1312 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1401- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1307-1312 ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1401- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1307-1312 ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1401- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1307-1312 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1401- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1307-1312 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1310-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1401- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1307-1312 ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1401- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1307-1312 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1307-1312 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1401- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1401- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1307-1312 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1401- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1307-1312 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1401- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1307-1312 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1401- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1307-1312 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1401- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1307-1312 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1401- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1307-1312 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1401- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1307-1312 ●
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1401- ● ●
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1307-1312 ●
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1401- ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1307-1312 ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1401- ● ●
556 DPD ASM 8-97622-883-4 01 1 1307-1312 ●
556 DPD ASM 8-97622-883-4 01 1 1401- ● ●

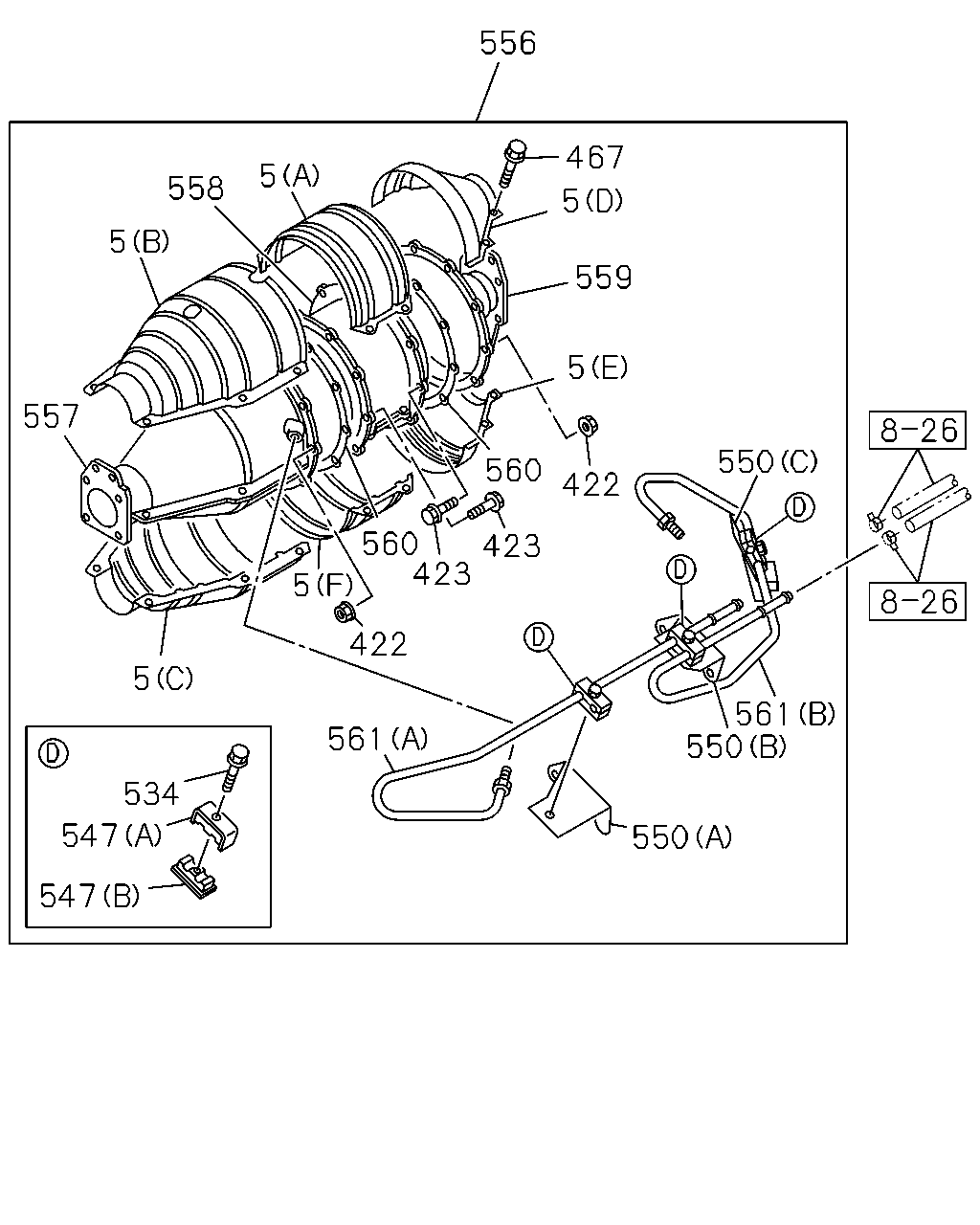

çizim 362911
561 550 550 550 422 5 559 5 467 560 423 423 560 422 5 5 534 547 547 557 5 558 5 556 561
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1401- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1307-1312 ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1401- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1307-1312 ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1401- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1307-1312 ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1401- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1307-1312 ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1401- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1307-1312 ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1401- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1307-1312 ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1401- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1307-1312 ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1401- ● ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 1307-1312 ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 1401- ● ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 1307-1312 ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 1401- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1307-1312 ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1401- ● ●
556 DPD ASM 8-97622-883-4 01 1 1307-1312 ●
556 DPD ASM 8-97622-883-4 01 1 1401- ● ●
557 CATALYST ASM 8-97608-055-8 01 1 1307-1312 ●
557 CATALYST ASM 8-97608-055-8 01 1 1401- ● ●
558 FILTER ASM 8-97608-057-3 01 1 1307-1312 ●
558 FILTER ASM 8-97608-057-3 01 1 1401- ● ●
559 COVER; RR 8-97622-887-0 01 1 1307-1312 ●
559 COVER; RR 8-97622-887-0 01 1 1401- ● ●
560 GASKET; DPD 8-97611-080-0 02 1 1307-1312 ●
560 GASKET; DPD 8-97611-080-0 02 1 1401- ● ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1307-1312 ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1401- ● ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1307-1312 ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1401- ● ●

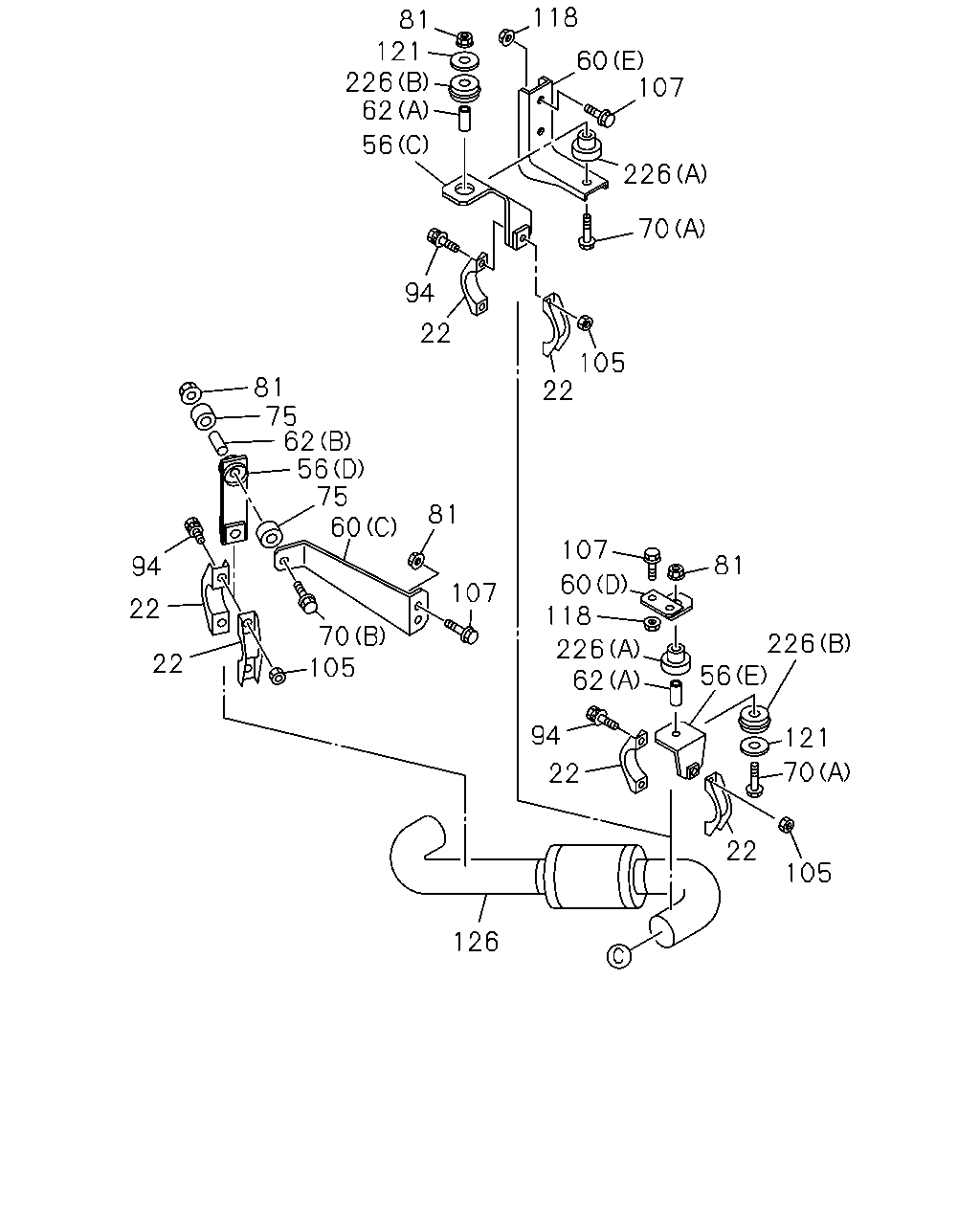

çizim 366420
118 60 226 107 70 81 121 226 62 56 94 22 22 105 81 75 62 56 75 60 81 107 105 22 70 121 226 56 81 107 60 118 226 62 94 22 126 105 22 22 94 70
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1307-1312 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1307-1312 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1401- ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (E) 		8-98059-762-0 01 1 1307- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) 		8-98233-506-0 01 1 1307-1312 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) 		8-98233-506-0 01 1 1401- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98233-506-0 01 1 1401- ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 1307-1309 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310-1312 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 1307-1312 ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 1401- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 1307-1312 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 1401- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98233-467-0 01 1 1307- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) 		8-98233-509-0 01 1 1307-1312 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) 		8-98233-509-0 01 1 1401- ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98233-509-0 01 1 1401- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 1307-1312 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 1401- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 1307-1312 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 1401- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 1307-1309 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310-1312 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1401- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1307-1312 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1401- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1307-1312 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1401- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1307-1312 ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1401- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1307-1312 ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1401- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1307-1312 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1401- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1307-1312 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1401- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1307-1312 ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1310-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1310-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1309 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310-1312 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1401- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1307-1312 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1307-1312 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1401- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1401- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1307-1309 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1307-1309 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1310-1312 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1401- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1307-1312 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1401- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1307-1312 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1401- ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		8-98234-295-0 01 1 1307- ●
126 PIPE; EXH,RR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98233-516-0 01 1 1307-1312 ●
126 PIPE; EXH,RR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98233-516-0 01 1 1401- ●
126 PIPE; EXH,RR 8-98233-516-0 01 1 1401- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1307-1312 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1401- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1307-1312 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1401- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1307-1312 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1401- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1307-1312 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
