Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#124116) — 244 parça

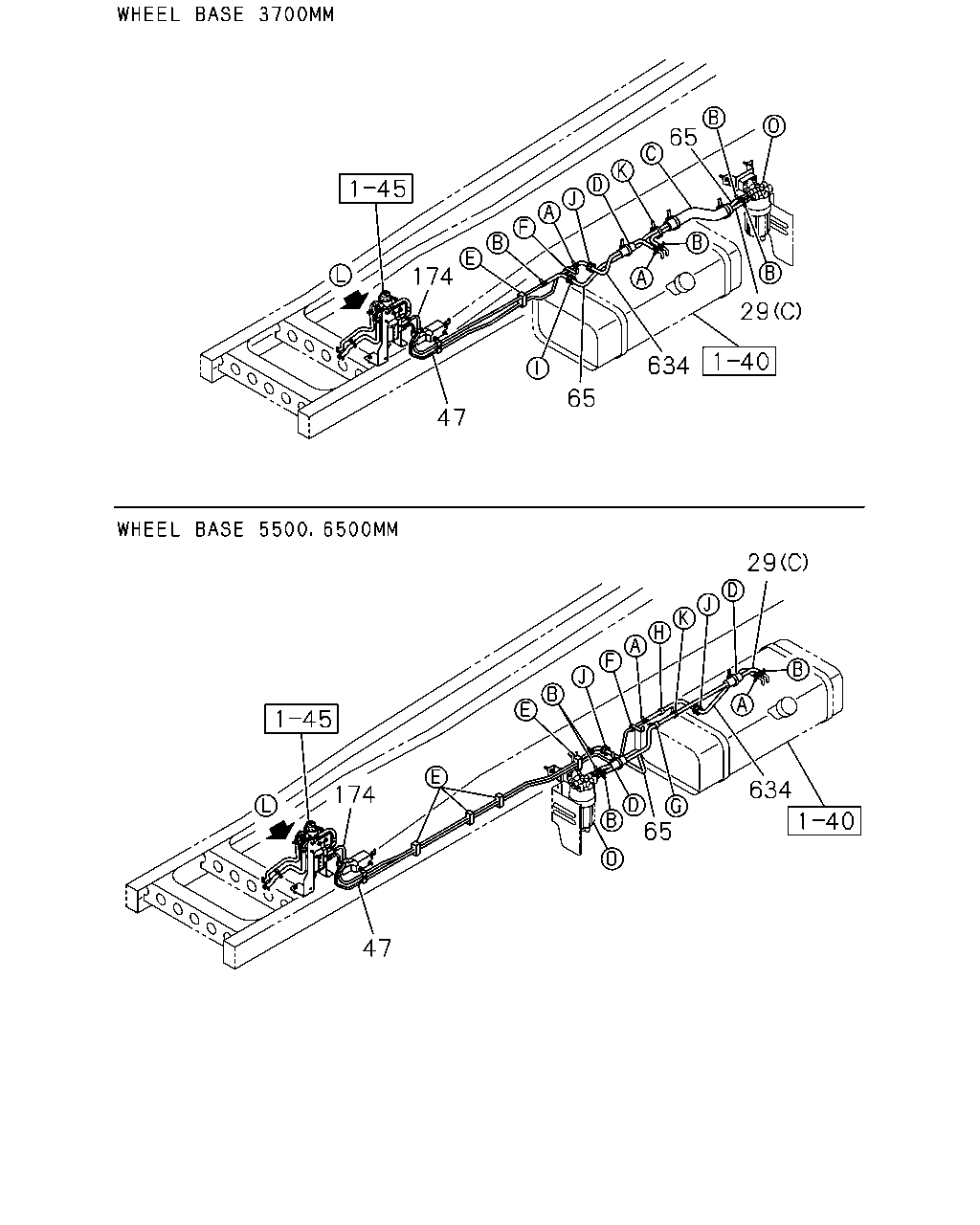

174 47 65 634 29 174 47 65 634 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C) L=900 SERVICED BY L=3000	0-01859-300-0	01	1	1307-	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98233-949-0	01	1	1307-1312	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98233-949-0	01	1	1401-	●
29	HOSE; FUEL (C)	8-98233-949-0	01	1	1401-		●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1307-1312	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1401-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1307-1312	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1401-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=2316	8-98235-282-0	01	1	1307-1312	●
47	PIPE; FUEL,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=2316	8-98235-282-0	01	1	1401-	●
47	PIPE; FUEL,RETURN L=2316	8-98235-282-0	01	1	1401-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1052	8-98170-450-0	01	1	1307-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) SERVICED BY L=3000	0-01859-300-0	01	1	1307-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=450 SERVICED BY L=3000	0-01859-300-0	01	1	1307-1312	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=450 SERVICED BY L=3000	0-01859-300-0	01	1	1401-	●
65	HOSE; FUEL,DELIVERY PIPE L=450 SERVICED BY L=3000	0-01859-300-0	01	1	1401-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98170-447-0	01	1	1307-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98179-133-0	01	1	1307-1312	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98179-133-0	01	1	1401-	●
174	PIPE; FUEL,FEED,FRT	8-98179-133-0	01	1	1401-		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=380 SERVICED BY L=3000	0-01558-300-0	01	1	1307-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=780 SERVICED BY L=3000	0-01558-300-0	01	1	1307-1312	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=780 SERVICED BY L=3000	0-01558-300-0	01	1	1401-	●
634	HOSE; RUBBER RETURN L=780 SERVICED BY L=3000	0-01558-300-0	01	1	1401-		●

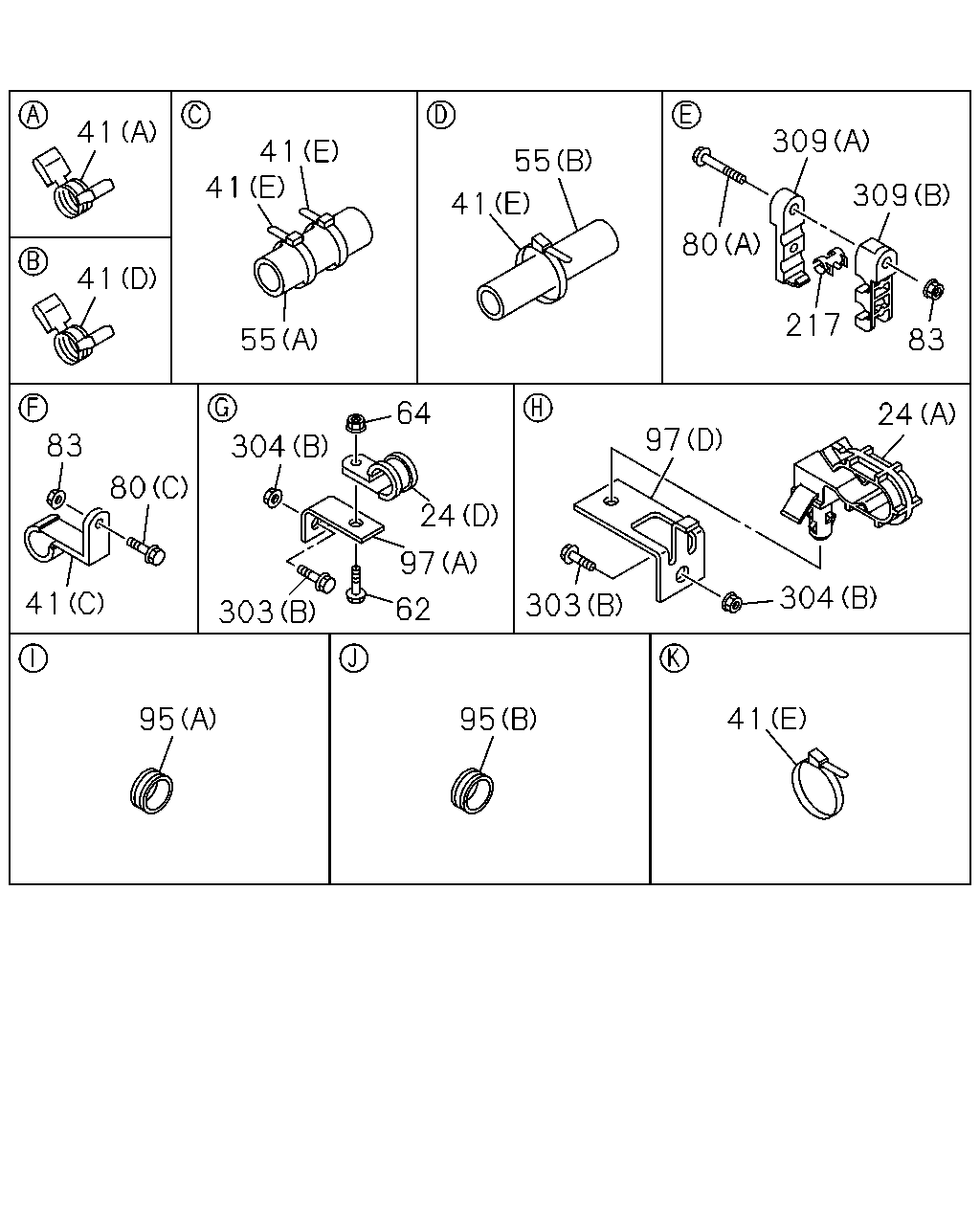

41 41 83 41 80 95 41 41 55 304 303 64 24 97 62 95 41 55 41 97 303 304 309 80 309 217 83 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1307-1312	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1401-	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1401-		●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) ID=21 L=24	8-98019-191-0	01	1	1307-1312	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) ID=21 L=24	8-98019-191-0	01	1	1401-	●
24	CLIP; FUEL HOSE (D) ID=21 L=24	8-98019-191-0	01	1	1401-		●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1307-1312	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1401-	●	●
24	CLIP; FUEL HOSE (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1307-1312	●
24	CLIP; FUEL HOSE (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	04	1	1307-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) L=250	5-09707-030-1	03	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) L=250	5-09707-030-1	03	1	1401-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1401-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1401-	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (A) L=800	1-09361-018-0	01	1	1307-	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1307-	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1307-1312	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1401-	●
55	COVER; PIPE,FUEL TANK (B) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1401-		●
62	BOLT; CLIP FIX WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
62	BOLT; CLIP FIX WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1401-		●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1401-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1401-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) (A) M8X50 FLANGE	0-28050-850-0	01	1	1307-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X50 FLANGE	0-28050-850-0	04	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X50 FLANGE	0-28050-850-0	04	1	1401-	●
80	BOLT; CLIP,FUEL TANK (A) M8X50 FLANGE	0-28050-850-0	04	1	1401-		●
80	BOLT; CLIP,FUEL TANK (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK (B) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
80	BOLT; CLIP,FUEL TANK (C) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK (C) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	03	1	1307-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	06	1	1307-1312	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	06	1	1401-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	06	1	1401-		●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (A) ID=24 OD=30 T=17	9-09956-092-1	01	1	1307-	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	1307-	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1307-1312	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1401-	●
95	BUSHING; PIPE,FUEL TANK (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1401-		●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=55	1-47476-177-0	01	1	1307-1312	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=55	1-47476-177-0	01	1	1401-	●
97	BRACKET; CLIP (A) L=55	1-47476-177-0	01	1	1401-		●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D)	8-98109-768-0	01	1	1307-1312	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D)	8-98109-768-0	01	1	1401-	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1401-		●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1307-1312	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1401-	●	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	1307-1312	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	1401-	●	●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 3700MM(37W) ID=8	1-47459-011-0	01	1	1307-	●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=8	1-47459-011-0	04	1	1307-1312	●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=8	1-47459-011-0	04	1	1401-	●
217	COLLAR; FUEL PIPE FIX ID=8	1-47459-011-0	04	1	1401-		●
303	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-		●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-		●
303	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1307-1312	●
303	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1401-	●	●
304	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●
304	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1401-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1401-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (A) ID=10 & 10	1-09709-241-0	01	1	1307-	●
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (B) ID=10 & 10	1-09709-243-0	01	1	1307-	●
309	CLIP; PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=10 & 10	1-09709-241-0	04	1	1307-1312	●
309	CLIP; PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=10 & 10	1-09709-241-0	04	1	1401-	●
309	CLIP; PIPE (A) ID=10 & 10	1-09709-241-0	04	1	1401-		●
309	CLIP; PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=10 & 10	1-09709-243-0	04	1	1307-1312	●
309	CLIP; PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=10 & 10	1-09709-243-0	04	1	1401-	●
309	CLIP; PIPE (B) ID=10 & 10	1-09709-243-0	04	1	1401-		●

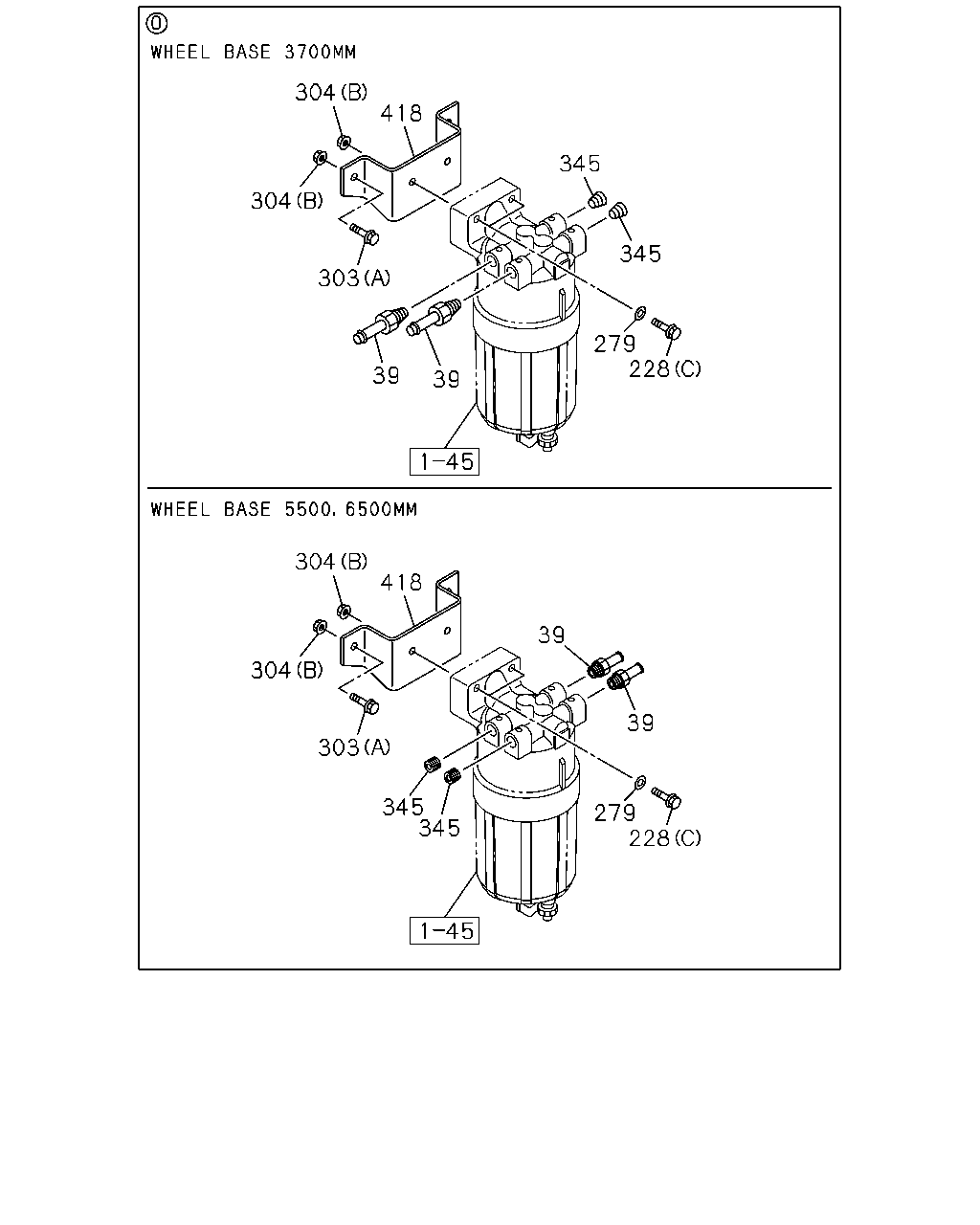

304 418 304 303 39 39 279 345 345 228 304 418 304 303 345 345 39 39 279 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	1307-1312	●
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	1401-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1307-1312	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1401-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1307-1312	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1401-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1307-1312	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1401-	●	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-		●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-		●
303	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1307-1312	●
303	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1401-	●	●
304	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●
304	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1401-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1401-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1307-1312	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1401-	●	●
418	BRACKET; PRE FUEL FILTER	8-98114-787-0	01	1	1307-1312	●
418	BRACKET; PRE FUEL FILTER	8-98114-787-0	01	1	1401-	●	●

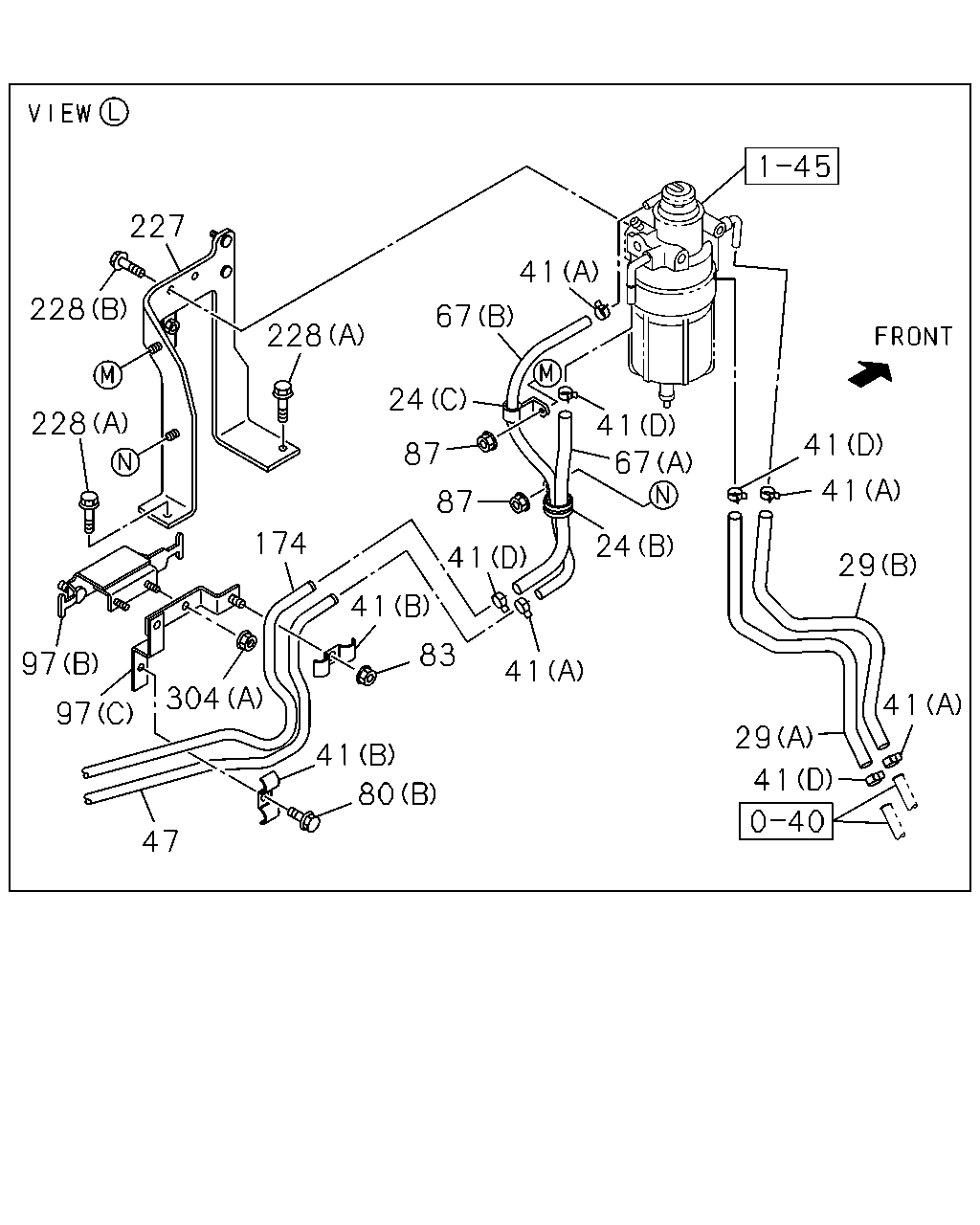

227 228 228 228 97 97 174 304 47 41 80 83 41 87 87 24 67 41 41 41 24 67 41 29 41 41 29 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1307-1312	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1401-	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1401-		●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) ID=21 L=24	8-98019-191-0	01	1	1307-1312	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) ID=21 L=24	8-98019-191-0	01	1	1401-	●
24	CLIP; FUEL HOSE (D) ID=21 L=24	8-98019-191-0	01	1	1401-		●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1307-1312	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1401-	●	●
24	CLIP; FUEL HOSE (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1307-1312	●
24	CLIP; FUEL HOSE (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1401-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C) L=900 SERVICED BY L=3000	0-01859-300-0	01	1	1307-	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98233-949-0	01	1	1307-1312	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98233-949-0	01	1	1401-	●
29	HOSE; FUEL (C)	8-98233-949-0	01	1	1401-		●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1307-1312	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1401-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1307-1312	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	04	1	1307-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) L=250	5-09707-030-1	03	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) L=250	5-09707-030-1	03	1	1401-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1401-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1307-1312	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1401-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1401-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=2316	8-98235-282-0	01	1	1307-1312	●
47	PIPE; FUEL,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=2316	8-98235-282-0	01	1	1401-	●
47	PIPE; FUEL,RETURN L=2316	8-98235-282-0	01	1	1401-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1052	8-98170-450-0	01	1	1307-	●
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	1307-1312	●
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	1401-	●	●
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1307-1312	●
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1401-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) (A) M8X50 FLANGE	0-28050-850-0	01	1	1307-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X50 FLANGE	0-28050-850-0	04	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X50 FLANGE	0-28050-850-0	04	1	1401-	●
80	BOLT; CLIP,FUEL TANK (A) M8X50 FLANGE	0-28050-850-0	04	1	1401-		●
80	BOLT; CLIP,FUEL TANK (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK (B) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
80	BOLT; CLIP,FUEL TANK (C) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
80	BOLT; CLIP,FUEL TANK (C) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	03	1	1307-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	06	1	1307-1312	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	06	1	1401-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	06	1	1401-		●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=55	1-47476-177-0	01	1	1307-1312	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=55	1-47476-177-0	01	1	1401-	●
97	BRACKET; CLIP (A) L=55	1-47476-177-0	01	1	1401-		●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D)	8-98109-768-0	01	1	1307-1312	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D)	8-98109-768-0	01	1	1401-	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1401-		●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1307-1312	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1401-	●	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	1307-1312	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	1401-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98170-447-0	01	1	1307-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98179-133-0	01	1	1307-1312	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98179-133-0	01	1	1401-	●
174	PIPE; FUEL,FEED,FRT	8-98179-133-0	01	1	1401-		●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1307-1312	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1401-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1307-1312	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1401-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1307-1312	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1401-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
304	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
304	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●
304	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1401-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1401-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
