◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#124115) — 56 parça

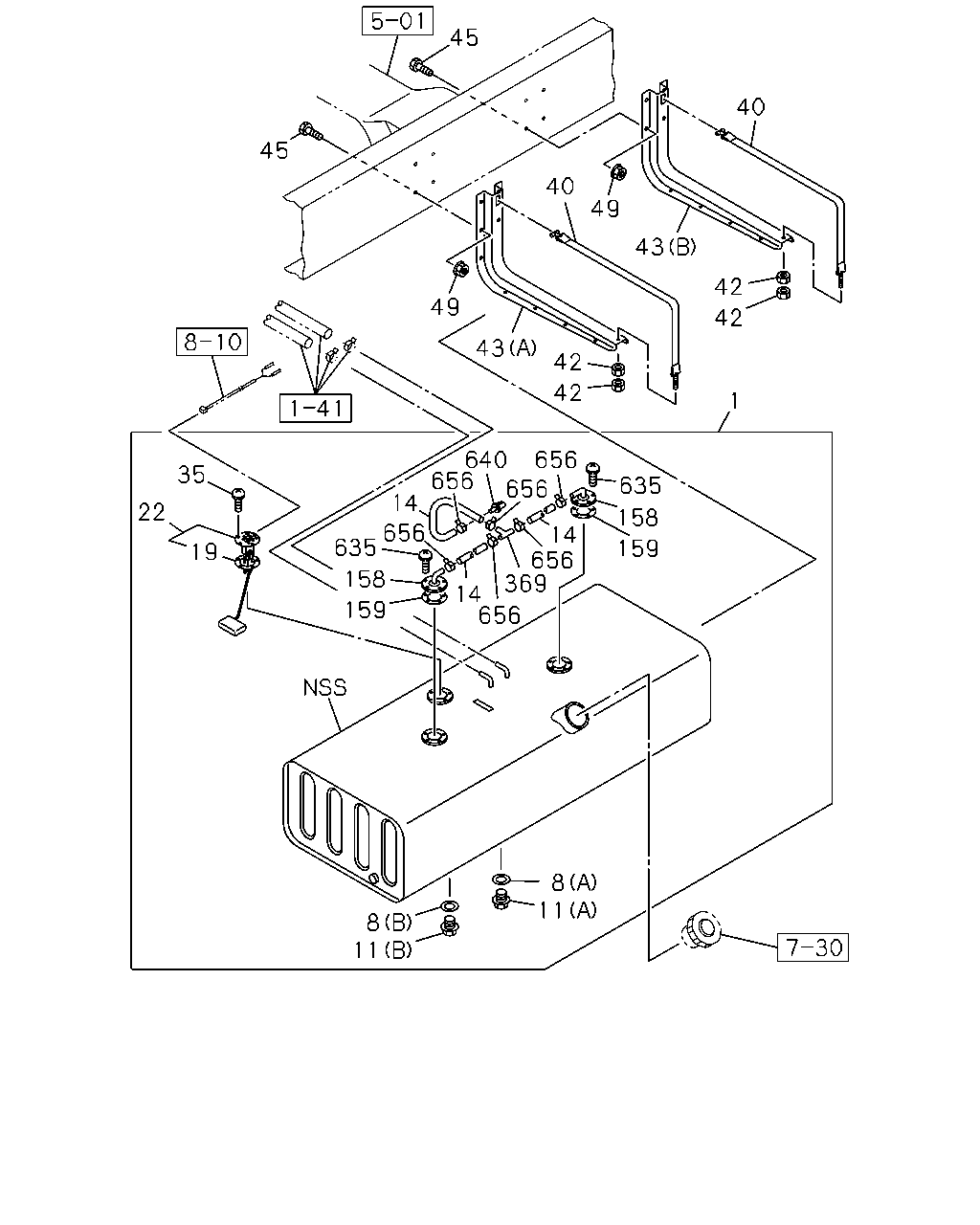

çizim 362754
40 40 43 42 42 1 42 42 43 49 45 45 35 22 19 635 656 656 640 656 656 14 14 14 158 159 656 369 656 635 49 158 159 8 8 11 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
1345X532X322 200L 		8-98122-992-3 01 1 1307-1312 ●
1 TANK; FUEL
1345X532X322 200L 		8-98122-992-3 01 1 1401- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 1307-1312 ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 1401- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1307-1312 ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1401- ● ●
11 PLUG; DRAIN,FUEL TANK
(A) M18X12 		0-92002-418-0 01 1 1307-1312 ●
11 PLUG; DRAIN,FUEL TANK
(A) M18X12 		0-92002-418-0 01 1 1401-1504 ● ●
11 PLUG; DRAIN,FUEL TANK
(A) M18 		8-98068-006-0 01 1 1505- ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M30 		8-98067-038-0 01 1 1307-1312 ●
11 PLUG; DRAIN,FUEL TANK
(B) M30 		8-98067-038-0 01 1 1401- ● ●
14 HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000 		0-01256-300-0 01 1 1307-1312 ●
14 HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000 		0-01256-300-0 01 1 1401-1504 ● ●
14 HOSE; BREATHER,OUTLET
L=430 		8-98131-037-0 01 1 1505- ● ●
14 HOSE; BREATHER,OUTLET
L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 1307-1312 ●
14 HOSE; BREATHER,OUTLET
L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 1401-1504 ● ●
14 HOSE; BREATHER,OUTLET
L=460 		8-98304-414-0 01 1 1505- ● ●
14 HOSE; BREATHER,OUTLET
L=450 SERVICED BY L=3000 		0-01256-300-0 01 1 1307-1312 ●
14 HOSE; BREATHER,OUTLET
L=450 SERVICED BY L=3000 		0-01256-300-0 01 1 1401-1504 ● ●
14 HOSE; BREATHER,OUTLET
L=90 		8-98304-415-0 01 1 1505- ● ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1307-1312 ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1401- ● ●
22 UNIT; FUEL TANK 8-98099-320-0 01 1 1307-1312 ●
22 UNIT; FUEL TANK 8-98099-320-0 01 1 1401- ● ●
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1307-1312 ●
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1401- ● ●
40 BELT; SUPPORT,FUEL TANK
L=880 		8-98042-715-1 02 1 1307-1312 ●
40 BELT; SUPPORT,FUEL TANK
L=880 		8-98042-715-1 02 1 1401- ● ●
42 NUT; SUPPORT BELT
M12 		0-91110-512-0 04 1 1307-1312 ●
42 NUT; SUPPORT BELT
M12 		0-91110-512-0 04 1 1401- ● ●
43 BRACKET; FUEL TANK
(A) 		8-98088-123-0 01 1 1307-1312 ●
43 BRACKET; FUEL TANK
(A) 		8-98088-123-0 01 1 1401- ● ●
43 BRACKET; FUEL TANK
(B) 		8-98122-883-0 01 1 1307-1312 ●
43 BRACKET; FUEL TANK
(B) 		8-98122-883-0 01 1 1401- ● ●
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 12 1 1307-1312 ●
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 12 1 1401- ● ●
49 NUT; BRKT
M10 FLANGE 		0-91180-210-0 12 1 1307-1312 ●
49 NUT; BRKT
M10 FLANGE 		0-91180-210-0 12 1 1401- ● ●
158 VALVE; ROLL OVER & FLOAT 8-98067-039-0 02 1 1307-1312 ●
158 VALVE; ROLL OVER & FLOAT 8-98067-039-0 02 1 1401- ● ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 1307-1312 ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 1401- ● ●
369 JOINT; HOSE 8-98067-080-0 01 1 1307-1312 ●
369 JOINT; HOSE 8-98067-080-0 01 1 1401- ● ●
635 SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER 		0-36220-512-0 10 1 1307-1312 ●
635 SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER 		0-36220-512-0 10 1 1401- ● ●
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 1307-1312 ●
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 1401- ● ●
656 CLAMP; FUEL TANK 8-98304-416-0 06 1 1505- ● ●
çizim 366102
468 254 346 468 346 254
BalonParca AdiParca NoAdetTipApplied Date A B
254 GUARD 8-98232-427-3 01 1 1307-1312 ●
254 GUARD 8-98232-427-3 01 1 1401- ● ●
346 BOLT; GUARD
M10X35 FLANGE 		0-28651-035-0 02 1 1307-1312 ●
346 BOLT; GUARD
M10X35 FLANGE 		0-28651-035-0 02 1 1401- ● ●
468 NUT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 02 1 1307- ●
468 NUT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 01 1 1307- ●
468 NUT
M10 FLANGE 		0-91180-210-0 01 1 1307- ●
