◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#124113) — 81 parça

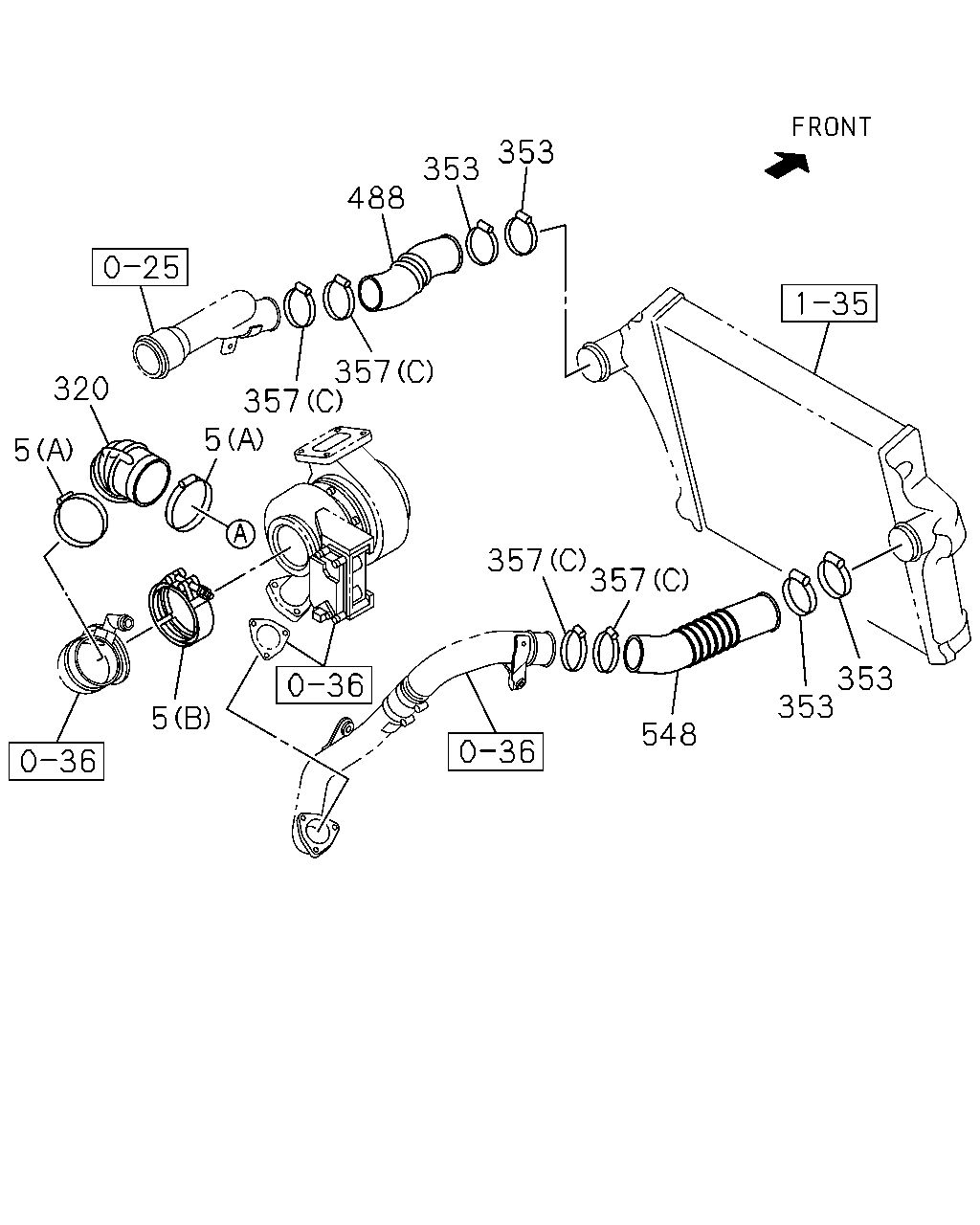

çizim 362727
488 353 353 357 357 548 353 353 357 357 5 320 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1307- ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1307-1312 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1307-1312 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1401- ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1401- ● ●
320 HOSE; CONN,ACL 8-98077-619-1 01 1 1307-1312 ●
320 HOSE; CONN,ACL 8-98077-619-1 01 1 1401- ● ●
353 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 04 1 1307-1312 ●
353 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 04 1 1401- ● ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1401- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1401- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1401- ● ●
488 HOSE; RUBBER,PIPE 8-98017-224-1 01 1 1307-1312 ●
488 HOSE; RUBBER,PIPE 8-98017-224-1 01 1 1401- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98017-223-2 01 1 1307-1312 ●
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98017-223-2 01 1 1401- ● ●

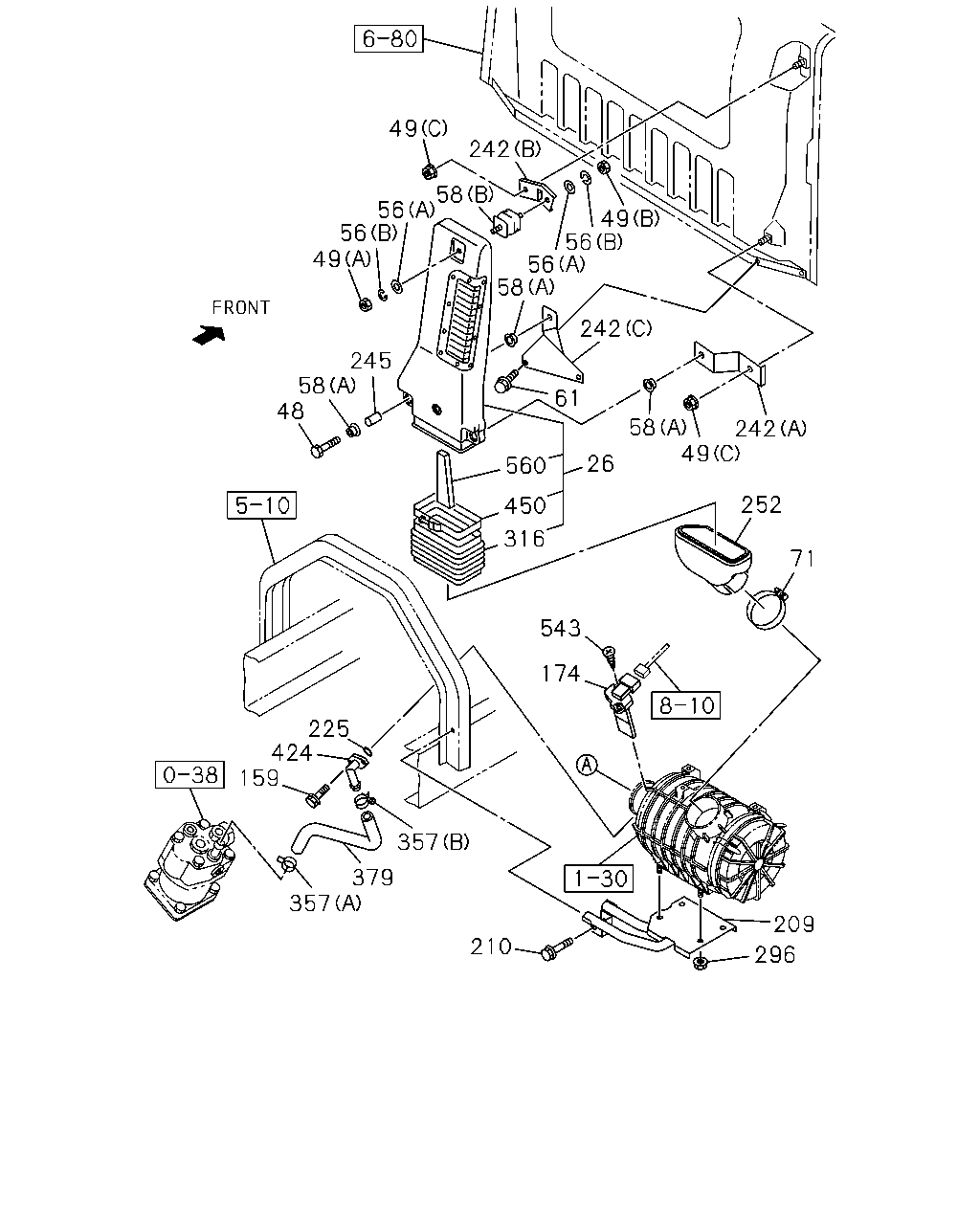

çizim 366336
49 242 58 56 49 56 56 56 58 49 242 245 58 61 58 242 48 560 26 49 252 450 316 71 543 174 225 424 159 357 379 357 210 209 296
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1307-1312 ●
26 DUCT; AIR INT 8-98010-361-2 01 1 1401- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1307-1312 ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1401- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1307-1312 ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1401- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1307-1312 ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1401- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1307-1312 ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1401- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1307-1312 ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1401- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1307-1312 ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1401- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1307-1312 ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1401- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1307-1312 ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1401- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1307-1312 ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1401- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1307-1312 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1401- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1307-1312 ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1401- ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1307-1312 ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1401- ● ●
209 BRACKET; ACL 8-98099-677-0 01 1 1307-1312 ●
209 BRACKET; ACL 8-98099-677-0 01 1 1401- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 03 1 1307-1312 ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 03 1 1401- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1307-1312 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1401- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1307-1312 ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1401- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1307-1312 ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1401- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1307-1312 ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1401- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1307-1312 ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1401- ● ●
252 DUCT; AIR INT 8-98019-843-0 01 1 1307-1312 ●
252 DUCT; AIR INT 8-98019-843-0 01 1 1401- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1401- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1307-1312 ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1401- ● ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1401- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1401- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1401- ● ●
379 HOSE; RUBBER 8-98063-172-0 01 1 1307-1312 ●
379 HOSE; RUBBER 8-98063-172-0 01 1 1401- ● ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1307-1312 ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1401- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1307-1312 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1401- ● ●
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1307-1312 ●
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1401- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1307-1312 ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1401- ● ●
