◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#124112) — 16 parça

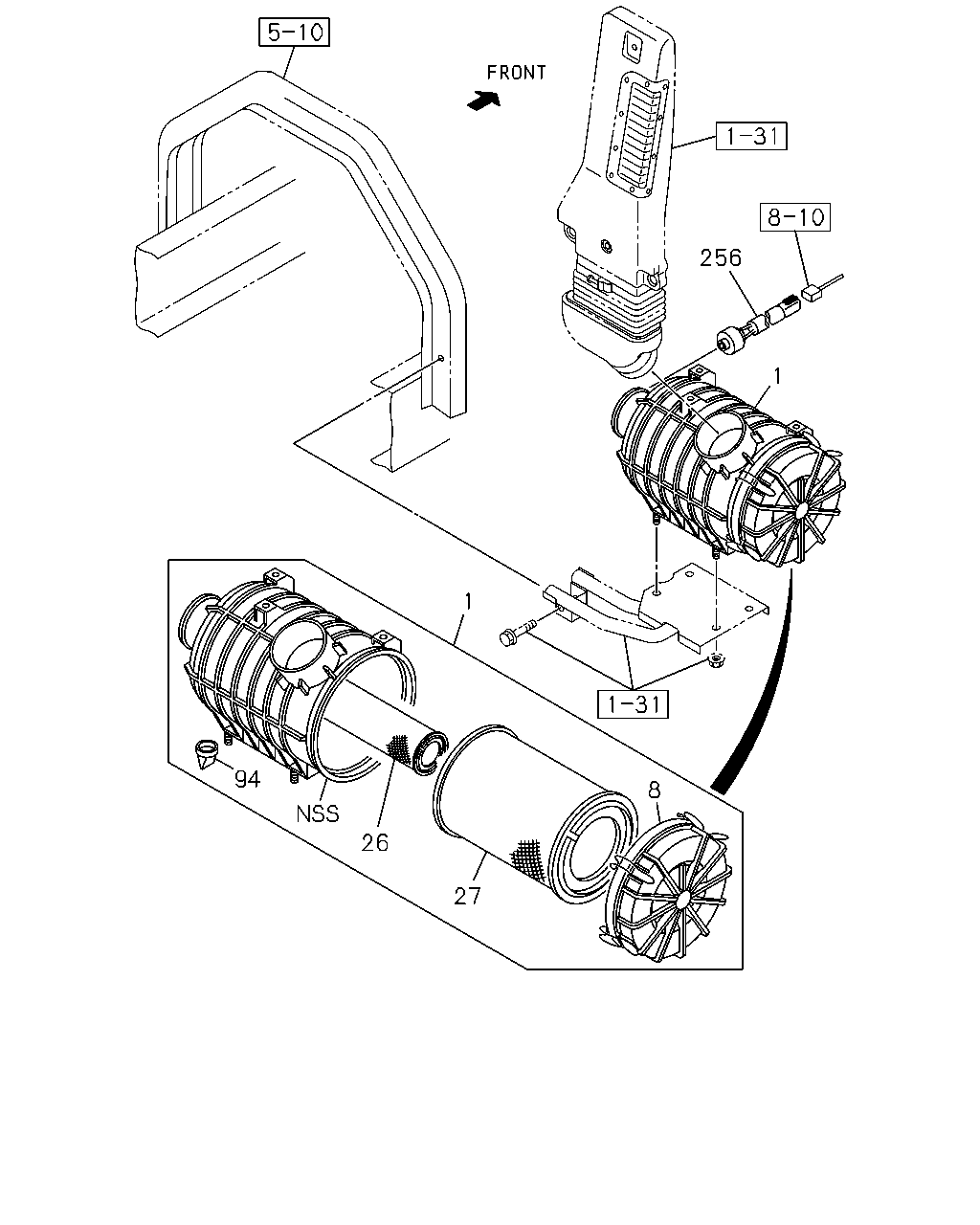

çizim 362581
94 26 27 1 8 1 256
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR 8-98082-165-1 01 1 1307-1312 ●
1 CLEANER ASM; AIR 8-98082-165-1 01 1 1401- ● ●
8 COVER ASM; ACL 8-98066-740-0 01 1 1307-1312 ●
8 COVER ASM; ACL 8-98066-740-0 01 1 1401- ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-114-1 01 1 1307-1312 ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-114-1 01 1 1401- ● ●
26 FILTER; ACL,INNER 8-98071-422-0 01 1 1307-1312 ●
26 FILTER; ACL,INNER 8-98071-422-0 01 1 1401- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-113-1 01 1 1307-1312 ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-113-1 01 1 1401- ● ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 1307-1312 ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 1401- ● ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 1307-1312 ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 1401- ● ●
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1307-1312 ●
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
