◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#124110) — 127 parça

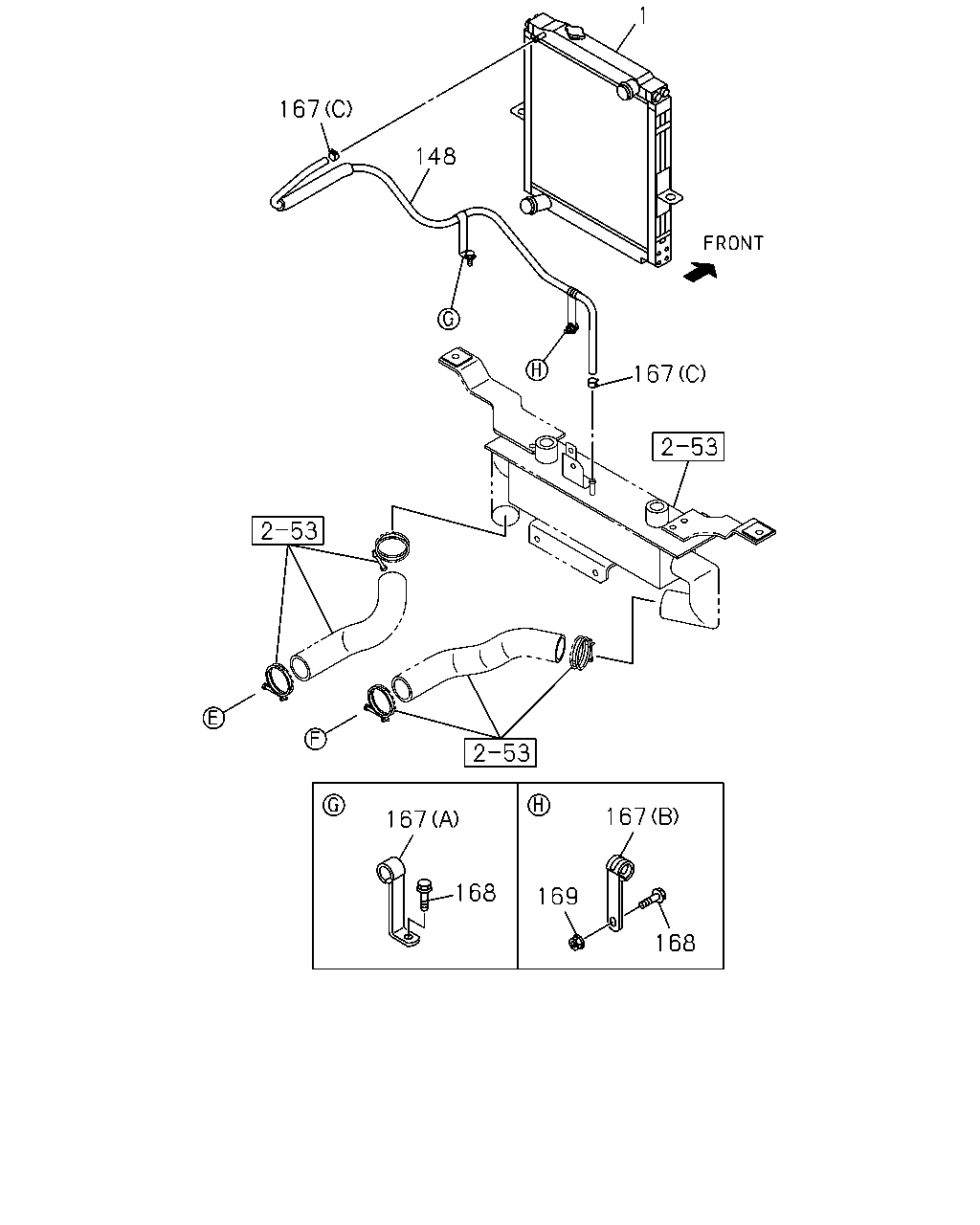

çizim 362571
167 148 1 167 167 168 167 169 168
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-309-0 01 1 1307-1312 ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-309-0 01 1 1401- ● ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-308-0 01 1 1307-1312 ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-308-0 01 1 1401- ● ●
1 RADIATOR ASM
A/T<X9D> 		8-98170-436-0 01 1 1307-1312 ●
1 RADIATOR ASM
A/T<X9D> 		8-98170-436-0 01 1 1401-1505 ● ●
1 RADIATOR ASM
A/T<X9D> 		8-98303-839-0 01 1 1506- ● ●
148 HOSE; WATER,BYPASS,SUB RAD
A/T<X9D> 		8-98116-257-0 01 1 1307-1312 ●
148 HOSE; WATER,BYPASS,SUB RAD
A/T<X9D> 		8-98116-257-0 01 1 1401- ● ●
167 CLIP; BYPASS HOSE
A/T<X9D> (B) ID=12 L=70 		1-09700-097-1 01 1 1307-1312 ●
167 CLIP; BYPASS HOSE
A/T<X9D> (B) ID=12 L=70 		1-09700-097-1 01 1 1401- ● ●
167 CLIP; BYPASS HOSE
A/T<X9D> (A) ID=13 H=75 L=25 		1-09700-601-0 01 1 1307-1312 ●
167 CLIP; BYPASS HOSE
A/T<X9D> (A) ID=13 H=75 L=25 		1-09700-601-0 01 1 1401- ● ●
167 CLIP; BYPASS HOSE
A/T<X9D> (C) ID=11.5 		8-97375-638-0 02 1 1307-1312 ●
167 CLIP; BYPASS HOSE
A/T<X9D> (C) ID=11.5 		8-97375-638-0 02 1 1401- ● ●
168 BOLT; CLIP,BYPASS HOSE
A/T<X9D> M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
168 BOLT; CLIP,BYPASS HOSE
A/T<X9D> M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
169 NUT; CLIP,BYPASS HOSE
A/T<X9D> M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
169 NUT; CLIP,BYPASS HOSE
A/T<X9D> M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●

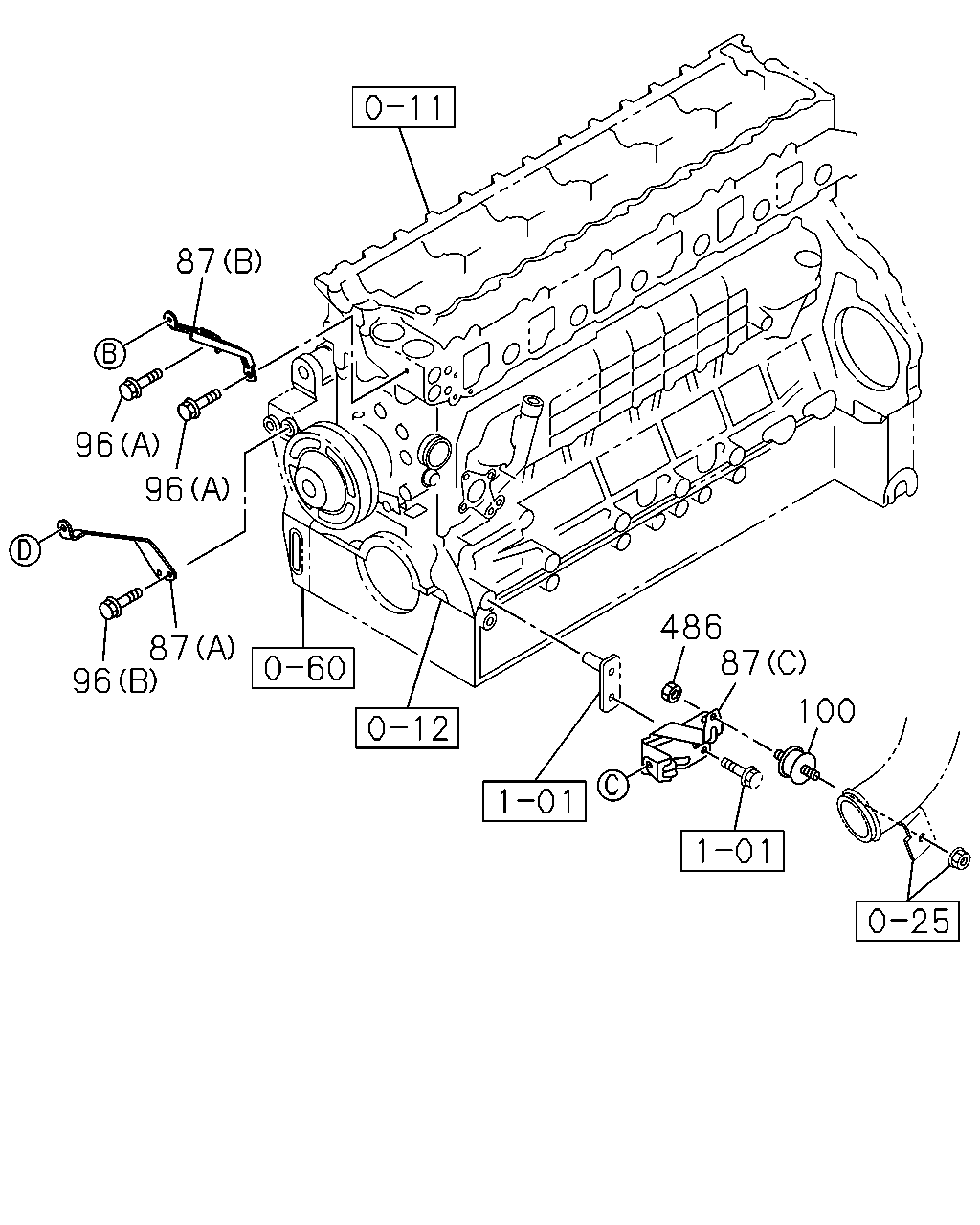

çizim 365660
87 96 96 486 87 100 87 96
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1307- ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1307- ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1307- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1307- ●
100 RUBBER; MTG 8-98148-109-0 01 1 1307- ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1307- ●

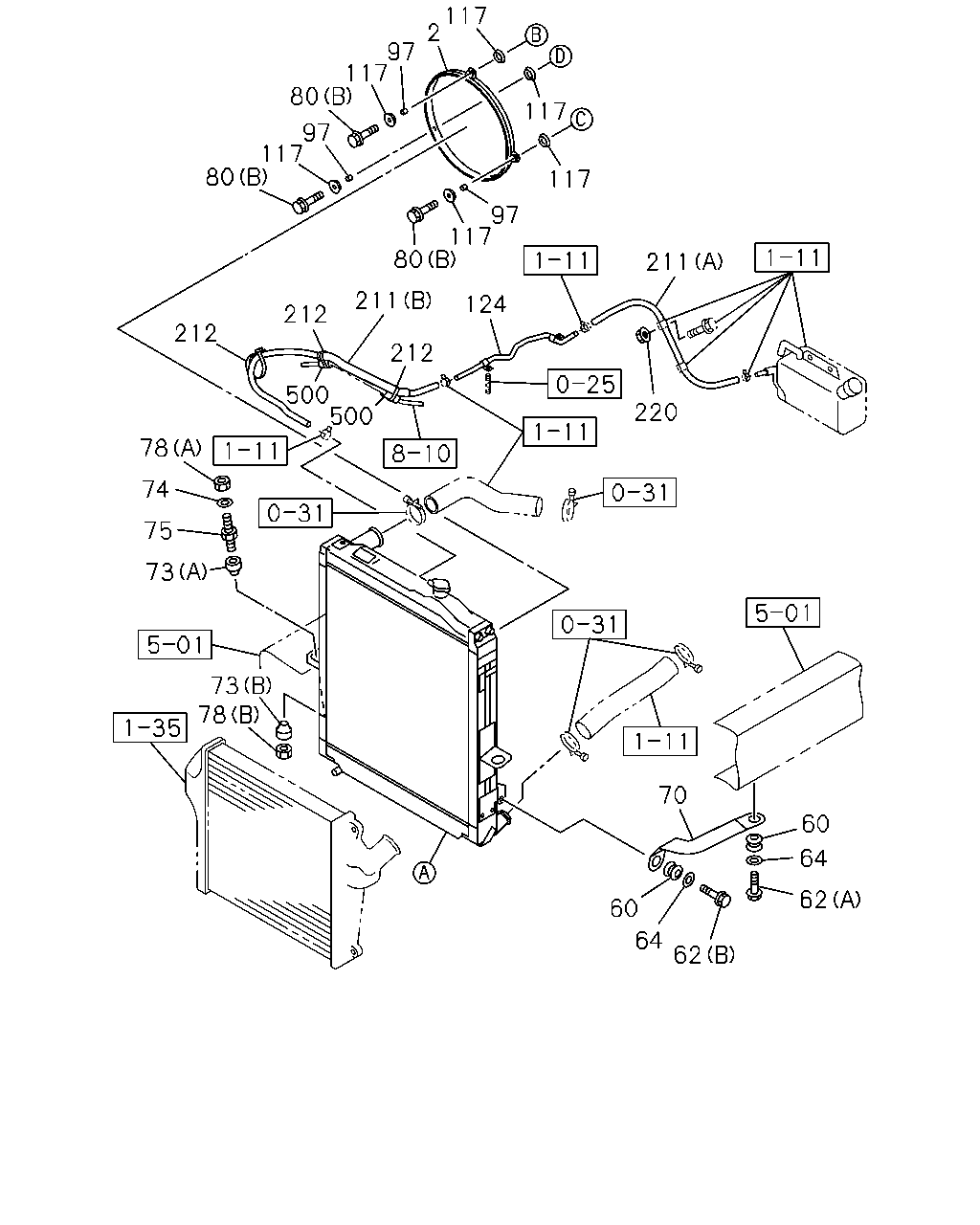

çizim 365864
117 2 97 117 80 97 117 80 117 117 97 117 80 211 211 212 212 124 212 500 500 220 78 74 75 73 73 78 70 60 64 62 60 64 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-94393-779-1 01 1 1307-1312 ●
2 GUIDE; FAN 8-94393-779-1 01 1 1401- ● ●
60 GROMMET 1-09332-117-0 04 1 1307-1312 ●
60 GROMMET 1-09332-117-0 04 1 1401- ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1307-1312 ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1401- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1307-1312 ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1401- ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 1307-1312 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 1401- ● ●
70 STAY; RAD 8-98078-896-0 01 1 1307-1312 ●
70 STAY; RAD 8-98078-896-0 01 1 1401- ● ●
70 STAY; RAD 8-98078-897-0 01 1 1307-1312 ●
70 STAY; RAD 8-98078-897-0 01 1 1401- ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1307-1312 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1401- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1307-1312 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1401- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1307-1312 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1401- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1307-1312 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1401- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1307-1312 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1401- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1307-1312 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1401- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1307-1312 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1401-1505 ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1307-1312 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1401- ● ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1307-1312 ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1401- ● ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1307- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1307-1312 ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1401- ● ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 1307-1312 ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 1401- ● ●
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 1307-1312 ●
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 1401- ● ●
212 CLIP; HOSE
L=140 		5-09707-031-1 02 1 1307-1312 ●
212 CLIP; HOSE
L=140 		5-09707-031-1 02 1 1401- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 1307-1312 ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 1401- ● ●

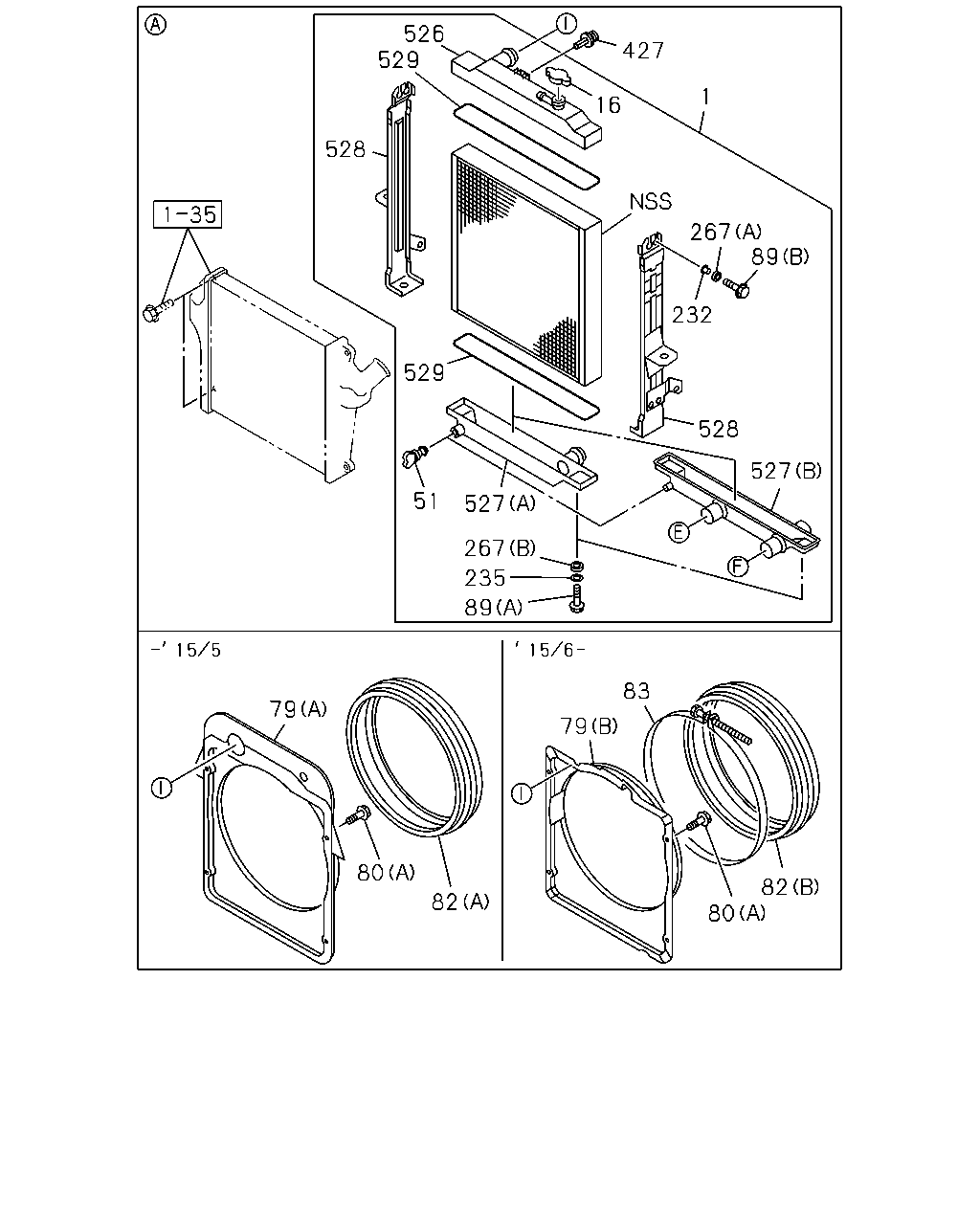

çizim 367352
526 529 528 529 51 527 267 235 89 527 528 232 89 267 16 427 79 80 83 82 82 80 79 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-309-0 01 1 1307-1312 ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-309-0 01 1 1401- ● ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-308-0 01 1 1307-1312 ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-308-0 01 1 1401- ● ●
1 RADIATOR ASM
A/T<X9D> 		8-98170-436-0 01 1 1307-1312 ●
1 RADIATOR ASM
A/T<X9D> 		8-98170-436-0 01 1 1401-1505 ● ●
1 RADIATOR ASM
A/T<X9D> 		8-98303-839-0 01 1 1506- ● ●
16 CAP; RAD 8-98096-226-0 01 1 1307-1312 ●
16 CAP; RAD 8-98096-226-0 01 1 1401- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1307-1312 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1401- ● ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1307-1312 ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1401-1505 ● ●
79 GUIDE; FAN,RAD
(B) 		8-98286-937-0 01 1 1506- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1307-1312 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1401- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1307-1312 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1401-1505 ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1307-1312 ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1401-1505 ● ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1307-1312 ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1401- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1307-1312 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1401- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1307-1312 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1401- ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1307-1312 ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1401- ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1307-1312 ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1401- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1307-1312 ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1401- ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1307-1312 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1401-1505 ● ●
526 TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> 		8-98004-202-2 01 1 1307-1312 ●
526 TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> 		8-98004-202-2 01 1 1401- ● ●
526 TANK; UPR,RADIATOR CORE
A/T<X9D> 		8-98010-366-2 01 1 1307-1312 ●
526 TANK; UPR,RADIATOR CORE
A/T<X9D> 		8-98010-366-2 01 1 1401- ● ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98010-365-0 01 1 1307-1312 ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98010-365-0 01 1 1401- ● ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98004-203-0 01 1 1307-1312 ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98004-203-0 01 1 1401- ● ●
527 TANK; LWR,RADIATOR CORE
A/T<X9D> (B) 		8-98038-558-2 01 1 1307-1312 ●
527 TANK; LWR,RADIATOR CORE
A/T<X9D> (B) 		8-98038-558-2 01 1 1401- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-117-3 01 1 1307-1312 ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-117-3 01 1 1401- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98043-029-1 01 1 1307-1312 ●
528 PLATE; SIDE,RADIATOR CORE 8-98043-029-1 01 1 1401- ● ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1307-1312 ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1401- ● ●
