0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#124106) — 75 parça

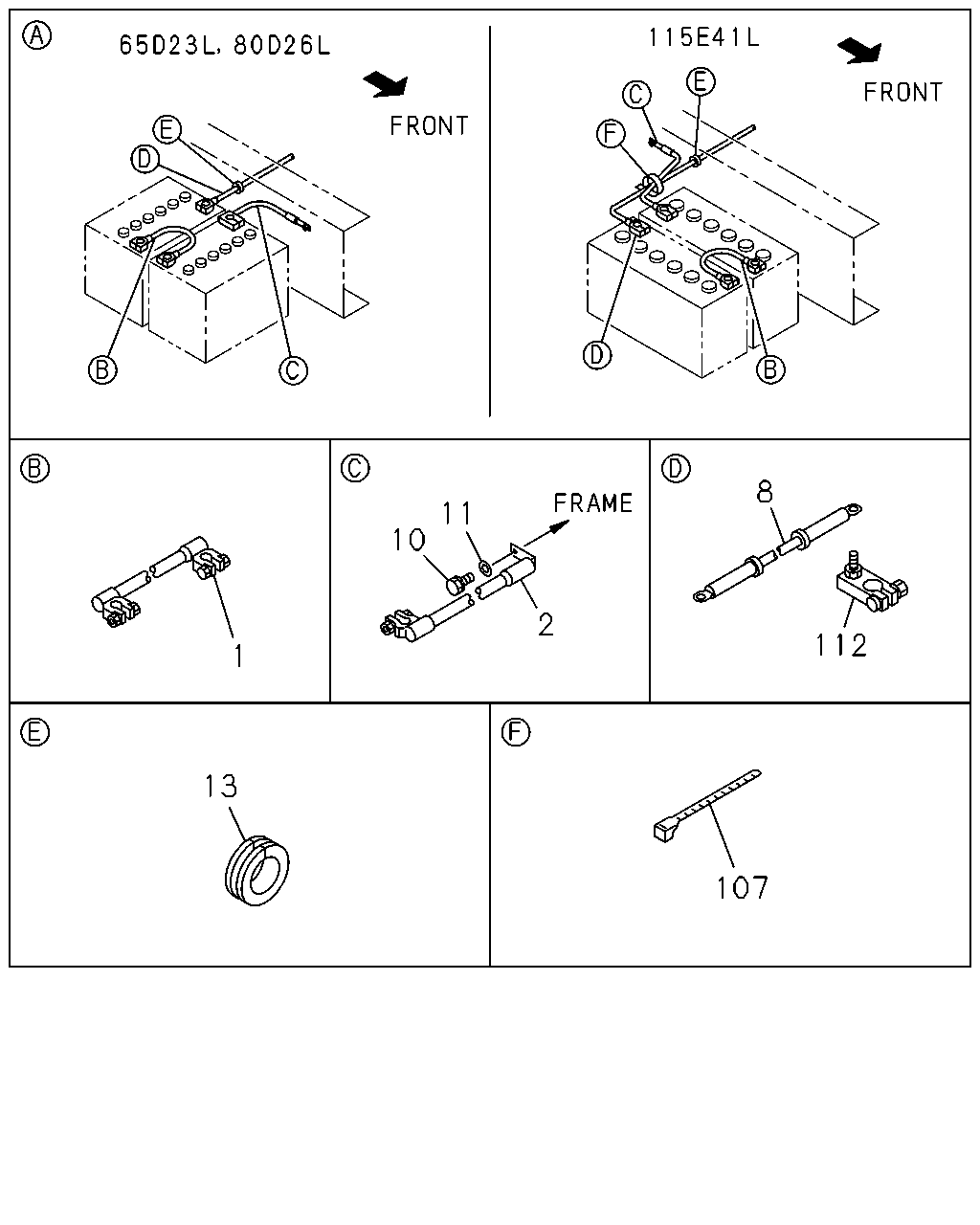

11 10 2 8 112 13 107 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1307-1312	●
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1401-	●	●
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=250	8-97619-729-2	01	1	1307-1312	●
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=250	8-97619-729-2	01	1	1401-	●	●
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=400	8-97619-733-1	01	1	1307-1312	●
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=400	8-97619-733-1	01	1	1401-	●	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98156-652-0	01	1	1307-1312	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98156-652-0	01	1	1401-1502	●	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98295-450-1	01	1	1503-	●	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98156-653-0	01	1	1307-1312	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98156-653-0	01	1	1401-1502	●	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98295-451-1	01	1	1503-	●	●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1307-1312	●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1401-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1307-1312	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1401-	●	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	1307-1312	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	1401-	●	●
107	CLIP; BAND L=140	5-09707-031-1	01	1	1307-1312	●
107	CLIP; BAND L=140	5-09707-031-1	01	1	1401-	●	●
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1307-1312	●
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1401-1408	●	●
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1409-	●	●

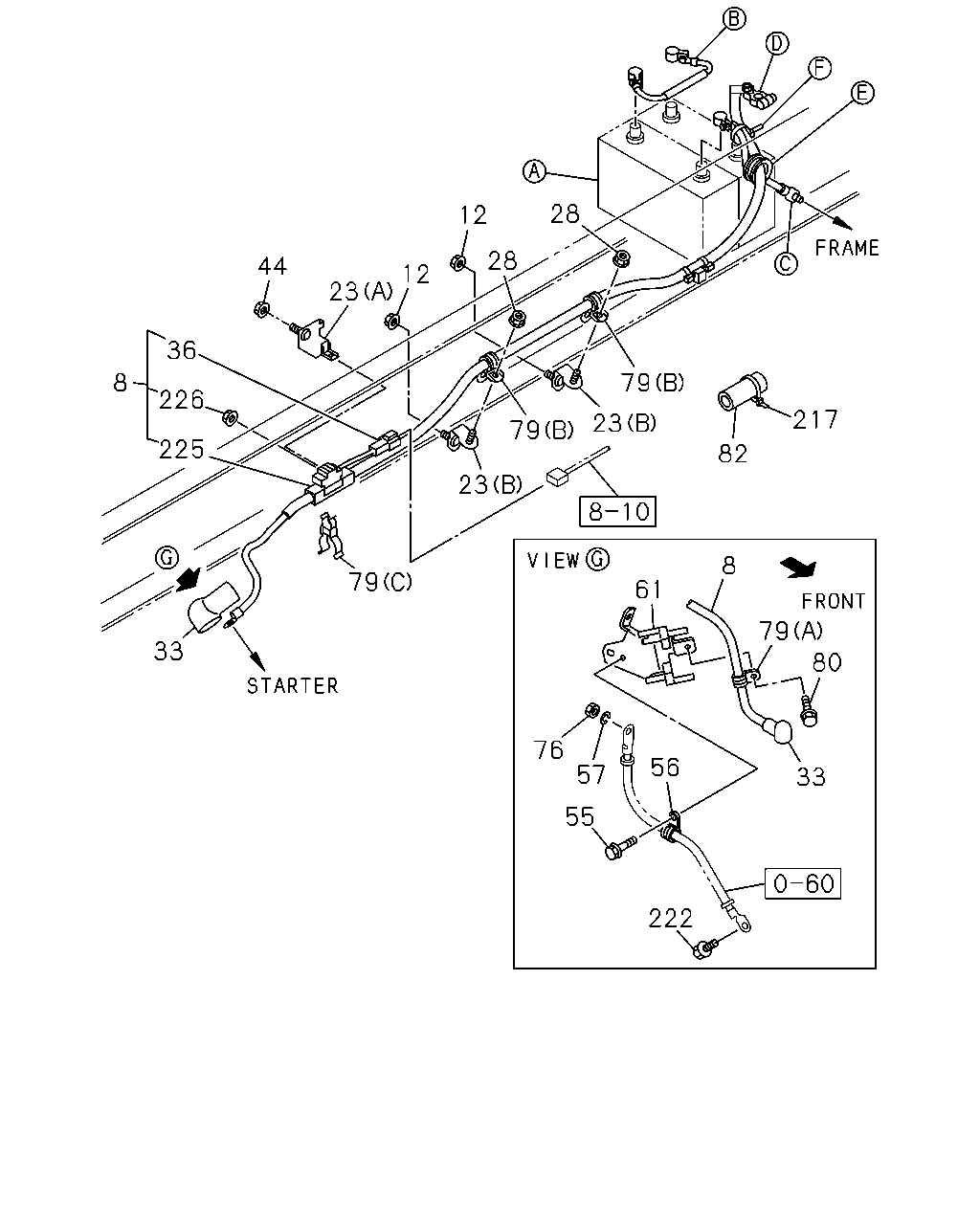

44 36 8 226 225 33 79 23 12 12 28 28 79 79 23 23 217 82 61 8 79 80 33 56 57 76 55 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98156-652-0	01	1	1307-1312	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98156-652-0	01	1	1401-1502	●	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98295-450-1	01	1	1503-	●	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98156-653-0	01	1	1307-1312	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98156-653-0	01	1	1401-1502	●	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98295-451-1	01	1	1503-	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98051-381-2	02	1	1307-1312	●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98051-381-2	02	1	1401-	●	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98147-440-0	01	1	1307-1312	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98147-440-0	01	1	1401-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
33	CAP; INSULATOR	1-82699-431-0	01	1	1307-1312	●
33	CAP; INSULATOR	1-82699-431-0	01	1	1401-	●	●
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	1307-1312	●
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	1401-1502	●	●
36	FUSIBLE LINK; BATTERY	8-98295-762-0	01	1	1503-	●	●
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1401-	●	●
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	1307-1312	●
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	1401-	●	●
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	1307-1312	●
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	1401-	●	●
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1307-1312	●
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1401-	●	●
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	1307-1312	●
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	1401-	●	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	1401-	●	●
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1307-1312	●
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1401-	●	●
79	CLIP; BATTERY CABLE (C) ID=21 & 9.8	8-97309-945-0	01	1	1307-1312	●
79	CLIP; BATTERY CABLE (C) ID=21 & 9.8	8-97309-945-0	01	1	1401-	●	●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	02	1	1307-1312	●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	02	1	1401-	●	●
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1307-1312	●
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1401-	●	●
82	PROTECTOR; HEAT,BATTERY CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=6 OD=10 L=70	1-09376-512-0	01	1	1307-1312	●
82	PROTECTOR; HEAT,BATTERY CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=6 OD=10 L=70	1-09376-512-0	01	1	1401-	●	●
217	CLIP; BAND,CABLE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=250	5-09707-030-1	01	1	1307-1312	●
217	CLIP; BAND,CABLE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=250	5-09707-030-1	01	1	1401-	●
217	CLIP; BAND,CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=250	5-09707-030-1	01	1	1401-		●
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1307-1312	●
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1401-	●	●
225	BLOCK; TERMINAL	8-98029-689-0	01	1	1307-1312	●
225	BLOCK; TERMINAL	8-98029-689-0	01	1	1401-1502	●	●
225	BLOCK; TERMINAL	8-98294-524-0	01	1	1503-	●	●
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1307-1312	●
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1401-1502	●	●
226	NUT; FUSIBLE LINK M6 FLANGE STAINLESS	8-98297-112-0	01	1	1503-	●	●
