◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#124105) — 159 parça

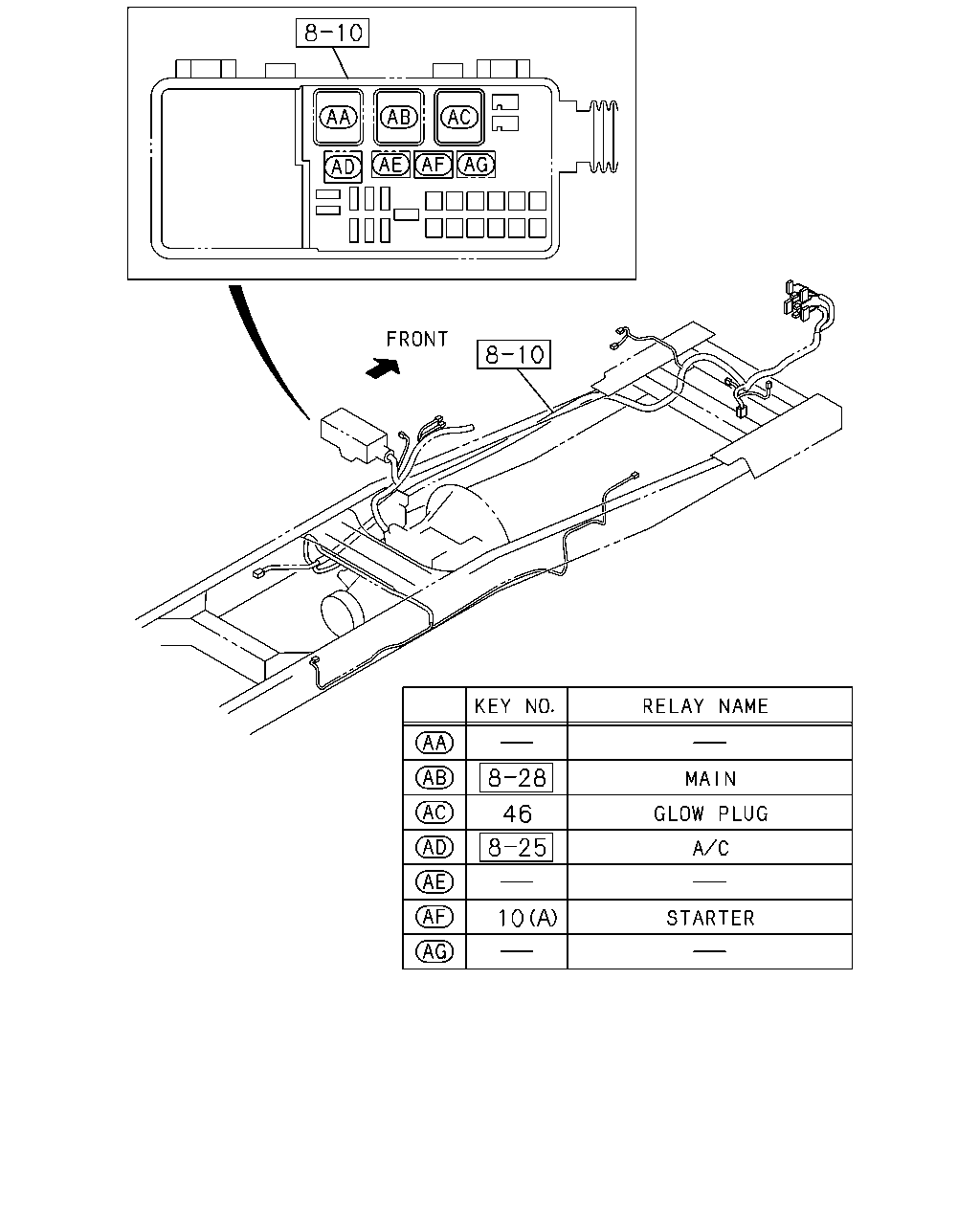

çizim 362506
46 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1307-1312 ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1401- ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1307-1312 ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1401- ● ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1307-1312 ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1401- ● ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 1307-1312 ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 1401- ● ●

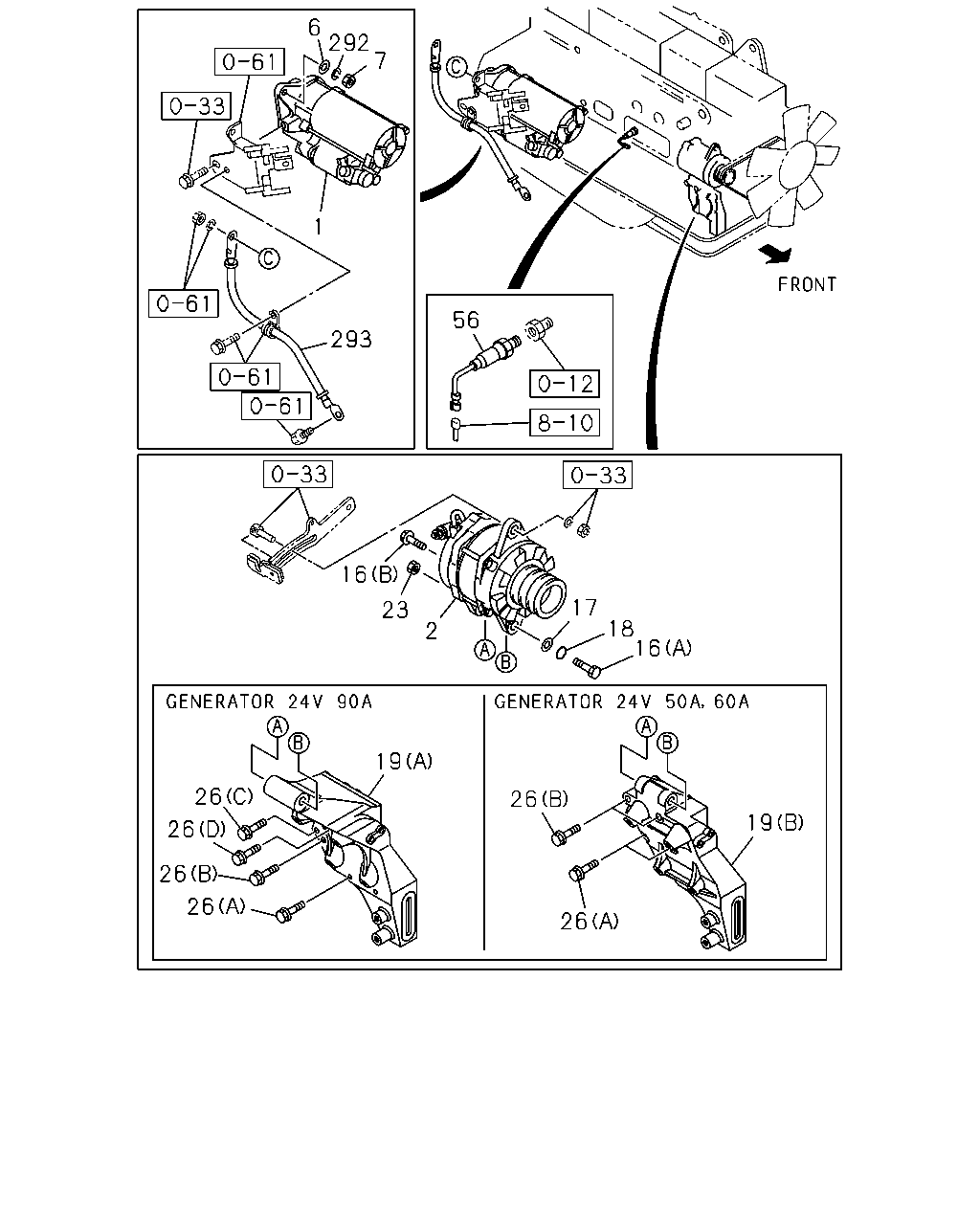

çizim 362523
7 292 6 273 1 16 23 2 17 18 16 19 26 26 19 26 26 26 26 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-2 01 1 1307-1312 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 1401-1409 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-3 01 1 1307-1312 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-5 01 1 1401- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-463-2 01 1 1307-1312 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-463-3 01 1 1401-1508 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98330-087-0 01 1 1509- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-3 01 1 1307-1312 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-5 01 1 1401- ● ●
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 1307-1312 ●
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 1401- ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 1307-1312 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 1401- ● ●
16 BOLT; GEN
HEATER & DEFROSTER(C41) (B) M6X10 FLANGE 		0-28050-610-0 01 1 1307-1312 ●
16 BOLT; GEN
HEATER & DEFROSTER(C41) (B) M6X10 FLANGE 		0-28050-610-0 01 1 1401- ● ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1307-1312 ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1401- ● ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 02 1 1307-1312 ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 02 1 1401- ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1307-1312 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1401- ● ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 1307-1312 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 1401- ● ●
19 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98082-615-1 01 1 1307-1312 ●
19 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98082-615-1 01 1 1401- ● ●
19 BRACKET; GEN
GENERATOR 24V90A(K44) (A) 		8-98082-617-0 01 1 1307-1312 ●
19 BRACKET; GEN
GENERATOR 24V90A(K44) (A) 		8-98082-617-0 01 1 1401- ● ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 1307-1312 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 1401- ● ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 02 1 1307-1312 ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 02 1 1401- ● ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28151-080-0 02 1 1307-1312 ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28151-080-0 02 1 1401- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (C) M10X25 FLANGE 		0-28151-025-0 01 1 1307-1312 ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (C) M10X25 FLANGE 		0-28151-025-0 01 1 1401- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (D) M10X135 		8-94397-139-1 01 1 1307-1312 ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (D) M10X135 		8-94397-139-1 01 1 1401- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 1307-1312 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 1401- ● ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 1307-1312 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 1401- ● ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 1307-1312 ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 1401- ● ●

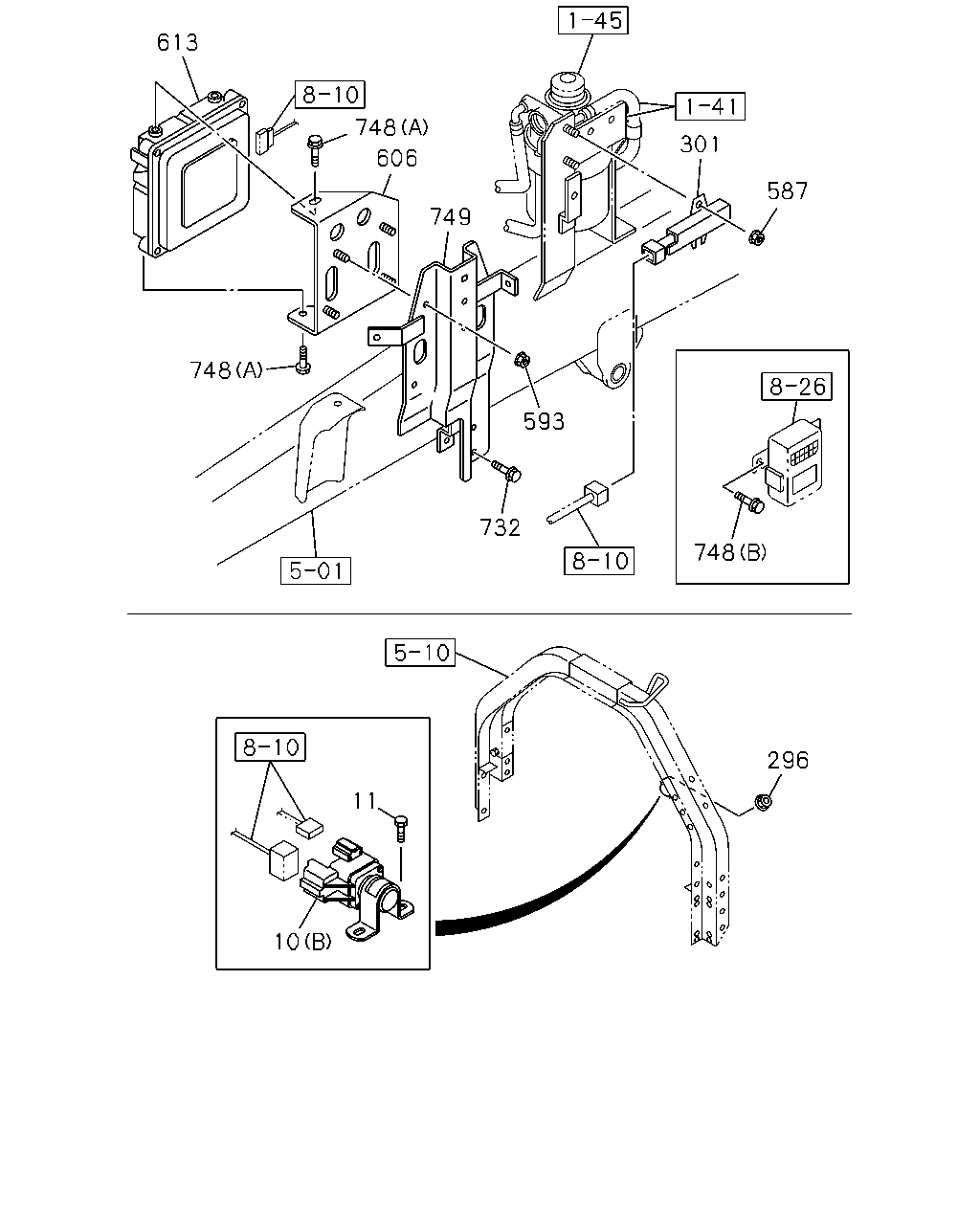

çizim 362590
613 748 749 748 732 593 301 748 11 10 296 587 606
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1307-1312 ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1401- ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1307-1312 ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1401- ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 1307-1312 ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 1401- ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
301 RESISTOR; DROPPING 8-97357-613-0 01 1 1307-1312 ●
301 RESISTOR; DROPPING 8-97357-613-0 01 1 1401- ● ●
587 NUT; RESISTOR & RELAY
M6 FLANGE 		0-91180-106-0 02 1 1307-1312 ●
587 NUT; RESISTOR & RELAY
M6 FLANGE 		0-91180-106-0 02 1 1401- ● ●
593 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 1307-1312 ●
593 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 1401- ● ●
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 1307-1312 ●
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 1401- ● ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98282-705-0 01 1 1407- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98282-706-0 01 1 1407- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT) A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98282-704-0 01 1 1407- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98282-702-0 01 1 1407- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98282-703-0 01 1 1407- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT) A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98282-701-0 01 1 1407- ● ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 100KM(NMU) 		8-98238-765-0 01 1 1405-1406 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) 		8-98238-765-0 01 1 1407- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 100KM(NMU) 		8-98238-761-0 01 1 1405-1406 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) 		8-98238-761-0 01 1 1407- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU) 		8-98238-766-0 01 1 1405-1406 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), SPEED LIMITER 95KM(NNT) 		8-98238-766-0 01 1 1407- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU) 		8-98238-762-0 01 1 1405-1406 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), SPEED LIMITER 95KM(NNT) 		8-98238-762-0 01 1 1407- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) AUTO CRUISE<K30> A/T<X9D> EXC. SPEED LIMITER 100KM(NMU),TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98238-769-0 01 1 1405-1406 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) AUTO CRUISE<K30> A/T<X9D> EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSIO N CONTROL-SMOOTHER DELETE(8GJ) 		8-98238-769-0 01 1 1407- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) A/T<X9D> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98238-771-0 01 1 1405-1406 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) A/T<X9D> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), SPEED LIMITER 95KM(NNT),TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98238-771-0 01 1 1407- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 100KM(NMU) 		8-98170-791-1 01 1 1405-1406 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) 		8-98170-791-1 01 1 1407- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 100KM(NMU) 		8-98170-797-1 01 1 1405-1406 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) 		8-98170-797-1 01 1 1407- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU) 		8-98170-794-1 01 1 1405-1406 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), SPEED LIMITER 95KM(NNT) 		8-98170-794-1 01 1 1407- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU) 		8-98170-800-1 01 1 1405-1406 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), SPEED LIMITER 95KM(NNT) 		8-98170-800-1 01 1 1407- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) AUTO CRUISE<K30> A/T<X9D> EXC. SPEED LIMITER 100KM(NMU),TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98238-759-0 01 1 1405-1406 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) AUTO CRUISE<K30> A/T<X9D> EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSIO N CONTROL-SMOOTHER DELETE(8GJ) 		8-98238-759-0 01 1 1407- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) A/T<X9D> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98238-760-0 01 1 1405-1406 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) A/T<X9D> EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), SPEED LIMITER 95KM(NNT),TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98238-760-0 01 1 1407- ● ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98171-839-1 01 1 1401-1404 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98171-839-1 01 1 1405- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98171-843-1 01 1 1401-1404 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98171-843-1 01 1 1405- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98171-841-1 01 1 1401-1404 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98171-841-1 01 1 1405- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98171-845-1 01 1 1401-1404 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98171-845-1 01 1 1405- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) AUTO CRUISE<K30> A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98238-768-0 01 1 1401-1404 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98238-768-0 01 1 1405- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) A/T<X9D> EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98238-770-0 01 1 1401-1404 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) SPEED LIMITER 100KM(NMU) A/T<X9D> EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98238-770-0 01 1 1405- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98170-789-1 01 1 1307-1312 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98170-789-1 01 1 1401-1404 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98170-789-1 01 1 1405- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98170-795-1 01 1 1307-1312 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98170-795-1 01 1 1401-1404 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98170-795-1 01 1 1405- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98170-792-1 01 1 1307-1312 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98170-792-1 01 1 1401-1404 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98170-792-1 01 1 1405- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98170-798-1 01 1 1307-1312 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98170-798-1 01 1 1401-1404 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) SPEED LIMITER 100KM(NMU) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98170-798-1 01 1 1405- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) AUTO CRUISE<K30> A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98172-069-1 01 1 1307-1312 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) AUTO CRUISE<K30> A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98172-069-1 01 1 1401-1404 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98172-069-1 01 1 1405- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) A/T<X9D> EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98172-070-1 01 1 1307-1312 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) A/T<X9D> EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98172-070-1 01 1 1401-1404 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) SPEED LIMITER 100KM(NMU) A/T<X9D> EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98172-070-1 01 1 1405- ● ●
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 1307-1312 ●
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 1401- ● ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 1307-1312 ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 1401- ● ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 1307-1312 ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 1401- ● ●

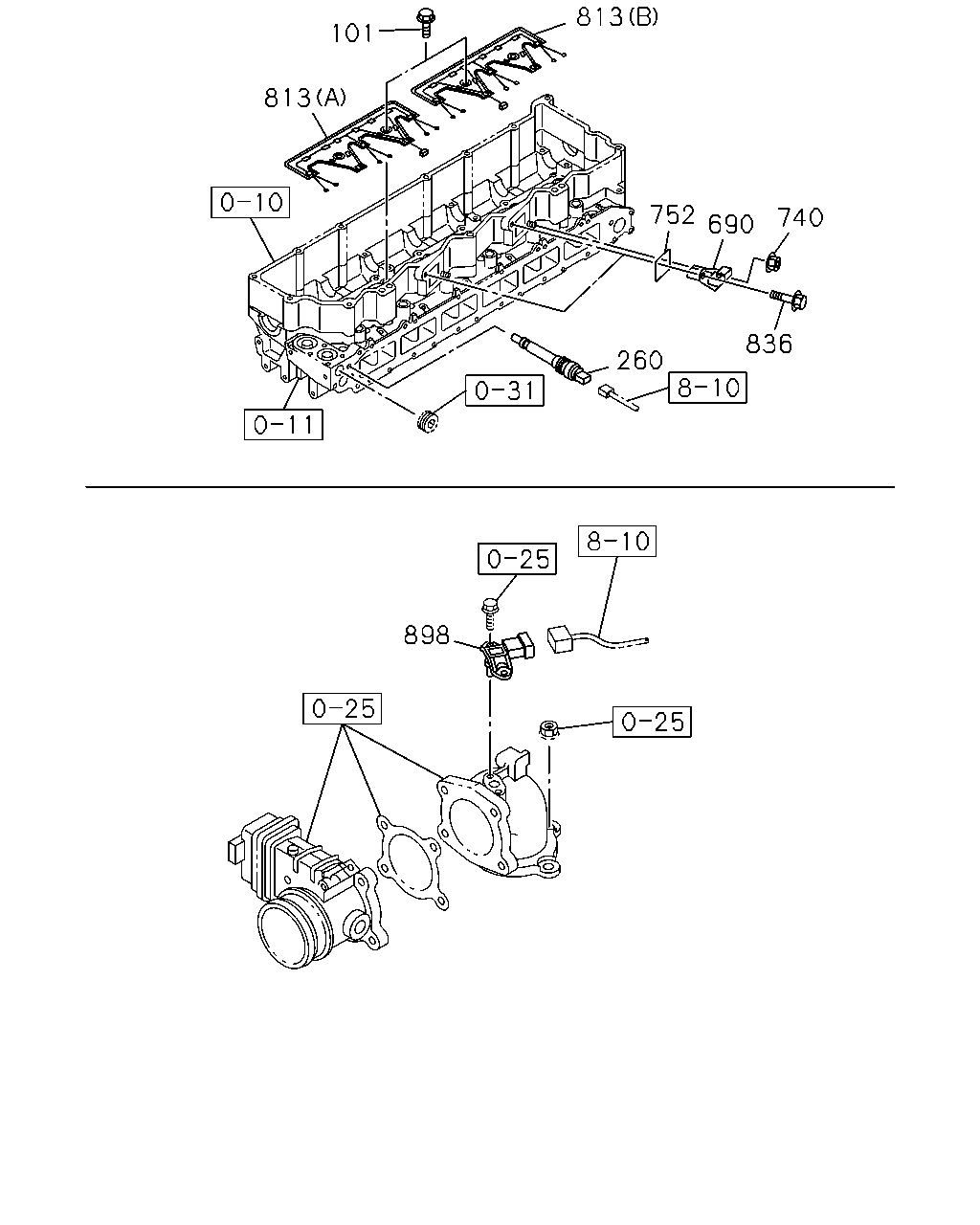

çizim 366591
898 260 836 740 690 752 813 101 813
BalonParca AdiParca NoAdetTipApplied Date A B
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 1307-1312 ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 1401- ● ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1307-1312 ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1401-1503 ● ●
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 1307-1312 ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 1401- ● ●
690 CONNECTOR 8-94390-858-1 02 1 1307-1312 ●
690 CONNECTOR 8-94390-858-1 02 1 1401- ● ●
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1307-1312 ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1401- ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98204-717-0 01 1 1307-1312 ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98204-717-0 01 1 1401- ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1307-1312 ●
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1401- ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1307-1312 ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1401- ● ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1307-1312 ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
