2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#1241) — 44 parça

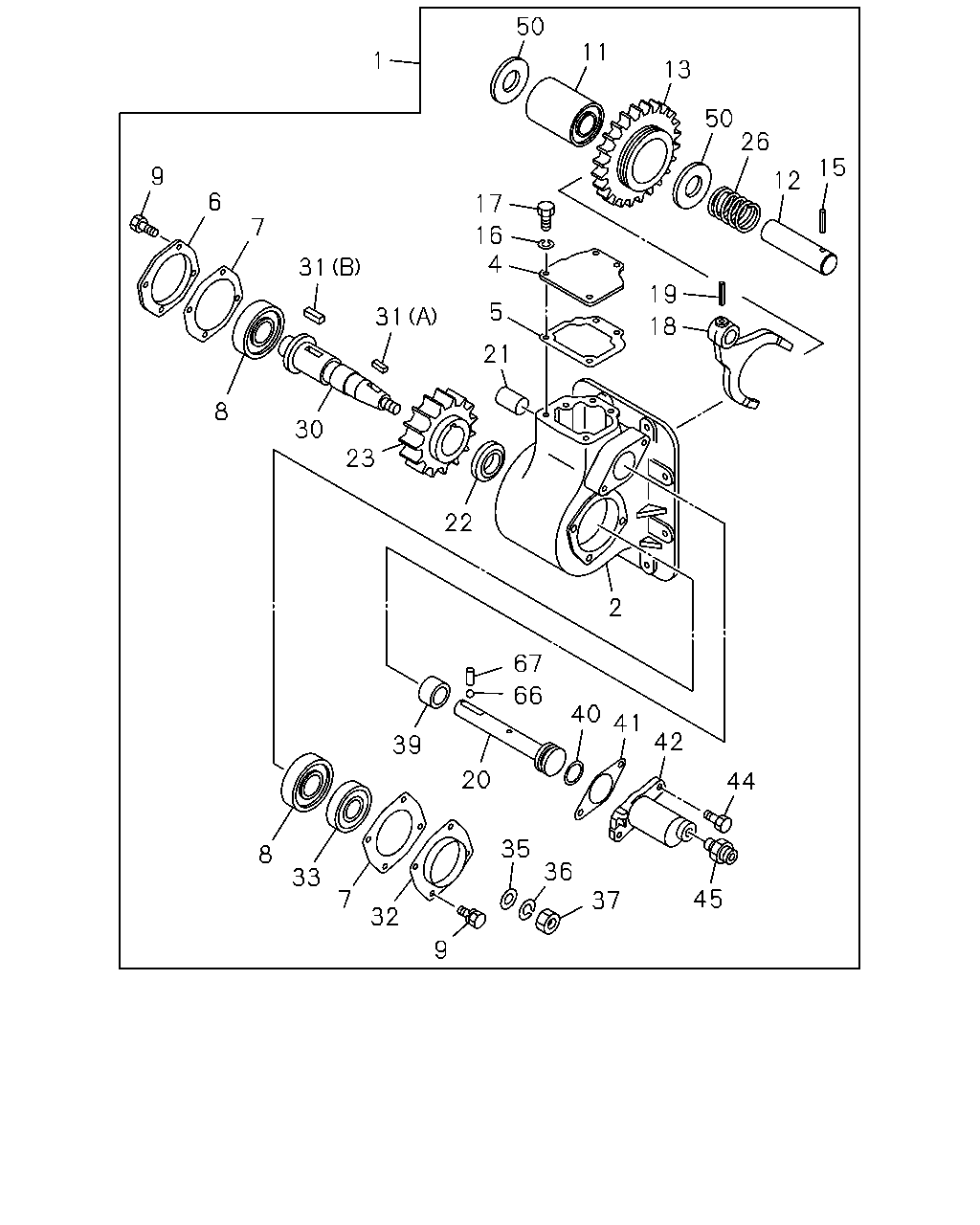

çizim 28857
50 11 1 13 50 26 15 9 12 6 17 7 16 4 31 19 5 31 18 21 8 30 23 22 2 67 66 40 41 42 39 20 44 35 8 36 33 45 7 37 32 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38000-182-2 01 1 9202-9409 ● ● ●
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38000-294-0 01 1 9410- ● ● ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-043-0 01 1 9202-9409 ● ● ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-085-0 01 1 9410- ● ● ●
4 COVER; UPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38131-008-0 01 1 9202- ● ● ●
5 GASKET; UPR COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38132-007-0 01 1 9202- ● ● ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-38151-024-0 01 1 9202-9409 ● ● ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-38151-604-0 01 1 9410- ● ● ●
7 GASKET; OUTPUT SHAFT COVER,SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-005-0 02 1 9202-9409 ● ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09800-121-0 02 1 9202- ● ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER 		9-01910-816-0 08 1 9202-9409 ● ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER 		0-50040-816-0 08 1 9410- ● ● ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09811-144-0 01 1 9202- ● ● ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38221-024-0 01 1 9202- ● ● ●
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32 		1-38241-063-0 01 1 9202- ● ● ●
15 PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16 		9-09878-613-0 01 1 9202- ● ● ●
16 WASHER; LK,UPR COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 04 1 9202-9409 ● ● ●
17 BOLT; UPR COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 		9-02351-020-0 04 1 9202-9409 ● ● ●
17 BOLT; UPR COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER 		0-50051-020-0 04 1 9410- ● ● ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-029-0 01 1 9202- ● ● ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09748-019-0 01 1 9202- ● ● ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-033-0 01 1 9202- ● ● ●
21 COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-33545-001-0 01 1 9202- ● ● ●
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38226-044-0 01 1 9202- ● ● ●
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=22 		1-38241-064-0 01 1 9202- ● ● ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38121-001-0 01 1 9202-9409 ● ● ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38121-004-0 01 1 9410- ● ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-009-0 01 1 9202- ● ● ●
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=25 		1-09735-024-0 01 1 9202- ● ● ●
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		9-08011-030-0 01 1 9202- ● ● ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-38161-608-0 01 1 9202- ● ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09924-533-1 01 1 9202- ● ● ●
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 		9-09160-514-0 01 1 9202- ● ● ●
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2 		9-09150-514-0 01 1 9202- ● ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M14 		9-99111-414-0 01 1 9202- ● ● ●
39 STOPPER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38379-006-0 01 1 9202- ● ● ●
40 GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09561-324-0 01 1 9202- ● ● ●
41 GASKET; CYL TO CASE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-009-0 01 1 9202-9409 ● ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-003-0 01 1 9202- ● ● ●
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE 		0-28181-025-0 02 1 9202- ● ● ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4 		9-09902-386-0 01 1 9202- ● ● ●
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38226-043-0 02 1 9202- ● ● ●
66 BALL; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-00097-009-0 01 1 9202- ● ● ●
67 PIN; STRAIGHT
TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16 		9-08160-816-0 01 1 9202- ● ● ●
