◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11550 - FSR AUST/NZ EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#124092) — 22 parça

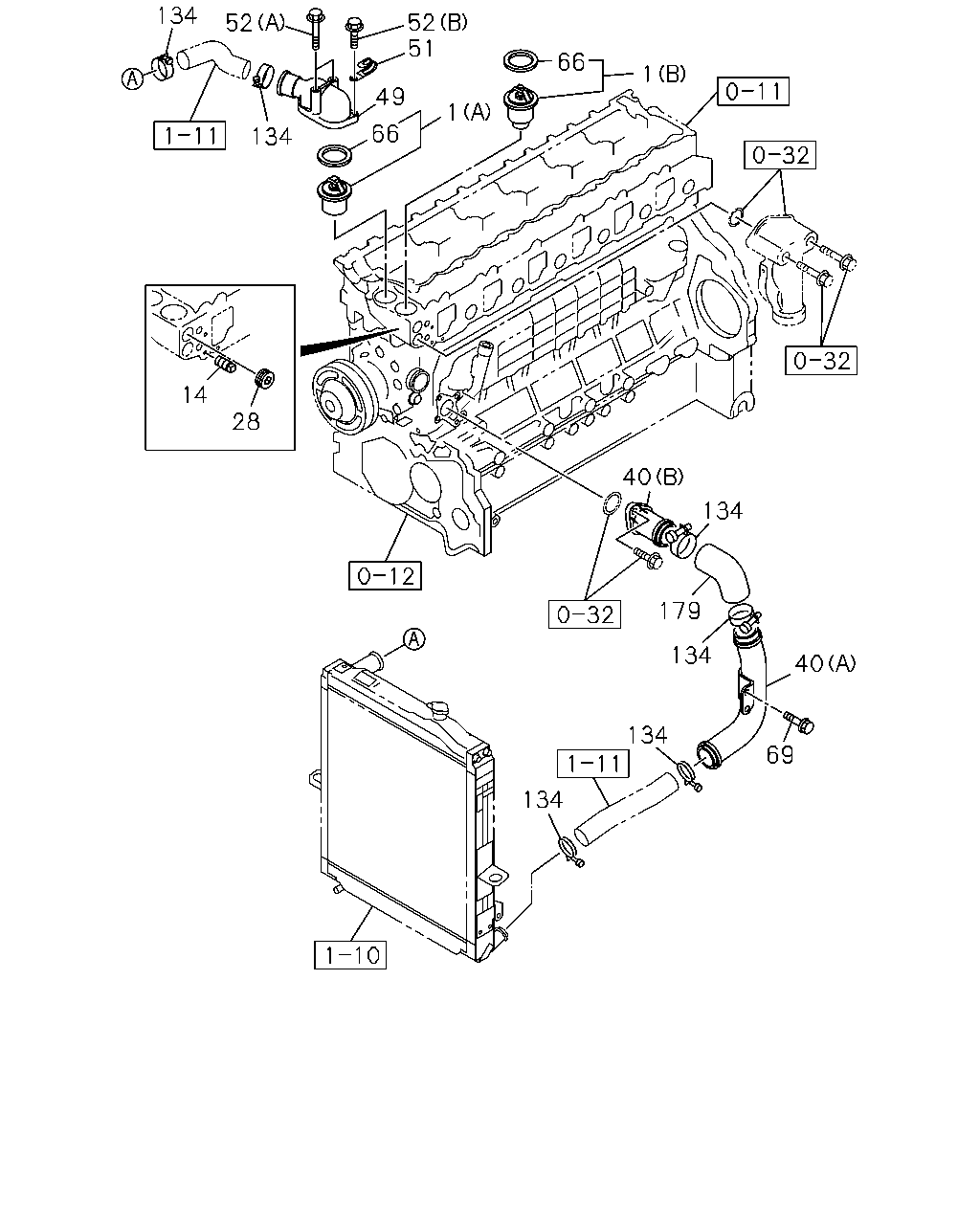

çizim 362226
134 52 134 66 49 51 52 1 66 1 14 28 134 134 69 40 134 179 134 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 1307- ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 1307-1312 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 1401-1501 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 1307- ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 1307- ●
40 DUCT; WATER,SUCTION
(B) 		8-94391-091-1 01 1 1307- ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-404-1 01 1 1307-1312 ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-404-1 01 1 1401- ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 1307- ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 1307- ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE 		8-97023-062-0 02 1 1307- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1307-1312 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1401-1501 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 06 1 1307-1312 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 06 1 1401- ● ●
179 HOSE; RUBBER,WATER DUCT 8-94390-400-3 01 1 1307-1312 ●
179 HOSE; RUBBER,WATER DUCT 8-94390-400-3 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
