◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 10869 - CXY(51) RHD AUSTRALIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#12409) — 457 parça

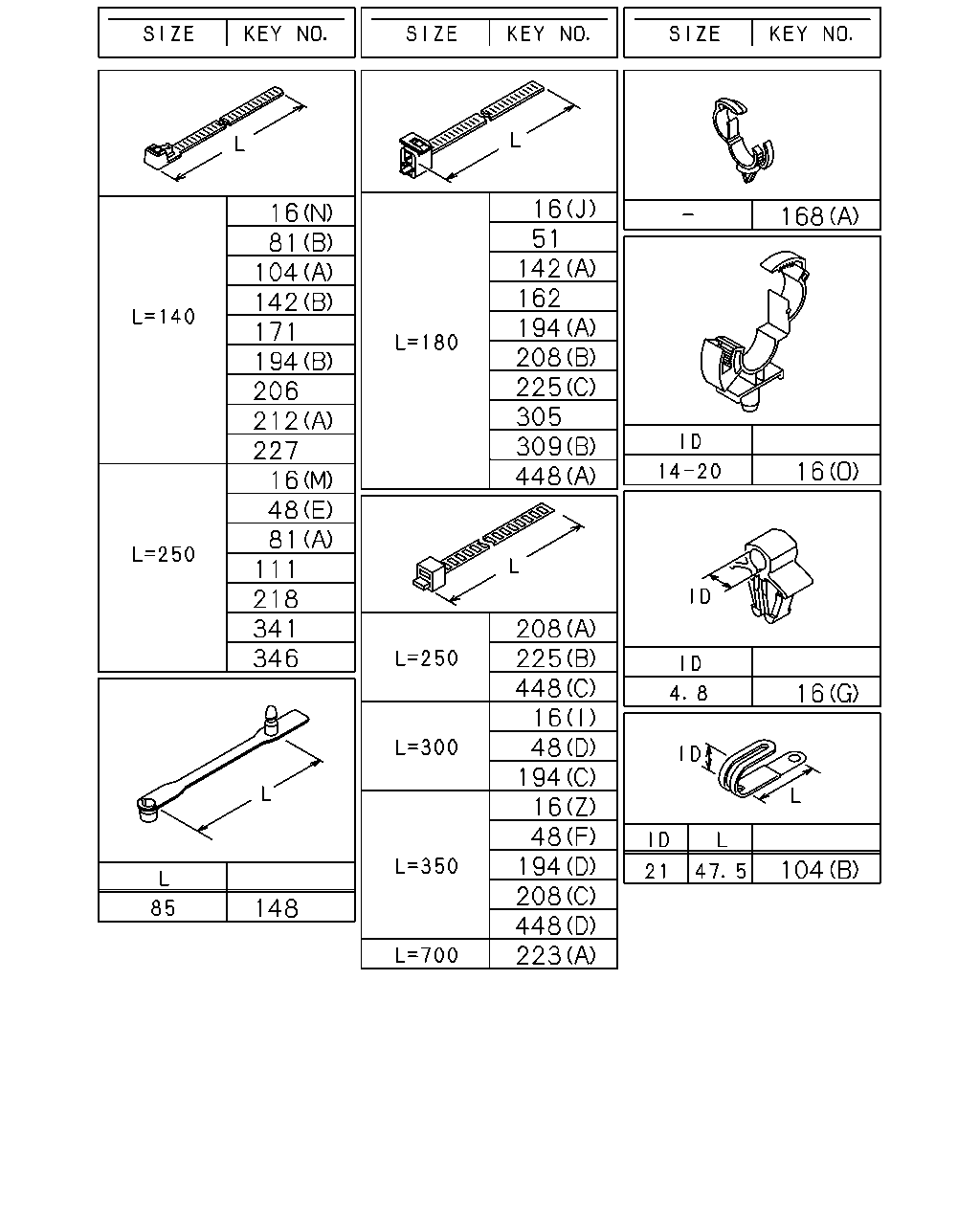

çizim 21053
16 81 104 142 171 194 206 212 227 16 48 81 111 218 341 346 148 223 448 208 194 48 16 194 48 16 448 225 208 448 309 305 225 208 194 162 142 51 16 168 16 16 104
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 07 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0107-0301
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 10 1 0302-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 10 1 0105-0301
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0302-
16 CLIP; HARNESS
(D) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
16 CLIP; HARNESS
(G) ID=4.8 		1-09701-218-0 01 1 0105-
16 CLIP; HARNESS
(H) ID=26 L=26 		1-09701-236-0 01 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 05 1 0107-0301
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0302-
16 CLIP; HARNESS
(I) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(Z) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(J) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 0105-0301
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 02 1 0302-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 02 1 0105-0106
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 04 1 0107-0301
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 03 1 0302-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(L) ID=6-10 & 6-10 		1-09709-192-1 01 1 0105-0106
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 02 1 0105-0301
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 01 1 0302-
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 03 1 0105-0301
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 02 1 0302-
16 CLIP; HARNESS
(N) L=140 		5-09707-031-1 02 1 0105-
16 CLIP; HARNESS
(O) ID=14-20 		8-97061-603-0 03 1 0105-0106
16 CLIP; HARNESS
(U) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 0105-
16 CLIP; HARNESS
(T) ID=16 L=20 		9-09525-535-0 01 1 0105-0205
16 CLIP; HARNESS
(T) ID=16 L=20 		9-09525-535-0 01 1 0105-0205
16 CLIP; HARNESS
(T) ID=16 L=20 		9-09525-535-0 02 1 0206-
16 CLIP; HARNESS
(P) ID=16 L=40 		9-09525-576-0 01 1 0105-
16 CLIP; HARNESS
(Q) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(Q) ID=14 L=44 		9-09917-427-0 02 1 0105-
16 CLIP; HARNESS
(Q) ID=14 L=44 		9-09917-427-0 03 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0302-
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 02 1 0105-
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 13 1 0105-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 04 1 0302-
16 CLIP; HARNESS
(S) ID=22 L=52 		9-09917-431-0 03 1 0105-0106
16 CLIP; HARNESS
(S) ID=22 L=52 		9-09917-431-0 05 1 0107-0301
16 CLIP; HARNESS
(S) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(H) ID=26 L=26 		1-09701-236-0 01 1 0109-
16 CLIP; HARNESS
(V) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
(W) ID=42.7 L=38 		1-09700-583-1 01 1 0302-0402
16 CLIP; HARNESS
(W) ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 03 1 0302-
16 CLIP; HARNESS
(X) ID=21 L=24 		8-94176-807-1 01 1 0302-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (Q) ID=14 L=44 		9-09917-427-0 05 1 0302-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 05 1 0302-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (B) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0105-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0105-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0105-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 05 1 0105-0111
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0112-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 02 1 0105-0110
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0111-0207
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 01 1 0105-0301
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 07 1 0302-0504
48 CLIP; FRAME HARNESS
(F) L=350 		1-09707-183-0 07 1 0505-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 06 1 0105-0301
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0105-
81 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0105-
81 CLIP; HARNESS
(C) ID=7-10 		8-94472-578-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0105-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0105-
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0111-0301
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0105-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0105-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0105-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0105-
194 CLIP; BAND
(C) L=300 		1-09707-001-1 01 1 0105-0504
194 CLIP; BAND
(D) L=350 		1-09707-183-0 01 1 0505-
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 0105-0112
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 0105-0112
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0201-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0201-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0105-0112
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 0201-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0105-
208 CLIP; HARNESS,MAG VLV
(A) L=250 		1-09707-126-0 01 1 0105-0304
208 CLIP; HARNESS,MAG VLV
(C) L=350 		1-09707-183-0 01 1 0305-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180 		1-09707-162-1 01 1 0112-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0105-0206
212 CLIP; HORN HARNESS
FULL FLOATING CAB(W16) (A) L=140 		5-09707-031-1 01 1 0207-
212 CLIP; HORN HARNESS
EXC. FULL FLOATING CAB(W16) (B) ID=11 L=41 		1-09700-403-0 01 1 0207-
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 02 1 0112-0207
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 02 1 0208-0208
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 02 1 0208-0208
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 02 1 0208-
223 CLIP; AIR TANK HARNESS
(A) L=700 		1-09707-190-0 02 1 0105-
223 CLIP; AIR TANK HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 02 1 0105-0111
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0105-
225 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0105-0111
225 CLIP; AIR TANK HARNESS
(B) L=250 		1-09707-126-0 01 1 0105-0111
225 CLIP; AIR TANK HARNESS
(B) L=250 		1-09707-126-0 02 1 0105-0111
225 CLIP; AIR TANK HARNESS
(C) L=180 		1-09707-162-1 04 1 0105-
227 CLIP; FOG LAMP HARNESS
L=140 		5-09707-031-1 02 1 0105-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0105-
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) L=180 		1-09707-162-1 01 1 0105-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0105-
346 CLIP; BAND FRAME HARNESS
L=250 		5-09707-030-1 01 1 0212-
448 CLIP; AIR SUSP HARNESS
(C) L=250 		1-09707-126-0 01 1 0105-0304
448 CLIP; AIR SUSP HARNESS
(D) L=350 		1-09707-183-0 01 1 0305-
448 CLIP; AIR SUSP HARNESS
(A) L=180 		1-09707-162-1 05 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
çizim 77462
312 312 312 312 334 375 342
BalonParca AdiParca NoAdetTipApplied Date
312 BRACKET; CLIP HARNESS
(B) 		1-47478-769-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-358-0 01 1 0105-0105
312 BRACKET; CLIP HARNESS
(A) 		1-82698-358-0 02 1 0106-
312 BRACKET; CLIP HARNESS
(C) 		1-82699-199-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(D) 		1-82699-239-0 01 1 0105-
334 BRACKET 1-53458-362-0 01 1 0105-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0105-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0105-
çizim 78298
128 16 421 16 16 16 16 48 16 48 48 16 230 16 230 16 263 223 16 16 470 309 230 225 212 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 07 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0107-0301
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 10 1 0302-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 10 1 0105-0301
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0302-
16 CLIP; HARNESS
(D) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
16 CLIP; HARNESS
(G) ID=4.8 		1-09701-218-0 01 1 0105-
16 CLIP; HARNESS
(H) ID=26 L=26 		1-09701-236-0 01 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 05 1 0107-0301
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0302-
16 CLIP; HARNESS
(I) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(Z) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(J) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 0105-0301
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 02 1 0302-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 02 1 0105-0106
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 04 1 0107-0301
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 03 1 0302-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(L) ID=6-10 & 6-10 		1-09709-192-1 01 1 0105-0106
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 02 1 0105-0301
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 01 1 0302-
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 03 1 0105-0301
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 02 1 0302-
16 CLIP; HARNESS
(N) L=140 		5-09707-031-1 02 1 0105-
16 CLIP; HARNESS
(O) ID=14-20 		8-97061-603-0 03 1 0105-0106
16 CLIP; HARNESS
(U) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 0105-
16 CLIP; HARNESS
(T) ID=16 L=20 		9-09525-535-0 01 1 0105-0205
16 CLIP; HARNESS
(T) ID=16 L=20 		9-09525-535-0 01 1 0105-0205
16 CLIP; HARNESS
(T) ID=16 L=20 		9-09525-535-0 02 1 0206-
16 CLIP; HARNESS
(P) ID=16 L=40 		9-09525-576-0 01 1 0105-
16 CLIP; HARNESS
(Q) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(Q) ID=14 L=44 		9-09917-427-0 02 1 0105-
16 CLIP; HARNESS
(Q) ID=14 L=44 		9-09917-427-0 03 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0302-
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 02 1 0105-
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 13 1 0105-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 04 1 0302-
16 CLIP; HARNESS
(S) ID=22 L=52 		9-09917-431-0 03 1 0105-0106
16 CLIP; HARNESS
(S) ID=22 L=52 		9-09917-431-0 05 1 0107-0301
16 CLIP; HARNESS
(S) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(H) ID=26 L=26 		1-09701-236-0 01 1 0109-
16 CLIP; HARNESS
(V) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
(W) ID=42.7 L=38 		1-09700-583-1 01 1 0302-0402
16 CLIP; HARNESS
(W) ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 03 1 0302-
16 CLIP; HARNESS
(X) ID=21 L=24 		8-94176-807-1 01 1 0302-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (Q) ID=14 L=44 		9-09917-427-0 05 1 0302-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 05 1 0302-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (B) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0105-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0105-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0105-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 05 1 0105-0111
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0112-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 02 1 0105-0110
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0111-0207
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 01 1 0105-0301
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 07 1 0302-0504
48 CLIP; FRAME HARNESS
(F) L=350 		1-09707-183-0 07 1 0505-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 06 1 0105-0301
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0105-0206
212 CLIP; HORN HARNESS
FULL FLOATING CAB(W16) (A) L=140 		5-09707-031-1 01 1 0207-
212 CLIP; HORN HARNESS
EXC. FULL FLOATING CAB(W16) (B) ID=11 L=41 		1-09700-403-0 01 1 0207-
223 CLIP; AIR TANK HARNESS
(A) L=700 		1-09707-190-0 02 1 0105-
223 CLIP; AIR TANK HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 02 1 0105-0111
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0105-
225 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0105-0111
225 CLIP; AIR TANK HARNESS
(B) L=250 		1-09707-126-0 01 1 0105-0111
225 CLIP; AIR TANK HARNESS
(B) L=250 		1-09707-126-0 02 1 0105-0111
225 CLIP; AIR TANK HARNESS
(C) L=180 		1-09707-162-1 04 1 0105-
230 CLIP; C/MBR HARNESS
(A) ID=25 L=54 		1-09700-392-1 01 1 0105-
230 CLIP; C/MBR HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0105-
230 CLIP; C/MBR HARNESS
(C) ID=22 L=52 		9-09917-431-0 02 1 0105-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 0105-
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) L=180 		1-09707-162-1 01 1 0105-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(C) ID=21 L=28 		1-09700-673-1 02 1 0106-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0105-

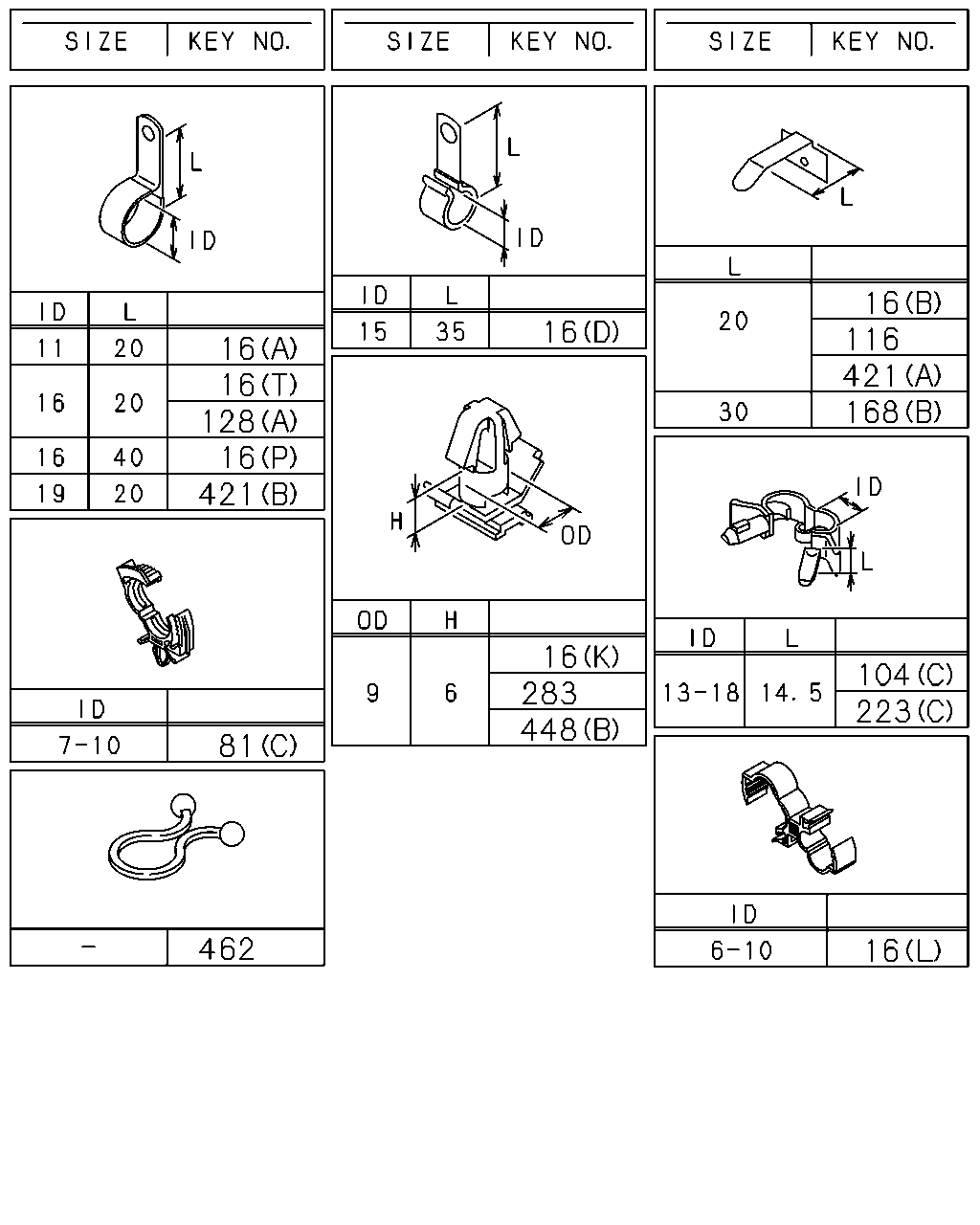

çizim 78340
16 116 421 168 16 16 16 128 16 421 16 283 448 104 223 81 462 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 07 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0107-0301
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 10 1 0302-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 10 1 0105-0301
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0302-
16 CLIP; HARNESS
(D) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
16 CLIP; HARNESS
(G) ID=4.8 		1-09701-218-0 01 1 0105-
16 CLIP; HARNESS
(H) ID=26 L=26 		1-09701-236-0 01 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 05 1 0107-0301
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0302-
16 CLIP; HARNESS
(I) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(Z) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(J) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 0105-0301
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 02 1 0302-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 02 1 0105-0106
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 04 1 0107-0301
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 03 1 0302-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(L) ID=6-10 & 6-10 		1-09709-192-1 01 1 0105-0106
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 02 1 0105-0301
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 01 1 0302-
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 03 1 0105-0301
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 02 1 0302-
16 CLIP; HARNESS
(N) L=140 		5-09707-031-1 02 1 0105-
16 CLIP; HARNESS
(O) ID=14-20 		8-97061-603-0 03 1 0105-0106
16 CLIP; HARNESS
(U) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 0105-
16 CLIP; HARNESS
(T) ID=16 L=20 		9-09525-535-0 01 1 0105-0205
16 CLIP; HARNESS
(T) ID=16 L=20 		9-09525-535-0 01 1 0105-0205
16 CLIP; HARNESS
(T) ID=16 L=20 		9-09525-535-0 02 1 0206-
16 CLIP; HARNESS
(P) ID=16 L=40 		9-09525-576-0 01 1 0105-
16 CLIP; HARNESS
(Q) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(Q) ID=14 L=44 		9-09917-427-0 02 1 0105-
16 CLIP; HARNESS
(Q) ID=14 L=44 		9-09917-427-0 03 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 01 1 0302-
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0107-0301
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 02 1 0105-
16 CLIP; HARNESS
(R) ID=20 L=50 		9-09917-430-0 13 1 0105-
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 04 1 0302-
16 CLIP; HARNESS
(S) ID=22 L=52 		9-09917-431-0 03 1 0105-0106
16 CLIP; HARNESS
(S) ID=22 L=52 		9-09917-431-0 05 1 0107-0301
16 CLIP; HARNESS
(S) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(H) ID=26 L=26 		1-09701-236-0 01 1 0109-
16 CLIP; HARNESS
(V) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
(W) ID=42.7 L=38 		1-09700-583-1 01 1 0302-0402
16 CLIP; HARNESS
(W) ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(M) L=250 		5-09707-030-1 03 1 0302-
16 CLIP; HARNESS
(X) ID=21 L=24 		8-94176-807-1 01 1 0302-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (Q) ID=14 L=44 		9-09917-427-0 05 1 0302-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 05 1 0302-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (B) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0105-
81 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0105-
81 CLIP; HARNESS
(C) ID=7-10 		8-94472-578-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-0112
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0105-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0201-0301
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0201-0301
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 12 1 0302-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0105-
223 CLIP; AIR TANK HARNESS
(A) L=700 		1-09707-190-0 02 1 0105-
223 CLIP; AIR TANK HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 02 1 0105-0111
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0105-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(C) ID=21 L=28 		1-09700-673-1 02 1 0106-
448 CLIP; AIR SUSP HARNESS
(C) L=250 		1-09707-126-0 01 1 0105-0304
448 CLIP; AIR SUSP HARNESS
(D) L=350 		1-09707-183-0 01 1 0305-
448 CLIP; AIR SUSP HARNESS
(A) L=180 		1-09707-162-1 05 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0301-
çizim 78784
150 38 242 38 313 38 38 38 242 313 38 313 38 516 133 358 239 38 88 38 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M6X8 		0-20800-608-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0105-0512
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0512
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 05 1 0105-0106
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0301
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 03 1 0302-0512
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0112
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0112
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0112
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0301
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0301
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0301
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0301
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0403
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0403
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0403
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0403
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0404-0512
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 03 1 0105-0403
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 02 1 0404-0512
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 09 1 0105-0512
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 09 1 0601-
38 BOLT; CLIP,HARNESS
(E) M12X16 FLANGE 		1-09044-079-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105-
38 BOLT; CLIP,HARNESS
(H) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(H) M8X35 FLANGE 		0-28680-835-0 01 1 0201-0512
38 BOLT; CLIP,HARNESS
(H) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 06 1 0208-0301
38 BOLT; CLIP,HARNESS
(I) M8X25 FLANGE 		0-28080-825-0 01 1 0302-0512
38 BOLT; CLIP,HARNESS
(I) M8X25 FLANGE 		0-28050-825-0 01 1 0601-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0105-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
150 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 01 1 0105-0512
150 BOLT; CLIP
M6X12 FLANGE 		0-28050-612-0 01 1 0601-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0105-0512
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0301
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0301
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0302-0512
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 0302-0512
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0512
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0105-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
çizim 79263
5 185 1 1 524 219 294 340 219 530 178 178 178 178 423 119 64 178 133 510
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0201-
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=50 		5-09360-835-0 01 1 0212-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0105-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0105-
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0105-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0105-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0105-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0105-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0105-0207
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0105-
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0105-0106
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0105-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0105-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0302-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0302-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0105-0207
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0208-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0302-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0302-
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 0105-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 06 1 0208-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0302-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0106-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0106-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0212-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0105-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0105-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-1 03 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0105-0207
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 0208-
530 SEAL; HARNESS
100X40 		1-72498-022-0 03 1 0206-0301
530 SEAL; HARNESS
100X40 		1-72498-022-0 03 1 0302-0310
530 SEAL; HARNESS
100X40 		1-72498-022-1 02 1 0311-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-1 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
