0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#124085) — 106 parça

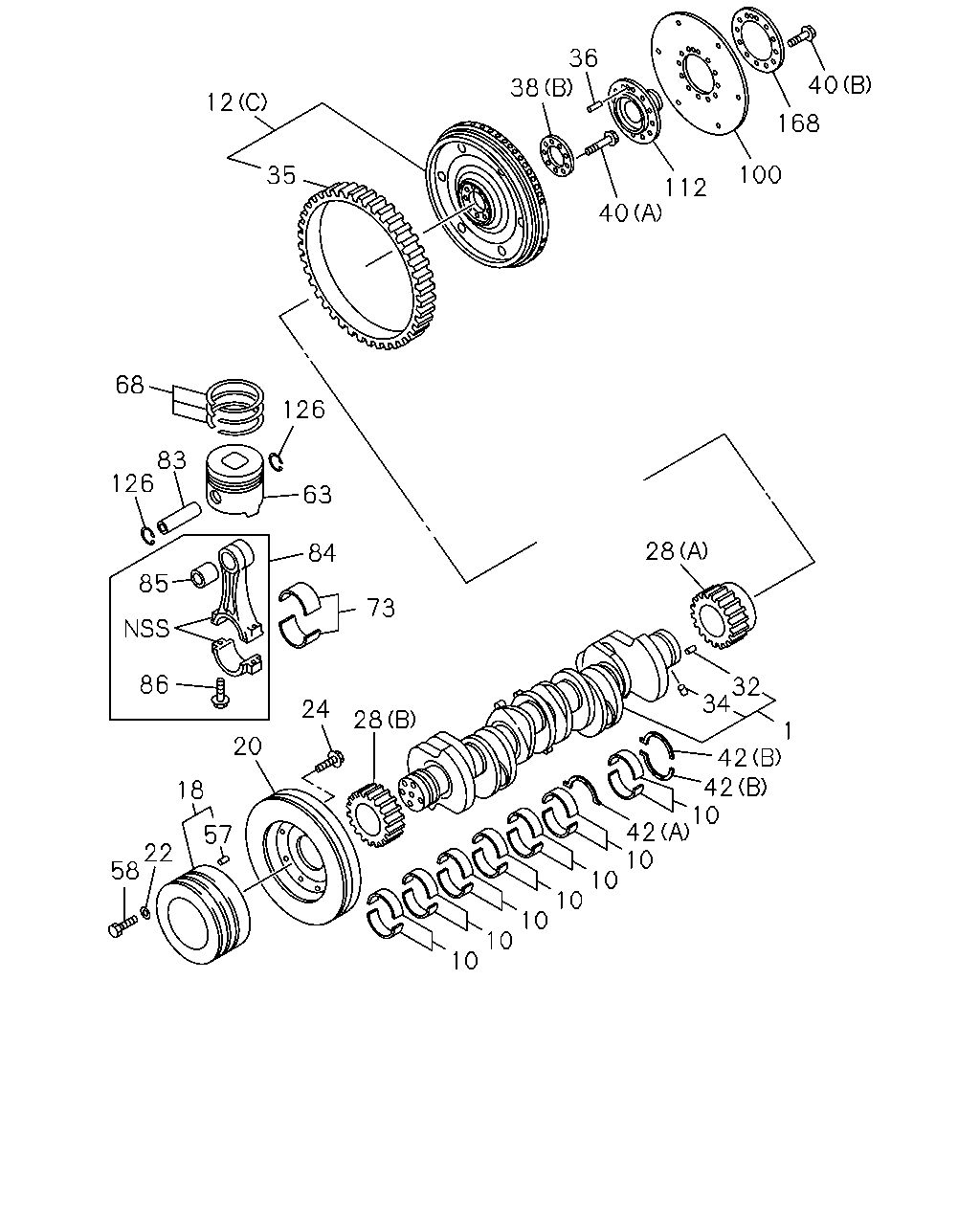

40 168 100 112 40 36 38 12 35 126 68 63 83 126 85 84 73 24 28 28 32 34 1 42 42 10 42 10 10 10 10 10 10 20 86 57 18 22 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97603-004-0	01	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1307-	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97602-463-2	01	1	1307-1312	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97602-463-2	01	1	1401-	●	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97604-545-2	01	1	1307-1312	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97604-545-2	01	1	1401-	●	●
12	FLYWHEEL A/T<X9D> (C)	8-97610-681-1	01	1	1307-1312	●
12	FLYWHEEL A/T<X9D> (C)	8-97610-681-1	01	1	1401-	●	●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1307-	●
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1307-	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1307-	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1307-	●
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	1307-	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1307-	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1307-	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1307-	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1307-1312	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1401-	●	●
36	PIN; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	1307-1312	●
36	PIN; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	1401-	●	●
36	PIN; FLYWHEEL A/T<X9D> OD=6 L=24	9-09878-532-0	01	1	1307-1312	●
36	PIN; FLYWHEEL A/T<X9D> OD=6 L=24	9-09878-532-0	01	1	1401-	●	●
38	WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=55 OD=110	8-94397-496-1	01	1	1307-1312	●
38	WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=55 OD=110	8-94397-496-1	01	1	1401-	●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1307-1312	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1401-	●	●
40	BOLT; FLYWHEEL (A) M16X62	8-94393-070-2	08	1	1307-	●
40	BOLT; FLYWHEEL A/T<X9D> (B) M12X30	8-11505-501-0	12	1	1307-1312	●
40	BOLT; FLYWHEEL A/T<X9D> (B) M12X30	8-11505-501-0	12	1	1401-	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1307-	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1307-	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1307-	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1307-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1307-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1307-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1307-	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1307-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1307-	●
84	ROD ASM; CONN	8-98018-425-3	06	1	1307-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1307-	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1307-	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-782-1	01	1	1307-1312	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-782-1	01	1	1401-	●	●
100	PLATE; FLEX A/T<X9D>	8-97500-320-0	01	1	1307-1312	●
100	PLATE; FLEX A/T<X9D>	8-97500-320-0	01	1	1401-	●	●
112	ADAPTER; FLEX PLATE A/T<X9D>	8-97500-319-0	01	1	1307-1312	●
112	ADAPTER; FLEX PLATE A/T<X9D>	8-97500-319-0	01	1	1401-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1307-	●
168	PLATE; WEAR A/T<X9D> ID=119 OD=177	8-29538-157-0	01	1	1307-1312	●
168	PLATE; WEAR A/T<X9D> ID=119 OD=177	8-29538-157-0	01	1	1401-	●	●

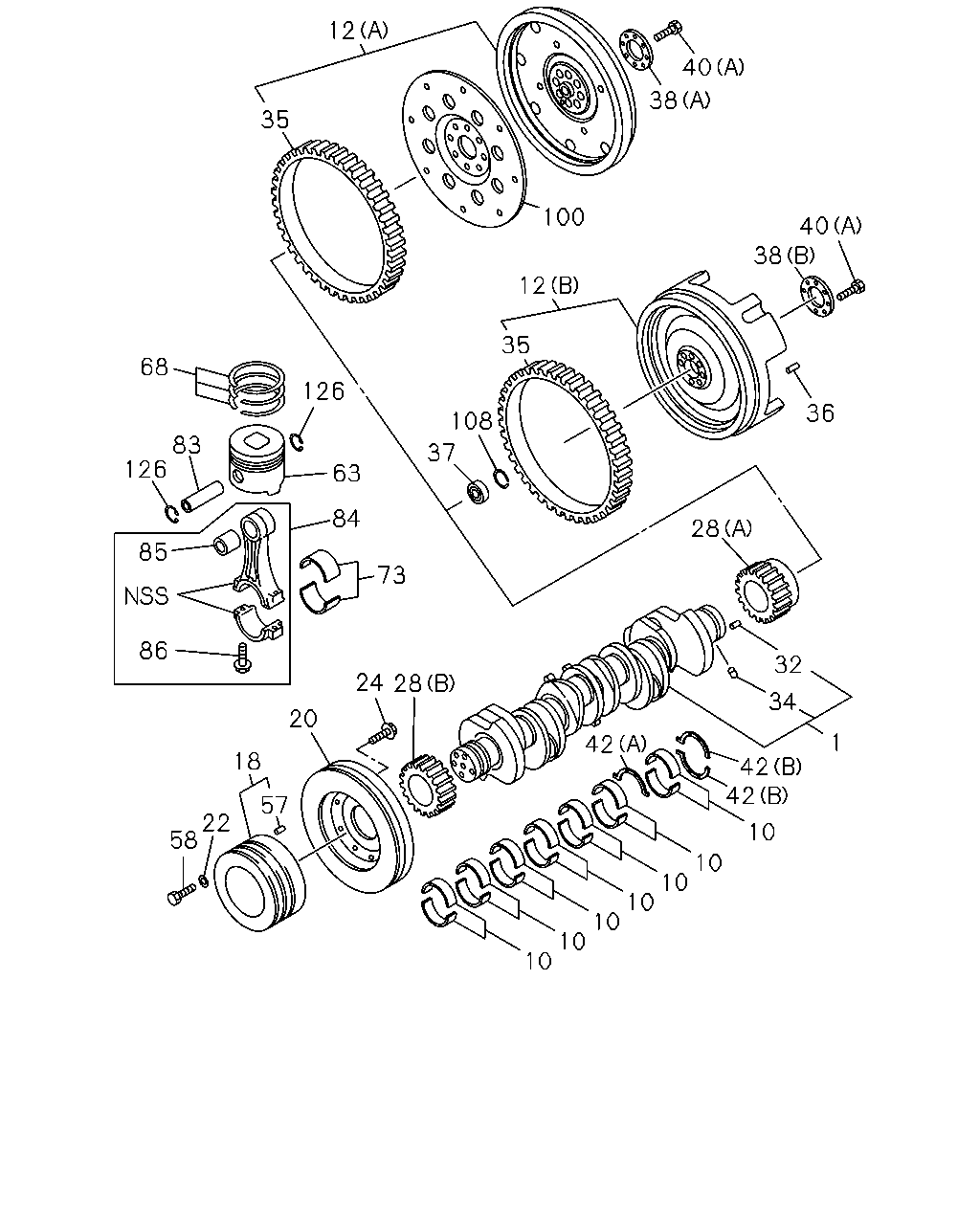

12 35 100 38 40 40 38 36 28 12 35 108 37 126 68 83 126 85 63 84 73 28 24 20 18 57 22 58 10 10 10 10 10 10 10 42 42 34 1 32 42 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97603-004-0	01	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1307-	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97602-463-2	01	1	1307-1312	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97602-463-2	01	1	1401-	●	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97604-545-2	01	1	1307-1312	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97604-545-2	01	1	1401-	●	●
12	FLYWHEEL A/T<X9D> (C)	8-97610-681-1	01	1	1307-1312	●
12	FLYWHEEL A/T<X9D> (C)	8-97610-681-1	01	1	1401-	●	●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1307-	●
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1307-	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1307-	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1307-	●
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	1307-	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1307-	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1307-	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1307-	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1307-1312	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1401-	●	●
36	PIN; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	1307-1312	●
36	PIN; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	1401-	●	●
36	PIN; FLYWHEEL A/T<X9D> OD=6 L=24	9-09878-532-0	01	1	1307-1312	●
36	PIN; FLYWHEEL A/T<X9D> OD=6 L=24	9-09878-532-0	01	1	1401-	●	●
37	BEARING; PILOT,TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94392-288-0	01	1	1307-1312	●
37	BEARING; PILOT,TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94392-288-0	01	1	1401-	●	●
37	BEARING; PILOT,TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-157-0	01	1	1307-1312	●
37	BEARING; PILOT,TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-157-0	01	1	1401-	●	●
38	WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=55 OD=110	8-94397-496-1	01	1	1307-1312	●
38	WASHER; FLYWHEEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=55 OD=110	8-94397-496-1	01	1	1401-	●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1307-1312	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1401-	●	●
40	BOLT; FLYWHEEL (A) M16X62	8-94393-070-2	08	1	1307-	●
40	BOLT; FLYWHEEL A/T<X9D> (B) M12X30	8-11505-501-0	12	1	1307-1312	●
40	BOLT; FLYWHEEL A/T<X9D> (B) M12X30	8-11505-501-0	12	1	1401-	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1307-	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1307-	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1307-	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1307-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1307-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1307-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1307-	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1307-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1307-	●
84	ROD ASM; CONN	8-98018-425-3	06	1	1307-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1307-	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1307-	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-782-1	01	1	1307-1312	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-782-1	01	1	1401-	●	●
100	PLATE; FLEX A/T<X9D>	8-97500-320-0	01	1	1307-1312	●
100	PLATE; FLEX A/T<X9D>	8-97500-320-0	01	1	1401-	●	●
108	RING; SNAP,BRG SET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	1307-1312	●
108	RING; SNAP,BRG SET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	1401-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1307-	●
