◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11549 - FRR AUST/NZ EURO5 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#124070) — 296 parça

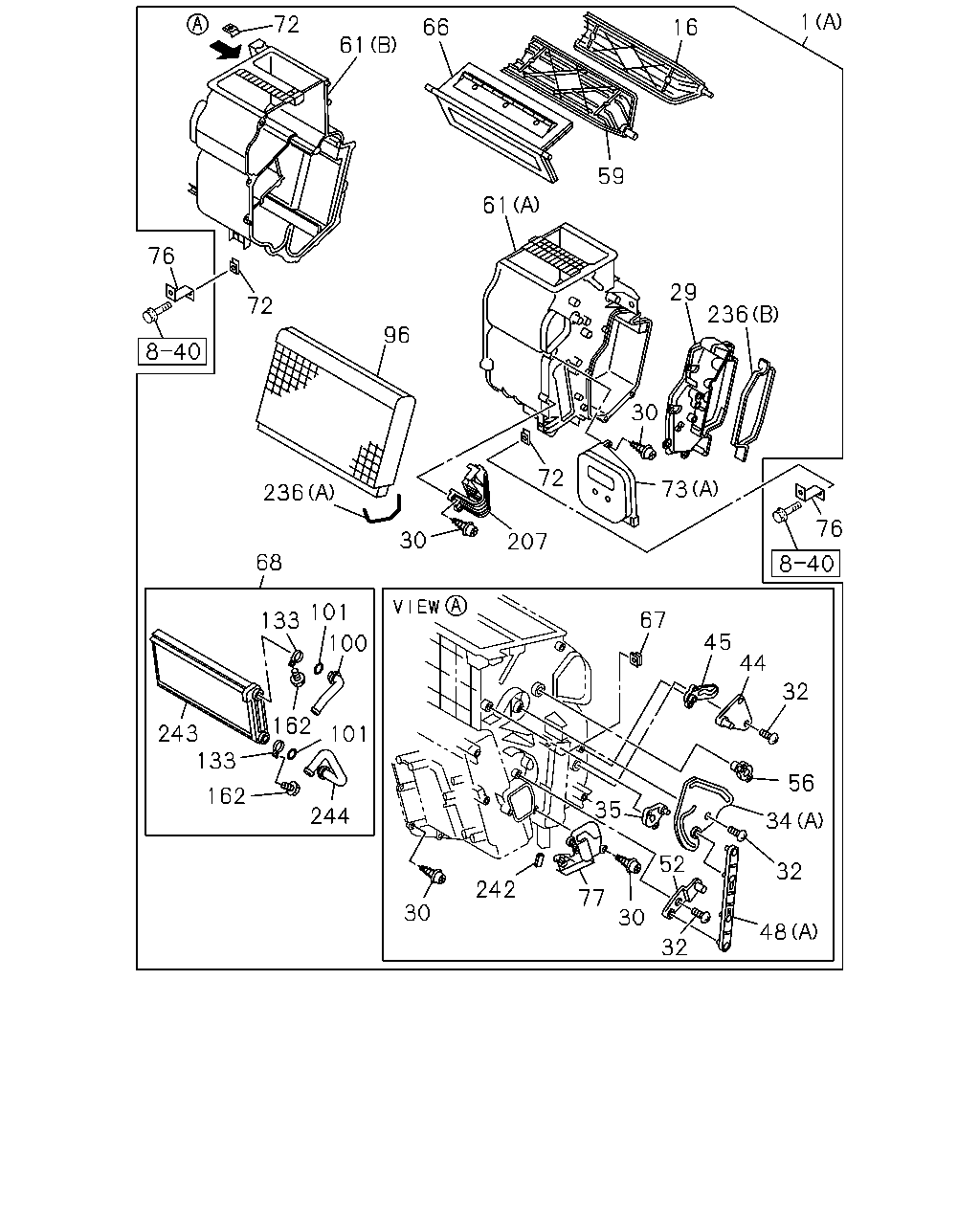

çizim 364096
72 66 61 61 59 16 1 29 96 72 76 236 68 30 207 72 30 236 73 76 45 67 44 32 56 34 32 48 30 77 32 52 35 30 242 244 162 133 243 162 100 101 133 101
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1307-1312 ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1401- ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 1307-1312 ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 1401- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1307-1312 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1401- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-387-0 01 1 1307-1312 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-387-0 01 1 1401- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1307-1312 ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1401- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1307-1312 ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1401- ● ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 1307-1312 ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 1401- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1307-1312 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1401- ● ●
32 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-416-0 01 1 1307-1312 ●
32 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-416-0 01 1 1401- ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1307-1312 ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1401- ● ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-467-0 01 1 1307-1312 ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-467-0 01 1 1401- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-389-0 01 1 1307-1312 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-389-0 01 1 1401- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-392-0 01 1 1307-1312 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-392-0 01 1 1401- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 1307-1312 ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 1401- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 1307-1312 ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 1401- ● ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-468-0 01 1 1307-1312 ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-468-0 01 1 1401- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1307-1312 ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1401- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 1307-1312 ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 1401- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-393-0 01 1 1307-1312 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-393-0 01 1 1401- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-386-0 01 1 1307-1312 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-386-0 01 1 1401- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98047-465-0 01 1 1307-1312 ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98047-465-0 01 1 1401- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1307-1312 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1401- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-376-0 01 1 1307-1312 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-376-0 01 1 1401- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-385-0 01 1 1307-1312 ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-385-0 01 1 1401- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1307-1312 ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1401- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-380-0 01 1 1307-1312 ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-380-0 01 1 1401- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 		8-98047-428-0 03 1 1307-1312 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 		8-98047-428-0 03 1 1401- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98074-118-0 01 1 1307-1312 ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98074-118-0 01 1 1401- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98072-542-0 01 1 1307-1312 ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98072-542-0 01 1 1401- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98009-742-1 02 1 1307-1312 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98009-742-1 02 1 1401- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-414-0 01 1 1307-1312 ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-414-0 01 1 1401- ● ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1307-1312 ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1401- ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-528-0 01 1 1307-1312 ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-528-0 01 1 1401- ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-531-0 02 1 1307-1312 ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-531-0 02 1 1401- ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-530-0 02 1 1307-1312 ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-530-0 02 1 1401- ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-529-0 02 1 1307-1312 ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-529-0 02 1 1401- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1307-1312 ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1401- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-420-0 01 1 1307-1312 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-420-0 01 1 1401- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-421-0 01 1 1307-1312 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-421-0 01 1 1401- ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1307-1312 ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1401- ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-508-0 01 1 1307-1312 ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-508-0 01 1 1401- ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-510-0 01 1 1307-1312 ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-510-0 01 1 1401- ● ●

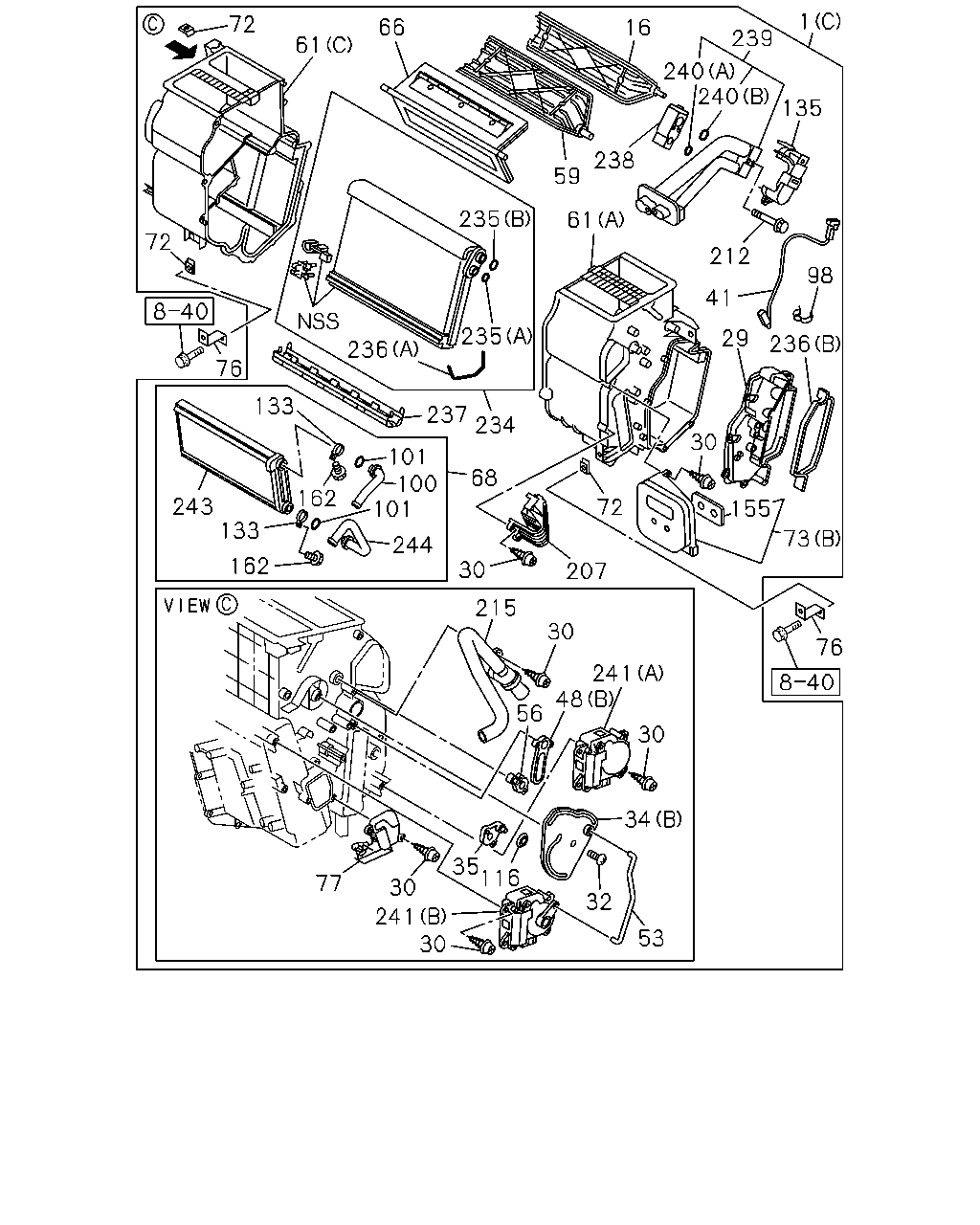

çizim 365621
72 61 66 72 76 133 243 133 162 162 101 100 101 244 236 235 235 237 234 68 30 207 72 61 59 238 16 240 239 240 135 1 212 41 29 236 98 30 155 73 76 215 30 241 48 56 35 116 241 77 30 30 32 53 34 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1307-1312 ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1401- ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 1307-1312 ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 1401- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1307-1312 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1401- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-387-0 01 1 1307-1312 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-387-0 01 1 1401- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1307-1312 ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1401- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1307-1312 ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1401- ● ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 1307-1312 ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 1401- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1307-1312 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1401- ● ●
32 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-416-0 01 1 1307-1312 ●
32 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-416-0 01 1 1401- ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1307-1312 ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1401- ● ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-467-0 01 1 1307-1312 ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-467-0 01 1 1401- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-389-0 01 1 1307-1312 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-389-0 01 1 1401- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-392-0 01 1 1307-1312 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-392-0 01 1 1401- ● ●
41 THERMOSTAT; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-475-0 01 1 1307-1312 ●
41 THERMOSTAT; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-475-0 01 1 1401- ● ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-468-0 01 1 1307-1312 ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-468-0 01 1 1401- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1307-1312 ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1401- ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-98047-469-0 01 1 1307-1312 ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-98047-469-0 01 1 1401- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-393-0 01 1 1307-1312 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-393-0 01 1 1401- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-386-0 01 1 1307-1312 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-386-0 01 1 1401- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98047-465-0 01 1 1307-1312 ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98047-465-0 01 1 1401- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1307-1312 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1401- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-376-0 01 1 1307-1312 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-376-0 01 1 1401- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-385-0 01 1 1307-1312 ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-385-0 01 1 1401- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-380-0 01 1 1307-1312 ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-380-0 01 1 1401- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 		8-98047-428-0 03 1 1307-1312 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 		8-98047-428-0 03 1 1401- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98074-118-0 01 1 1307-1312 ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98074-118-0 01 1 1401- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98072-542-0 01 1 1307-1312 ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98072-542-0 01 1 1401- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98009-742-1 02 1 1307-1312 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98009-742-1 02 1 1401- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-414-0 01 1 1307-1312 ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-414-0 01 1 1401- ● ●
98 CLIP; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-477-0 01 1 1307-1312 ●
98 CLIP; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-477-0 01 1 1401- ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-528-0 01 1 1307-1312 ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-528-0 01 1 1401- ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-531-0 02 1 1307-1312 ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-531-0 02 1 1401- ● ●
116 BUSHING; LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-98045-897-0 01 1 1307-1312 ●
116 BUSHING; LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-98045-897-0 01 1 1401- ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-530-0 02 1 1307-1312 ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-530-0 02 1 1401- ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-384-0 01 1 1307-1312 ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-384-0 01 1 1401- ● ●
155 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-431-0 01 1 1307-1312 ●
155 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-431-0 01 1 1401- ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-529-0 02 1 1307-1312 ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-529-0 02 1 1401- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1307-1312 ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1401- ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61 		8-98047-415-0 02 1 1307-1312 ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61 		8-98047-415-0 02 1 1401- ● ●
215 DUCT ASM; SUB
FULLAUTO AIR CONDITIONER(C68) 		8-98047-476-0 01 1 1307-1312 ●
215 DUCT ASM; SUB
FULLAUTO AIR CONDITIONER(C68) 		8-98047-476-0 01 1 1401- ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-116-1 01 1 1307-1312 ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-116-1 01 1 1401- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7 		8-97095-907-0 01 1 1307-1312 ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7 		8-97095-907-0 01 1 1401- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 1307-1312 ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 1401- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-420-0 01 1 1307-1312 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-420-0 01 1 1401- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-421-0 01 1 1307-1312 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-421-0 01 1 1401- ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-382-0 01 1 1307-1312 ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-382-0 01 1 1401- ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-383-0 01 1 1307-1312 ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-383-0 01 1 1401- ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-115-0 01 1 1307-1312 ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-115-0 01 1 1401- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4 		8-97095-906-0 01 1 1307-1312 ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4 		8-97095-906-0 01 1 1401- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 1307-1312 ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 1401- ● ●
241 MOTOR ASM; SERVO
FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-473-0 01 1 1307-1312 ●
241 MOTOR ASM; SERVO
FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-473-0 01 1 1401- ● ●
241 MOTOR ASM; SERVO
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-474-0 01 1 1307-1312 ●
241 MOTOR ASM; SERVO
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-474-0 01 1 1401- ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-508-0 01 1 1307-1312 ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-508-0 01 1 1401- ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-510-0 01 1 1307-1312 ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-510-0 01 1 1401- ● ●

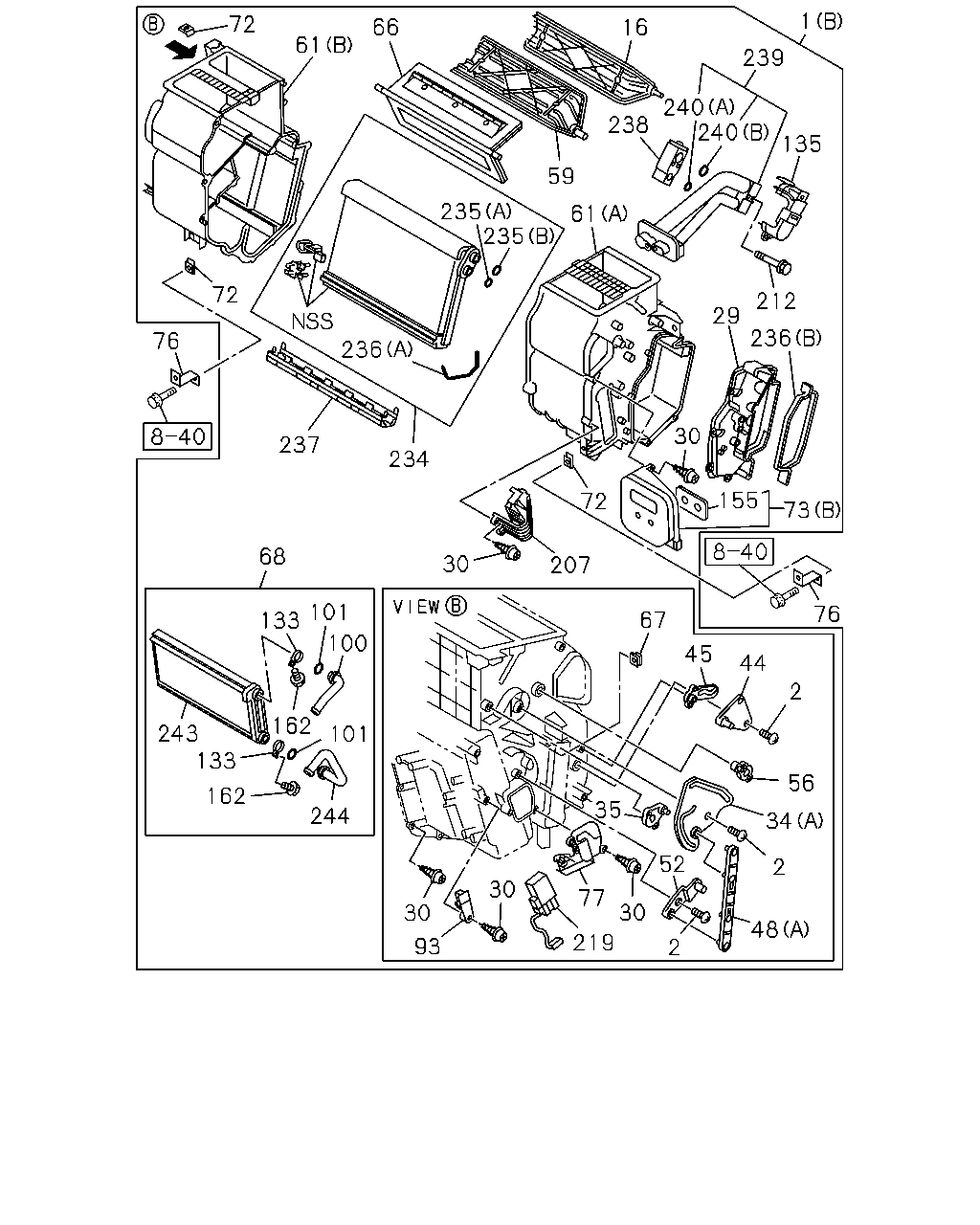

çizim 366537
72 66 16 1 239 240 238 59 235 61 72 76 236 237 234 68 30 207 72 30 29 212 236 135 240 61 235 133 100 101 101 162 243 133 162 244 30 30 93 77 219 52 35 2 44 45 67 56 34 2 48 76 155 73 30 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1307-1312 ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1401- ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 1307-1312 ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 1401- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1307-1312 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1401- ● ●
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 1307-1312 ●
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 1401- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-387-0 01 1 1307-1312 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-387-0 01 1 1401- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1307-1312 ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1401- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1307-1312 ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1401- ● ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 1307-1312 ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 1401- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1307-1312 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1401- ● ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-467-0 01 1 1307-1312 ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-467-0 01 1 1401- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-389-0 01 1 1307-1312 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-389-0 01 1 1401- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-392-0 01 1 1307-1312 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-392-0 01 1 1401- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 1307-1312 ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 1401- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 1307-1312 ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 1401- ● ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-468-0 01 1 1307-1312 ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-468-0 01 1 1401- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1307-1312 ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1401- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 1307-1312 ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 1401- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-393-0 01 1 1307-1312 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-393-0 01 1 1401- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-386-0 01 1 1307-1312 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-386-0 01 1 1401- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98047-465-0 01 1 1307-1312 ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98047-465-0 01 1 1401- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1307-1312 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1401- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-376-0 01 1 1307-1312 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-376-0 01 1 1401- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-385-0 01 1 1307-1312 ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-385-0 01 1 1401- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1307-1312 ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1401- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-380-0 01 1 1307-1312 ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-380-0 01 1 1401- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 		8-98047-428-0 03 1 1307-1312 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 		8-98047-428-0 03 1 1401- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98074-118-0 01 1 1307-1312 ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98074-118-0 01 1 1401- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98072-542-0 01 1 1307-1312 ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98072-542-0 01 1 1401- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98009-742-1 02 1 1307-1312 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98009-742-1 02 1 1401- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-414-0 01 1 1307-1312 ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-414-0 01 1 1401- ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 1307-1312 ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 1401- ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-528-0 01 1 1307-1312 ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-528-0 01 1 1401- ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-531-0 02 1 1307-1312 ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-531-0 02 1 1401- ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-530-0 02 1 1307-1312 ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-530-0 02 1 1401- ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-384-0 01 1 1307-1312 ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-384-0 01 1 1401- ● ●
155 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-431-0 01 1 1307-1312 ●
155 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-431-0 01 1 1401- ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-529-0 02 1 1307-1312 ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-529-0 02 1 1401- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1307-1312 ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1401- ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61 		8-98047-415-0 02 1 1307-1312 ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61 		8-98047-415-0 02 1 1401- ● ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-429-0 01 1 1307-1312 ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-429-0 01 1 1401- ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-116-1 01 1 1307-1312 ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-116-1 01 1 1401- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7 		8-97095-907-0 01 1 1307-1312 ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7 		8-97095-907-0 01 1 1401- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 1307-1312 ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 1401- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-420-0 01 1 1307-1312 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-420-0 01 1 1401- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-421-0 01 1 1307-1312 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-421-0 01 1 1401- ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-382-0 01 1 1307-1312 ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-382-0 01 1 1401- ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-383-0 01 1 1307-1312 ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-383-0 01 1 1401- ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-115-0 01 1 1307-1312 ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-115-0 01 1 1401- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4 		8-97095-906-0 01 1 1307-1312 ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4 		8-97095-906-0 01 1 1401- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 1307-1312 ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 1401- ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-508-0 01 1 1307-1312 ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-508-0 01 1 1401- ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-510-0 01 1 1307-1312 ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-510-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
